Vega VEGABAR 81 User manual

Quick setup guide
Pressure transmitter with chemical seal
VEGABAR 81
HART and accumulator pack
Document ID: 46300

2
Contents
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
Contents
1 For your safety
1.1 Authorised personnel ....................................................................................................... 3
1.2 Appropriate use................................................................................................................ 3
1.3 Warning about incorrect use............................................................................................. 3
1.4 General safety instructions............................................................................................... 3
1.5 CE conformity................................................................................................................... 3
1.6 Permissible process pressure .......................................................................................... 4
1.7 NAMUR recommendations .............................................................................................. 4
1.8 Environmental instructions ............................................................................................... 4
2 Product description
2.1 Conguration.................................................................................................................... 5
3 Mounting
3.1 General instructions for use of the instrument .................................................................. 6
3.2 Ventilation and pressure compensation............................................................................ 6
4 Connecting to power supply
4.1 Connection of the battery charger .................................................................................... 8
4.2 Wiring plan ....................................................................................................................... 8
5 Set up with the display and adjustment module
5.1 Insert display and adjustment module............................................................................ 10
5.2 Parameter adjustment - Quick setup .............................................................................. 10
5.3 Parameter adjustment - Extended adjustment................................................................ 12
6 Supplement
6.1 Technical data ................................................................................................................ 15
Information:
This quick setup guide enables quick setup and commissioning of
your instrument.
Youcanndsupplementaryinformationinthecorresponding,more
detailed Operating Instructions Manual as well as the Safety Manual
thatcomeswithinstrumentswithSILqualication.Thesemanualsare
available on the supplied DVD or in the download area of "www.vega.
com".
Operating instructions VEGABAR 81 - HART and power pack:
Document-ID 45026
Editing status of the quick setup guide: 2016-02-04

3
1 For your safety
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
1 For your safety
1.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
1.2 Appropriate use
The VEGABAR 81 is a pressure transmitter for process pressure and
hydrostatic level measurement. Due to the integrated accumulator the
instrument is particularly suitable as a portable measuring system or
test sensor for special applications.
Youcannddetailedinformationabouttheareaofapplicationin
chapter "Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
1.3 Warning about incorrect use
Inappropriate or incorrect use of the instrument can give rise to
application-specichazards,e.g.vesseloverllordamagetosystem
components through incorrect mounting or adjustment. Also the pro-
tectivecharacteristicsoftheinstrumentcanbeinuenced.
1.4 General safety instructions
This is a high-tech instrument requiring the strict observance of stand-
ard regulations and guidelines. The user must take note of the safety
instructionsinthisoperatinginstructionsmanual,thecountry-specic
installation standards as well as all prevailing safety regulations and
accident prevention rules.
Theinstrumentmustonlybeoperatedinatechnicallyawlessand
reliable condition.The operator is responsible for trouble-free opera-
tion of the instrument.
Duringtheentiredurationofuse,theuserisobligedtodeterminethe
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
1.5 CE conformity
ThedevicefulllsthelegalrequirementsoftheapplicableECguide-
lines.ByaxingtheCEmarking,weconrmsuccessfultestingofthe
product.
YoucanndtheCECerticateofConformityinthedownloadsection
of our homepage.

4
1 For your safety
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
1.6 Permissible process pressure
Thepermissibleprocesspressureisspeciedonthetypelabelwith
"Processpressure",seechapter"Conguration".Forsafetyreasons,
this range may not be exceeded. This applies even if a measuring cell
with a measuring range (order-related) higher than the permissible
pressurerangeoftheprocessttingisinstalled.
1.7 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany.The published NAMUR recommendations are
acceptedasthestandardineldinstrumentation.
ThedevicefulllstherequirementsofthefollowingNAMURrecom-
mendations:
• NE 21 – Electromagnetic compatibility of equipment
• NE 43 – Signal level for malfunction information from measuring
transducers
• NE53–Compatibilityofelddevicesanddisplay/adjustment
components
• NE107–Self-monitoringanddiagnosisofelddevices
For further information see www.namur.de.
1.8 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfulllthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

5
2 Product description
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
2 Product description
2.1 Conguration
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
2
1
13
14
12
10
11
5
3
6
4
7
8
9
Fig. 1: Layout of the type label (example)
1 Instrument type
2 Product code
3 Field for approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Measuring range
7 Permissible process pressure
8 Material, wetted parts
9 Order number
10 Serial number of the instrument
11 Data-Matrix-Code for smartphone app
12 Symbol of the device protection class
13 ID numbers, instrument documentation
14 Reminder to observe the instrument documentation
The type label contains the serial number of the instrument. With it
youcanndthefollowinginstrumentdataonourhomepage:
• Product code (HTML)
• Delivery date (HTML)
• Order-specicinstrumentfeatures(HTML)
• Operating instructions and quick setup guide at the time of ship-
ment (PDF)
• Order-specicsensordataforanelectronicsexchange(XML)
• Testcerticate(PDF)-optional
Go to www.vega.com "VEGA Tools" and "Instrument search". Enter
the serial number.
Alternatively,youcanaccessthedataviayoursmartphone:
• Download the smartphone app "VEGA Tools" from the "Apple App
Store" or the "Google Play Store"
• Scan the Data Matrix code on the type label of the instrument or
• Enter the serial number manually in the app
Type label
Serial number - Instru-
ment search

6
3 Mounting
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
3 Mounting
3.1 General instructions for use of the instrument
Protect your instrument against moisture ingress through the following
measures:
• Use the recommended cable (see chapter "Connecting to power
supply")
• Tighten the cable gland
• Whenmountinghorizontally,turnthehousingsothatthecable
gland points downward
• Loop the connection cable downward in front of the cable gland
Thisappliesmainlytooutdoorinstallations,inareaswherehumidityis
expected (e.g. through cleaning processes) and on cooled or heated
vessels.
3.2 Ventilation and pressure compensation
Thelterelementismountedintotheelectronicshousing.Ithasthe
following functions:
• Ventilation of the electronics housing
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
→ Incaseofhorizontalmounting,turnthehousingsothatthelter
element points downward after the instrument is installed. This
provides better protection against buildup.
1 2 3
6
6
6 6
6
5
4

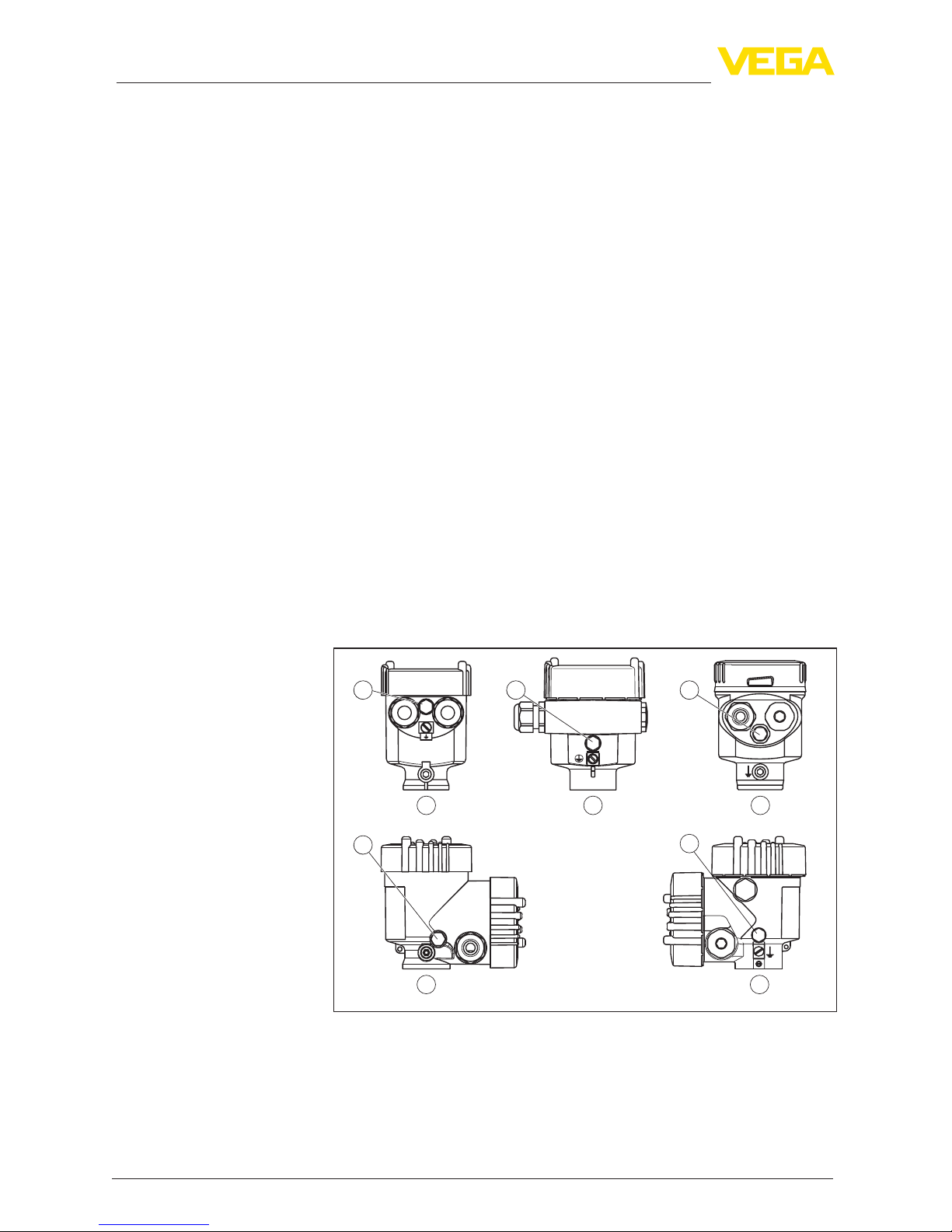

Fig. 2: Position of the lter element - non-Ex, Ex-ia and Ex-d-ia version
1 Single chamber housing plastic, stainless steel (precision casting)
2 Single chamber housing Aluminium
3 Single chamber housing, stainless steel electropolished
4 Double chamber housing plastic
5 Double chamber housing Aluminium
6 Filter element
Protection against mois-
ture
Instruments in non-Ex,
Ex-ia and Ex-d-ia version

7
3 Mounting
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
With the following instruments a blind plug is installed instead of the
lterelement:
• InstrumentsinprotectionIP66/IP68(1bar)-ventilationviacapil-
laries in non-detachable cable
• Instruments with absolute pressure

8
4 Connecting to power supply
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
4 Connecting to power supply
4.1 Connection of the battery charger
We recommended charging the integrated accumulator completely
beforesettinguptheinstrument.Youcanndthechargingtimein
chapter "Technical data".
Thebatterychargerispluggedintoasocketinthesupplyroom,see
chapter "Wiring plan".
The LEDs in the supply room show the charging process and condi-
tionoftheaccumulator,seechapter"Wiring plan".
4.2 Wiring plan
2
1
Fig. 3: Position of the power supply and electronics compartment
1 Supply room (accumulator)
2 Electronics compartment
5678
4...20mA
2
12
+
( ) (-)
1
Fig. 4: Electronics compartment, double chamber housing
1 Internal connection to the terminal compartment
2 Contact pins for the display and adjustment module
Overview
Electronics compartment

9
4 Connecting to power supply
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
2
4
3
5
0
5
1
6
2
7
3
8
4
9
modes
4 ON/OFF
3 ON/OFF 1h
1,2 OFF
Charge Accu
5..9 auto cycle
12
+
( ) (-)
1
Fig. 5: Supply room
1 Internal connection of the socket for the battery charger
2 Mode switch
3 LED green, charging process
4 LED yellow, charging status
5 Socket for the battery charger
The mode switch enables the selection of the following modes:
• 0=sensoro,LEDsshowtheaccumulatorstatus
• 1,2=sensoro,LEDso
• 3 = sensor on for 1 hour after pressing a key (delivery status)
• 4=sensorpermanentlyon,switchingon/oviabutton
• 5 = sensor is switched on every 30 min. for 3 min.
• 6 = sensor is switched on every hour for 3 min.
• 7 = sensor is switched on every 6 hours for 3 min.
• 8 = sensor is switched on every 12 hours for 3 min.
• 9 = sensor is switched on every 24 hours for 3 min.
ThegreenLEDcharacterizesthechargingprocess:
• LEDashes=Accumulatorischarging
• LEDlights=accumulatorisfull,batterychargershouldbe
unplugged (accumulator life time)
After pressing the key or changing the mode the yellow LED shows
the accumulator status for approximately 10 s as follows:
• LED lights = accumulator is full
• LEDashes=accumulatorshouldbecharged
• LEDo=accumulatorisempty
Supply room

10
5 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
5 Set up with the display and adjustment
module
5.1 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
andremovedagainatanytime.Youcanchooseanyoneoffourdier-
ent positions - each displaced by 90°. It is not necessary to interrupt
the power supply.
Proceed as follows:
1. Unscrew the housing lid
2. Place the display and adjustment module on the electronics in the
desired position and turn it to the right until it snaps in.
3. Screw housing lid with inspection window tightly back on
Disassembly is carried out in reverse order.
Thedisplayandadjustmentmoduleispoweredbythesensor,anad-
ditional connection is not necessary.
Fig. 6: Insertion of the display and adjustment module
Note:
Ifyouintendtoretrottheinstrumentwithadisplayandadjustment
moduleforcontinuousmeasuredvalueindication,ahigherlidwithan
inspection glass is required.
5.2 Parameter adjustment - Quick setup
Toquicklyandeasilyadaptthesensortotheapplication,select
the menu item "Quick setup" in the start graphic on the display and
adjustment module.
Carry out the following steps in the below sequence.

11
5 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
Youcannd"Extended adjustment" in the next sub-chapter.
1. Measurement loop name
Intherstmenuitemyouassignasuitablemeasurementloopname.
Permitted are names with max. 19 characters.
2. Application
Inthismenuitem,youactivate/deactivatetheslavefortheelectronic
dierentialpressureandselecttheapplication.Theapplicationcom-
prises process pressure and level measurement.
3. Units
In this menu item you determine the adjustment and temperature
units of the instrument. Depending on the selected application in the
menu item "Application",dierentadjustmentunitsareavailable.
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Zero adjustment
Inthismenuitemyoucarryoutthezeroadjustmentfortheprocess
pressure.
Enter the corresponding pressure value for 0 %.
6. Span adjustment
In this menu item you carry out the span adjustment for the process
pressure
Enter the corresponding pressure value for 100 %.
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Max. adjustment
In this menu item you carry out the max. adjustment for level
Enter the percentage value and the corresponding value for the max.
level.
6. Min. adjustment
In this menu item you carry out the min. adjustment for level
Enter the percentage value and the corresponding value for the min.
level.
Presettings
Quick setup - Process
pressure measurement
Quick setup - Level meas-
urement

12
5 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
Thequicksetupisnished.
5.3 Parameter adjustment - Extended adjustment
Fortechnicallydemandingmeasuringpoints,youcancarryout
extended settings in "Extended adjustment".
Themainmenuisdividedintovesectionswiththefollowingfunc-
tions:
Setup:Settings,e.g.,formeasurementloopname,application,units,
positioncorrection,adjustment,signaloutput
Display:Settings,e.g.,forlanguage,measuredvaluedisplay,lighting
Diagnosis:Information,e.g.oninstrumentstatus,pointer,measure-
mentreliability,simulation
Additional adjustments:PIN,date/time,reset,copyfunction
Info:Instrumentname,hardwareandsoftwareversion,dateofmanu-
facture,sensorfeatures
Note:
Foroptimumadjustmentofthemeasuringpoint,theindividualsub-
menu items in the main menu item "Setup" should be selected one
aftertheotherandprovidedwiththecorrectparameters.Ifpossible,
go through the items in the given sequence.
The procedure is described below.
The following submenu points are available:
The submenu points described below.
Menu - Setup
Menu item Parameter Default setting
Measurement
loop name
Sensor
Main menu
Menu and parameter
overview

13
5 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
Menu item Parameter Default setting
Application Application level
Slave for elec-
tronicdierential
pressure
Deactivated
Units Unit of measure-
ment
mbar (with nominal measuring range
≤400mbar)
bar (with nominal measuring rang-
es≥1bar)
Temperature unit °C
Position correc-
tion
0.00 bar
Adjustment Zero/Min.adjust-
ment
0.00 bar
0.00 %
Span/Max.adjust-
ment
Nominal measuring range in bar
100.00 %
Damping Integration time 0.0 s
Linearization Characteristics Linear
Current output Current output -
Mode
Output characteristics
4 … 20 mA
Reaction when malfunctions occur
≤3.6mA
Current output -
Min./Max.
3.8 mA
20.5 mA
Lock adjustment Released
Menu - Display
Menu item Default setting
Menu language Order-specic
Displayed value 1 Current output in %
Displayed value 2 Ceramic measuring cell: Measuring cell tempera-
ture in °C
Metallic measuring cell: Electronics temperature
in °C
Display format 1 and 2 Numberofpositionsafterthedecimalpoint,auto-
matically
Backlight Switched on
Menu - Diagnosis
Menu item Parameter Default setting
Sensor status -

14
5 Set up with the display and adjustment module
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
Menu item Parameter Default setting
Peak value Pressure Actual measured value
Temperature Actual temperature values from meas-
uringcell,electronics
Simulation Pressure
Menu - Additional adjustments
Menu item Parameter Default setting
PIN 0000
Date/Time Actualdate/Actualtime
Reset -
Copy in-
strument
settings
-
Special pa-
rameters
-
Scaling Scalingsize Volume in l
Scaling format 0 % corresponds to 0 l
100 % corresponds to 0 l
Current out-
put 1
Current output - Meas. vari-
able
Lin. percent - Level
Current output - Adjustment 0 … 100 % correspond to
4 … 20 mA
Current out-
put 2
Current output - Meas. vari-
able
Measuring cell temperature
(ceramic measuring cell)
Current output - Adjustment 0 … 100 °C correspond to
4 … 20 mA
HART mode Address 0
Menu - Info
Menu item Parameter
Device name VEGABAR 8.
Instrument version Hardware and software version
Factory calibration
date
Date
Sensor characteristics Order-speciccharacteristics

15
6 Supplement
VEGABAR 81 • HART and accumulator pack
46300-EN-160212
6 Supplement
6.1 Technical data
Electromechanical data - version IP 66/IP 67 and IP 66/IP 68; 0.2 bar
Cable entry
ƲM20 x 1.5 1xcableglandM20x1.5(cable:ø6…12mm),1x
blind plug M20 x 1.5
Ʋ½ NPT 1xblindplugNPT,1xclosingcap(red)½NPT
Wire cross-section (spring-loaded terminals)
Ʋ Massivewire,strandedwire 0.2 … 2.5 mm² (AWG 24 … 14)
ƲStranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)
External battery charger
Mains voltage 100 … 240 V AC
Output voltage 24 V DC
Output current (shortcircuit proof) max. 500 mA
Load current limitation 70 mA
DCplug(insideplus,outsideminus) 2.1 mm
Integrated accumulator
Type Lithium ions
Voltage 14.8 V
Accumulator capacity 4.7 Wh
Charging period from 0 % to 100 %
approx.
4 h
Operating time after 10 min. charging of
0 %
> 3 h
Operating time in mode 4 (sensor per-
manently on) with completely charged
accumulator
> 60 h
Temperature range
ƲCharge accumulator 0 … +45° C (+32 … +167 °F)
ƲAccumulator operation -20 … +60° C (-4 … +140 °F)
Temperature derating accumulator capacity
Ʋ+25° C (+77 °F) 100 %
Ʋ-10° C (+14 °F) 50 %

Printing date:
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
46300-EN-160212
All statements concerning scope of delivery, application, practical use and operat-
ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2016
Phone [phone]
Fax [phone]
E-mail: [email protected]
www.vega.com
