veito CH1200 LT User manual

PRECAUTIONS
CARBON INFRARED HEATER
CH1200 LT
User’s Manual
DESCRIPTION
OF USE
• Thank you for purchasing Veito Carbon Infrared Heater. Please read the instructions
thoroughly before using your heater.
• After reading the instructions, please keep it in a place accessible to all users.
• Ensure you read ‘Safety Precautions’ in advence and use the product corectly.
• We can not be liable for any damages caused by failure to observe these instructions.
• The product is specified for use with a power supply of 230V 50/60Hz
• This manual includes the product warrantly.
• Specifications and contents of this manual may be changed without prior notice, in
accordance with our commitment to product quality, design and control.

2
CONTENTS
Configuration and name
•Main body
Indication and operation part
•Operation and stop
How to diagnose safety device
Cleaning and maintenance
Storage Instructions
Troubleshooting
Wiring diagram
Specification
Product warranty
Safety Precautions
Precautions for installation and before use
•Precautions for install
•How to install
•How to use power
3
7
7
7
8
8
8
8
8
9
9
9
10
10
10
11

PRECAUTIONS
Safety Precautions
!
!
!
These precautions are designed for keeping users safe and preventing material damage.
Be sure to read them and use the product correctly.
• There are 3 classifications of safety precautions and they are listed in the box below.
Risk
Warning
Caution
Possiblity of death or severe injury in the event of mishandling.
Possiblity of death or severe injury in the event of mishandling.
Possiblity of injury and/or material damage in the event of mishandling.
*Meaning of picture signs
!
Indicate prohibition Indicate contents that people must carry out
!Risk *After reading this, be sure to keep it at a place where other users can refer to it at any time.
(Can cause explosion)
Do not leave or use
pressure vesel around
heater
3

4
WARNING
!*After reading this, be sure to keep it at a place where other users can refer to it at any time.

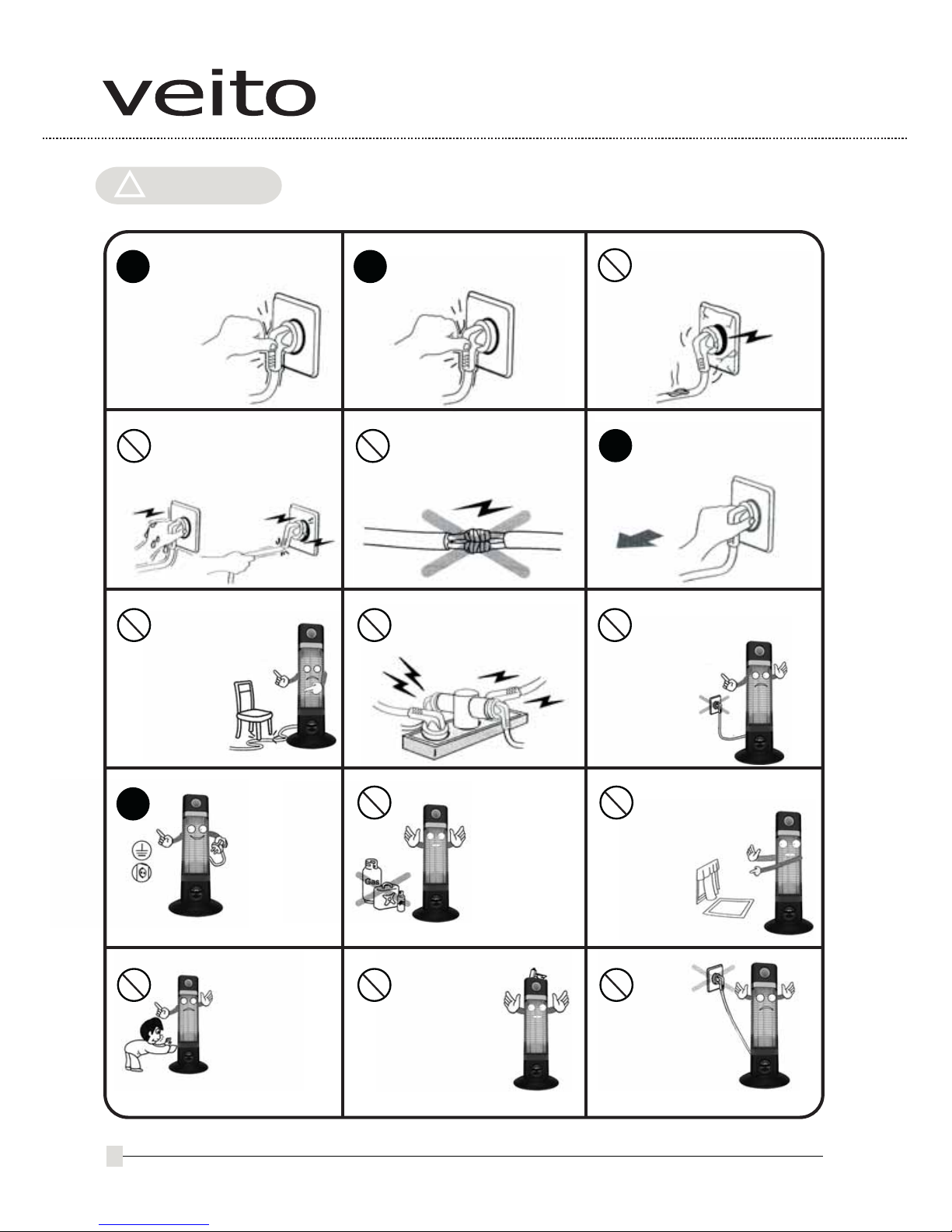

!Use specific 230V 16A amp
socket.
(to prevent fire & electric shock)
230V
!Ensure both plug and socket is
clean and free from dust when
using.
Never use with a damaged
power lead, plug or loose wall
socket. (this can cause electric
shock, short circuiting or fire)
Never remove the plug from the
socket by pulling the mains lead.
Never touch the plug with wet
hands.
(risk of electrocution and/or fire)
Do not extend the power cord.
(risk of breakdown or fire) !Ensure you hold the power
plug properly when either
plugging in or unplugging.
Do not kink or place
the main power lead
under heavy objects.
(risk of electric
shock or fire)
Do not overload the dedicated
power socket with other
equipment.
Always turn off the
unit by use of its
control knob and
never by just
pulling the
mains plug or
tripping the
circuit breaker.
!Ensure that the unit
is properly earthed
through the mains
power circuit.
Do not install, use
or place any
combustible
liquids or gases
nearthe product.
(risk of fire or
explosion)
Never place the unit
near combustible
products such as
curtains, carpets
etc. This can
cause a fire.
Never put hands or
objects into the main
body of the product.
Never touch it
immediately after use.
(risk of fire burns or
electric shock)
Never place
combustible
objects on the
product such as vinyl
andplastic items.(can
cause a risk of fire)
The heater must not
be located immediately
below a socket outlet
when in use. (risk of fire)

PRECAUTIONS
5
WARNING
!

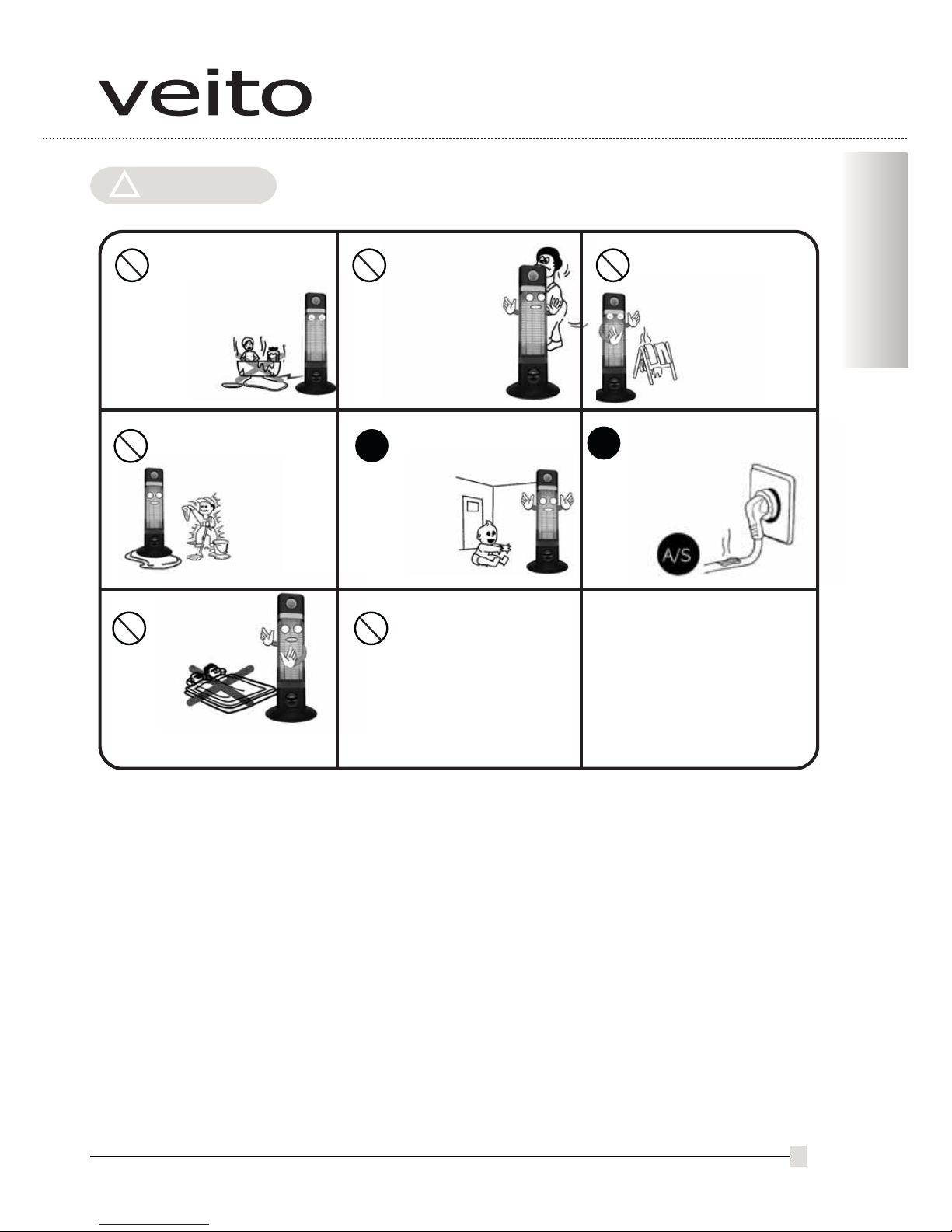

Do not use this heater in
the immediate
surroundings of a bath, a
shower, or aswimming
pool. (electrocution and/or
electric leakage can easily
occur)
Never move the product
whilst it is switched on.
Always turn it off and
allow it to cool down
before touching.
Do not use the unit other than
for its intended use. (do not use
for drying clothing or for keeping
animals or plants warm etc.)
Never attempt to clean the unit
with any solvents or flammable
liquids. (this could cause
electric shock or fire)
!Children being supervised
not to play with the
appliance. !
If the power cord is damaged,
it must be replaced by the
manufacturer, its sevice
agent or similarly qualified
persons in order to avoid
a hazard.(risk of electric
shock or fire)
Do not use the product whilst sleeping
or away from the premises.
Do not use this heater with a
programmer, timer or any other
device that switches the heater
on automatically. Since a fire risk
may exist if the heater is covered
or positioned incorrectly.
*After reading this, be sure to keep it at a place where other users can
refer to it at any time.

6
CAUTION
!
!
!
The heater must be installed on a flat
and even surface.
When thunder and lightning
is present, turn off the unit
and disconnect from the
power supply. Disconnect
from power supply when
the unit is not being used
for a long period.
!
!
!
Do not try to take the unit apart
or repair it. Never jar the
product.
Do not clean the product before
disconnecting from power and
allowing it to cool down.
Keep heater away from other electric
domestic appliances. (They could
get damaged due to high heat)
Store the product in dry, indoor locations
and not in hot or humid locations.
After storage, remove all
dust before re-use.
*After reading this, be sure to keep it at a place where other users can
refer to it at any time.
Do not use the unit on unstable
or unsafe surfaces.
Do not touch hot parts whilst in use.
Do not place hands on the unit as it
gets very hot during its heating
operation. Always turn it off and allow
it to cool before handling. Children
must be kept away from the heater.

PRECAUTIONS
7
Precautions for installation and before use
PRECAUTIONS FOR INSTALL
! !
!
Never install the heater on
a combustible surface.
( wood, carton etc.)
Install the product at
places that are visible
to people. (frequently
observe the product for
safety)
Install the product at places
where users always reside
and be sure to equip fire
extinguisher.
Do not install at
places with high
temperature.
HOW TO INSTALL *Keep packaking parts because they are necessary in
maintaining the heater for a long time.
*After reading this, be sure to keep it at a place where
other users can refer to it at any time.

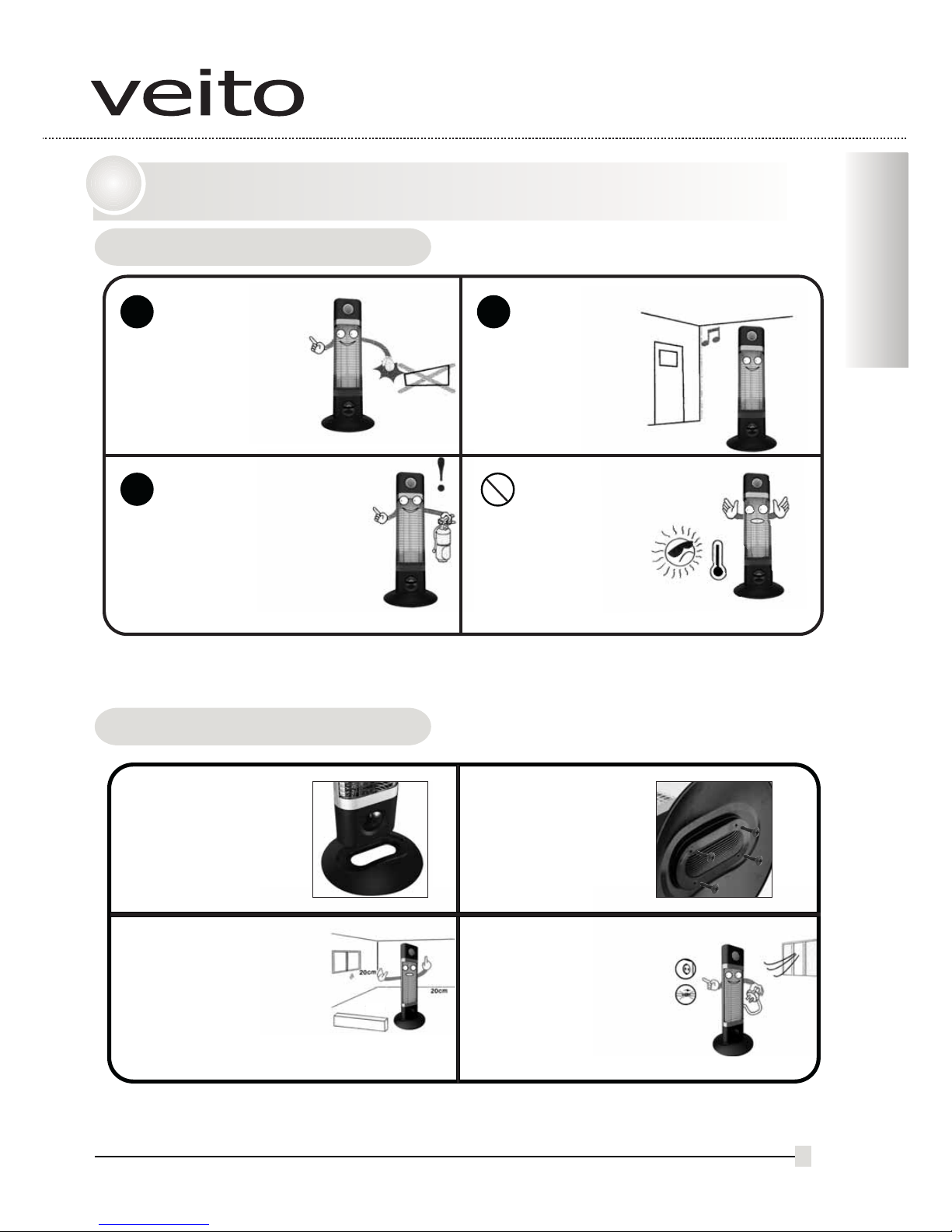

•Always leave a clear space of at
least 0.5m from the left and right of
the unit.The unit must also have at
least 1.8m clear space above it.
Never put any obstacles nearer
than 1.8m to the front of the unit.
•Assemble the stand with
the heater. • Secure the stand to the
heater by using the connection
screws supplied.
•Use the unit in places with easy
eccess to power sockets and that
are well ventilated.
•Never use connecting terminals
in the power lead. Always directly
connect the unit to the power.
1.8m

HOW TO USE POWER
• When using 230V
•Put plug into specific outlet for 230V with earth terminal.
•External appearence can be changed without prior notice for improving quality.
8
Configuration and Name
MAIN BODY
INDICATION AND OPERATION PART
Plastic Body
Base Reflector
Aluminium Body
Rear Reflector
Safety Grille
Carbon Flament
Plastic Base
Control Knob
Carry Handle
Power Cord
OPERATION AND STOP
The appliance is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction.
1. Start operation by using Control Cnob switch.
2. Heater is turned on and operation is started.
3. Use Control Cnob switch to stop.

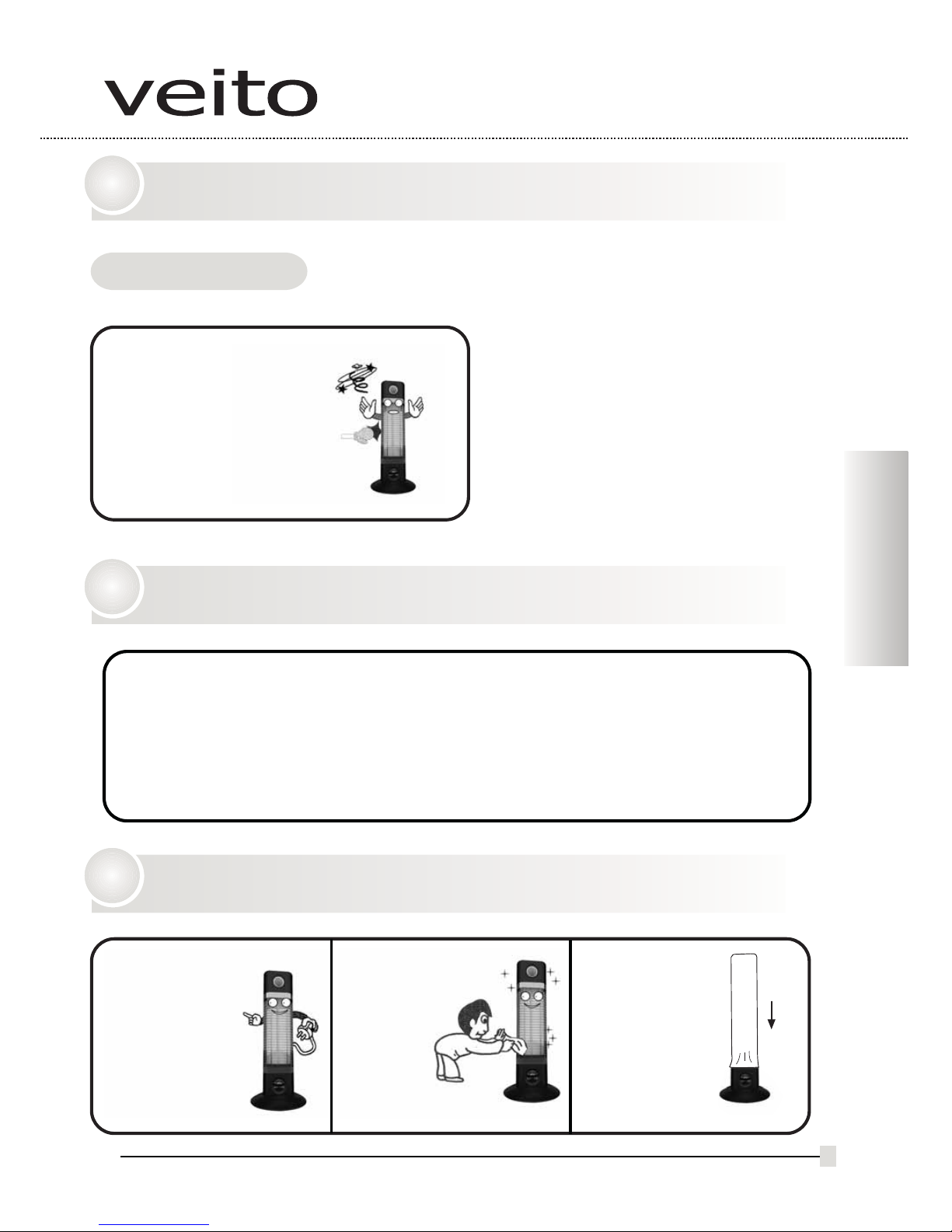

How to Diagnose Safety Device
9
DESCRIPTION
OF USE
SAFETY DEVICE Veito heater is equippped with diverse safety device, preventing a risk of fire.
In the event that heater is not working properly, safety device is operated and
heater is automatically stopped.
Cleaning and Maintenance
Precautions for examination and handling;
- Handle heater when it is completely cooled down and power is cut off.
- If the heater has collected dust or dirt inside the unit or around the elements, have the unit cleaned by
a qualified service agent. Do not operate the heater in this condition.
- Do not attempt to open the case of the heater at any time, there are no customer serviceable parts inside.
- Do not use powerful abrasive or solvent cleaning fluids when cleaning the heater as they may damage the
plastic parts. Use only a clean, dry cloth to clean the external surfaces of the heater only.
Storage and Instructions
•Disconnect from power
supply.
•Ensure main body is clean
and dry. •Cover the heater with
the coveringsupplied
when you purchased
the unit. Keep it in a
well ventilated dry place.
When the heater is knocked over, it
will automatically shut down.

Troubleshooting
10
This heater was manufactured conscientiously and checked several times before delivery.
If you experience a malfunction, please try to rectify the fault yourself first with the help of this table. In doing
do, you will avoid the unnecessary expense of customer service assistance.
If a foult in your heater can not be rectified with the aid of this table, please contact the Central Customer Service
Department.
Repairs must only be carried out by authorized professionals.
Unit
is not
working
Syptoms How to deal with
•Is electric supply working?
•Check that the power plug is plugged in.
•Is the circuit breaker off?
•Check the main power supply is working.
•Turn on the product once again after plugging in.
•Reset circuit breaker.
Specification
model
classification
Heating Capacity BTU/h
Maximum Power (W)
Space for use (m )
2
Power supply
Size(mm) (WxLxH)
Product weight (kg)
Controlling method
Controlling function
CH1200 LT
Wiring Diagram
Level Control
2 Levels
6000
1200
15
AC 230V 50/60Hz
300x300x700
2.0
Carbon Flament
Tilt senser
Supply cable
Blue (L)
Brown (N)
Yellow-Green (E)
Control Cnob

11
Veito Carbon Infrared Heater give more reliable performance, comfort and durability
the more they are used. They are built under a strict quality assurance regime
which includes inspection both during and after production and exhaustive
reliability testing.
In the unlikely event you have any problems, please contact your dealer or
distributor. If the problem is as a result of a production fault or failure, repairs will
be undertaken free of charge during the period of warranty subject to the following
warranty conditions:
1.The warranty period is 12 months from the date of first purchase.
2.If the problem has been caused by customer error or misuse, abuse or damage,
then all repairs will be charged for.
3.This warranty card is valid within your country.
4.Proof and date of purchase must be supplied.
5.Please complete the details below and keep this warranty in a safe place.
6.All transport charges back to the dealer are at the customers cost. Keep all
original packaging to facilitate return. Return to customer will be at dealers cost
(if genuine warranty claim).
WARRANTY
(Applicable to first retail purchaser only)
DESCRIPTION
MODEL
DATE OF PURCHASE
CARBON INFRARED HEATER
CH1200 LT
PRODUCT
SERIAL NO:
Warranty Period
DISTRIBUTOR
( ) Months
Name of Company
Telephone No.
CUSTOMER
DETAILS
Name:
Address:
Telephone:

Notes

Notes

www.veito.com
