EN
Instructions for specialist dealer
This instruction manual is part and parcel of the
product and must accompany every product
sold.
Version: D, 2023-05
FR
Instructions pour les distributeurs
Ce manuel d'instructions fait partie du produit et
doit accompagner chaque produit vendu.
Version : D, 2023-05
NL
Instructies voor de vakhandelaar
Deze handleiding is deel van het product en
dient bij iedere product te worden geleverd.
Versie: D, 2023-05
DE
Hinweise für den Fachhändler
Diese Gebrauchsanweisung ist Bestand-teil des
Produkts und ist bei jeder Produkts
auszuhändigen.
Version: D, 2023-05
IT
Istruzioni per il rivenditore
Il presente Manuale di istruzioni è parte
integrante del prodotto e deve essere fornito
assieme alla prodotto.
Versione: D, 2023-05
ES
Instrucciones destinadas a los distribuidores
especializados
El presente manual de instrucciones es parte
integrante del producto yse debe adjuntar a
todas las producto que se vendan.
Versión: D, 2023-05
PL
sprzedawcy
Niniejsza instrukcja obsługi jest nieodłączną
częścią produktu i musi być dołączona do
każdego sprzedawanego produktu.
Wersja: D, 2023-05
CS
Pokyny pro specializovaného prodejce
Tento návod k obsluze je součástí dodávky a
musí být součástí každého prodaného
produktu.
Verze: D, 2023-05
Basic UDI: 5415174 122124Sedna 3U
Multi version: D, 2023-05

Sedna
2023-05
Contents
1
EN
NL
Contents
Contents .....................................................................................................................1
Preface........................................................................................................................2
1Your product..................................................................................................3
2Before use .....................................................................................................5
2.1 Intended use...................................................................................................5
2.2 General safety instructions .............................................................................5
2.3 Symbols on the scooter ..................................................................................6
2.4 Transport.........................................................................................................6
2.5 Folding/Unfolding ............................................................................................7
2.6 First use and storage ......................................................................................9
3Using your scooter .....................................................................................10
3.1 First ride........................................................................................................10
3.2 Operating your scooter .................................................................................10
3.3 Transfer in and out of the scooter .................................................................13
3.4 Brake and free-wheel lever...........................................................................13
3.5 Comfort adjustments.....................................................................................14
3.6 Battery status, status indication and charging...............................................16
4Maintenance ................................................................................................19
4.1 Instructions of maintenance..........................................................................19
4.2 Expected lifespan..........................................................................................20
4.3 Reuse ...........................................................................................................20
4.4 End of use.....................................................................................................20
4.5 Warranty .......................................................................................................20
5Troubleshooting..........................................................................................21
6Technical specifications.............................................................................23

Sedna
2023-05
Preface
2
EN
NL
Preface
Congratulations! You are now owner of a Vermeiren scooter!
This scooter is made by qualified and committed personnel. It is designed and produced
according to high quality standards guarded by Vermeiren.
Thanks for your trust in the products of Vermeiren. To support you on the use of this scooter and
its operating options, this manual is offered. Please read it carefully; it will help you to get familiar
with the operation, capabilities and limitations of your scooter.
If you still have questions after reading this manual, do not hesitate to contact your specialist
dealer. He/she will be glad to help you on this subject.
Important note
To ensure your safety and to prolong the lifetime of your product, please take good care of it and
have it checked and/serviced on regular base.
This manual reflects the latest product developments. Vermeiren has the right to implement
changes to this type of product without being imposed to any obligation to adapt or replace similar
products previously delivered.
Pictures of the product are used to clarify the instructions in this manual. Details of the depicted
product may deviate from your product.
Information available
On our website http://www.vermeiren.com/ you will always find the most recent version of the
information in this manual. Please consult this website regularly for possible updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
This user manual
For user and specialist dealer
User manual of battery charger
For user and specialist dealer
Service manual for scooters
For specialist dealer
EC declaration of conformity

Sedna
2023-05
Your product
3
EN
NL
1
10
2
3
4
5
6
9
8
11
7
12
13
14
15
1 Your product
Important parts
1. Backrest
2. Armrest
3. Rear wheel / drive
wheel
4. Unlocking lever
5. Transport wheel
6. Front wheel
7. Tiller
8. Operating console
9. Hand grip
10. Seat
11. Foot plate
12. Free-wheel lever
13. Anti-tipping wheels
14. Battery
15. Reflector

Sedna
2023-05
Your product
4
EN
NL
16
16. Location of identification
plate

Sedna
2023-05
Before use
5
EN
NL
2 Before use
2.1 Intended use
In this paragraph a brief description of the intended use of your scooter is given. Additionally,
relevant warnings are added to the instructions in the other paragraphs. In this way we would like
to make you aware of the possible misuse that may appear.
•This scooter is classified as a class A product and is suitable for outdoor use.
•This scooter is designed and produced solely to transport one (1) person with a maximum
weight of 115kg. It is not designed for transport of goods or objects, or for any other use
than the transport previously described.
•If applicable, use only accessories and spare parts approved by Vermeiren.
•You should NOT use this scooter if you suffer from physical or mental impairments that may
put you, or other people, in danger when driving the scooter, such as; visual impairment,
mental disorder, hemiplegics or paraplegics. For this reason, consult your doctor first and
make sure that your specialist dealer is informed about his advice.
•Please read all technical details and limits of your scooter in chapter 6.
•The warranty on this product is based on normal use and maintenance as described in this
manual. Damage to your product caused by improper use or lack of maintenance will cause
the warranty to lapse.
2.2 General safety instructions
Risk of injuries and/or damage
Please read and follow the instructions in this manual. Otherwise you may get injured or your
scooter may get damaged.
Keep the following general warnings in mind during use:
•Do not use your scooter if you under influence of alcohol, medicines or other substances
that may influence your driving abilities.
•Be aware that some parts of your scooter may get very hot or cold due to ambient
temperature, solar radiation, heating devices or due to the motor drive during the ride. Be
careful when touching. Wear protective clothing if the weather is cold. After a ride, wait till
the scooter/motor has cooled down.
•Before switching the scooter on, be aware of the environment/situation in which you are
located. Adjust your speed to this before driving off. We advise you to use the slowest speed
setting to drive indoors. For outdoor driving you can adjust the speed to a suitable speed at
which you feel comfortable and safe.
•ALWAYS keep in mind that your scooter may stop suddenly due to a discharged battery or
a protection that prevents your scooter from further damage. Also check the causes
mentioned in chapter 5.
•Your scooter has been tested for electromagnetic compatibility and complies with the
standard, see chapter 6. Nevertheless, sources of electromagnetic field may influence the
driving performance of your scooter like the fields of mobile phones, power generators or
high-power energy sources. On the other hand, the electronics of your scooter can affect
other electronic appliances too, like alarm systems of shops and automatic doors. We advise
therefore to check your scooter regularly for damage and wear, since these may enlarge the
interference, see also chapter 4.
•Only drive on flat surfaces where all wheels touch the ground and where there is sufficient
contact to operate the scooter safely.
•Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels
or other moving parts during use.
CAUTION

Sedna
2023-05
Before use
6
EN
NL
In case a serious incident has occurred involving your product, notify Vermeiren or your specialist
dealer as well as the competent authority in your country.

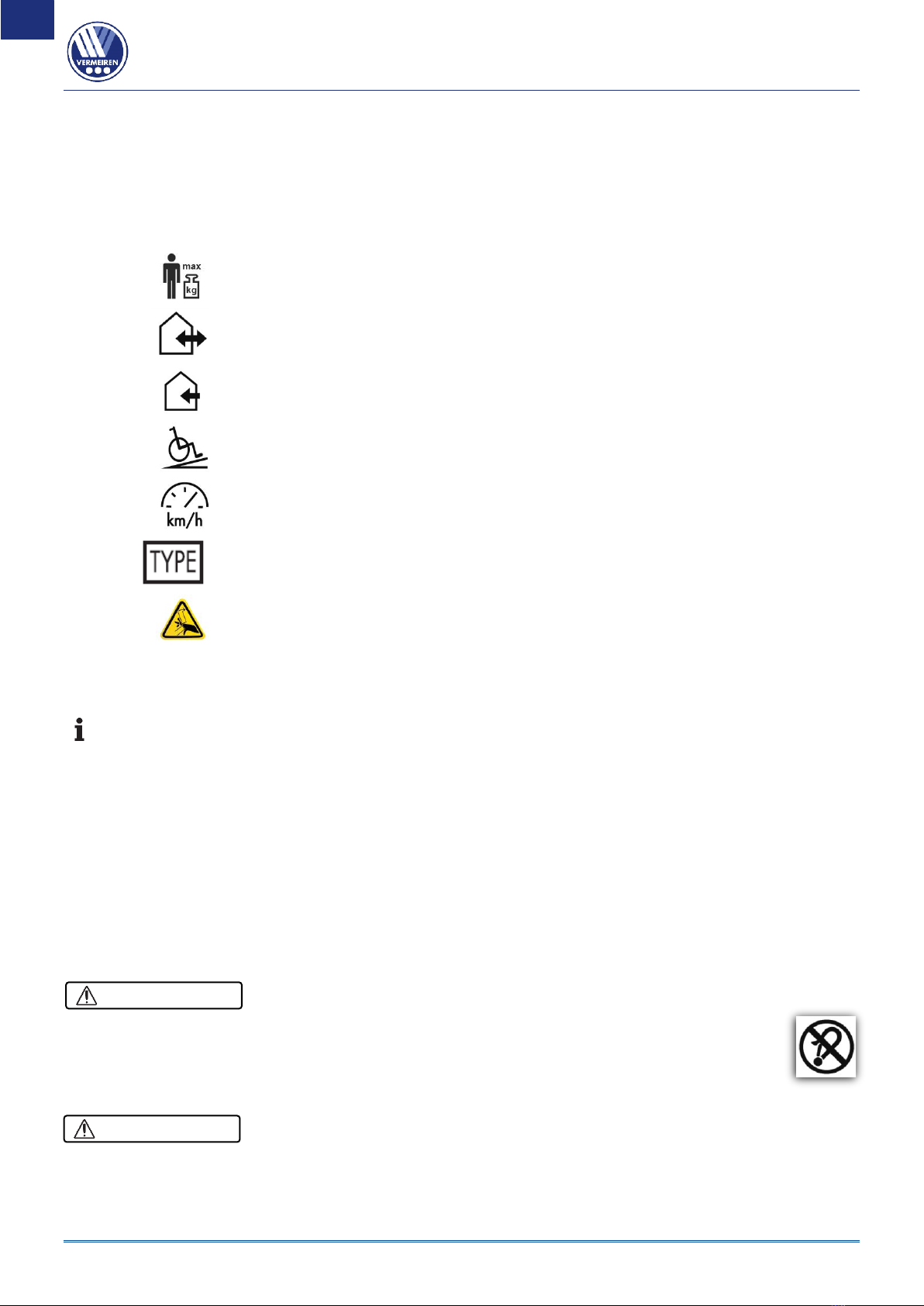

2.3 Symbols on the scooter
The symbols in following list are applicable for your scooter. Missing symbols can be found in the
relevant ISO standard (ISO 7000, ISO 7001 and IEC 417).
Maximum weight of the user
Outdoor/indoor use (battery charger excluded)
Indoor use only (battery charger only)
Maximum safe slope in °.
Maximum speed
Type designation
Risk of entrapment
2.4 Transport
Since the scooter is equipped with aLithium battery, it is not possible to transport the scooter
(as a whole) by air plane. If you still consider to do so, consult your airline before booking
your flight. It is possible to transport your scooter by air plane, without battery and to buy a
new battery at the place of arrival. Contact your specialist dealer for this matter.
Deflate the scooter tires a bit before taking off. Inflate them again after arrival. In this way
you prevent the bursting of the tires during flight.
2.4.1 Moving the scooter
Use the free-wheel lever to transport your scooter over a small distance (drive disconnected).
Read the instructions in §2.5 about folding and unfolding your scooter.
2.4.2 Transport in the car
Risk of severe injuries
Do NOT use your scooter as seat in a vehicle, see next symbol. The best way to
transport your scooter is to fold and lift it (with help) in the vehicle. Tighten the scooter
well to the vehicle, to make sure that it won’t move during cornering and that it won’t
be launched during full braking.
Risk of damage or injuries
Transport of the scooter (unfolded) must be done with free-wheel lever in rear, coupled position
to make sure that the brake is activated.
WARNING
CAUTION

Sedna
2023-05
Before use
7
EN
NL
2.5 Folding/Unfolding
2.5.1 Unfolding scooter and connecting drive
[1]
[2]
Lower the back of the scooter by holding frame
tube (15) and turn it down till the scooter lands
on rear wheels (4).
Push red lever (5) down with your foot to release
the lock of tiller (8); with an audible click.
[3]
[4]
Grab the hand grips and turn tiller (8) upward.
Release the hand grips before the front wheels
touch the ground. An audible click is to be heard
as signal that the tiller is locked.
Turn backrest (1) upward.
Make sure that your fingers won’t get entrapped
at the hinging point.
CAUTION

Sedna
2023-05
Before use
8
EN
NL
[5]
Put free-wheel lever (14) in coupled position (B),
pointing to the rear of the scooter.
Your scooter is now ready to be used.
2.5.2 Folding
[1]
[2]

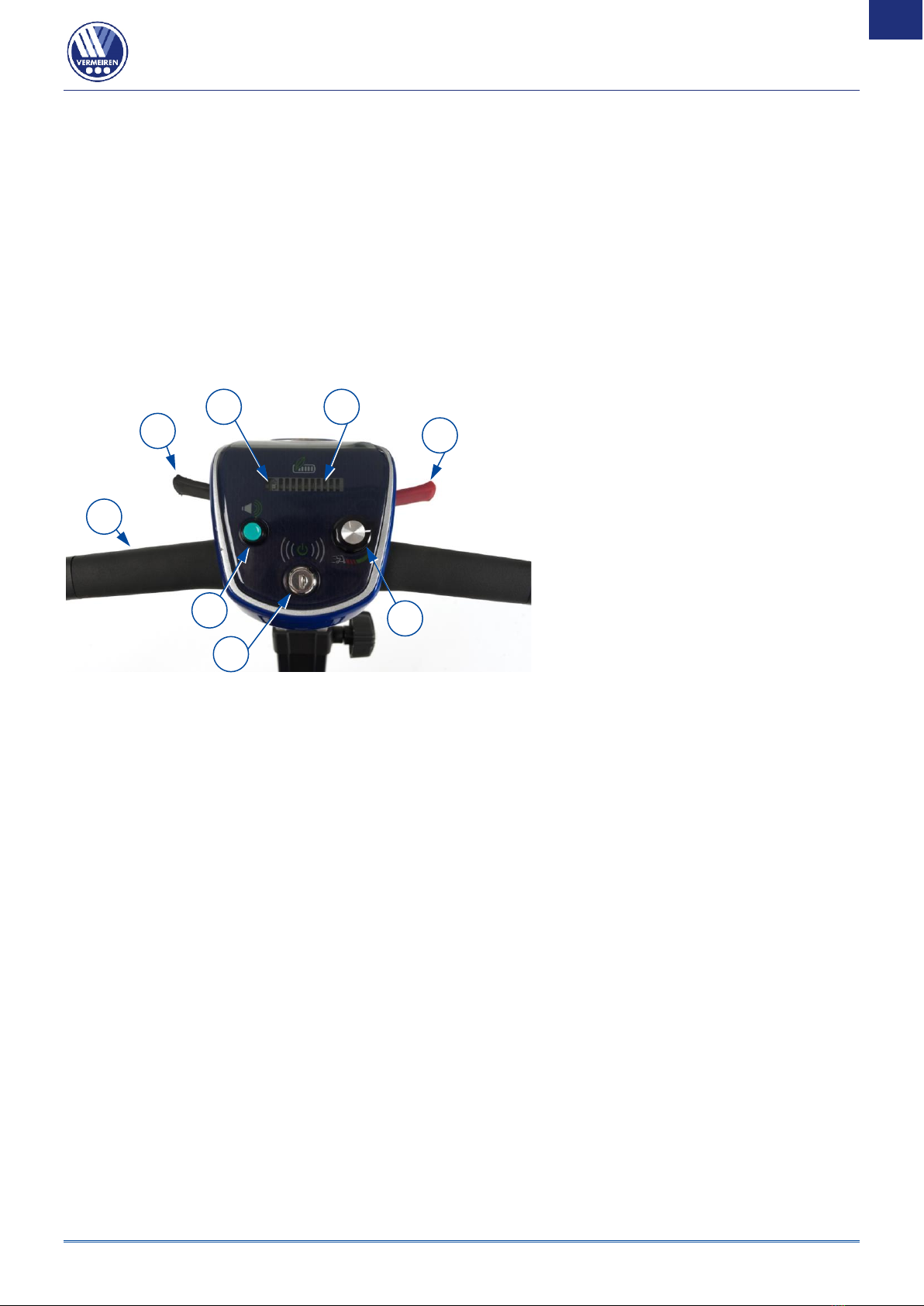

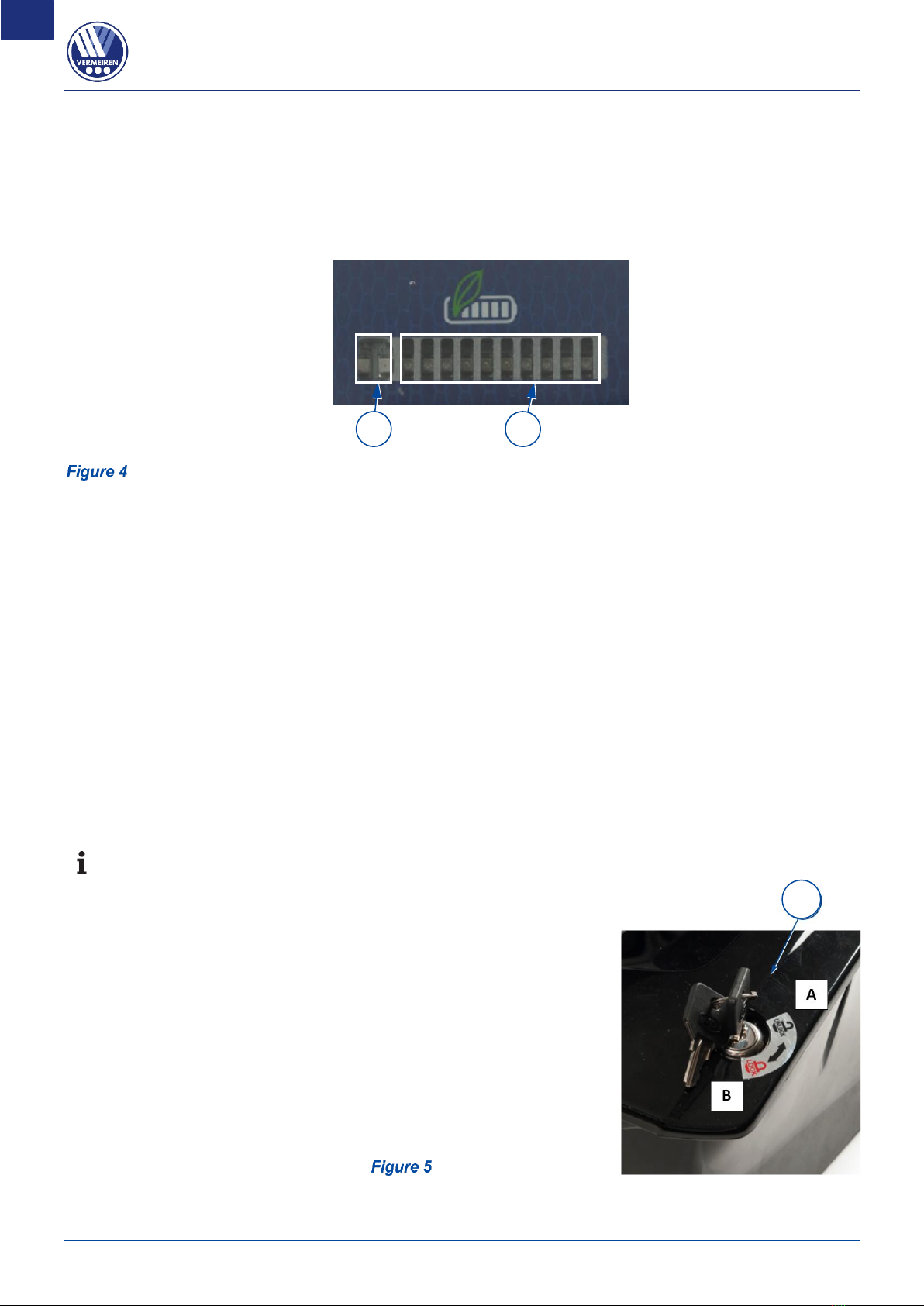

Turn you scooter OFF and remove the key from
ON/OFF switch (20).
Put free-wheel lever (14) in free-wheel position
(A), pointing to the front of the scooter.
