Viessmann VITOTROL 300 RF Quick guide

Installation and service
instructions
for contractors
VIESMANN
Vitotrol 300 RF
Wireless remote control for one, two or three heating circuits
For applicability, see the last page
VITOTROL 300 RF
5614 625 GB 4/2012 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These instructions are exclusively
designed for qualified personnel.
■ Work on gas equipment must only be
carried out by a qualified gas fitter.
■ Work on electrical equipment must
only be carried out by a qualified elec-
trician.
■ The system must be commissioned by
the system installer or a qualified per-
son authorised by the installer.
Regulations
Observe the following when working on
this system
■ all legal instructions regarding the pre-
vention of accidents,
■ all legal instructions regarding envi-
ronmental protection,
■ the Code of Practice of relevant trade
associations,
■ all current safety regulations as
defined by DIN, EN, DVGW, TRGI,
TRF, VDE and all locally applicable
standards,
■ Gas Safety (Installation & Use) Regu-
lations
– the appropriate Building Regulation
either the Building regulations, the
Building Regulation (Scotland),
Building Regulations (Northern Ire-
land),
– the Water Fittings Regulation or
Water Bylaws in Scotland,
– the current I.E.E. Wiring Regula-
tions.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Never smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
Safety instructions
5614 625 GB

3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors leading to the
living space.
Working on the system
■ When using gas as fuel, also close the
main gas shut-off valve and safeguard
against unauthorised reopening.
■ Isolate the system from the power sup-
ply and check that it is no longer 'live',
e.g. by removing a separate fuse or by
means of a main isolator.
■ Safeguard the system against unau-
thorised reconnection.
!Please note
Electronic modules can be dam-
aged by electro-static dis-
charges.
Touch earthed objects, such as
heating or water pipes, to dis-
charge static loads.
Repair work
!Please note
Repairing components which ful-
fil a safety function can compro-
mise the safe operation of your
heating system.
Replace faulty components only
with original Viessmann spare
parts.
Ancillary components, spare and
wearing parts
!Please note
Spare and wearing parts which
have not been tested together
with the heating system can com-
promise its function. Installing
non-authorised components and
non-approved modifications/con-
version can compromise safety
and may invalidate our warranty.
For replacements, use only orig-
inal spare parts from Viessmann
or those which are approved by
Viessmann.
Safety instructions
Safety instructions (cont.)
5614 625 GB

4
Installation instructions
Preparing for installation
Application information......................................................................................... 5
Installation site...................................................................................................... 5
Installation of the wall mounting bracket.............................................................. 7
Service instructions
Commissioning and adjustment
Commissioning the Vitotrol 300 RF...................................................................... 14
Checking the field strength of the radio signal at the installation site................... 19
Establishing a wireless connection at a later date................................................ 20
Changing the configuration of the heating circuits after commissioning.............. 21
Terminating configuration..................................................................................... 22
Troubleshooting
Fault display......................................................................................................... 23
Specification....................................................................................................... 24
Parts list
Vitotrol 300 RF with table-top dock...................................................................... 25
Vitotrol 300 RF with wall mounting bracket.......................................................... 26
Declaration of Conformity................................................................................. 28
Index
Index
5614 625 GB

5
Vitotrol 300 RF with integral wireless
transmitter for operation with the wire-
less base station (accessory for
Vitotronic boiler and heating circuit con-
trol units) and with Vitotronic 200 RF,
type HO1C.
Up to three heating circuits can be oper-
ated with one Vitotrol 300 RF; alterna-
tively one Vitotrol 300 RF can be
employed for each heating circuit in a
single heating system.
Installation site
■ Vitotrol 300 RF with table-top dock
■ Vitotrol 300 RF with wall mounting
bracket
Operation with or without room temperature hook-up
■Weather-compensated mode
Installation in any room (preferably in
the main living room).
■Operation with room temperature
hook-up (also see illustration on
page 7)
The integral room temperature sensor
captures the actual room temperature
and effects any necessary correction
of the flow temperature.
The captured room temperature is
dependent on the installation site:
– On an internal wall in the main living
room, at a height of approx. 1.5 m
from the floor.
– Not next to windows or doors.
– Not above radiators.
– Not on shelves, in recesses, etc.
– Not near heat sources (direct sun-
light, fireplace, TV set, etc.).
Do not install further control devices in
this room. Any thermostatic radiator
valves must always be fully opened.
Preparing for installation
Application information
5614 625 GB
Installation

6
Wireless connection
Select the installation site of the
Vitotrol 300 RF so that the radio signals
are beamed as vertically as possible
through walls and floors to the wireless
base station or Vitotronic 200 RF.
Note
Conducting metallic materials (e.g.
steel-reinforced concrete floors) have a
strong negative effect on reception.
Prior to the final fitting, commission the
Vitotrol 300 RF and check the transmis-
sion and reception quality at the intended
installation site.
Mittwoch 25.05.2011 13:42
Heizkreis 1 Menü
14° 20.5°
When looking for the right installation
site, a reception quality of at least three
bars or –83 dBm should be displayed
(see page 19).
Preparing for installation
Installation site (cont.)
5614 625 GB

7
1500
60
500
Preparing for installation
Installation of the wall mounting bracket
5614 625 GB
Installation

8
GNYE
1.
2.
1/N
230 V/50 Hz
230 V~
T40
230 V~
N L
4 V
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB

9
230 V~
4 V
3.
4 V
4 V
DC DC
230 V~
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB
Installation

10
4.
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB

11
7.
6.
DC
5.
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB
Installation

12
7.
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB

13
9.
8.
Preparing for installation
Installation of the wall mounting bracket (cont.)
5614 625 GB
Installation

14
Prior to commissioning, observe the
following:
■ The wireless base station must be
connected to the control unit via KM
BUS.
Separate installation and serv-
ice instructions
■ The control unit to which the wireless
base station is connected must be
switched on.
■ Position the Vitotrol 300 RF for com-
missioning close to the wireless base
station Vitotronic 200 RF.
■ Rechargeable batteries supply power
to the Vitotrol 300 RF. The table-top
dock and wall mounting bracket are
also charging stations for the batteries.
Note
As soon as there is a power supply to
the Vitotrol 300 RF, the commissioning
assistant starts automatically.
Charging batteries: See operating
instructions for Vitotrol 300 RF.
Commissioning and adjustment
Commissioning the Vitotrol 300 RF
5614 625 GB

15
- + - +
1.
2.
Commissioning in connection with the wireless base station
1. Connect Vitotrol 300 RF to power
supply.
The commissioning assistant starts
automatically.
Commissioning and adjustment
Commissioning the Vitotrol 300 RF (cont.)
5614 625 GB
Service

16
Select language
DE
DK
Dansk
Deutsch
GB
English
OK
Activate wireless connection
1. Initiate linking at the wireless
base station or the heat source
programming unit.
2. Log on to the Vitotrol by pressing
OK.
OK
2. Select language
Note
When the unit is first commissioned,
"Select language [Sprache wäh-
len]" is displayed in German .
"Activate wireless connection"
appears.
A
3. Press A on the wireless base sta-
tion:
■ Operation without wireless
repeater: for 4 s.
The green LED on the wireless
base station flashes slowly.
■ Operation with wireless repeater:
for 8 s.
The green LED on the wireless
base station flashes quickly.
4. On the Vitotrol 300 RF, touch "OK".
The Vitotrol 300 RF transmits a signal
to log on to the wireless base sta-
tion.
Commissioning and adjustment
Commissioning the Vitotrol 300 RF (cont.)
5614 625 GB

17
Input wireless code
Enter wireless code and
confirm with OK.
OK
0
0
0
5. Enter 3-digit PIN code.
■ The PIN code is printed on the pro-
tective foil on the front of the wire-
less base station.
Make a note of it here _ _ _
If the protective foil has been
removed, use the PIN code given in
the installation and service instruc-
tions for the wireless base station.
■ Use / to enter the PIN code.
■ Confirm the PIN code with "OK".
Note
If logging on was not successful:
Fault
In this case, activate the RF connec-
tion again (see step 3).
Heating circuit selection
OK
Heating circuit 3 ç
Heating circuit 2 ç
Heating circuit 1
6. Select heating circuits that should be
operated via the Vitotrol 300 RF, and
confirm with "OK".
Initialisation bar is running (can take
approx. 5 min).
After successful initialisation, the
standard menu appears.
Note
Radio transmission can take some
time, so there may be a delay in the
display of symbols.
Commissioning and adjustment
Commissioning the Vitotrol 300 RF (cont.)
5614 625 GB
Service

18
Commissioning in connection with Vitotronic 200 RF, type HO1C
1. Connect Vitotrol 300 RF to power
supply.
The commissioning assistant starts
automatically.
Select language
DE
DK
Dansk
Deutsch
GB
English
OK
Activate wireless connection
1. Initiate linking at the wireless
base station or the heat source
programming unit.
2. Log on to the Vitotrol by pressing
OK.
OK
2. Select language.
Note
When the unit is first commissioned,
"Select language [Sprache wäh-
len]" is displayed in German .
"Activate wireless connection"
appears.
3. On the Vitotrol 300 RF, touch "OK".
The Vitotrol 300 RF transmits a signal
to log on to the Vitotronic 200 RF.
Input wireless code
Enter wireless code and
confirm with OK.
OK
0
0
0
4. Enter 3-digit PIN code. The PIN code
is displayed on the
Vitotronic 200 RF.
Note
If logging on was not successful:
Fault
In this case, activate the RF connec-
tion again (see step 3).
Commissioning and adjustment
Commissioning the Vitotrol 300 RF (cont.)
5614 625 GB

19
Heating circuit selection
OK
Heating circuit 3 ç
Heating circuit 2 ç
Heating circuit 1
5. Select heating circuits that should be
operated via the Vitotrol 300 RF, and
confirm with "OK".
Initialisation bar is running (can take
approx. 5 min).
After successful initialisation, the
standard menu appears.
Note
Radio transmission can take some
time, so there may be a delay in the
display of symbols.
Checking the field strength of the radio signal at the installation
site
Note
When using the wall mounting bracket,
check before installation whether the
field strength of the radio signal is satis-
factory.
If the field strength is unsatisfactory,
either select another location or use a
wireless repeater (accessory).

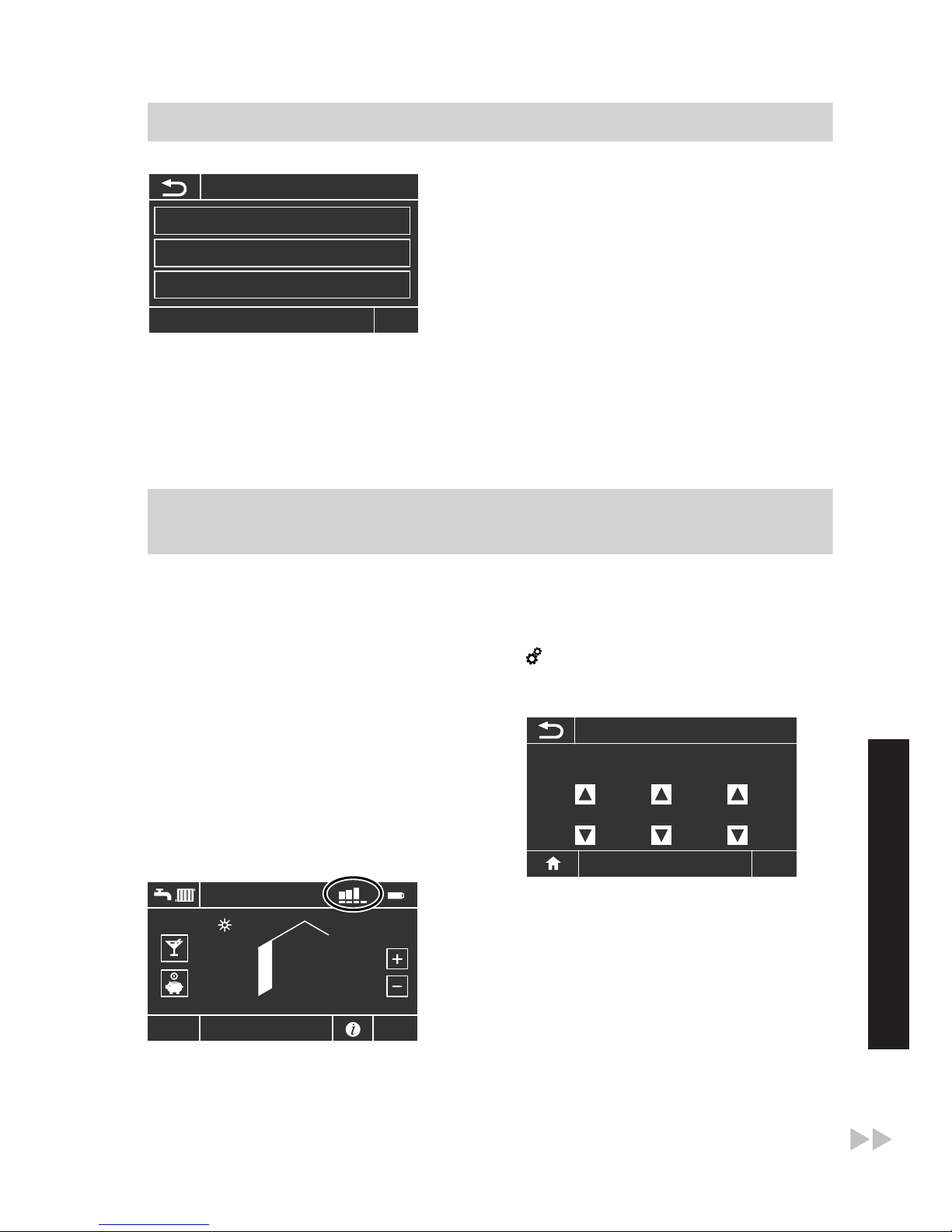

Display of the field strength in the
standard menu
Wednesday 25.05.2011 13:42
Heating circuit 1 Menu
14° 20.5°
Scanning and display of the field
strength in the extended menu
1. "Menu"
2. "Settings"
3. "Configuration"
Configuration
Enter wireless code and confirm with OK
.
OK
0
0
0
Commissioning and adjustment
Commissioning the Vitotrol 300 RF (cont.)
5614 625 GB
Service

20
4. Enter the PIN code (see page 17/ 18)
and confirm with "OK".
5. "Field strength subscriber"
Field strength subscriber
Remote control dBm>-79
Wireless base station dBm>-82
Outside temperature sensor dBm>-76
■"Remote control"
Radio path between wireless base
station and Vitotrol 300 RF
■"Wireless base station"
Radio path between
Vitotrol 300 RF and wireless base
station
■"Outside temperature sensor"
Radio path between wireless out-
side temperature sensor and
Vitotrol 300 RF
Standard
menu
Symbol
Extended
menu
Value in dBm
Field strength of the radio signal (transmis-
sion and reception quality)
0 to - 78 very good
- 79 to - 83 good
- 84 to - 87 adequate
- 88 to - 91 inadequate
- 92 to - ∞no reception
Establishing a wireless connection at a later date
Extended menu
1. "Menu"
2. "Settings"
3. "Configuration"
Configuration
Enter wireless code and confirm with OK
.
OK
0
0
0
4. Enter the PIN code (see page 17/ 18)
and confirm with "OK".
Configuration
Field strength subscriber
Heating circuit selection
Activate wireless connection
Commissioning and adjustment
Checking the field strength of the radio signal… (cont.)
5614 625 GB
