Viking D-1 Instruction manual

SPRINKLER
GUARDS
TECHNICAL DATA
April 28, 2006
1. PRODUCT NAME
Model D-1 Sprinkler Guard
Available since 1998
Dry Sprinkler Guard
Available since 1993
2. MANUFACTURER
THE VIKING CORPORATION
210 Industrial Park Road
Hastings, MI 49058 U.S.A.
Telephone: [phone]
[phone]
Fax: [phone]
e-mail: [email protected]
3. PRODUCT DESCRIPTION
The Viking Sprinkler Guard is a hard-
wire cage designed to encase the sprin-
kler and protect it from mechanical dam-
age. It is recommended for areas where
the sprinkler is installed at a low eleva-
tion and/or near areas of high human or
mechanical activity.
The Model D-1 Sprinkler Guard is for
use with Viking standard and large
orifice, standard and quick response
upright and pendent frame style sprin-
klers.
The Dry Pendent Sprinkler Guard is
for use with Viking standard and large
orifice, standard and quick response dry
upright, dry vertical sidewall, and dry
pendent sprinklers.
4-A. TECHNICAL DATA
LISTINGS AND APPROVALS
Model D-1 Sprinkler Guard:
cULus Listed, Category VFJV
FM Approved, Class 2091
cULus Listed and FM Approved for use with
standard and large orifice, standard and
quick response upright and pendent frame
style sprinklers, including the following:
VK100, VK102, VK108, VK110, VK122,
VK124, VK200, VK202, VK204, VK206,
VK300, VK302, VK350, VK352, VK550,
VK551, and VK552.
cULus Listed for quick response fusible ele-
ment sprinklers VK301 and VK303.
Dry Sprinkler Guard: No Listings or
Approvals
MATERIALS
Model D-1 Sprinkler Guard:
Guard: Bright Basic Steel UNS-G10100
Guard Finish: Clear Chromate over Zinc
Plating
Screws: Two Self-Tapping 6-32 x ½”
(Combination Head): Steel
Screw Finish: Zinc Plated
•
•
•
•
Stainless Steel Model D-1 Sprinkler
Guard:
Guard: T302/T304 Electro-Polished
Stainless Steel
Screws: Two 6-32 x ½” (Combination
Head): Stainless Steel UNS-S41000
Dry Sprinkler Guard:
Guard and Ring: Bright Basic Steel
UNS-G10100
Finish: Clear Chromate over Zinc Plating
DIMENSIONS
Model D-1 Sprinkler Guard: 3-5/8” (90
mm) diameter, 3-1/8” (79 mm) high.
Dry Sprinkler Guard: 2” (51 mm) diam-
eter, 2-1/8” (54 mm) high.
ACCESSORIES
Sprinkler Wrench: For frame style
sprinklers equipped with Model D-1
Sprinkler Guard, use Wrench Part
No. 10896W/B (available since 2000)
or 05000CW/B (no longer available).
Model E-1 Water Shield for frame style
upright sprinklers equipped with
Model D-1 Sprinkler Guards: Part
No. 10326 (see page 131 a-d).
Model F-1 Water Shield for frame style
pendent sprinklers equipped with
Model D-1 Sprinkler Guards (see
page 131 a-d):
For use on ½” NPT Sprinklers, order
Part No. 10323
For use on 3/4” NPT Sprinklers
(standard and large orifice only, NOT
ELO), order Part No. 10324
4-B. ORDERING INSTRUCTIONS
Model D-1 Sprinkler Guard:
The Model D-1 Sprinkler Guard may be
ordered separately or factory installed
on Viking upright and pendent standard
or large orifice, standard or quick re-
sponse frame style sprinklers.
NOTE: The Model D-1 Sprinkler Guard
is NOT designed to be used on side-
wall sprinklers, ELO sprinklers, or
sprinklers installed in recessed es-
cutcheons.
To order the Model D-1 Sprinkler
Guard separately (Figure 1 - Top):
1. Order Viking Part No. 10325 or
2.OrderVikingPartNo.12198(Stainless
Steel)
To order the Model D-1 Sprinkler
Guard factory installed:
1. Refer to the Viking Price Book to
select the appropriate base part
number (plus appropriate suffixes
•
•
Note: Units of measure in parentheses may be approximations.
Form No. F_012798 Replaces page 130 a-b, dated March 19, 2004 (added description for Model D-1 Sprinkler Guard - self-tapping screws).
Sprinkler 130 a
The standard response sprinklers with
5 mm glass bulb shown above are rep-
resentative only. The Model D-1 Guard
may be used with standard and large
orifice, upright or pendent standard re-
sponse sprinklers with 5 mm glass bulbs;
standard response fusible link sprinklers;
and quick response sprinklers with 3 mm
glass bulbs and QR fusible element sprin-
klers VK301 and VK303.
Figure 1
*
Model D-1 Sprinkler Guard
Order Sprinkler Guard Separately
or Factory Installed
(See Ordering Instructions)
Model D-1 Sprinkler Guard
on Upright and Pendent
Frame-Style Sprinklers*
OBSOLETE

SPRINKLER
GUARDS
TECHNICAL DATA
April 28, 2006
Sprinkler 130 b
d. Thread both screws into the open-
ings provided in the opposite
bracket half and tighten to secure
the base of the guard to the sprin-
kler.
e. Apply a small amount of pipe-joint
compound or tape to the external
threads only, taking care not to
allow a build-up of compound in
the sprinkler orifice.
f. Install the sprinkler on the piping
using the special sprinkler wrench.
DO NOT use the guard to start
or thread the sprinkler into the
fitting.
2. Installing the Dry Sprinkler Guard:
Dry sprinklers must be installed
on the system prior to installing
the guard onto the dry sprinklers.
Note: When installing the Dry
Sprinkler Guard on recessed Dry
Pendent or recessed Vertical Dry
Sidewall Sprinklers, the Viking
Recessed Escutcheon Cup must be
removed and the sprinkler centered
in a minimum 2-1/8” (54 mm) diam-
eter hole prior to installation of the
Dry Sprinkler Guard.
a. Remove the retaining ring from the
Dry Sprinkler Guard.
b. Spread and hold the two “C”
shaped halves of the bracket (at
the base of the guard) apart just
enough to place the guard over
the deflector and wrench boss of
the sprinkler.
c. With the sprinkler inside the guard,
position the guard so the “C”
shapedbrackethalvesoftheguard
grip the sprinkler in the slot pro-
vided just below the wrench boss.
IMPORTANT! Orient the sprin-
kler guard so two of the four
guard wires align with the
frame arms of the sprinkler.
See Figure 2.
d. Push the retaining ring over the
guard toward the base of the
sprinkler until the ring snaps firmly
into the depression provided on
each of the four wire members of
the guard.
e. For recessed dry pendent or re-
cessed vertical dry sidewall sprin-
klers,re-installtheVikingrecessed
escutcheon cup.
for temperature and finish) for the
sprinkler used.
2. To order the Model D-1 Sprinkler
Guard factory installed on the sprin-
kler, add the suffix “G”.
To order the Viking Dry Sprinkler
Guard (Figure 2 - Top):
1. Order Viking Part No. 08954.
5. AVAILABILITY & SERVICE
Viking products are available through
a network of domestic, Canadian, and
international distributors. See the Viking
Corp. Web site for your closest distribu-
tor or contact The Viking Corporation.
6. GUARANTEES
For details of warranty, refer to Viking’s
current list price schedule or contact
The Viking Corporation directly.
7. INSTALLATION
1. Installing Model D-1 Sprinkler
Guard: Model D-1 Sprinkler Guards
can be retrofitted onto sprinklers that
have already been installed on the
system. However, it is recommended
to install the guard onto the sprin-
kler prior to installing the sprinkler
on the system and prior to applying
any pipe-joint compound or tape to
the external threads of the sprinkler.
Consider ordering the guard factory
installed on the sprinkler used.
a. Loosen the screws in the brackets
at the base of the sprinkler guard.
b. Spread and hold the two bracket
halves (at the base of the sprinkler
guard) apart just enough to place
the guard over the deflector and
wrench boss of the sprinkler.
c. With the sprinkler inside the sprin-
kler guard, position the guard so
the two halves of the bracket grip
the sprinkler just below the wrench
boss, but above the threads.
IMPORTANT! Orient the sprin-
kler guard so the screw open-
ings in the base of the guard
are located at the ends of the
sprinkler wrench boss (where
the sprinkler frame arms contact
the wrench boss). See Figure 1.
Viking Technical Data may be found on
The Viking Corporation’s Web site at
http://www.vikingcorp.com.
The Web site may include a more recent
edition of this Technical Data page.

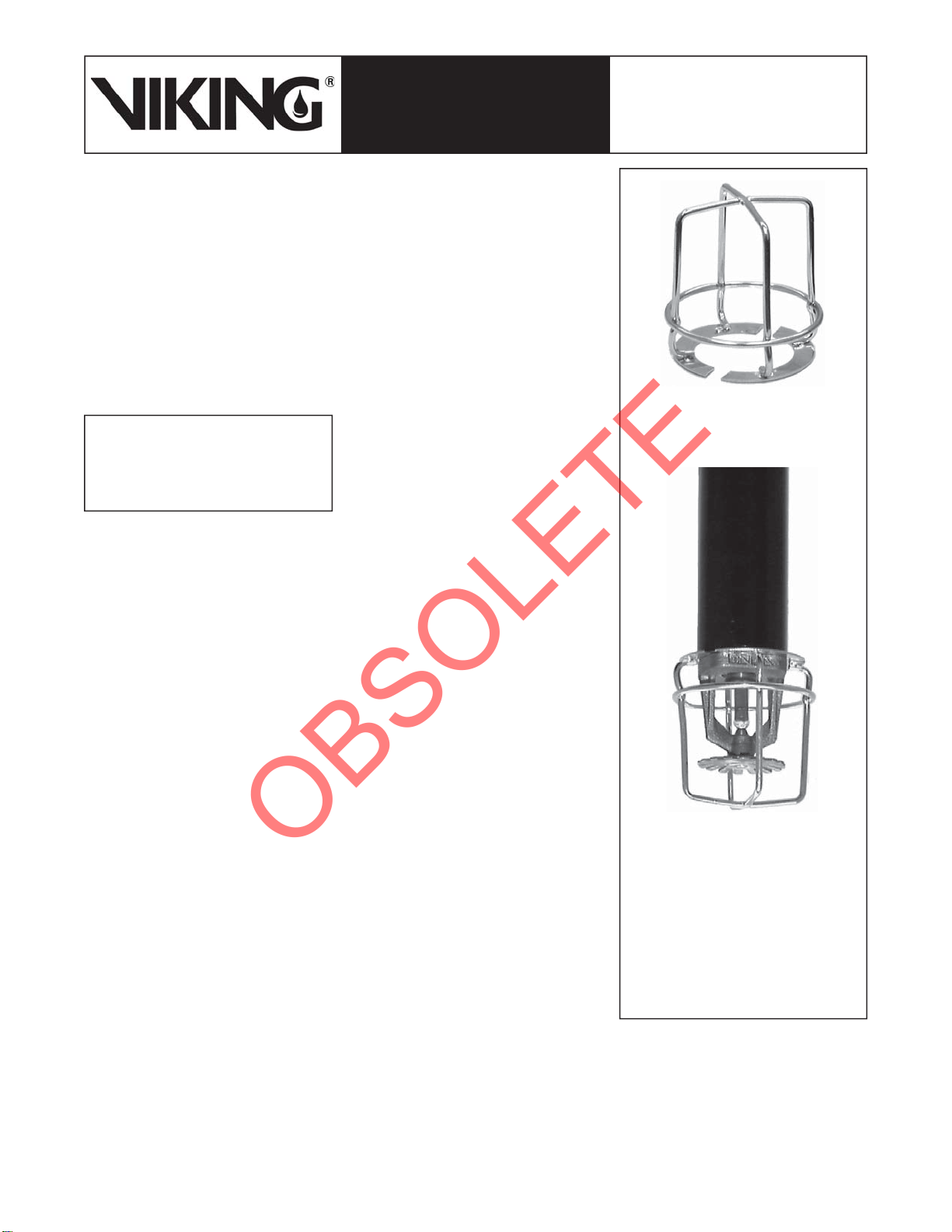

The standard response dry pendent sprin-
kler with 5 mm glass bulb shown above
is representative only. The Dry Sprinkler
Guard may be used with Viking standard
or quick response dry upright, dry verti-
cal sidewall, and dry pendent (including
adjustable recessed) sprinklers.
Figure 2
*
Dry Sprinkler Guard
(Order sprinkler guard separately
from sprinklers.)
Dry Pendent Sprinkler
With Dry Sprinkler Guard*
Replaces page 130 a-b, dated March 19, 2004 (added description
for Model D-1 Sprinkler Guard - self-tapping screws). Form No. F_012798
OBSOLETE
