VIRTUFIT CTR 3.0i User manual
User manual
EN
CTR 3.0i Elliptical Trainer
EN VirtuFit CTR 3.0i Elliptical Trainer
2
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
ADJUSTMENTS GUIDEADJUSTMENTS GUIDE
TRAIN ON HEART RATETRAIN ON HEART RATE
MAINTENANCEMAINTENANCE
TROUBLE SHOOTINGTROUBLE SHOOTING
CONTROL PANELCONTROL PANEL
APP INSTRUCTIONSAPP INSTRUCTIONS
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5
6 - 14
15
16
17
18 - 19
20 - 25
26
27 - 28
29 - 30
31
INDEX
EN
VirtuFit CTR 3.0i Elliptical Trainer 3
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.
SAFETY INSTRUCTIONS
EN VirtuFit CTR 3.0i Elliptical Trainer
4
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 150 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
SAFETY INSTRUCTIONS
EN
VirtuFit CTR 3.0i Elliptical Trainer 5
CHECKLIST
TOOLKIT
When you open the carton, and you will nd the below parts in the carton:
NOTE! Do not connect the appliance to the power before it has been completely assembled.
(2 st.)
(2 st.)
(1 st.)
(4 st.)
(2 st.)
(6 st.)
(4 st.)
(4 st.)
(4 st.)
(2 st.) (2 st.)
(5 st.)
(2 st.)
(2 st.)
(2 st.)
(12 st.)(1 st.)
(10 st.)
(4 st.)
(16 st.)
EN VirtuFit CTR 3.0i Elliptical Trainer
6
STEP 1
12

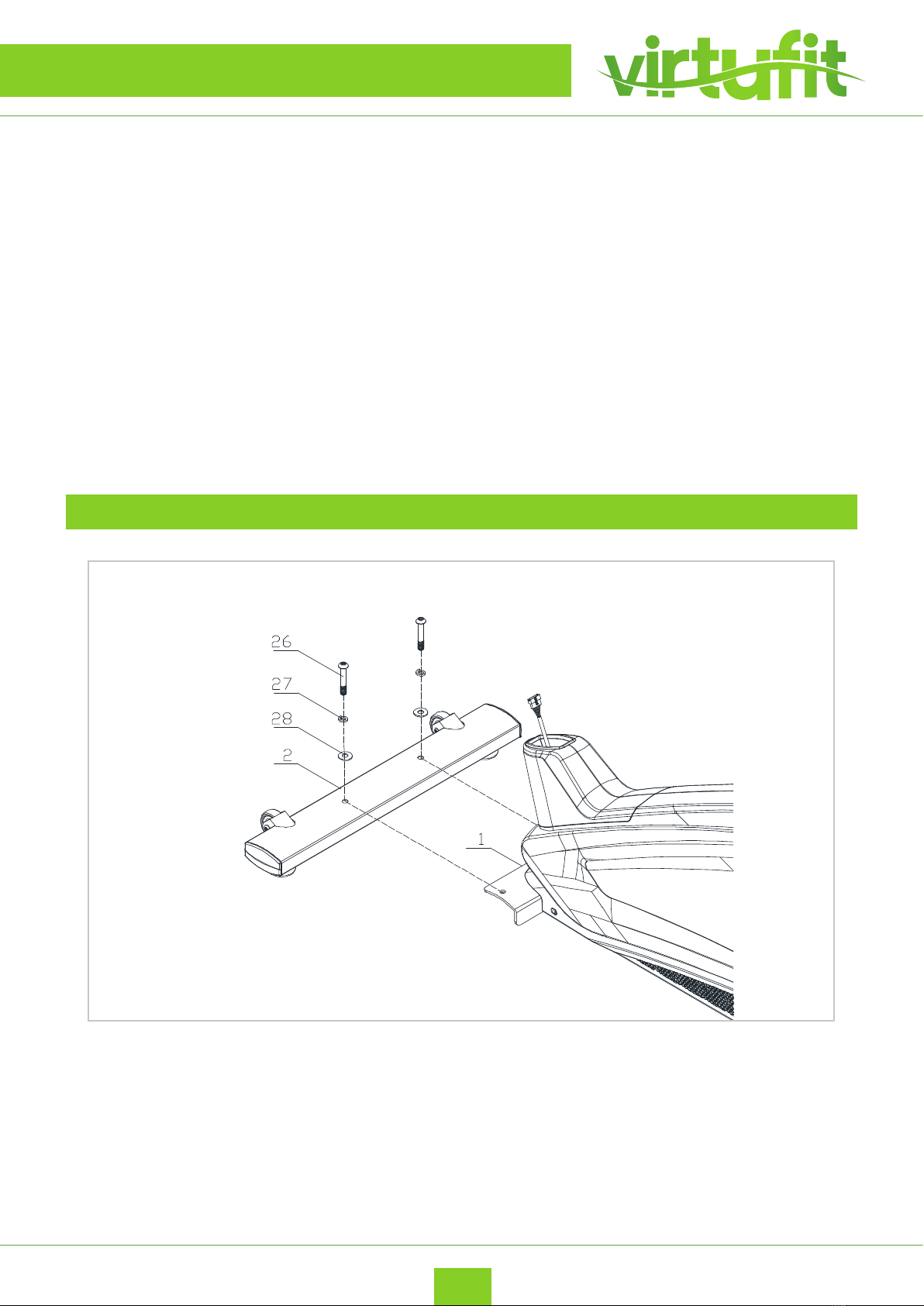

• Attach the front stabilizer (2) to the main frame (1) with curved washer (28), spring washer (27) and
Allen C.K.S. half thread screw (26).
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
NOTE! The transport wheels must be mounted on the front of the appliance.
ASSEMBLY INSTRUCTIONS
EN
VirtuFit CTR 3.0i Elliptical Trainer 7
STEP 2

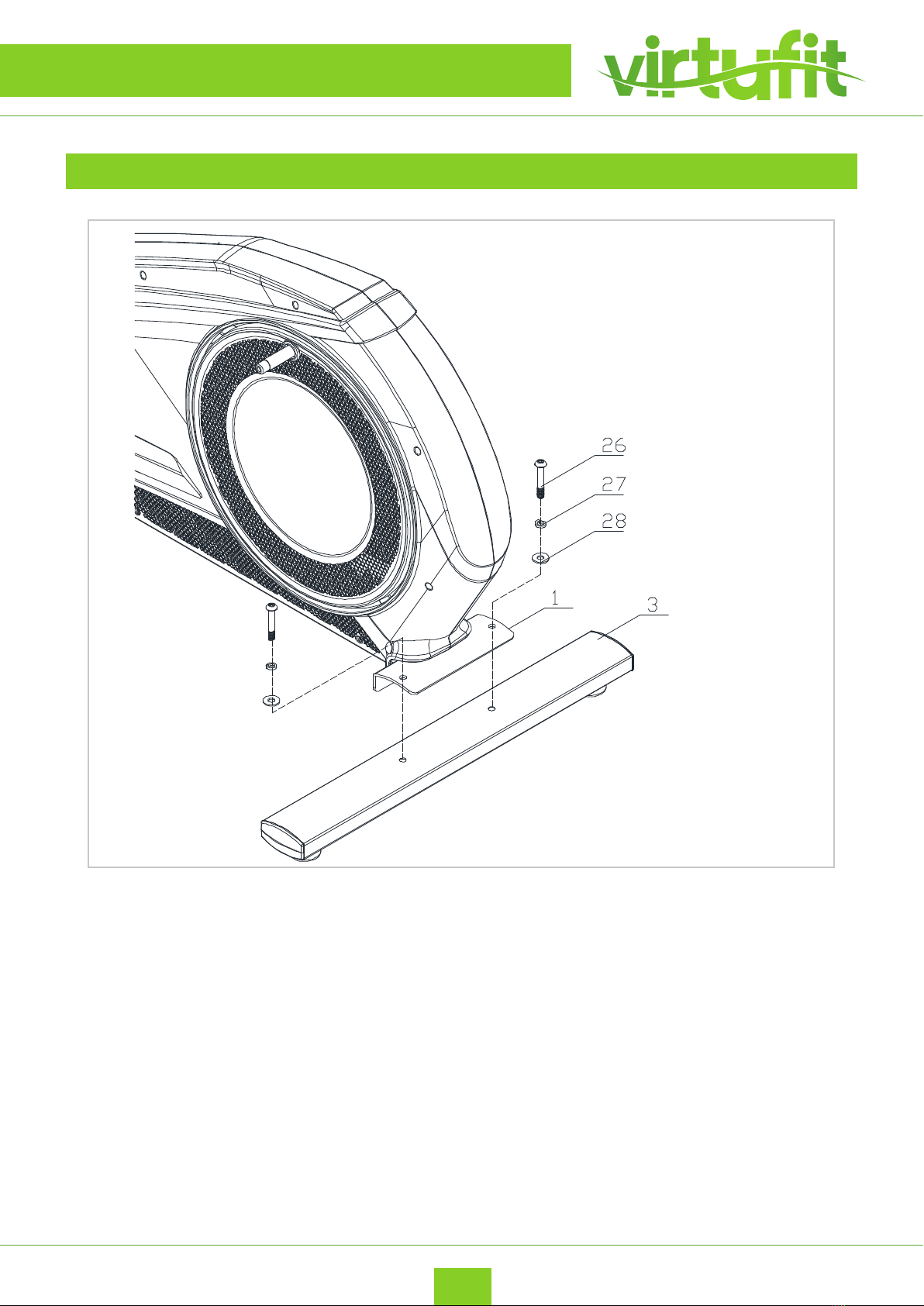

• Attach the rear stabilizer (3) to the main frame (1) with curved washer (28), springWasher (27) and
Allen C.K.S. half thread screw (26).
12
ASSEMBLY INSTRUCTIONS
EN VirtuFit CTR 3.0i Elliptical Trainer
8

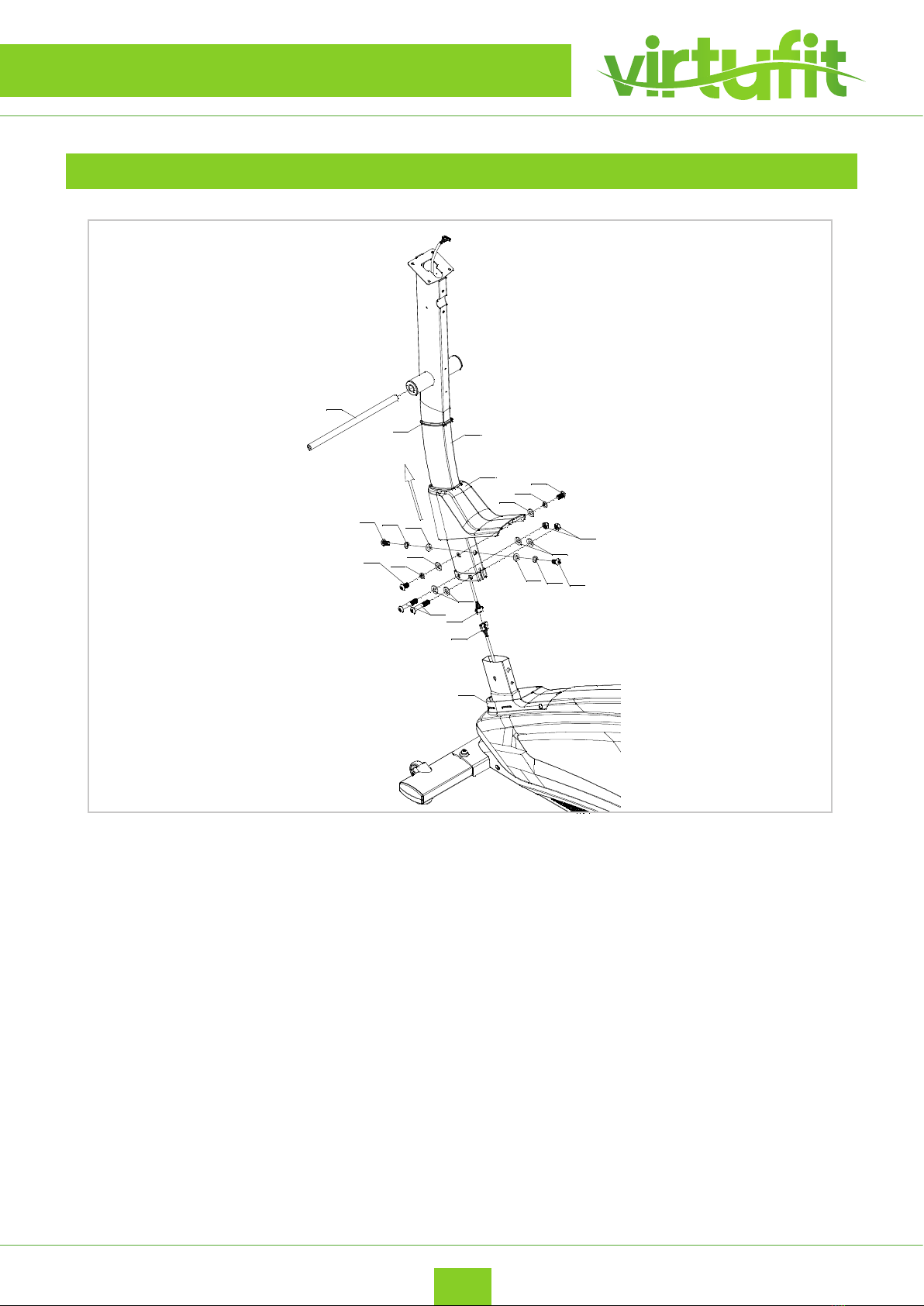

• Attach upright post decoration strip (77) to the upper upright post (4). Take the upright post cover
(15) fromthe main frame (1). Then attach to the upper upright post (4).
• Connect motor communication wire (11) and console communication wire (12) .
• Attach upper upright post (4) to the main frame (1) with at washer (33), spring washer (27), Allen
C.K.S. full thread screw (104) and Allen C.K.S. half thread screw (105), curved washer (28), spring
washer (27) 12 Hex self-locking nut (32).
• Attach upright post cover (15) and upright post decoration strip (77) to the main frame (1). Then
install the Axle (25).
NOTE! Put the wires in the upright post to prevent folding after connecting all of wires. Do not fully
tighten the Bolt yet.Make sure that all screws are in the hexagonal hole.
STEP 3
13
ASSEMBLY INSTRUCTIONS
EN
VirtuFit CTR 3.0i Elliptical Trainer 9

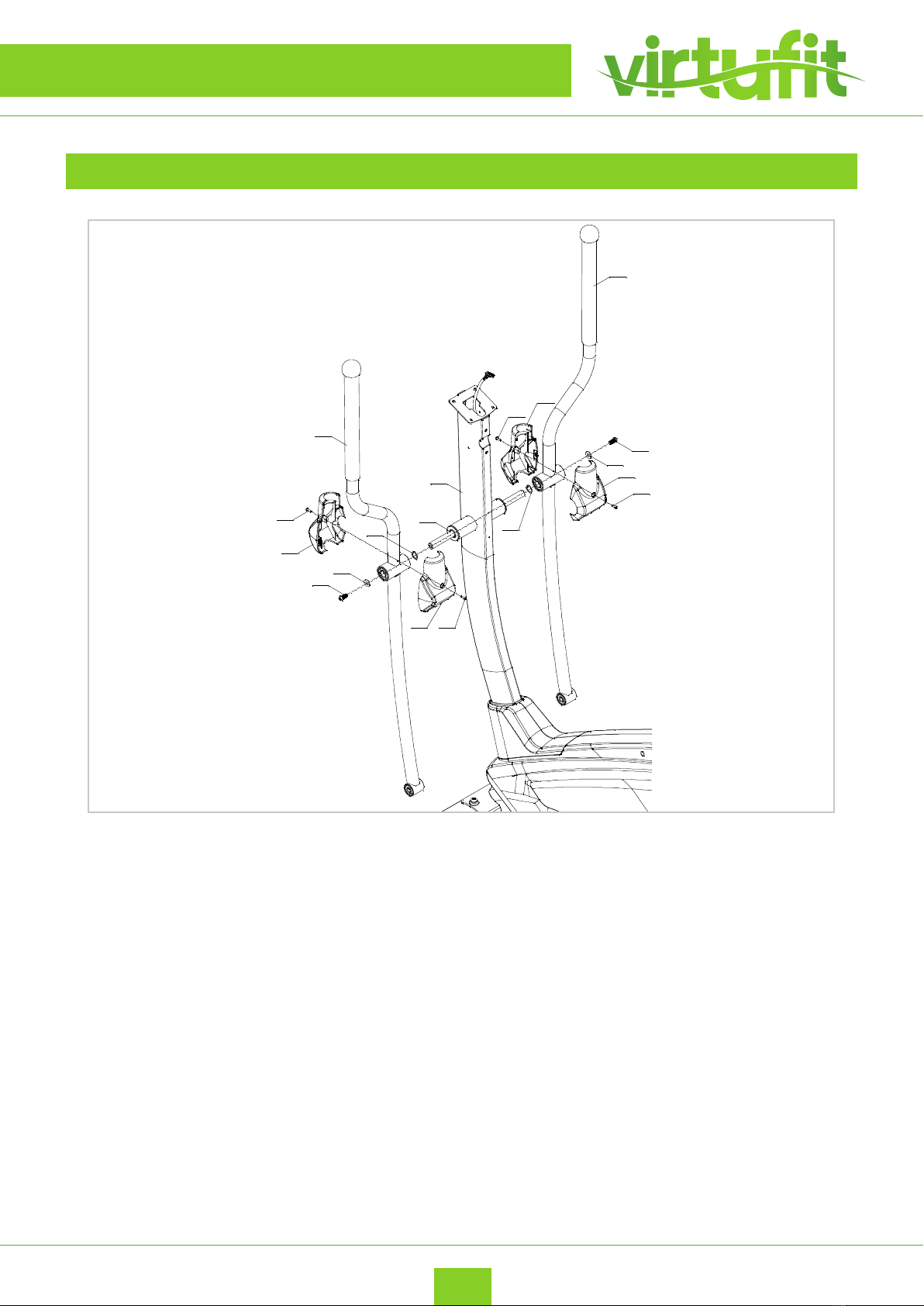

• Assemble the waved spring washers (102) to the left and right Axle (25). Then attach left body arm
(5) and right body arm (6) to the left Axle (25) and right Axle(25) with at washer (31) and Allen C.K.S.
full thread screw(29).
• Attach arm cover (16/17) to the left body arm (5) with Philips pan head full thread screw (37).
• Repeat the last step to attach cover (16/17) to the right body arm (6).
STEP 4
13
ASSEMBLY INSTRUCTIONS
EN VirtuFit CTR 3.0i Elliptical Trainer
10

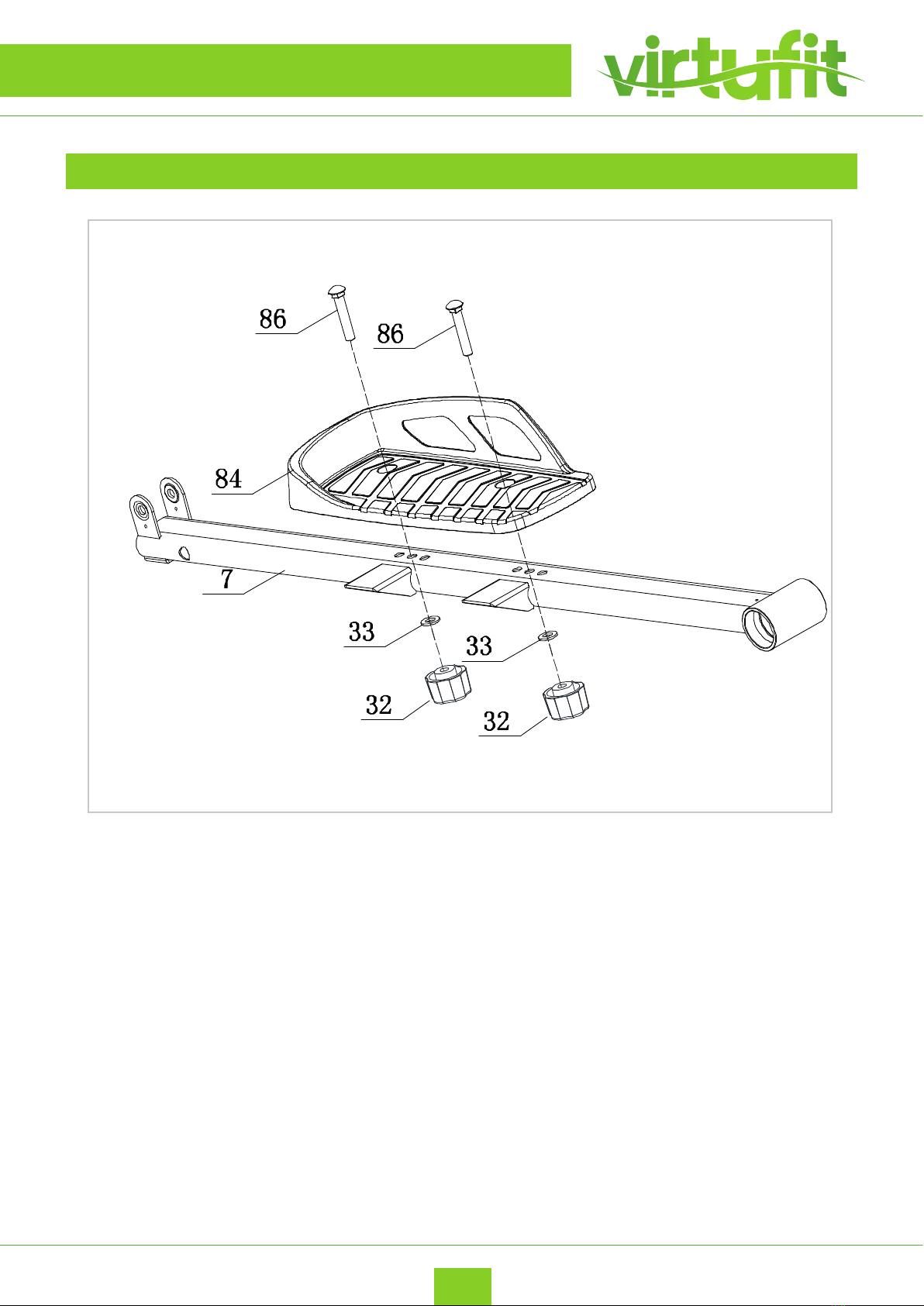

• Install the foot pedal left (84) on the pedal group left (7), and lock it with carriage screw (86), at
washer (33) hexagon lock nut (32).
• Install the foot pedal to the right (85) of the pedal group - right (8) in the same way
• The pedals can be adjusted to three positions.
STEP 5
ASSEMBLY INSTRUCTIONS
EN
VirtuFit CTR 3.0i Elliptical Trainer 11

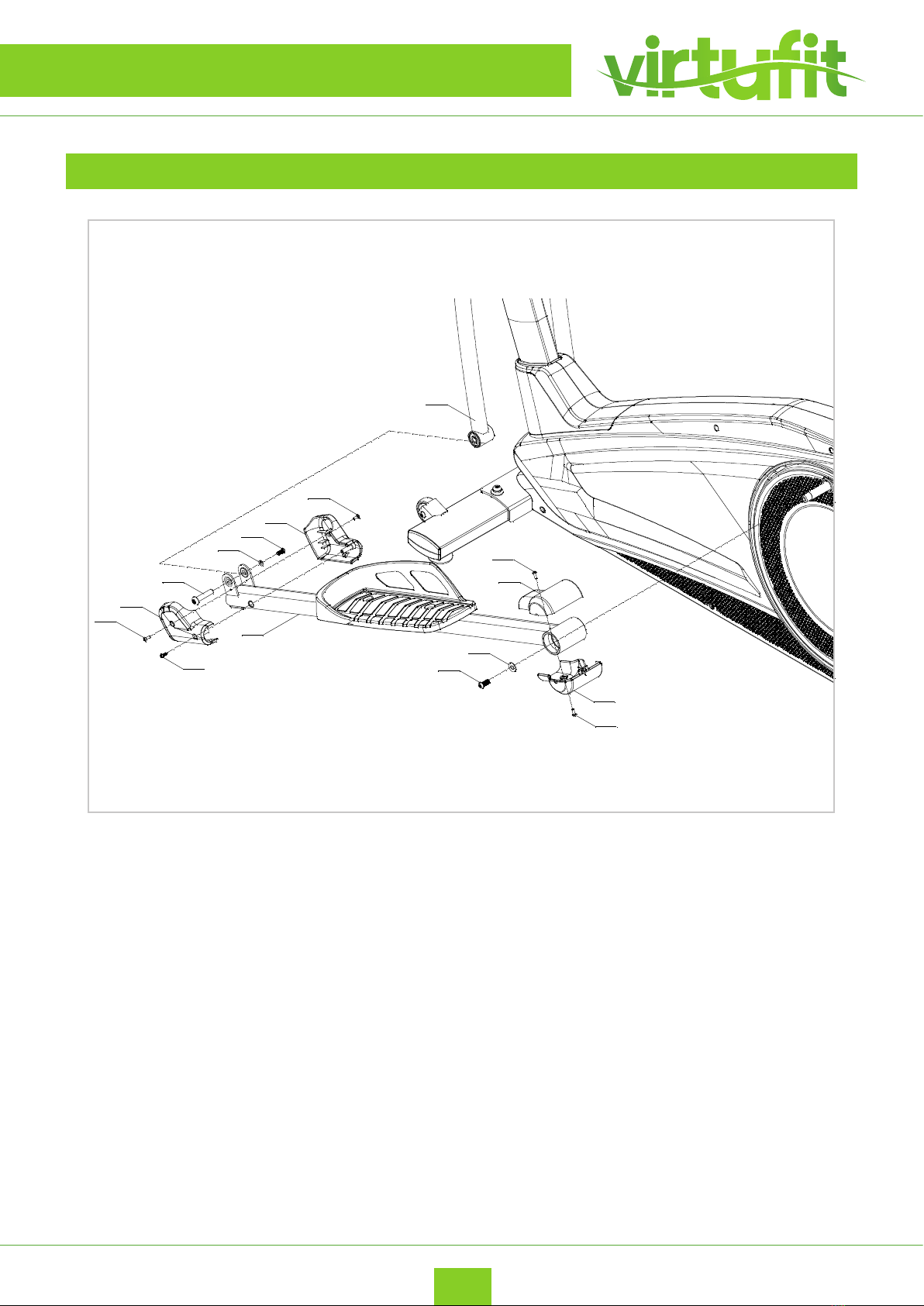

• Attach the axle sleeve of left rear pedal supporter (7) to the axle of main frame (1) with Flat washer
(31) and Allen C.K.S. Full thread screw (29).
• Attach the axle sleeve of left front pedal supporter (7) to left body arm (5) with Allen. C.K.S. hollow
screw(38), at washer (39) and Allen C.K.S. full thread screw (40).
• Attach the rear cover of pedal supporter (20/21) to left pedal supporter (7) with Philips pan head
full thread screw (37). Attach the front cover of pedal supporter (18/19) to left pedal supporter (7)
with Philips pan head full thread screw (37) and Philips C.K.S. self-tapping screw (41).
• Install right pedal supporter (8) with the same way. Put the back side of the pedal supporter(R)(8)on
the axle of the main frame(1), use the at washer(31) and Allen full thread screw (29) to x it.
STEP 6
14
ASSEMBLY INSTRUCTIONS
EN VirtuFit CTR 3.0i Elliptical Trainer
12
• Through handle pulse connection wire(13) out of the upper upright post (4). Attach handlebars (9)
to upright post (4) with at washer (31), spring washer (30) and Philips pan head full thread screw
(36).
• Attach bottle holder (24) to upper upright post (4) with Philips pan head full thread screw (36).
STEP 7
15
ASSEMBLY INSTRUCTIONS
EN
VirtuFit CTR 3.0i Elliptical Trainer 13
• Connect console communication wire (12) with the interface of back console. Connect handle
pulse communication wire (13) with console outset (14).

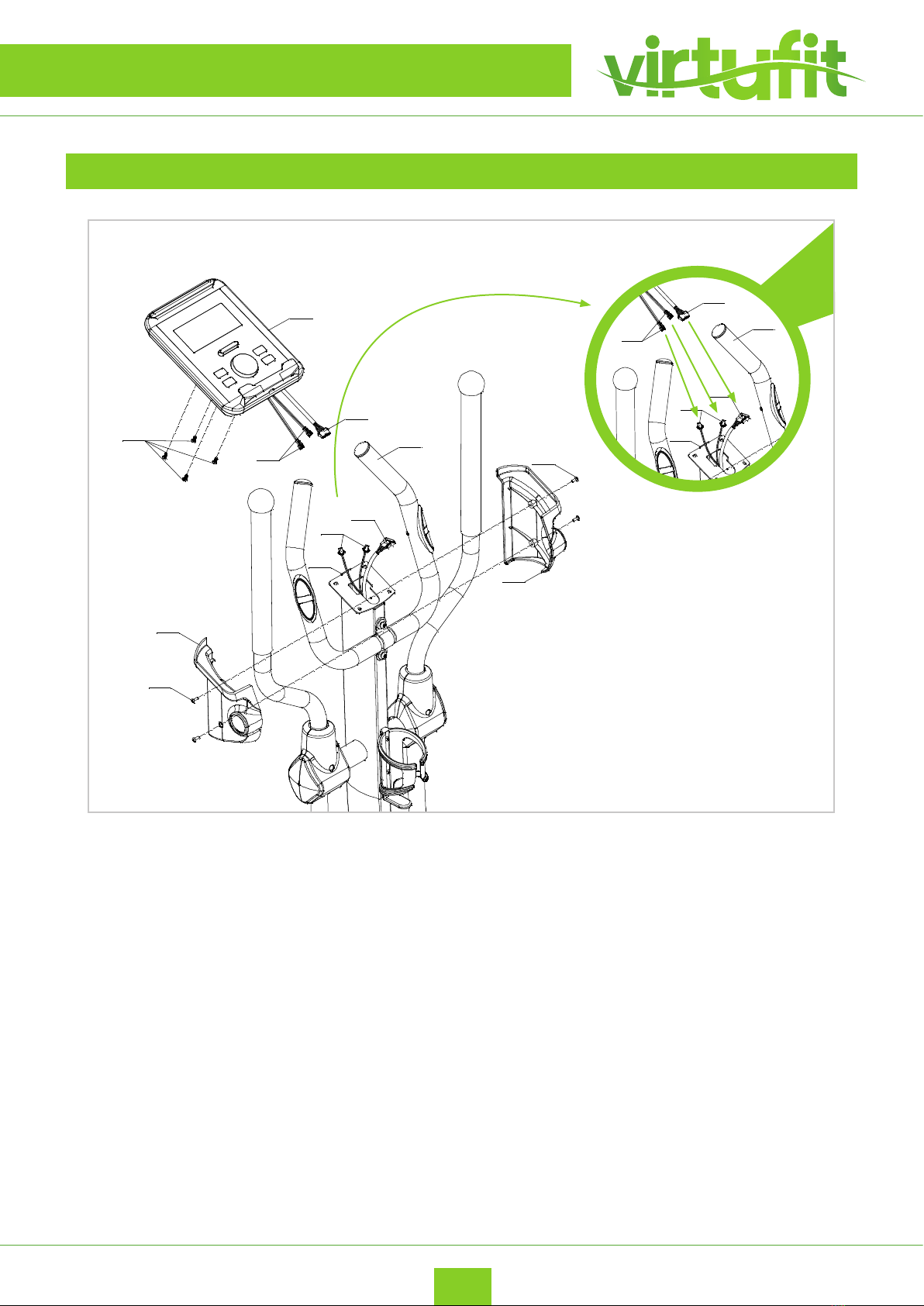

• Attach console (10) to upper upright post (4) with Philips C.K.S. full thread screw (42).

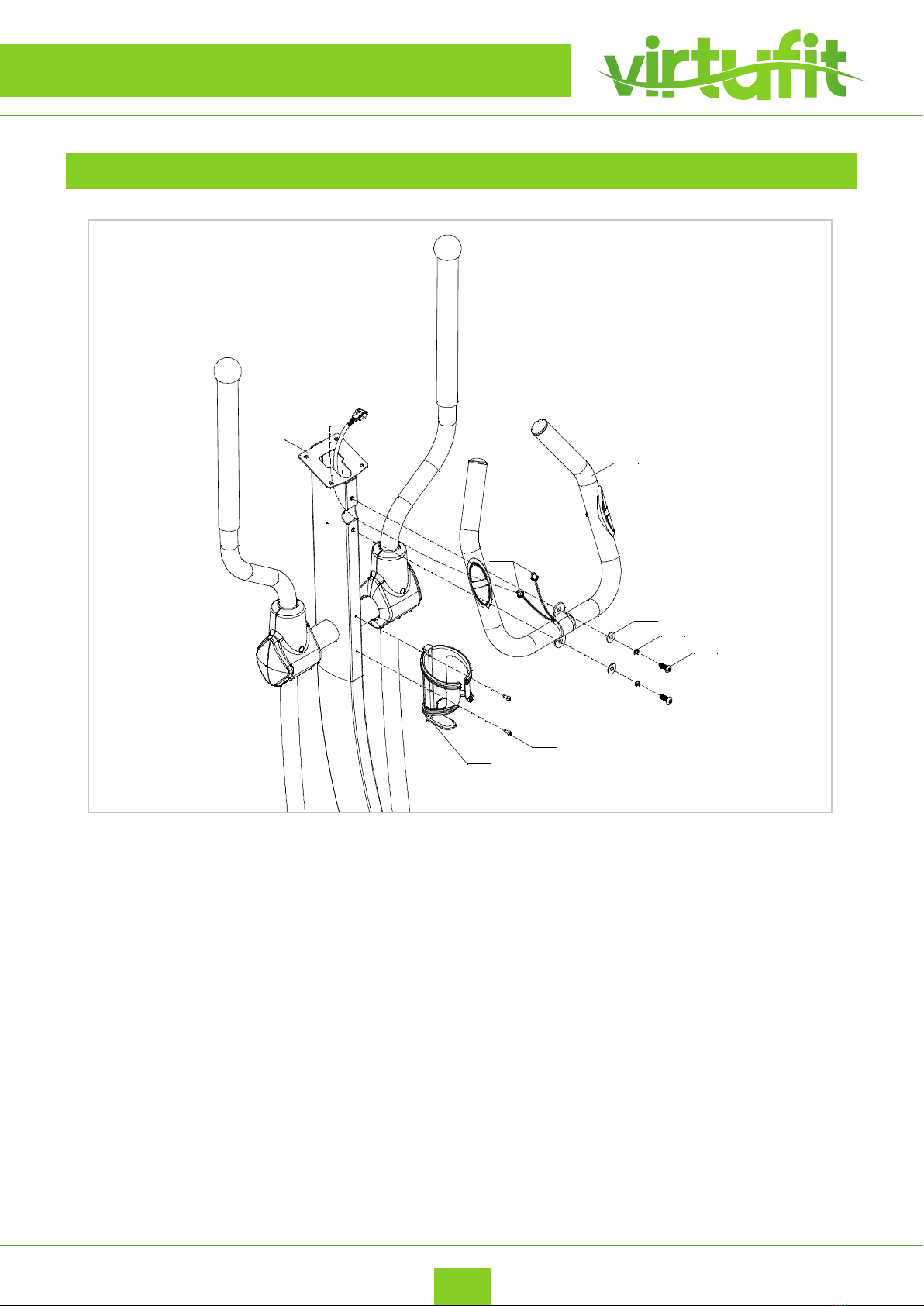

• Through left handlebar cover (22) and right handlebar cover (23) out of the handlebar (9). Attach
themto the upper upright post (4) with Philips pan head full thread screw (37).
STEP 8
15
15
ASSEMBLY INSTRUCTIONS
EN VirtuFit CTR 3.0i Elliptical Trainer
14
• The adapter connection is located on the back of the device (see image). Attach the adapter to the
adapter connector and connect to mains power. You can now use the cross trainer.
• Do not use the machine until it has been fully assembled and inspected for correct operation in
accordance with the user manual..
• Inspect your machine to make sure everything is tight and components are correct are mounted.
ADAPTER
ASSEMBLY INSTRUCTIONS
TITEL HOOFDSTUK
EN
VirtuFit CTR 3.0i Elliptical Trainer 15
LEVELING THE DEVICE
MOVING THE DEVICE
Always make sure that the elliptical cross trainer is on a stable surface. If in doubt, you can always place a
rubber mat under your cross trainer so that you get more grip on your oor. If you do need to adjust the
crosstrainer slightly, you can compensate the crosstrainer for the uneven surface with a simple turn of the
adjustable ends on both sides of the frame.
To move the elliptical, apply pressure to the handlebars until the transport wheels on the front stabilizer
touch the ground. With the transport wheels on the ground, you can easily transport the elliptical to the
desired location.
ADJUSTMENTS GUIDE
TRAINING ON HEART RATE
5kHz and and pulse sensors
This VirtuFit tness equipment is provided with hand pulse sensors for measuring the heart rate. The hand
pulse sensors are located on the handlebars. The hand pulse sensors are only working if they are touched
both at the same time for a couple of seconds. For accurate measurement it is important to have slightly
moist hands and to use a constant pressure on the sensors. Too dry or too moist hands can result in less
accurate measurement of the heart rate.
EN VirtuFit CTR 3.0i Elliptical Trainer
16
HAND PULSE SENSORS
WARNING
Hand pulse sensors
This VirtuFit tness equipment is provided with hand pulse sensors for measuring the heart rate. The hand
pulse sensors are located on the handlebars. The hand pulse sensors are only working if they are touched
both at the same time for a couple of seconds. For accurate measurement it is important to have slightly
moist hands and to use a constant pressure on the sensors. Too dry or too moist hands can result in less
accurate measurement of the heart rate.
NOTE! Do not use the hand pulse sensor in combination with a wireless heart rate transmitter to prevent
errors.
Wireless heart rate monitor (Bluetooth)
This VirtuFit tness machine is equipped with a wireless heart rate receiver. For heart rate measurement
with a wireless heart rate monitor, use a heart rate monitor that works on Bluetooth. With a wireless heart
rate monitor it is important that the electrodes are slightly moist and that the heart rate monitor ts well
on your body. Refer to your heart rate monitor owner’s manual for correct instructions. Incorrect use of the
heart rate monitor can cause an abnormal reading.
NOTE!
•A wireless heart rate transmitter does not come standard with this tness equipment. Contact
your dealer for purchasing.
•Do not use the wireless heart rate transmitter in combination with the hand pulse sensors to
prevent errors.
• Consult a physician if you have a pacemaker, before using a wireless heart rate transmitter.
• If there are more than one heart rate measurement devices in one room, please make sure to keep
distance to the other devices to prevent inaccurate measurement or errors.
• Alway try to keep the wireless heart rate transmitter in a close distance of 1 meter from the console.
• Always wear a wireless heart rate transmitter directly on the body under your clothes.
TRAIN ON HEART RATE
EN
VirtuFit CTR 3.0i Elliptical Trainer 17
EXTEND SERVICE LIFE
• The upright is secured with Allen screws, make sure that the bolts are tight at all times. If the bolts are
not tight enough anymore, this can cause cracking.
• If a main switch is attached to the appliance (on/o), it should always be used after use be turned
o.
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the device.
CLEANING
WARNING
Before cleaning the machine, please make sure the power has been switched o.
Cleaning:General cleaning of the device will extend the life of the elliptical trainer. Hold clean the elliptical
trainer by dusting regularly.
In addition, wear clean shoes to reduce the risk of contamination of the elliptical trainer. Remove the hood at
least once a year to vacuum underneath.
MAINTENANCE
EN VirtuFit CTR 3.0i Elliptical Trainer
18
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
The device beeps
If necessary, lubricate parts with silicone spray. Check that all nuts and bolts are tightened. It may be that a
screw is too loose or too tight, this creates friction and makes the device appear to beep. If this is the case,
try to nd out exactly where the beep comes from and then tighten or loosen this screw. It must always be
possible to loosen the screws with your hands. If this is not possible, the screw is too tight.
No resistance
First check whether you can hear the motor running. You will hear the motor running briey when you
increase or decrease the resistance. If you hear the engine running, all electronics are in order, but the
V-belt is probably over. You can then open the housing and put the V-belt back on it. If you do not hear
the motor running, it is possible that the motor or the display is defective. First check whether the cable
running upwards in the pipe is still properly connected.
Ticking sound
It is possible that the ywheel (in the housing) comes against a cable with each
pedaling movement. This may be disturbing but will not permanently damage your crosstrainer.
To x this, open the housing and move the cable or x it with
for example a tie wrap.
Heart rate display is not functioning
There can be various reasons for this:
• The sensor cables that run from the heart rate sensor to the display are not properly installed or have
become detached during use.
• The sensors may become damp, dirty or greasy. So you have to clean them regularly.
The console is not working
If there is no signal when pedaling, check if the cable is properly attached.
TROUBLE SHOOTING
EN
VirtuFit CTR 3.0i Elliptical Trainer 19
• This unit requires a 9V, 500mA adapter. If the meter does not display properly, pull the Unplug the
power cord and plug it in again.
• When the user stops pedaling for 4 minutes, the computer enters power saving mode, all settings
and training data are saved until the user starts again with train.
• If the computer shows abnormal values, unplug the power cord from the power outlet, so that the
power is off and reconnect it.
E1
De console ontvangt geen FAT testsignaal, pak de sensoren beide goed vast.
E1
Console is not receiving a FAT test signal, grasp both sensors securely.
E2
Check if the motor exceeds the range of the console.
E4
The set age, height and weight exceed the set range of the console, please set it based on the actual values
of the user.
E5
Check that the 12-pin (9-pin) wire between the console and the machine is properly connected without
breaking contact.
E7
Check that the 12-pin (9-pin) wire between the console and the machine is properly connected, without
breaking the contact (with CD motor).
ERROR CODES
TROUBLE SHOOTING
EN VirtuFit CTR 3.0i Elliptical Trainer
20
CONSOLE
BUTTON FUNCTION
ENTER Conrm setting or selection
WHEEL UP/
DOWN Increase or decrease the resistance level.
RESET
• Press the button for 2 seconds. The computer will restart at from the setting
of the user.
• Return to the main menu while setting one training value or during stop
mode.
START/STOP Start or stop the workout.
RECOVERY Test the heart rate recovery status.
BODYFAT Test body fat and BMI.
CONTROL PANEL
Other manuals for CTR 3.0i
1
Table of contents
Other VIRTUFIT Elliptical Trainer manuals
VIRTUFIT
VIRTUFIT CTR 1.2i User manual
VIRTUFIT
VIRTUFIT CTR 1.0 User manual
VIRTUFIT
VIRTUFIT iConsole CTR 2.1 User manual
VIRTUFIT
VIRTUFIT FDR 2.0i User manual
VIRTUFIT
VIRTUFIT iConsole CTR 2.1 User manual
VIRTUFIT
VIRTUFIT iConsole Total Fit User manual
VIRTUFIT
VIRTUFIT CTR 1.2i Crosstrainer User manual
VIRTUFIT
VIRTUFIT Etappe 2.0i Spinbike User manual
VIRTUFIT
VIRTUFIT Elite FDR 2.5i Semi-Pro Crosstrainer User manual
VIRTUFIT
VIRTUFIT Elite FDR 2.4i User manual
Popular Elliptical Trainer manuals by other brands
Diamondback
Diamondback ELLIPTICAL TRAINERS 510ER user manual
Cubii
Cubii JR1 owner's manual
Diadora
Diadora DX2 user manual
Infiniti Direct
Infiniti Direct X9 Series Assembly instructions
SportsArt Fitness
SportsArt Fitness ICARE E872MA owner's manual
NordicTrack
NordicTrack E10 Rear Drive Elliptical Bedienungsanleitung
