VIRTUFIT FDR 2.0i User manual

User manual
EN
FDR 2.0i Ergometer Crosstrainer

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
2
INDEX
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
ADJUSTMENTS GUIDEADJUSTMENTS GUIDE
MOVING THE DEVICEMOVING THE DEVICE
MAINTENANCEMAINTENANCE
TROUBLE SHOOTINGTROUBLE SHOOTING

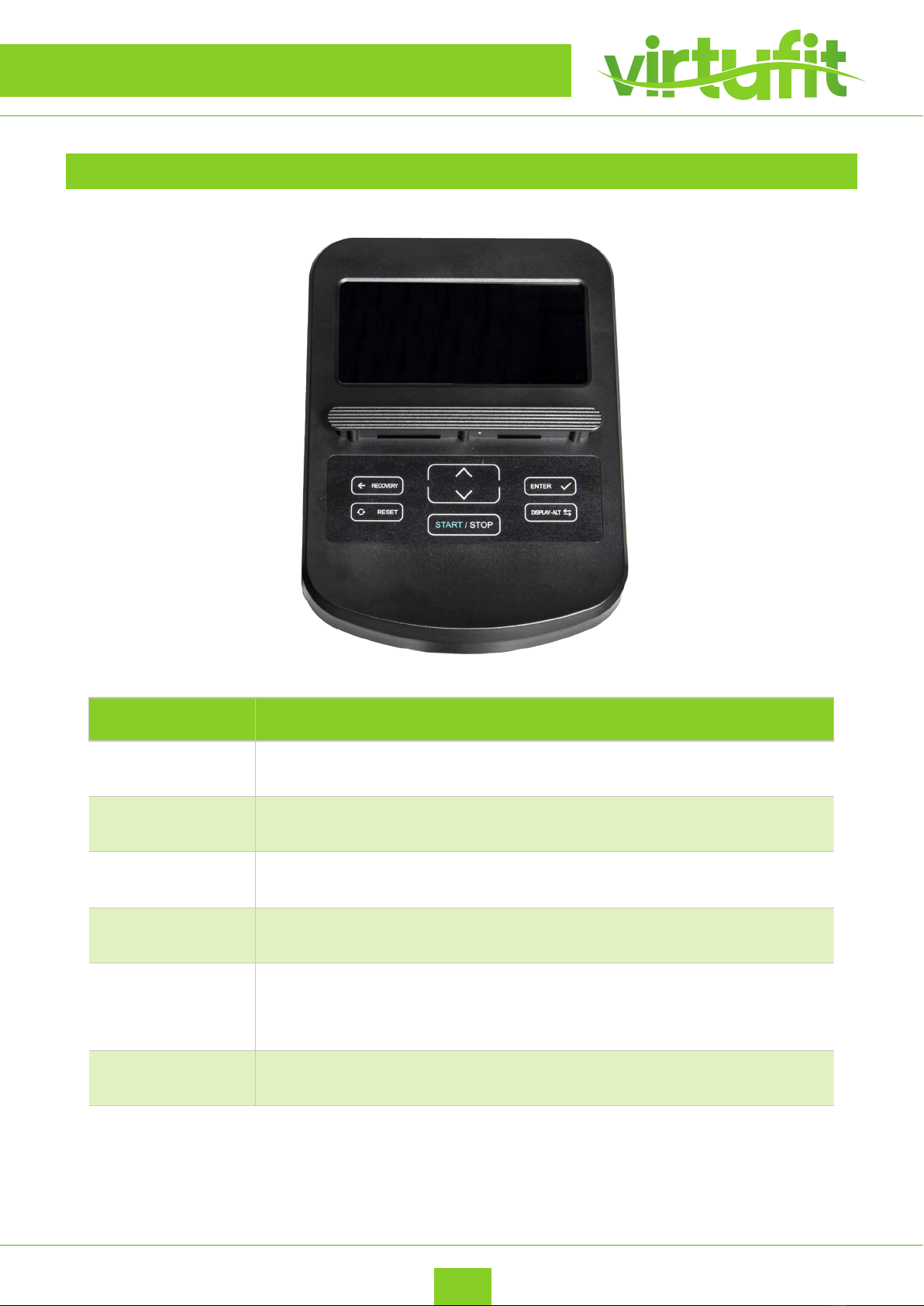

CONTROL PANELCONTROL PANEL
APP INSTRUCTIONSAPP INSTRUCTIONS
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5
6 - 9
10
10
11
12 -13
14 - 21
22
23 - 24
25 - 26
27

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 3
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.
SAFETY INSTRUCTIONS

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
4
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 140 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
SAFETY INSTRUCTIONS

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 5
When you open the carton, and you will nd the below parts in the carton:
TOOLKIT
CHECKLIST
#13 d8 4PCS
#116 M8*20*S13 4PCS
#29 M8*H16*S13 4PCS
#A S5 1PC
#B S13-14-15 1PC
#28 d8*¦ µ20*2*R19 4PCS
#30 d8*¦ µ20*2 4PCS
#27 M8*45*S6*¦Õ12 4PCS
#C S6 1PC
S13
S15
#D S13-15 1PC
#118 M5*10*¦ µ10 2PCS
NOTE! Do not connect the appliance to the power before it has been completely assembled.

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
6
STEP 1
14
13
35
14
13
29
40 35
29
14
13
29
141329
36
35
35
#35 M8*73*20*H5 4PCS
#14 d8*¦ µ20*2*R30 4PCS
#13 d8 4PCS
#D S13-15 1PC
#29 M8*H16*S13
4PCS
61
S13
S15
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
NOTE! The transport wheels must be mounted on the front of the appliance.
• Remove the square neck bolt (35), spring washer (13), arc washer (14) and cap nut (29) from the
mainframe (61)rst and then take o the paper tube.
• Fix the front and rear stabilizer (36)&(40) to the mainframe (61) with square neck bolt (35), spring
washer (13), arc washer (14) and cap nut (29) by cross solid wrench (D).
ASSEMBLY INSTRUCTIONS

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 7
STEP 2
• Connect extension wire 1(2) with extension wire 2 (98) rst.
• Fix the handlebar post (4) to the mainframe (61), and then x it with hexagonal bolt (116), spring
washer (13),washer (30) by solid wrench (D).
• Fix the handlebar (18L/R) to the reciprocating bar (20L/R) separately with inner hex cylinder head
bolt (27), arc washer (28), and cap nut (29) by solid wrench (D) and Allen wrench.
• Remove the inner hex pan head bolt (12) from the pedal support tube (50L/R) rst, and then x the
pedal (52L/R) to the pedal support tube (50L/R).
• Connect the handlebar post cover (41L/R) by plastic connection bar (42).
4
98
116
13
30
116
13
30
2
98
2
18L
27 28 29
18R
27
2829
#13 d8 4PCS
#12 M8*20*S5 4PCS
#29 M8*H16*S13 4PCS
#A S5 1PC
#D S13-15 1PC
#28 d8*¦ µ20*2*R19 4PCS
#30 d8*¦ µ20*2 4PCS
#27 M8*45*S6*¦Õ12 4PCS
61
12 12
52R
12
12
52L
41L
41R
42 42
20L
20R
50L
5
0 R
#C S6 1PC
#116 M8*20*S13 4PCS
S13 S15
ASSEMBLY INSTRUCTIONS

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
8
• Remove the inner hex pan head bolt (12), spring washer (13)and arc washer (14) from the handlebar
post (4).
• Fix the middle handlebar (5) to the handlebar post (4) with inner hex pan head bolt (12), spring
washer (13)and arc washer (14).
• Remove the cross pan head screw (3) from the display (1).
• Draw the handle pulse wire (11) from the handlebar post (4), and connect it with display wire (1b),
mean while connect the extension wire 1(2) with display wire (1a).
• Press the wire holder into the hole.
• Fix the display (1) to the handlebar post (4) with cross pan head screw (3).
• Fasten the bottle holder (117) to the handlebar post (4) with cross pan head screw (118).
ASSEMBLY INSTRUCTIONS
STEP 3
5
11
14
12
13
2
1
1b
1a
3
2
1a 1b
11
#13 d8 2PCS
#14 d8*¦ µ20*2*R30 2PCS
#12 M8*20*S5 2PCS
#A S5 1PC
#3 M5*10 4PCS
#B S13-14-15 1PC
15
4
73
61 118
117
#118 M5*10*¦ µ10 2PCS

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 9
• The adapter connection is located on the front of the device (see image). Attach the adapter to the
adapter connector and connect to AC power. You can now use the crosstrainer.
• Do not use until the machine has been fully assembled and inspected for correct performance in
accordance with the User Manual.
• Inspect your machine to ensure that all hardware is tight and components are properly assembled.
ASSEMBLY INSTRUCTIONS
ADAPTER
73
power jack
61

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
10
ADJUSTMENTS GUIDE
LEVELING THE DEVICE
CHANGING INCLINE LEVELS
4. Loosen the locking nuts and adjust the levelers until they all contac
5. Adjust until the machine is level. Tighten thelocking nuts.
Low
High
66
Incline level xation plate
The machine needs to be leveled if
your workout area is uneven or if the
Rail Assembly is slightly o the oor. To
adjust: Place the machine in your workout
area. Safely stand on the back of the Rail
Assembly for approximately 20 seconds.
Step o the machine. Loosen the locking
nuts and adjust the levelers until they all
contact the oor. Adjust until the machine is
level. Tighten the locking nuts.
Hold the incline adjustment handle steadily,
and then pull it out to the suitable position.
MOVING THE DEVICE
• Remove the power cord.
• Use the Transport Handle to carefully
lift the machine onto the transport
rollers.
• Push the machine into position.
• Carefully lower the machine into
position.

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 11
MAINTENANCE
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the device.
EXTEND SERVICE LIFE
• The upright is secured with Allen screws, make sure that the bolts are tight at all times. If the bolts are
not tight enough anymore, this can cause cracking..
• If the crosstrainer has rails with wheels that roll over it, these rails/wheels every month to be greased
with grease. This can be done with Vaseline (without acids) or with silicone oil.
• If a main switch is attached to the appliance (on / o), it should always be used after use be turned
o.

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
12
TROUBLE SHOOTING
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
The device beeps
If necessary, lubricate parts with silicone spray. Check that all nuts and bolts are tightened. It may be that a
screw is too loose or too tight, this creates friction and makes the device appear to beep. If this is the case,
try to nd out exactly where the beep comes from and then tighten or loosen this screw. It must always be
possible to loosen the screws with your hands. If this is not possible, the screw is too tight.
No resistance
First check whether you can hear the motor running. You will hear the motor running briey when you
increase or decrease the resistance. If you hear the engine running, all electronics are in order, but the
V-belt is probably over. You can then open the housing and put the V-belt back on it. If you do not hear
the motor running, it is possible that the motor or the display is defective. First check whether the cable
running upwards in the pipe is still properly connected.
Ticking sound
It is possible that the ywheel (in the housing) comes against a cable with each
pedaling movement. This may be disturbing but will not permanently damage your crosstrainer.
To x this, open the housing and move the cable or x it with
for example a tie wrap.
Heart rate display is not functioning
There can be various reasons for this:
• The sensor cables that run from the heart rate sensor to the display are not properly installed or have
become detached during use.
• The sensors may become damp, dirty or greasy. So you have to clean them regularly.
The console is not working
If there is no signal when pedaling, check if the cable is properly attached.

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 13
TROUBLE SHOOTING
CODE PROBLEM SOLUTION
E01
1. The motor is not working.
2. The cable does not work inside the
device.
3. The display has no corresponding
signal to the engine.
First check the connections of the sensor
cables and check the sensor cables.
1. Connect the plug or replace the motor.
2. Replace the cable.
3. Replace the electronic meter.
E02 Heart rate display does not work.
First check the heart rate in another mode.
If there is no heart rate display in the other
mode, replace the receiver or the heart rate
sensor wire. Hold the heart rate sensor on the
handlebar by hand within 3 seconds after the
test is started.
NOTE
1. This meter must be equipped with a 9V / 1A power adapter. If the meter isn’t right is displayed, unplug
the power cord and plug it in again.
2. This meter must be equipped with a 9V / 1A power adapter. If the meter isn’t right is displayed, unplug
the power cord and plug it in again.
ERROR CODES

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
14
CONSOLE
CONTROL PANEL
BUTTON FUNCTION
RECOVERY To testing the level of heartbeat recovery.
RESET Delete settings except the user dened U1 ~ U4, WATT, PULSE.
UP/DOWN Adjust the function value up or down.
START/STOP Start the training or resume training in stop mode.
ENTER To changeover display WATT or RPM display in the working status ;  .To
choose set items in the stop status needs to be set.
DISPLAY-ALT Lets you to select and lock on to a particular function you want.

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 15
CONTROL PANEL
FUNCTIONS
BUTTON FUNCTION
TIME The total cycling time from the beginning to the end of the exercise is displayed.
SPEED The speed is displayed during training when you start training.
DISTANCE The distance of each workout is displayed when you start exercising.
CALORIES The total calories from the beginning to the end of the exercise is displayed.
PULSE Keep your hands on the sensor for 3 seconds to display your heart rate.
RPM Revolutions per minute.
WATTS Displays the wattage.
SCAN Functions change automatically every 6 seconds.
UNIT
HEIGHT WEIGHT KPH RPM DIST CAL WAT T PULSE
CM KG KM / H R / MIN KM KCAL WBPM

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
16
CONTROL PANEL
PROGRAM SETTINGS
PROGRAM EXPLANATION
MANUAL
MODE Program 1: adjust resistance level manually.
PROGRAM
MODE Program 2 ~ 11: Automatic resistance adjustment with preset values.
BODY FAT Program 12: Percentage of body fat, body mass index (BMI) and basal metabolism
WATT MODE Program 13: The resistance adjusts to the speed while the set wattage remains
the same.
H.R.C.
MODE
Program 14 ~ 17: The heart rate value is based on the movement mode (65%,
75%, 85%). The resistance adjusts to the speed so that the set heart rate remains
the same.
USER MODE Program 18 ~ 21: The voltage can be adjusted in dierent resistance levels.
RECOVERY
MODE Heart rate recovery status.
MANUAL MODE (PROGRAM 1)
1. Press “START” key to starting motion, or press “ENTER” key into setting.
2. In setting status, press “ENTER” key to choose setting items with relevant ashing window for
TIME, DISANCE, CALORIE, AGE.
3. Press “UP” or“DOWN” key to upward or downward a adjusted, and press“ENTER” key to next
4. Automatically exits the set status when all operations are complete, or press“START”key in the settings
status to start directly.
5. It can be adjusted the resistance value level freely during the motion status, with“UP” or “DOWN”key;
6. If time, distance, calories, or any of these are settingThe corresponding value will be inverted in motion
status. When any of setting value count to 0, t he motion will be STOP and “DI DI”Voice Prompt.
7. Press “STOP ”key to STOP the motion, in the motio.
PROGRAM EXPLANATION

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 17
CONTROL PANEL
PROGRAM MODE (PROGRAM 2-11)
1. Press “UP” or“DOWN” key to select a particular function you want.
2. Press “START” key to starting motion, or press “ENTER” key into setting mode.
3. In setting status, press “ENTER” key to choose setting items with relevant ashing window for
TIME, DISANCE, CALORIE, AGE.
4. Press “UP” or“DOWN” key to upward or downward a adjusted, and press“ENTER” key to next.
5. Automatic ally exits the set status when all operations are complete, or press“START”key in the settings
status to start directly.
6. It can be adjusted the resistance value level automatic during the motion status with program, or press
“UP”“DOWN” to manual adjustment.
7. If time, distance, calories, or any of these are settingThe corresponding value will be inverted in motion
status. When any of setting value count to 0, the motion will be STOP and “DI DI”VoicE Prompt.
8. Press “STOP ”key to STOP the motion , in the motion status.
BODY FAT (PROGRAM 12)
1. Press “ENTER”key into setting mode;
2. In setting status, press“ENTER”key to choose setting items with relevant ashing window for GENDER
- HIGHT - WEIGHT - AGE.
3. Press “UP” or “DOWN” key to upward or downward a adjusted, and press “ENTER” key to next item.
Press “START” key to starting test and. Hold the pulse sensor. Then the display will show your body fat
in 8 seconds later.
MANUAL MODE(PROGRAM 1)

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
18
CONTROL PANEL
1. You should keep your body relaxed and your heart rate calm.
B.M.I. (BODY MASS INDEX)
GENDER / AGE UNDER
WEIGHT HEALTY SLIGHTLY OVERWEIGHT
OVER
WEIGHT OBESE
MALE <30 < 14% 14% - 20% 20.1% - 25% 25.1% - 35% > 35%
MALE >30 < 17% 17% - 23% 23.1% - 25% 28.1% - 38% > 38%
FEMALE <30 < 17% 17% - 24% 24.1% - 30% 30.1% - 40% > 40%
FEMALE >30 < 20% 20% - 27% 27.1% - 33% 33.1% - 43 > 43%
BODY FAT
GENDER LOW MEDIUM SLIGHTLY
HIGHT HIGHT
MALE < 13% 13% - 25.9% 26% - 30% > 30%
FEMALE < 17% 17% - 23% 23.1% - 25% > 40%
B.M.R (BASAL METABOLIC RATE): The average number of calories burned per day for basic survival.
• Ref: 1300 ± 100 (22 - 40 years).

EN
VirtuFit FDR 2.0i Ergometer Crosstrainer 19
CONTROL PANEL
BODY TYPE
B1 B2 B3 B4 B5 B6 B7 B8 B9
Skinny Obese Slightly
thin Slim Healthy Slightly overweight Overweight Obese Obesity
WATT MODE (PROGRAM 13)
1. Press “ENTER”key into setting mode.
2. In setting status, press “ENTER” key to choose sett ing items with relevant ashing window for
TIME - DISTANCE - WATT.
3. Press “UP” or“DOWN” key to upward or downward a adjusted, and press“ENTER” key to next.
4. Press “START” key to starting.
5. It can be adjusted the resistance value level automatic during th e motion status with WATT target
value, or press “UP”“DOWN”to manual adjustment.
6. If time, distance, calories, or any of these are settingThe corresponding value will be inverted in motion
status. When any of setting value count to 0, the motion will be STOP and “DI DI”Voice Prompt.
7. Press “STOP ”key to STOP the motion , in the motion
H.R.C MODE (PROGRAM 14-17)
1. Press “UP” or“DOWN” key to select a particular function you want.
2. Press “START” key to starting motion, or press “ENTER” key into setting mode.
3. In setting status, press “ENTER” key to choose setting items with relevant ashing window for
TIME - DISTANCE - CALORIE - AGE (only PROGRAM14 16). T.H.R (only PROGRAM17).
4. Press “UP” or“DOWN” key to upward or downward a adjusted, and press“ENTER ” key to next.
5. Press “START” key to starting.
6. It can be adjusted the resistance value level automatic during the motion status with T.H.R target
value, or press “UP”“DOWN”to manual adjustment.
7. If time, distance, calories, or any of these are setting. The corresponding value will be inverted in
motion status. When any of setting value count to 0, the motion will be STOP and “DI DI”Voice Prompt.

EN VirtuFit FDR 2.0i Ergometer Crosstrainer
20
CONTROL PANEL
1. Press “START/STOP” key to STOP the motion , in the motion status;” key to STOP the motion, in
the motion status.
NOTE: You must be hold the pulse sensor in during exercise.
USER MODE (PROGRAM 18-21)
1. Press “UP” or“DOWN” key to select a particular function you want.
2. Press “START” key to starting motion, or press “ENTER” key into setting.
3. In setting status, press “ENTER” key to choose setting items with relevant ashing window for
TIME - DISTANCE - CALORIE - AGE - Resistance Value.
4. Press “UP” or“DOWN” key to upward or downward a adjusted, and press“ENTER” key to next.
5. Press “START” key to starting.
6. It can be adjusted the resistance value level autom atic during the motion status, or press“UP”“DOWN”
to manual adjustment.
7. If time, distance, calories, or any of these are setting. The corresponding value will be inverted in
motion status. When any of setting value count to 0, the motion will be STOP and “DI Voice Prompt.
8. Press “STOP ”key to STOP the motion, in the motion.
