VIRTUFIT Elite FDR 2.5i Semi-Pro Crosstrainer User manual

Elite FDR 2.5i Semi-Pro Crosstrainer
User Manual
ENG

2
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
INDEX
Safety Caution 3
Checklist 4
Assembly Intructions 5-11
Maintenance 12
Computer Manual 13-19
App Possibilities 20
Exploded Drawing 21
Parts List 22-25
ENG
ENGENG

3
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
SAFETY CAUTION
WARNING: BEFORE YOU BEGIN YOUR WORKOUT, WE RECOMMEND THAT YOU
FIRST CONTACT YOUR HEALTH SPECIALIST, ESPECIALLY FOR PEOPLE OVER 35
OR PEOPLE WHO ALREADY SUFFER FROM HEALTH PROBLEMS. WE ARE NOT
LIABLE FOR ACCIDENTS IF YOU DO NOT FOLLOW OUR INSTRUCTIONS.
- The crosstrainer is only made for home use and is suitable for users up to 165kg.
- Carefully follow the steps of assembly.
- Use only original parts that are supplied.
- After delivery, check everything with the parts list before you start assembling.
- Only use suitable tools for assembly and ask for help where necessary.
- Place the crosstrainer on a at surface and a sti surface. Use in damp rooms is not recommended.
- Check all parts for tightness before you train for the rst time. We also recommend checking the
parts every month. Replace broken parts immediately and do not use the cross trainer if you have
not yet replaced the part. Only use original spare parts for repair. Ask your dealer for advice on
repairs.
- Avoid using aggressive cleaning agents when cleaning the crosstrainer.
- Start training only after the cross trainer has been fully assembled and checked.
- Be aware that all adjustable parts have a maximum number of settings to which they can be
adjusted.
- The crosstrainer is made for adults. Make sure that children only use it when accompanied by an
adult.
- Inform users of potential danger, watch out for moving parts during use.
- Warning: improper / excessive training can cause injuries.
ATTENTION
ENG

4
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
CHECKLIST
ENG

5
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
ASSEMBLY INSTRUCTIONS
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoam
and the device yourself. Some parts (bolts, screws, etc.) are already attached to / in the device.
Error message: Make sure that all cables are carefully attached. The aluminum legs are very sensitive and
should remain straight. Do you get an error message after the installation of your cross trainer? Then you
should bend these aluminum feet straight again, this may cause the error message to disappear.
Transport wheels: Make sure that the transport wheels are attached to the front of the device.
Allen screws: In the uprights of cross trainers are hex bolts, make sure that the Allen key is rmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head from being
turned
ENG

6
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL

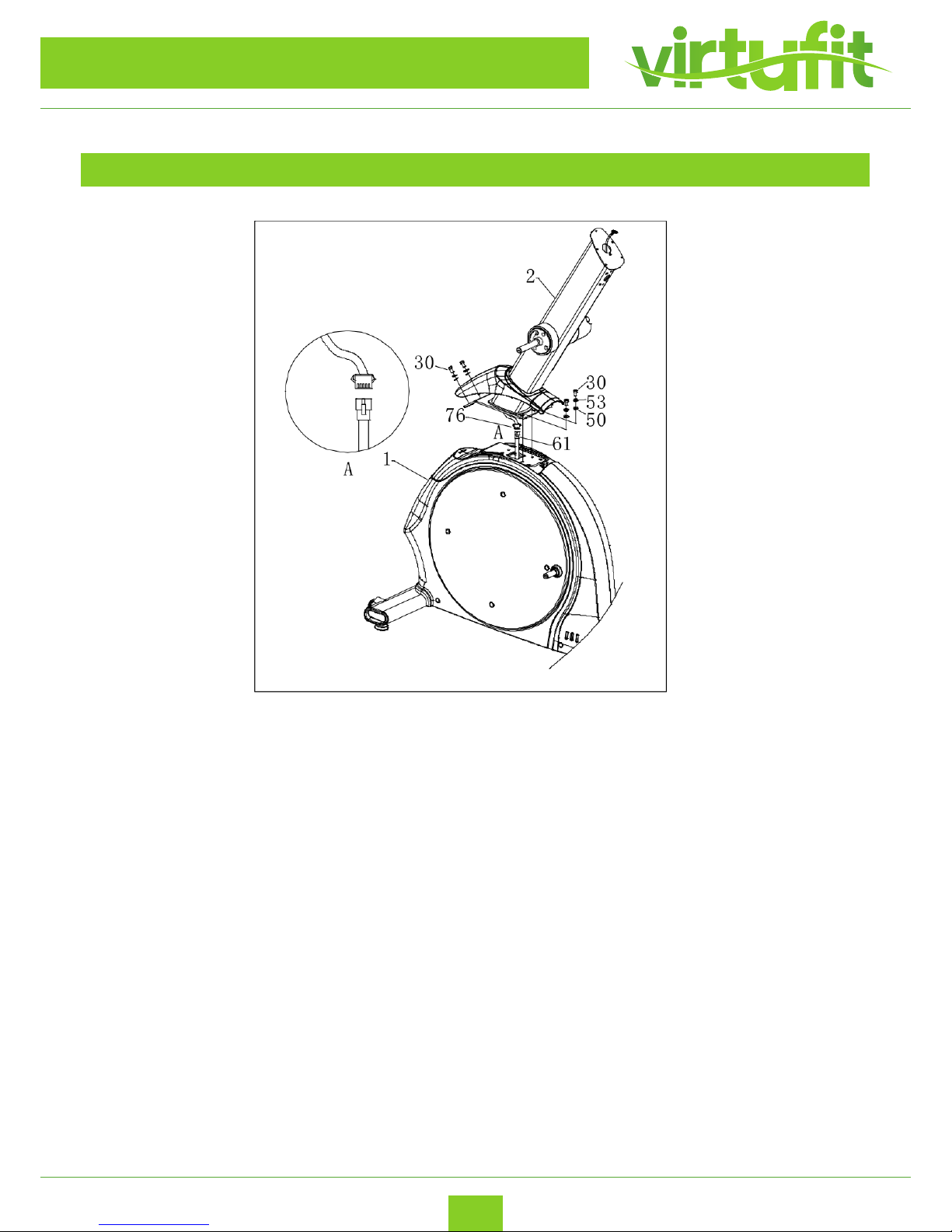

STEP 1
– Connect the motor communication wire (61) with Upright post comunication wire (76);
– Attach the upright post (2) to the main frame (1) with Allen cylinder head full thread
screw (30), Flat washer (50) and Spring washer (53).
ASSEMBLY INSTRUCTIONS
ENG

7
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL

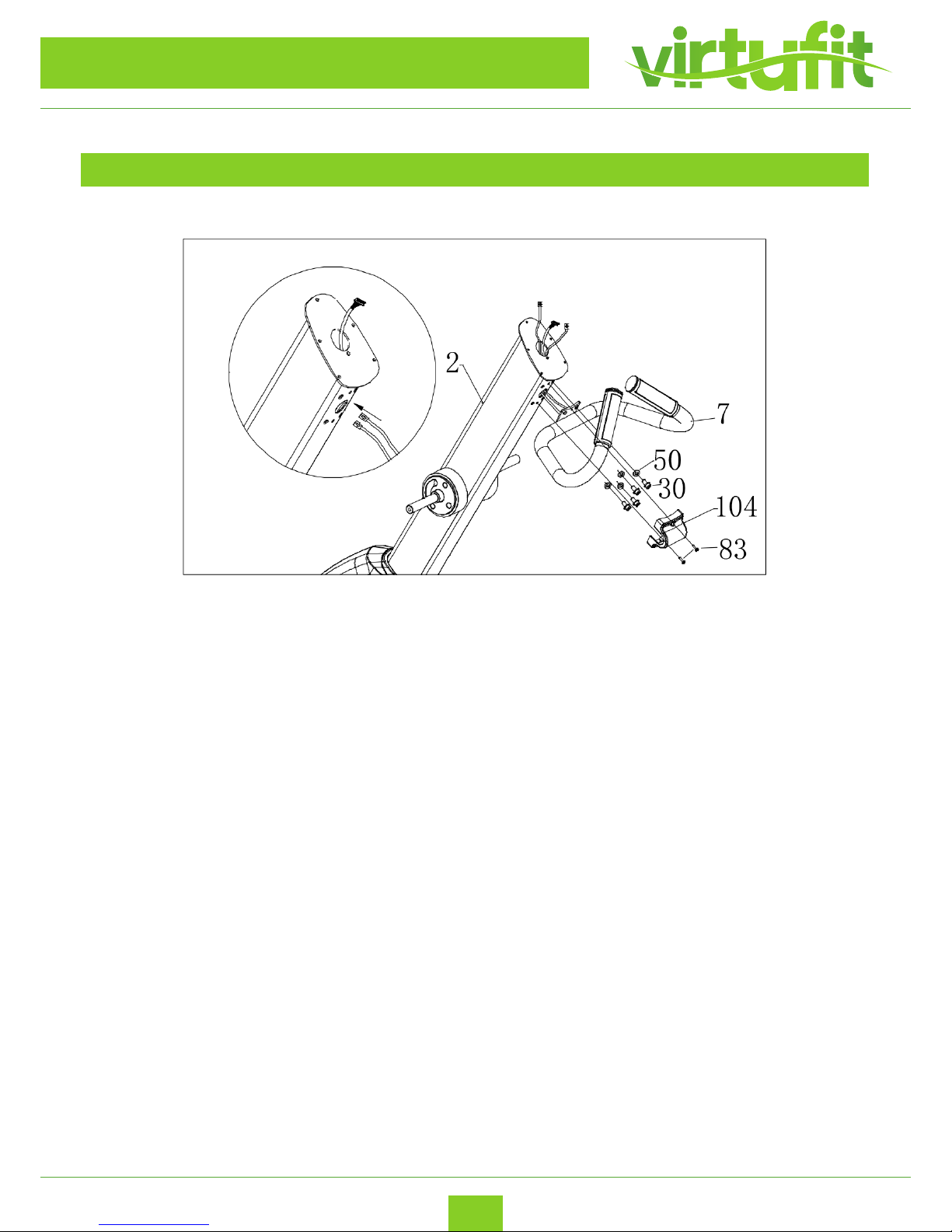

– Attach the pulse circular tube (7) to the upright post (2) with Allen cylinder head full
thread screw (30), Flat washer (50);
– Assemble the handlebar cover (104) with Philips pan head full thread screw (118).
STEP 2
ASSEMBLY INSTRUCTIONS
ENG

8
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
ASSEMBLY INSTRUCTIONS
STEP 3
STEP 4

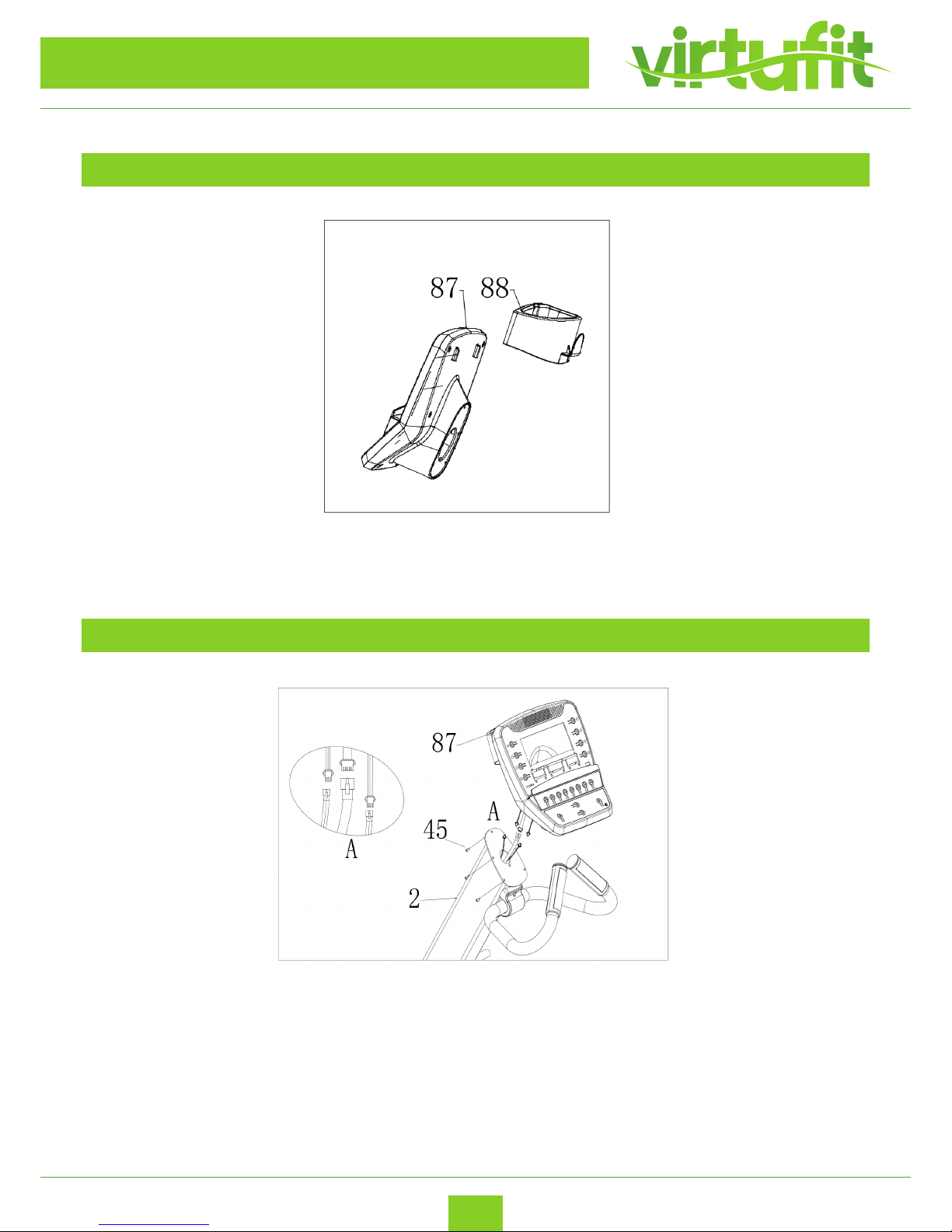

– Insert the bottle holder (88) into the console (87).
– Connect upright post (2) with console (87) communication wire;
– Attach the console (87) to upright post (2) with the Philips C.K.S. self-tapping screw (45).
ENG

9
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
ASSEMBLY INSTRUCTIONS
STEP 5
STEP 6
– First apply the lubricating oil to the axis, Attach the left swing arm (8) to main frame
(1) with Allen pan head full thread screw (35), Flat washer (49) and decorative cover
(108) with Philips pan head full thread screw (83);
– Assemble the right swing arm in the same way.
– Attach the Pulley limited sleeve(86) to the swing arm and lock with Allen C.K.S. full
thread screw (32).
ENG

10
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
ASSEMBLY INSTRUCTIONS
STEP 7
– Assemble left down handlebar (5). First apply the lubricating oil to the axis , then
insert the decorative cover (98) into the axis. Then attach the left down handlebar (5)
to the axis of upright post (2) with Allen C.K.S. Full thread screw (35), and at washer (49);
– Connect the left down handlebar (5) and left swing arm (11) with Allen C.K.S. Full
thread screw (33), powder metallurgy case (62), at washer (50) and Hex self-locking nut (58);
– Assemble the handlebar outer cover (97) with Philips C.K.S. self-locking screw (46);
– Insert the handlebar decorative cover (102) into left upper handlebar (14). Then attach left upper
handlebar (14) to left down handlebar (5) with Allen C.K.S. half thread screw (36) and
Hex self-locking nut (58);
– Assemble the right down handlebar in the same way.
ENG

11
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
ASSEMBLY INSTRUCTIONS
– Assemble left down handlebar cover A (90), B (91). Attach the down handlebar
cover A, B to left down handlebar (5) with Philips Pan head full thread screw (83);
– Assemble the right side in the same way.
– Insert the power plug into the plug hole, assemble is nished.
STEP 8
STEP 9
ENG

12
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
MAINTENANCE
1. The upright is xed with Allen screws, making sure that the bolts are tight at all times. If the bolts
are not tightened tight enough, this can cause cracking.
2. All moving parts mounted on the base of the device should be greased with grease once every 6
months. This can be done with Vaseline (without acids) or with silicone oil.
3. After each use, the appliance should be cleaned with a slightly damp cloth and soft soap. If the
perspiration is not removed in time, corrosion can occur.
4. Do not place the cross trainer in a room with high humidity. For example, a shed or a room where
the washing machine is located.
PROBLEM SOLUTIONS
Squeaky crosstrainer: First lubricate all rotating parts with silicone spray. It can also be that a screw is
tightened too tightly or too loosely, this creates friction and therefore a beep. If this is the case, try to nd
out exactly where the beep is coming from and then loosen or tighten this screw. The screws should be
tightened in such a way that they can always be released by hand.
No resistance: First check whether you can hear the motor running. You will hear the motor spin very
briey when you increase or decrease the resistance. If you hear the engine running then all electronics
are OK, but the V-belt probably ended. You can then open the housing and replace the V-belt. If you do
not hear the motor running, it may be that the motor or display is defective. First check whether the cable
that runs upwards in the pipe is connected properly.
Ticking sound: It is possible that the ywheel (in the housing) comes against a cable with every pedaling.
This may be disturbing but will not cause permanent damage to your cross trainer. To solve this, open the
housing and move the cable or you can fasten it with for example a tie-wrap.
Heart rate display does not work: This can have various causes. 1. The sensor cable running from the
heart rate sensor to the display is not properly mounted or has come o during use. 2. It may be that the
sensors have become damp, dirty or greasy, clean them regularly. 3. If you have a lot of calluses on your
hands, it is more dicult for the sensors to measure, when this is the case a chest strap is recommended.
ENG

13
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
FUNCTION BUTTONS
ENG
BODY FAT To test the Body Fat% (5.0% ~ 50%) and BMI (0~50).
UP To make upward setting or decrease function value.
DOWN To make downward setting or decrease function value.
RECOVERY To test heart rate recovery status.
RESET In STOP mode or setting mode, press it to reverse to main menu.
Hold on pressing this key for 2 seconds, console will reboot and start from user
setting mode.
ENTER Press this button to select function or conrm all setting values
START/STOP To start or stop training.
When user stops training by pressing START/STOP key, the computer will remain
all the setting values

14
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
DISPLAY FUNCTIONS
ENG
TIME Count up - no preset target, time will count up from 0:00.
Count down - with preset target, time will count down from preset to 0, then
system STOP. And system alarm 8s with 4 sounds in every second.
Display range: 0:00~99:59; Setting range: 0:00~99:00.
SPEED Display range: 0.0 ~ maximum 999.
SPEED & RPM value will display by turn.
RPM Rotation Per Minute
Display range: 0 ~ maximum 999.
SPEED & RPM value will display by turn.
CALORIES Count up - no preset target, calories will count up from 0.0.
Count down - with preset target, calories will count down from preset to 0,
then system stops.
Display range: 0~9999CAL ; Setting range 0~9999CAL.
DISTANCE Count up - no preset target, distance will count up from 0.0.
Count down - with preset target, distance will count down from preset to 0,
then system stops.
Display range: 0.0~999.9KM(ml); Setting range 0.0~ 999.0KM(ml)
PULSE Display user heart rate.
When pulse exceeds the preset Target value, console will remind with Bi-bi
sound.
Display range: P-30~230; Setting range: 0-30~230.
WAT T Display power consumption during training.
Display range: 0~999; Setting range: 10~350.
MANUAL Manual adjust workout mode.
PROGRAM Self-select load level to workout; 12 proles preset to be selected.
USER User create his own resistance level prole to workout.
H.R.C. Target HR training mode.
WAT T
CONSTANT
WATT constant training mode

15
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
POWER ON
1. Power on
Connect power (press RESET key for 2s), buzzer sound for 1s and LED will full display 2s (Drawing 1), then
display wheel diameter in TIME window and KM (or ML) in SPEED window and “E” (or “A”) in DISTANCE
window (Drawing 2). Then go to user setting mode. System default user group is U1 (Drawing 3), press UP
or DOWN to select U1~U4, press MODE button to conrm. Press UP and DOWN buttons to set SEX, AGE,
HEIGHT, WEIGHT and conrm by pressing MODE.
1-1-1 SEX- Female / Male
1-1-2 AGE- 1~99 ( default value is last input value )
1-1-3 HEIGHT- 100~200CM ( default value is last input value )
1-1-4 WEIGHT- 20~150KG ( default value is last input value )
ENG

16
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
ENG
TRAINING MODE SELECTION
After USER DATA setting, press MODE into main menu: MANUAL, PROGRAM, USER program, H.R.C. and WATT
LED is ashing to be set.

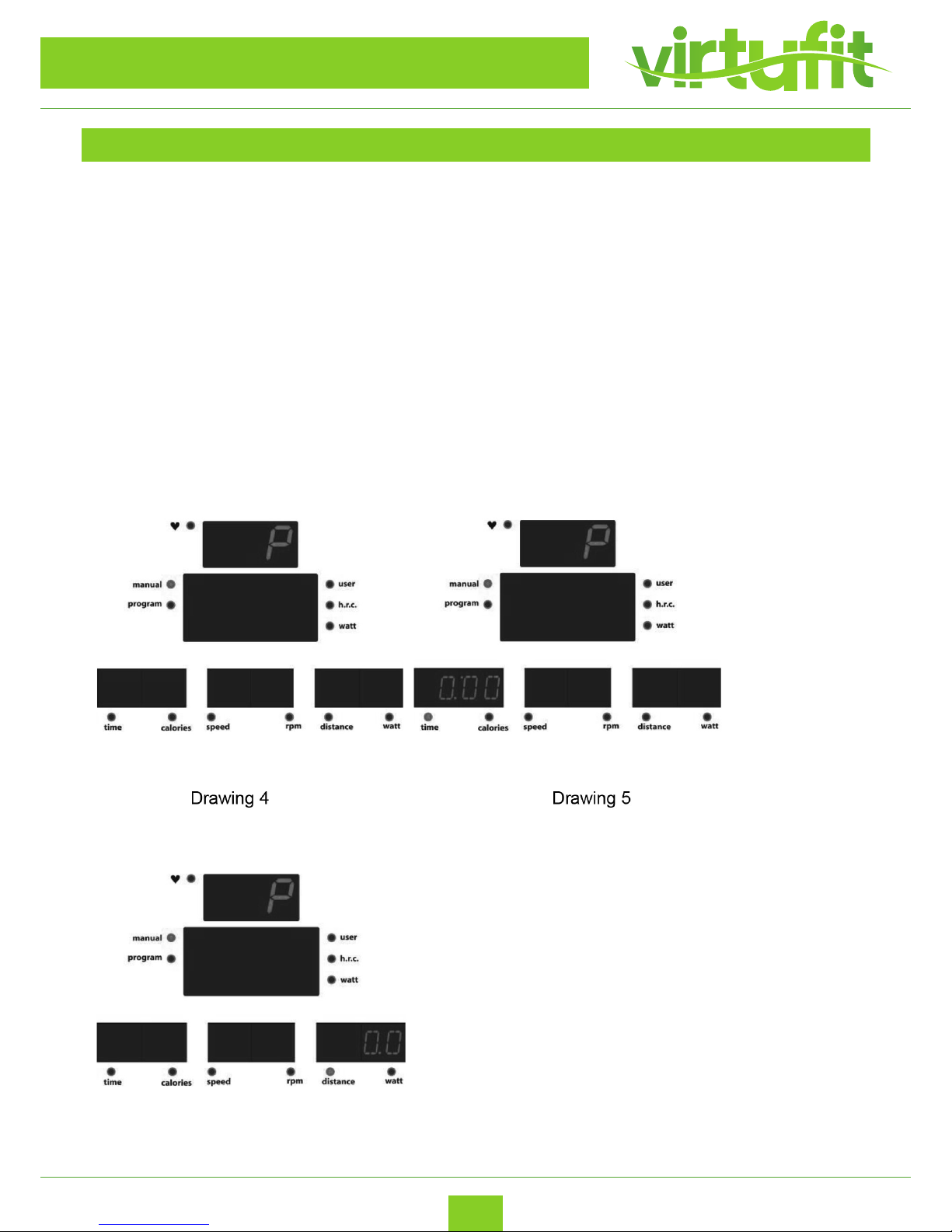

1. Manual mode
In main menu, press DOWN key one time and press MODE to enter TIME setting. User may press UP or
DOWN button to set up target training time. Then press MODE to set up DISTANCE/ CALORIES/ PULSE as
drawing 4-6. Press START/STOP button to start training.

17
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
ENG
2. WATT control mode
When user in any mode, press START/STOP button then press RESET to go to main menu. Press UP key
2 times and press MODE to enter WATT constant training mode. Entering WATT mode, pressing UP or
DOWN button to set up (default range 10~350, preset 120 as Drawing 7). Press MODE to enter setting
TIME (1~90 minutes) or press START button to start training, press UP or DOWN to set up WATT value.
3. H.R.C. mode
When user select H.R.C mode, press RESET key back to main menu. Press UP key 3 times to enter H.R.C
mode (drawing 8). Press MODE to set up, H.R.C 55% is blinking, press UP or DOWN to choose dierent
target heart rate H.R.C 75%, H.R.C 90% and H.R.C Targe.

18
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
ENG
4. User program mode
Press RESET key back to main menu. Press UP key 4 times, USER is blinking. Press MODE the rst column
of the LED prole will start blinking. Press UP or DOWN button to adjust resistance level from 1~32,
every 4 levels will light up one LED (Drawing 9), press MODE to complete program prole will have 16
columns to be set. Press START/STOP button to start training.
5. Program mode
Press RESET key back to main menu. Press UP key 5 times, PROGRAM is blinking. Press MODE to enter
PROGRAM mode. Press UP or DOWN button to select PROGRAM 1-12, press MODE enter TIME setting,
press UP or DOWN button to set up. Press START/STOP button to start training.
6. BODY FAT mode
If crosstrainer is working, press STOP, then press the BODY FAT button to enter BODY FAT MODE.
When BODY FAT measurement start, user have to hold both hands on the handle pulse, then screen will
display “o”“o”as Drawing 11. After 8 seconds, screen will display BODY FAT percentage and BMI (Body
Mass Index).
Error code display during measurement:
E-1--- user not hold hand grips correctly
(Drawing 16) E-4--- Body Fat% exceed
setting range (5.0%~ 50%).
- Press BODY FAT button again to go back to previous workout status.

19
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
COMPUTER MANUAL
ENG
7. RECOVERY mode
- Hold two hands on the handle pulse, when screen display PULSE value, then press RECOVERY button to
enter recovery mode. TIME will display 00:60 and start counting down, PULSE window will display PULSE
value, when counting down to 0, screen will display FX (X value 1-6 to show the recovery data. Press
RECOVERY back to main menu. If there is no pulse signal input to console, it is invalid to press RECOVERY
button.
- Measure your condition 1 is excellent, 6 is poor
- In RECOVERY mode, press RECOVERY can reset the mode.
8. SLEEP mode
If there is no RPM signal input in 4 minutes, LED light and console will enter SLEEP mode, press any key
to wake up the system in power up state.

20
VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer NL
APP POSSIBILITIES
ENG
Note:
If the console of the crosstrainer is connected to your
smartphone or tablet via Bluetooth, the console will turn o.
If you leave the app turn o the bluetooth connection on your
smarthphone or the tablet, the console will automatically
turn on again.
Download one of the apps below in the Google Play Store or App Store.
Turn on Bluetooth on your smarthphone or tablet and open the app.
You can connect with the console of the crosstrainer.
Then start your training!
