Vision Fitness S7200HRT User manual

Owner’s
Guide
S7200HRT
SUSPENSION ELLIPTICAL TRAINER

ongratulations on choosing a VISION FITNESS Suspension Elliptical™
Trainer. You’ve taken an important step in developing and sustaining an
exercise program! Your Suspension Elliptical™ Trainer is a tremendously
effective tool for achieving your personal fitness goals. Regular use of your
Suspension Elliptical™ Trainer can improve the quality of your life in so
many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop an exercise habit. Your new
Suspension Elliptical™ Trainer will help eliminate the obstacles that prevent
you from getting in your exercise time. Neither bad weather or darkness
will interfere with your workout when you have your Suspension Elliptical™
Trainer in the comfort of your home. This Owner’s Guide provides you with
basic information on starting an exercise
program. A more complete
knowledge of your new Suspension Elliptical™
Trainer will assist you in realizing
your goal of a healthy lifestyle.
Please contact your authorized VISION FITNESS retailer should service be
required. If a question or problem arises which cannot be handled by your
VISION FITNESS retailer, please contact us:
VISION FITNESS
500 South CP Avenue
P.O. Box 280
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

ALL MODELS S7200HRT GENERAL
1
PREVENTATIVE MAINTENANCE ..... 27
TROUBLESHOOTING ............ 28
TROUBLESHOOTINGHEARTRATE
CHEST STRAP ................ 29
HOMEWARRANTY ............. 30
CORPORATE WARRANTY ......... 32
DEVELOPING A FITNESS PROGRAM . 34
EXERCISE GUIDELINES . ......... 35
TARGET HEART RATE............ 36
BALANCED FITNESS ............ 37
STRETCHING ................. 38
WEEKLY WORKOUT LOGS . ....... 40
MONTHLY WORKOUT LOGS ...... 42
ALL MODELS GENERAL
Table of Contents
CONSOLE OVERVIEW ........... 10
CONSOLEDESCRIPTIONS . ... .. . .. 11
ON/OFF SWITCH ............. 13
PROGRAM OVERVIEWS ......... 14
PROGRAM OPTIONS ........... 16
USING THE PROGRAMS ......... 17
USING THE SPRINT 8 PROGRAM ... 19
USING HEART RATE TRAINING . .... 20
USING THE HEART RATE
CHEST STRAP ................ 21
ALL HRT®PROGRAMS . ......... 22
USING THE USER PROGRAMS . .... 24
USINGTHEGOAL PROGRAMS ..... 25
ENGINEERINGMODE ........... 26
CONSOLE
S7200HRT
SAFETY INSTRUCTIONS . ......... 4
POWER REQUIREMENTS . ......... 5
ASSEMBLY & MOVING ........... 6
PLACEMENT, STABILIZING,
& POWER ................... 7
CONTACT HEART RATE ........... 8
VARIABLE INCLINE . ............. 9

2

3
S7200HRT
SUSPENSION ELLIPTICAL TRAINER

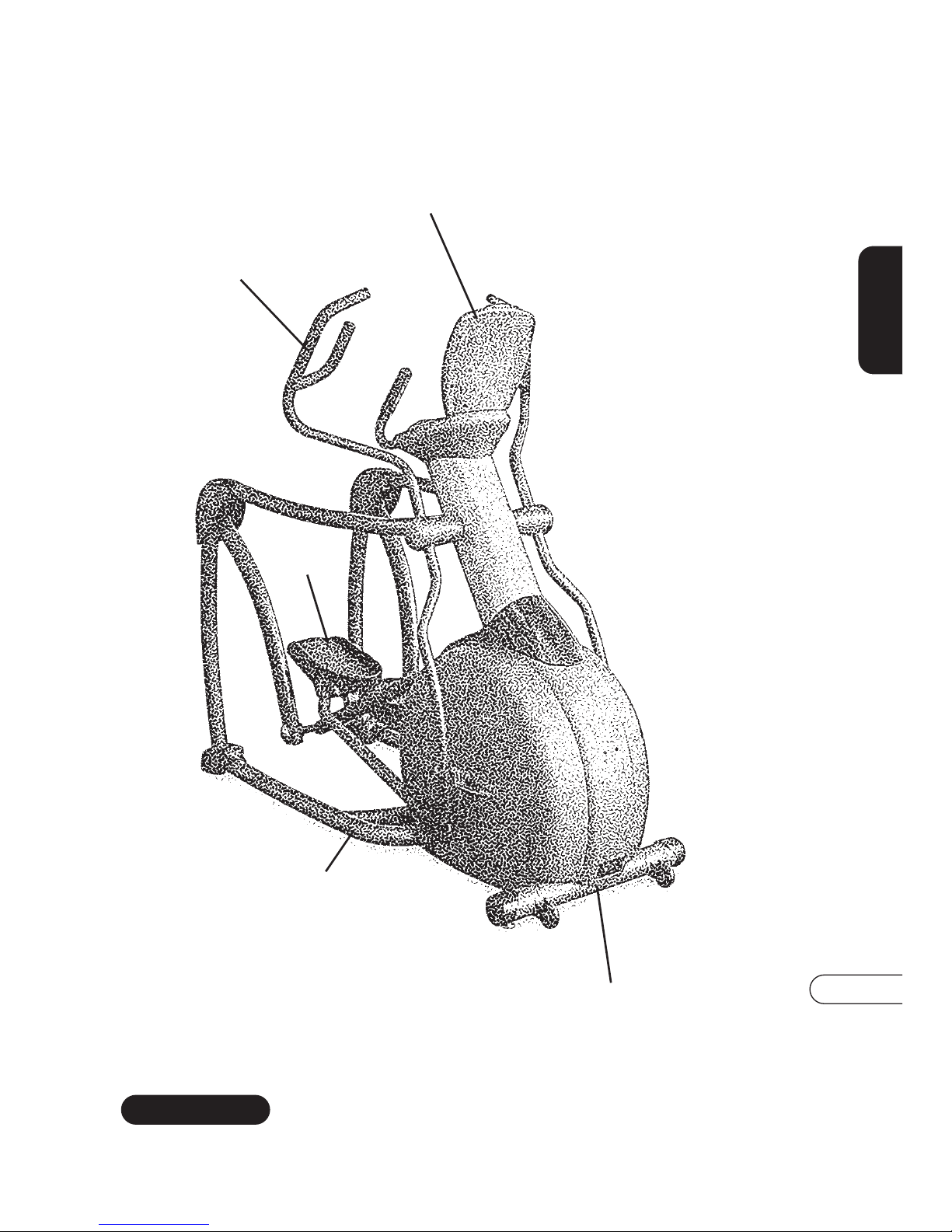

S7200HRT
FRONT FOOT &
TRANSPORT WHEELS
FOOT PAD
CONSOLE
DUAL-ACTION
HANDLEBARS
SIDE STABILIZER

4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this Owner’s
Guide. Only use attachments recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Suspension Elliptical™ Trainer sidecovers. Service should
be performed only by an authorized VISION FITNESS retailer.
• Never operate this Suspension Elliptical™ Trainer if it has a damaged
cord or plug, if it is not working properly, or if it has been damaged or
immersed in water. Please contact your authorized VISION FITNESS
retailer for service.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
•
Only use the power cord provided with your VISION FITNESS Incline
Suspension Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your Suspension Elliptical™ Trainer when not in use and before
moving it.
CHILDREN
• Keep children off your Suspension Elliptical™ Trainer at all times.
• When the Suspension Elliptical™ Trainer is in use, young children and
pets should be kept at least 10 feet away.
WARNING!

5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS SUSPENSION ELLIPTICAL TRAINER
CAUTION! If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
•
Do not wear loose clothing that might catch on any part of the Incline
Suspension Trainer.
• Read this Owner’s Guide before operating this Suspension Elliptical™ Trainer.
CLEANING
• Clean only with mild soap and a slightly damp cloth; never use solvents.

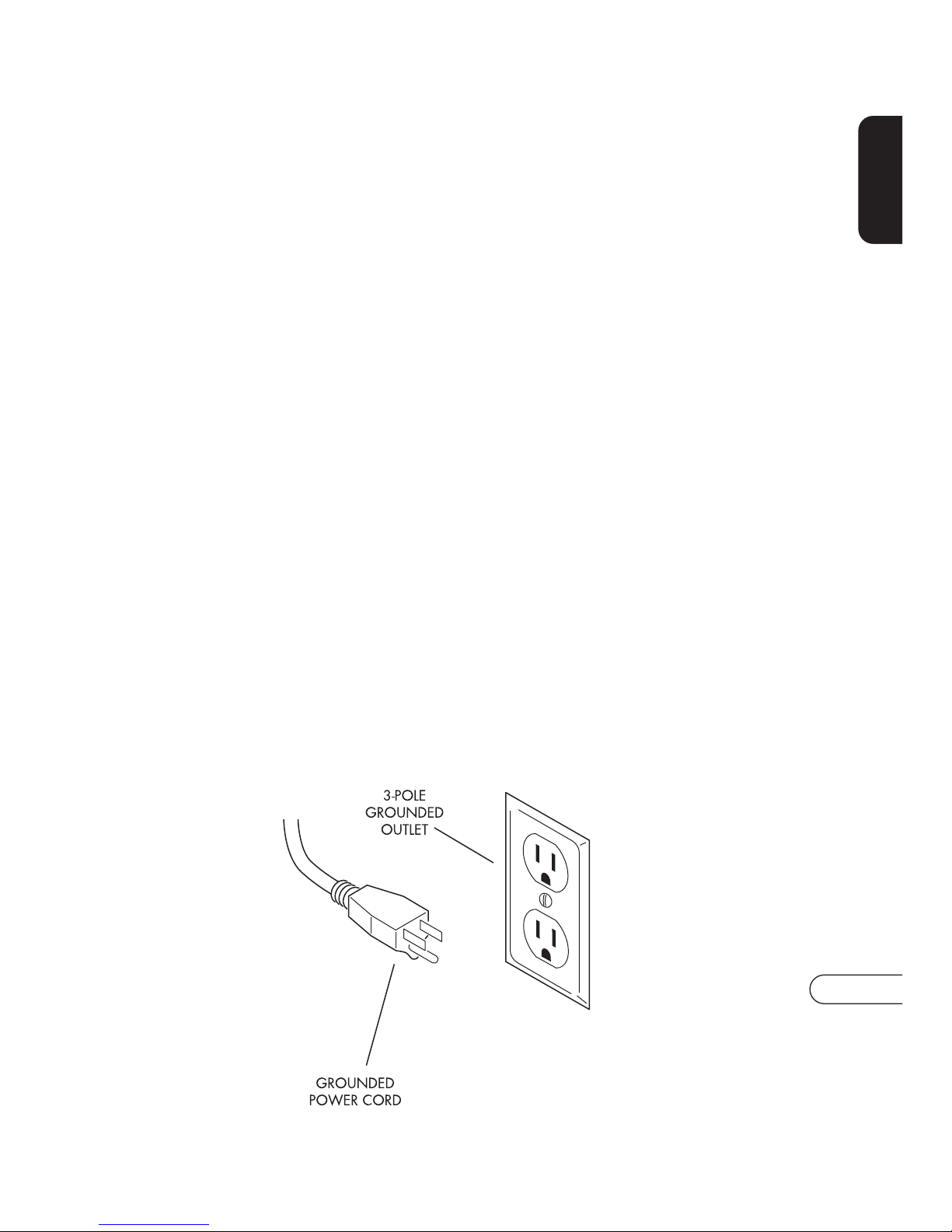

POWER REQUIREMENTS
This product is for use on a nominal 120-volt circuit, and has a grounding
plug that looks like the plug illustrated below. An improper connection of
the equipment grounding conductor can result in a risk of an electrical
shock. Do not modify the plug that was provided with this product. If this
plug does not fit into your outlet, have a qualified electrician install the
proper outlet. Adapters, extension cords and surge protectors should not
be used with this product. NOTE: 120V is for use in North America. This
product may take 120V or 220V power in other regions.

6
ALL MODELS
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Suspension Elliptical™ Trainer. If you have elected
to assemble this product yourself, for your safety, please read and follow
each of the steps in the enclosed assembly instructions. If you have any
questions regarding any component or function of your Suspension
Elliptical™ Trainer, contact your retailer.

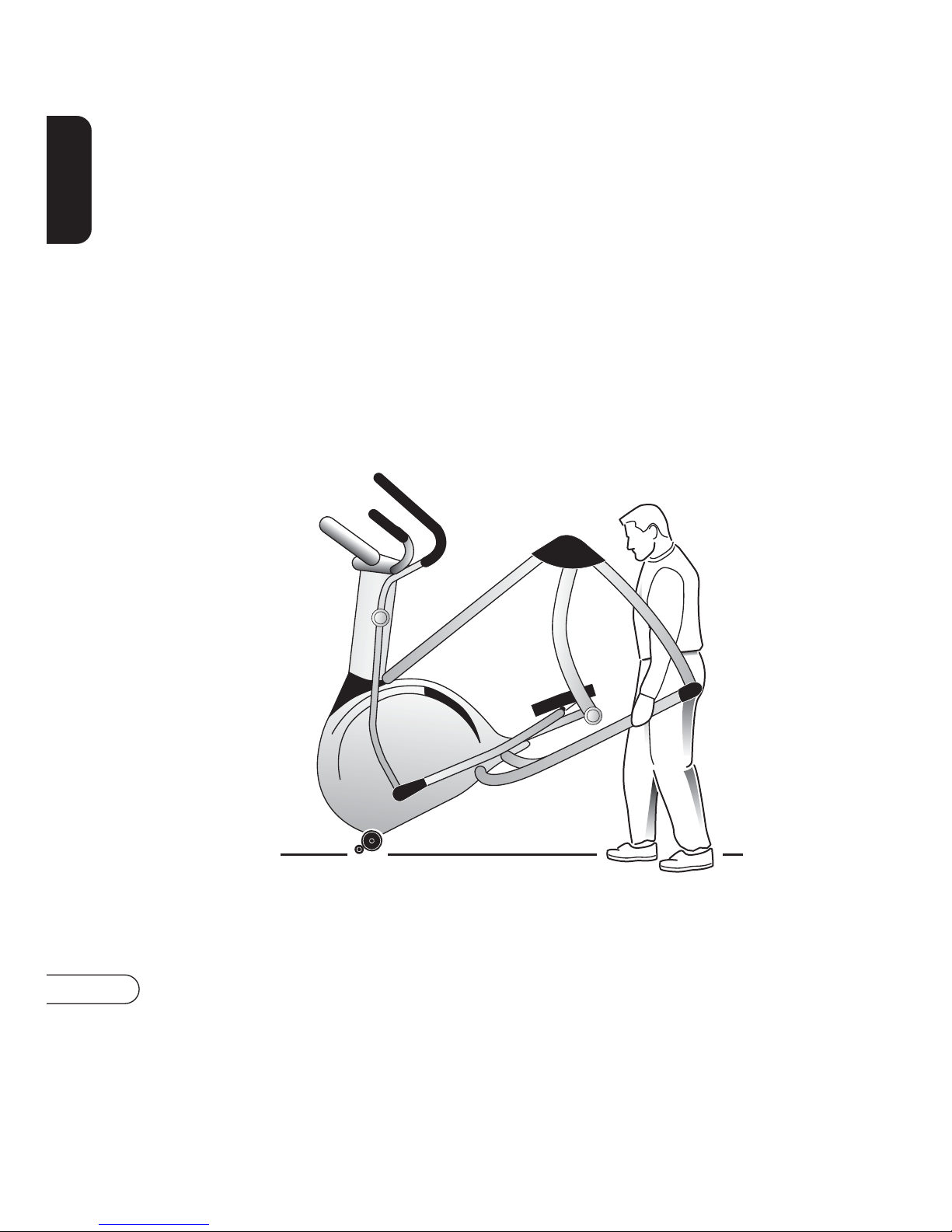

MOVING
Your VISION FITNESS Suspension Elliptical™ Trainer has transport wheels
included for ease of mobility. To move, firmly grasp the rear of the frame
assembly. Carefully lift and roll on the transport wheels.
CAUTION: Our Suspension Elliptical™ Trainers are well-built and heavy,
weighing up to 340 pounds! Use care and additional help if necessary.

LOOSEN
ROTATE
TIGHTEN
7
ALL MODELS
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place the Suspension Elliptical™ Trainer
in the location where it will best be used. It is important that you place your
Suspension Elliptical™ Trainer in a comfortable and inviting room. Avoid
putting your Suspension Elliptical™ Trainer in an unfinished basement or
undesirable setting. Exercise adherence will be easier to achieve only if you
exercise in an attractive setting.
STABILIZING THE INCLINE
SUSPENSION ELLIPTICAL TRAINER
After positioning the Suspension
Elliptical™ Trainer in its intended
location, check the unit’s stability.
Rocking or wobbling indicates that
your Suspension Elliptical™ Trainer
needs to be leveled. Determine
which leveler is not resting
completely on the floor. Loosen the
nut at the base of the leveler to
allow the leveler to rotate. Now
rotate the leveler to the left or right
until the Suspension Elliptical™
Trainer is stable. Lock the
adjustment by tightening the nut
against the rear foot support.

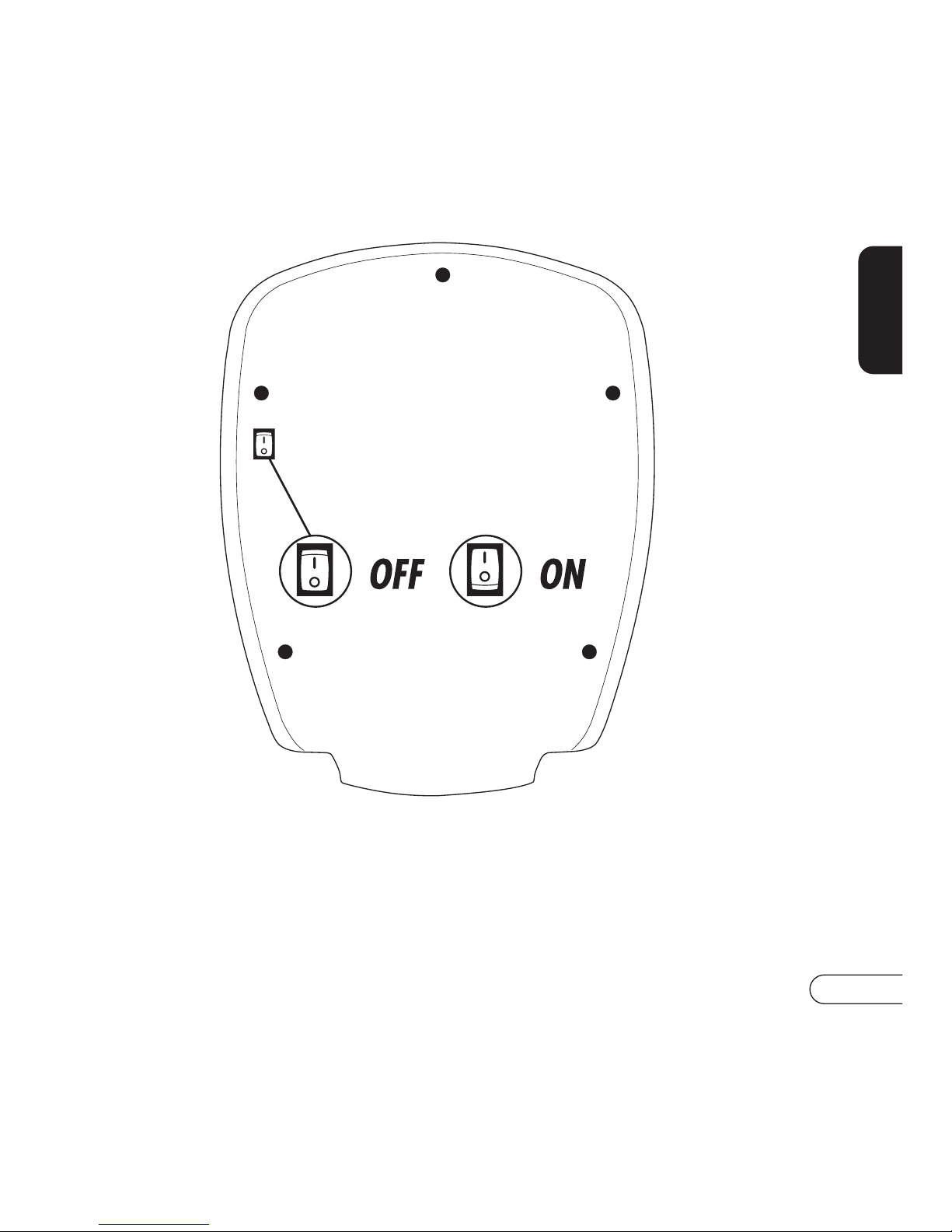

TURNING THE UNIT ON AND OFF
Use the power switch on the front
of the unit to turn the machine ON
and OFF. It is recommended to turn
the machine off when not in use.
NOTE : You can also turn the power
off at the console.

8
ALL MODELS
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS
The Contact Hand Pulse Sensors
are included on each product to
monitor your heart rate. To use,
grasp both of the sensors with a
comfortable grip during your
workout. The console will display
your heart rate. It may take the
system a few seconds to zero in
on your actual heart rate. Most
people have a grip that is
conductive enough to transmit a
good signal. However, some
people have erratic heart rates or
improper body chemistry to
transmit a good signal through the
touch sensitive hand pulse grips.

9
S7200HRT
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
R
INCLINE
HRT
GOALS
USER
S8
print
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZIN
ES
SHORTNESS OF BREATH, STOP EXERCISING IM
M
AND CONSULT YOUR PHYSICIAN BEFORE CON
VARIABLE INCLINE
Press the INCLINE UP or DOWN
arrows to adjust the incline from
level 1 to 16. This incline setting
represents a range of motion.
Incline changes are not immediate.
They will take time to get to the
target incline angle.

10
S7200HRT
S7200HRT CONSOLE

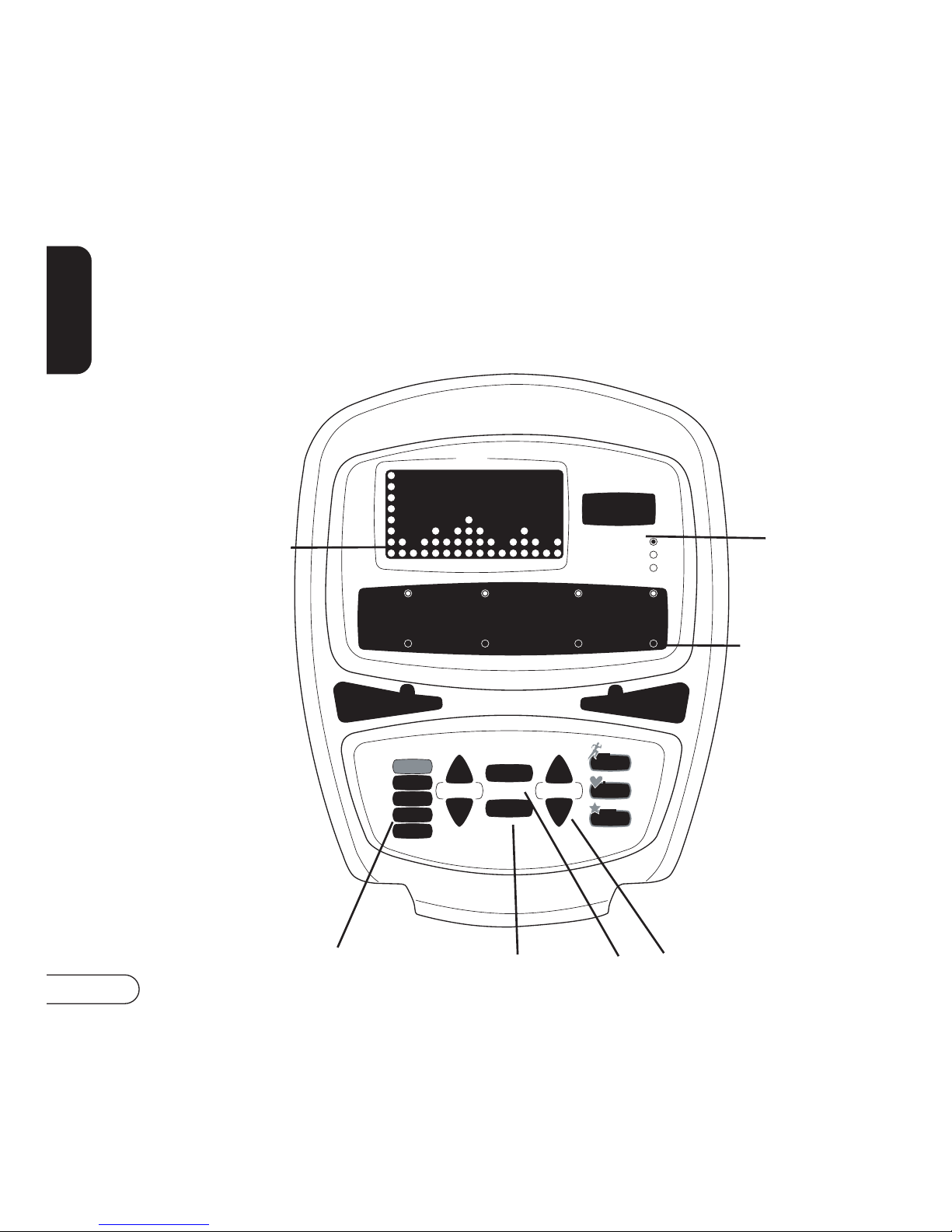

DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets
their desired fitness goals. It also allows the user to monitor the progress
and feedback of each workout so they can track improvements in overall
fitness over time.
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
INCLINE DISTANCE TIME STRIDES/MIN
RESISTANCE WATTS CALORIES METS
PROFILE
2
4
6
8
10
12
14
16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
HEART RATE
% HEART RATE
TARGET HEART RATE
312. 5 3 2: 2 8 8 7
123
ABC
D
EG
F

11
S7200HRT
S7200HRT CONSOLE DESCRIPTIONS
A. START/HOLD TO RESET
Press the START key to begin a MANUAL workout immediately without
having to set individual information. When the program begins, you have
the ability to adjust resistance and incline levels with the ARROW keys.
PAUSE: If you need to PAUSE your program during a workout, pressing
the START key will PAUSE your program for five minutes. Pressing
START will return you to your workout.
RESET: If you need to RESET the console during your workout, you can
do so by holding down the START key for three seconds or until the
display resets.
B. ENTER/HOLD TO SCAN
This key is used after entering each piece of information in setup such
as age, weight, or level.
SCAN: When exercising in a program, pressing the ENTER key will
allow you to SCAN the feedback display views. If you hold down the
ENTER key for three seconds during your workout, the SCAN function
will automatically alternate feedback display views.
C. ARROW KEYS
These keys are used to change values in setup mode prior to your workout.
During your workout, they are used to change workout levels. In HRT®
programs, they are used to change your target heart rate.
D. PROGRAM KEYS
These keys provide quick access to your favorite workouts. There is no
need to scroll through the programs to find the one you want. Simply
press the program key and begin user setup.

12
S7200HRT
S7200HRT CONSOLE DESCRIPTIONS (continued)
E. PROFILE DISPLAY
This window provides a dot matrix profile of the workout segments
you are about to complete, as well as those you have already
completed, and the level of resistance for each segment.
F. MESSAGE/FEEDBACK WINDOWS
These windows provide step-by-step instructions in the setup mode,
instructions, feedback and motivational messages during your workout.
FEEDBACK:
During your workout, these windows display exercise feedback
about your workout, including:
TIME: the time elapsed or the time remaining in your workout.
DISTANCE: the total distance traveled in miles or kilometers since
the start of your workout.
STRIDES/MIN: your stride rate or strides per minute.
WATTS: a measurement of workload; one watt is equal to six
kilogram-meters per minute.
CALORIES: an estimate of calories burned since the beginning of
the workout.
RESISTANCE: the current resistance level of your workout.
INCLINE: the level of incline. There are 16 levels that represent a
23% grade change.
METS: a measurement of oxygen consumption; one MET equals
the approximate amount of oxygen consumed per minute by a
person at rest.
G. HEART RATE/HRT FEEDBACK WINDOW
This window provides feedback on your current heart rate and the
percent of your predicted maximum heart rate (% Heart Rate). It also
includes your target heart rate when using one of the HRT®programs
on this product.

13
S7200HRT
ON/OFF SWITCH Turn your Suspension Elliptical™ Trainer off if you will not
use it for an extended period of time.

14
S7200HRT
WATTS is a program that lets the user exercise
at a set work level. As you increase your stride
rate (your RPM), your resistance will decrease;
as you decrease your stride rate, your
resistance will increase.
SPRINT 8 is an anaerobically-based interval
program. It is effective in recruiting fast twitch
muscle fibers and improving athletic performance.
THE S7200HRT PROGRAMS
PROGRAM OVERVIEWS
INTERVAL is an efficient workout that
strengthens your cardiovascular system by
alternating work intervals and recovery
intervals. Be sure to challenge yourself with
intense work intervals.
GLUTE BURN is a challenging program
designed to tone the lower half of the body.
This program includes incline changes and
user prompts for maximum effectiveness.
SUMMITHIKE is a variable incline program that
adds variety and targets your muscles from
different angles.

CUSTOM allows you to preset up to four
workout programs by setting the resistance
and profile of each segment in the program.
You have the ability to save or change the
workouts whenever you wish. CUSTOM will
save your resistance and incline changes throughout the program. Every
30 seconds your settings will be saved to provide an identical program
for your next exercise session.
GOAL allows you to set Time, Distance, or Calories as a specific target
goal. This is essentially a manual program in which duration is determined
by your particular goal.
HRT CARDIO is a high-intensity program that
keeps you at the upper range of your
predicted maximum heart rate and promotes
cardiovascular endurance and maximum
calorie burning. The user must grasp the hand
pulse sensors or wear a telemetric heart rate chest strap during use. The
program will automatically adjust resistance to keep you at 80% of your
predicted maximum heart rate.
HRT WEIGHT LOSS is a lower intensity workout that will help your body burn
a higher percentage of calories from your body’s fat reserves. The user
must grasp the hand pulse sensors or wear a telemetric heart rate chest
strap during use. The program will automatically adjust resistance to keep
you at 65% of your predicted maximum heart rate.
HRT INTERVAL alternates between effort intervals of 80% and 70% of your
predicted maximum heart rate. This program is designed to increase your
cardiovascular fitness capacity. The user must grasp the hand pulse
sensors or wear a telemetric heart rate chest strap during use.
HRT HILL increases your intensity level from 65%, to 70%, to 75%, to 80%
of your predicted maximum heart rate to promote cardiovascular strength
and endurance. The user must grasp the hand pulse sensors or wear a
telemetric heart rate chest strap during use.
15
S7200HRT

16
S7200HRT
PROGRAM OPTIONS
PRESET
INCLINE
MANUAL
INTERVAL
WATTS
SPRINT 8
GLUTE BURN
SUMMIT HIKE
HRT®PROGRAMS
CUSTOM
GOALS
PROGRAM
•
•
•
PRESET
RESISTANCE
•
•
•
•
•
•
•
INSTRUCTIONAL
MESSAGE PROMPTS
•
FIXED
TIME
•
HEARTRATE
CONTROLLED
•
NOTE: The incline profile will be displayed during the GLUTE BURN and
SUMMIT HIKE programs. The resistance profile will be displayed briefly if
you change your resistance level. All other programs will display the
resistance level but only display the inline level briefly when you change
the incline level.

17
S7200HRT
USING THE PROGRAMS
SELECTING EASY START
The easiest way to begin exercising
is to simply press the START key. You
will begin exercising in a MANUAL
resistance program in which you
can change the resistance levels to
meet your goals. Current default
settings will be used to determine
exercise feedback.
SELECTING A PROGRAM
Each program has its own
program key. Press the key of the
program you would like to use.
You can also use the arrow keys to
scroll through the program options
and see the exercise profiles for
each of the programs.
ENTERING AGE
When prompted by the message
center to enter your age, use the
UP
▲ arrow or DOWN ▼ arrow to
adjust displayed age to the correct
value. This information is necessary
for the HRT®programs and will affect
your “% Heart Rate” feedback.
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTA
N
INCLINE
HRT
GOALS
USER
S8
print
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
INCLINE DISTANCE TIME STRIDES/MIN
RESISTANCE WATTS CALORIES METS
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
USER AGE 27

18
S7200HRT
USING THE PROGRAMS (continued)
ENTERING TIME
When prompted by the message
center to enter a time, use the UP
▲
arrow and DOWN ▼ arrow to
adjust the displayed exercise time
to a desired value.
The HRT®programs will set your target heart rate in the place of resistance
level. The console will display your target heart rate and give you the
opportunity to adjust this value if you wish.
ENTERING LEVEL
When prompted by the message
center to enter level, use the UP
▲
arrow and DOWN ▼ arrow to
adjust the displayed resistance
level. There are 16 levels of
resistance to choose from in each
program. The maximum resistance
level varies by program.
ENTERING WEIGHT
When prompted by the message
center to enter weight, use the UP
▲
arrow and DOWN ▼ arrow to
adjust the displayed weight to
equal your current body weight.
This information is necessary to give
accurate exercise feedback for
calorie and MET calculations.
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
INCLINE DISTANCE TIME STRIDES/MIN
RESISTANCE WATTS CALORIES METS
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
WORKOUT TIME3 1. 00
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
INCLINE DISTANCE TIME STRIDES/MIN
RESISTANCE WATTS CALORIES METS
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
USER WEIGH
T185
PROGRAMS
SUMMIT HIKE
INTERVALS
WATTS
GLUTE BURN
PAUSE • HOLD TO RESET
START
HOLD TO SCAN
ENTER
RESISTANCE INCLINE
PROGRAMS
HRT
HRT
PROGRAMS
GOALS
GOALS
PROGRAMS
USER
USER
HRT
GOALS
USER
S8
print
INCLINE DISTANCE TIME STRIDES/MIN
RESISTANCE WATTS CALORIES METS
CAUTION!
IF YOU EXPERIENCE CHEST PAINS, DIZZINESS, OR
SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATELY
AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
LEVEL5
