VISIONARY DESIGNS MOD-1701c Manual

© 2020
Order #XXXXX
Locked layer contains
placeholder marks.
Front View Back View

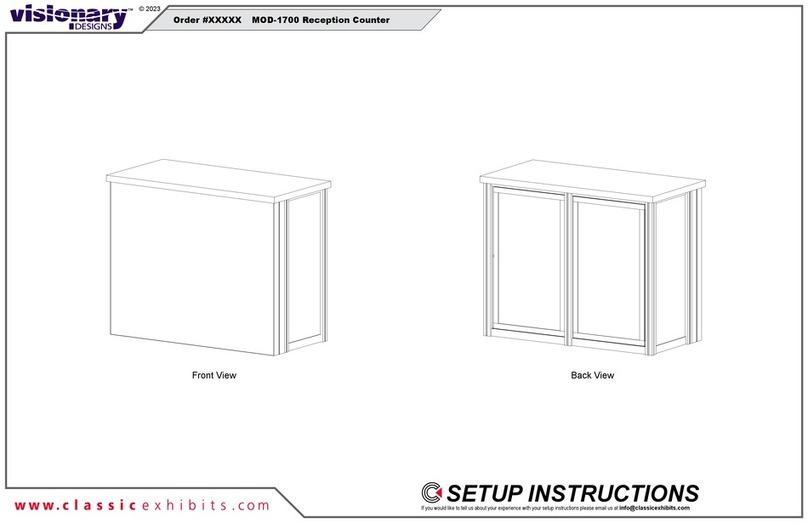

MOD-1700 Reception Counter
If you would like to tell us about your experience with your setup instructions please email us at [email protected]
SETUP INSTRUCTIONS

© 2020
Order #XXXXX
DO NOT USE POWER TOOLS
ALL CONNECTIONS MUST
BE TIGHTLY SECURED
Part Identification - Numbering
Spline Connection Base Plate & Extrusion Connection
General Setup Instructions
- Read entire setup instruction manual prior to
unpacking parts and pieces.
- The setup instructions are created specifically
for this configuration.
- Setup instructions are laid out sequentially in
steps, including exploded views with detailed
explanation for assembly.
WARNING
Cleaning & Packing
- For Cleaning Metal, Plex, & Laminate Parts:
Use a MILD NON-ABRASIVE cleanser and
soft cloth/paper towel to clean all surfaces.
- Keep exhibit components away from heat
and prolonged sun exposure.
Heat and UV exposure will warp and
fade components.
- Retain all provided Packing Materials.
All provided packing materials are for
ease of repacking & component protection.
Disassembly
- For loss prevention, tighten all set screws
and locks during disassembly.
7A
Hex Tool - Essential for Assembly
Extrusion & Lock Connection Engaged Lock
LADDERS OR LIFTS
MAY BE REQUIRED
General Information

© 2020
Order #XXXXX
CEI-110 Profile
Straight Bracket Assembly
1) Slide TWO-PIECE TS RV 4 straight bracket into
Interior Center Slot of extrusion, so that two of the
set screws are inside groove. Tighten two set screws
to secure.
3) Slide connecting extrusion over exposed ends of
bracket & connector. Tighten all remaining set screws
to secure extrusions.
2) Slide one V4 Connector into outer interior groove
of extrusion, so that one set screw is inside groove.
Tighten set screw.
TS RV 4
Bracket
V4
Insert two-piece
bracket into the
interior center slot
of extrusion.
Slide V4 Connector
into front interior
groove.
Secure inserted half of
bracket & connector
using set screws.
Slide connecting
extrusion over
exposed ends
of bracket &
connector.
Completed
Assembly
Secure extrusion,
using remaining
set screws.
Set
Screws
Straight Connection
Corner Connection
TS RV 2
Upper
Horizontal
Lower
Horizontal
Upper
Horizontal
Lower
Horizontal
TS RV 2
8 Brackets Total:
(4) - TS RV 2
(4) - A1 L-Brackets
A1
A1
Slide verticals over
brackets of lower
horizontal, then slide
upper horizontal &
brackets into grooves
& center slots
of verticals.
Completed
Assembly
Insert L-Brackets into the
Interior Center Slot & outer
interior grooves of extrusion.
Disassembly
1) Loosen set screws on brackets and slide
extrusions off of brackets.
1) Slide TWO-PIECE TS RV 2 L-bracket into
Interior Center Slot of extrusion so that two
set screws are inside groove.
Tighten two set screws to secure.
2) Slide one A1 L-Bracket into outer interior
grooves of upper and lower horizontals.
Tighten set screws to secure.
4) Slide exposed ends of installed brackets of
upper horizontal into open ends of verticals.
Tighten set screws to secure.
3) Slide vertical extrusion over exposed ends
of brackets in lower horizontal.
Tighten set screws to secure.
Corner Bracket Assembly
CEI-110 Frame Assembly
CEI110 Frame Assembly

© 2020
Step 1 of 2
Order #XXXXX
*
*
1A
1
2
2A
78
8
8A
8A
7
Shelf
Support
7A
3
3A
4
5
6
Door
Door
Infill
Infill
Item
1,1A
2,2A
3,3A
4
5
6
7,7A
8,8A
Qty.
1,1
1,1
1,1
1
1
1
2,2
2,2
Description
46.25” CEI110 Horizontal Extrusion
37.5” CEI110 Vertical Extrusion
37.5” S44 Vertical Extrusion
37.5” S44 Vertical Extrusion w/ Door Hinges
37.5” S44 Vertical Extrusion w/ Door Stops
37.5” S44 Vertical Extrusion w/ Door Hinges
14.153” Z45 Horizontal Extrusion
20.408” Z45 Horizontal Extrusion
7A
*
*
Transformer
to power
++
+
-
-
-
to power
Lights
Male
Male
Female
Female
Transformer
96W / 4A / 24V
Light to Light Connection
Light to Transformer Connection
Maximum of 7 light bars per transformer.
Door
Hinge
Hinge
Pin
Slide pin into
hinge attached
to vertical.
Slide door
hinge over pin.
Door Connection
*
Steps:
1) Assemble CEI110 extrusions [1] [1A] [2] and [2A].
See CEI-110 Frame Assembly sheet for instruction.
2) Connect lights and transformer. See Light Connection details.
3) Attach horizontals [7] and [8] between verticals [3] [4] [5] [6] and [3A].
4) Slide infills between verticals [3] [4] and [3A] [6], making sure Velcro
is facing inward.
5) Connect doors to verticals [4] and [6]. See Door Connection detail.
6) Attach horizontals [7A] and [8A] between verticals [3] [4] [5] [6] and [3A].
7) Connect shelf supports to Velcro on infills.
Keep counter sides assembled, when packing.
MOD-1700 Assembly

© 2020
Step 2 of 2
Order #XXXXX
*
Counter Top
Velcro
Shelf
Align hole with pin Rotate pin. Spring
will push pin into hole.
Counter Top Attachment
12
*
Pin
Hole
*
Steps:
1) Connect light blocker to Velcro on interior of assembled frame.
2) Attach assembled frame to verticals [3] and [3A].
See Frame Attachment detail.
3) Install SEG graphic to front of assembled frame.
See SEG Graphic Installation detail.
4) Place shelf inside assembled base on top of pins and supports.
5) Place counter top on assembled base, then secure with pins.
See Counter Top Attachment detail.
Completed Assembly
3
3A
Attach frame to
connector on
vertical extrusion,
using bolt.
Frame Attachment
Bolt
Connector
*
*
*
Graphic Removal
To remove the graphic from
the frame, locate the fabric
pull tab.Gently pull up on the
tab to remove the fabric.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
SEG Graphic Installation
It is important to first insert
graphic into each alternate
corner then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Corner A
Corner D
Corner B
Corner C
SEG Graphic
Light Blocker
*
MOD-1700 Assembly (Cont’d)
