Visionis VIS-3100 User manual

Access Control Outdoor IP66 Card Reader
Only Compatible with Wiegand 26 Bit
VIS-3100 / VIS-3101
User Manual
1. Introduction
The VIS-3100 / VIS-3101 is a slim Wiegand Output Proximity Reader, compatible with 125KHz EM format card.
The reader is fully potted, and can function at extreme temperatures (-40°~60°C), which allows it is capable to
be mounted either indoor or outdoor.
2. Specifications
Model
VIS-3100 / VIS-3101
Operation Voltage
9~24V DC
Standby Current
≤25mA
Frequency
125KHz
Card Type
EM card
Read Range
Up to 2.75 inches (7cm)
Output Format
26bits Wiegand (default)
(26~37bits available upon request)
Operating Temperature
-40°C~60°C(-40°F~140°F)
Operating Humidity
10% to 95% RH
Color
VIS-3100 (Black) / VIS-3101 (White)
Index of Protection
IP66
Dimension
(H x W x T)
102L x 48An x 20Al (mm)
4.01L x 1.88An x 0.78Al (in.)
Net Weight
100g
Shipment Weight
150g
3. Installation
• Drill 2 holes (A, C) on the wall for the screws and one hole for the cable
• Knock the rubber bungs to the holes (A, C)
• Fix the back cover on the wall with 2 screws
• Thread the cable though the cable hole (B)
• Attach the unit to the back cover
Wiring Connection Diagram
(Remarks: Brown and Yellow wires are optional connections)
4. Function Table sheet
Read Card
The LED light will be turn into Green, and the buzzer sounds a beep, at the
meantime, the reader outputs the Wiegand signal
External LED Control
When the input voltage for LED is low, the LED will turn into Green
External Buzzer Control
When the input voltage for Buzzer is low, the Buzzer will sound
Wiegand Data Output
Wiegand 26~37 bits range available for VIS-3100 / VIS-3101, factory default
setting is Wiegand 26 bits.
Packing List
Name
Quantity
Reader
1
Manual
1
Screw Driver
1
Wall Fixing Plugs
2
Self Tapping Screws
2
Color
Function
Notes
Red
Power
+DC (9-24V DC)
Black
GND
Ground
Green
D0
Data 0
White
D1
Data 1
Brown
LED
Green LED Light Control
Yellow
Buzzer
Buzzer Control

This manual suits for next models

1

Other Visionis IP Access Controllers manuals

Visionis VIS-3003 User manual

Visionis

Visionis VIS-3003 User manual

Visionis VIS-7101 User manual

Visionis

Visionis VIS-7101 User manual

Visionis VIS-3025 User manual

Visionis

Visionis VIS-3025 User manual

Visionis VS-AXESS-1ETL User manual

Visionis

Visionis VS-AXESS-1ETL User manual

Visionis VS-AXESS-2D-ETL-PCB User manual

Visionis

Visionis VS-AXESS-2D-ETL-PCB User manual

Visionis VIS-3024 User manual

Visionis

Visionis VIS-3024 User manual

Visionis VS-AXESS-4DLX User manual

Visionis

Visionis VS-AXESS-4DLX User manual

Visionis VIS-3103 User manual

Visionis

Visionis VIS-3103 User manual

Visionis VIS-3004 User manual

Visionis

Visionis VIS-3004 User manual

Visionis VIS-3013 User manual

Visionis

Visionis VIS-3013 User manual

Visionis VIS-3000 User manual

Visionis

Visionis VIS-3000 User manual

Visionis VS-AXESS-4D-ETL-PCB User manual

Visionis

Visionis VS-AXESS-4D-ETL-PCB User manual

Visionis VIS-3002 User manual

Visionis

Visionis VIS-3002 User manual

Visionis VIS-8013 User manual

Visionis

Visionis VIS-8013 User manual

Visionis VIS-3009 User manual

Visionis

Visionis VIS-3009 User manual

Visionis VIS-7102 User manual

Visionis

Visionis VIS-7102 User manual

Visionis VIS-8014 User manual

Visionis

Visionis VIS-8014 User manual

Visionis VIS-3008 User manual

Visionis

Visionis VIS-3008 User manual

Popular IP Access Controllers manuals by other brands

GEM DG-101WI manual

GEM

GEM DG-101WI manual

ZKTeco Green Label ProFace X user manual

ZKTeco

ZKTeco Green Label ProFace X user manual

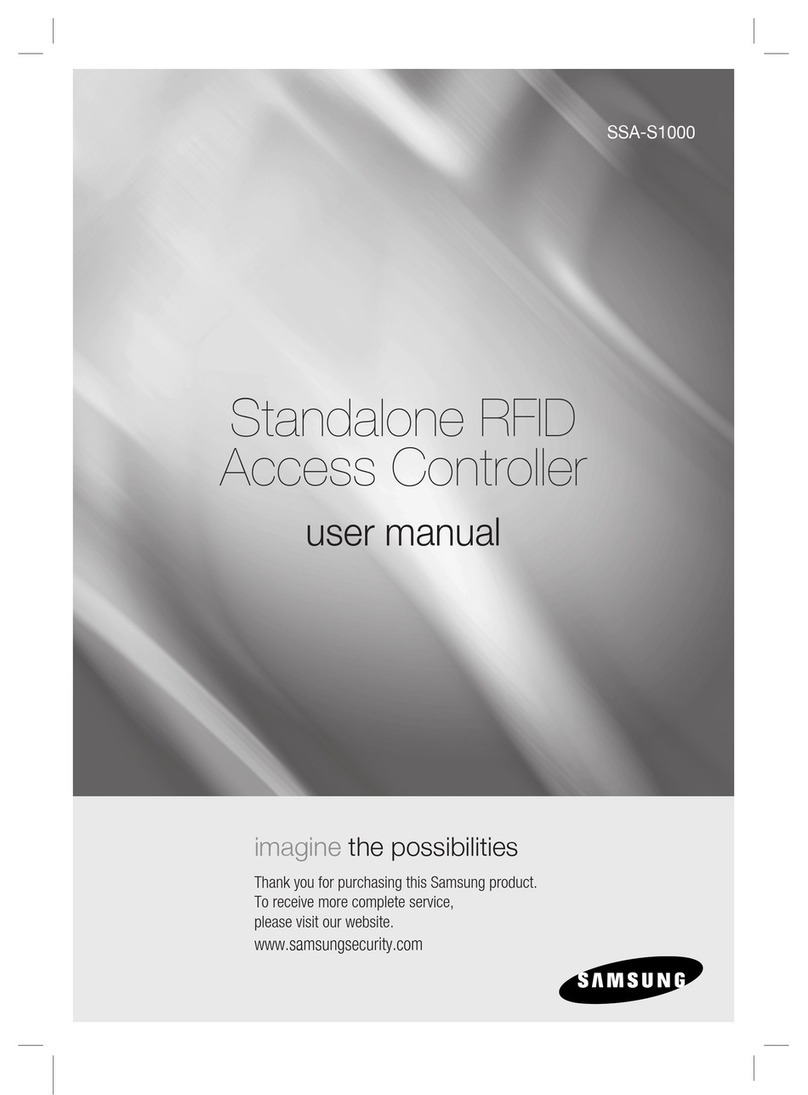

Samsung SSA-S1000 user manual

Samsung

Samsung SSA-S1000 user manual

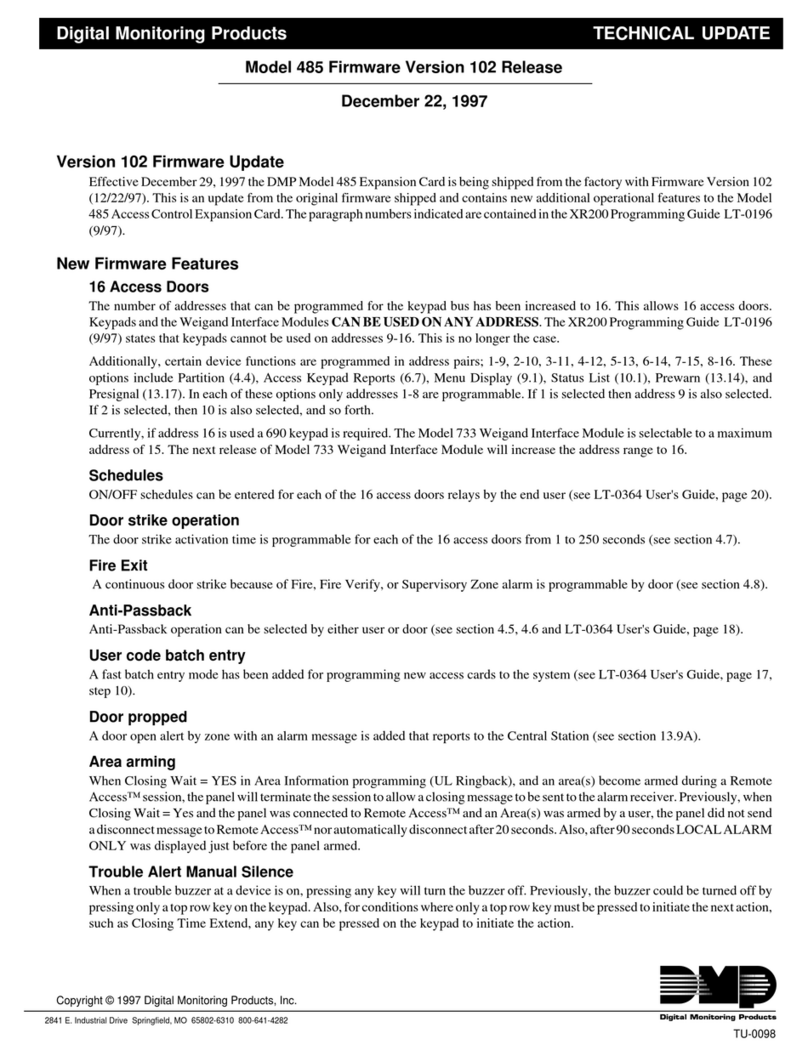

DMP Electronics 485 Technical update

DMP Electronics

DMP Electronics 485 Technical update

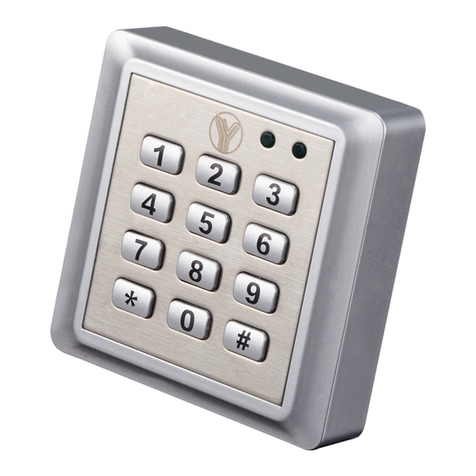

YLI YK-668 quick guide

YLI

YLI YK-668 quick guide

Rosslare AC-215IP installation manual

Rosslare

Rosslare AC-215IP installation manual

suprema FaceStation quick start guide

suprema

suprema FaceStation quick start guide

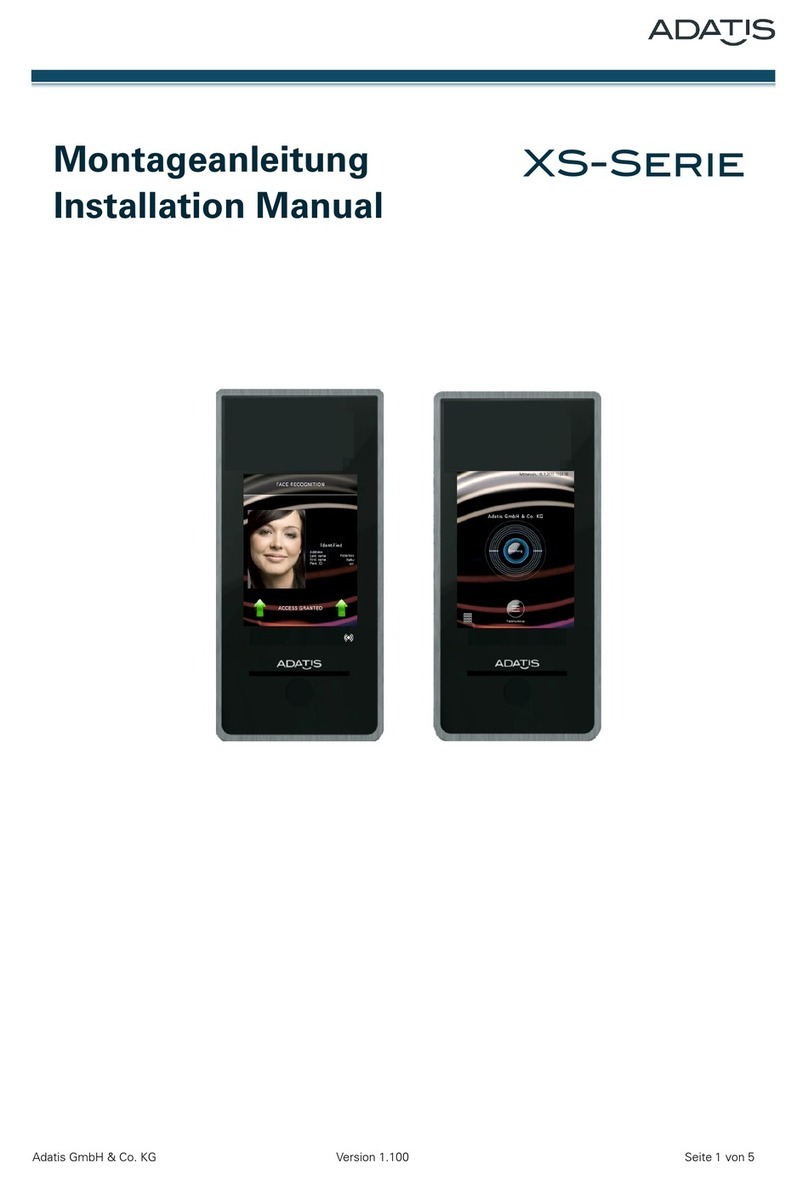

ADATIS XS Series installation manual

ADATIS

ADATIS XS Series installation manual

Soyal AR-888U manual

Soyal

Soyal AR-888U manual

digicon catrax automatic clip product manual

digicon

digicon catrax automatic clip product manual

CDVI micro IEVO-M installation manual

CDVI

CDVI micro IEVO-M installation manual

Salto CU42 Series installation guide

Salto

Salto CU42 Series installation guide

Paxton PROXIMITY P38 quick start guide

Paxton

Paxton PROXIMITY P38 quick start guide

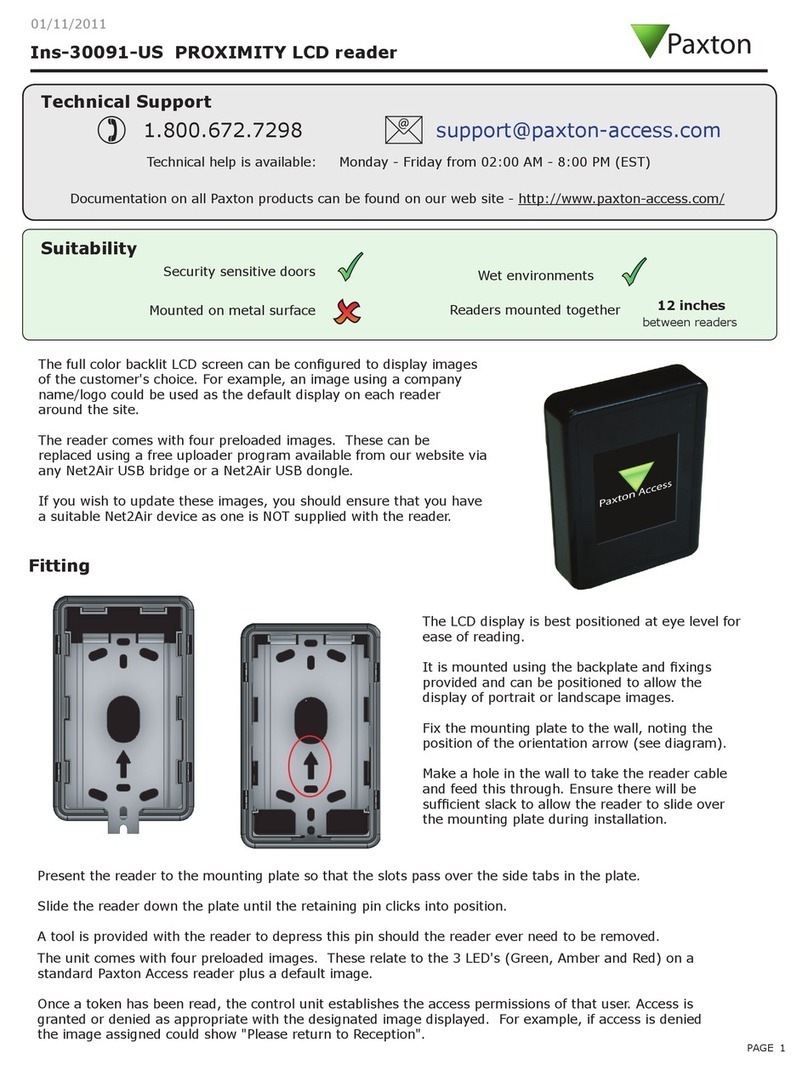

Paxton Proximity LCD reader instructions

Paxton

Paxton Proximity LCD reader instructions

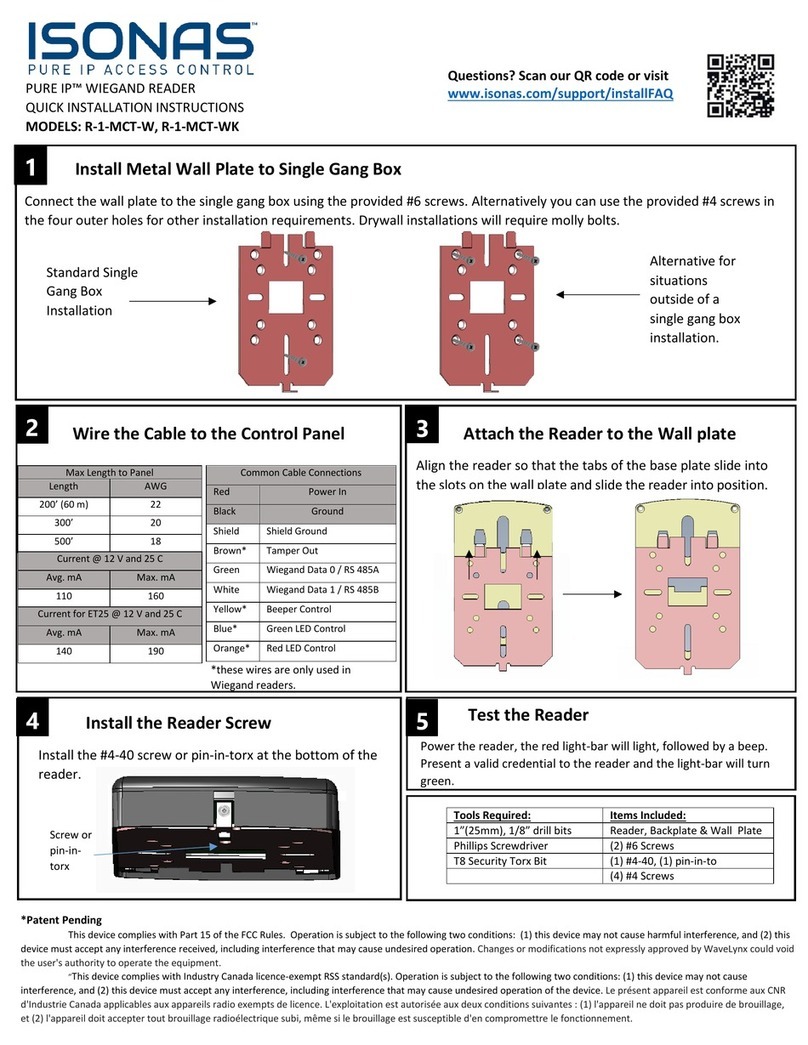

Isonas Pure IP Wiegand Reader Quick installation instructions

Isonas

Isonas Pure IP Wiegand Reader Quick installation instructions

Assa Abloy Medeco CLIQ Preventative maintenance

Assa Abloy

Assa Abloy Medeco CLIQ Preventative maintenance

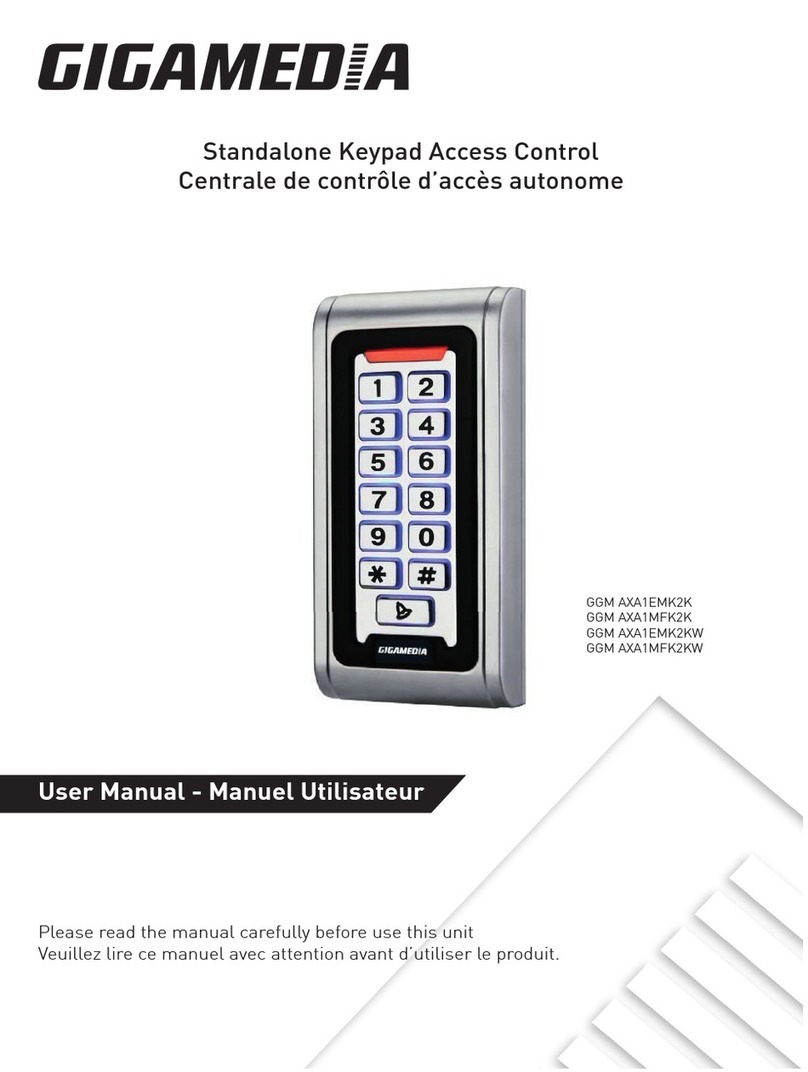

GIGAMEDIA GGM AXA1EMK2K user manual
