VWR Powerpette Pro User manual

Powerpette Pro
Instruction Manual
North American Catalogue Number: 75856-458
European Catalogue Number: 612-4552
UK Catalogue Number: 612-4553
Version: 1
Issued: May 2017

POWERPETTE PRO
2VWR |INSTRUCTION MANUAL |EN
United States Europe
Manufactured for: Address of legal manufacturer
VWR International, LLC VWR International bvba
100 Matsonford Rd Researchpark Haasrode 2020
Radnor, PA 19087 Geldenaaksebaan 464
800-932-5000 B-3001 Leuven
+ 32 16 385011
http://www.vwr.com http://be.vwr.com
Instruction Manual..............................1 – 10
Manuel d’instructions .......................11 – 20
Bedienungsanleitung ........................21 – 30
Manual de instrucciones....................31 – 40
Manuale d’istruzioni..........................41 – 50
Manual de instruções........................51 – 60
EN
FR
DE
ES
IT
PT

3EN |INSTRUCTION MANUAL |VWR
WARNING!
•Only use this instrument within the recommended limits of its chemical resistance.
•Never use with fuming liquids which are incompatible with ASA, ABS, silicone or polyproplyene.
•Neverusewithhighlyammableliquids.
•Observe the reagent manufacturer’s safety information.
•Never use the instrument in an atmosphere with danger of explosion.
•When not in use store on bench stand or wall bracket.
•Never use force when in use.
•Shouldtheinstrumentfailtoworktospecicationstoppipettingandcheckinstructionsheaded
Troubleshooting (page 8).
•Only recharge with manufacturer’s original charger.
•All repairs must be carried out by an authorized dealer.
•Only use the manufacturer’s accessories and spare parts.
•Charger must only be used indoors and protected against moisture.
•Please ensure that no liquid enters the instrument. The Powerpette Pro should never be used
withoutthelter(8).Thelteralsopreventsliquidfromenteringtheinstrument.Whereliquidhas
enteredthelterpleasecleanand/orreplacelter.
Contents
Warning .....................................................................3
Safety Information......................................................4
Package Contents.......................................................4
Installation
Introduction............................................................4
Recharging the Powerpette Pro...............................5
Fitting the Powerpette Pro wall bracket ..................5
Specication...............................................................6
Instructions for Use ....................................................6
Troubleshooting .........................................................8
General Maintenance
Cleaning .................................................................8
Replacing the Filter .................................................8
Accessories and Spares...............................................9
Technical Service
Return for Repair................................................... 10
Warranty .................................................................. 10
Equipment Disposal.................................................. 10

POWERPETTE PRO
4VWR |INSTRUCTION MANUAL |EN
Installation
Introduction
The Powerpette Pro has been carefully designed and manufactured as a lightweight, cordless
pipetting aid for use with all plastic or glass pipettes from 1–100 ml.
This Powerpette Pro is constructed in recyclable materials and operates on two rechargeable, long
life, environmentally friendly 1.2V nickel metal hydride batteries. Powerpette Pro has uniquely formed
ngertriggerstominimizeanyhighpressurepoints.Thesetriggersalsocontrolintakeanddispensing
speeds.
A battery warning light (4) is triggered whenever the charge in the batteries is low and they should
then be recharged. Pipetting with Powerpette Pro can also take place while the units are connected
to their chargers (5).
Powerpette Pro has a conveniently located slide switch (3) which allows the user to select between
three modes of operation:
Slide switch position ‘High’ (top) Suction and dispense at full speed (Blow-out)
Slide switch position ‘Low’ (middle) Suction and dispense at reduced speed (Blow-out)
Slide switch position ‘G’ (bottom) Suction at reduced speed, dispense by gravity (To Deliver)
Safety Information
The Powerpette Pro has been designed with safety in mind. They are lightweight and balance safely
in the hand. The triggers have been carefully designed to eliminate pressure points and control of
intake and delivery is therefore made easier.
It is recommended when using deleterious liquids that the user wears protective clothing including
gogglesandgloves.Ifindoubtaskyoursafetyofcer.Pleaseconsultandestablishappropriatehealth
and safety practices applicable to the liquid being dispensed within your working environment.
Package Contents
The Powerpette Pro kit comprises:
•Powerpette Pro pipette controller
•Charger
•Twosparehydrophobiclters,1x0.45µmand1x0.20µm
•Three ASA nosecones (pink, red, blue)
•Benchstand/wallbracket
•Instruction manual

5EN |INSTRUCTION MANUAL |VWR
Bench stand Wall bracket
Walltting
Recharging the Powerpette Pro
Before starting to operate, carefully check mains voltage and recharge batteries. To charge the
Powerpette Pro:
•Plug the charger jack (6) into the base of the Powerpette Pro.
•Plug the charger (5) into a suitable wall socket. The red indicator on the charger will light up.
•Place the Powerpette Pro onto bench stand.
•Allow the unit to charge for 16 hours from empty to fully charged.
•Once the Powerpette Pro is fully charged, the charger automatically switches to a trickle charge
operation and the indicator light turns green. If the charge to the Powerpette Pro is interrupted
and then re-started the charger will begin its 16 hour cycle and will switch to a trickle charge
operation as above. This will not damage the battery.
•Only use the charger indoors and protect against moisture.
•Recharging temperature +10 °C to +35 °C.
Fitting the Powerpette Pro wall bracket
The Powerpette Pro bench stand is supplied ready to use as a wall bracket. When used as
abenchstanditisrecommendedthatthewallttingisremoved.

POWERPETTE PRO
6VWR |INSTRUCTION MANUAL |EN
Instructions for Use
Pipetting
To aspirate
1. Carefully hold the pipette and insert it securely into the ASA nosecone (10) and silicone holder (9).
2. Select mode of operation–High, Low, for blow-out pipettes. ‘G’ for ‘to deliver’ (3).
3. Depress upper aspirate trigger (1) (The harder the pipetting triggers are pressed the faster the
aspiration).
To dispense
1. In BLOW-OUT mode, (mode switch on high or low) depress the lower trigger (2) (The harder the
pipetting triggers are pressed, the faster the dispense).
2. If ‘G’ gravity mode is chosen, the upper aspirate trigger automatically operates at low speed
while the lower trigger opens the pipette to atmosphere, allowing liquid to run out.
WARNING!
Please ensure that no liquid enters the instrument. The Powerpette Pro should never be used without
thelter(8).Thelteralsopreventsliquidfromenteringtheinstrument.Whereliquidhasentered
pleasecleanand/orreplacelter.
Note
When the meniscus level has been reached liquid should not drip out of the pipette. If the pipette
doesdrip,checkthattheadaptorassembly(7)andlter(8)arecorrectlyassembledandthepipetteis
properly located into the silicone pipette holder (9).
Specification
Technical Data
Batteries 2 x 1.2V nickel metal hydride
Battery service Life 500–1000 cycles from empty
Charger 75mA/h for 16 hours plug-in; UK,
European, USA versions
Installation (over voltage)
category II
Double insulation indicated
on charger by symbol
Overall weight 180 g without stand
Filter (8) Hydrophobic 25 mm dia 0.45 µm
(fitted) plus two additional spare
filters
1x 0.45 µm 1x 0.20 µm
Manifold material ABS
Case material ASA
Nosecone material ASA (10)
Pipette holder Silicone (9)
Pipette types Plastic or glass 1–100 ml

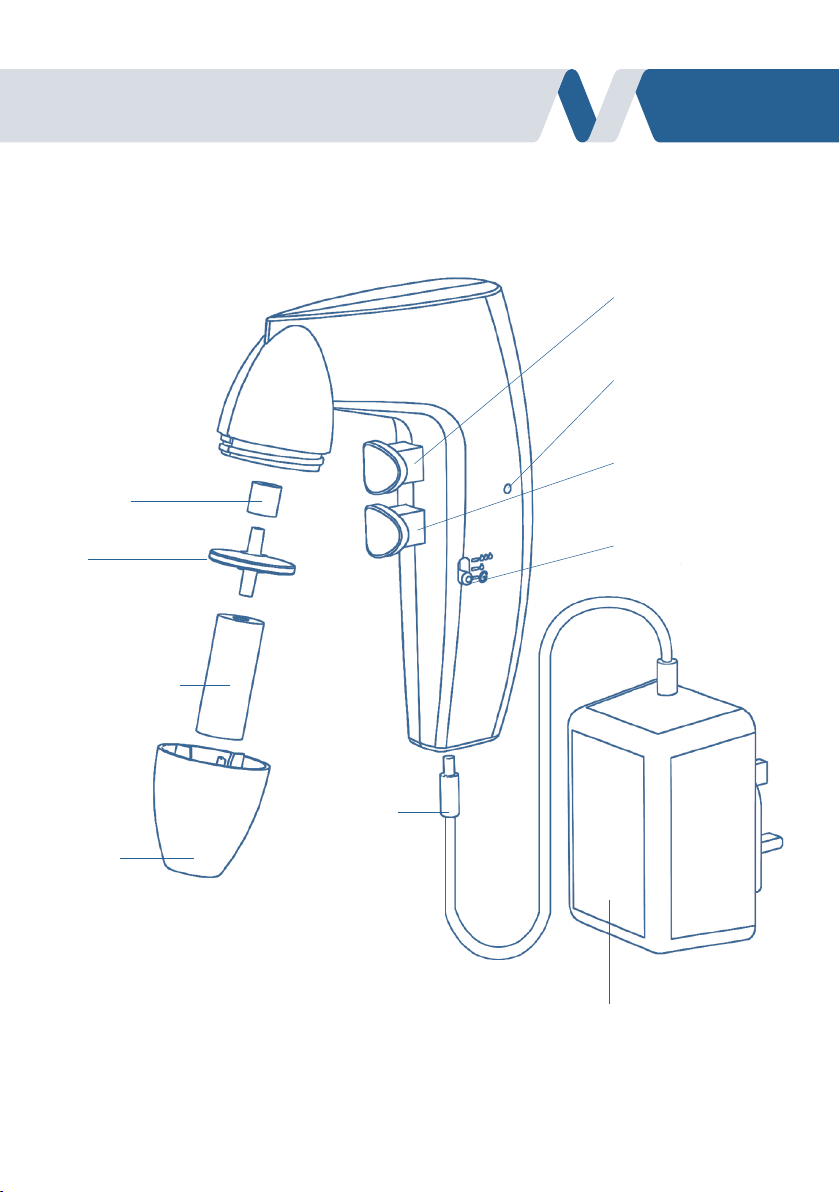

7. Filter adaptor
1. Aspirate trigger
8. Filter
4. Low battery indicator
9. Silicone pipette holder
2. Dispense trigger
10. Nosecone
3. Mode selection slide switch
6. Charging jack
5. Charger
7EN |INSTRUCTION MANUAL |VWR
Note
See page 9 for spare part re-ordering details.

POWERPETTE PRO
8VWR |INSTRUCTION MANUAL |EN
Troubleshooting
The Powerpette Pro is virtually service-free. If the recommendations below do not resolve the
problem, please contact your authorized dealer.
General Maintenance
Cleaning
Before cleaning disconnect from the mains charger. Do not clean the mains charger.
The Powerpette Pro can be cleaned with most common laboratory disinfectants. The silicone pipette
holder (9) can be autoclaved.
To remove the nosecone (10) and silicone pipette holder (9) turn the nosecone (10) anti-clockwise.
Whenthenoseconeisremovedthesiliconepipette(9)holdercanalsobedisengagedfromthelter
(8) by gently turning.
Replacing the Filter
Thehydrophobiclter(8)willrequireoccasionalreplacement,particularlywhenwettedbytheliquid
and whenever the suction capacity is slowing.
Note
Onlyusegenuinemanufacturer’srecommendedltersandaccessories.
Problem Possible Cause Remedy
Unit does not work Not enough charge Discharge and recharge for 16 hours
Suction capacity slow Filter (8) blocked, dirty or damaged Clean or replace membrane filter (8)
Batteries low Recharge
Pipette drips Pipette not securely positioned in silicone
pipette holder (9)
Re-attach
Pipette holder (9) or pipette damaged Replace
PCB/manifold assembly worn Replace as required

9EN |INSTRUCTION MANUAL |VWR
Accessories and Spares
Description EU Cat. No. NA Cat. No.
Box of 5 spare 0.45 µm filters (8) 612-3678 14526-214
Box of 5 spare 0.20 µm filters (8) 612-3681 14526-238
Silicone Pipette holder (9) 612-3679 14526-208
ASA nosecone (white) (10) 613-5701 10782-960
ASA nosecone pack (blue, red, pink) (10) 612-4555 75917-042
Filter adaptor (7) 613-5711 10782-982
PCB/Manifold assembly 613-5720 75877-530
See page 7 for reference

POWERPETTE PRO
10 VWR |INSTRUCTION MANUAL |EN
Technical Service
Return for Repair
In the unlikely event of repair, or where the damage to the unit necessitates return to your
distributor or the manufacturer, please decontaminate the unit and complete the required
decontaminationcerticatewhereappropriate.Inaddition,pleasegivewrittendetailsofthefault.
Thedecontaminationcerticateisavailablefromtheproductorderingpageonwww.vwr.com.
Warranty
The manufacturer warrants that this product will be free from defects in material and workmanship
for a period of three (3) years from date of delivery. If a defect is present, VWR will, at its option
and cost, repair, replace, or refund the purchase price of this product to the customer, provided it is
returned during the warranty period. This warranty does not apply if the product has been damaged
by accident, abuse, misuse, or misapplication, or from ordinary wear and tear. If the required
maintenance and inspection services are not performed according to the manuals and any local
regulations, such warranty turns invalid, except to the extent, the defect of the product is not due to
such non performance.
Items being returned must be insured by the customer against possible damage or loss. This
warranty shall be limited to the aforementioned remedies. IT IS EXPRESSLY AGREED THAT THIS
WARRANTY WILL BE IN LIEU OF ALL WARRANTIES OF FITNESS AND IN LIEU OF THE WARRANTY OF
MERCHANTABILITY.
Equipment disposal
This equipment is marked with the crossed out wheeled bin symbol to indicate
that this equipment must not be disposed of with unsorted waste.
Instead it is your responsibility to correctly dispose of your equipment at
lifecycle-end by handing it over to an authorized facility for separate collection
and recycling. It is also your responsibility to decontaminate the equipment in
caseofbiological,chemicaland/orradiologicalcontamination,soastoprotect
from health hazards the persons involved in the disposal and recycling of the
equipment.
For more information about where you can drop off your waste equipment, please contact your local
dealer from whom you originally purchased this equipment.
By doing so, you will help to conserve natural and environmental resources and you will ensure that
your equipment is recycled in a manner that protects human health.
