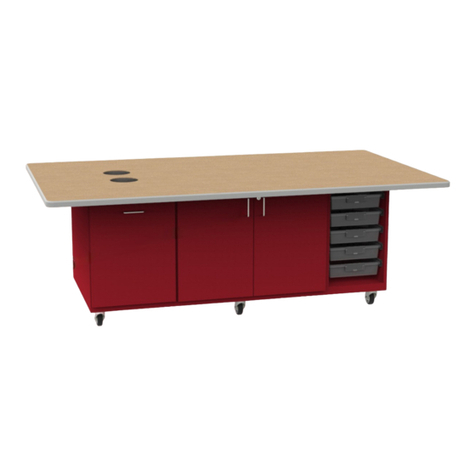

Mini Nucleus
Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key) Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
V092120 subject to change.
specifications
Step 1:
• Place one of the open base cabinets w/ adj. shelves (A) and one
of the base cabinets w/ door (B) upside down on a protected
at surface with it’s sub-bottoms facing up. (Upon installer’s
discretion, remove door & shelving before turning cabinets
over to lessen the weight of the cabinets.)
• When you’re placing cabinets (A) & (B) down on the protected
surface, align the pre-drilled holes on the side of cabinet (A) to
the pre-drilled holes on the back of cabinet (B).
Step 2:
• With cabinets (A) & (B) aligned together, place the ¼-20 x 30mm
joint connector bolt w/ loctite through pre-drilled hole on the
inside of one of the cabinets making sure bolt is pushed as far as
it can go.
• While holding the joint connector bolt ush to the cabinet, take
a ¼-20x17mm joint connector nut and attach it to the end of the
bolt (located in other base cabinet) turning it clockwise until it’s
completely on. Use a 4mm Allen wrench or 4mm Hex bit and a
screw gun to tighten as needed.
• Repeat Step 2 with the other Joint connector bolt and nut.
Step 3:
• Repeat Step 1-2 to attach the other base cabinet w/ door (C) &
the base cabinet w/ adj. shelves (D).
Step 4:
• Using image to the right as an example, slide cabinets (A) & (B)
to cabinets (C) & (D) making sure you are aligning the pre-
drilled holes on each of the cabinets together.
• Once pre-drilled holes are aligned, place the ¼-20 x 30mm joint
connector bolt w/ loctite through pre-drilled hole on the inside
of one of the cabinets making sure bolt is pushed as far as it can
go.
• While holding the joint connector bolt ush to the cabinet, take
a ¼-20x17mm joint connector nut and attach it to the end of the
bolt (located in other base cabinet) turning it clockwise until it’s
completely on. Use a 4mm Allen wrench or 4mm Hex bit and a
screw gun to tighten as needed.
• Repeat Step 4 to attach the other set of cabinets.
NOTE: There will be two bolts/ nuts to connect cabinets (A) to (C)
and then another two bolts/ nuts to connect cabinets (B) to (D).
Step 1-2
Step 3
Step 4
AB
Cabinet A: Unit with Adj. Shelves
Cabinet B: Unit with Door
Cabinet C: Unit with Door
Cabinet D: Unit with Adj. Shelves
CD
D
A
B
C

2
wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specications are subject to change. Product
images are for illustrative purposes only and may
dier from the actual product.
Mini Nucleus
Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key) Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
specifications
Step 5:
• With all four cabinets attached together, take caster base and
center it on the two cabinets. Make sure the pre-drilled holes
and threaded inserts are facing up.
• Using #2 square bit, attach caster base to the base cabinets
using #10 1½” square-drive at head screws. (See image to the
right; pre-drilled pilot holes are marked in red to help you nd
the correct locations and are for illustrative purposes ONLY.)
Step 6:
• Align caster with the threaded inserts. (See image to the right;
threaded inserts are marked in red to help you nd the correct
locations and are for illustrative purposes ONLY.)
• Use the ¼-20x25mm joint connector bolts to attach caster to the
base cabinet.
• Repeat for the remaining casters.
Step 7:
• With someone’s help, position the cabinet right side up. Make
sure to have the two locking casters’levers pushed down to
secure cabinet in place.
Step 8:
• Place top on base cabinets. Align pre-drilled holes on the base
cabinets with threaded inserts in the top. (See image to the
right; pre-drilled holes are marked in red to help you nd the
correct locations and are for illustrative purposes ONLY.)
• Using a ¼-20x35mm joint connector bolt, (going through one
of the base cabinets) insert the bolt through the pre-drilled hole
up into the threaded insert of the top. Use a 4mm Allen wrench
or 4mm Hex bit and a screw gun to fasten the bolt into place.
• After the rst bolt is fastened, proceed attaching the remaining
bolts in that cabinet. (1 bolt per cabinet)
• If shelving or doors were removed, place shelving back in place
and then attach the doors.
Step 5
Step 6
Step 8
Base/top views are for illustrative purposes ONLY and may dier from the actual product you bought.

3
wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specications are subject to change. Product
images are for illustrative purposes only and may
dier from the actual product.
Mini Nucleus
Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key) Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
specifications
Step 9:
• Wire pulls are factory installed on the inside of doors to prevent
damage intransit.
• Unscrew each wire pull handle using a Phillips drill bit and a
screw gun.
• Reattach with wire pull on the outside of the cabinet.
• Repeat for the other wire pull on the base cabinet w/ door.
Step 9
Part # Description Qty.
0400236 ¼-20x30mm joint connector bolt w/ loctite
(Used to attach 2 base cabinets together)
8
0404229 ¼-20x17mm joint connector nut
(Used to attach 2 base cabinets together)
8
040681 #10 1½” square-drive at head screw for wood
(Used to attach caster base to the 4 base cabinets)
8
Cast 1
0400484 3” heavy duty plate casters w/ out brake 2
Cast 1
0400485 3” heavy duty plate casters w/ brake 2
Cast 1
04066947 ¼-20x25mm joint connector bolt (black)
(Used to apply casters)
16
Cast 1
0406686-WO ¼-20x35mm joint connector bolt (black)
(Used to attach base cabinet to top)
8
Part Identifier Key
Tools Required
• 4mm Allen wrench OR
• 4mm Hex bit
• Drill extension
• Phillips drill bit
• Screw gun
• #2 square bit
