Weider Pro 340L User manual

4-
Model No. 831.15925.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
(under the seat)
• Assembly
•Operation
• Maintenance
• Part List and Drawing
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
WEIGHT BENCH EXERCISER
User's Manual

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
PART IDENTIFICATION CHART .............................................................. 5
ASSEMBLY .............................................................................. 6
ADJUSTMENT ........................................................................... 11

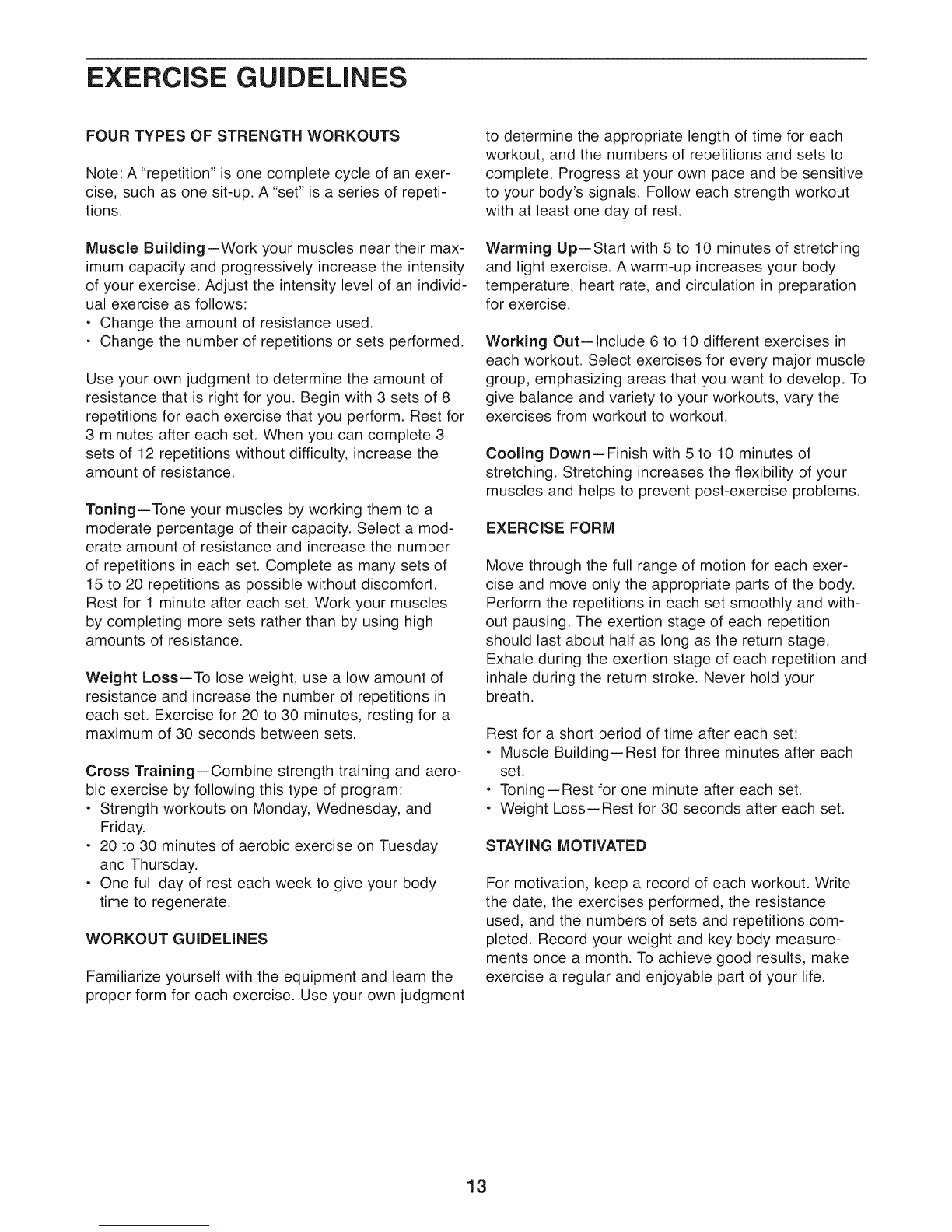

EXERCISE GUIDELINES .................................................................. 13
PART LIST .............................................................................. 14
EXPLODED DRAWING .................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, call 1-877-992-5999
and request a free replacement decal. Apply the decal
in the location shown. Note: The decal(s) may not be
shown at actual size.
Crutch and spotters
must be used in the
forward position.
• Misuse of this machine may result in serious injury.
=Read user's manua| prior to use and follow a|| warnings
and instructions.
•Do not a|low children on or around machine.
and hair free and clear of
Keep body, c|othing,
o
a|| moving parts. . . _ _ "!
_llegible, or removed.
User Weight: Max 300 LBS
Weight Crutch: Max 210 LBS
Leg Developer: Max 130 LBS
Weight Carriage: Max 130 LBS
Chest Fly Per Arm: Max 40 LBS
Product may not offer aft listed exercises.
2

iMPORTANT PRECAUTIONS
3

BEFORE YOU BEGIN
Thank you for selecting the versatile WELDER PRO TM
340 L Mid-width weight bench. The 340 L Mid-width
weight bench offers a selection of exercise stations
designed to develop the major muscle groups of the
body. Whether your goal is to tone your body, build
dramatic muscle size and strength, or improve your
cardiovascular system, the weight bench will help you
to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Upright
Weight Rest 1_
Curl Pad
Leg Lever
Weight Clip
Weight Tube
ASSEMBLED DIMENSIONS:
Height: 4 ft. 6 in. (138 cm)
Width: 3 ft. 4 in. (101 cm)
Depth: 6 ft. 1 in. (185 cm)
Weight Rest Pin
Backrest
Backrest Brace
Seat
Curl Post Knob
4

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1-877=992-5999. To avoid damaging parts, do not use power tools for assembly.
D
M6 Washer (42)
]
M8 Washer (48)
M8 Curved
Washer (33)
MIO Washer (35)
M8 x 16mm
Screw (49)
M10 x 18mm
Screw (36)
M8 Locknut
(31)
M6 x 25mm Screw (39)
M10 Locknut
(37)
M10 x 43mm Carriage Bolt (40)
M6 x 48mm Screw (41)
ST4.2 x
10mm
Screw (17)
M8 x 48mm Screw (47)
M8 x 63mm Bolt (38)
M10 x 67mm Carriage Bolt (34)
M10 x 82mm Bolt (45)
M8 x 83mm Bolt (44)
03
.,,-,
©
r_
E
E
(:3
OO
*r-
X
o
5

ASSEMBLY
Assembly requires two persons.
Because of its size and weight, assemble the
weight bench in the location where it will be
used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
To identify small parts, see page 5.
The following tools (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver _===_
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
,
Orient the Front Stabilizer (2) so that the indent-
ed square holes face the floor.
Attach the Front Leg (4) to the Front Stabilizer
(2) with two M10 x 67mm Carriage Bolts (34)
and two M10 Locknuts (37). Do not tighten the
Locknuts yet.
Tighten an M8 x 48mm Screw (47) with an M8
Washer (48) into the Front Stabilizer (2) and the
Front Leg (4).
4
37 .37
2
Square
Holes ,,
Y
34
6

.Attach the Front Leg (4) to the Frame (1) with
two M8 x 63mm Bolts (38), two M8 Curved
Washers (33), and two M8 Locknuts (31). Do
not tighten the Locknuts yet. 4
33
31
.%31
.Orient the Rear Stabilizer (3) so that the warn-
ing decals are facing upward.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 43mm Carriage Bolts (40) and
two M10 Locknuts (37).
See step 1. Tighten the MIO Locknuts (37)
and the M8 × 48mm Screw (47).
See step 2. Tighten the M8 Locknuts (31).
Warning
Decals
37
40
3
.Orient the Seat (18) as shown.
Attach the Seat (18) to the Frame (1) with four
M6 x 25mm Screws (39).
18
39
7

5. 5
Orient the Backrest Frames (16) so that the
welded tubes are in the positions shown.
Apply a small amount of the included grease to
an M10 x 180mm Bolt (43). Attach the Backrest
Brace (15) to the Backrest Frames (16) with the
Bolt, two M10 Washers (35), and an M10
Locknut (37). Do not tighten the Locknut yet.
Orient the Backrest (19) as shown.
Attach the Backrest (19) to the Backrest
Frames (16) with four M6 x 48mm Screws (41)
and four M6 Washers (42). Do not tighten the
Screws yet.
43
Grease
I
19
16
35
_37
.Apply a small amount of grease to an M10 x
180mm Bolt (43). Attach the Backrest Frames
(16) to the Frame (1) with the Bolt, two M10
Washers (35), and an M10 Locknut (37). Do
not overtighten the Locknut; the Backrest
Frames should pivot easily.
Insert the end of the Backrest Brace (15)into
one of the slots in the Frame (1).
See step 5. Tighten the M10 Locknut (37)
and the four M6 × 48ram Screws (41). Do not
overtighten the Locknut; the Backrest Brace
(15) should pivot easily.
43
Grea_se
35
5
... 35
Slot
1
.Apply a small amount of grease to an M10 x
82mm Bolt (45). Attach the Leg Lever (5) to the
Front Leg (4) with the Bolt and an M10 Locknut
(37). Do not overtighten the Locknut; the
Leg Lever should pivot easily.
Attach the Weight Clip (8) to the weight tube on
the Leg Lever (5).
5
37 4
Grease
8

8. Insert a Pad Tube (21) through the Front Leg (4).
Slide two Foam Pads (22) onto the Pad Tube
(21). Then, press two Pad Caps (23) into the
ends of the Pad Tube.
Attach the remaining Pad Tubes (not
shown), Foam Pads (22), and Pad Caps (23)
to the Leg Lever (5) in the same way.
823 22
23 22 23
21
22
9. Attach the Curl Pad (20) to the Curl Post (6)
with two M6 x 25mm Screws (39). 20
10. Remove the 50mm Round Inner Cap (26) from
the Front Leg (4).
Insert the Curl Post (6) into the Front Leg (4).
Tighten the Curl Post Knob (24) into the Front
Leg and into one of the adjustment holes in the
Curl Post. Make sure that the Cud Post Knob
is inserted through one of the adjustment
holes.
10
26\
9

11. 11
Insert a Base Stabilizer (9) into the Base (7),
Attach the Base Stabilizer with five M10 x 18mm
Screws (36) and five M10 Washers (35).
Attach the other Base Stabilizer (9) to the
Base (7) in the same way. 36 36
35 36
12. Slide one of the Uprights (11) onto the Base
(7), Attach the Upright with an M8 x 83mm Bolt
(44), an M8 Locknut (31), four M8 x 16mm
Screws (49), and six M8 Curved Washers (33).
Attach the other Upright (11) to the Base (7)
in the same way.
49
33 49
13. Attach the tether on a Weight Rest Pin (13) to
the underside of a Weight Rest (12) with an
ST4.2 x 10mm Screw (17).
Hold the Weight Rest (12) on the indicated
side of an Upright (11), and align the Weight
Rest with one of the adjustment holes in the
Upright. Insert the Weight Rest Pin (13) through
the Weight Rest and the Upright.
Attach the other Weight Rest (12) to the
other Upright (11) in the same way. Attach
both Weight Rests at the same height.
14. Make sure that all parts are properly tight-
ened before you use the weight bench.
12 13
10
