WELDY miniwelder geo2 User manual

Leister Technologies AG
Galileo-Strasse 10
CH-6056 Kaegiswil
Switzerland
miniwelder
geo2 / tex2 / roof2

10
Please read operating instructions carefully before use
and keep for further reference.
Operating instructions (Translation of the original operating instructions)
WELDY miniwelder
Wedge Welder
GB

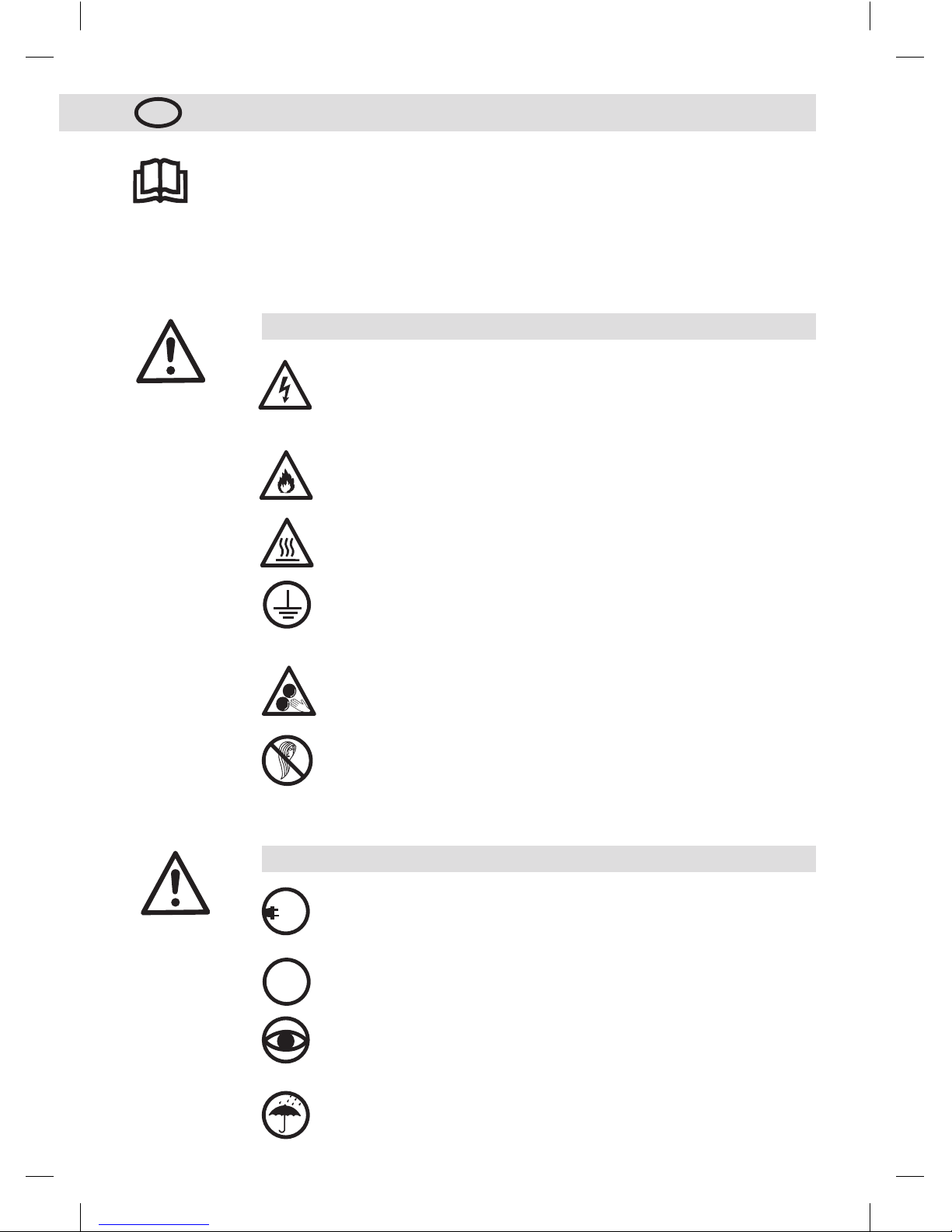

DANGER!
Danger when opening up the device, as components and connections are ex-
posed. Therefore, before opening it, unplug the device to ensure disconnection
from the mains.
Danger of fire and explosion! Incorrect use of the automatic welder (e.g.
overheating of the
material) can present a fire and explosion hazard, especially near
combustible materials and explosive gases.
Danger – can cause burns! Do not touch bare metal parts and emerging
material while hot. Allow the device to cool down.
Warning
The device must be operated under supervision. Heat can ignite flammable
materials which are not in view. The machine may only be used by qualified
specialists or under their supervision. Children are not authorized to use
this machine.
For personal protection on building sites we strongly recommend the device be
connected to a RCCB (Residual Current Circuit Breaker).
Protect device from damp and wet.
FI
Caution
The voltage rating stated on the device must correspond to the mains voltage.
In case of a power loss, the potentiometer drive speed (12) and potentiometer
heating (15) had to be set to 0.
230
400
Only connect the tool to a receptacle with protective earth conductor. Any dis-
connection of the protective earth conductor, in or outside the tool is dangerous!
Use line/mains extension cables with protective earth/ground conductor
and adequate cross sectional area only!
While working on the open system avoid wearing garments such as shawls,
scarves and ties. Long hair must be tied or protected by headgear.
Moving parts may not be touched. The danger exists of inadvertently becoming
caught and being pulled in.

11

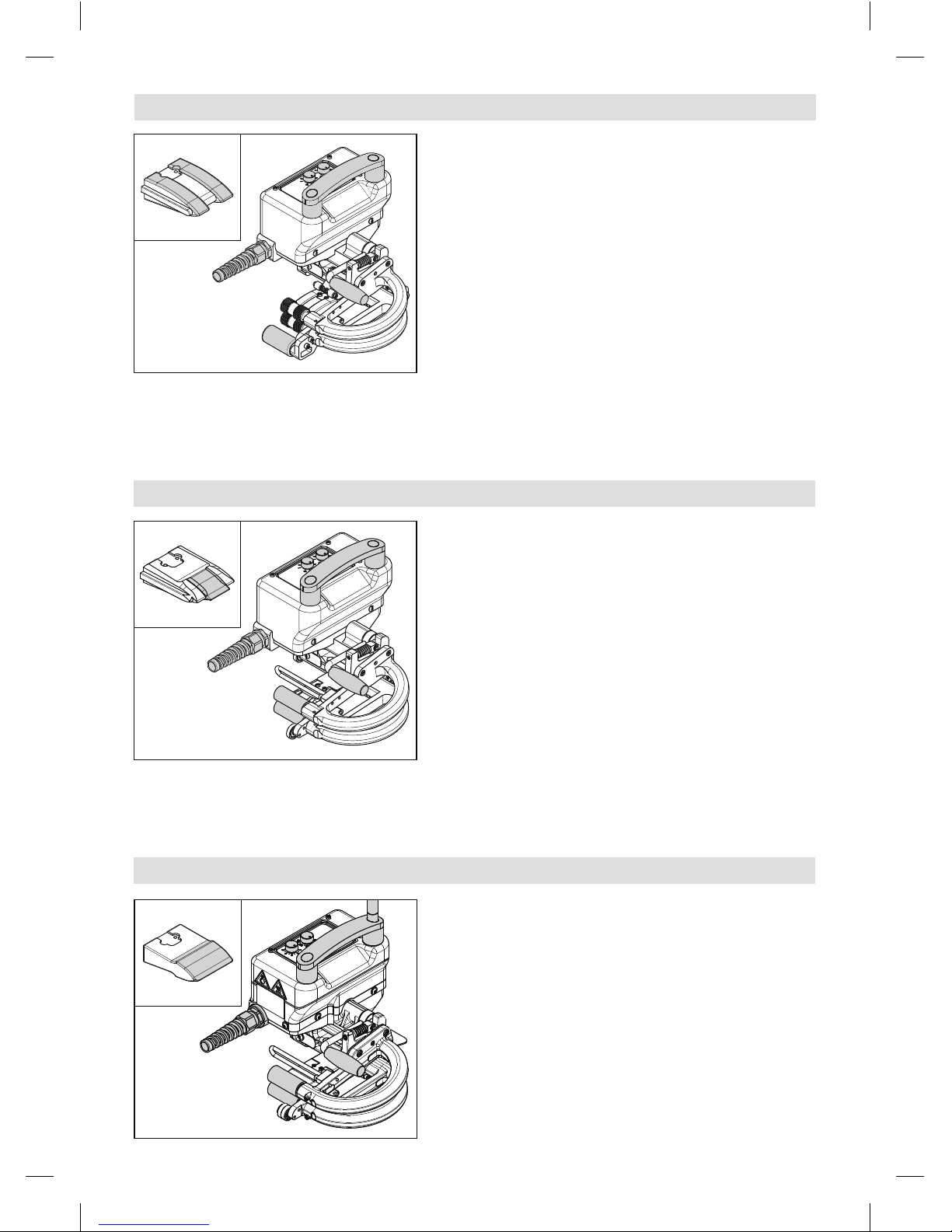

Application miniwelder geo2
Application miniwelder tex2
Note: For welding materials made of PVC the miniwelder with
a steel wedge must be used.
Intended use:
The miniwelder geo2 is designed for overlap welding of thinner
geo membranes made from: LDPE, HDPE, PP, PVC, EVA.
Any use other than or beyond that described above is deemed
non-intended.
Areas of use:
Civil engineering, landfills, expressways, water-proofing
works, reservoirs, artificial lake and pond construction,
production of covers, fish farms, agriculture, biogas reta-
ining bags, etc.
Note: For welding materials made of PVC the miniwelder with
a steel wedge must be used.
Intended use:
The miniwelder tex2 is designed for overlap welding of mate-
rials made from textiles and coated textiles and thinner syn-
thetics from 100 microns up made from PE, PP, PVC, EVA.
Any use other than or beyond that described above is deemed
non-intended.
Areas of use:
Production of sealing barriers and covers in agriculture, ponds,
greenhouses, tarpaulins, architecture.
Application miniwelder roof2
Note: For welding materials like thermoplastic sub-roof mem-
branes (PVC and TPO), the miniwelder with a steel wedge must
be used.
Intended use:
The miniwelder roof2 is designed for overlap welding close to
the edge of thin sub-roof membranes made from: PVC, TPO/
FPO, thermoplastic EPDM.
Any use other than or beyond that described above is deemed
non-intended.
Areas of use:
Pitched roofs, slightly sloped roofs, assembling of membranes
for indoor applications.

12

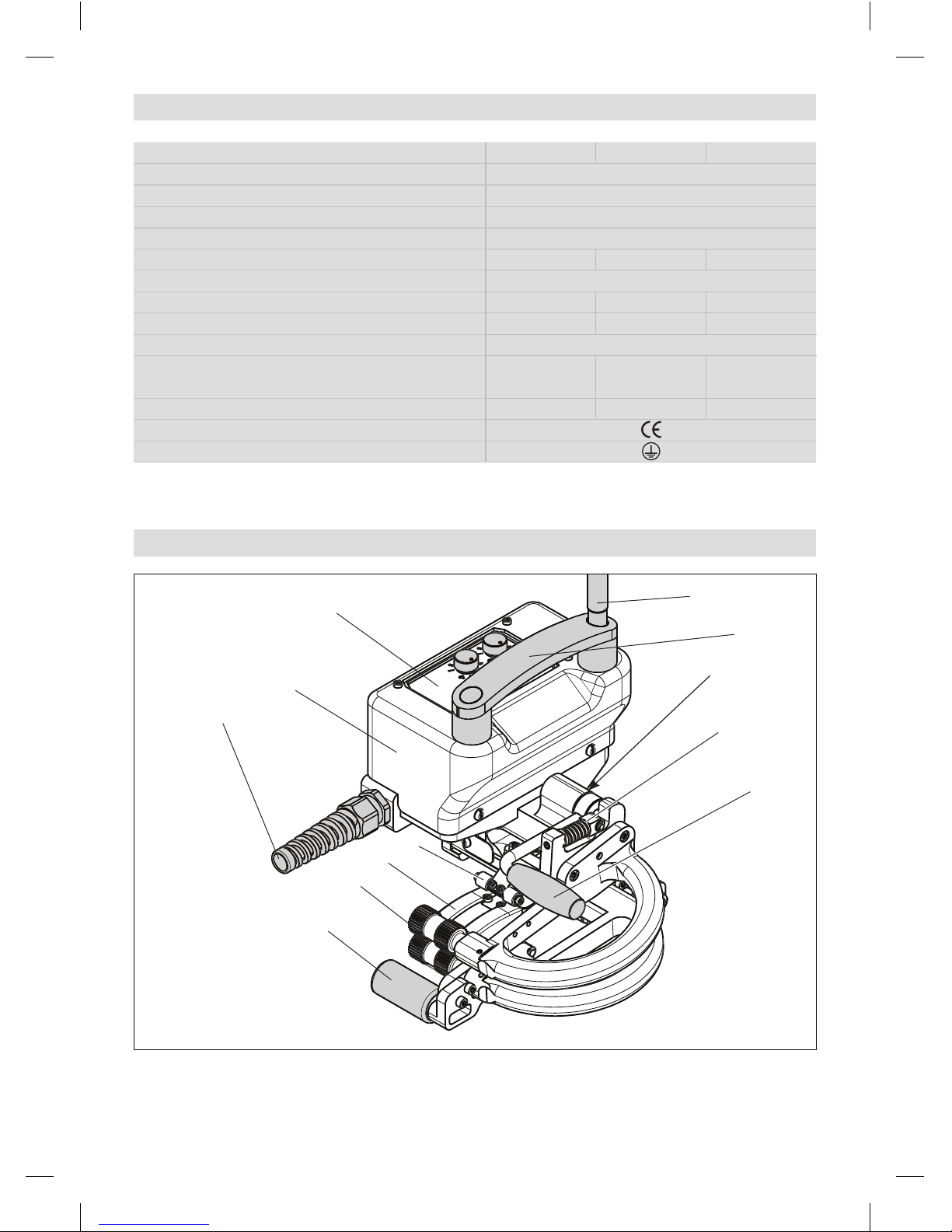

Device description
1. Power cord
2. Housing
3. Control box
4. Carry/guide handle
5. Pressure spring
6. Tension lever
7. Travel rollers
8. Pressure rollers
9. Wedge
10. Hold down rollers
11. Drive motor
12. Guide bar
Technical data
Technical data and specifications are subjected to change without prior notice.
Typ geo2 tex2 roof2
Voltage V~ 230
Power consumption W 800
Frequency Hz 50/60
Wedge temperature max. °C 480
Welding with (geo2 incl. test channel) mm 12 / 12 / 12 20 40
Emission level LpA (dB) 60
Material of wedge
Copper Steel Steel
Weight kg
3.9 3.5 4.0
Speed m/min 0.4–7.5
Material thickness mm
(depending on type of material)
0.5 –1.5 0.2 –1.0 0.3 –1.0
Max. overlap mm
100 100 80
Mark of conformity
Protection class I
1
7
8
10
9
2
3
4
6
5
11
12

13
User Interface
12. Potentiometer drive speed
13. Status LED drive
14. Drive On/O button
15. Potentiometer heating
16. Status LED
17. Heating On/O button
14
17
13
12
15
16
Adjustments
Fine adjustment Pressure
Turn adjusting screw (23) anticlockwise to reduce the
pressure down to 30 % of the maximum welding pressure.
For thinner or softer materials reduce the pressure.
Pressure roller alignment (Drive rollers)
Loosen screw (19). By turning screws (18) you can adjust
the angle of the upper pressure roller. This adjusts the posi-
tion to the lower pressure roller. Carry out a test weld to
check the position is correct. The weld pressure should be
the same from the left side to the right side. Attention in the
relaxed position the rollers are not parallel. Adjustment is
necessary for HDPE > 0.5 mm. Tighten screw (19) to lock
the position.
Wedge position adjustment
Loosen screws (24). Place 2 pieces of the material to be
welded between the pressure rollers and close the tension
lever (6). Move the wedge with light pressure between the
material towards the pressure rollers. Wedge must be at
right angle to pressure rollers. Tighten screw (24).
Hold down rollers (only for geo2)
Place two pieces of the material to be welded between the
pressure rollers (8) and upper (10) and lower hold down
rollers (25) and close the tension lever (6). By turning
screw (21) position the upper hold down rollers (10). By
turning screw (20) adjust the pressure exerted on the wedge
by the upper and lower hold down rollers (25).
Before adjusting components, pull plug from power supply.
18
20 21
10
22
25
23
24
19

14
8
26
27
Work environment and safety
Attention: For optimal welding results the material should
have maximum contact to the upper and lower side of the
wedge during the welding process.
Replacing pressure rollers (8)
Depending on welding material choose the right pressu-
re rollers (8) steel or silicone (both in combination also
possible). Unscrew locking screw-pin (26). Replace upper
and/or lower pressure rollers (8) and reinsert locking
screw-pin (26).
Attention:
Square-end of flexible wire (27) must be inserted carefully.
While working on the open system avoid wearing garments such as shawls, scarves and ties.
Long hair must be tied or protected by headgear.
The miniwelder should be used only in the open or in a well-ventilated area.
Never use the miniwelder in explosive or readily inflammable surroundings and maintain su-
cient distance from combustible materials or explosive gases at all times!
Read the material safety data sheet of the manufacturer of the material and follow that compa-
ny’s instructions. Be careful not to burn the material during the welding process.
Use the device only on a horizontal (roof slope up to 30°) and fireproof support.
In addition, comply with national statutory requirements regarding occupational safety (securing
safety of personnel or devices)!
Anti-fall protection when working on areas where there is a danger of falling.
When welding on roof parapets and eaves, a stop fixture with horizontal guides (e.g.
rail or rope safety systems) must be secured to the carrying handle of the miniwelder
as protection against falling.
With respect to the safety chain, care must be taken to ensure that all of the safety elements
(carabiner hooks, ropes) have a minimum load-carrying capacity of 7 kN in every anticipatable
direction. For the suspension of the machine, it is mandatory to use clasp carabiners (Twist-
Lock or screw types). All safety chain connections must be installed and checked correctly in
accordance with manufacturer specifications.

15
• Insert the power plug, turn on the power by pressing the On/O buttons for heating and drive (14 + 17) and
select temperature and speed, then take two narrow pieces of material for welding trials. Temperature selection
can be dierent for the same material at dierent ambient temperature and material thickness. To determine
the best welding result, adjust the speed to approximately 2 m/min, and then make dierent trial welds while
slowly adjusting the temperature from low to high.
• Evaluate welding parameters by carrying out tensile testing.
• After temperature and speed have been determined, insert material to be welded between the two pressure
rollers, and engage the tension lever to start the welding process.
• Check the welded seam. If required, correct the speed with the potentiometer drive (12).
• When welding is completed, disengage the tension lever to prevent damage to the pressure rollers. Pressure
rollers should never run against each other without material between them.
• Push On/O-button for heating and drive.
• Disconnect the mains voltage plug.
• Allow device to cool-down.
Perform a test welding according to the welding instructions of the material manufacturer and the
national standards or guidelines. Check the test welding.
Putting into operation
Switching o
Test weld
Error messages
Error Cause Solving
Drive no function Motor blocked (>3 sec) After 5 sec. automatic motor restart
Motor overheated (> 85 °C) Cool down motor for 20 min then start again
Flexible drive shaft defect Change flexible drive shaft
No or not enough heating
power Heating cartridge defect Change heating wedge completely
Temperature-probe defect Change heating wedge completely
Under voltage Use Extension cable with bigger load capacity.
Other errors – Contact local Weldy partner
Moving parts may not be touched. The danger exists of inadvertently becoming caught and
being pulled in.

16
Transport and storage
Maintenance, service and repairs
•The complete machine should be cleaned and placed in a dry place if it is not used.
•For PVC welding, the adhesions on hot wedge should be cleaned off after each weld.
•Attention: For welding of material such as PVC that produces corrosive gas use a stainless steel hot
wedge (optional accessory).
•Repairs may only be carried out by local Weldy partners. Usage is limited to the use of original accesso-
ries and original spare parts from Weldy.
Warranty
•The guarantee or warranty rights that were agreed upon by the local Weldy partners apply for this device. In the
case of guarantee or warranty claims, all manufacturing or processing errors shall be repaired or replaced by
the local Weldy partners at their own discretion. The guarantee or warranty claims must be proven by a purcha-
se receipt or a delivery note. Hot wedges shall be excluded from warranty obligations or guarantees.
•Additional guarantee or warranty claims shall be excluded, subject to mandatory provisions of law.
•Warranty or guarantee shall not apply to defects caused by normal wear and tear, overload or improper handling.
•Warranty or guarantee claims will be rejected for tools that have been altered or changed by the purchaser.
Leister Technologies AG, Galileo-Strasse 10, CH-6056 Kaegiswil/Switzerland
confirms that this product, in
the version as brought into circulation through us, fulfils the requirements of the following EC directives
Directives : 2006/42, 2014/30, 2014/35, 2011/65
Harmonised standards: EN 12100, EN 55014-1, EN 55014-2, EN 6100-6-2, EN 61000-3-2,
EN 61000-3-3, EN 62233, EN 60335-1, EN 60335-2-45, EN 50581
Kaegiswil, 03.02.2016
Bruno von Wyl, CTO Andreas Kathriner, GM
Electrical equipment, accessories and packaging should be recycled in an environmentally friendly
way. For EU countries only: Do not dispose of electrical equipment with household refuse!
To protect the device from damage, dirt, dust and moisture, always store and transport unit in the original box.
Conformity
Disposal
The wedge (9) must be cooled down
for transport.
Do not store any flammable materials in
the transport box

Your partner:
BA miniwelder/04.2016/04.2017 Art. 159.303
Leister Technologies AG
Galileo-Strasse 10
CH-6056 Kaegiswil
Switzerland
© Copyright by Leister
Authorised Partner for :
Australia -
Techspan Australia Pty Ltd
P. 1800 148 791
E. [email protected]
W. www.weldy.com.au
New Zealand -
Techspan Trading (NZ) Ltd
P. [phone]
E. [email protected]
W. www.weldy.co.nz
