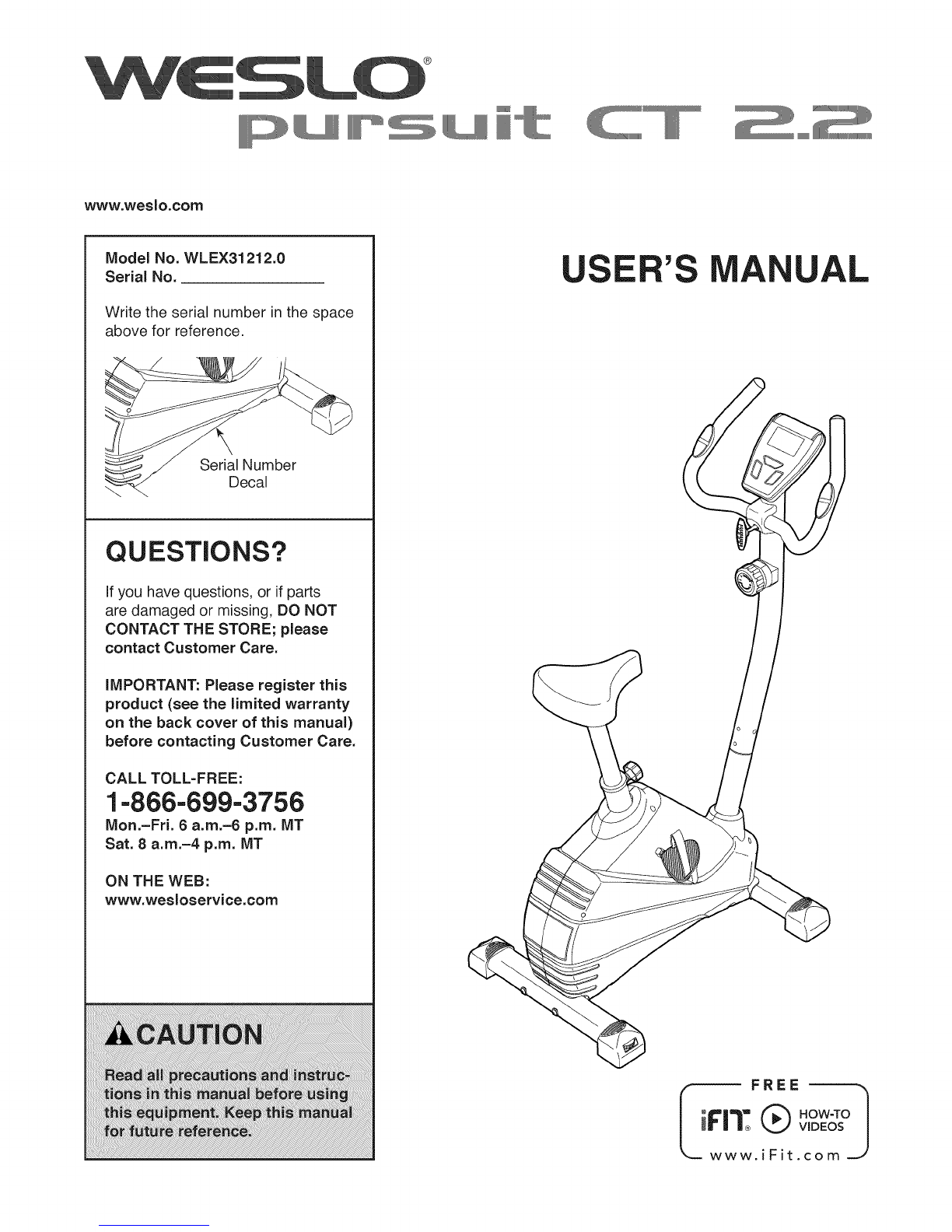

Weslo WLEX31212.0 User manual

®
www.wesJo.com
ModeJ No. WLEX31212.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
if you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
iMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.=Fri. 6a.m.=6 p.m. MT
Sat. 8 a.m.=4 p.m. MT
ON THE WEB:
www.wesloservice.com
;ER'S A UAL
_i FREE
rn:®.ow.,ou
www., ,t£°2J

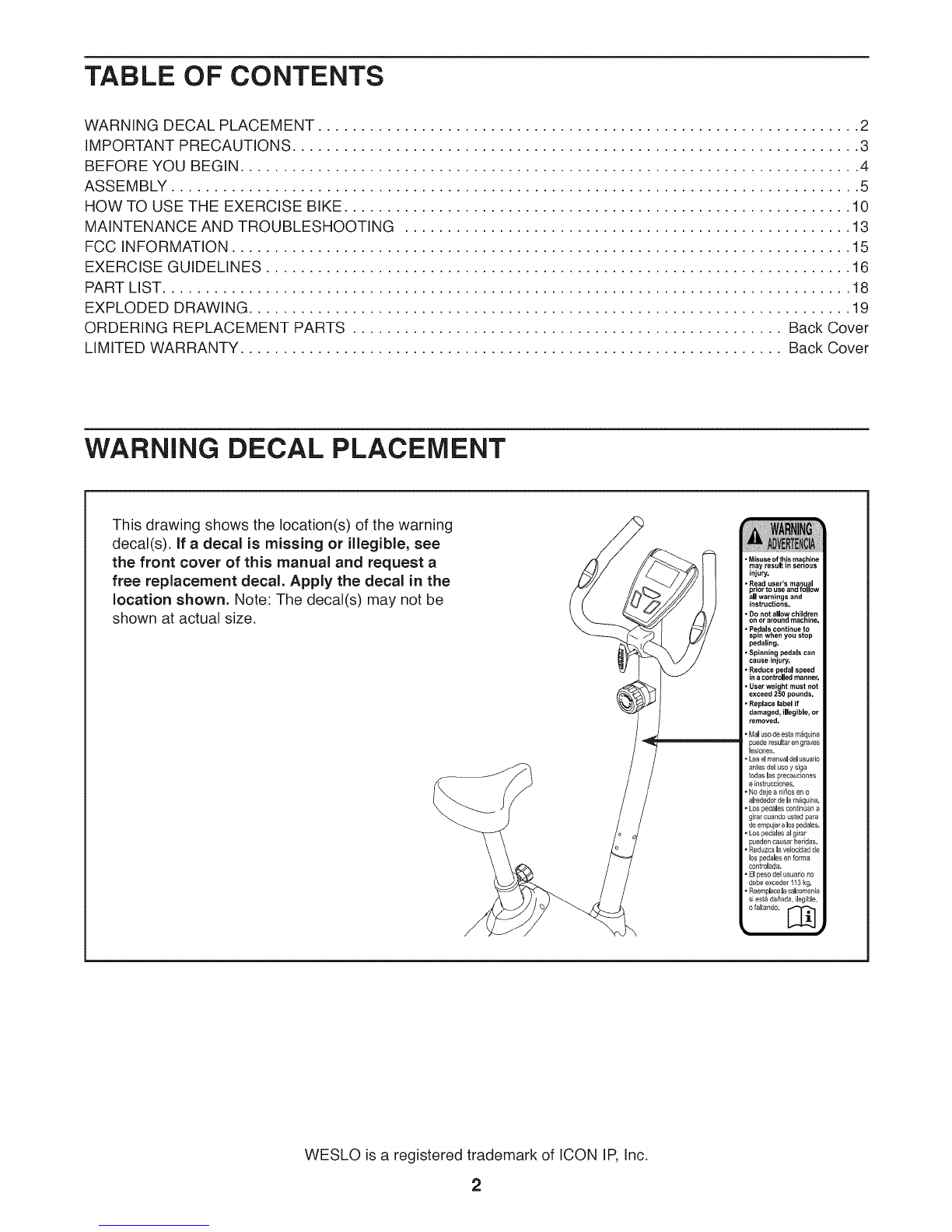

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
ASSEMBLY ................................................................................ 5
HOW TO USE THE EXERCISE BIKE ........................................................... 10
MAINTENANCE AND TROUBLESHOOTING .................................................... 13
FCC INFORMATION ........................................................................ 15
EXERCISE GUIDELINES .................................................................... 16
PART LIST ................................................................................ 18
EXPLODED DRAWING ...................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s), if a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
•Misuse ofthis machine
may result in serious
injury,
•Rctad user's m_a_ti_ll
prior to use andtollow
all warnings and
instructions.
•Do not allow children
on or around machine.
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury,
•Reduce pedal speed
inacontrolled manner.
•User weight must not
exceed 250 pounds.
•Replace label if
damaged, illegible, or
removed.
• Maluso deesta m_quina
puede resultar en graves
lesiones.
• Leael manual del usuario
antes del uso y siga
todas ins precaudones
e instruccJones.
•No deje a niSos en o
alrededor de la m_quil_a.
.Los pedales continOan a
ggar cuando usted para
de empujar alos pedales.
•Los pedales al girar
)ueden causar heridas.
• Reduzca la veloddad de
los pedales en forma
controlada.
• El peso del usuario no
debe exceder 113kg,
•Reemplace la calcomanEa
si est_ da_ada, ilegible,
o faltando.
WESLO is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
WARNING: Toreducethe.skofseriousnjury,reada,importantprecout onsand
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
iCON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program, 9.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
2. Use the exercise bike only as described in 10.
this manual.
,it is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions. 11.
The exercise bike should not be used by
persons weighing more than 250 Ibs.
(113 kg).
Always keep your back straight while using
the exercise bike; do not arch your back.
.
,
.
.
The exercise bike is intended for home use
only. Do not use the exercise bike in acom-
mercial, rental, or institutional setting.
Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in agarage or covered patio, or near
water.
Place the exercise bike on alevel surface,
with amat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
12.
13.
14.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in genera!.
The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
Over exercising may result in serious injury
or death, if you fee! faint or if you experience
pain while exercising, stop immediately and
cool down.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
3

BEFORE YOU BEGIN
Thank you for selecting the new WESLO <_'PURSUIT CT
2.2 exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The PURSUIT CT 2.2 exercise
bike provides a selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Length: 2 ft. 9 in. (84 cm)
Width: 1 ft. 8 in. (51 cm)
Handlebar Knob
Console
Handlebar
Heart Rate Monitor
Resistance Knob
Seat
Seat Knob
Pedal/Strap
Leveling Dial
4

ASSEMBLY
To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
To watch an assembly
video, go to
http ://productvideo.co/
assembly/kmart/weslo
or use your mobile
phone or smartphone to
read the QR code at the
right.
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
one pair of pliers
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
.Identify the Rear Stabilizer (10), which has a
leveling dial on each end.
Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Rear Stabilizer (10) to the Frame (1)
with two M8 x 92mm Screws (50) and two M8
Curved Washers (51).
Remove the packing material.
50 51
1Leveling
5

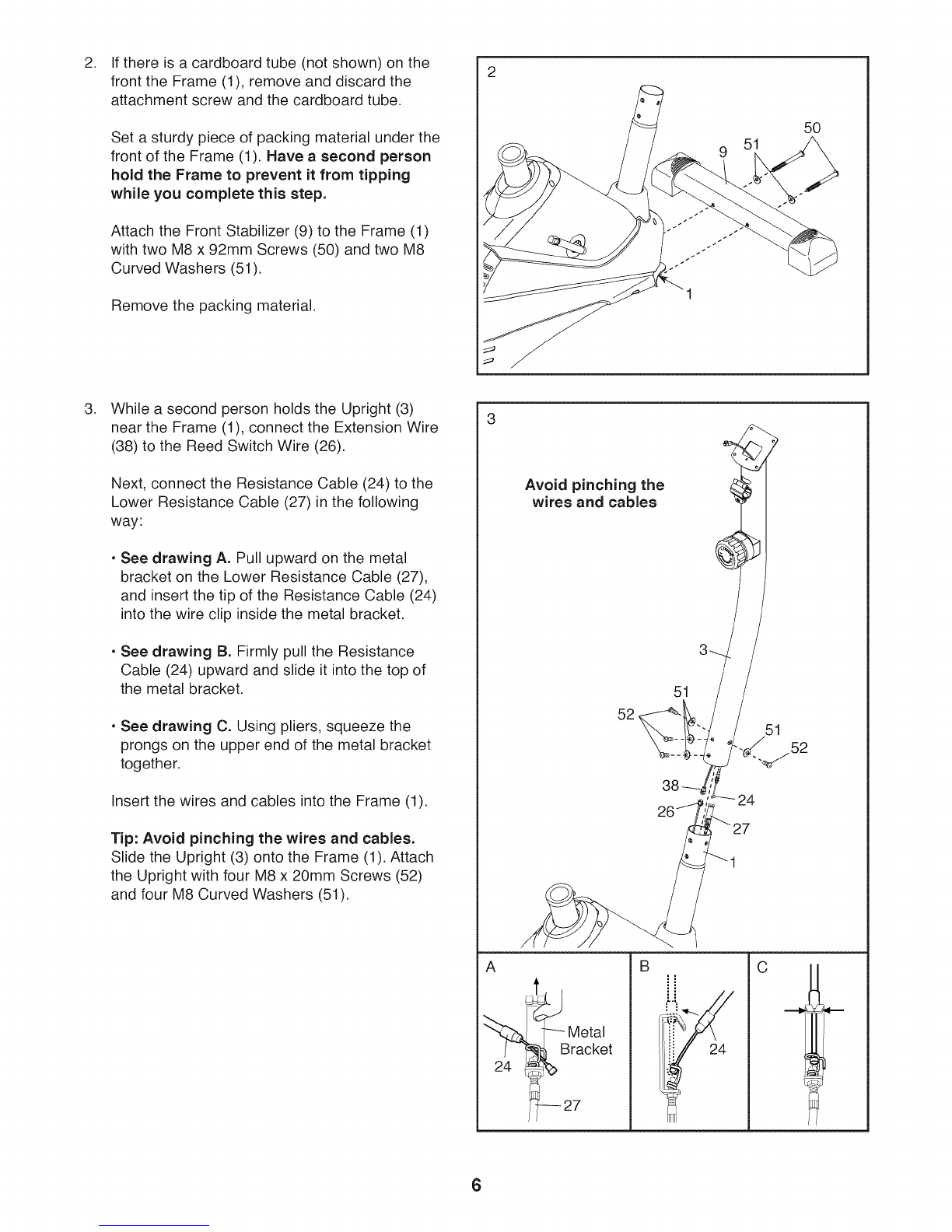

2. 2
If there is a cardboard tube (not shown) on the
front the Frame (1), remove and discard the
attachment screw and the cardboard tube.
Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (9) to the Frame (1)
with two M8 x 92mm Screws (50) and two M8
Curved Washers (51).
Remove the packing material.
51 50
,While a second person holds the Upright (3)
near the Frame (1), connect the Extension Wire
(38) to the Reed Switch Wire (26).
Next, connect the Resistance Cable (24) to the
Lower Resistance Cable (27) in the following
way:
See drawing A. Pull upward on the metal
bracket on the Lower Resistance Cable (27),
and insert the tip of the Resistance Cable (24)
into the wire clip inside the metal bracket.
• See drawing B. Firmly pull the Resistance
Cable (24) upward and slide it into the top of
the metal bracket.
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Insert the wires and cables into the Frame (1).
Tip: Avoid pinching the wires and cables.
Slide the Upright (3) onto the Frame (1). Attach
the Upright with four M8 x 20mm Screws (52)
and four M8 Curved Washers (51).
6

4. 4
Have a second person hold the Handlebar (4)
near the Upright (3). Insert the two Pulse Wires
(19) into the Upright, and pull them out of the top
of the Upright.
Tip: Avoid pinching the Pulse Wires (19).
Open the indicated clamp on the Upright (3),
hold the Handlebar (4) inside the clamp, and
close the clamp. Then, slide the Handlebar
Cover (21) onto the Handlebar and the clamp.
Slide the Knob Spacer (23), an M8 Split Washer
(54), and an M8 Small Washer (53) onto
the Handlebar Knob (22). Then, tighten the
Handlebar Knob into the clamp.
19
Avoid pinching the
Pulse Wires (19)
53
54
.The Console (2) requires two AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together, iMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console displays or other electronic
components.
Press the tab on the battery cover, and remove
the battery cover. Next, insert batteries into the
battery compartment. Make sure to orient the
batteries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
Battery Tab
Cover
7

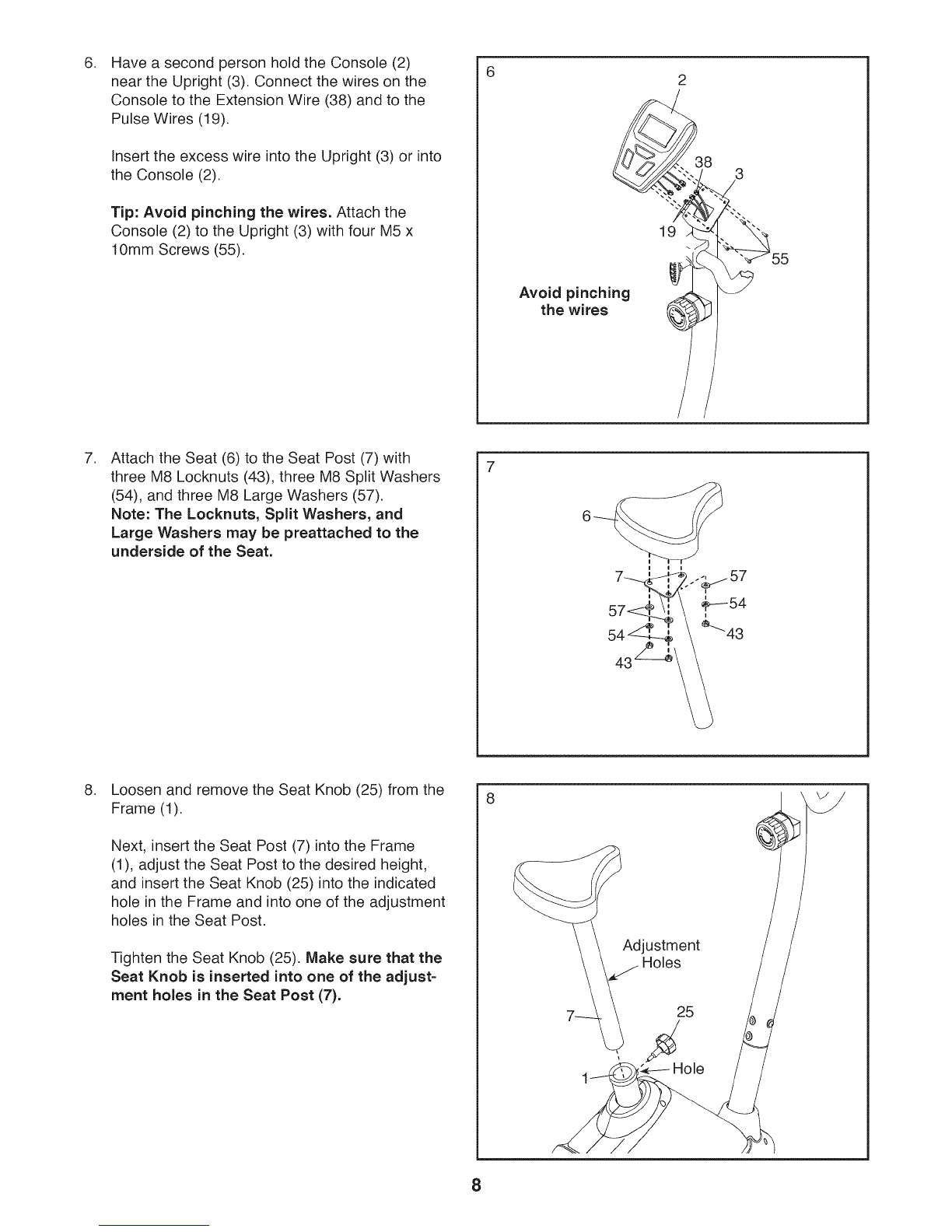

6. 6
Have a second person hold the Console (2)
near the Upright (3). Connect the wires on the
Console to the Extension Wire (38) and to the
Pulse Wires (19).
Insert the excess wire into the Upright (3) or into
the Console (2).
Tip: Avoid pinching the wires. Attach the
Console (2) to the Upright (3) with four M5 x
10mm Screws (55).
Avoid pinching
the wires
19
38
.Attach the Seat (6) to the Seat Post (7) with
three M8 Locknuts (43), three M8 Split Washers
(54), and three M8 Large Washers (57).
Note: The Locknuts, Split Washers, and
Large Washers may be preattached to the
underside of the Seat.
7
.Loosen and remove the Seat Knob (25) from the
Frame (1).
Next, insert the Seat Post (7) into the Frame
(1), adjust the Seat Post to the desired height,
and insert the Seat Knob (25) into the indicated
hole in the Frame and into one of the adjustment
holes in the Seat Post.
Tighten the Seat Knob (25). Make sure that the
Seat Knob is inserted into one of the adjust-
ment holes in the Seat Post (7).
8
Adjustment
Holes
8

9. Identify the Right Pedal (16).
Using an adjustable wrench, firmly tighten the
Right Pedal (16) clockwise into the right arm of
the Crank (35).
Tighten the Left Pedal (not shown) counter-
clockwise into the left arm of the Crank (not
shown).
Adjust the strap on the Right Pedal (16) to the
desired position, and press the end of the strap
onto the tab on the side of the Right Pedal.
Adjust the strap on the Left Pedal (not
shown) in the same way.
10. Make sure that all parts are properly tightened before you use the exercise bike. Note: Extra parts may
be included. Place a mat beneath the exercise bike to protect the floor.
9

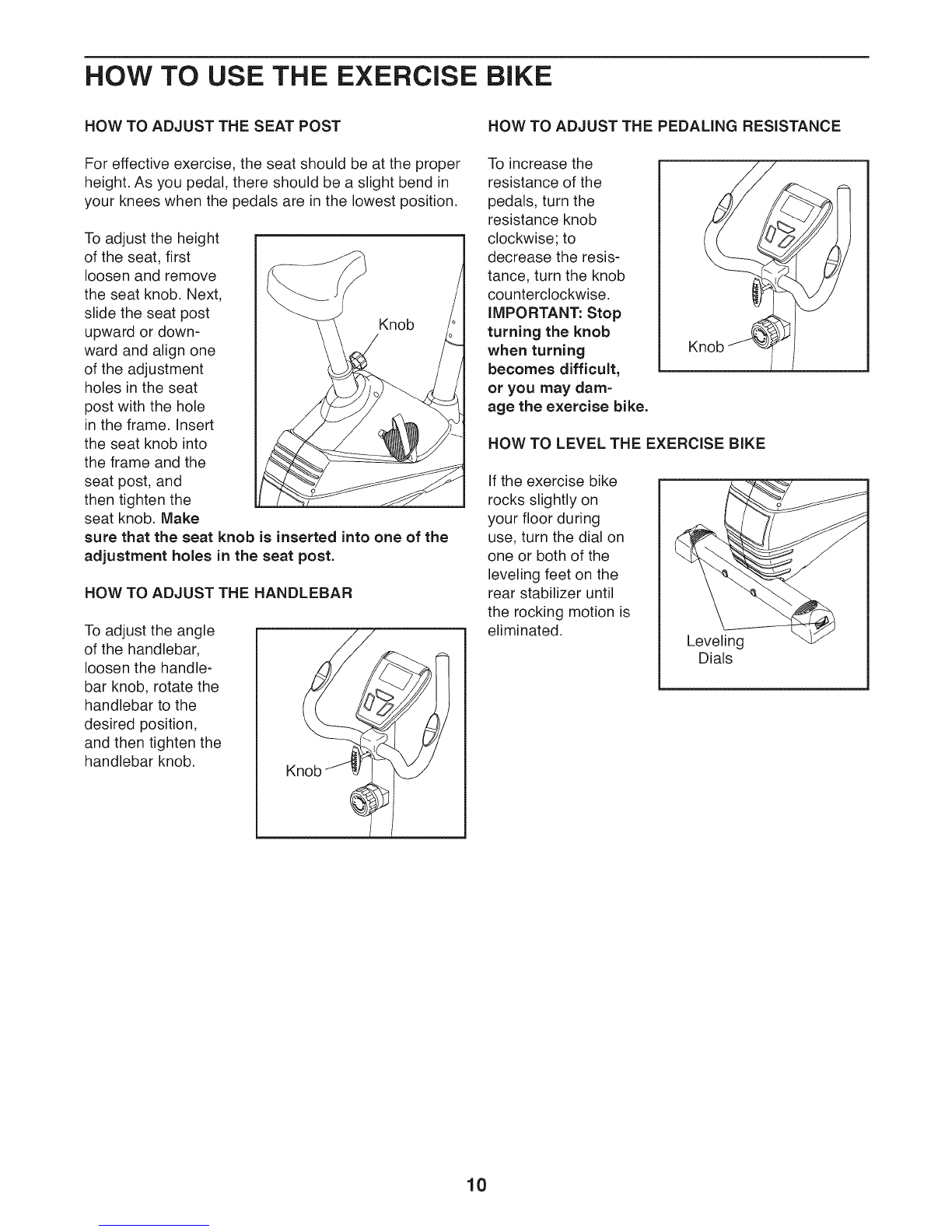

HOW TO USE THE EXERCISE BiKE
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the height
of the seat, first
loosen and remove
the seat knob. Next,
slide the seat post
upward or down- Knob
ward and align one
of the adjustment
holes in the seat
post with the hole
in the frame. Insert
the seat knob into
the frame and the
seat post, and
then tighten the
seat knob. Make
sure that the seat knob is inserted into one of the
adjustment holes in the seat post.
HOW TO ADJUST THE HANDLEBAR
To adjust the angle
of the handlebar,
loosen the handle-
bar knob, rotate the
handlebar to the
desired position,
and then tighten the
handlebar knob.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resis-
tance, turn the knob
counterclockwise.
iMPORTANT: Stop
turning the knob
when turning
becomes difficult,
or you may dam-
age the exercise bike.
/
Knob
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on
your floor during
use, turn the dial on
one or both of the
leveling feet on the
rear stabilizer until
the rocking motion is
eliminated. Leveling
Dials
10

FEATURES OF THE CONSOLE
The easy-to-use console features seven displays that
provide instant exercise feedback during your work-
outs. The displays are described at the right.
SCAN
TIME
SET
Scan--This mode shows the time, speed, distance,
calories, odometer, and pulse displays, for a few
seconds each, in a repeating cycle. Note: The pulse
display will appear only while you are using the heart
rate monitor.
Time--This display shows the elapsed time. Note: If
you set a time goal (see step 2 on page 12), this
display will show the time remaining in your workout.
Speed--This display shows your pedaling speed, in
miles per hour.
Distance (Dist)--This display shows the distance you
have pedaled during your workout, in miles.
Note: If you set a distance goal (see step 2 on page
12), this display will show the distance remaining in
your workout.
Calories (Cal)--This display shows the approximate
number of calories you have burned during your work-
out. Note: If you set a calorie-burning goal (see step
2 on page 12), this display will show the number of
calories still to be burned in your workout.
Odometer (Odo)--This display shows the total dis-
tance pedaled since the odometer was last reset.
Note: To reset the odometer, remove the batteries from
the console and then reinsert them.
Pulse--This display shows your heart rate in beats per
minute when the console detects your pulse. When no
pulse is detected, a P will appear in the display.
Note: If you set a pulse goal (see step 2 on page
12), when your goal is reached, a tone will sound for
several seconds.
11

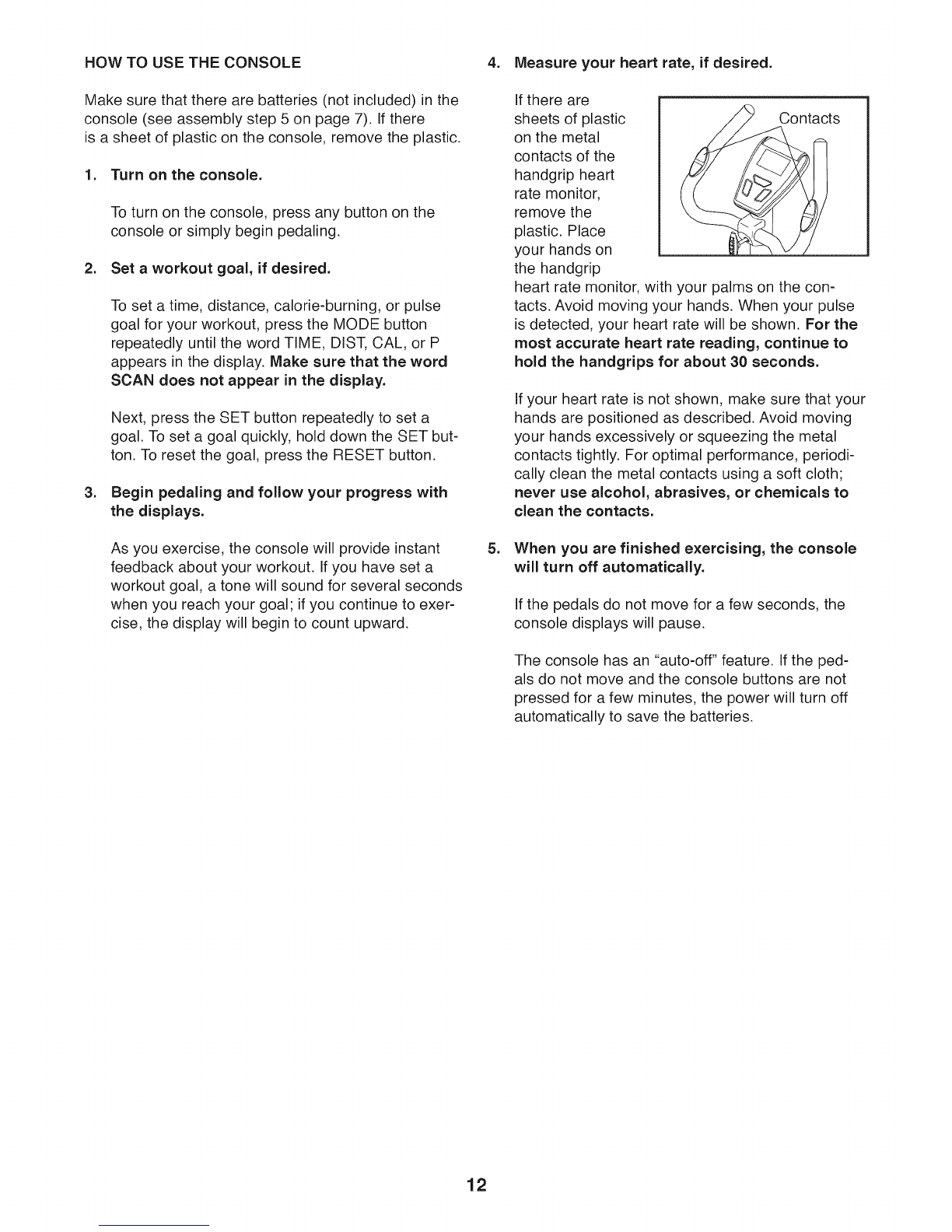

NOW TO USE THE CONSOLE 4. Measure your heart rate, if desired.
Make sure that there are batteries (not included) in the
console (see assembly step 5 on page 7). If there
is a sheet of plastic on the console, remove the plastic.
1. Turn on the console.
To turn on the console, press any button on the
console or simply begin pedaling.
2. Set a workout goal, if desired.
To set a time, distance, calorie-burning, or pulse
goal for your workout, press the MODE button
repeatedly until the word TIME, DIST, CAL, or P
appears in the display. Make sure that the word
SCAN does not appear in the display.
Next, press the SET button repeatedly to set a
goal. To set a goal quickly, hold down the SET but-
ton. To reset the goal, press the RESET button.
3. Begin pedaling and follow your progress with
the displays.
As you exercise, the console will provide instant
feedback about your workout. If you have set a
workout goal, a tone will sound for several seconds
when you reach your goal; if you continue to exer-
cise, the display will begin to count upward.
.
If there are
sheets of plastic Contacts
on the metal
contacts of the
handgrip heart
rate monitor,
remove the
plastic. Place
your hands on
the handgrip
heart rate monitor, with your palms on the con-
tacts. Avoid moving your hands. When your pulse
is detected, your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the handgrips for about 30 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Avoid moving
your hands excessively or squeezing the metal
contacts tightly. For optimal performance, periodi-
cally clean the metal contacts using a soft cloth;
never use alcohol, abrasives, or chemicals to
clean the contacts.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console displays will pause.
The console has an "auto-off" feature. If the ped-
als do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
12

MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace the batter-
ies (see assembly step 5 on page 7); most console
problems are the result of low batteries.
If the heart rate monitor does not function properly, see
step 4 on page 12.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal and the left shield must be
removed.
Using an adjustable wrench, turn the left pedal clock-
wise and remove it. Next, remove all of the screws
from both shields. Then, carefully remove the left
shield.
Next, turn the resistance knob to the lowest setting.
Locate the Reed Switch (26). Turn the Crank (35)
until the Magnet (36) is aligned with the Reed Switch.
Loosen, but do not remove, the M4 x 20mm Screw (56).
Next, slide the Reed Switch (26) slightly closer to or
away from the Magnet (36), and then retighten the M4
x 20mm Screw (56). Turn the Crank (35) for a moment.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the shields and the left pedal.
13

HOW TO ADJUST THE DRIVE BELT
if you can feel the pedals slip while you are pedaling,
even when the resistance is set at the highest level, the
drive belt may need to be adjusted. To adjust the drive
belt, the pedals and the shields must be removed.
Use an adjustable wrench to remove the pedals.
To remove the left pedal, turn the left pedal clock-
wise; to remove the right pedal, turn the right pedal
counterclockwise.
Next, remove all of the screws from both shields. Then,
carefully remove the shields.
Next, loosen the M8 Locknuts (43) on each side of the
Flywheel (29). Then, tighten the M5 Nuts (48) on each
side of the Flywheel, until the Drive Belt (28) is properly
tightened.
Finally, tighten the M8 Locknuts (43), and reattach the
shields and the pedals.
29
43
14

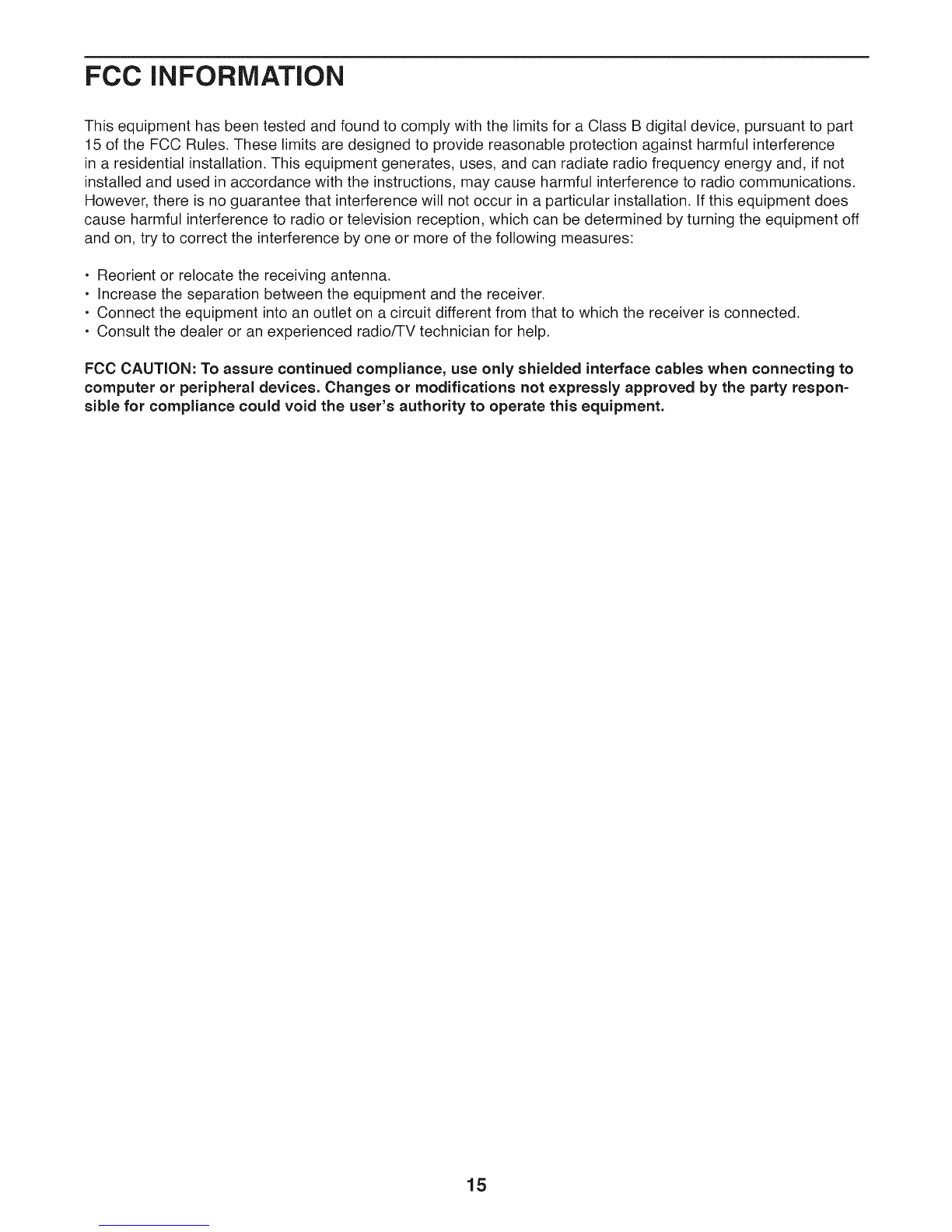

FCC iNFORMATiON
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon=
sible for compliance could void the user's authority to operate this equipment.
15

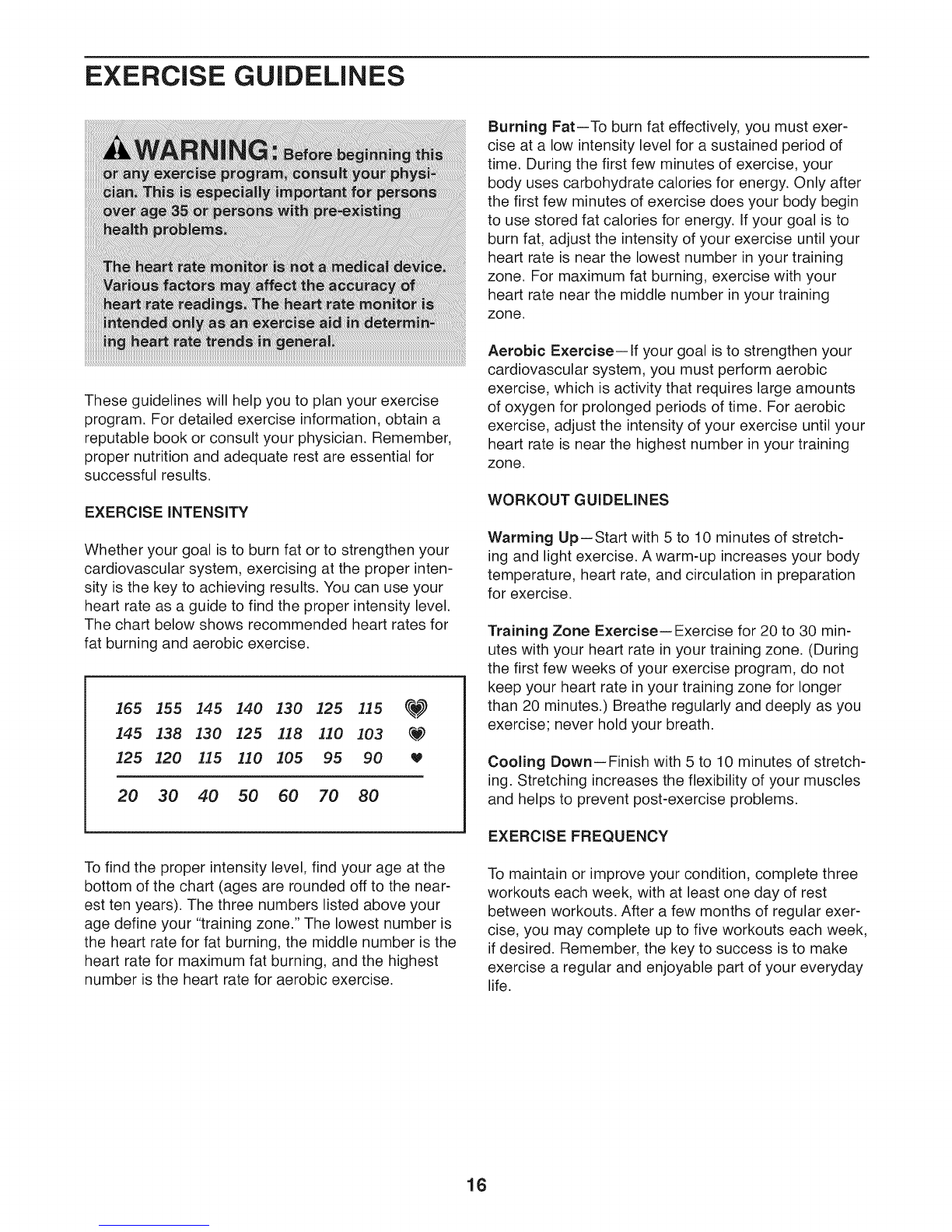

EXERCISE GUiDELiNES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE iNTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
165 155 145 140 I30 125 115 _
145 i38 130 I25 118 110 I03 <_
125 120 115 110 105 95 90
20 30 40 50 60 70 80
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your "training zone." The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat--To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise-- If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up--Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise--Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down--Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERClSE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
16

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles. 5
2
17

PART LIST Model No. WLEX31212.0 R0812A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 33
2 1 Console 34
3 1 Upright 35
4 1 Handlebar 36
5 1 Handlebar Foam, Set 37
6 1 Seat 38
7 1 Seat Post 39
8 1 Sleeve 40
9 1 Front Stabilizer 41
10 1 Rear Stabilizer 42
11 1 Left Front Cap 43
12 1 Right Front Cap 44
13 2 Rear Cap 45
14 1 Right Shield 46
15 1 Left Shield 47
16 1 Right Pedal/Strap 48
17 1 Left Pedal/Strap 49
18 2 Shield Grommet 50
19 2 Pulse Sensor/Wire 51
20 2 Handlebar Cap 52
21 1 Handlebar Cover 53
22 1 Handlebar Knob 54
23 1 Knob Spacer 55
24 1 Resistance Control/Cable 56
25 1 Seat Knob 57
26 1 Reed Switch/Wire 58
27 1 Lower Resistance Cable 59
28 1 Drive Belt 60
29 1 Flywheel 61
30 1 Flywheel Axle *
31 1 C-magnet *
32 1 Spring
1idler
1 Crank Bearing Assembly
1 Crank/Pulley
1 Magnet
2 M6 Washer
1 Extension Wire
1 M10 x 78mm Bolt
2 M8 Washer
2 Eyebolt
2 U-bracket
5 M8 Locknut
2 M10 Locknut
1 M10 x 35mm Bolt
1idler Spacer
2 M10 Washer
2 M5 Nut
1 M5 x 35mm Bolt
4 M8 x 92mm Screw
8 M8 Curved Washer
4 M8 x 20mm Screw
1 M8 Small Washer
4 M8 Split Washer
4 M5 x 10mm Screw
17 M4 x 20mm Screw
3 M8 Large Washer
2 M6 Locknut
1 M5 x 50mm Screw
2 M3 x 20mm Screw
1 M5 Washer
- User's Manual
- Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
18

EXPLODED DRAWING Model No. WLEX31212.0 R0812A
61 59
28
56
50
24
52
51 38
51 11 50
35
18
12
56
19

ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LiMiTED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.wesloservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser (customer). ICON's obligation under this warranty is
limited to repairing or replacing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer's responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, inc., 1500 S. 1000 W., Logan, UT 84321=9813
Part No. 335225 R0812A Printed in China © 2012 ICON IP, Inc.
