Westin 37-01250 User manual

3/29/12 PG-1
Westin Automotive Products, Inc.
5200 N. Irwindale Ave. Suite 220
Irwindale, Ca. 91706
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service [phone]
www.westinautomotive.com
P.N.: 75-0135-RevA ECO #: W12-0008
APPLICATION: 2001-2011 FORD RANGER 2WD/4WD EXCLUDING STX MODELS
APP PART # 37-01250, 37-01255

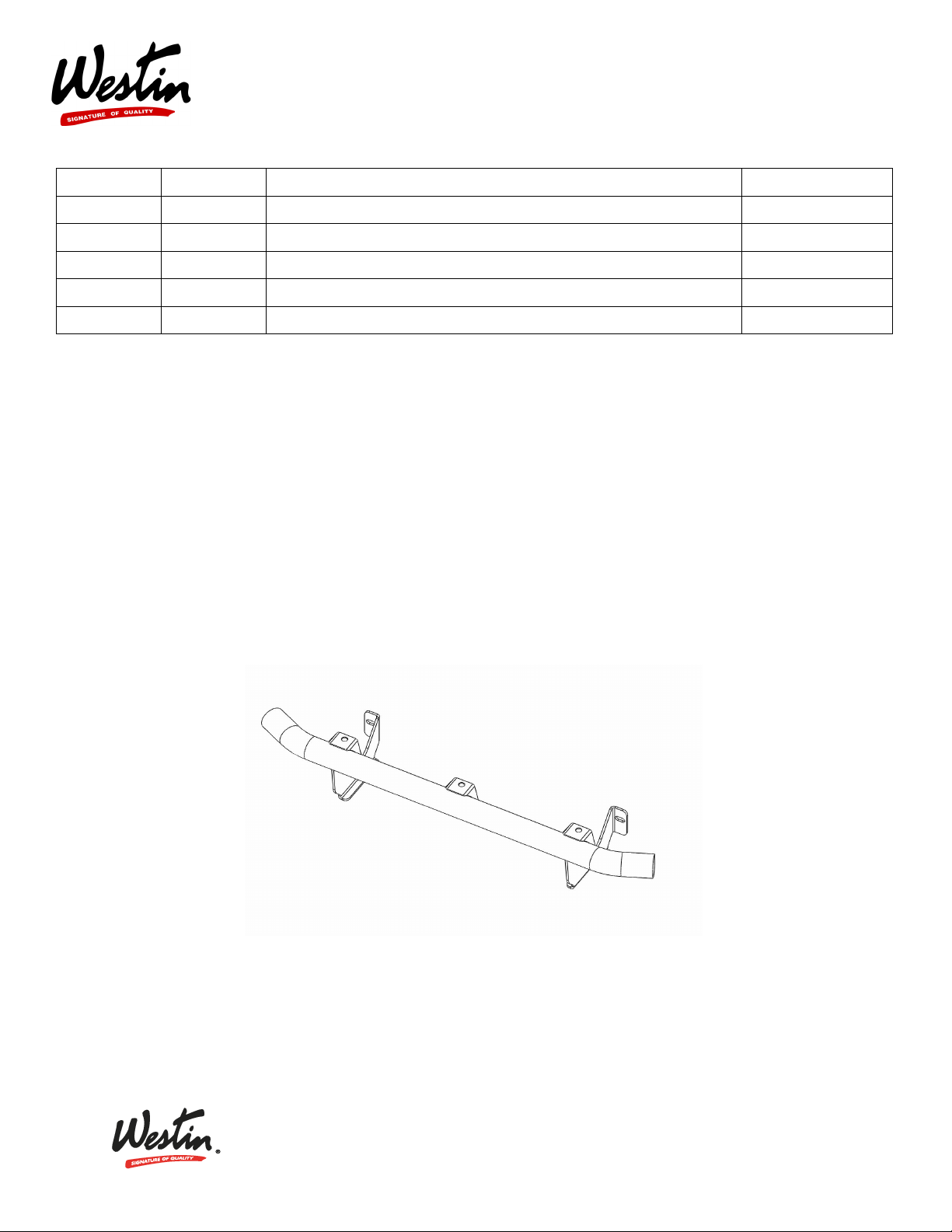

OFF ROAD LIGHT BAR
ITEM QUANTITY DESCRIPTION TOOLS NEEDED
1 1 LIGHT BAR 16MM SOCKET
2 2 M10 HEX HEAD BOLT 16MM WRENCH
3 4 M10 FLAT WASHERS 18MM SOCKET
4 2 M10 LOCK WASHERS RATCHET
5 2 M10 HEX NUTS TORQUE WRENCH
INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
CARE INSTRUCTIONS
 REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES
 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO
POLISH SMALL SCRATCHES.
 GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER
AUTOMOTIVE PRODUCTS, INC.
1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instruc-
tions before attempting installation.
2. Note: Vehicles equipped with factory tow hooks may retain them by swapping the driver and passenger side so the hooks bend
toward each other. There are 3 bolts per side that are reused.
3. Using an 18mm socket remove the factory nuts from the back of the bolt plates shown in FIG. 1. Remove the bolt plates (the
bolt plates are held in place by metal retaining rings, the bolt plates must be pried away from the retaining rings to remove them
FIG. 2).
4. With assistance take the light bar and attach it where the bolt plates were. Attach the light bar using (2) M10 hex head bolts, and
(2) M10 flat washers from the front of the light bar . From the rear of the light bar attach using (2) M10 flat washers, (2) M10
lock washers, and (2) M10 hex nuts FIG. 4. Do not fully tighten at this time.
5. Align and adjust the light bar as needed then tighten all hardware at this time. Torque all M10 hardware to 30-35 ft lbs
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING

3/29/12 PG-2
Westin Automotive Products, Inc.
5200 N. Irwindale Ave. Suite 220
Irwindale, Ca. 91706
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service [phone]
www.westinautomotive.com
P.N.: 75-0135-RevA ECO #: W12-0008
FIG. 1 FIG. 2
FIG. 3 FIG. 4
INSTALLATION COMPLETE
