Westlab 665-134 User manual

1
PRODUCT MANUAL
Product Manual
Platform Shaker, Orbital Motion 20mm, 50 - 300RPM
Code 665-134

2
PRODUCT MANUAL
This page has been left blank intentionally.

3
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
1. Product Description
1.1 Introduction
Westlab’s Platform Shaker allows for orbital shaking of liquids and semi-liquids of up
to 7.5kg mass. As a result, this unit is preferred for shaking large volume substances or
when simultaneous agitation is required. The shaker is provided with an oscillating board
to be used to place the asks, beakers, and test tubes during operation.
1.2 Intended Use
This multipurpose shaker is intended to mix, blend or to agitate substances of up to
7.5kg mass. As a result, this unit is preferred for shaking large volume substances or
when simultaneous agitation is required.
1.3 Features
• Brushless DC motor for a quality performance and a long maintenance free life
• Microprocessor controls allows for ecient output even with increased loads
• Variable speed selection up to 300 RPM
• Adjustable time range from one to 99 hours and 59 minutes
• Orbital motion of 20mm
• Set motion in either clockwise or counter clockwise direction
• Loop function
• Last run memory feature
• Safe low voltage unit
• User programmable interface
1.4 Accessories
Included with the Platform Shaker:
• Power Adaptor
• Input Voltage: 100 to 240 VAC 50/60 Hz
• Output Voltage: 24V 1.5A
• Spanner
• User Manual
TABLE OF CONTENT
1. Product Description
1.1 Introduction
1.2 Intended Use
1.3 Features
1.4 Accessories
2. Technical Specications
3. Safety Precautions
& Maintenance
4. Installation & Operation
4.1 Installation
4.2 Operation
5. Product Disposal
PRODUCT CODE
665-134
PLEASE READ THESE INSTRUCTIONS BEFORE USE.

4
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada

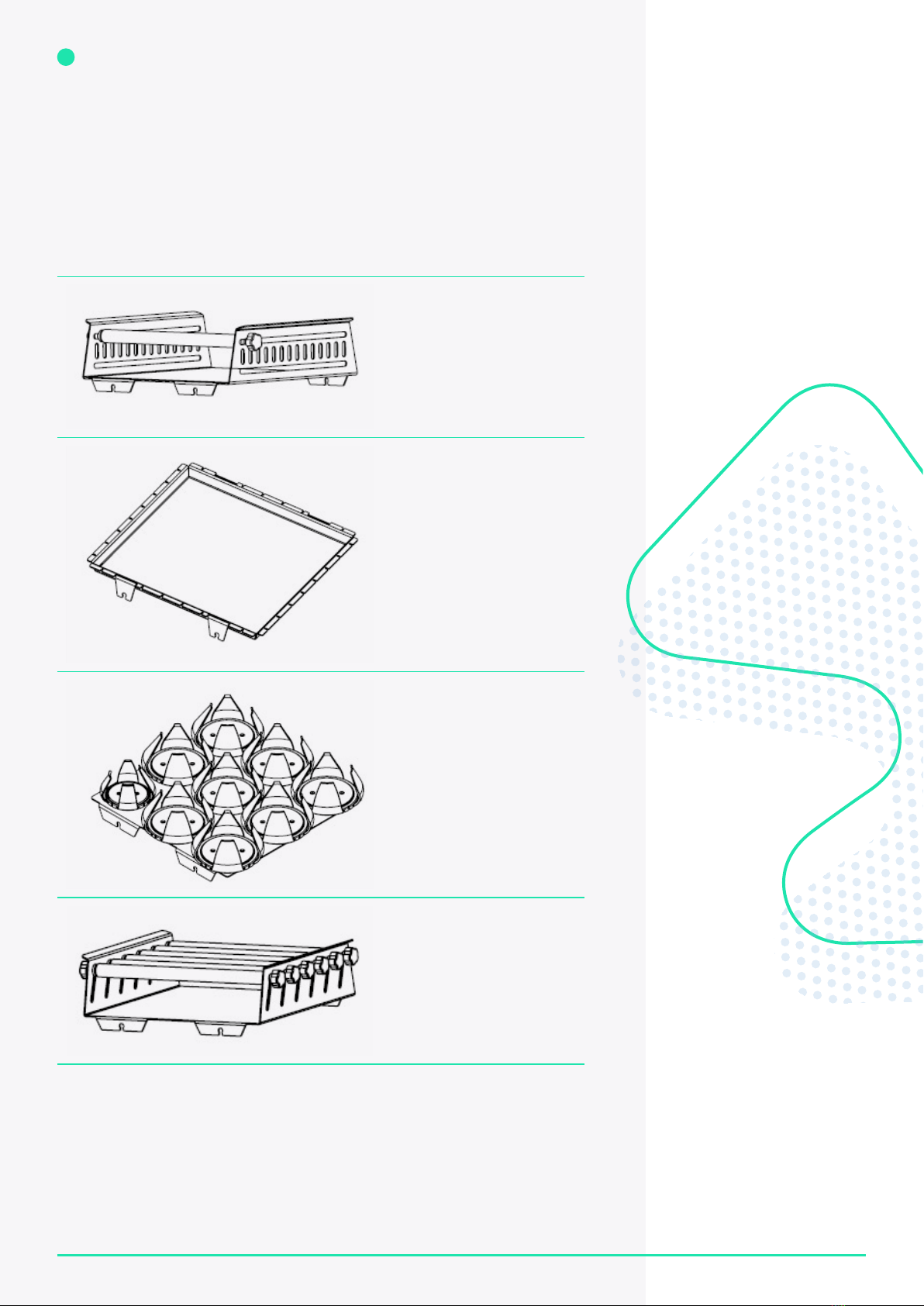

Optional Attachments
Product Description
Universal Attachment
Disc Attachment
Flask Attachment
Funnel Attachment

5
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
2. Technical Specications
Shaking Movement Orbital
Motor Type Brushless DC Motor
Speed 50RPM to 300RPM
Time Setting Range Up to 99:59 hours
Orbital Diameter 20mm
Permissible Ambient Temperature 5°C to 40°C
Permissible Relative Moisture < 80%
Permissible ON Time 100%
Programmable Feature Six programs with nine sub-programs each
Program Looping Yes
Noise Level < 60 dB
Input Voltage 24V 1.5A
Power Consumption 24W
Protection Class IP 21
Max Weight 7.5kg
Platform Dimensions 330mm x 330mm
Unit Dimensions 408mm W x 350mm S x 99mm H
Unit Weight 10kg

6
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
3. Safety Precautions &
Maintenance:
• Do not load the platform shaker with more than 7.5kg of weight.
• Wear personal protective equipment during the operation of the unit.
• Never touch moving parts.
• Always install th shaker on a at, stable and non-slippery surface.
• Do not hold or attempt to lift the unit with a shaking platform.
• Always unplug the power adaptor before cleaning the unit.
• Ensure that the shaker is used for the specied applications only. It should not be
used for shaking hazardous or reactive solutions.
• The unit is not to be operated in a hazardous, explosive, or ammable environment
and not to be used to mix explosive or highly reactive material. Do not use the unit
under water.
• Do not use the shaker if it shows signs of electrical of mechanical damage.
If any damage is found, contact your supplier immediately.
• Ensure that all the shaking accessories are rmly tightened to prevent
personal injury.
• If the unit is not operating smoothly, reduce the speed or load until the unit returns
to its regular operation.
• If there is a power interruption during the shaker’s operation, the unit will not
automatically restart when the supply of power is resumed.
• The unit may only be used to stir materials or material mixtures that will not react
dangerously to the extra energy produced by the stirring. This also applies to extra
energy produced by means of solar radiation during the shaking operation.
• Do not assemble the shaker’s attachments while the power supply is connected.
• Ensure that the attachments are secured properly prior to operation.

7
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
4. Installation & Operation
4.1 Installation
1. Remove the packaging gently and take the shaker out by holding the unit from
the bottom.
2. Ensure that all the packaging accessories are removed from the product prior to
using the unit for the rst time.
ATTENTION: Keep all the packaging in safe storage for at least two years after the
purchase for warranty purposes.
Location and mounting
• The ideal ambient temperature is 20°C ± 5°C – Do not place the unit in direct sunlight.
• Keep a minimum clearance of 300mm from all directions to guarantee safe operation.
• Keep the unit away from heat or water to avoid sample temperature errors of
shaker failures.
• Do not place the shaker in an area that makes it dicult to operate the unit.
• Place the unit on a at and level surface – ensure that the four feet stand on the
surface rmly.
• Avoid placing the shaker on a slippery surface or an area prone to vibration.
• If the mounting surface is uneven, adjust the appropriate base mount by moving it
upward or downward. Next, turn the base mount in a counter clockwise direction to
move the base mount downwards.
• To avoid automatically loosening the base mount, hold the base mount with one
hand and tighten the nut of the base mount using the provided spanner. To tighten
the nut, tighten it in a clockwise direction and vice versa.

8
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
Connecting the power adaptor
1. Connect one side of the power adaptor to the rear side of the device and the other
to the power supply as indicated in the gure below
2. Ensure that the power switch is OFF when connecting the power adaptor
Installing and removing the attachments
Installing the universal attachment
1. All the attachments must be rmly placed on the shaking platform. Ensure that the
unit is OFF when the attachments are placed on the platform.
2. Properly hold the attachment with both hands and place it on the shaking
platform.
3. Guide all four holding brackets on the respective clamping screws.
4. Once the attachment is placed on the clamping screws, tighten all of the four
clamping screws.

9
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada

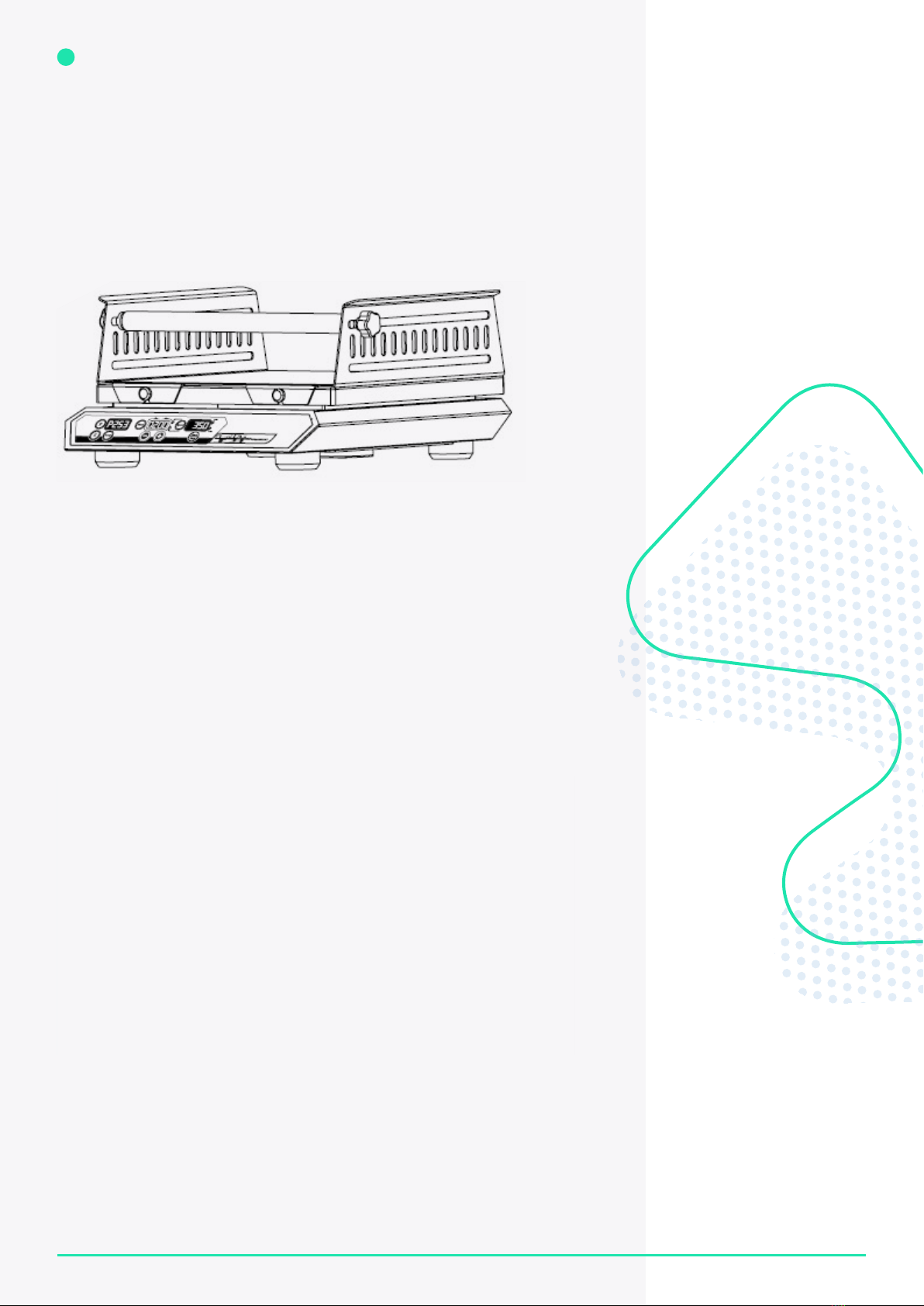

Removing the universal attachment
To remove the attachment, loosen the clamping screws and lift the attachment away
from the unit.
Supporting the weight from the attachments
To ensure safe and secure operation of the unit, the shaking platform must only be
operated with the range of usable weight and speed [see below diagram]. Please
ensure that the platform surface on which the attachment is placed is clean and level.
If the attachment is screwed together with an adjacent piece of equipment [i.e., if it is
integrated into a system], it should be noted during operation that dynamic forces may
arise because of unfavourable loading circumstances and the position of the centre
of gravity. As a result, this may cause the adjacent equipment to vibrate or cause the
table to vibrate uncontrollably. If you notice that the device is running unevenly, lower
the speed until the irregularities fade out.
Ensure that the individual attachment vessels are placed in the middle of the
attachment as well as evenly placed. Firmly fasten all the vessels to the attachment.
Load vs speed – universal attachment
50 – 300 RPM, 20mm offset

10
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
4.2 Operation

11
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada

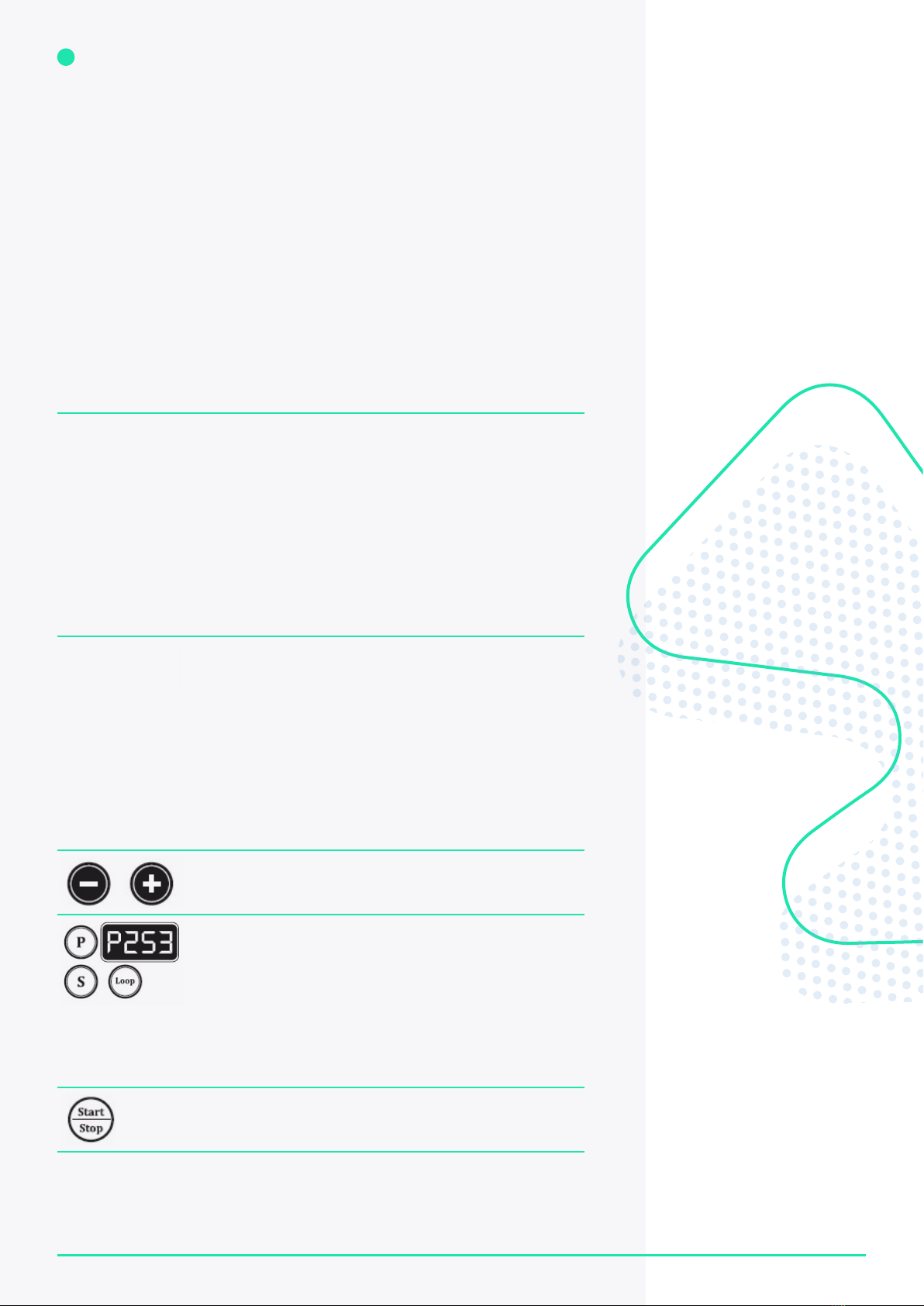

User interface and display
Button Function Operation
Speed Button
Speed Value
Display
CW and CCW
Direction
Selection LED
1. Press the ‘Speed’ button to select
the speed value.
2. The clockwise and the counter-
clockwise LED allows the user to
select the direction of the rotation.
3. Press the ‘Speed’ button to select the
CW direction of the rotation.
4. Press the ‘Speed’ button again to
select the CCW direction of the
rotation. By default, the direction of
the rotation is clockwise.
Time Button
Time Value Display
Total Time LED
Remaining Time
Indication LED
1. Press the ‘Time’ button to select
and set the time value in hours and
minutes.
2. The rst press of the button allows the
user to select the time in minutes and
a longer press of the button allows for
the time to be set in hours.
3. The Total Time LED and the Remaining
Time LED will only glow during the
unit’s operation. Both LEDs will glow
alternatively.
Increment Button
Decrement Button
The Increment and Decrement buttons
are used decrease and increase the
speed, time, and program values.
Program ‘P’ Button
Sub-Program ‘S’
Button
Loop Button
1. Long press the ‘P’ button to enter or
exit the program mode.
2. Single press the ‘P’ button to select
the programs.
3. Single press the ‘S’ button to select
the sub-programs.
4. Single press the ‘Loop’ button to loop
the sub-programs of that program.
Start/Stop Button Press the ‘Start/Stop’ button to start
and stop the unit’s operation.

12
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
Setting time
Single press the ‘Time’ button to select the time value. On the rst press, the ‘Minutes’
value will be selected and on the second press, the ‘Hours’ value will the selected. On
each press, the minutes and hour values will toggle. Once the required value is selected,
use the increment and decrement buttons to modify and set the new time value.
Once the operation begins, the time value in the display will toggle showing ‘Total
Time’ and the ‘Remaining Time’ once the set RPM is reached. The time value cannot be
modied or changed during operation.
Start and stop operation
Once the required speed and time values are set, press the ‘Start’ button to begin the
operation. The unit will start slowly. Press the ‘Stop’ button and the unit will
stop steadily.
Program mode
The program mode is a feature used to run the platform shaker in user dened mode.
For example, if a user has a requirement for a specic type of shaking like:
1. 250RPM shaking in a clockwise direction for two minutes
2. A one-minute hold
3. 400RPM shaking in a counter clockwise direction for four minutes and so on
This kind of specic shaking is achieved using the program mode or program
selection. There are a total of six programs available from P1 to P6. Each of these
programs have nine sub-programs from S1 to S9 with a loop mode for continuous or
repetitive operation.
In the beginning, there will be no display in the program mode indicating that the
shaker is running or operated in normal mode.

13
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada
Long press the program mode button ‘P’ to enter the program mode. Once selected,
the below display will be shown which demonstrates that the shaker has entered the
program mode and that the sub-program ‘S1’ and the program ‘P1’ have been selected.
Both speed and time values are set as zero [0] for this program.
Single press the program mode button ‘P’ to select the required program. The program
value will start blinking and the user can use the increment and decrement buttons to
select any program from the available six programs.
Single press the sub-program button ‘S’ to select the required sub-program. The sub-
program value will start blinking and the user can use the increment and decrement
buttons to select any program from the available nine sub-programs.
Once the required sub-program is selected, use the ‘Speed’ and ‘Time’ buttons to set
the required speed and time values. This will allow the use to set different speed and
time values for different sub-programs. Additionally, the user can set a type of rotation
i.e. either clockwise or anticlockwise rotation for that particular speed or time.

ORDERING WITH
WESTLAB IS EASY
Online
www.westlab.com.au
Order online with our easy
Express Order form for fast,
secure ordering.
Phone
1800 358 101
Speak to one of our friendly,
ecient staff from
8.00am - 5.00pm (Mon/Fri)
Email
[email protected]
24 hours, 7 days a week
convenience.
14
PRODUCT MANUAL
1800 358 101
[e-mail]
www.westlab.com.au
[phone]
[e-mail]
www.westlab.co.nz
646 568 5391
[e-mail]
www.westlab.com
1 877 822 1455
[e-mail]
www.westlab.com
Australia New Zealand United StatesCanada

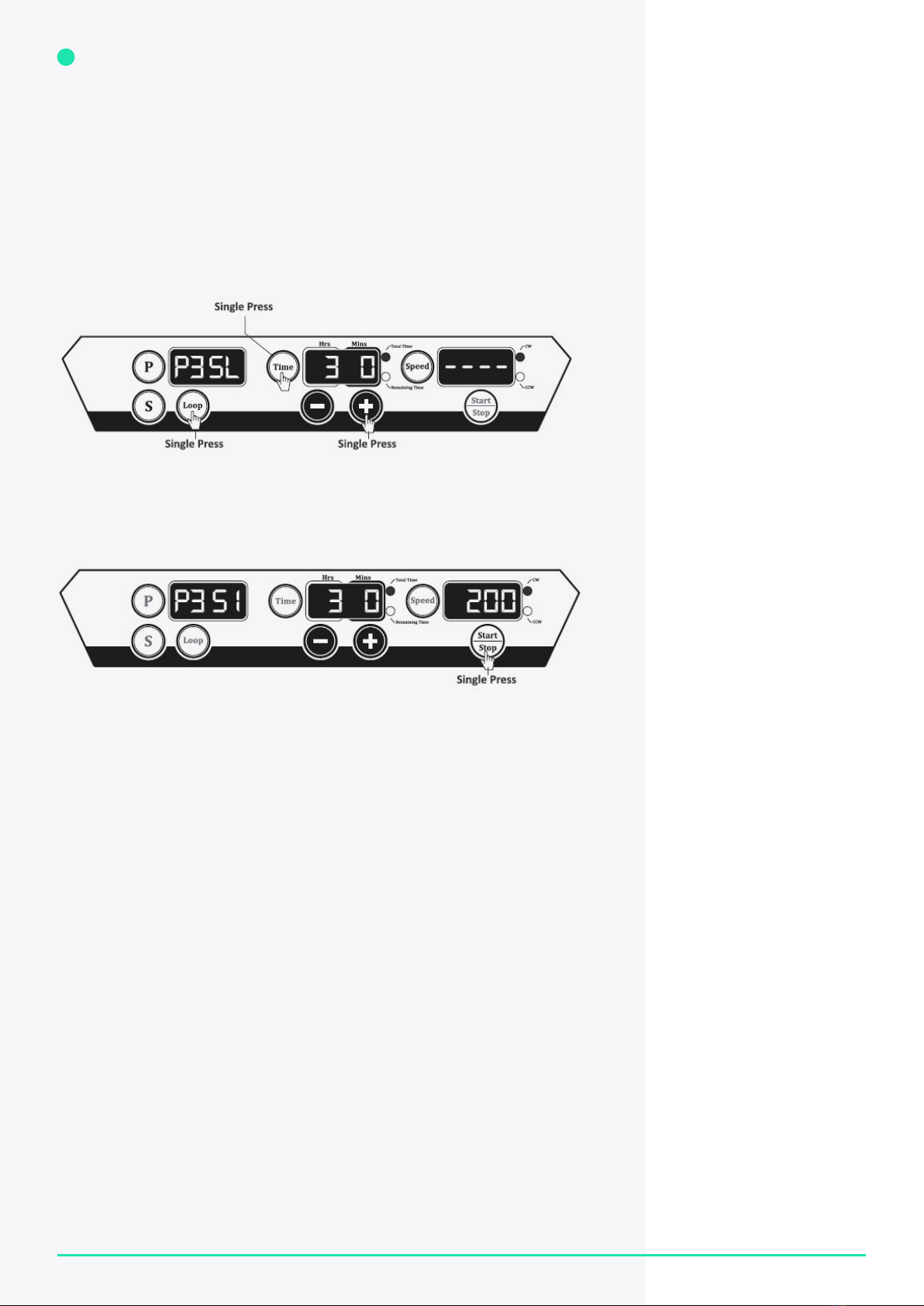

Press the ‘Loop’ button to make a loop of the sub-programs. The display will show ‘SL’
indicating that the ‘Loop’ function has been selected. The user can set the total time
of the loop by selecting the ‘Time’ button. The below display shows that the loop of
program 3 [P3] has been created and that the loop duration is three hours.
Press the ‘Start’ button to start the operation and the unit will begin according to the
program selected from the rst sub-program through to the last sub-program set.
The loop of the sub-program will occur for the total time set. Press the ‘Stop’ button to
stop the program mode operation.
6. Product Disposal
In the case that the product is to be disposed of, the relevant legal regulations are to
be observed.

15
PRODUCT MANUAL
This page has been left blank intentionally.

Westlab in every discovery.
