Whalen Barkston SPLS-BKLF User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2016-04-28 Rev. 0001-A Factory: DOGULU
Barkston Lane File
Model # SPLS-BKLF
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

Model # SPLS-BKLF
2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Barkston Lane File (SPLS-BKLF)
MADE IN CHINA
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.

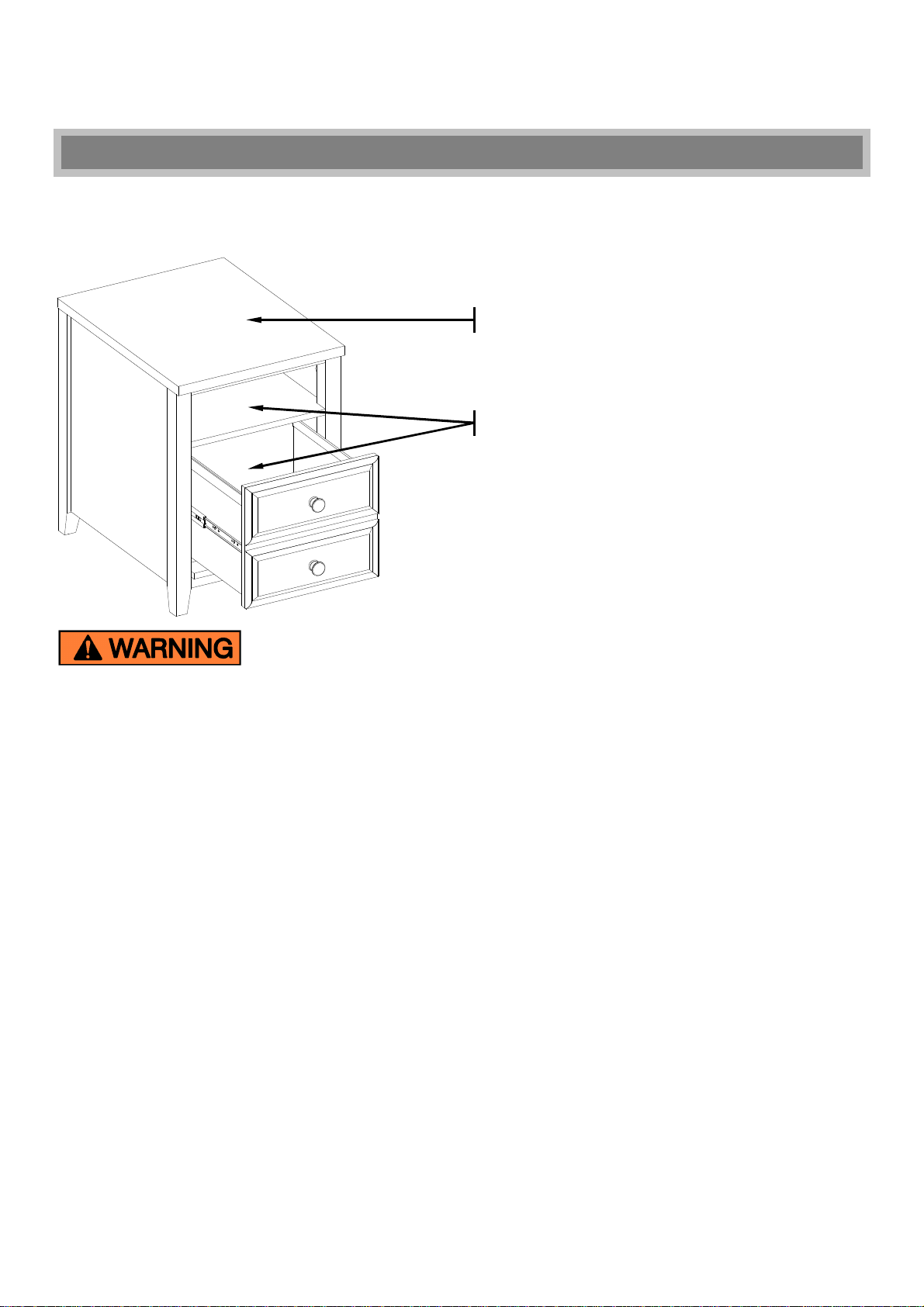

MAXIMUM RECOMMENDED WEIGHT LOADS
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM
WEIGHTS INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 30 lb. (13.6 kg)
MAXIMUM LOAD 100 lb. (45.3 kg)

Model # SPLS-BKLF
3
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

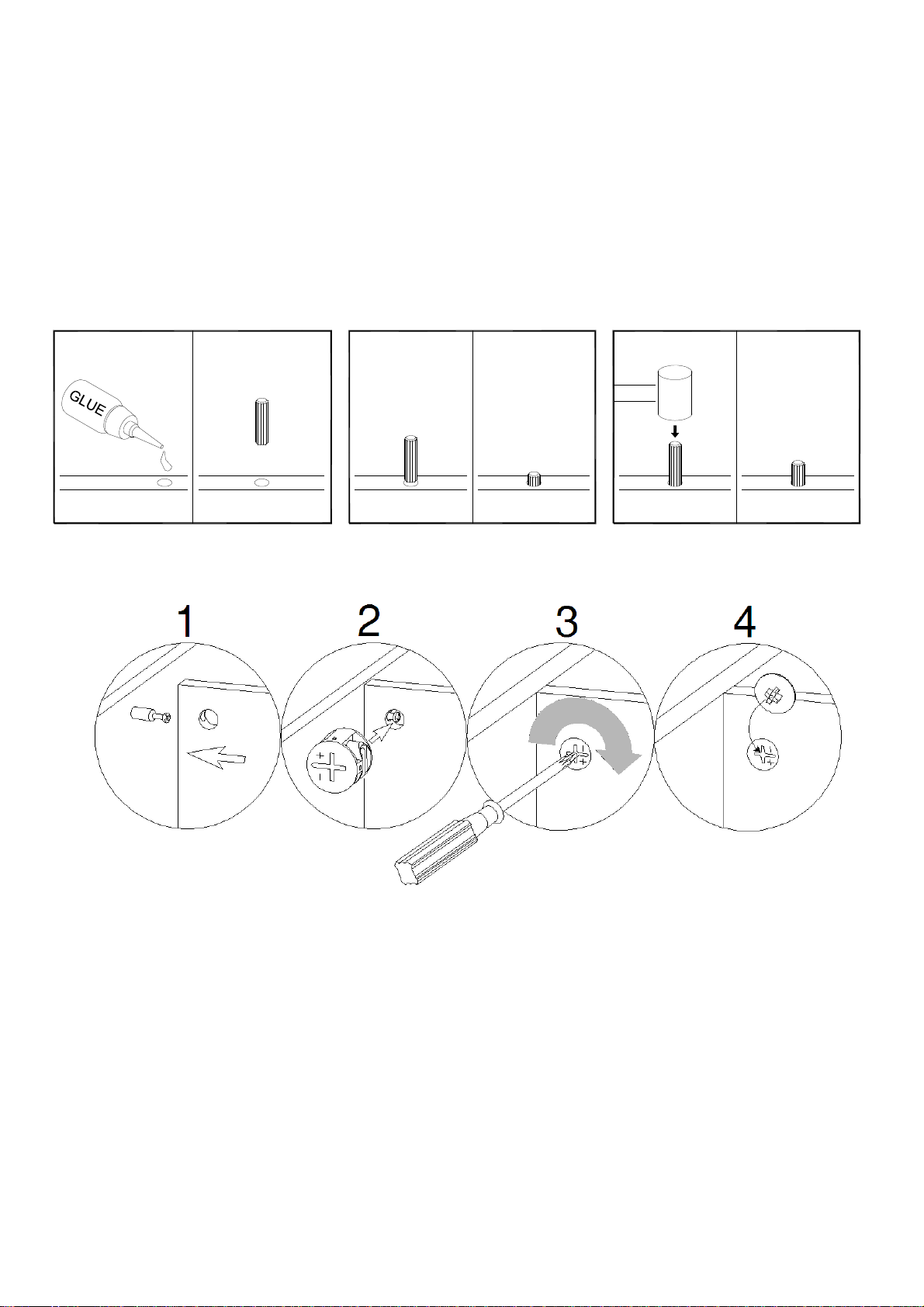

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making
sure Cam Bolt goes into pre-drilled hole on the end of panel with Cam Lock.
2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward
Cam Bolt.
3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock clockwise.
4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the unit.
XX
FINAL
1 2 43

Model # SPLS-BKLF
4

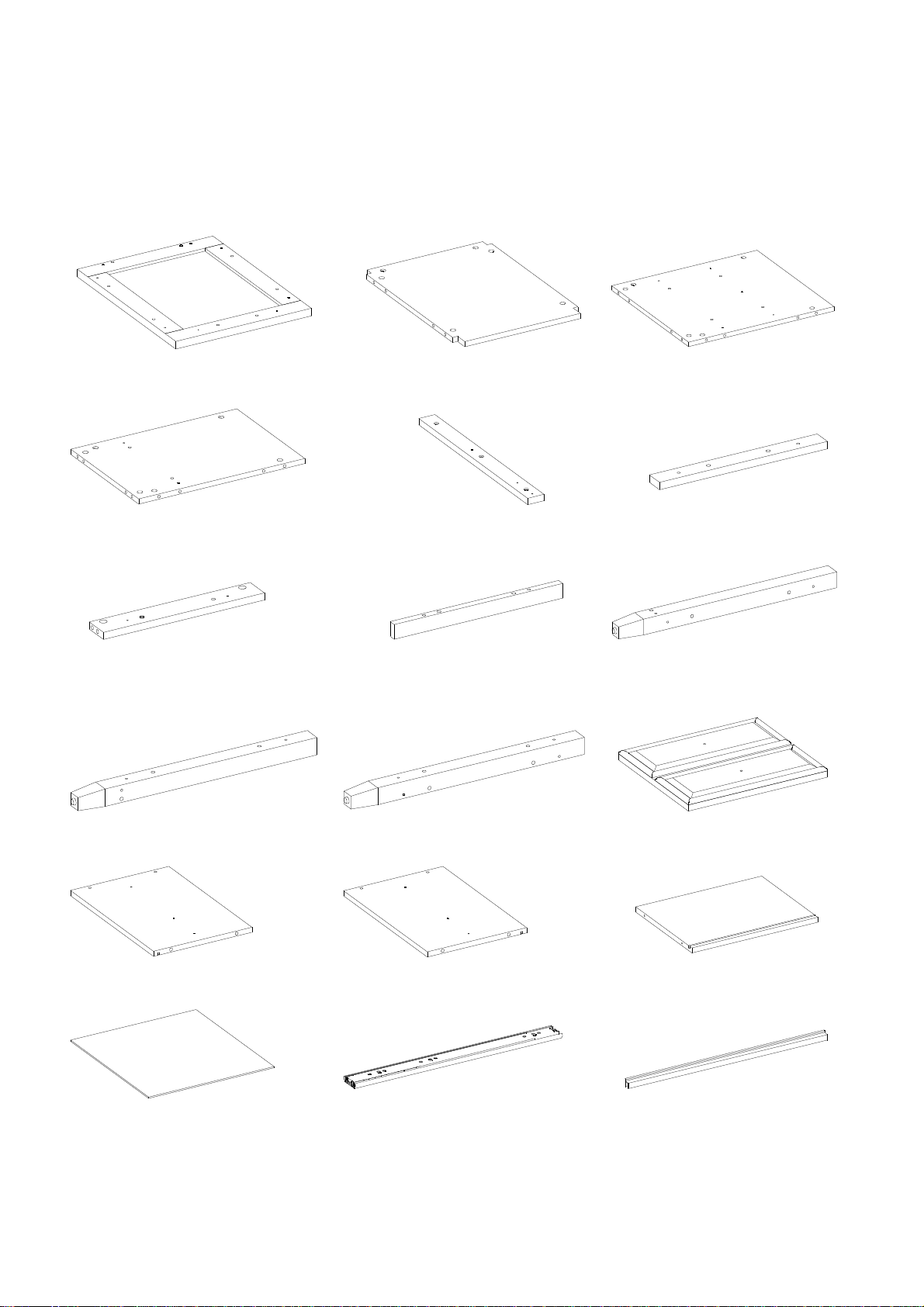

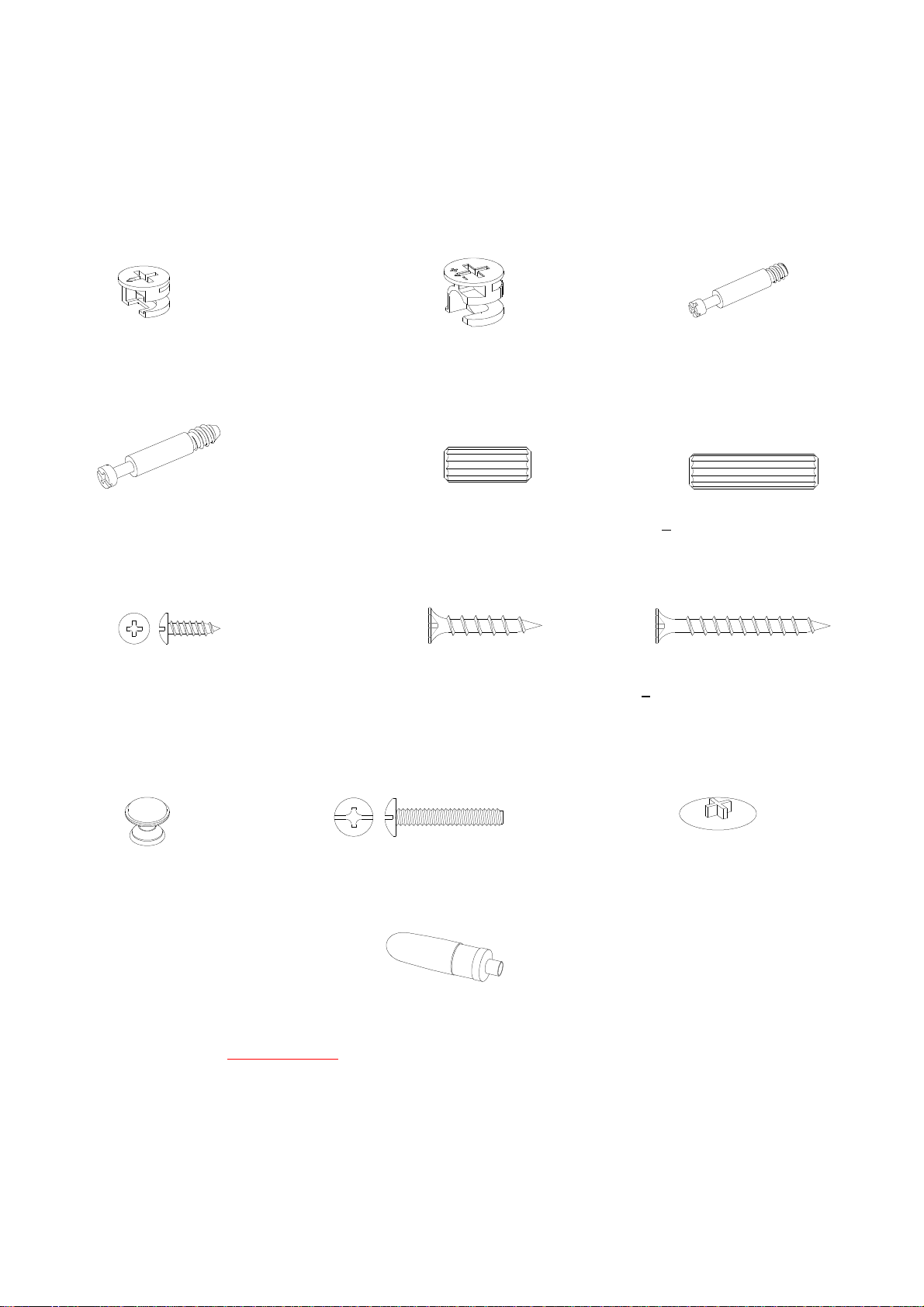

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Fixed Shelf (1) C- Side Panel (2)
D- Back Panel (1) E- Slides Support (2) F- Top Crossbar (1)
G- Bottom Crossbar (1) H- Bottom Stretcher (1) I- Left Front Leg (1)
J- Right Front Leg (1) KL/KR- Rear Leg (2) L- Drawer Front (1)
M- Drawer Left Side (1) N- Drawer Right Side (1) O- Drawer Back Panel (1)
P- Drawer Bottom Panel (1) Q- Ball Bearing Slides (2 sets) R- Guide Rail (2)

Model # SPLS-BKLF
5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Small Cam Lock (2) Large Cam Lock (3) Small Cam Bolt
(4+1 extra) (26+1 extra) (4+1 extra)
(4) Large Cam Bolt
(5) Small Wood Dowel (6) Large Wood Dowel
(26+1 extra) (6+1 extra) (28+1 extra)
(7) Ø3.5 mm x 12 mm Screw (8) Ø4 mm x 25 mm Screw (9) Ø5 mm x 38 mm Screw
(12+1 extra) (8+1 extra) (6+1 extra)
(10) Knob (2) (11) 25 mm Knob Bolt (2) (12) Cam Lock Cover (12+1 extra)
Glue (1)
Tools required: Phillips screwdriver and hammer (not provided).

Model # SPLS-BKLF
6
File Drawer Assembling

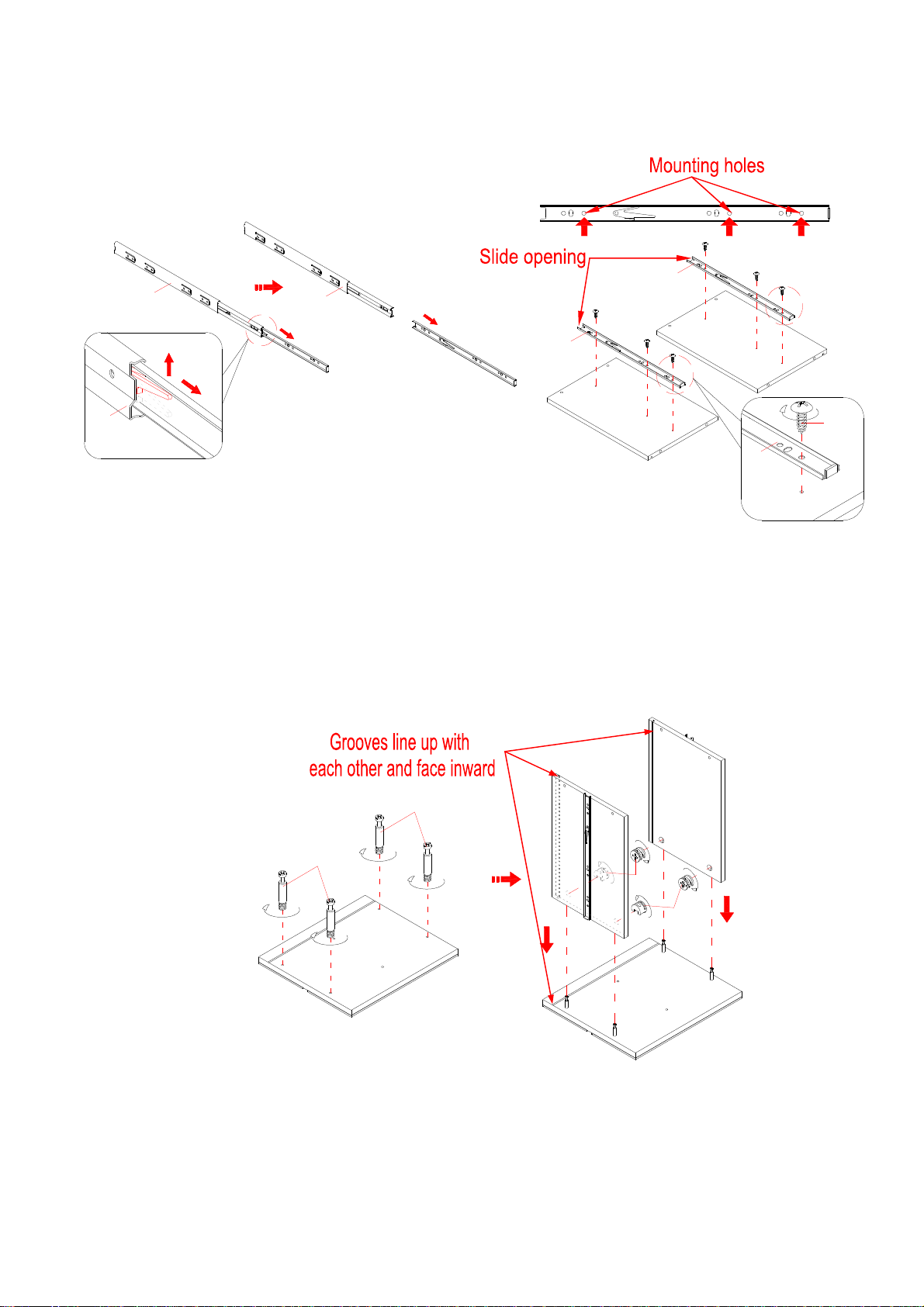

1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Pick up the Ball Bearing Slides (Q) and separate the Slide Runners for the following steps. Extend the
Slide Runner all the way forward. Press the plastic release lever of the ball bearing slides up and pull
the Slide Runner complete out.
3. Attach the separated Slide Runners (Q) to the Drawer Side Panels (M and N) respectively with three 12
mm Screws (7) per slide runner. Make sure that the slide opening points towards the edge with
countersunk holes.
4. Securely screw four Small Cam Bolts (3) into the designated small holes on the Drawer Front (L) as
shown in the illustration.
5. Attach and align the Drawer Side Panels (M and N) to the Drawer Front (L) using four Small Cam
Locks (1) (Refer to page 3 on Cam Lock system operation supplement). As shown.
L
3
3
L
M
N
1
1
QQ
Q
Q
Q
N
M
Q
M/N
7

Model # SPLS-BKLF
7
File Drawer Assembling

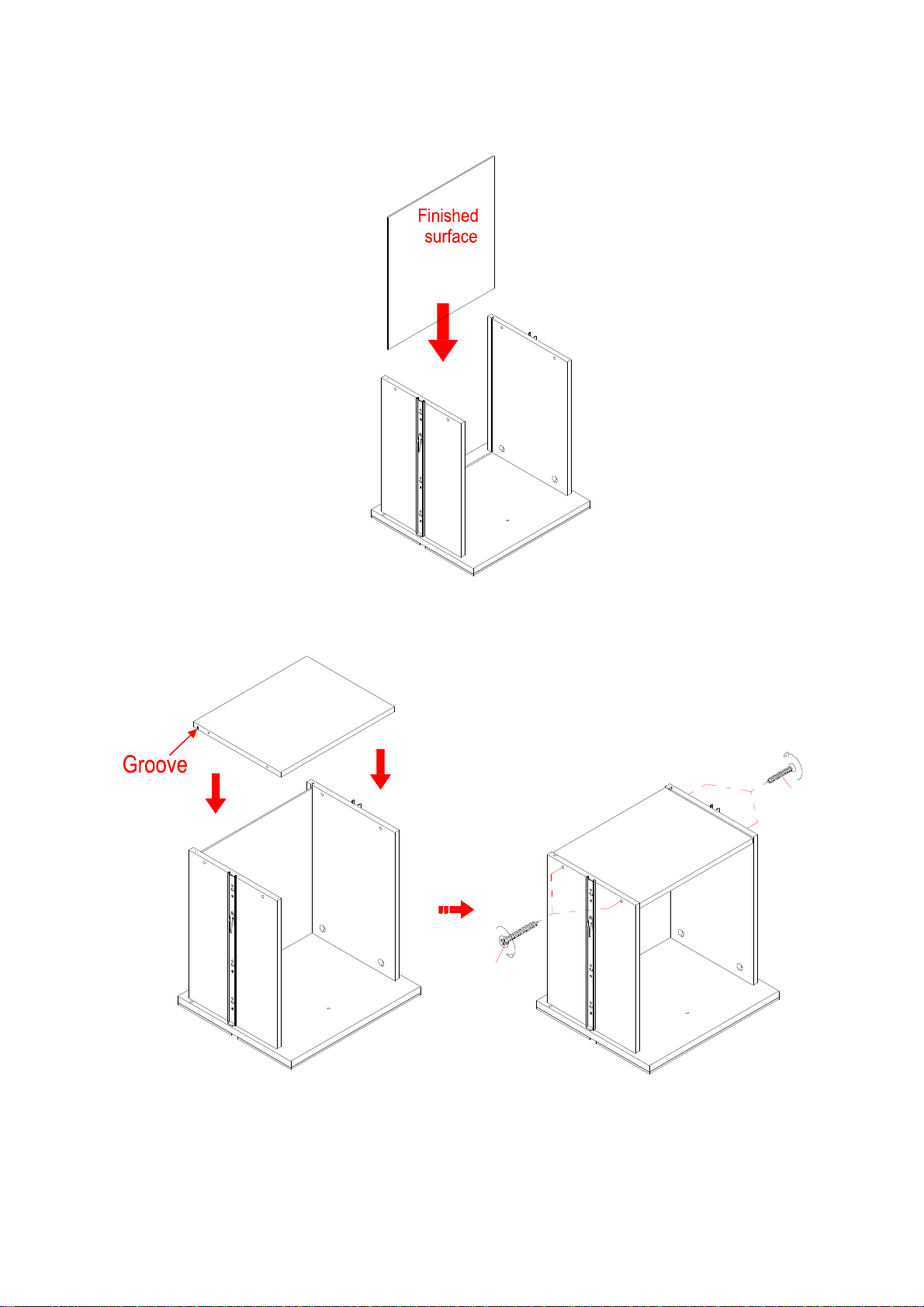

6. Slide the Drawer Bottom Panel (P) into the grooves between the Drawer Side Panels (M and N) until
fully inserted into the Drawer Front (L). Make sure that the finished surface will face up.
7. Fasten the Drawer Back Panel (O) to the Drawer Side Panels (M and N) using four 38 mm
Screw s (9).
Make sure that Drawer Bottom Panel (P) fits securely into the groove of the Drawer Back Panel (O).
Tighten all the screws with a Phillips screwdriver.
L
M
N
P
O
L
M
N
O
P
9
9
L
M
N
P

Model # SPLS-BKLF
8
Assembly Instructions
8. Turn the assembled drawer upright. Attach the Knobs (10) to the front side of drawer using the provided
Knob Bolts (11) by a Phillips screwdriver.
9. Fit two Guide Rails (R) onto the File Drawer Side Panels (M and N) with the high side facing inward.
R
R
R
L
M
N
M/N
11
10
LL

Model # SPLS-BKLF
9
Assembly Instructions
10. Securely screw the Large Cam Bolts (4) into the designated small holes on the Side Panels (C) and Legs
(I, J, KL and KR) as shown.
11. Glue four Large Wood Dowels (6) into the inner holes of one Side Panel (C) at both ends. Attach the
Side Panel (C) between the Left Front Leg (I) and Left Rear Leg (KL) using four Large Cam Locks (2).
12. Repeat last step to combine the Right Front Leg (J) and Right Rear Leg (KR) together.
C
C
KL
J
KR
I
6
6
6
6
2
2
2
22
2
2
2
C
C
4

Model # SPLS-BKLF
10
Assembly Instructions
13. Glue two Small Wood Dowels (5) into the inner holes on one Slides Support (E) and attach it to each
Side Panel (C) with three 25 mm Screws (8). Make sure that the end pilot holes are against the Front
Legs (I and J).
14. With the pilot holes as a guide, attach the separated Slide Tracks (Q) to the Slides Supports (E) on the
Side Panels (C) respectively, using three 12 mm Screws (7) per slide track. Make sure that the slide
opening faces the front of the unit.
CC
K
I
E
KJ
E
5
5
8
8
Q
Q
E
E
K
J
K
I
C
C

Model # SPLS-BKLF
11
Assembly Instructions
15. Fasten the Top Crossbar (F) to the Top Panel (A) with two Small Wood Dowels (5) and two 25 mm
Screws (8).
16. Securely screw the Large Cam Bolts (4) into the designated small holes on the Top Panel (A) and Back
Panel (D).
A
F
5
8
4
A
D

Model # SPLS-BKLF
12
Assembly Instructions
17. Attach the Fixed Shelf (B) to the Back Panel (D) using two Large Wood Dowels (6) and two Large
Cam Locks (2).
18. Glue two Large Wood Dowels (6) into the inner holes on the Bottom Stretcher (H) and attach it to the
Bottom Crossbar (G) with two 38 mm Screws (9).
6
9
G
H
D
B
6
2
2

Model # SPLS-BKLF
13
Assembly Instructions
19. Glue the Large Wood Dowels (6) into the inner end holes of the Fixed Shelf (B) and the Back Panel (D)
at both ends. DO NOT put dowels into the Cam Bolt holes.
20. Align the inserted the Wood Dowels (6) on the last assembly with the drilled holes on the assembled
right frame and press them together. Secure the unit in place by engaging four Large Cam Locks (2).
21. Align and attach the Bottom Crossbar (G) to the Right Front Leg (J) using one Large Wood Dowel (6)
and one Large Cam Lock (2).
22. Repeat the same procedure to attach the assembled left frame at the opposite end.
23. Stand the assembled unit upright.
24. Insert six Large Wood Dowels (6) into the
top inner holes of the unit. Position the
Top Panel (A) onto the inserted Wood
Dowels (6) and attach it in place by
engaging six Large Cam Locks (2).
D
B
H
G
C
C
J
K
K
I
6
6
6
6
6
6
2
2
2
2
2
2
2
A
C
C
D
K
J
I
2
2
6
6
6
6

Model # SPLS-BKLF
14
Assembly Instructions
25. Extend the Sliding Tracks on the Side Panels (C) all the way forward (including ball bearing cart). Then
align the Slide Runners on the assembled drawer with the Slide Tracks and push the drawer carefully
inside until it stops.
NOTE: If the drawer does not go in smoothly, please take it out and repeat the step. If you need to
remove the drawer, please pull the drawer all the way out, then simultaneously push the plastic release
lever of the ball bearing slides up on one side and down on the other side, and then pull it completely out.
26. Plug the Cam Lock Covers (12) onto the visible Cams Locks to conceal the Cams.
12

Model # SPLS-BKLF
15
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage your furniture’s finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from province to
province (state to state).
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2016-04-28 Rév. 0001-A Usine : DOGULU
Classeur Barkston Lane
Modèle n
o
SPLS-BKLF
MONTAGE PAR UN ADULTE REQUIS
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au
point de vente. Communiquer sans frais avec notre service à la clientèle en ayant en mains les
instructions et la liste des pièces pour indiquer le nom du modèle, le nom de la pièce ou le numéro
d’usine : 1-866-942-5362
Heure normale du Pacifique, entre 8 h 30 et 16 h 30, du lundi au vendredi
ou visiter notre site Web 24 heures par jour, 7 jours sur 7 pour de l’aide sur le produit
www.whalenfurniture.com
ou transmettre une demande par courriel à [e-mail]
NUMÉRO DE LOT :
DATE D'ACHAT :
/
/

Modèle n
o
SPLS-BKLF
2
FABRICANT : Whalen Furniture Manufacturing
CATALOGUE : Classeur Barkston Lane (SPLS-BKLF)
FABRIQUÉ EN CHINE
REMARQUE
Veuillez lire toutes les directives avant de procéder au montage. Examinez tout le
matériel d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le
jeter. Enlevez toutes les pièces du carton et répartissez-les en groupes tel qu’indiqué sur
la liste des pièces. Assurez-vous que toutes les pièces ont été incluses avant de
commencer le montage. L’utilisation d’outils électriques n’est pas recommandée pour le
montage.
POIDS MAXIMAL RECOMMANDÉ
CHARGE MAXIMALE 13.6 kg (30 lb.)
CHARGE MAXIMALE 45.3 kg (100 lb.)
CETTE UNITÉ DOIT ÊTRE UTILISÉE UNIQUEMENT AVEC LES
POIDS MAXIMAUX INDIQUÉS. L'UTILISATION AVEC DES PRODUITS PLUS LOURDS
QUE LES POIDS MAXIMAUX INDIQUÉS PEUT RENDRE L'UNITÉ INSTABLE ET
CAUSER DES BLESSURES.

Modèle n
o
SPLS-BKLF
3
Important
Avant de commencer : Ouvrir, identifier et compter toutes les pièces avant le montage. Étendre les pièces sur
une surface plane et non abrasive. Les pièces identifiées en page 4 et 5 de ce manuel d’instructions sont
requises.
REMARQUE : IL EST TRÈS IMPORTANT D’UTILISER DE LA COLLE AVEC LES GOUJONS.
L’EXCÈS DE COLLE PEUT ÊTRE ESSUYÉ AVEC UN LINGE HUMIDE.
Insérer le goujon à moitié en le frappant légèrement avec un maillet de caoutchouc SI NÉCESSAIRE.
FONCTIONNEMENT DU SYSTÈME À CAME
FONCTIONNEMENT DU SYSTÈM À CAME
1. Visser un boulon à came dans les petits trous déjà percés sur le panneau. Connecter les deux panneaux en
s’assurant que le boulon à came s’insère dans le trou déjà percé à l’extrémité du panneau avec la came.
2. Insérer une came dans le grand trou déjà percé sur le panneau. S’assurer que la flèche sur la came soit
orientée vers le boulon à came.
3. Une fois le boulon à came connecté dans la came, serrer la came dans le sens des aiguilles d’une montre
avec un tournevis à pointe cruciforme.
4. Ajouter le capuchon à came dans l’ouverture en croix des cames pour les dissimuler.
L’unité est prête pour le montage.
XX
FINAL
1 2 43

Modèle n
o
SPLS-BKLF
4

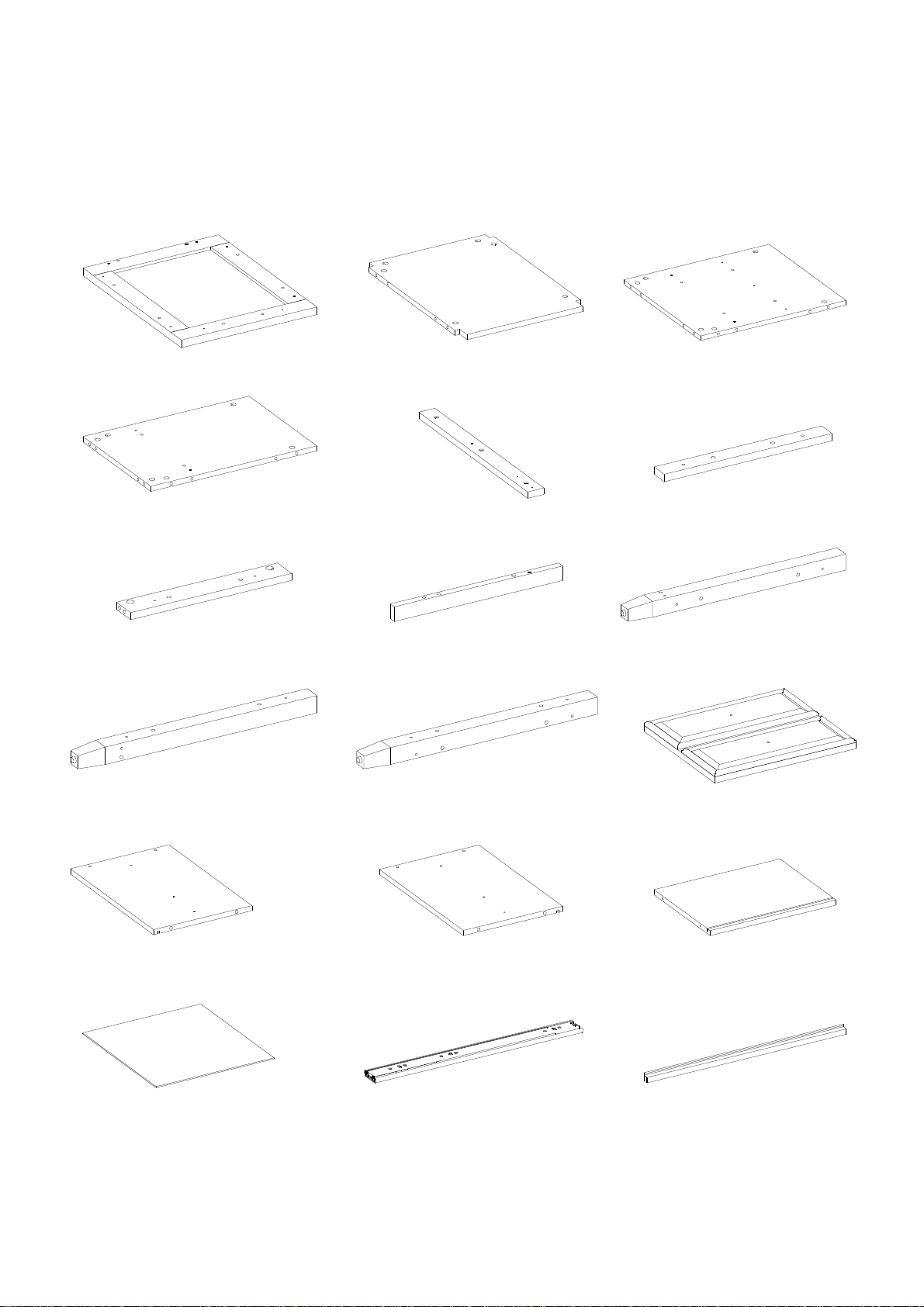

Liste des pièces et de la quincaillerie
Lire toutes les instructions et s’assurer d’avoir toutes les pièces et la quincaillerie avant de commencer
le montage.
A- Panneau supérieur (1) B- Tablette fixe (1) C- Panneau latéral (2)
D- Panneau arrière (1) E- Support de coulisse (2) F- Barre transversale supérieure (1)
G- Barre transversale inférieure (1) H- Entretoise inférieure (1) I- Patte avant gauche (1)
J- Patte avant droite (1) KL/KR - Patte arrière (2) L- Devant de tiroir (1)
M- Côté gauche du tiroir (1) N- Côté droit du tiroir (1) O- Panneau arrière du tiroir (1)
P- Panneau inférieur du tiroir (1) Q- Coulisses à billes (2 ensembles) R- Guide-rail (2)
