Whalen Midland Twin over Full Bunk Bed User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Bayside Furnishings®Page 1 Factory # 96-15197
Midland Twin over Full Bunk Bed
Model # MLTOFBB
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
877-494-2536
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or visit our website www.baysidefurnishings.com
Or e-mail your request to [email protected]
LOT NUMBER:
DATE OF PURCHASE: / /

Model # MLTOFBB
Bayside Furnishings®Page 2 Factory # 96-15197
QUALITY GUARANTEE
We are confident that you will be delighted with your Bayside Furnishings®purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair
or replace it for up to one (1) year from date of purchase. Every Bayside Furnishings®product is
designed to meet your highest expectations. We guarantee that you will immediately see the value of
our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State
to State.
Customer Service: 877-494-2536
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.baysidefurnishings.com
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE
BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS
THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO
PREVENT ENTRAPMENT BETWEEN THE BED AND WALL.
STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed that are
not designed for use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
Prohibit more than one person on upper bunk.
Maximum mattress thickness must not exceed 23 cm (9 in.). Surface of mattress must be at least
13 cm (5 in.) below the upper edge of guardrails.
Use only mattress which is 1.8 m (74 in.) to 1.9 m (75 in.) long and 95 cm (37½ in.) to 98 cm (38 ½
in.) wide on the bunk bed.
Use only mattress that is 1.8 m (74 in.) to 1.9 m (75 in.) long and 1.3 m (52½ in.) to 1.4 m (53½ in.)
wide on bottom bunk.
Replacement parts, including additional guardrails, may be obtained from any of Bayside
Furnishings dealer.

Model # MLTOFBB
Bayside Furnishings®Page 3 Factory # 96-15197
TO HELP PREVENT SERIOUS OR FATAL INJURIES FROM ENTRAPMENT
OR FALLS
•Follow the information on the warnings appearing on the upper bunk end
structure and on the carton. Do not remove warning label from bed.
•Always use the recommended size mattress or mattress support, or both, to help
prevent the likelihood of entrapment or falls.
•Surface of mattress must be at least 12.7 cm (5 in.) below the upper edge of
guardrails.
•Do not allow children under 6 years of age to use the upper bunk.
•Periodically check and ensure that the guardrail, ladder and other components
are in their proper position, free from damage and that all connectors are tight.
•Do not allow horseplay on or under the bed and prohibit jumping on the bed.
•Always use the ladder for entering and leaving the upper bunk.
•Do not use substitute parts. Contact the manufacturer or dealer for replacement
parts.
•Use of a night light may provide added safety precaution for a child using the
upper bunk.
•Always use guardrails on both long sides of the upper bunk. If the bunk bed will
be placed next to the wall, the guardrail that runs the full length of the bed
should be placed against the wall to prevent entrapment between the bed and
wall.
•The use of water or sleep flotation mattress is prohibited.
•STRANGULATION HAZARD – Never attach or hang items to any part of the
bunk bed that are not designed for use with the bed; for example, but not limited
to, hooks, belts, and jump ropes.
•Prohibit more than one person on upper bunk.
•Keep these instructions for future reference.
This product was manufactured October 2012.

Model # MLTOFBB
Bayside Furnishings®Page 4 Factory # 96-15197

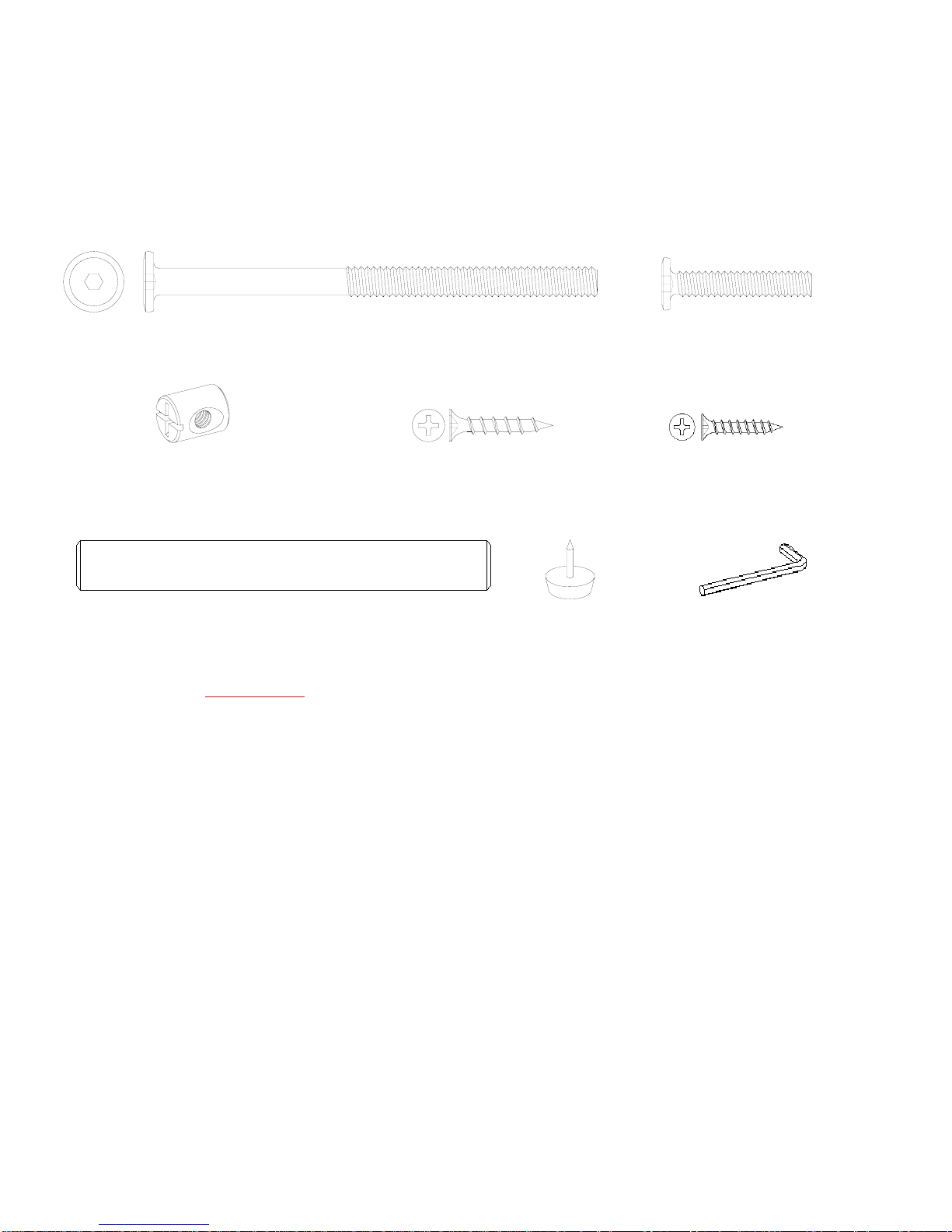

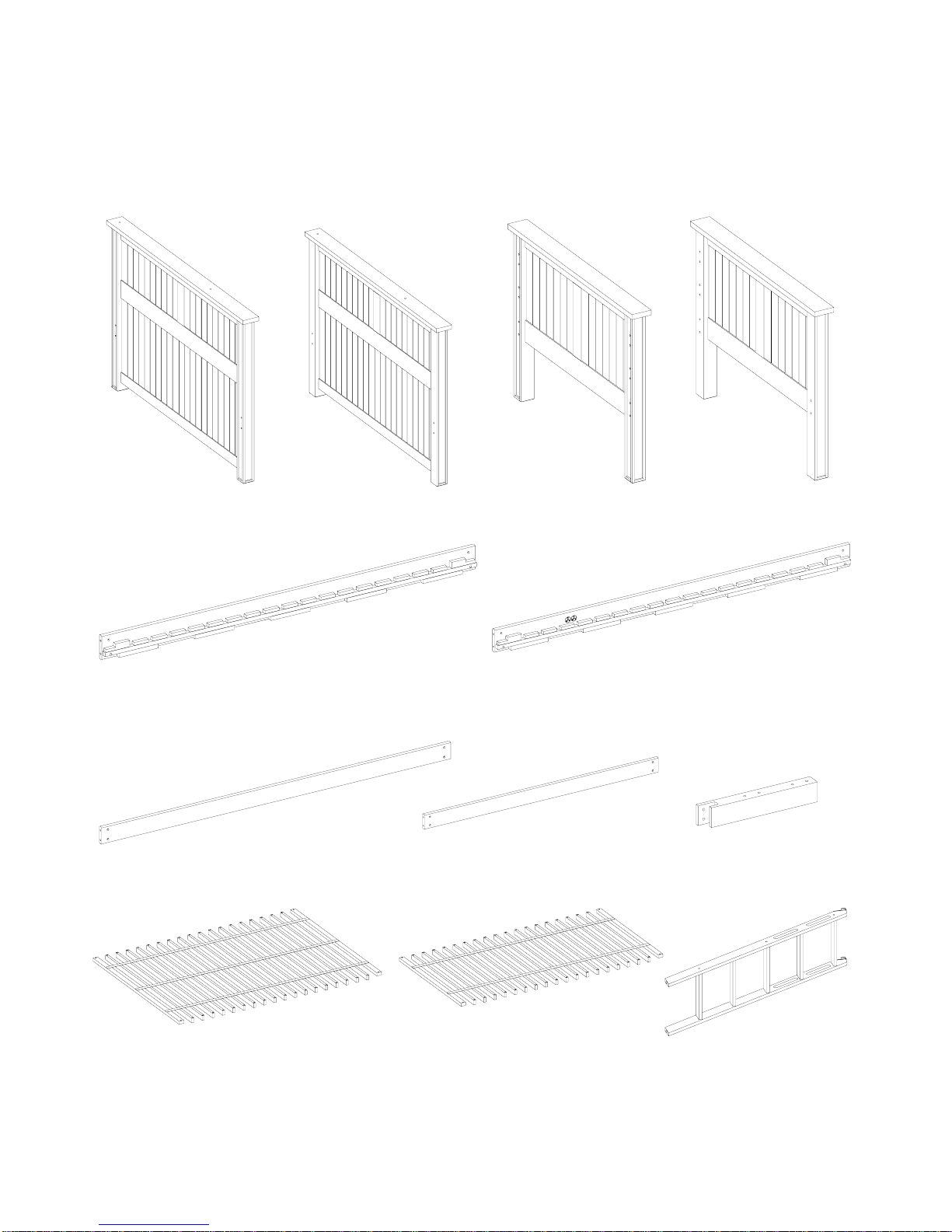

Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present before
beginning assembly.
A- Lower Headboard (1) B- Lower Footboard (1) C- Upper Headboard (1) D- Upper Footboard (1)
E- Mattress Side Rail (3) F- Ladder Side Rail (1)
G- Long Guardrail (2) H- Short Guardrail (2) I- Front Guardrail Post (1)
J- Lower Mattress Support Slats (1) K- Upper Mattress Support Slats (1) L- Ladder (1)

Model # MLTOFBB
Bayside Furnishings®Page 5 Factory # 96-15197
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present before
beginning assembly.
①Ø5/16” x 110 mm Bolt (32+1 extra) ②Ø1/4” x 35 mm Bolt (2+1 extra)
③Barrel Nut ④1” Screw ⑤3/4” Screw
(32+1 extra) (80+2 extra) (2+1 extra)
⑥Bed Connector Pin Floor Protector⑦M4 Allen Wrench
(4) (4+1 extra) (2)
Tools required: Allen wrench (provided) and Phillips screwdriver (not provided).

Model # MLTOFBB
Bayside Furnishings®Page 6 Factory # 96-15197

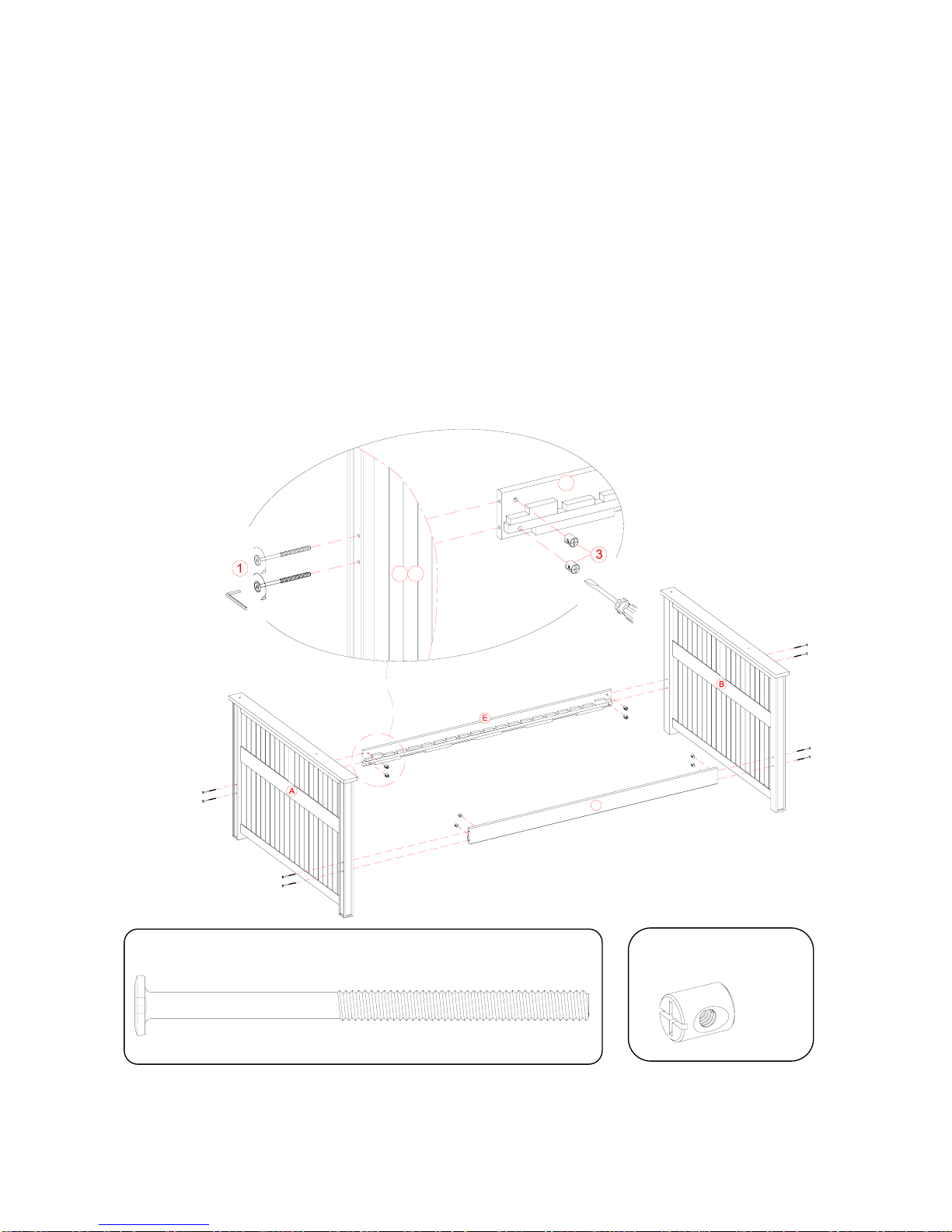

ASSEMBLING LOWER BUNK
NOTE: Please follow the instructions carefully to insure a safe and sturdy bed. Do not
fully tighten the bolts until all rails and guardrails are attached.
1. Unpack the unit and confirm that you have all hardware and parts required.
2. Insert two Barrel Nuts ③into each end of the Mattress Side Rails (E). Be sure that the cross slot on the
Barrel Nut faces out and that the threaded hole points towards the entry of the bolt along the Side Rail.
3. Bolt the Mattress Side Rail (E) to the Lower Headboard (A) by inserting two Ø5/16” x 110 mm Bolts
①through the holes in the post of the Headboard and into the Barrel Nuts ③in the Mattress Side Rail.
Make sure the wood stoppers attached to the side rail for slats are up and face inward.
Screw in only part way using the Allen Wrench provided.
4. Repeat this procedure until all 4 corners are attached to the Lower Headboard (A) and Lower Footboard
(B). Once all 4 corners are attached, fully tighten all the bolts.
Barrel Nut
(8 used in this step)
③
Ø5/16” x 110 mm Bolt
(8 used in this step)
①
B
E
A
E

Model # MLTOFBB
Bayside Furnishings®Page 7 Factory # 96-15197

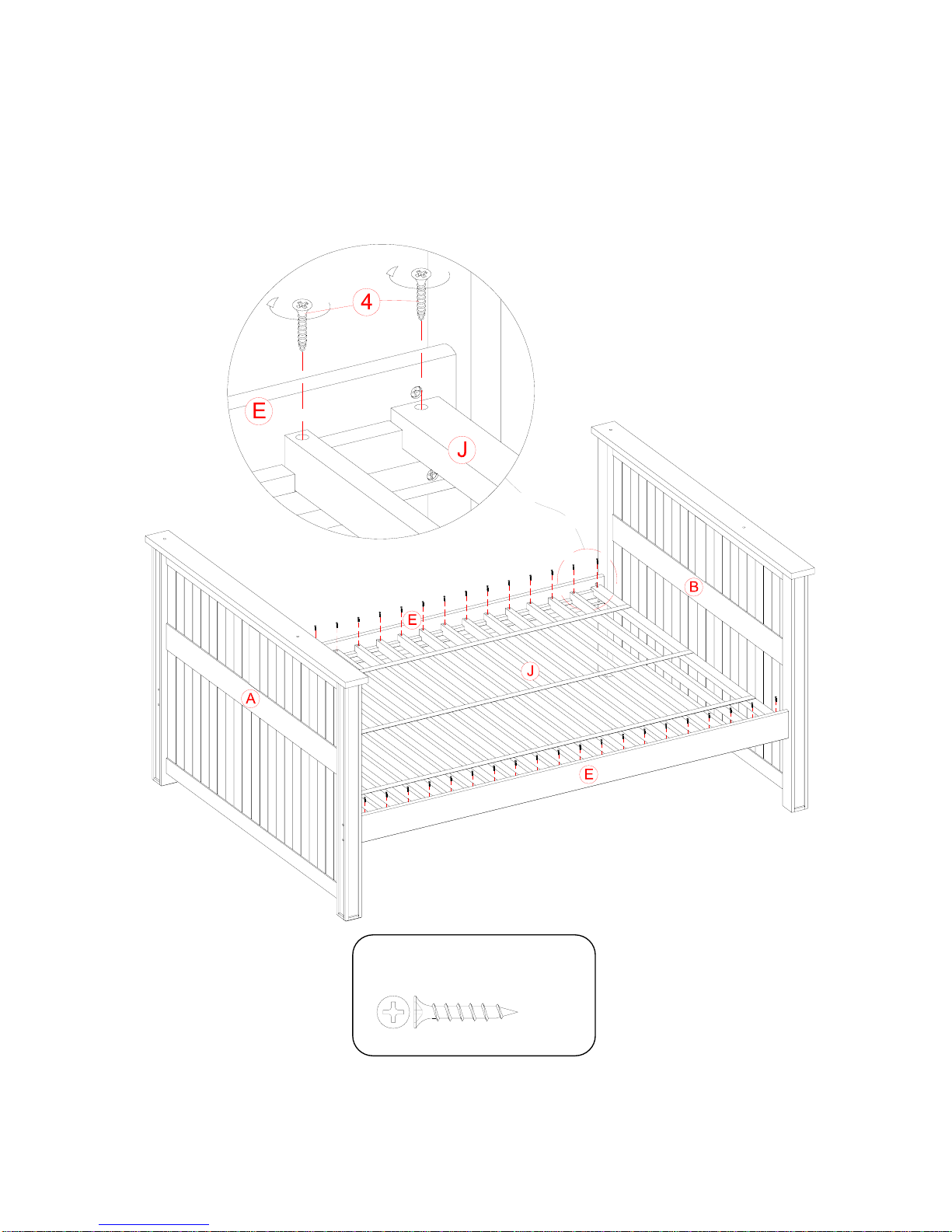

ASSEMBLING LOWER BUNK
5. Now, lay out the Lower Mattress Support Slats (J) in place between the wood stoppers on both
Mattress Side Rails (E). Make sure that every slot has a slat. Insert and screw the 1” Wood Screws ④
into the pre-drilled counter sunk holes in each end of the slats, as shown.
1” Screw
(40 used in this step)
④

Model # MLTOFBB
Bayside Furnishings®Page 8 Factory # 96-15197
D

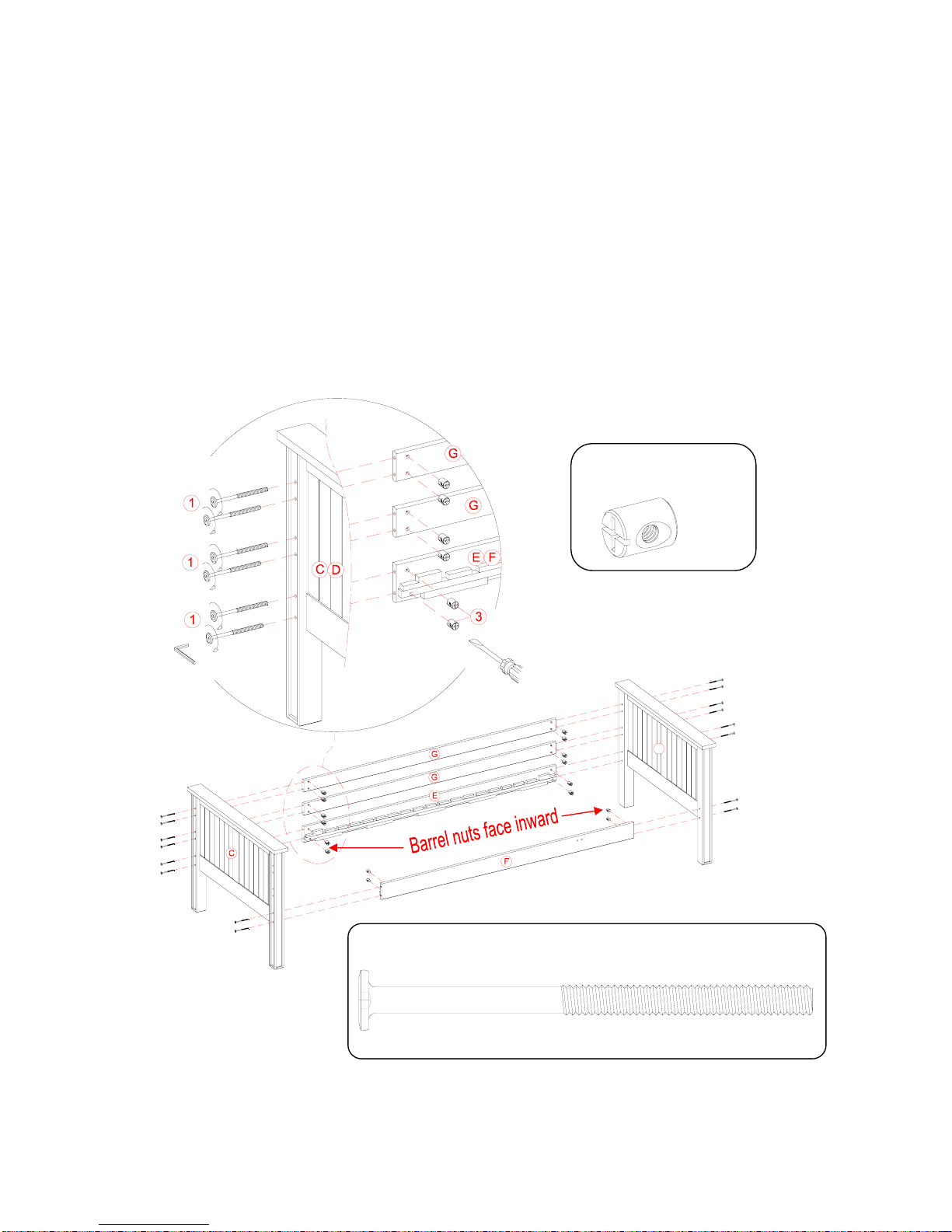

ASSEMBLING UPPER BUNK
WARNING LABEL ON HEADBOARD MUST ALWAYS FACE INWARD.
6. Attach the remaining Mattress Side Rail (E) to the bottom two holes of the Upper
Headboard (C) using two Ø5/16” x 110 mm Bolts ①and Barrel Nuts ③. Make sure the
wood stoppers for slats attached on side rail are up and face inward.
7. Attach 2 Long Guardrails (G) to the Upper Headboard (C) as shown in the illustration.
8. Repeat the last two steps to attach the Mattress Side Rail (E) and Long Guardrails (G) to the
Upper Footboard (D).
9. Attach the Ladder Side Rail (F) to the Upper Headboard (C) and Footboard (D) using
the Ø5/16” x 110 mm Bolts ①and Barrel Nuts ③. Once all rails are attached, fully
tighten all the bolts.
NOTE: The Ladder Side Rail has two holes for the Front Guardrail Post (part I).
Barrel Nut
(16 used in this step)
③
Ø5/16” x 110 mm Bolt
(16 used in this step)
①

Model # MLTOFBB
Bayside Furnishings®Page 9 Factory # 96-15197

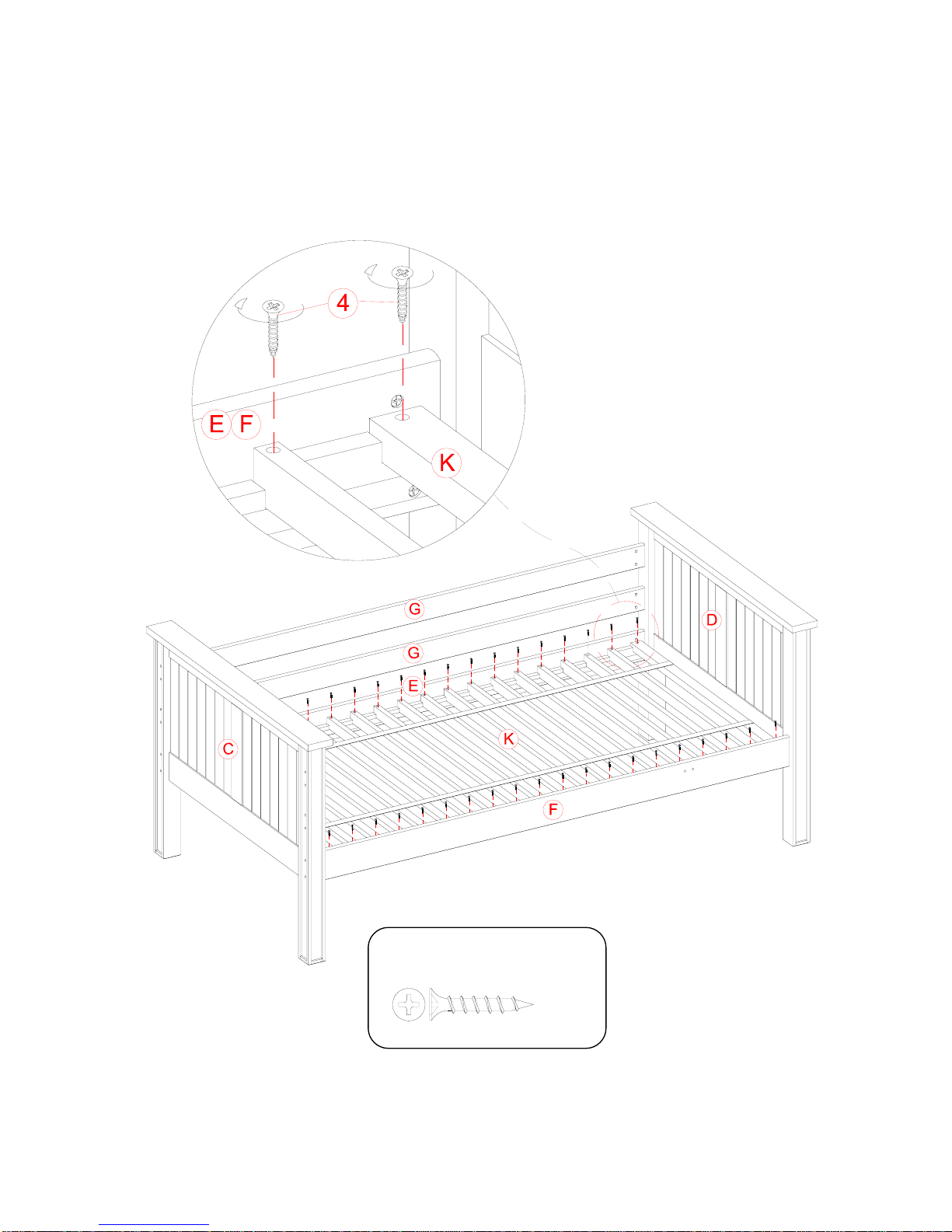

ASSEMBLING UPPER BUNK
10. Lay out the Upper Mattress Support Slats (K) between the wood stoppers on the Mattress Side Rail (E)
and Ladder Side Rail (F), ensuring that every slot has a slat. Insert and screw the 1” Wood Screws
④
into the pre-drilled counter sunk holes in each end of the slats, as shown.
1” Screw
(40 used in this step)
④

Model # MLTOFBB
Bayside Furnishings®Page 10 Factory # 96-15197

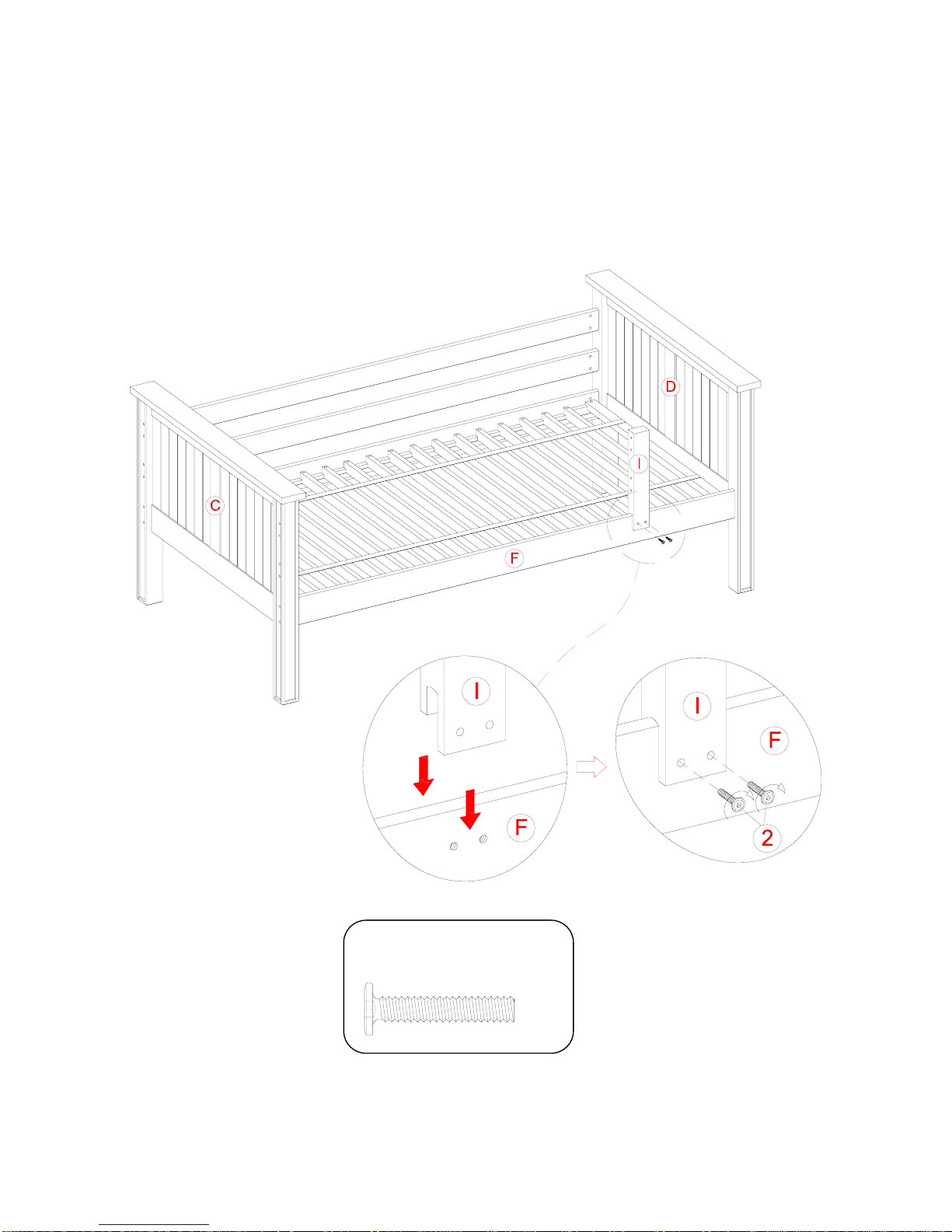

ASSEMBLING UPPER BUNK
11.Now, attach the Front Guardrail Post (I) to the front side of the Ladder Side Rail (F)
using two Ø1/4” x 35 mm Bolts ②through the pre-drilled holes on the Post into the
inserted nuts on the Side Rail.
Ø1/4” x 35 mm Bolt
(2 used in this step)
②

Model # MLTOFBB
Bayside Furnishings®Page 11 Factory # 96-15197

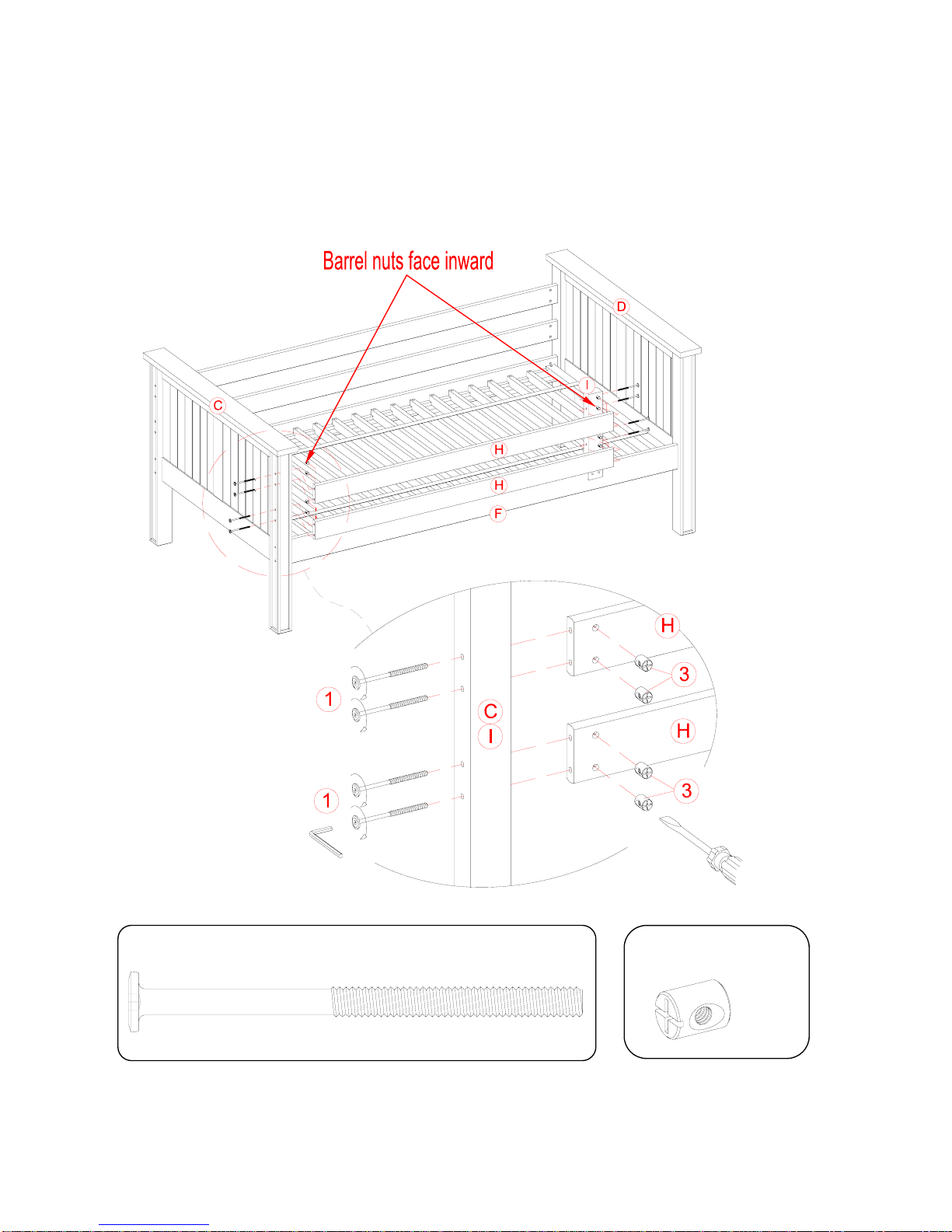

ASSEMBLING UPPER BUNK
12.Attach two Short Guardrails (H) between the Front Guardrail Post (I) and the Upper
Headboard (C) using the Barrel Nuts ③and Ø5/16” x 110 mm Bolts ①, as shown.
Tighten all the bolts with the Allen Wrench provided.
Barrel Nut
(8 used in this step)
③
Ø5/16” x 110 mm Bolt
(8 used in this step)
①

Model # MLTOFBB
Bayside Furnishings®Page 12 Factory # 96-15197

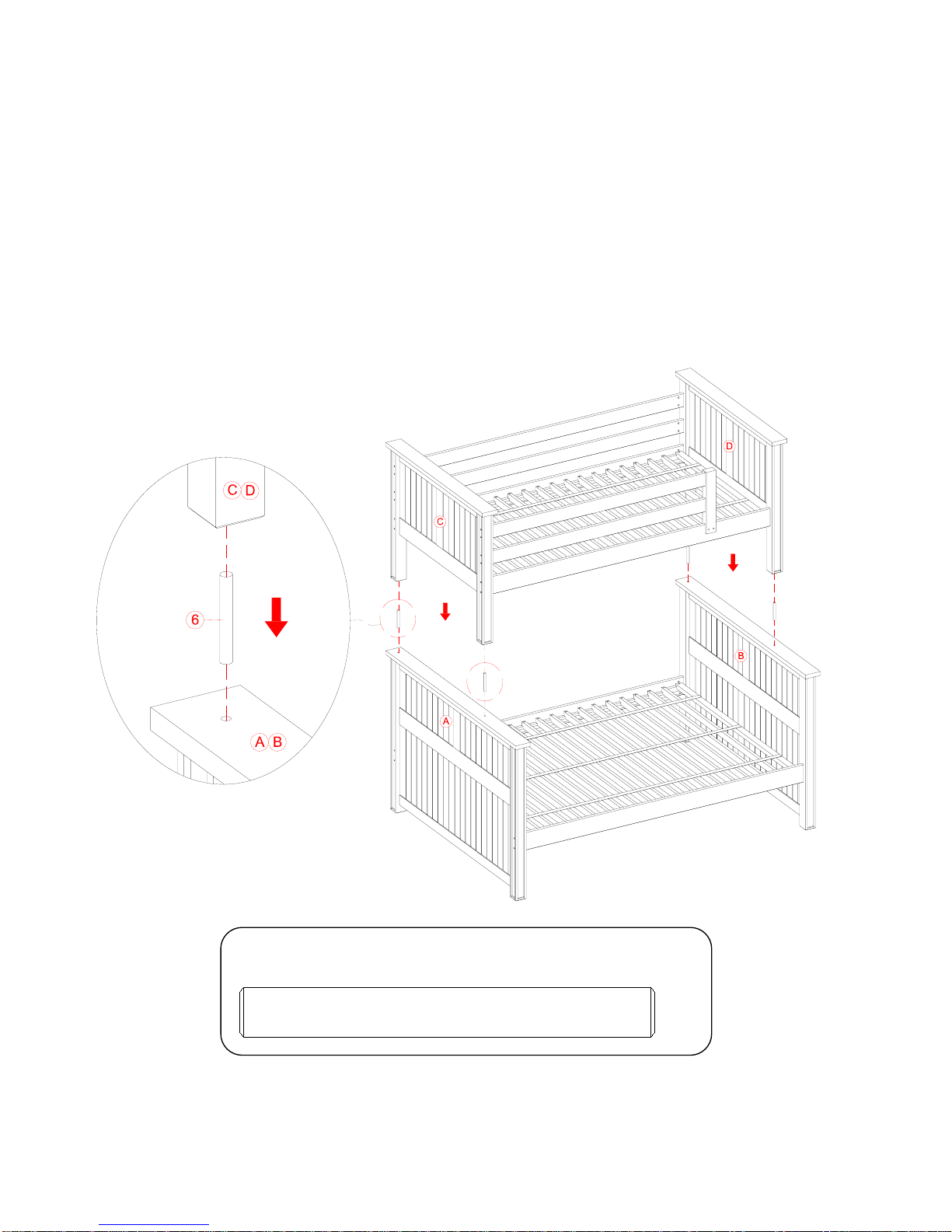

ASSEMBLY OF THE BUNK BED
13.Now, place the Lower Bunk in the desired location in the room where the bunk bed
will sit.
14.Insert four Bed Connector Pins ⑥into the top holes of the Lower Bunk as shown.
15.Ask for assistance to place the Upper Bunk on the top of the Lower Bunk using the
pins as a guide.
NOTE: Make sure that the Upper Bunk sits completely on the top of the Lower Bunk
and the pins go all the way in, not leaving any gaps.
Bed Connector Pin
(4 used in this step)
⑥

Model # MLTOFBB
Bayside Furnishings®Page 13 Factory # 96-15197

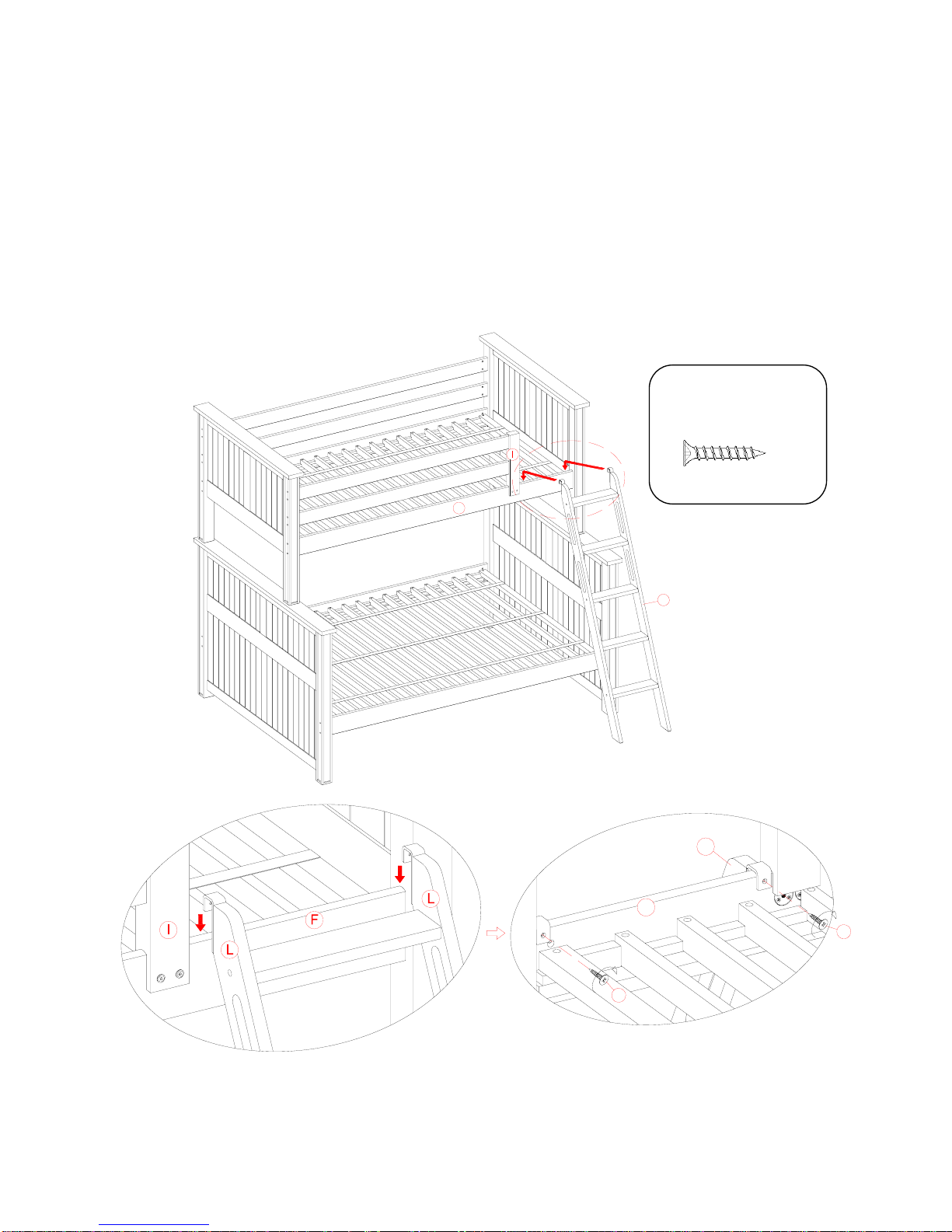

ASSEMBLY OF THE LADDER
16.Hook the Ladder (L) securely over the top of the Ladder Side Rail (F), between the
Front Guardrail Post (I) and the Upper Footboard (D) in the opening provided. Screw
the two hooks, pre-attached on the top of Ladder, to the Ladder Side Rail (F) using
two 3/4” Screws ⑤through the hole in the Ladder Hook.
ONLY USE THE LADDER IN THIS LOCATION. IT MUST BE SECURED WITH 2 SCREWS
TO HELP PREVENT ACCIDENTS OR INJURY FROM THE LADDER DISLODGING. MAKE
SURE YOU INSTALL THE LADDER AGAINST THE FRONT GUARDRAIL POST.
3/4” Screw
(2 used in this step)
⑤
Back Side
5
F
L
5
F
L

Model # MLTOFBB
Bayside Furnishings®Page 14 Factory # 96-15197

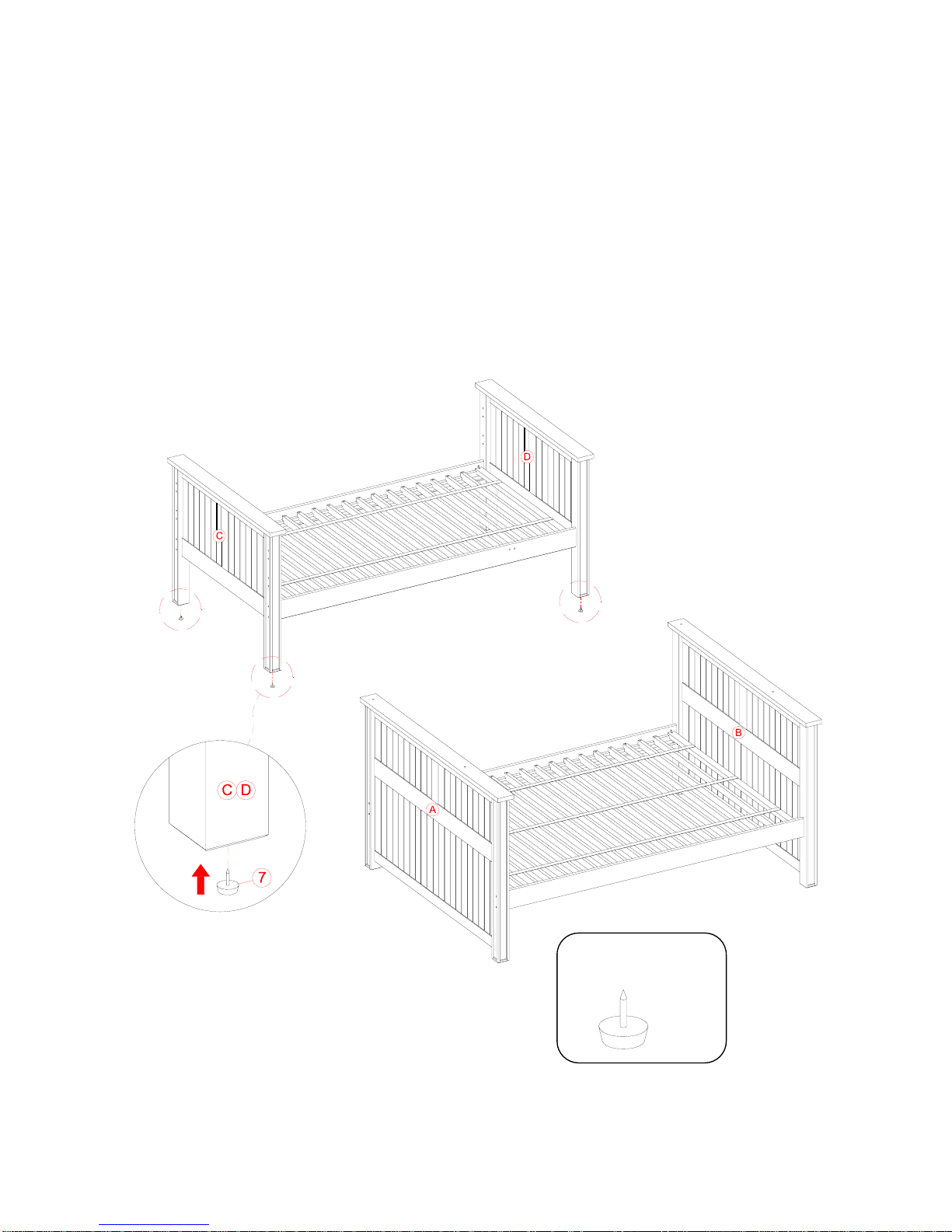

DISASSEMBLING THE BUNK BED
NOTE: The Bunk Bed can be separated into a Twin Bed and a Full Size Bed. In this case,
attach four Floor Protectors ⑦onto the bottom of the posts of the Upper Headboard (C)
and the Upper Footboard (D). Guardrails are not necessary.
17. To convert the bunk bed back into a Twin bed and a Full size bed, first unscrew the bolts to remove the
Ladder and all Guardrails.
18. Have an assistant help to remove the Upper Bunk from the Lower Bunk.
19. Attach four Floor Protectors ⑦onto the bottom of the Upper Bunk posts, as shown in the illustration.
The beds can now be placed in the desired locations.
Floor Protector
(4 used in this step)
⑦

Model # MLTOFBB
Bayside Furnishings®Page 15 Factory # 96-15197
Care and Maintenance
zUse a soft, clean cloth that will not scratch the surface when dusting.
zUse of furniture polish is not necessary. Should you choose to use polish, test first in an
inconspicuous area.
zUsing solvents of any kind on your furniture may damage your furniture’s finish.
zNever use water to clean your furniture as it may cause damage to the finish.
zAlways use coasters under beverage glasses and flowerpots.
zLiquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid
rubbing.
zAlways use protective pads under hot dishes and plates. Heat can cause chemical changes that may
create spotting within the furniture finish.
zStains or marks from crayons or ink markers will be difficult to remove.
zIn the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
zCheck bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and
helpful tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for choosing Bayside Furnishings®!

IF YOU NEED TO ORDER REPLACEMENT PARTS, PLEASE USE THE LIST BELOW
Midland Twin over Full Bunk Bed (MLTOFBB)
*MLTOFBB-1-UHB Upper Headboard *MLTOFBB-12-L Ladder *MLTOFBB-2-UFB Upper Footboard *MLTOFBB-13-LH Ladder Hook *MLTOFBB-3-LHB Lower Headboard *MLTOFBB-14-110B Ø5/16" x 110 mm Bolt *MLTOFBB-4-LFB Lower Footboard *MLTOFBB-15-35B Ø1/4" x 35 mm Bolt *MLTOFBB-5-FGP Front Guardrail Post *MLTOFBB-16-BN Barrel Nut *MLTOFBB-6-SG Short Guardrail *MLTOFBB-17-1S 1" Screw *MLTOFBB-7-LG Long Guardrail *MLTOFBB-18-3/4S 3/4" Screw *MLTOFBB-8-MSR Mattress Side Rail *MLTOFBB-19-BCP Bed Connector Pin *MLTOFBB-9-LSR Ladder Side Rail *MLTOFBB-20-M4AW M4 Allen Wrench *
MLTOFBB
-
10
-
UMSS
Upper Mattress Support Slats
*
MLTOFBB
-
21
-
FP
Floor Protector
MLTOFBB-10-UMSS
Upper
Mattress
Support
Slats
MLTOFBB-21-FP
Floor
Protector
*MLTOFBB-11-LMSS Lower Mattress Support Slats *MLTOFBB-CH Complete Hardware
