The 36E52-214 combination gas valve is designed for
direct spark ignition (DSI), hot surface ignition (HSI) and
proven pilot system applications. This valve is equipped
with redundant (pilot) and main solenoid valves that con-
trol gas flow to the main burners and/or pilot, a field-
adjustable outlet pressure regulator, and a two-position
on/off switch for electrical shut-off.
DESCRIPTION
WHITE-RODGERS
Jumper for
DSI/HSI
Applications
Only
Pilot Outlet
Plugged
for DSI/HSI
Applications
Only
SPECIFICATIONS
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Setting:
Nat. Gas – 2.5 to 5.0” W.C.
LP Gas – 7.0 to 12.0” W.C.
Ambient Temperature: -40°to 175°F
Pressure Rating: 14” W.C. (1⁄2PSI) max.
Voltage: 24 VAC
Frequency: 50/60 Hz
36E52-214
DSI, HSI or Proven Pilot
Universal Slow-Opening (.012 Orifice)
Combination Gas Valve
INSTALLATION INSTRUCTIONS
Figure 1. Gas valve mounting positions
INLET
PRESS
TAP
360°
MOUNTING POSITIONS:
Upright, or 0°to 90°from upright
UPRIGHT LEFT OR RIGHT INLET BOSS
UP OR DOWN
INLET
PRESS
TAP
PILOT ADJ
PIPE SIZES/CAPACITIES
Pipe Sizes Available
(inches)
Capacity (BTU/hr) at
1” pressure drop across valve
3
⁄ 8 ” x
3
⁄ 8 ” NPT straight through
1
⁄ 2 ” x
3
⁄ 8 ” NPT straight through
1
⁄ 2 ” x
1
⁄ 2 ” NPT straight through
75,000
100,000
140,000
AGA Std. Nat. Gas
(1,000 BTU/cu. ft.) 121,500
162,000
226,800
LP Gas
(2,500 BTU/cu. ft.)
CONTENTS
Description......................................................... 1
Specifications..................................................... 1
Precautions........................................................ 2
Installation.......................................................... 2
Pilot Gas Connection
Regulator Vent Connection
System Wiring
Adjustment......................................................... 4
Pressure Regulator Adjustment
Pilot Gas Adjustment
Lighting Instructions........................................... 5

2

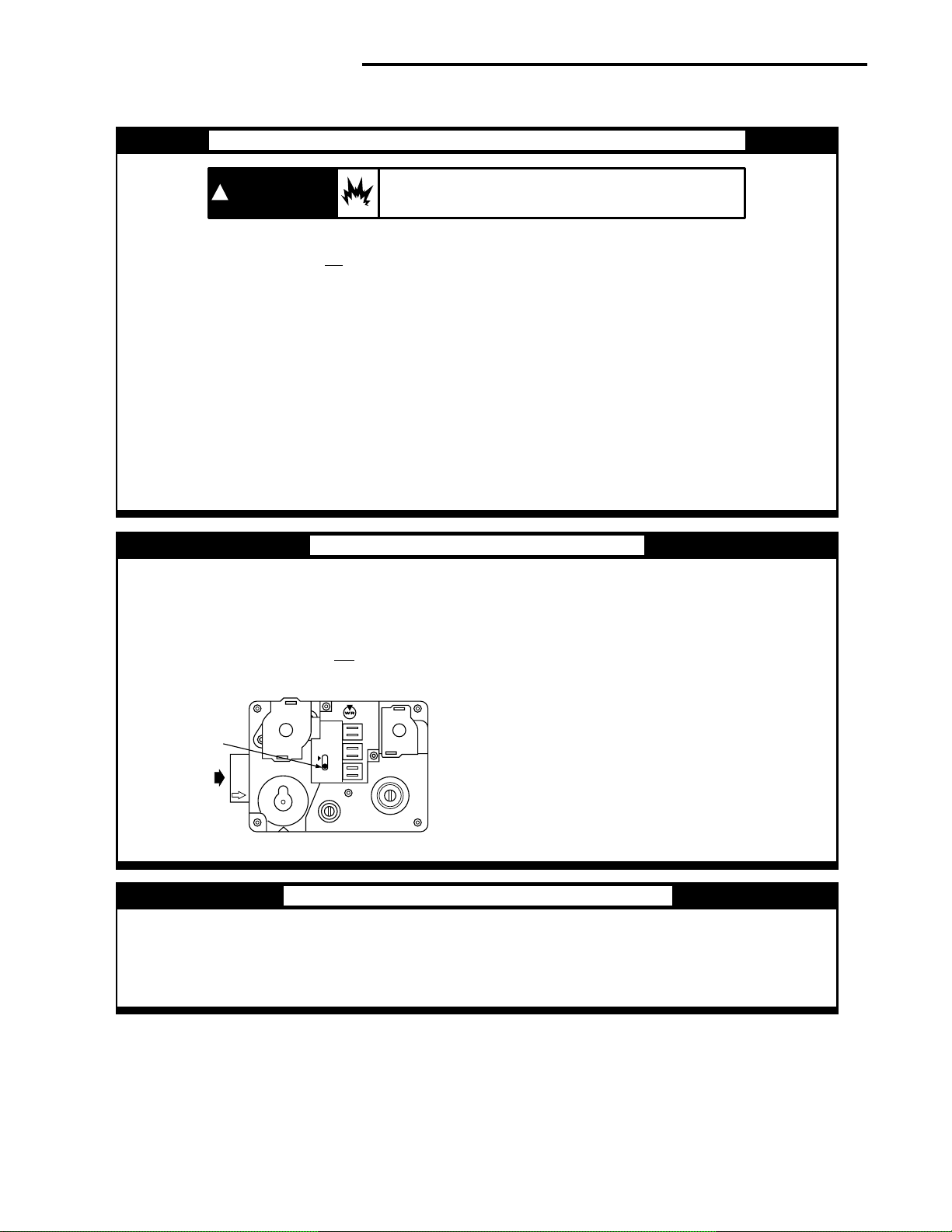

CAUTION
!
WARNING
!
If you do not follow these instructions exactly, a fire or explosion may
result, causing property damage, personal injury or loss of life.
DO NOT BEGIN INSTALLATION UNTIL YOU READ
THE FOLLOWING PRECAUTIONS.
PRECAUTIONS
1. Turnoffelectricalpowertothesystematthefusebox
or circuit breaker. Also turn off the main gas supply.
2. Ifreplacinganexistingvalve,disconnectallplumbing
and electrical connections from the old control.
3. The control may be installed in any position, except
upsidedown.Thearrowonthebottomplateindicates
the direction of gas flow through the valve.
4. You should use new pipe that is properly chamfered,
reamed, and free of burrs and chips. If you are using
old pipe, be sure it is clean and free of rust, scale,
burrs, chips, and old pipe joint compound.
5. Apply pipe joint compound (pipe dope) or teflon tape
that is approved for all gases, only to the male
threads of the pipe joints. DO NOT apply com-
poundorteflontapetothefirsttwothreads(seefig. 2
for typical piping connections).
1. Failure to turn off electric or main gas supply
toheatingsystemcouldcausepersonalinjury
and/or property damage by shock, gas suffo-
cation, fire, and/or explosion.
2. Do not use this control on circuits exceeding
specified voltage. Higher voltage will damage
the control and may cause shock or fire
hazard.
3. NEVERUSEFLAME OR ANY KIND OF SPARK
TO CHECK FOR GAS LEAKS–COULD CAUSE
FIRE AND/OR EXPLOSION.
4. DONOTUSEWIREJUMPERonpilotsystems,
such as standing pilot, proven pilot, or spark-
to-pilot ignition–a fire and/or explosion may
result.
5. DonotuseacontrolsetfornaturalgaswithLP
gas, or a control set for LP gas with natural
gas. Personal injury and/or property damage,
gas suffocation, fire, and/or explosion may
result.
1. Do not short out terminals on gas valve or
primary control to test. Short or incorrect
wiring can cause equipment damage, prop-
erty damage, and/or personal injury.
2. This control is not intended for use in loca-
tionswhere itmay come in direct contact with
water.Suitableprotectionmustbeprovidedto
shield the control from exposure to water
(dripping, spraying, rain, etc.).
INSTALLATION
6. Ifyouareusingaviseoropen-endwrenchtoholdthe
valve while installing piping, do not tighten exces-
sively, as this may damage the valve.
7. See SYSTEM WIRING when making electrical con-
nections. After all gas and electrical connections are
completed, turn gas on and check for gas leaks with
leakdetectionsolutionorsoapsuds.Bubblesforming
indicate a leak. SHUT OFF GAS AND FIX ALL
LEAKS IMMEDIATELY.

3
INSTALLATION
PILOT GAS CONNECTION
This valve is shipped with the pilot outlet plugged. For
installations requiring pilot gas, remove the plug and use
the fitting packed separately with the valve.
Install the fitting into the pilot gas tapping, turning until
finger-tight (see fig. 4). Insert clean, deburred tubing all
the way through the fitting. Hold the tubing securely in
place and slowly tighten the fitting until you feel a slight
“give”. Then tighten the fitting an additional 1 1⁄2turns.
SeeADJUSTMENTsection(page4)andfig.5forpilotset
up.
REGULATOR VENT CONNECTION
This valve is shipped with a dust cap installed in the
regulator vent connection.
To install hose barb:
1. Remove dust cap.
2. Install hose barb and turn clockwise until finger tight,
then turn an additional 1⁄4turn with a wrench.
Allpiping mustcomply with local codes, ordinances,
and/or national fuel gas codes.

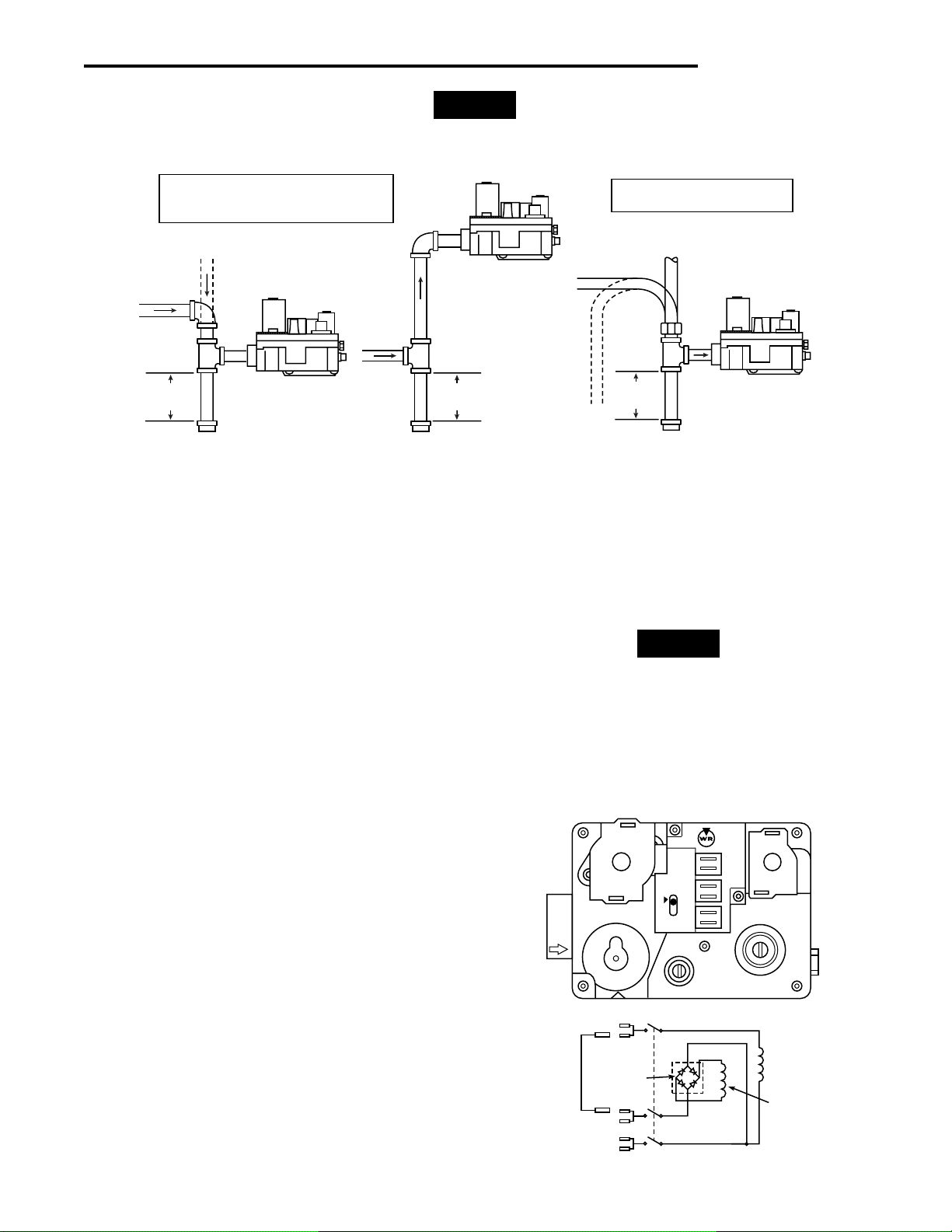

Figure 3. Gas valve wiring diagram
M1
O
F
F
ON
C2
P3
Rectifier
bridge Redundant/Pilot
Main
SW
SW
SW
M1
P3
C2
PILOT ADJ
External
jumper
(DSI and HSI
only)
Piped Gas
Supply Piped Gas Supply Tubing Gas Supply
NOTE: ALWAYS INCLUDE A
DRIP LEG IN PIPING
Figure 2. Typical gas valve piping
NOTE: A MANUAL SHUTOFF VALVE
MUST BE INSTALLED WITHIN
6 FEET OF THE EQUIPMENT
Horizontal
Drop
Gas Valve
3 in.
minimum
Gas Valve
Riser
3 in.
minimum
Drop
Horizontal
Riser
Gas Valve
3 in.
minimum
NOTE
NOTE
SYSTEM WIRING
REFER TO AND FOLLOW THE APPLIANCE
MANUFACTURER’S WIRING DIAGRAM. REFER TO
FIG. 3 FOR TERMINAL IDENTIFICATION.
Allwiringshouldbe installedinaccordancewithlocaland
national electrical codes and ordinances.
Alwayscheckthattheelectricalpowersupplyusedagrees
withthevoltage and frequency shown on the gas control.
ForDSI/HSIapplications,Placethejumper(packedsepa-
rately)acrossM1andP3terminalsontheterminalpanel.

4
PRESSURE REGULATOR
ADJUSTMENT
These controls are shipped from the factory with the
regulatorsetfor3.5” W.C. (natural gas, full flow). Consult
the appliance rating plate to ensure burner manifold
pressureshouldbe3.5” W.C.Ifanotheroutletpressureis
required, follow these steps.
Ifavalvehasbeenfactory-adjustedforthe2.5to5inches
W.C.range,itcannotbefield-adjustedoutsidethatrange.
Thisisalsotrueforvalvesadjustedtothe7.5to12inches
W.C. range for LP gas.
1. Turn off all electrical power to the system.
2. Attach a manometer to the outlet pressure tap of the
valve (see fig. 4).
3. Turn on system power and energize valve.
4. Remove regulator cover screw and turn regulator
adjust screw clockwise to increase pressure, or
counterclockwise to decrease pressure (see
fig. 5). Always adjust regulator to provide the correct
pressure according to the original equipment
manufacturer’s specifications listed on the appliance
rating plate.
5. Replace regulator cover screw and tighten securely.
PILOT GAS ADJUSTMENT
These controls are factory preset to provide proper pilot
gas flow for most applications. If additional adjustment is
necessary, follow these steps.
1. Turn off all electrical power to the system before
making any adjustments.
2. Remove the pilot adjust cover screw and gasket to
expose the adjusting screw (see fig. 5). Turn the
adjustingscrewclockwise toreduce pilotflame,or
counterclockwise to increase pilot flame.
3. Replace the gasket and pilot adjust cover screw and
tighten securely.
4. Restore power to the system.
ADJUSTMENT
PILOT
OUT
PRESS
TAP
Figure 4
Main gas
outlet
Outlet
pressure
tap
Pilot
outlet
(plugged for
HSI or
DSI only) Regulator
vent
Regulator
cover screw
Regulator
spring
Plastic
adjust screw
Figure 5
Pilot
cover screw
Gasket
Pilot
adjust screw
NOTE

5
OPERATING INSTRUCTIONS
LIGHTING INSTRUCTIONS
for Proven Pilot Applications
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
B. BEFORE OPERATING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
FOR YOUR SAFETY
“WHAT TO DO IF YOU SMELL GAS”
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
1. STOP! Read the safety information above on this label.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot
by hand.
5. Remove control access panel.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B” in the safety information
above on this label. If you don’t smell gas, go to the
next step.
7. Push gas control switch to “ON.”
NOTE: Do not force.
8. Replace control access panel.
9. Turn on all electric power to the appliance.
10. Set thermostat to desired setting.
11. If the appliance will not operate, follow the instructions
“To Turn Off Gas To Appliance” and call your service
technician or gas supplier.
M1
O
F
F
ONC1
P3
GAS
INLET
GAS CONTROL
SHOWN IN
“ON” POSITION
PILOT ADJ
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is to
be performed.
3. Remove control access panel.
4. Push gas control switch to “OFF.” Do not force.
5. Replace control access panel.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to move the gas control switch.
Never use tools. If the switch will not move by hand,
don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been under
water.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING
!
If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
TO TURN OFF GAS TO APPLIANCE

OPERATING INSTRUCTIONS
LIGHTING INSTRUCTIONS
for DSI/HSI Applications (No Pilot)
A. This appliance is equipped with an ignition device which
automatically lights the burner. Do not try to light the burner
by hand.
B. BEFORE OPERATING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
FOR YOUR SAFETY
“WHAT TO DO IF YOU SMELL GAS”
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
1. STOP! Read the safety information above on this label.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the Burner. Do not try to light the
burner by hand.
5. Remove control access panel.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B” in the safety information
above on this label. If you don’t smell gas, go to the
next step.
7. Push gas control switch to “ON.”
NOTE: Do not force.
8. Replace control access panel.
9. Turn on all electric power to the appliance.
10. Set thermostat to desired setting.
11. If the appliance will not operate, follow the instructions
“To Turn Off Gas To Appliance” and call your service
technician or gas supplier.
M1
O
F
F
ONC1
P3
GAS
INLET
GAS CONTROL
SHOWN IN
“ON” POSITION
PILOT ADJ
If you need more information about this product, you may write to us at:
WHITE-RODGERS DIVISION, Emerson Electric Co.
9797 Reavis Road
St. Louis, MO 63123-5398
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is to
be performed.
3. Remove control access panel.
4. Push gas control switch to “OFF.” Do not force.
5. Replace control access panel.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to move the gas control switch.
Never use tools. If the switch will not move by hand,
don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been under
water.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING
!
If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
TO TURN OFF GAS TO APPLIANCE
