Winners Only T1-ES4257 User manual

TBS-13437-PNNWU MADE IN MALAYSIA
Page 1 of 3
T1-ES4257/T1-ES4257-T-X

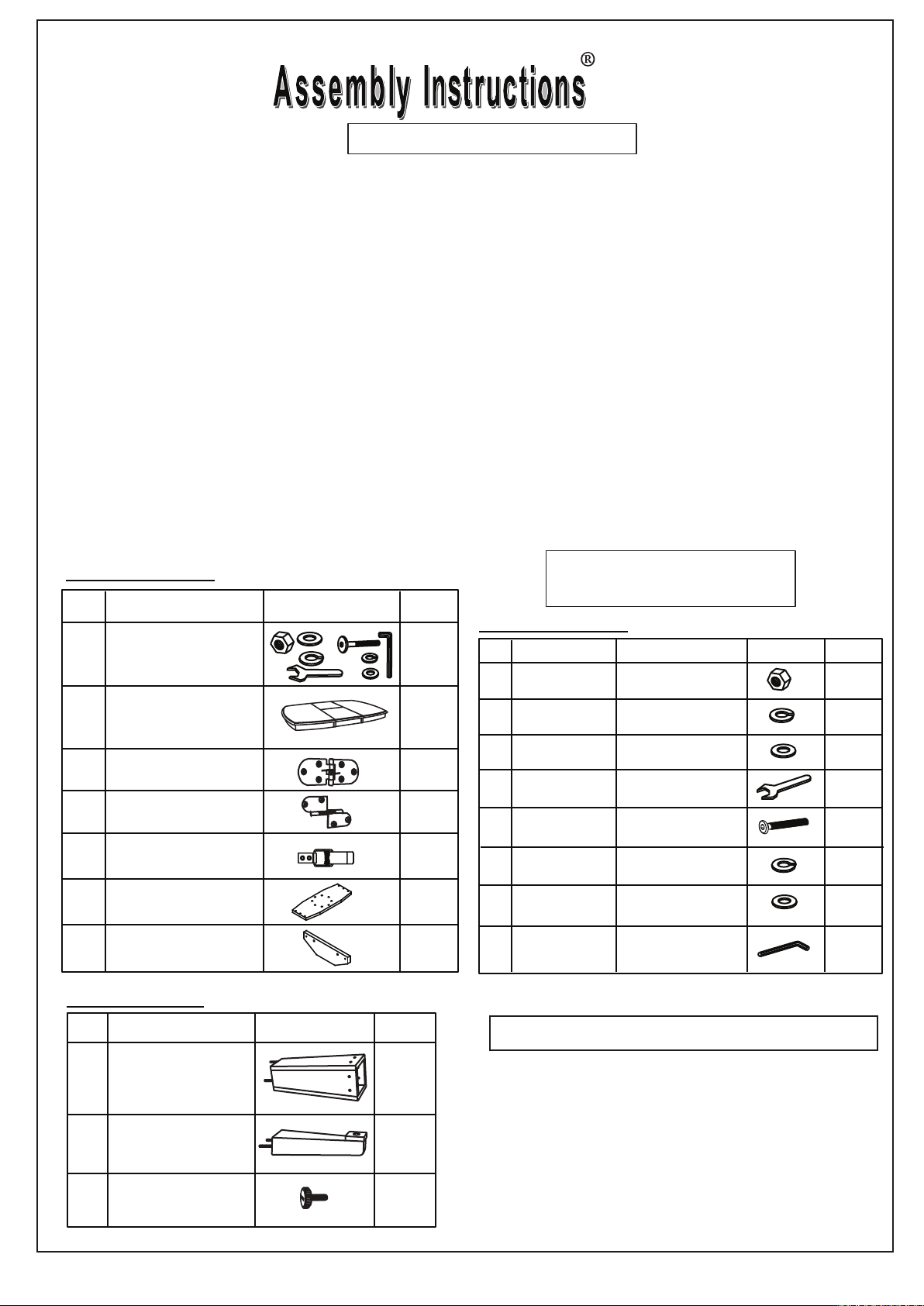

HARDWARE LIST:
Flat Washer
(Large)
Lock Washer
(Large)
Hex Nut
Wrench
12pcs
12pcs
12pcs
8pcs
8pcs
8pcs
1 pc
1 pc
Flat Washer
(Small)
Lock Washer
(Small)
Allen Key
JCBC Bolt
Adjustable
Leveler
Pedestal Stand
Pedestal Leg
COMPONENT LIST: T1-ES4257-B
COMPONENT LIST: T1-ES4257-T
Apron Hinge
Table Top
Leaf Hinge
Table Lock
Mounting Plate
Side Panel
PROD . NO:
WINNERS ONLY
This product will take 15-20
minutes to assemble.
Screw driver is require for assembly (not included)
TIP:store the Allen key and or Wrench used in assembly
in this product’s drawer or use masking or painter’s tape
to affix it to the underside of the product .this will make it
easier to find if you want to periodically tighten bolts or
disassemble the product.
5/6” x 12.5 x 6.5mm
5/6” x 22 x 1.2mm
5/6”(M8) x 13.5 x 1.8mm
M6 x 50mm
M6.5 x 16.5 x 1.2mm
M6 x 13 x 2mm
M4 x 2.1/2”
12.8mm
1
2
3
4
5
7
6
8
NO SKETCH
DESCRIPTION QTY
1 pce
1 pce
4 pcs
2 pcs
4 pcs
3 pcs
Hardware Bag 1pack
A
B
C
D
F
G
E
NO SKETCH
DESCRIPTION QTY
1 pce
4 pcs
4 pcs
A
B
C
NO SKETCH
SIZE
DESCRIPTION QTY
Thank you for purchasing this quality product. Please read the instructions thoroughly before unpacking the
assembly parts.
Caution: Sharp exposed staple tips can cause injury, therefore for your protection, please remove
any exposed staples used in packing.
Please keep all hardware parts out of the reach of children.
1.We recommend that you should assemble this product with the assistance of another person: this will make the
assembly easier,and will help to prevent personal injury and to insure parts are not damaged during the
assembly process.
2.Before beginning,please check the packing materials carefully for small parts which may have come loose
inside the carton during shipping. Please do not discard any packing material until all parts have been located.
If any parts are missing, please contact your dealer for prompt replacement.
3.To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residues
and rough surfaces and also check for staples or nails left after removing the packing materials. The manufacturer
will not be held responsible if preventive steps are not taken prior to installation.
4. Please do not over tighten screws or bolts. During normal use everyday,screws,bolts,nuts and wooden plugs
may loosen up. They should be periodically inspected and re-tightened to prevent damage to the furniture
and (or) personal property of cause injury. Always check to be sure all harware on this list and the below
mentioned components are attached to the furniture properly and kept tightened.
5.Please lay all parts and hardware on a non abrasive surface such as a carpet,and follow the assembly.

TBS-13437-PNNWU MADE IN MALAYSIA
Page 2 of 3
WINNERS ONLY
ASSEMBLY :
Base Assembly
STEP 1
STEP 2
1.1- Turn the pedestal upside down. Attach legs by inserting hanger bolts through pre-drilled holes on the
combination pedestal.shown in Fig.1
Fig.1
2.1- Position the table top upside down on a smooth, protective surface such as carpet. Remove and
discard the temporary wood strip .Install the side panel and mounting plate by using the supply hardware
as shown on Fig.2
T1-ES4257-13
T1-ES4257-08 T1-ES4257-07
Hex Nut
Lock Washer (Large)
Flat Washer (Large)
Pedestal
Leg
Level Glide
Wrench
Remove Wood Strip
Mounting Plate
Side Panel
Lock Washer (Small)
Flat Washer (Small)
Allen Key
JCBC Bolt
Lock Washer (Small)
Flat Washer (Small)
Allen Key
JCBC Bolt Fig.2
T1-ES4257/T1-ES4257-T-X

Level Glide
TBS-13437-PNNWU MADE IN MALAYSIA
Page 3 of 3
WINNERS ONLY
CARE INSTRUCTION
~ Be sure to use the same type of polish consistenly.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
4.1-Lift both leaves from the compartment.
4.2-Flip up the aprons and unfold leaf and place the leaf on the Table Top surface carefully.
Fig.3
STEP 4
ASSEMBLY :
STEP 3
3.1- Unlock the metal catches from underneath the table Top and pull the table from both ends. Attached base assembly to the
table top mounting plate using the supply hardware as shown on Fig.3
UnLock
Metal Catches
Lock Washer (Large)
Flat Washer (Large)
Wrench
Hex Nut
Flip up apron
STEP 5
5.1-Push Table Top from both ends to close.Lock the metal catches underneath the table.
T1-ES4257/T1-ES4257-T-X
Lock
Metal Catches
