Withings BPM Connect
INSTRUCTION MANUAL
EN | FR | DE
MANUEL D'UTILISATION | BETRIEBSANLEITUNG

THANK YOU FOR CHOOSING
WITHINGS BPM CONNECT
MERCI D'AVOIR CHOISI LE BPM CONNECT DE WITHINGS
VIELEN DANK, DASS SIE SICH FÜR WITHINGS BPM CONNECT ENTSCHIEDEN HABEN
This guide is available in additional languages at: www.withings.com/guides
FR Ce guide est disponible dans plusieurs langues sur www.withings.com/guides
DE Diese Anleitung finden Sie in weiteren Sprachen unter: www.withings.com/guides
ES Esta guía está disponible en otros idiomas en: www.withings.com/guides
IT Questa guida è disponibile in altre lingue all'indirizzo: www.withings.com/guides

C
A
B
This guide is available in additional languages at: www.withings.com/guides
FR Ce guide est disponible dans plusieurs langues sur www.withings.com/guides
DE Diese Anleitung finden Sie in weiteren Sprachen unter: www.withings.com/guides
ES Esta guía está disponible en otros idiomas en: www.withings.com/guides
IT Questa guida è disponibile in altre lingue all'indirizzo: www.withings.com/guides
Overview
Vue d'ensemble | Übersicht 3
AButton
FR Bouton ON/OFF
DE Knopf ON/OFF
BCuff
FR Brassard
DE Manschette
CUSB plug
FR Prise USB
DE USB-Stecke

Quick start from your smartphone
Démarrage rapide depuis votre smartphone | Schnellstart über Ihr Smartphone
1 Visit go.withings.com from your smartphone
or tablet and follow the instructions to install
the Health Mate app.
FR Visitez go.withings.com depuis votre smartphone ou
votre tablette et suivez les instructions pour installer
l'application Health Mate.
DE Besuchen Sie mit dem Browser Ihres Smartphones
oder Tablets go.withings.com und folgen Sie den
Anweisungen zum Installieren der Health Mate App.
2 In the app, follow the instructions to install
Withings BPM Connect.
FR Dans l'application, suivez les instructions pour installer
Withings BPM Connect.
DE Folgen Sie in der App den Anweisungen zur
Installation von Withings BPM Connect.
go.withings.com

4 – 5
How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen
1

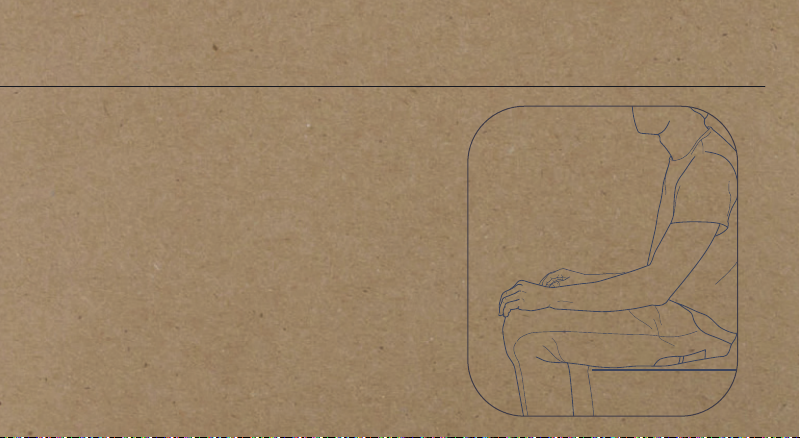

Sit down in a comfortable position.
FR Asseyez-vous confortablement.
DE Setzen Sie sich in einer komfortablen Position.

2

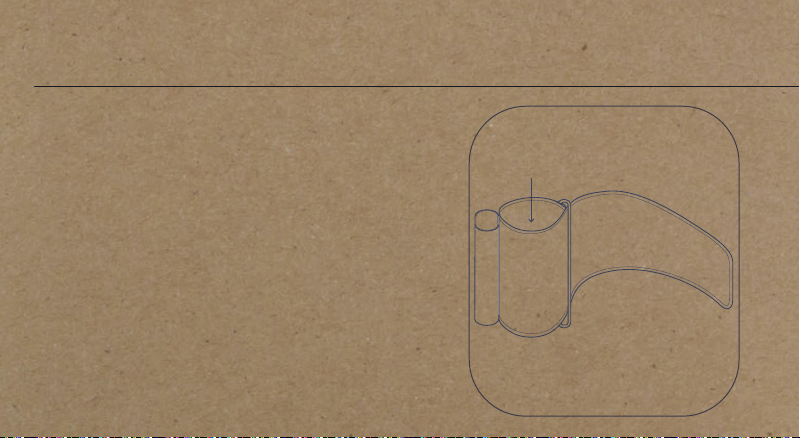

Unroll cuff. Place your left arm inside it.
FR Déroulez votre brassard. Placez votre bras à
l'intérieur.
DE Entfalten Sie Ihre Manschette. Bitte legen Sie
Ihren Arm drinnen.
How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen

How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen 6 – 7
3
Tighten the cuff around your arm. The tube
should be positioned against your inner arm.
FR Serrez le brassard autour de votre bras. Le tube
doit être placé dans le creux du bras.
DE Ziehen Sie die Manschette um den Arm. Der
Schlauch sollte zur Innenseite Ihres Armes
positioniert werden.

4
Place your arm on a table and level with your
heart.
FR Placez votre bras sur une table, de sorte que le
brassard soit au même niveau que le cœur.
DE Platzieren Sie Ihren Arm auf einem Tisch auf
gleicher Ebene mit Ihrem Herz.
How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen

8 – 9
5
Turn on your blood pressure monitor to start the
measurement. You can select a single or triple
measurement with a long press on the button.
Press the button again to start the measurement.
FR Allumez votre tensiomètre pour commencer la mesure.
Vous pouvez sélectionner une mesure simple ou triple
avec un appui long sur le bouton. Appuyez à nouveau
sur le bouton pour commencer à prendre la mesure.
DE Schalten Sie Ihr Blutdruckmessgerät ein, um die
Messung zu beginnen. Sie können eine einfache oder
dreifache Messung durch langes Drücken der Taste
auswählen. Drücken Sie die Taste erneut, um die
Messung zu beginnen.
How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen

10
6

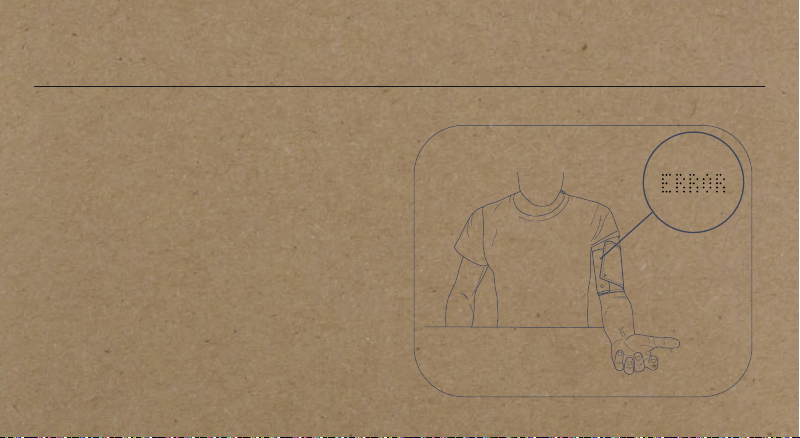

If ERROR message appears on screen, please
refer to the explanation displayed in the app
and troubleshooting described from page 15
onward.
FR Si le message ERROR apparaît à l'écran, veuillez
vous référer aux explications affichées dans l'app
et aux messages de dépannage décrits à partir de
la page 15.
DE Erscheint im Display die Meldung ERROR,
beachten Sie bitte die Erläuterungen in
der App und die ab Seite 15 beschriebenen
Fehlermeldungen zur Fehlerbehebung.
How to take a blood pressure measurement
Comment prendre une mesure de tension artérielle | Eine Blutdruckmessung vornehmen

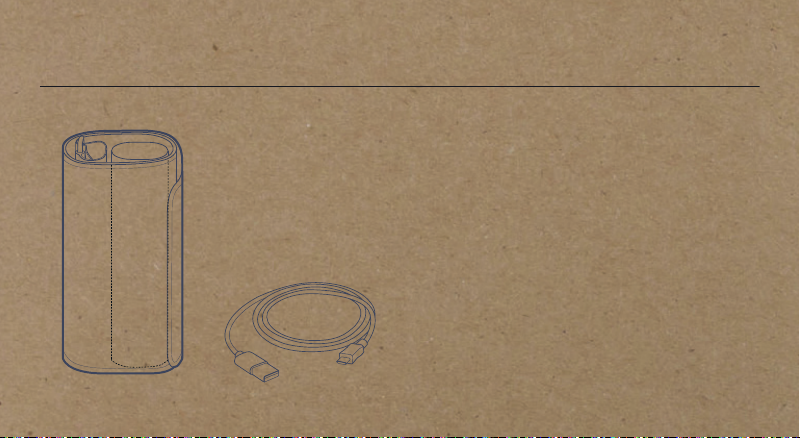

Box Contents
Contenu de la boîte | Lieferumfang 11
Blood Pressure Monitor
FR Tensiomètre
DE Blutdruckmessgerät
Charging cable
FR Câble de recharge
DE Ladekabel
Instructions manual
FR Manuel d'utilisation
DE Betriebsanleitung

Requirements
To install your BPM Connect, you will need a device
with iOS (10.0 or higher) or Android (6.0 and higher).
After installation, you do not need your phone to take a
measurement. The device will sync via Wi-Fi or Bluetooth®.
Important safety information
Consult your doctor during pregnancy, or if you suer from
arrhythmia and arteriosclerosis. Please read this section
carefully before using the Wi-Fi Smart Blood Pressure
monitor.
Intended use
The BPM Connect is a digital monitor intended for use in
measuring blood pressure and heart rate. The device is
intended to be used in a human adult population with an
arm circumference between 9 inches to 17 inches (22 cm
to 42 cm).
The BPM Connect is a medical device. The BPM Connect is
intended to be used at home. The BPM Connect must be
activated with the Withings Health Mate companion app.
Withings Health Mate companion app is an accessory to
the Withings BPM Connect and is not a medical device.
If you observe hypertensive values, contact your physician.
General safety and precautions
- Do not forcibly bend the arm cu.
- Do not inflate the arm cu when it is not wrapped around
your arm.
- Do not drop or apply strong shocks and vibrations to the
blood pressure monitor.
- Do not take measurements after bathing, drinking alcohol,
smoking, exercising or eating.
- Do not immerse the arm cu in water.
- Do not use with a pacemaker, defibrillator or other
electric implant.
- Use the device on adults only.
- Do not use on children or pets.
Important information 12
Android is a trademark of Google Inc.
iOS is a trademark of Apple Inc.

General usage
Always consult your doctor if you believe you have a
blood pressure disorder. People with severe blood flow
problems, or blood disorders, should consult a doctor
before using the blood pressure monitor. Cu inflation
may cause internal bleeding. Conditions such as common
arrhythmias, ventricular premature beats, arterial sclerosis,
poor perfusion, diabetes, age, pregnancy, pre-eclampsia or
renal disease may aect the performance of the automated
sphygmomanometer and/or its blood pressure reading.
BPM Connect is a precision measuring device designed to
be understood by lay users but it should still be handled
with care. Exposing the device to lint, dust or sunlight for
a long period of time may reduce its lifetime or damage
it. A damaged cu or sensor may lead to incorrect
measurements.The device may not be connected via a USB
port. This device is intended for home use and is not to
be used in a clinical setting. The cu will come in contact
with the skin. Measurements may be aected by extreme
temperatures, humidity and altitude.
- Do not leave the blood pressure monitor unattended with
infants or persons who cannot express their consent.
- Do not use the blood pressure monitor for any purpose
other than measuring blood pressure.
- Do not disassemble the blood pressure monitor.
- Do not operate the blood pressure monitor in a moving
vehicle such as a car or an airplane.
- Do not use a cellular phone near the device.
- Do not use the device with the USB cable plugged.
- IUsing the cu or too frequent measuremen continuously
or taking measurements too frequently may interfere with
blood flow and result in injury to the user.
- Do not apply the cu if the arm has a wound or is
undergoing medical treatment, as this can cause further
injury.
- The cu should not be used on the arm on the side of a
mastectomy.
- Using of the device with other equipment on the
same limb may cause damage to the device or other
equipment.
Caution 13
Following REACH Regulation 1907/2006, there is an open
risk on plomb and D6.

Cleaning
- Do not use an alcohol-based cleaning solution or solvent
to clean the device
- Clean the device with a soft, dry cloth
- If the cu is dirty, clean it with a moistened cloth and mild
soap.
- Do not flush the device and cu with water.
- Do not dismantle the device, disconnect the cu, or try
to repair it yourself. If the device is not working, contact
Withings support.
- Do not operate the device in extreme temperatures,
humidity, or direct sunshine
- Do not violently shake the unit or drop it on the floor.
- Do not submerge the device or any of the components
in water
Storage
- Store the device and the components in a clean and safe
location
- If storage conditions are dierent from the usage
conditions indicated in this document, please wait 30
minutes before taking a measurement.
Maintenance
If you cannot fix a problem using the troubleshooting
instructions, please request service from your dealer or
Withings support. The manufacturer will make available
on requested circuit diagrams, component part lists,
descriptions, calibration instructions, or other information
that will assist sta or authorized representatives with
repair.
It is generally recommended to have the device inspected
every 2 years, to ensure proper functioning and accuracy.
Do not use the device while it is under maintenance.
After use 14

Error message Causes Countermeasures
The measurement could not be performed. Please
try again.
Hardware auto-check error. The measurement could not be performed.
Please try again. If the problem occurs again,
please contact customer service.
Connection error. There is a communication error between the
blood pressure monitor and the
collateral device.
Push the blood pressure monitor button
for 3 seconds to turn it off. Quit the applica-
tion, turn your bluetooth connection off and
on. Push the blood pressure monitor button
to turn it on.
Blood pressure measurement could not be
performed
- Cuff is not deflated before measurement.
- Noise interference.
- Excessive user movements.
Please wait until the cuff is totally deflated
before starting a new measurement. Stay still
and do not speak during the measurement.
Error messages 15

Error message Causes Countermeasures
Check that the blood pressure monitor is
correctly positioned on your arm and that the
measurement is being performed under the
proper conditions.
The measurement may not occur because of:
- Broken cuff
- Pump or valve failure
- Pressure overflow
- Noise interference
- User movement during the measurement
- Special characteristics, such as existing heart
issues
-Low battery level
1. Check that the Blood Pressure Monitor
is correctly positioned on your arm and
that measurement is performed in good
conditions.
2. Low battery level. Load your BPM Connect
with a micro USB cable.
3. If user has special characteristics, please
contact your physician.
4. If the problem continues to occur, please
contact customer service.
Low battery level. Battery level is too low. Load the device with the provided charging
cable.
Error messages 16

Problem Remedy
The cuff cannot be inflated or the air
pressure cannot rise
1. Check the cuff position,fasten the cuff correctly and remeasure the pressure again
2. Check the blood pressure monitor connection to the iOS or Android device
The low battery icon is displayed on the device Reload the device with the cable provided
The measurement cannot be taken
and the application shows an error message
1. Re-fasten the cuff
2. Relax and sit down
3. Keep the cuff level with your heart during the measurement period
4. Keep silent and stay still during the measurement
5. If you have severeheart issue, the blood pressure may not be measured correctly
Under normal circumstances, the measurement may
differ from the measurement taken in a medical
setting. Your blood pressure may change because of
the environment in which the measurement is taken.
Please share the values recorded via BPM Connect
with your healthcare practitioner.
1. The variation is due to the different environments
2. The blood pressure is changing according to the physiological or psychological status of
the human body
3. Show your recorded values to your physician
Troubleshooting 17

Product description: Digital automatic Blood Pressure Monitor
Model: WPM05
Blood pressure measurement method: Cuff oscillometric method
Cuff inflation: Automatic inflation with air pump at 15 mmHg/s
Pressure sensor: Gauge sensor
Measurement range (pressure): 0to 285 mmHg, DIA 40 to 130 mmHg, SYS 60 to 230 mmHg
Measurement range (pulse): 40 to 180 beats/min
Accuracy (pressure): Within +- 3mmHg or 2% of reading
Accuracy (pulse): Within +-5% of reading
Sensor: Semiconductor pressure sensor
Operating conditions: 5to 40°C, 15 to 90% RH, atmospheric 86Kpa~106kpa, altitude: 2000m
Storage and transport conditions: -20 to 60°C, 15 to 93% RH, atmospheric 50Kpa~106kpa, altitude: 2000m
Specifications Technical data

Arm type: Use on left arm.
Power source: 5V 1A
Weight: Approx. 245g
Accessories: Charging cable, Instruction manual
Product life: 3years
Wireless transmission: Wi-Fi and BLE
Note: Specifications are subject to change without prior notice or any obligation on the part of the manufacturer
18 – 19

At the end of the device's useful life, the user must
deliver it to a collection center for electric and
electronic garbage, or return it to the retailer when
purchasing a new device. Disposing of the product
separately prevents possible negative environmental
and health consequences deriving from inadequate
disposal. It also allows the recovery of materials it is
composed of to save energy and resources and avoid
negative eects to the environment and health. In
case of abusive disposal of device by the user, will be
applied administrative endorsements in compliance
with current standards. The device and its parts must
be disposed of as appropriate, in accordance with
national or regional regulations.
Version 1.0 April 2019
Actuation of European directives 2002/95/EC,
2002/96/EC and 2003/108/EC, for reduction in use
of dangerous substances in the electric and electronic
device and for garbage disposal.
The symbol applied on the device or its packaging
means that at the end of its useful life the product must
not be disposed of with domestic waste.
Disposal 20
