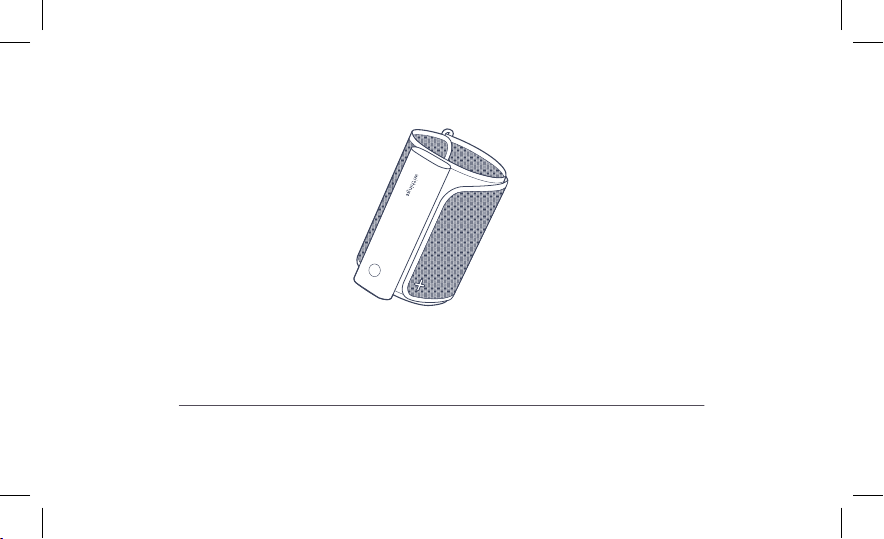

Withings BPM Connect User manual

Withings BPM Connect
INSTRUCTIONS MANUAL
EN | ES | IT
MANUAL DE INSTRUCCIONES | MANUALE DI ISTRUZIONI

THANK YOU FOR CHOOSING
WITHINGS BPM CONNECT
GRACIAS POR ELEGIR WITHINGS BPM CONNECT | GRAZIE PER AVER SCELTO WITHINGS BPM CONNECT
This guide is available in additional languages at: www.withings.com/guides
ES Esta guía está disponible en otros idiomas en: www.withings.com/guides
IT Questa guida è disponibile in altre lingue all'indirizzo: www.withings.com/guides
FR Ce guide est disponible dans plusieurs langues sur www.withings.com/guides
DE Diese Anleitung finden Sie in weiteren Sprachen unter: www.withings.com/guides

C
A
B
This guide is available in additional languages at: www.withings.com/guides
ES Esta guía está disponible en otros idiomas en: www.withings.com/guides
IT Questa guida è disponibile in altre lingue all'indirizzo: www.withings.com/guides
FR Ce guide est disponible dans plusieurs langues sur www.withings.com/guides
DE Diese Anleitung finden Sie in weiteren Sprachen unter: www.withings.com/guides
Overview
Descripción general | Panoramica 3
AButton
ES Botón ON/OFF
IT Pulsante ON/OFF
BCuff
ES Brazalete
IT Bracciale
CUSB plug
ES Adaptador de corriente USB
IT Spina USB

Quick start from your smartphone
Inicio rápido desde tu smartphone | Avvio rapido da smartphone
1
Visit go.withings.com from your smartphone or
tablet, and follow the instructions to install the
Health Mate app.
ES Visita go.withings.com desde tu smartphone o
tableta y sigue las instrucciones para instalar la
aplicación Health Mate.
IT Vai su go.withings.com dal tuo smartphone o tablet
e segui le istruzioni per installare l'app Health Mate.
go.withings.com

4 – 5
2
In the app, follow the instructions to install
Withings BPM Connect.
ES En la aplicación, sigue las instrucciones para
instalar Withings BPM Connect.
IT Nell'app, segui le istruzioni per installare Withings
BPM Connect.

1
Sit down in a comfortable position.
ES Siéntese de modo que esté cómoda.
IT Sedere in posizione comoda.
How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione

2
Unroll cuff. Place your arm inside it.
ES Colócate el brazalete alrededor del brazo. El
tubo estar colocado por la parte interior del
brazo.
IT Avvolgi il bracciale attorno al braccio. Il tubo
di metallo dovrebbe essere posizionato verso
l'interno del braccio.
How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione
6 – 7

How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione
3
Tighten the cuff around your arm. The tube
should be positioned against your inner arm.
ES Coloque el brazo sobre una mesa y al mismo nivel
que el corazón.
IT Posionare il braccio su un tavolo all'altezza
del cuore.

How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione
8 – 9
4
Place your arm on a table and level with your
heart.
ES Encienda el monitor. La aplicación se pone
en marcha automáticamente.
IT Accendere il misuratore di pressione. L'app si
avvierà automaticamente.

How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione
5
Turn on your blood pressure monitor to start
the measurement. You can select a simple or
triple measurement with a long press on the
button. Press the button again to start the
measurement.
ES Encienda el monitor para comenzar la medición.
Puede seleccionar una medición simple o triple
presionando prolongadamente el botón. Pulsa el
botón para comenzar la medición.
IT Accendere il misuratore per avviare la misurazione.
È possibile selezionare una misurazione singola o
tripla con una pressione prolungata sul pulsante.
Premere di nuovo il pulsante per avviare il
monitoraggio
10

How to take a blood pressure measurement
Cómo realizar una medición | Come eettuare una misurazione
Box Contents
Contenido de la caja | Contenuto della confezione 11
Blood Pressure Monitor
ES Tensiómetro
IT Tensiometro
Charging cable
ES Cable de carga
IT Cavo di ricarica
Instructions manual
ES Manual de instrucciones
IT Manuale di istruzioni
10

Requirements
In order to use your BPM Connect, you need an iOS (10.0
or higher) or Android (6.0 and higher) device to install it.
Thereafter, the product can be used in stand-alone, thanks
to the Wi-Fi and Bluetooth® connections.
Important safety information
Consult your doctor during pregnancy, or if you suer from
arrhythmia and arteriosclerosis. Please read this section
carefully before using the Wi-Fi Smart Blood Pressure
monitor.
Intended use
The BPM Connect is a digital monitor intended for use
in measuring blood pressure, heart rate. The device is
intended to be used in a human adult population with an
arm circumference between 9 inches to 17 inches (22 cm
to 42 cm).
The BPM Connect is a medical device.
Contact your physician if hypertensive values are indicated.
General safety and precautions
- Do not forcibly bend the arm cu.
- Do not inflate the arm cu when it is not wrapped around
your arm.
- Do not apply strong shocks and vibrations to the blood
pressure monitor or drop it.
- Do not take measurement after bathing, drinking alcohol,
smoking, exercising or eating.
- Do not immerse the arm cu in water.
- Do not use with a pacemaker, a defibrillator or other
electric implant.
- Use on adults only.
- Do not use on children or pets.
Important information 12
Android is a trademark of Google Inc.
iOS is a trademark of Apple Inc.

General usage
Always consult your doctor. Self-diagnosis of measurement
results and self treatment are dangerous. People with
severe blood flow problems, or blood disorders, should
consult a doctor before using the blood pressure monitor.
Cu inflation can cause internal bleeding. Operational
factors such as common arrhythmias, ventricular premature
beats, arterial sclerosis, poor perfusion, diabetes, age,
pregnancy, pre-eclampsia or renal disease can aect the
performance of the automated sphygmomanometer and/
or its blood pressure reading. This device is a precision
measuring equipment liable to be understood by lay user
but it still should be handled with care. A long exposure
of the device to lint, dust or sunlight might reduce its life
time or damage it. Damaged cu or sensor might lead to
incorrect measurements. No usage for USB port. The user
is an intended operator. Parts in contact with the skin: cu.
Measurements can be aected by extreme temperatures,
humidity & altitude.
- Do not leave the blood pressure monitor unattended with
infants or persons who cannot express their consent.
- Do not use the blood pressure monitor for any purpose
other than measuring blood pressure.
- Do not disassemble the blood pressure monitor.
- Do not operate the blood pressure monitor in a moving
vehicle (car, airplane).
- Do not use a cellular phone near the device.
- Do not use the device with the USB cable plugged.
- Improper continuous pressure of cu or too frequent
measurements may interfere blood flow and result
harmful injury to the users. Check if the use of the device
does not result in prolonged impairment of your blood
circulation.
- Do not apply the cu over the users’ arm bearing a
wound or medical treatment and so on, as this can cause
further injury.
- Cu should be used on the arm on the side of a
mastectomy.
- Use of the device can temporarily cause loss of function
of simultaneously used equipment on the same
limb.
Caution 13

Cleaning
- Do not use an alcoholic-base or solvent agent to clean
the device
- Clean the device with a soft and dry cloth
- The dirt on the cu can be cleaned by a moisten cloth
and soap
- Do not flush the device and cu with much water
- Do not dismantle the device or disconnect the cu or try
to repair by yourself. If any problem happens, refer to the
distributor
- Do not operate the device under severe environment of
extreme temperature or humidity, or direct sunshine
- Do not shake the unit violently
- Do not submerge the device or any of the components
in water
- Do not let the device under strong shocks, such as
dropping the unit on the floor
Storage
- Store the device and the components in a clean and safe
location
- If storage conditions are dierent from the usage
conditions indicated in this document, please wait 30
minutes before taking a measurement.
Maintenance
If you can’t fix the problems using the troubleshooting
instructions , request service from your dealer.
Manufacturer will make available on requested circuit
diagrams, component part lists, descriptions, calibration
instructions, or other information that will assist
manufacturer’s sta or authorized representative for repair.
It is generally recommended to have the device inspected
every 2 years, to ensure proper functioning and accuracy.
Do not use the device while doing maintenance steps.
After use 14

Error messages 15
Error message Causes Countermeasures
Measurement could not be performed. Please try
again. If the problem occurs again, please contact
customer service.
Hardware auto-check error. Measurement could not be performed. Please
try again. If the problem occurs again, please
contact customer service.
Connection error. Quit the application and
reconnect your blood pressure monitor.
Communication error between the
Blood Pressure Monitor and the
collateral device.
1. Push the blood pressure monitor button
for 3 seconds to turn it off. Quit the appli-
cation and push the blood pressure monitor
button to turn it on.
2. If the problem occurs again, please contact
customer service.
Please wait until the cuff is totally deflated before
starting a new measurement. Stay still during
measurement.
- Cuff is not deflated before measurement.
- Noise interference.
- Excessive user movements.
1. Please wait until the cuff is totally deflated
before starting a new measurement. Stay still
during measurement.
2. If the problem occurs again, please contact
customer service.

Error messages 16
Error message Causes Countermeasures
Check that the Blood Pressure Monitor is
correctly positioned on your arm and that mea-
surement is performed in good conditions.
- User movement, or not relaxed, or talking …
- Cuff is not correctly fastened
- Cuff broken
- Pump or valve failure
- Pressure overflow
- Noise interference
- User movement, or not relaxed, or talking …
- User special characteristics
- Battery level is too low
1. Check that the Blood Pressure Monitor
is correctly positioned on your arm and that
measurement is performed in good conditions.
2. Low battery level. Load your BPM Connect
with a micro USB cable.
3. If user has special characteristics, please
contact your physician.
4. If the problem occurs again, please contact
customer service.
Low battery level. Battery level is too low. Load the device with the provided charging
cable.

Troubleshooting 17
Problem Remedy
The inflation action cannot be done or the air
pressure cannot rise
1. Check the cuff position and fasten the cuff correctly ad remeasure the pressure again
2. Check the blood pressure monitor connection to the iOS or Android device
The low battery icon is displayed on the device Reload the device with the cable provided
The blood pressure cannot be taken
and the application shows an error message
1. Re-fasten the cuff
2. Relax yourself and sit down
3. Keep the cuff and heart at the same level during the measurement period
4. Keep silent and still during measurement
5. If the patient has sever heart beat problem, then the blood pressure may not be read correctly
Under normal measuring circumstance, the reading
at home is different from that of the clinics or each
measurement has various reading
1. The variation is due to the different environments
2. The blood pressure is changing according to the physiological or psychological status of
the human body
3. Show your recorded values to your physician

Specifications Technical data
Product description: Digital automatic Blood Pressure Monitor
Model: WPM05
Blood pressure measurement method: Cuff oscillometric method
Cuff inflation: Automatic inflation with air pump at 15 mmHg/s
Pressure sensor: Gauge sensor
Measurement range (pressure): 0to 285 mmHg, DIA 40 to 130 mmHg, SYS 60 to 230 mmHg
Measurement range (pulse): 40 to 180 beats/min
Accuracy (pressure): Within +- 3mmHg or 2% of reading
Accuracy (pulse): Within +-5% of reading
Sensor: Semiconductor pressure sensor
Operating conditions: 5to 40°C, 15 to 90% RH, atmospheric 86Kpa~106kpa, altitude: 2000m
Storage and transport conditions: -25 to 70°C, 10 to 95% RH, atmospheric 86Kpa~106kpa, altitude: 2000m

Arm type: Use on left arm.
Power source: 5V 1A
Weight: Approx. 245g
Accessories: Charging cable, Instruction manual
Product life: 3years
Wireless transmission: Wi-Fi and BLE
Note: Specifications are subject to change without prior notice or any obligation on the parts of the manufacturer
18 – 19

20
At the end of devices useful life, the user must deliver it
to the able collecting centers for electric and electronic
garbage, or give back to the retailer when purchasing
a new device. Disposing of the product separately
prevents possible negative consequences for the
environment and for health, deriving from inadequate
disposal. It also allows
the recovery of materials of which it’s made up in order
to obtain an important saving of energy and resources
and to avoid negative eects to the environment and
health. In case of abusive disposal of device by the
user, will be applied administrative endorsements in
compliance with current standard. The device and its
parts is mared with regard to disposal, as appropriate,
in accordance with national or regional regulations.
Version 1.0 April 2019
Disposal
Actuation of European directives 2002/95/EC,
2002/96/EC and 2003/108/EC, for reduction in use
of dangerous substances in the electric and electronic
device and for garbage disposal.
The symbol applied on the device or its packaging
means that at the end of its useful life the product must
not be disposed of with domestic waste.
