WORKSMAN SIDE BY SIDE TEAM DUAL TRIKE INSTRUCTIONS AND PARTS LIST
Worksman Trading Corp - 94-15 100th Street - Ozone Park, NY 11416 - (888) 3-WHEELER or 718 322 2000 – www.worksman.com
Parts list SBST-05
SBST Series

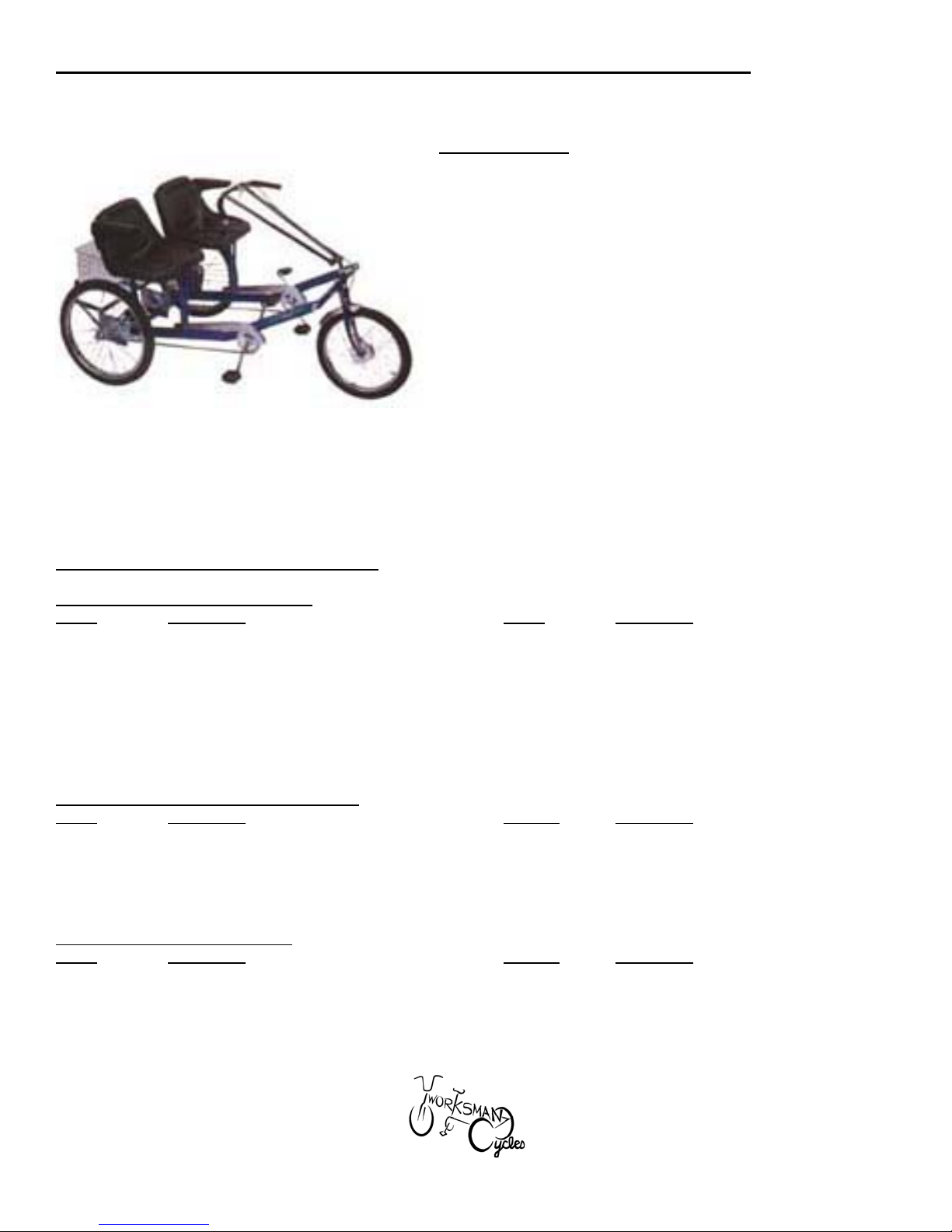

Worksman Side by Side Team Dual Trike
Congratulations! You have purchased an American
Made Worksman Team Dual Tricycle™. This is one of
the most unique adult tricycles in the world. It
combines comfort with durability, a true unique
combination. We utilize the components and
technology used on our world famous Worksman
Industrial Cycles to insure your satisfaction.
Before assembly and riding, make certain to read this
manual and any other literature provided thoroughly.
Always follow the rules of safe riding. Always keep
your Worksman Tricycle in tip-top shape by replacing
worn parts as needed with Genuine Worksman Cycles Parts. (Do not use generic bicycle parts.) With
simple maintenance, your Worksman Tricycle will perform reliably day after day, year after year,
decade after decade.
Your Team Dual Tricycle has been hand-made in the USA by our American craftspeople. Our
reputation rides along with you, so your ultimate satisfaction is our goal.
Worksman SBST Parts List SBST-05
Frame, Fork and Related Parts
Part # Description Part # Description
72SBCB Frame Only- Specify color
5020HD Fork-Color Black 5020HD-SP Fork (other color- please specify
48 Head Set Cups (pair) 49 Headset Bearings (pair)
50A Headset Complete (48,49,52,53,54) 51 Bottom Cone (presses on Fork)
52 Top Adjusting Cone (threaded) 53 Key Washer
54 Fork Top Lock nut 55SBS Tiller Handlebar
55U Stem for Handlebar 55Y Foam Handlebar Grips (set)
3928S Basket frame support 60STR Drum Brake Fork Strap
Front Drum Brake and Related Parts (See wheel section for complete front drum brake wheels.)
Part # Description Part # Description
L900 Drum Brake-Hub Only L709 Front Axle Set for Drum Brake
L752R Brake Lever w/ Parking Lock F817 Bearings-Loose 11 balls
F719-SBST Front Drum Brake Cable and Casing (55”) L725 Drum Brake Plate Kit (Internal parts kit
(Includes Adjusting Barrel and Anchor Bolt) -Shoes, Plate, Lever and Cam)
F769 Anchor Bolt Assembly for F719-SBST Cable F770 Adjusting Barrel for F719-SBST Cable
Rear Axle and Related Parts
Part # Description Part # Description
64M Woodruff Key 59M Locknut (Drive Side)
58SBS Rear Axle (left or right are same) 69 Fixed Drive Sprocket
63B Key
(Fits in axle slot between sprocket & axle.) 63C Set screw for 69
M13975 Side Bearing with Plate (each) 301M Coaster Brake w/ Dual Sprockets
404SBST 3 Speed Coaster Brake w/dual Sprockets SS721 Coaster Brake Internal Parts Kit (301M)
SS13-1 3 Speed Cable and Trigger for 404SBST

Worksman Trading Corp - 94-15 100th Street - Ozone Park, NY 11416 - (888) 3-WHEELER or 718 322 2000 – www.worksman.com
Parts list SBST-05
Crank and Crank Parts (Pedal Section) and Chains
Part # Description Part# Description
1265 Crank Parts (1266,1268,1269,1271,1272,1273,1274) 1265BMXS Deluxe Sealed Crank Set (Upgrade)
1266 Crank Bearings (pair) 1267F Complete Crank Set with 32 T Sprocket
1267H Complete Crank Set w/ 28 T Sprocket 7217 Pedal Set (Pair)
1268 Cups for crank housing (pair) 1269 Stationary washer (inside)
1271 Key Washer- Outside 1271 Key Washer- Outside
1272 Adjusting Cone (threaded)-Outside 1273 Stationary Cone- Inside
1274 Crank Locknut 1275 Crank-forged- 6.5”
1380F* Sprocket 32Tooth 1380H* Sprocket 28 Tooth
4910A Chainguard 4914A Chain Connecting Link (1/2x3/16”)
4914SBST Long Chain
(163 links, 28T) 4914SB Long Chain (165 links, 32T)
4914ST Short Chain (39 links) 4915 Chain Adjuster (for Coaster Brake)
* Note- The SBST comes standard with a 32T front sprocket. The SBST3-3CB comes standard with a 28T front sprocket. The
1265BMXS is a heavier duty upgrade for crank parts.
Seat, Fenders, Baskets and Cabinets
Part # Description Part# Description
8220 Front Fender 4902 Side Fender (L or R)
M13994P Side Fender Brace (L or R) 95 “L” Bracket-attach Front Fender to Fork
4905 Bolt set for attaching 4902 to top of M13996 4907A Bolt Set to attach 8220 to Fork
4906 Bolt Set for bottom of M13996 MSF24 Complete Side Fender Kit w/ Braces
42 Rear Basket 18”x13”x6” 3928S Rear Basket Frame
3927PAV Rear Cabinet 22”x15”x8” (optional) 7912THB High Back Seat
7912AHB Swivel Down Armrest Set (optional) 791C Canopy Roof Set Complete
5927BB Basket Strap- to mount to frame 4909SB “T” Tightening Bolt for Seat
CANOPY-SBST-BLK Replacement Vinyl for Canopy - Black
NOTE- SBST’S COME WITH A FRONT FENDER AS STANDARD EQUIPMENT. THE SIDE FENDER SET MAY BE ADDED AS AN OPTION BY ORDERING PART # MSF24
SHOWN BELOW. CARRY ADDITIONAL SUPPLIES WITH THE OPTIONAL HEAVY HAULER TRAILER.

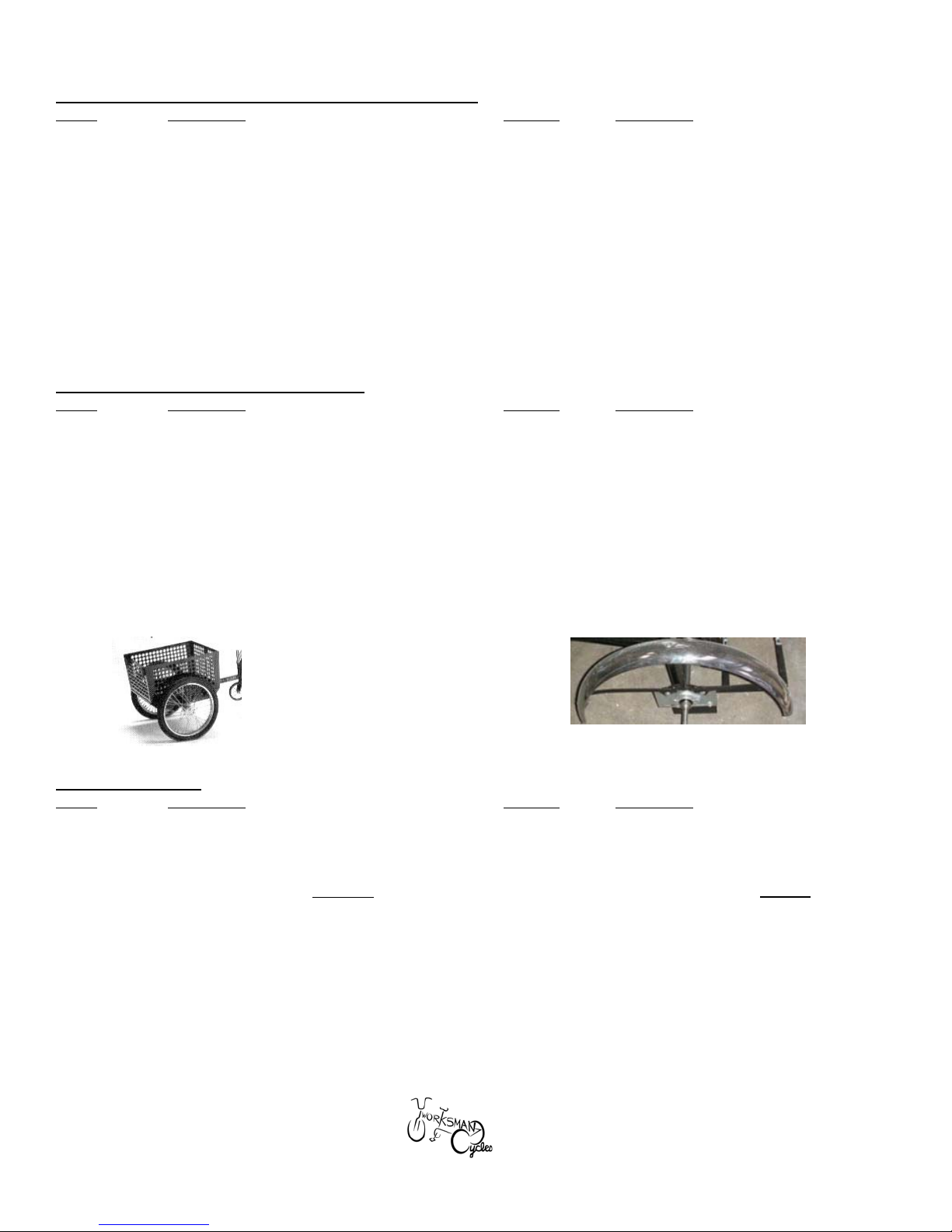

Optional Heavy Hauler Trailer with Optional Basket Optional Rear Fender Kit
Wheels and Tires
Part # Description Part# Description
7720A Front Wheel 20” w/Drum Brake w/o Tire 7720 Front Wheel 20”w/Drum Brake
w/Air Tire
7720KVPR Front Wheel w/ Kevlar Tire, PR Tube M14038KVPR Rear Wheel w/ Kevlar Tire, PR Tube
M14038A Rear 24” Wheel (right) w/o Tire M14038 Rear 24” Wheel (right) w/ Air Tire
4922E Tire- 24x2.125 WTC Sup-r-Tire (standard) 4922 Tire- 20x2.125 WTC Sup-r-Tire
4922EKV Tire- 24x2.125 WTC KEVLAR Sup-r-Tire 4922KV Tire- 20x2.125 WTC KEVLAR Sup-r-Tire
4922EWSW Tire- 24x2.125 Sup-r-Tire-White Wall 4299WSW Tire- 20x2.125 Sup-r-Tire-White Wall
4923E Tube- 24x2.125 (standard) 4923 Tube- 20x2.125 (standard)
6023B Tube- Puncture Resistant 24x2.125 6023 Tube- Puncture Resistant 20x2.125
1017B Rim Strip 24” 1017A Rim Strip 20”
1016C Rim- 24” (no spokes-outer rim only) 1015 Rim- 20” (no spokes-outer rim only)
1014C Spoke for Rear Wheel (11G - 9 9/16”) 1014E Spoke for Front Wheel (11G - 7 3/16”)
3980M Hub for Rear Wheel
NOTE- WORKSMAN SIDE BY SIDES COME STANDARD WITH WTC SUP-R-TIRES, WHICH ARE OUTSTANDING AND DURABLE. KEVLAR TIRES ARE
BELTED AIR TIRES AND THORN RESISTANT TUBES ARE MEANT TO REDUCE THE OCCURRENCE OF FLAT TIRES. SPOKES SOLD IN BAGS OF 100 AND
INCLUDE NIPPLES. Part #’s and specifications subject to change without notice as we are constantly seeking ways to improve our products.

Worksman Trading Corp - 94-15 100th Street - Ozone Park, NY 11416 - (888) 3-WHEELER or 718 322 2000 – www.worksman.com
Parts list SBST-05
Safety and Comfort Accessories
Part # Description Part# Description
3979 Ding Dong Chime Bell 303 Squeeze Bulb Horn
3973 Mega-Horn- Battery Operated- LOUD 201 Cable and Lock (set)
5848 Bar End Mirror 5030T Reflector Set with Mounting Hardware
3961 Cup Holder – Frame Mounted 3978 Safety Flag on Pole
3975 Generator Light Set P19 Bicycle Helmet
101710 Flashing Strobe Slight (Clear Lens) 101714 Flashing Strobe Light (Red Lens)
1006 Air Pump for Tire Inflation (Manual) 1000 Spoke Tightening Tool
2000 Chain Rivet Remover Tool 1265TW Crank Cone Wrench
1001 Pedal Wrench TRAILER Heavy Hauler Trailer
791C Canopy Roof Set 7217-41038 Weighted Platform Pedals with Straps
7217-41197 Pedals with Velcro Straps SEATBELT Seat Belt – Lap Type
ENG- Electric Drive System* (inquire) PSCUP Cup Holder Deluxe - Armrest Mounted
* Electric Drive Systems are subject to state and local approvals. The Purchaser assumes responsibility for meeting ordinances. Subject to availability.
Worksman Stretched Mover Worksman Personal Activity Vehicle Eagle Lite Trike
Exploded view of L900 1265 Crank Parts Set with 1275 Crank M13975 Axle Bearing w/Plate
ASSEMBLY INSTRUCTIONS FOR THE WORKSMAN SIDE BY SIDE TEAM DUAL TRICYCLE:
Your Worksman Tricycle has been hand made by American craftspeople at our Ozone Park, New York City factory. We take great
pride in each and every Worksman Cycle that we manufacture and appreciate your support. Please read this manual carefully prior
to performing the simple finishing adjustments and prior to riding. Keep these instructions, as our parts list is contained within this
document which you will need for future reference. Carefully remove the tricycle from the carton. You will notice the tricycle is pre-
assembled at the factory. Some finishing assembly / adjustments required.
ADJUSTING THE HIGH BACK CAPTAIN’S SEAT:
Your SBST Tricycle comes with two thickly padded captain’s seat. Simply position the seat on the sliding seat track, insert the large
round washer onto the “T” Tightening Bolt, and thread the “T” bolt into the bottom of the seat. Slide the seat to a comfortable position
where leg is ever so slightly bent at the knee when reaching for the pedal in its furthest position. Tighten the bolt so seat is secure
and no longer slides across the track. Remember to always check tightness of seat before riding. If you ordered the swivel down
armrests, once seated, rotate armrests to down position.
ADJUST HANDLEBAR:
Your Side by Side Team Dual Tricycle comes with a unique steering tiller. This tiller can be positioned for your own riding preference.
The stem is not tightened at the factory so you can set it where you desire by simple lifting the tiller to a comfortable position and
tightening the stem using a #5 Allen key. Make certain the stem is tight and the tiller remains in place even while exerting downward
pressure.
MAINTENANCE TIPS AND NOTES:
- Always inspect your Worksman Cycle to insure that that all nuts, bolts, screws and hardware are
tight and that no parts are worn or damaged. Do not attempt to straighten bent forks or frames.
- Lubricate chain every six months or as needed with light oil. Replace sprockets when teeth become
worn, bent or broken. Keep chain adjusted so there is no more than 3/8” slack. Note: we make the
chains tight at the factory, as we do know they will stretch during the break-in period.
- Lubricate crank parts as needed and replace pedals when the surface is worn of if pedal axle
becomes “tight” or frozen.

Worksman Trading Corp - 94-15 100th Street - Ozone Park, NY 11416 - (888) 3-WHEELER or 718 322 2000 – www.worksman.com
Parts list SBST-05
Drum Brake: Your Worksman Tricycle is equipped with an automotive type front drum brake. This brake is ideal for slowing your
vehicle smoothly and reliably. It is engaged by squeezing the hand lever on the handlebar. To use “Park” feature, when cycle is
completely stopped, squeeze hand lever and push in parking plunger button on lever. To disengage, simply squeeze lever until
parking plunger button releases.
Drum Brakes are pre-adjusted at the factory. Readjust the cable tension as necessary using the adjusting barrel so that wheel
spins freely and stops when brake is applied. Always replace worn brake cables (F719-SBST) and damaged hand levers.
Internal parts are available for your Drum Brake (L725 parts kits and L709 axle set).
Coaster Brake: Foot activated coaster brakes are easy to use and reliable. To activate this internal brake, reverse the pedaling
motion until the brake engages. To avoid skidding and maintain control, apply care when braking. This is especially true on wet
surfaces. Apply brakes gently, gradually increasing pedal back pressure. Replace coaster brakes when they become worn.
Check chain tension regularly. For models that are ordered with 3 Speed coaster brakes, the operation is the same. Simply select the gear you wish to
ride in. First gear is for easier starts and low speed riding. As you changed to gear 2 and 3 you will note that pedaling effort increases as does distance
traveled with each turn of the crank.
Tires: Always check for worn or damaged tires. The Worksman Sup-r-tires are heavy duty. We recommend 40PSI as proper level of inflation.
Replace tires that are worn or cut immediately. Replace tubes that show leaks.
RULES FOR SAFE RIDING AND RESPONSIBLE OPERATION: Carefully read this manual before operating the cycle.
• It is the responsibility of the assembler to properly install all parts included and to inspect the cycle prior to riding to insure proper operation.
• Operator is responsible for required maintenance to keep the cycle in good operation condition
• Observe all traffic regulations in the operating environment (stop signs, etc.) Ride in single file. Make certain route is wide enough for SBST.
• Do not ride outdoors, at night. Have appropriate signaling device as needed. (We recommend the 3973 Mega Horn)
• Give Pedestrians the Right of Way. Always look around you to understand the riding environment and hazards.
• Do not carry passengers other than the two riders seated. Check brakes prior to riding. Both riders must understand vehicle’s operation.
• Slow down when approaching turns or intersections. Tricycles are meant for slow pace rides, not for racing.
• Use proper hand signals when turning or stopping. Recommended Safety Options: Approved helmet, audible warning device.
• Never ride the cycle if there are known repairs required. Do not exceed the recommended weight capacity of the cycle (500 pounds)
• Do not stack cargo too high in basket and always secure cargo with appropriate tie down straps.
• Wipe surface of cycle clean and dry when exposed to corrosive substances or environment.
• Operate Cycle at slow speeds; avoid areas with vehicular traffic.
• Operators of cycles should be in good physical condition. Ride at your own risk.
• Wear proper riding attire. Check shoelaces prior to riding so they do not become engaged in the chain and sprocket.
• Ride only on smooth, paved surfaces. Do not use off road. Do not ride on steep grades…designed for relatively flat roads.
• Do not operate a tricycle on steep grades. They are designed for relatively level, paved surfaces only.
• Always replace worn parts with genuine Worksman Cycle Repair Parts. Keep a maintenance log for your records.
• Designate a Captain. The Captain should keep both hands on the handlebars. SBST steers like a car…always turn slowly.
• If motorized, buyer responsible for meeting local laws relating to motorized vehicles and viability of operation.
LIMITED WARRANTY:
THIS CYCLE IS WARRANTED AGAINST FAULTY PARTS UNER THE FOLLOWING CONDITIONS: THIS WARRANTY DOES NOT COVER ANY FAILURE DUE TO ACCIDENT, ABUSE, MISUSE,
NEGLECT OR AS THE RESULT OF NORMAL WEAR AND TEAR, OR IMPROPER ASSEMBLY. THE ENTIRE FRAME INCLUDING ALL WELDED JOINTS IS WARRANTED TO BE FREE FROM
DEFECTS AND MATERIAL FOR ONE YEAR WHILE IN POSSESSION OF THE ORIGINAL PURCHASER. ALL OTHER PARTS ON THIS CYCLE EXCEPT TIRES AND TUBES IS WARRANTED FOR
NINETY DAYS FROM THE DATE OF PURCHASE. REPAIR AND REPLACEMENT OF THESE PARTS IS TO BE ACCORDING THE WORKSMAN CYCLES PARTS AND SERVICE PROCEDURES
AND MUST BE HANDLED DIRECTLY THROUGH THE SOURCE WHERE THE CYCLE WAS PURCHASED. IF UPON EXAMINATION OF THE PARTS IN QUESTION, THE WORKSMAN CYCLE
DEALER DETERMINES THAT IT IS DEFECTIVE, EAITHER REPAIR OR REPLACEMENT WILL BE MADE AT NO COST EXCEPT THE COST OF TRANSPORTATION AND LABOR CHARGES (IF
ANY). UNAUTHORIZED REPAIRS OR REPLACEMENT AUTOMATICALLY VOIDS WARRANTY. PROPER MAINTENANCE IS REQUIRED FOR WARRANTY TO BE VALID. IN THE EVENT THAT IT
WAS DETERMINED THAT THE WARRANTY CLAIM IS THE RESULT OF MISUSE, ABUSE, IMPROPER MAINTENANCE OR SIMPLY NOT DEFECTIVE OR BEYOND THE WARRANTY PERIOD,
WORKSMAN CYCLES OR THE DEALER WILL ADVISE YOU AS TO THE COST OF REPAIR, REPLACEMENT OR LABOR PRIOR TO PERFORMING ANY WORK OR REPLACING ANY PARTS. IF
YOU CHOSE NOT TO HAVE THE DEALER OR WORKSMAN CYCLES PERFORM THE WORK, THE PARTS WILL BE RETURNED TO YOU AT YOUR EXPENSE OR DISCARDED IF NO REPLY IS
RECEIVED WITHIN 2 WEEKS OF NOTICIATION. THE SOLE RESPONSBILITY OF THE MANUFACTURER TO THE TERMS OF THIS WEARRANTY, IF ANY, SHALL BE THE REPAIR AND OR
REPLACEMENT OF THE PARTS AS INDICATED ABOVE. THE LIABILITY OF THE MANUFACTURER SHALL IN NO EVENT EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND
THE MANUFACTURER SHALL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT BY WAY OF LIMITATION, DAMAGES FOR
PERSONAL INJURY OR PROPERTY.THIS STATEMENT CONSTITUTES THE EXCLUSIVE EXPRESSION OF WARRANTIES BY THE MANUFACTURER AND IS IN LIEU OF ANY OR ALL OTHER
WARRANTIES SUCH AS EXPRESSED WARRANTIES, IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, AND FITNESS OR PURPOSE., ARE
LIMITED IN DURATION FOR ONE YEAR FROM THE DATE OF PURCHASE O THE FRAME ONLY AND 90 DAYS FOR ALL OTHER PARTS, EXEPT TIRES AND TUBES WHICH ARE NOT
WARRANTED. WORKSMAN TRADING CORPORATION IS THE MANUFACTURER. MISUSE OF THE CYCLES INCLUDING OFF ROAD RIDING, INSTALLATION OF MOTORS OR POWER
ASSISTS, ALTERATIONS, REPAIRS USING PARTS OTHER THAN GENUINE WORKSMAN CYCLE PARTS VOIDS WARRANTY. WORKSMAN TRADING CORPORATION IS NOT RESPONSIBLE
FOR MAINTAINING RECORDS OF SERIAL NUMBERS. VOID WHERE PROHIBITED BY STATE LAW.
FAX THIS COMPLETED REGISTRATION FORM TO 718-529-4803 OR MAIL WORKSMAN CYCLES: 94-15 100TH ST OZONE PARK NY 11416
Name of Purchaser________________________________ Company Name___________________________________
Mailing Address______________________________________________________________________________________
Tel__________________________ Fax __________________________e-mail ___________________________________
Date of Purchase__________________________ Dealer name________________________________________________
Address of Dealer_____________________________________________________________________________________
Serial Number (located under crank housing)_________________________ Color_______________________
NOTES____________________________________________________________________________________________________
SIGNATURE _____________________________________________ DATE______________________________
