Worx HYDROSHOT WG620E Installation manual

SAFETY AND OPERATING MANUAL
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9

15 14 1311 12
24* 25* 26* 27* 28*
21*
22*
23*
18
*
20*
17
*
16
*
1
2
3
8
7 4
6 5
10
6

2
1
100%
0%
A3
A2
A1
1
2
D
B
1
2
2
100 %
0%
A4
1
2
C1

19
Tool not supplied
1
2
C2
D1
D2 E1
E2 E3

1
2
2
1
FG
I
JK1*
H

1
2
2
1
1
2
Extension lance
sold separately.
1
2
D K2*
Extension lance
sold separately.
N*
L2*
D M2*
D L1*
M1*

2
1
1
2
1
2
Tool not supplied
Extension lance
sold separately.
O1*
O2*
O3* O4
P1 P2*

1
2
1
2
2
1
2
1
Extension lance
sold separately.
P3* Q1*
Q2* R*
S* T*

U*
V2
V1

10
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that
they do not play with the appliance.
- The appliance is only to be used with the power
supply unit provided with the appliance.
Safety warnings for battery-operated
appliances
1. Non-rechargeable batteries are not to be
recharged.
2. Rechargeable batteries are to be removed from
the appliance before being charged.
3. Different types of batteries or new and used
batteries are not to be mixed.
4. Batteries are to be inserted with the correct
polarity.
5. Exhausted batteries are to be removed from the
appliance and safely disposed of.
6. If the appliance is to be stored unused for a long
period, the batteries should be removed.
7. The supply terminals are not to be short-
circuited.
Additional safety warnings for liquid cleaner
1. The liquid must not be directed towards
equipment containing electrical components.
2. Remove or disconnect the battery pack after use
and before carrying out user maintenance on the
appliance.
3. The appliance shall not be left unattended while
it is connected to the battery pack.
4. The appliance is not to be used if it has been
dropped, if there are visible signs of damage or
if it is leaking.
5. Keep the appliance out of reach of children when
it is energized.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell
or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
i) Battery pack needs to be charged before
use. Always refer to this instruction and
use the correct charging procedure.
j) Do not maintain battery pack on charge
when not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance
when it is operated at normal room
temperature (20°C ± 5°C).
m)When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
n) Recharge only with the charger specified
by Worx. Do not use any charger other than
that specifically provided for use with the
equipment. A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack.
o) Do not use any battery pack which is not
designed for use with the equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature for
future reference.
r) Remove the battery from the equipment
when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture,
capacity, size or type within a device.
u) Do not remove battery pack from its
original packaging until required for use.
v) Observe the plus (+) and minus (–) marks
on the battery and ensure correct use.

11
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9

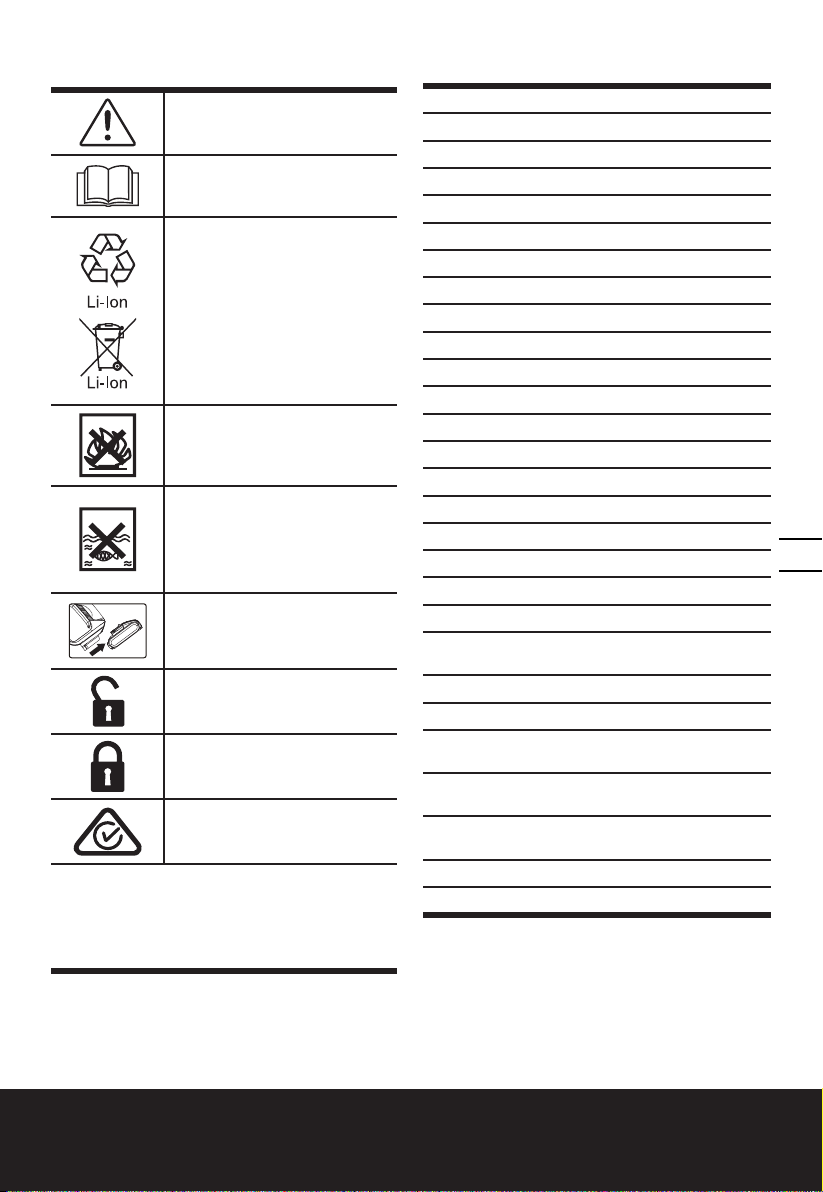

SYMBOLS
Warning
Read operator’s manual
Li-Ion battery. This product has
been marked with a symbol
relating to ‘separate collection’
for all battery packs and battery
pack. It will then be recycled or
dismantled in order to reduce
the impact on the environment.
Battery packs can be hazardous
for the environment and for
human health since they contain
hazardous substances.
Do not burn
Batteries may enter water cycle
if disposed improperly, which
can be hazardous for ecosys-
tem. Do not dispose of waste
batteries as unsorted municipal
waste.
Remove battery from the
socket before carrying out
any adjustment, servicing or
maintenance.
Unlock
Lock
RCM marking
ABN: Australian Business Number. By this
number, business information such as entity type,
status, business location etc. can be found at
website http://abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682
357.
COMPONENT LIST
1. LOCK-OFF SWITCH
2. BATTERY PACK RELEASE BUTTON
3. BATTERY PACK *
4. ON/OFF SWITCH LEVER
5. HOSE ADAPTER
6. POWER NOZZLE
7. PRESSURE CLEANING LANCE
8. NOZZLE ADAPTER
9. MULTI-SPRAY NOZZLE
10. FIXING NAIL
11. HOSE CONNECTOR
12. HOSE FILTER
13. HOSE CLIP
14. HOSE
15. FLOATER
16. SOAP BOTTLE* (WA4036)
17. BRUSH* (WA4048)
18. FOLDABLE WATER BUCKET* (WA4015)
19. FILTER SCREEN (SEE FIG. E2)
20. TURBO NOZZLE * (WA4037)
21. WINDOW SQUEEGEE WITH WATER
SPRAYER * (WA4050)
22. BOTTLE CAP CONNECTOR * (WA4038)
23. EXTENSION LANCE* (WA4012)
24. PIVOTING QUICK CONNECT
ADAPTER* (WA4039)
25. ROTARY CLEANING BRUSH*
(WA4042)
26. ADJUSTABLE POWER SCRUBBER*
(WA1820 / WA1821)
27. SHORT LANCE* (WA4013)
28. NOZZLE (00/150) *
*Not all the accessories illustrated or de-
scribed are included in standard delivery.

12
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9
TECHNICAL DATA
Type Designation WG620E WG620E.2
WG620E.4 WG620E.5 WG620E.6 WG620E.7
WG620E.9 (620-649 - designation of ma-
chinery, representative of battery-powered
washer)
WG620E
WG620E.2
WG620E.4
WG620E.5
WG620E.6
WG620E.7 WG620E.9
Voltage 20 V Max**
Max. pressure 2.4 Mpa (24 bar)
Rated
pressure 2.2 Mpa (22 bar)
Max water
flow rate 120 L/h
Max. inlet
water
pressure
0.6 Mpa (6 bar)
Suction height Max. 1.5 m
Weight (with
lance) 1.7 kg 1.8 kg 1.3 kg
**Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
ACCESSORIES
WG620E WG620E.2 WG620E.4 WG620E.5 WG620E.6 WG620E.7 WG620E.9
Hose (6m) 1 1 1 1 1 1 1
Pressure
cleaning
lance
1 1 1 1 1 1 1
Multi-Spray
nozzle
1 1 1 1 1 / 1
Battery pack
(WA3551)
1 1 2 2 1 1 /
Charger
(WA3880)
1 1 1 1 1 / /
Charger
(WA3760)
/ / / / / 1 /
Brush
(WA4048)
/ 1 1 / / / /
Soap bottle
(WA4036)
/ 1 1 / / / /
Foldable
water bucket
(WA4015)
/ 1 1 / / / /
Bottle cap
connector
(WA4038)
/ 1 1 1 1 / /
Turbo nozzle
(WA4037)
/ / / / / / /
Window
squeegee
with water
sprayer
(WA4050)
/ / / / / / /
Extension
lance
(WA4012)
/ / / / / / /
Pivoting
quick
connect
adapter
(WA4039)
/ / / / / / /
R otary
cleaning
brush
(WA4042)
/ / / / / / /
Adjustable
power
scrubber
(WA1820 /
WA1821)
/ / / / / / /
Shor t lance
(WA4013)
/ / / / / / /
0° Nozzle / / / / / 1 /
15°
Nozzle / / / / / 1 /
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
This tool is intended for cleaning and watering.
ASSEMBLY & OPERATION
ACTION FIGURE
BEFORE OPERATION
Installing the battery pack See Fig. A1
Removing the battery pack See Fig. A2
Checking the battery condition
NOTE: Fig. A3 only applies for the
battery pack with battery indicator light.
See Fig. A3
Charging the battery pack
More details can be found in charger’s
manual
See Fig. A4
ASSEMBLY
Attaching pressure cleaning lance to the
power nozzle
NOTE: When attaching, align the
two projections on the lance with the
grooves of the power nozzle as shown
in Fig. B.
See Fig. B

13
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9
Attaching the multi-spray nozzle
NOTE: when attaching, rotate the nozzle
left and right to make sure the nozzle
fully seated into position and gently
pulling it to make sure it is locked into
position securely.
See Fig. C1
Attaching the 00/ 150nozzle See Fig. C2
Attaching the hose to the power nozzle
NOTE: After the hose is attached, check
the connection by gently pulling upon
the hose. It should not be pulled off.
See Fig.
D1, D2
Attaching your own water hose
(optional)
1. Remove the hose adapter
2. Attach the home garden hose with
suitable connectors
NOTE: Besides the hose supplied, you
can also connect the power nozzle to
your own water hose with suitable
connectors.
NOTE: Check whether the filter screen
is missing before retightening the hose
adapter. When retightening the quick
hose adapter, please tighten securely.
Otherwise, it may not draw any water
for proper operation.
See Fig.
E1, E2, E3
OPERATION
WARNING: The supplied
battery is not waterproof. To
avoid risk of battery failure, protect
the battery from water exposure
during use. Store the tool and
battery in a dry place after use.
Start
NOTE: At the first use, you need to
empty the air in hose, place the
power nozzle below waist level
(<1.5m/5ft) and set it at high pressure.
Do not start working until the water
goes up along the hose and
sprays out.This could take up to 30
seconds or more depending on
the fresh water source.
See Fig. F
Selecting the nozzle pattern
NOTE: Choose a suitable nozzle pattern
according to your work. Spray
patterns 00, 150, 250and 400are
applicable for cleaning, and the spray
pattern with the symbol is best
suitable for watering.
WARNING: Do not shift the
nozzle pattern when the tool is
powered on.
See Fig. G
Cleaning
WARNING: Do not connect the
machine to water supplies that
are dirty, rusty, muddy, or
corrosive. (Including window
cleaning liquids, plant foods, or
fertilizers etc.)
NOTE: For proper maintenance after
using with sea water, the product should
be rinsed by fresh water.
See Fig.
H, I
Watering See Fig. J
ATTACHMENT OF
ACCESSORIES
A number of accessories have been supplied with
this product and are required for use in different
applications. Do not attempt to use cleaning
without a lance or any accessories attached.
1. Soap bottle (WA4036, sold separately)
Soap bottle provides detergent suds for deeper
cleaning of dirt. It is used in conjunction with power
nozzle or extension lance. (See Fig. K1, K2)
2. Brush (WA4048, sold separately)
Brush is for cleaning cars, boats, motorcycles etc. It is
used in conjunction with power nozzle or extension
lance. (See Fig. L1, L2)
3. Foldable water bucket (WA4015, sold
separately)
Foldable water bucket allows you to connect to water
supply when you are far away from a water source.
When not in use, it can be folded for storage. (See
Fig. M1, M2)
4. Turbo nozzle (WA4037, sold separately)
The turbo nozzle delivers 360° of rotating water,
which cleans a larger area than the 0° water pattern
during the same time period. Recommend to use it
with high pressure setting (See Fig. N)
5. Window squeegee with water sprayer
(WA4050, sold separately)
The window squeegees quick connection easily
snaps into the tool to spray water or wipe off water
from
glass or tiled surfaces. Suitable for the HydroShot
power cleaner or the extension lance. (See Fig. O1,
O2, O3, O4)

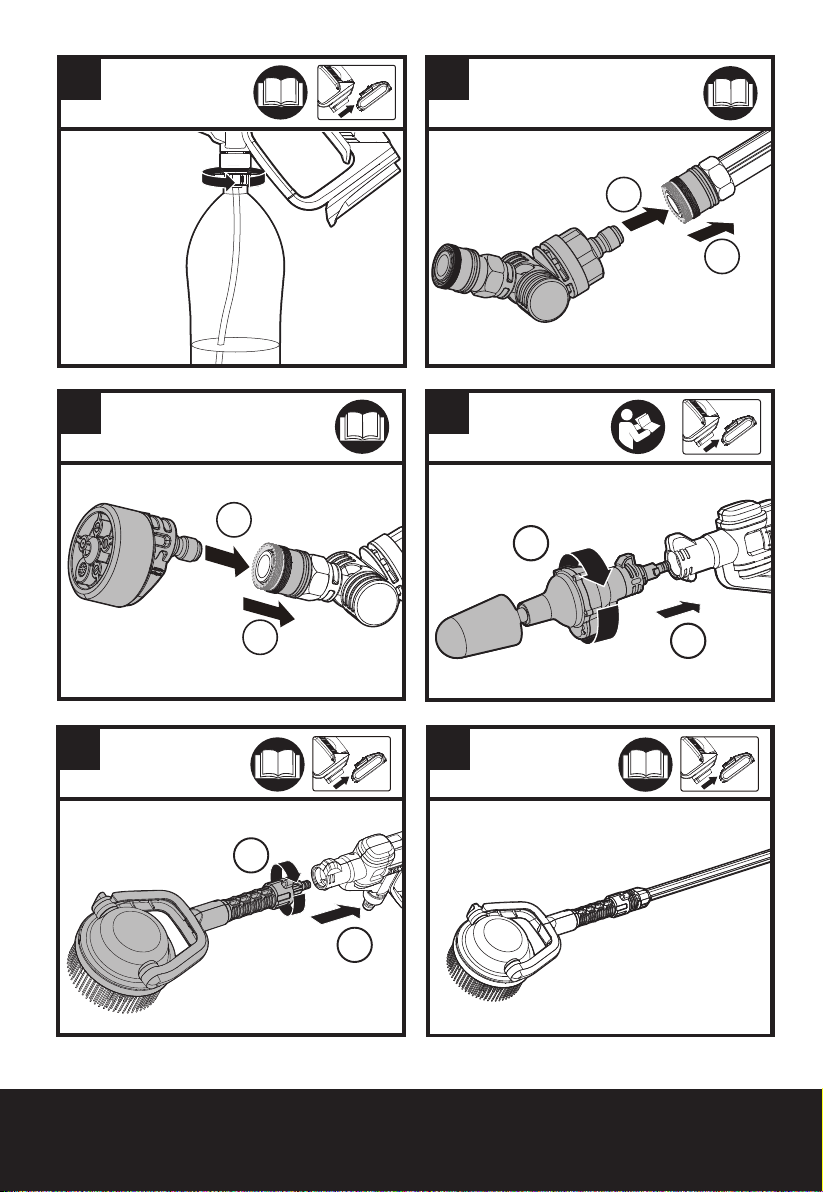

6. Bottle cap connector (WA4038, sold
separately)
The bottle cap connector accessory allows the tool
to directly connect with most 2 Liter bottles with
approximately 1” openings. (NOTE: May not fit all
consumable soda and water bottles) (See Fig. P1, P2,
P3)
WARNING: Do not install the bottle cap connector

14
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9
accessory until it is ready to be used.The accessories
vents will leak liquid, if a bottle is installed, with the
machine lying on a surface.
7. Pivoting Quick Connect Adapter (WA4039,
sold separately)
The Pivoting Quick Connect Adapter allows power
cleaning tips to be fully adjusted up to 180° in any
direction. Ideal for cleaning around hard-to-reach
areas. Suitable for the HYDROSHOTTM power cleaner
and multi-spray nozzle (See Fig. Q1, Q2)
8. Rotary Cleaning Brush (WA4042, sold
separately)
The rotary cleaning brush accessory easily snaps into
the tool for cleaning sensitive surfaces and around
tight spaces. Suitable for the HYDROSHOTTM power
cleaner with/without the extension lance installed.
(See Fig. R)
9. Adjustable Power Scrubber (WA1820 /
WA1821), sold separately)
The water powered rotary scrubber accessory
easily snaps into the tool for cleaning hard surfaces.
Suitable for the HYDROSHOTTM power cleaner with/
without the extension lance installed. (See Fig. S,
T, U)The soft scrubber (WA1820) is applicable for
sensitive surfaces and the hard bristle scrubber
(WA1821) is applicable for cleaning hard surfaces
(not recommended for cars).
MAINTENANCE
Remove the battery pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Inspect the product for damaged or worn parts
before each use. Do not operate it if you find
damaged or worn parts. Contact your supplier or the
manufacturer for replacement parts.

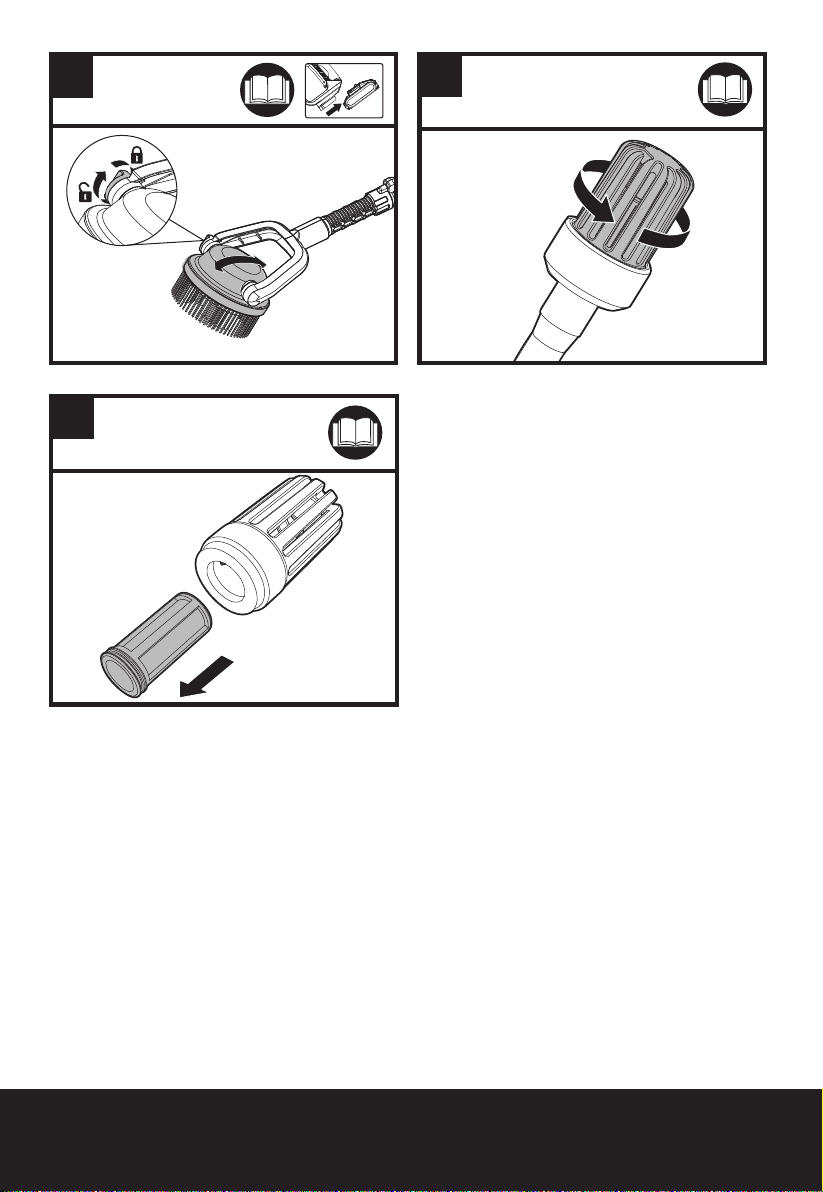

Hose filter maintenance
Remove the hose filter from the hose and get out
the strainer. Rinse the parts with clean water before
reassembling. (See Fig. V1, V2)
Filter screen maintenance
Remove the hose adapter to get the filter screen.
(See Fig. E1, E2) Rinse it with clean water before
reassembling.
Note: When retightening the hose adapter, please
tighten securely. Otherwise, it may not draw any
water for proper operation.
WARNING: Any other servicing should be
performed by an authorized service
representative.
CLEANING/STORAGE
Before Storage, completely drain all the water from
the machine and hose.
Clean the moulded plastic housing of the machine
using a soft brush and clean cloth. Do not use water,
solvents or polishes. Store in a secure and dry place
out of the reach of children. Do not place other
objects on the product.
Store the machine and the accessories in a frost free
place.

15
2 in 1: Portable Power Cleaner/Water Sprayer
WG620E WG620E.2 WG620E.4
WG620E.5 WG620E.6 WG620E.7 WG620E.9
TROUBLESHOOTING
Symptom Possible causes Solution
Machine turns on but it does
not draw any water or there
is not sufficient pressure.
Power nozzle is too high from the
water source surface. Lower the machine below 5ft/1.5m.
Hose filter is blocked.
Take out the hose filter and rinse
the parts with clean water. (See Fig.
V1, V2)
The users garden hose is not well
connected to the machine.
Check and reattach the garden hose
tightly. (See Fig. E1, E2, E3)
Hose adapter looses.
The filter screen is missing. (See
Fig. E2)
Tighten the hose adapter securely
with a spanner.
Contact Worx service agent to get a
filter screen.
Pump, hose, or other parts are
frozen due to outside temperatures.
Wait for the pump, hose or other
parts to thaw.
Hose kinks. Straighten out the hose.
Multi-spray nozzle leaks.
The nozzle pattern does not spray
correctly.
Make sure the nozzle pattern symbol
aligns with the indicator mark on tool.
Fixing nail of the multi-spray nozzle
loosens. Tighten it with a hex key.
Outlet pressure increases
suddenly. Multi-spray nozzle is blocked. Replace with a new multi-spray nozzle.
Machine drains out water
after stopping.
There is water remaining in the
lance and pump after stopping.
Drain all the water completely
before storage.
Soap accessory cannot spray
out any detergent. Blockage in the soap bottle. Clean it with fresh water.
Machine does not start.
The battery pack is not attached well. Reinstall the battery pack.
Battery pack is empty. Replace with a new battery pack or
recharge the battery pack.
Defective battery. Replace with a new battery pack.
Machine pressure is not
consistent.
Additional air could be sucked into
the machine.
Check connection between the hose
adapter and the hose.
It is at low pressure setting. No action need.
Machine stops automatically.
Battery pack is empty. Replace with a new battery pack or
recharge the battery pack.
The multi-spray nozzle is blocked.
The current protection is activated.
Remove the multi-spray nozzle and
turn on the machine. If the machine
works normally, replace with a new
multi-spray nozzle.
Positec Australia Pty Limited
10 Corporate Blvd Bayswater, VIC 3153, Australia

Copyright © 2020, Positec. All Rights Reserved.
AR01513901
www.worx.com
