Worx W829E.X Series User manual

WG829E W829E.X
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
20V Yard Sprayer

20V Yard Sprayer
2
WG829E W829E.X
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1 WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2 ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3 PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may resultin serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles. A careless
action can cause severe injury within a fraction of a
second.
4 POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.

3
20V Yard Sprayer WG829E W829E.X
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
5 BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and
do not charge the battery pack or tool
outside the temperaturerange specified
in the instructions. Charging improperly or at
temperatures outside the specified range may
damage the battery and increase the risk of fire.
6 SERVICE
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPRAYER SAFETY WARNINGS
1. Know your sprayer. Read and understand the operator’s
manual and observe the warnings and instruction labels
affixed to the tool.
2. Do not use commercial grade chemicals or chemicals
for commercial or industrial purposes. Use only
consumer grade water-based lawn and garden chemicals.
3. Do not pour hot or boiling liquids into the tank. These
can weaken or damage the hose or tank.
4. Do not use caustic (alkali) self-heating or corrosive
(acid) liquids in this air brush. These can corrode metal
parts or weaken the tank and hose.
5. Know the contents of the chemical being sprayed.
Read all Material Safety Data Sheets (MSDS) and
container labels provided with the chemical. Follow the
chemical manufacturer’s safety instructions.
6. Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible
serious personal injury.
7. Do not spray flammable material and any material
where the hazard is not known.
SAFETY WARNINGS FOR BAT
TERY PACK
a) Do not dismantle, open or shred cells or battery
pack.
b) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer
where they may short-circuit each other or be
short-circuited by conductive materials. When
battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid
storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow the
liquid to come into contact with the skin or eyes.
If contact has been made, wash the affected area
with copious amounts of water and seek medical
advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
h) Battery pack needs to be charged before use.
Always refer to this instruction and use the
correct charging procedure.
i) Do not maintain battery pack on charge when
not in use.
j) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
k) Recharge only with the charger specified
by Worx. Do not use any charger other than
that specifically provided for use with the
equipment.
l) Do not use any battery pack which is not
designed for use with the equipment.
m)Keep battery pack out of the reach of children.
n) Retain the original product literature for future
reference.
o) Remove the battery from the equipment when
not in use.

20V Yard Sprayer
4
WG829E W829E.X
p) Dispose of properly.
q) Do not mix cells of different manufacture,
capacity, size or type within a device.
r) Keep the battery away from microwaves and
high pressure.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Warning
Li-Ion battery This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will then
be recycled or dismantled in order to
reduce the impact on the environment.
Battery packs can be hazardous for the
environment and for human health since
they contain hazardous substances.
Do not burn
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not dispose
of waste batteries as unsorted municipal
waste.
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check
with your local authorities or retailer for
recycling advice.

10
11
9
6
1
12
5
2
3
4
7
11
11
10
10
11
9
8

F3
B4
B3
H2
H1
J
I
G2
B1 B2
E
F2
K
G2
1
2
F1
G1
CD
A
100%
0%
100%
0%
L1
L2
F3

F3
B4
B3
H2
H1
J
I
G2
B1 B2
E
F2
K
G2
1
2
F1
G1
CD
A
100%
0%
100%
0%
L1
L2
F3

F3
B4
B3
H2
H1
J
I
G2
B1 B2
E
F2
K
G2
1
2
F1
G1
CD
A
100%
0%
100%
0%
L1
L2
F3

F3
B4
B3
H2
H1
J
I
G2
B1 B2
E
F2
K
G2
1
2
F1
G1
CD
A
100%
0%
100%
0%
L1
L2
F3

20V Yard Sprayer
10
WG829E W829E.X
COMPONENT LIST
1. PRESSURE RELEASE VALVE
2. AIR COMPRESSOR PUMP
3. BATTERY PACK 
4. HANDLE
5. POWER BUTTON
6. LED LIGHT
7. TANK
8. HOSE
9. SHUTOFF LEVER
10. WAND
11. ADJUSTABLE SPRAY NOZZLE
12. SHOULDER STRAP
* Not all the accessories illustrated or described are
included in standard delivery.
TECHNICAL DATA
WG829E WG829E.X **
Rated Voltage 20 V Max***
Pump Type Air compressor pump
No-load speed 6600 /min
Nominal spray-tank
capacity 5 L
Max. working pressure 0.18 MPA
Nominal flow rate 27 L/h
Unit Weight (bare tool) 1.85 kg
**X=1-999, A-Z, M1-M9 there are only used for different
customers, there are no safe relevant changes between
these models
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage is
18 volts.
Category Type Capacity
20V Battery WA3551 2.0 Ah
WA3551.1 2.0 Ah
20V Charger WA3880 2.0 A
We recommend that you purchase your accessories
listed in the above list from the same store that sold you
the lawn trimmer. Refer to the accessory packaging for
further details. Store personnel can assist you and offer
advice.
NOISE INFORMATION
A weighted sound pressure LpA = 63.46dB(A)
KpA 3dB(A)
A weighted sound power LwA =74.46dB(A)
KwA 3dB(A)
Wear ear protection
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined ac-
cording to EN 62841:
Vibration emission value:
ah<2.5 m/s2
Uncertainty K = 1.5m/s²
The declared vibration total value and the declared noise emission
value have been measured in accordance with a standard test
method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission
value may also be used in a preliminary assessment of exposure.
WARNING The vibration and noise emissions during
actual use of the power tool can differ from the declared
value depending on the ways in which the tool is used especially
what kind of workpiece is processed dependant on the following
examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is
sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration
and noise accessories are used.
And the tool is being used as intended by its design and these
instructions.
This tool may cause hand-arm vibration syndrome if its use
is not adequately managed.
WARNING To be accurate, an estimation of exposure
level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when
the tool is switched off and when it is running idle but not actually
doing the job. This may significantly reduce the exposure level
over the total working period.
Helping to minimise your vibration and noise exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep
well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and
noise accessories.
Plan your work schedule to spread any high vibration tool use
across a number of days.

11
20V Yard Sprayer WG829E W829E.X
OPERATING INSTRUCTIONS
NOTE Before using the tool, read the instruction
book carefully.
Intended Use:
This machine is intended for watering, spraying household
cleaners and other household items. It cannot be used for
other purposes.
ASSEMBLY & OPERATION
ACTION FIGURE
ASSEMBLY
Assembling the Shut-off Assembly, Wand
and Nozzle
Attach the shut-off to wand, and tighten
the nut securely. Then attach the nozzle to
the end of the wand and tighten securely.
NOTE Both sides of the wand are
interchangeable. The o-ring location can
also be adjusted as necessary.
NOTE Replace the O-ring if needed.
See Fig. A
Installing and Removing the Battery Pack See Fig. B1,
B2
Checking the Battery Charge Condition
NOTE: Fig. B3 only applies for the battery
pack with battery indicator light. See Fig. B3
Charging the Battery Pack
NOTE:
• The batteries are shipped uncharged.
Each battery must be fully charged before
the first use.
• More details can be found in charger’s
manual.
See Fig. B4
OPERATION
Filling the Tank
Fill the tank to the desired level, and you
can check the filling marks on the tank for
reference.
NOTE When using, preparing, handling,
spraying or disposing of chemicals, wear
appropriate personal protective equipment
as directed by the chemical manufacturer.
WARNING: Never use flammable or
combustible liquids, caustics, acids,
or hot water in this machine.

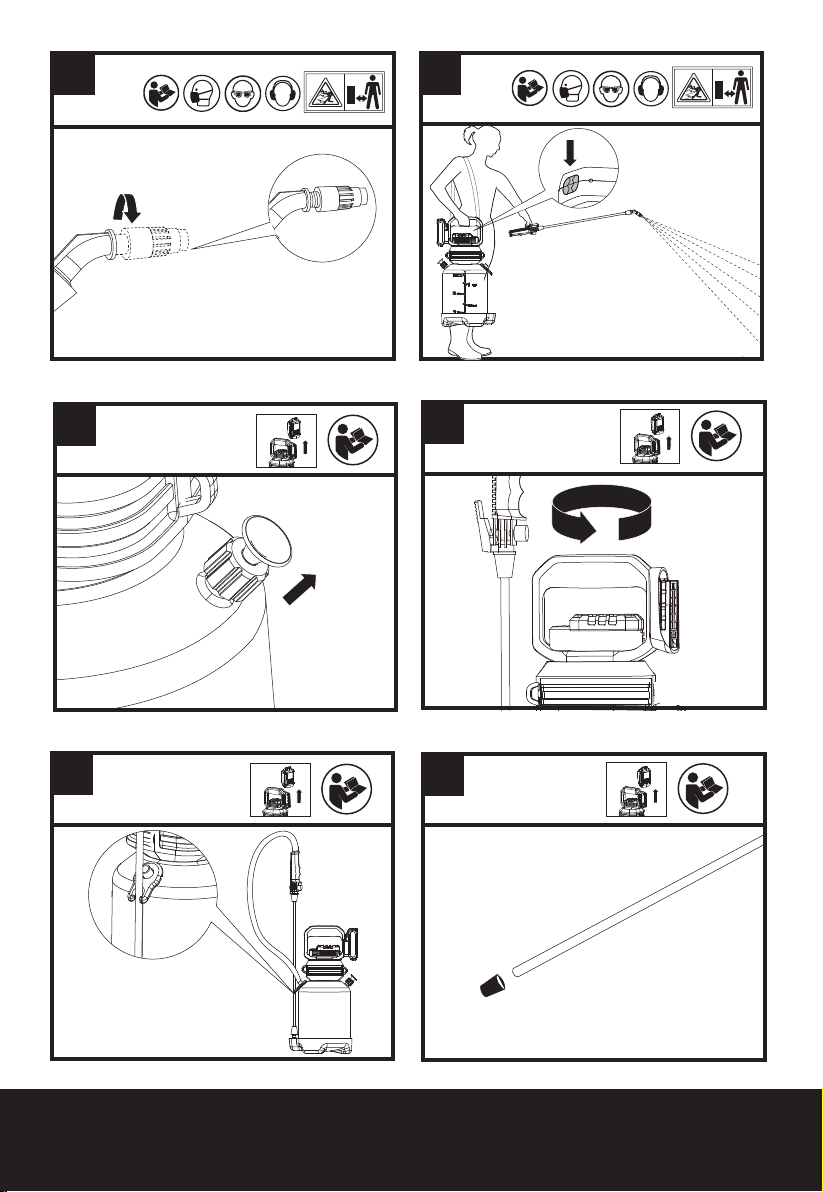

See Fig. C
Assembling the Pump
Install the pump into the tank and rotate
clockwise to tighten. See Fig. D
Assembling the Shoulder Strap See Fig. E
Starting
Press the power button to turn on the
sprayer, the LED light will be green and an
audible hum will be heard, which means the
machine is working. And it will stop once
the tank is pressurized, which may take 30
seconds to several minutes depending on
the size of the tank and the amount of liquid
inside.
NOTE: The greater amount of liquid in the
tank, the less time it takes to pressurize.
NOTE Once the sprayer is used and
releases a certain amount of liquid, the
pump will kick back on to maintain a steady
stream.
See Fig. F1
Spraying
Aim the wand in the desired direction and
depress the lever to spray. Release the
lever to stop.
For continuous spraying, please depress
the lever and lock it in the depressed
position.
NOTE When the battery power is low, the
LED light will flash green.After usage, turn
off the sprayer, then remove any chemical
and clean the machine.
See Fig.
F2, F3
Adjustable Sprayer Nozzle
The adjustable spray nozzle offers variable
spray patterns:
Loosen nozzle for a long, thin stream,
tighten for a wider mist.
NOTE Do not loosen the nozzle nut overly,
which may result in the water leak.
See Fig. G1,
G2
AFTER OPERATION
After each usage, press the power button
to turn off the machine. You must first pull
up the pressure release valve to release
the pressure inside of the tank. Then rotate
the pump handle counterclockwise to
remove the pump.
See Fig. H1,
H2
Storage
When not in use, store the wand as Fig. I
shown.
See Fig. I
MAINTENANCE
Before any maintenance, please depressurize
the sprayer by turn off the machine and pull of
the pressure release valve until all air pressure is
released.
Pump maintenance
Inspect the pump frequently whether any leaking occurs
around the pump seal. If leaking occurs, please contact
service center.

20V Yard Sprayer
12
WG829E W829E.X
Nozzle maintenance
Clean the openings of any obstructions or residue. Do not
use sharp tools that could scratch or damage the nozzle.
Hose maintenance
Clean the filter at the end of the hose regularly for a better
performance. (See Fig. J)
Shut-off maintenance
Remove the filter from the shut-off assembly. Clean the
debris inside and clean the filter by rinsing with cool, clean
water. (See Fig. K)
Replace the O- ring and rubber plug. (See Fig. L1, L2)
WARNING: Contact the solutions center before
attempting any other servicing.
CLEANING AND STORAGE
Empty any extra chemical from the tank. Use clean water
to thoroughly rinse the tank until all chemical and residues
are removed. Use a wet cloth to wipe the bottom of the
pump until all chemical and residues are removed. Do
not rinse the pump with a hose or submerge in water,
as water will enter the housing resulting in the pump
non-functional. With clean water in the clean tank, spray
water through the hose, shut-off lever, wand, and nozzle
for at least 30 seconds to rinse the chemical out. Remove
the pump. Do not put the pump down as it may cause the
pump is contaminated with dirt, grass clippings, or debris
that will enter the tank later. Hanging the tank upside down
to let the sprayer drain. Once the sprayer is dried, please
turn the sprayer upright and loosely attach the pump to
the tank to prevent debris from entering the tank. Store the
machine in a warm, dry place out of direct sunlight.
FOR BATTERY TOOLS
The ambient temperature range for the use and storage of
tool and battery is 0oC-45oC (32°F-113°F).
The recommended ambient temperature range for the
charging system during charging is 0oC-40oC (32°F-104°F).
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities or retailer
for recycling advice.
TROUBLESHOOTING
The following table gives problems and actions that you
can perform if your machine does not operate correctly.
Warning: Switch the machine off and remove the
battery prior to any troubleshooting.
Symptom Possible
causes Solution
Sprayer will not
turn on when
power button is
pressed.
Battery is not
charged. LED
light is not on. Charge Pump
Pump is
over heated,
damaged, or
non-functional.
Allow the battery
to cool down.
Replace Pump if
it is damaged or
non-functional.
Tank is already
pressurized
so the pump
is turned off
automatically.
Depress the
lever to see if the
sprayer starts
spraying.
Sprayer turns
on but will not
spray.
No liquid is in
tank. Add liquid to tank.
Shut-off is
clogged Clean the shut- off
Nozzle is
clogged. Clean the nozzle..
Pump is not
attached tightly
to the tank
Tighten pump to
tank.
Sprayer turns
on but only
sprays at a low
pressure.
Tank has
not been
pressurized yet.
Allow time
for pump to
pressurize tank
(at least 20
seconds).
Air leaking from
tank at seal. Tighten pump to tank.
Tank seal is
damaged. Replace tank seal.
Shut-off is
clogged. Clean the shut- off
Nozzle is
clogged. Clean the nozzle.
Hose leaks at
the tank
Cracked, swollen
or faulty hose. Replace shut-off assembly.
Damaged
connection. Replace shut-off assembly.

13
20V Yard Sprayer WG829E W829E.X
Hose leaks at
the shut-off.
Cracked, swollen
or faulty hose. Replace shut-off assembly.
Damaged
connection. Replace shut-off assembly.
Poor Spray
Performance
Tank has
not been
pressurized yet. Turn on pump.
Nozzle is
partially
clogged. Clean the nozzle.
Nozzle is
damaged. Replace the nozzle.
Shut-off is
clogged Clean the shut- off

20V Yard Sprayer
14
WG829E W829E.X
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery operated sprayer
Type WG829E WG829E.X (82-designation of machinery,
representative of sprayer)
Function spraying liquids
Complies with the following Directives:
2006/42/EC
2011/65/EU&(EU)2015/863
2014/30/EU
Standards conform to
EN 62841-1, EN 50580, EN 55014-1, EN 55014-2
The person authorized to compile the technical file,
Name: Marcel Filz
Address: Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2022/01/27
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

15
20V Yard Sprayer WG829E W829E.X
DECLARATION OF
CONFORMITY
We,
Positec (UK & Ireland) Ltd
PO BOX 6242, Newbury, RG14 9LT, UK
On behalf of Positec declare that the product
Description Battery operated sprayer
Type WG829E WG829E.X (82-designation of machinery,
representative of sprayer)
Function spraying liquids
Complies with the following regulations:
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment
Regulations
Standards conform to
BS EN 62841-1, BS EN 50580, BS EN 55014-1, BS EN
55014-2
The person authorized to compile the technical file,
Name: Jim Kirkwood
Address: Positec (UK & Ireland) Ltd
PO BOX 6242, Newbury, RG14 9LT, UK
2022/01/27
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Copyright © 2022, Positec. All Rights Reserved.
V1-UK-WG829E WG829E.X-M-20220207
www.worx.com
