EN
2 in 1: Portable Power
Cleaner/Water Sprayer
10
PRODUCT SAFETY
GENERAL SAFETY WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to
follow the warnings and
instructions may result in
electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future
reference.
- This appliance can be used
by persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not
play with the appliance.
- The appliance is only to be
used with the power supply
unit provided with the
appliance.
Additional safety warnings
1. The liquid must not be
directed towards equipment
containing electrical
components.
2.Remove or disconnect
the battery pack after use
and before carrying out
user maintenance on the
appliance.
3.The appliance shall not be
left unattended while it is
connected to the battery
pack.
4.The appliance is not to be
used if it has been dropped,
if there are visible signs of
damage or if it is leaking.
5.Keep the appliance out of
reach of children when it is
energized.
Safety Warnings for
battery pack
a) Do not dismantle, open
or shred cells or battery
pack.
b) Do not short-circuit a
battery pack. Do not
store battery packs
haphazardly in a box or
drawer where they may
short-circuit each other
or be short-circuited by
conductive materials.
When battery pack is not
in use, keep it away from
other metal objects, like
paper clips, coins, keys,
nails, screws or other small
metal objects, that can
make a connection from
one terminal to another.
Shorting the battery
terminals together may
cause burns or a fire.
c) Do not expose battery
pack to heat or fire.
Avoid storage in direct
sunlight.
d) Do not subject battery
pack to mechanical
shock.

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
11
e) In the event of battery
leaking, do not allow
the liquid to come into
contact with the skin
or eyes. If contact
has been made, wash
the affected area with
copious amounts of
water and seek medical
advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g) Keep battery pack clean
and dry.
h) Wipe the battery pack
terminals with a clean
dry cloth if they become
dirty.
i) Battery pack needs to
be charged before use.
Always refer to this
instruction and use
the correct charging
procedure.
j) Do not maintain battery
pack on charge when
not in use.
k) After extended periods
of storage, it may be
necessary to charge and
discharge the battery
pack several times
to obtain maximum
performance.
l) Battery pack gives its
best performance when
it is operated at normal
room temperature (20°C
± 5°C).
m)When disposing of
battery packs, keep
battery packs of
different electrochemical
systems separate from
each other.
n) Recharge only with the
charger specified by
WORX. Do not use any
charger other than that
specifically provided for
use with the equipment. A
charger that is suitable for
one type of battery pack
may create a risk of fire
when used with another
battery pack.
o) Do not use any battery
pack which is not
designed for use with
the equipment.
p) Keep battery pack out
of the reach of children.
q)Retain the original
product literature for
future reference.
r) Remove the battery
from the equipment
when not in use.
s) Dispose of properly.

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
12
SYMBOLS
Warning
Read operator’s manual
Do not expose to rain or water
Do not burn
Remove battery from the socket
before carrying out any adjust-
ment, servicing or maintenance.
Machine not suitable for
connection to the potable water
mains.
Waste electrical products
must not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local authorities or retailer
for recycling advice.
Do not dispose of batteries.
Return exhausted batteries to
your local collection or recycling
point.
xINR18/65-y:
Cylindrical lithium Ion battery
cells with max diameter of 18mm and max height
of 65mm; “x” represents a number cells serial
connected, blank if 1; “-y” represents a number of
cells paralleled connected, blank if 1.

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
13
1. PRESSURE SETTING SWITCH
2. LOCK-OFF SWITCH
3. BATTERY PACK RELEASE BUTTON
4. BATTERY PACK *
5. ON/OFF SWITCH LEVER
6. HOSE ADAPTER
7. POWER NOZZLE
8. EXTENSION LANCE
9. SHORT LANCE
10. NOZZLE ADAPTER
11. MULTI-SPRAY NOZZLE
12. FIXING NAIL
13. HOSE CONNECTOR
14. HOSE FILTER
15. HOSE CLIP
16. HOSE
17. FLOATER
18. SOAP BOTTLE*
19. BRUSH*
20. FOLDABLE WATER BUCKET*
21. CARRY BAG
22. FILTER SCREEN (SEE FIG. G2)
23. TURBO NOZZLE *
24. WINDOW SQUEEGEE WITH WATER SPRAYER*
25. BOTTLE CAP CONNECTOR*
* Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type Designation: WG629E WG629E.1 WG629E.9 WG629E.91 (620-649 - designation of
machinery, representative of battery-powered washer)
WG629E WG629E.1 WG629E.9 WG629E.91
Charger voltage 220-240V~50/60Hz / /
Voltage 20 V Max**
Pressure H: max 22bar; L: max 6.5bar
Max water flow rate 120 L/h
Max. inlet water pressure 0.5 MPa
Suction height max 1.5m
Machine weight(with lance) 1.7kg 1.3kg
**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
NOISE DATA
A weighted sound pressure LpA: 72.4dB(A)
A weighted sound power LwA:87dB(A)
KpA 3.0dB(A)
Wear ear protection

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
14
VIBRATION INFORMATION
Typical weighted vibration ah= 1.851 m/s2K= 1.5 m/s2
The declared vibration total value may be used for comparing one tool with another, and may also be used in a
preliminary assessment of exposure.
WARNING:The vibration emission value during actual use of the power tool can differ from the declared
value depending on the ways in which the tool is used dependant on the following examples and other
variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
Using the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also
take account of all parts of the operating cycle such as the times when the tool is switched off and when it
is running idle but not actually doing the job.This may significantly reduce the exposure level over the total
working period.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
WG629E WG629E.1 WG629E.9 WG629E.91
Hose (6m) 1 1 1 1
Short lance 1 1 1 1
Extension lance 1 1 1 1
Multi-Spray nozzle 1 1 1 1
Carry bag 1 1 1 1
Battery pack (WA3551) 1 1 / /
Charger(WA3760) 1 1 / /
Brush (WA4048) / 1 / 1
Soap bottle (WA4036) / 1 / 1
Foldable water bucket (WA4015) / 1 / 1
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
15
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
This tool is intended for cleaning and watering.
ASSEMBLY & OPERATION
ACTION FIGURE
BEFORE OPERATION
Installing the battery pack See Fig. A1
Removing the battery pack See Fig. A2
Checking the battery condition See Fig. A3
Charging the battery pack
More details can be found in charger’s
manual
See Fig. A4
ASSEMBLY
NOTE: The power nozzle has two
working modes: short lance only and
short lance used together with
extension lance.
Working mode 1
Attaching short lance to the power nozzle
NOTE: When attaching, align the
two projections on the lance with the
grooves of the power nozzle as shown
in Fig. B.
See Fig. B
Attaching the Multi-spray nozzle
NOTE: When attaching, rotate the
nozzle left and right to make sure the
nozzle fully seated into position and
gently pulling it to make sure it is
locked into position securely.
See Fig. C
Working mode 2
Attaching extension lance to the power
nozzle
Attaching short lance to the extension
lance
NOTE: When attaching, align the
two projections on the lance with the
grooves of the power nozzle as shown
in Fig. D, E.
See Fig.
D, E
Attaching the hose to the power nozzle
NOTE: After the hose is attached, check
the connection by gently pulling upon
the hose. It should not be pulled off.
See Fig.
F1, F2
Attaching your own water hose
(optional)
1. Remove the hose adapter
2. Attach the home garden hose with
suitable connectors
NOTE: Besides the hose supplied, you
can also connect the power nozzle to
your own water hose with suitable
connectors.
NOTE: Check whether the filter screen
is missing before retightening the hose
adapter. When retightening the quick
hose adapter, please tighten securely.
Otherwise, it may not draw any water
for proper operation.
See Fig.
G1, G2, G3
OPERATION
WARNING: The supplied
battery is not waterproof. To
avoid risk of battery failure,
protect the battery from water
exposure during use. Store the
tool and battery in a dry place
after use.
Pressure setting
Your power nozzle has two pressure
modes. High pressure mode is
suitable for removing strong stains,
while low pressure mode applies
to light duty and watering.
See Fig. H
Start
NOTE: At the first use, you need to
empty the air in hose, place the
power nozzle below waist level
(<1.5m/5ft) and set it at high pressure.
Do not start working until the water
goes up along the hose and
sprays out.This could take up to 30
seconds or more depending on
the fresh water source.
See Fig. I
Selecting the nozzle pattern
NOTE: Choose a suitable nozzle pattern
according to your work. Spray
patterns 0o, 15o, 25oand 40oare
applicable for cleaning, and the spray
pattern with the symbol is best
suitable for watering.
WARNING: Do not shift the
nozzle pattern when the tool is
powered on.
See Fig. J
Cleaning
WARNING: Do not connect the
machine to water supplies that
are dirty, rusty, muddy, or
corrosive. (Including window
cleaning liquids, plant foods, or
fertilizers etc.)
NOTE: For proper maintenance after
using with sea water, the product
should be rinsed by fresh water.
See Fig.
K, L

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
16
Watering See Fig. M
ATTACHMENT OF
ACCESSORIES
A number of accessories have been supplied with
this product and are required for use in different
applications. Do not attempt to use cleaning
without a lance or any accessories attached.
1. Soap bottle (WG629E.1 WG629E.91 only)
Soap bottle provides detergent suds for deeper
cleaning of dirt. It is used in conjunction with power
nozzle or extension lance. (See Fig. N1, N2)
2. Brush (WG629E.1 WG629E.91 only)
Brush is for cleaning cars, boats, motorcycles
etc. It is used in conjunction with power nozzle or
extension lance. (See Fig. O1, O2)
3. Foldable water bucket (WG629E.1
WG629E.91 only)
Foldable water bucket allows you to connect to water
supply when you are far away from a water source.
When not in use, it can be folded for storage. (See
Fig. P1, P2)
4. Turbo nozzle (WA4037, not included in
WG629E models)
The turbo nozzle delivers 360° of rotating water,
which cleans a larger area than the 0° water pattern
during the same time period. Recommend to use it
with high pressure setting (See Fig. Q)

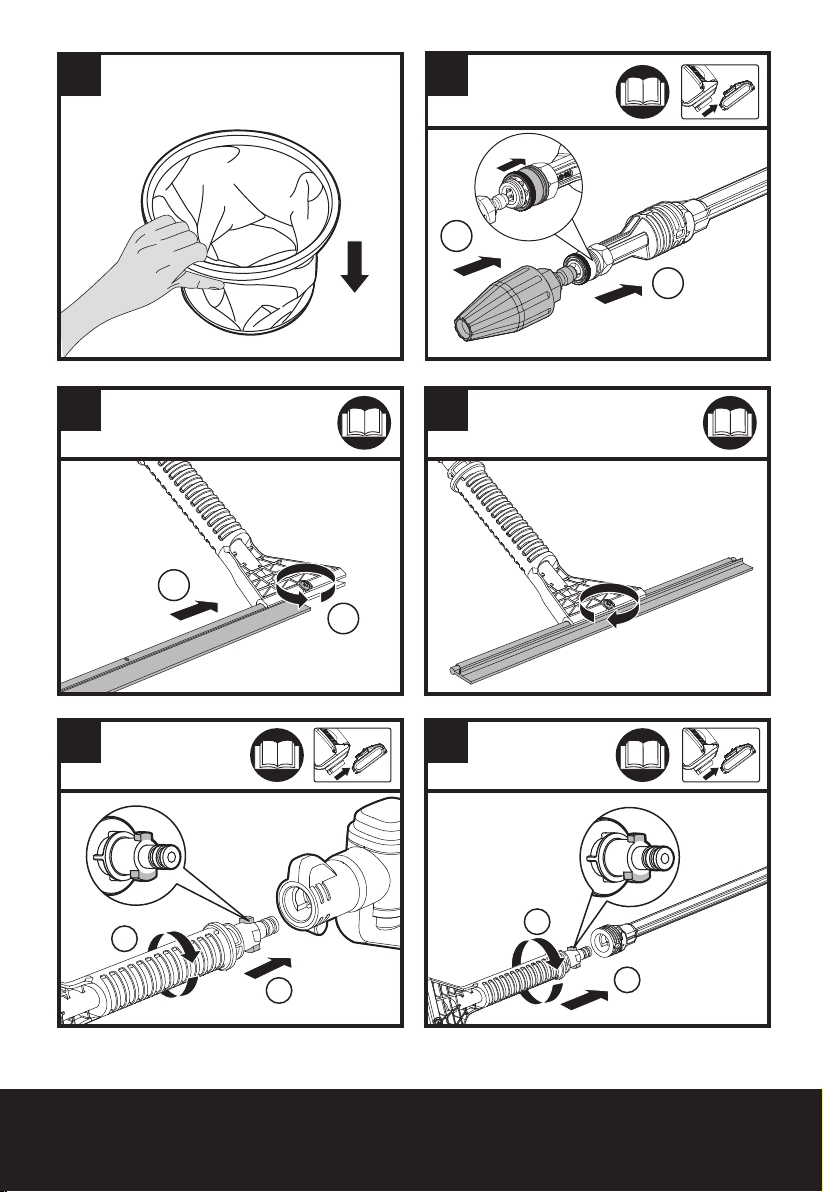

5. Window squeegee with water sprayer
(WA4050, not included in WG629E models)
The window squeegees quick connection easily
snaps into the tool to spray water or wipe off
water from glass or tiled surfaces. Suitable for the
HydroShot power cleaner or the extension lance.
(See Fig. R1, R2, R3, R4)
6. Bottle cap connector (WA4038, not
included in WG629E models)
The bottle cap connector accessory allows the tool
to directly connect with most 2 Liter bottles with
approximately 1” openings. (NOTE: May not fit all
consumable soda and water bottles) (See Fig. S1,
S2, S3)
WARNING: Do not install the bottle cap
connector accessory until it is ready to be used.
The accessories vents will leak liquid, if a bottle is
installed, with the machine lying on a surface.
MAINTENANCE
Remove the Battery Pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Inspect the product for damaged or worn parts
before each use. Do not operate it if you find
damaged or worn parts. Contact your supplier or the
manufacturer for replacement parts.
Hose filter maintenance
Remove the hose filter from the hose and get out
the strainer. Rinse the parts with clean water before
reassembling.(See Fig.T1,T2)
CLEANING/STORAGE
Before Storage, completely drain all the water from
the machine and hose.
Clean the moulded plastic housing of the machine
using a soft brush and clean cloth. Do not use water,
solvents or polishes. Store in a secure and dry place
out of the reach of children. Do not place other
objects on the product.
Store the machine and the accessories in a frost free place.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.

EN
2 in 1: Portable Power
Cleaner/Water Sprayer
17
TROUBLESHOOTING
Symptom Possible causes Solution
Machine turns on but it does
not draw any water or there
is not sufficient pressure.
Power nozzle is too high from the
water source surface.
Lower the machine below 5ft/1.5m.
Hose filter is blocked. Take out the hose filter and rinse
the parts with clean water. (See Fig.
T1,T2)
The users garden hose is not well
connected to the machine.
Check and reattach the garden hose
tightly. (See Fig. G3)
Hose adapter looses.
The filter screen is missing. (See
Fig. G2)
Tighten the hose adapter securely
with a spanner.
Contact WORX service agent to get a
filter screen.
Pump, hose, or other parts are
frozen due to outside temperatures.
Wait for the pump, hose or other
parts to thaw.
Hose kinks. Straighten out the hose.
Multi-spray nozzle leaks.
The nozzle pattern does not spray
correctly.
Make sure the nozzle pattern symbol
aligns with the indicator mark on tool.
Fixing nail of the multi-spray nozzle
loosens.
Tighten it with a hex key.
Outlet pressure increases
suddenly.
Multi-spray nozzle is blocked. Replace with a new multi-spray
nozzle.
Machine drains out water
after stopping.
There is water remaining in the
lance and pump after stopping.
Drain all the water completely
before storage.
Soap accessory cannot spray
out any detergent.
Blockage in the soap bottle. Clean it with fresh water.
Machine does not start.
The battery pack is not attached well. Reinstall the battery pack.
Battery pack is empty. Replace with a new battery pack or
recharge the battery pack.
Defective battery. Replace with a new battery pack.
Machine pressure is not
consistent.
Additional air could be sucked into
the machine.
Check connection between the hose
adapter and the hose.
It is at low pressure setting. No action need.
Machine stops automatically.
Battery pack is empty. Replace with a new battery pack or
recharge the battery pack.
The multi-spray nozzle is blocked.
The current protection is activated.
Remove the multi-spray nozzle and
turn on the machine. If the machine
works normally, replace with a new
multi-spray nozzle.

1918
EN
2 in 1: Portable Power
Cleaner/Water Sprayer
18
DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product
Description Battery-operated washer
Type WG629E WG629E.1 WG629E.9
WG629E.91 (620-649 - designation of
machinery, representative of battery-powered
washer)
Function Cleaning and watering
Complies with the following Directives:
2006/42/EC, 2014/30/EU, 2011/65/EU,
2000/14/EC amended by 2005/88/EC
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 83.4 dB(A)
- Declared Guaranteed Sound Power Level 87 dB(A)
Standards conform to
EN 60335-1, EN 60335-2-54, EN 62233
EN ISO 3744, EN 55014-1, EN 55014-2
The person authorized to compile the technical file,
Name: Marcel Filz
Address: Positec Germany GmbH, Grüner
Weg 10, 50825 Cologne, Germany
2018/07/30
Allen Ding
Deputy Chief Engineer,Testing & Certification
PositecTechnology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

1918
2 в 1: Мойка высокого
давления/Опрыскиватель RU
БЕЗОПАСНОСТЬ
ПРОДУКТА
ОБЩИЕ
ПРЕДУПРЕЖДЕНИЯ О
БЕЗОПАСНОСТИ
ПРЕДУПРЕЖДЕНИЕ:
Прочтите все
предупреждения о
безопасности и все
инструкции. Несоблюдение
предупреждений и инструкций
может привести к поражению
электрическим током,
воспламенению и / или
серьезной травме.
Сохраните все
предупреждения
и инструкции
для дальнейшего
использования.
- Данное устройство
может использоваться
лицами с ограниченными
физическими и умственными
способностями или
отсутствием опыта и знаний,
если им был предоставлен
надзор или инструкция
прибора. Дети не должны
играть с инструментом.
- Прибор должен
использоваться только
с блоком питания,
поставляемым с прибором.
Дополнительные
предупреждения о
безопасности
1. Жидкость не должна
быть направлена на
оборудование, содержащее
электрические компоненты.
2. Снимите или отсоедините
аккумуляторную батарею
после использования
и перед проведением
обслуживания.
3. Инструмент не должен
оставаться без присмотра
при подключенной батарее.
4. Устройство не должно
использоваться, если его
уронили, есть видимые
признаки повреждения или
если есть утечка.
5. Храните прибор в
недоступном для детей
месте, когда он находится
под напряжением.
ПРЕДУПРЕЖДЕНИЯ
БЕЗОПАСНОСТИ ДЛЯ
АККУМУЛЯТОРНОЙ
БАТАРЕИ
a)Не разбирайте, не
открывайте ячейки или
батарейный блок.
b)Не замыкайте
аккумуляторную
батарею. Не храните
беспорядочно
аккумуляторы в
коробке или ящике, где
они могут замыкаться
друг с другом или
быть закорочены
проводящими
материалами.
Когда аккумулятор не
используется, держите

2120
2 в 1: Мойка высокого
давления/Опрыскиватель RU
его подальше от других
металлических предметов,
таких как скрепки,
монеты, ключи, гвозди,
винты или другие мелкие
металлические предметы,
которые могут замкнуть
контакты. Замыкание
контактов аккумулятора
может привести к ожогам
или пожару.
c)Не подвергайте
аккумуляторную
батарею воздействию
тепла или огня.
Избегайте попадания
прямых солнечных
лучей.
d)Не подвергайте
аккумуляторную
батарею
механическому удару.
e)В случае утечки
батареи не допускайте
контакта жидкости с
кожей или глазами.
Если контакт был
сделан, промойте
пораженный участок
обильным количеством
воды и обратитесь
за медицинской
помощью.
f)Немедленно
обратитесь за
медицинской
помощью, если ячейка
или аккумуляторная
батарея были
проглочены.
g)Держите аккумулятор
в чистоте и сухом
состоянии.
h)Протрите клеммы
аккумуляторной
батареи чистой сухой
тканью, если они
загрязнились.
i) Перед использованием
батареи ее необходимо
зарядить. Всегда
обращайтесь к
этой инструкции
и используйте
правильную процедуру
зарядки.
j) Не храните
аккумулятор в
зарядном устройстве,
когда он не
используется.
k)После
продолжительных
периодов хранения
может потребоваться
несколько раз
зарядить и разрядить
аккумуляторную
батарею, чтобы
получить
максимальную
производительность.
л)Батарейный блок
обеспечивает
максимальную
производительность
при работе при
нормальной комнатной
температуре (20°C ±
5°C).
m)При утилизации
аккумуляторных
