FOREWORD
Dear customers:
First of all, thank you for choosing to buy "YADEA" products.
This manual introduced the knowledge and maintenance methods of electric scooter,
please read the manual carefully to understand the scooter performance, characteristics,
attention tips and maintenance knowledge, give full play to the advantages of "YADEA"
electric scooter to ensure safe driving in the best driving state.
For effective protection of this scooter ,Please be sure to use "original parts for YADEA
products". If you have any questions, please contact our authorized service station or our company.
First maintenance time:one month after buy the scooter.
Next maintenance time:three months after last maintenance.
CONTENTS
General Notice
Precautions
Safety Notice
Parts Info
Operation Guide
Battery & charger Use and Maintenance
Maintenance and Repair
Troubleshooting List
Technical Parameters
Maintenance Record
··············································································································································· 3
············································································································································· 4
·················································································································································· 5
········································································································································· 8
········································································································· 19
····························································································································· 22
·································································································································· 26
································································································································ 28
································································································································· 34
············································································································································ 2

General Notice
Please read this User Manual carefully for proper operation before riding the scooter.
For your safety, please check whether the parts are in good condition according to this User
Manual before riding. Contact your dealer in time in case of any problems.
Please follow the traffic laws. Slow down on slippery roads in bad weather to allow
greater braking distance for your safety.
Please pay attention to deep water. It may cause rusting or failure of the motor,
battery or other parts if water level reaches wheel axle.
Do not dismantle the scooter on your own. Please contact your dealer for replacement
or purchase of original parts.
Do not lend your scooter to those who can’t operate a scooter for others' safety
and preventing unnecessary damage to your scooter.
Please keep this User Manual properly.
Precautions
Rider and Passenger
The is not designed for a ride of more than 2 persons.
Riding Conditions：The is not designed for off-road use.
This User Manual should be deemed as a permanent document of G5. If this scooter is transferred
to others, this User Manual should also be handed over to the new owner.
Reproduction or reprint of any part of this User Manual is strictly prohibited.
Warning: Failure to follow the instructions herein may lead to serious casualties.
Attention: Failure to follow the instructions herein may lead to personal injury or scooter damage.
2 3

Safety Notice
Using a safety helmet and protective goggles is strongly advised.
You are advised to take proper training or exercise before using on open roads.
Please follow the Operation Guide to fully understand how to properly operate the scooter.
It should be noted that the braking distance in bad weather will be much longer.
Please avoid braking on paint markers, manhole covers and oil stains to prevent slipping.
Pay extra attention when riding through railway crossings, junctions, tunnels, and bridges.
Slow down if road conditions are unclear.
Do not use high beam indiscriminately. Continuous use of high beam may disturb the vision
of the drivers and pedestrians.
Do not use mobile phones or other electronic devices which may draw your attention while riding.
Do not change the lane without signaling. Changing the lane at will is one of the major causes for accidents.
When you need to change the lane, remember to switch on the Turn Signal Indicator first. Always
check the vehicles approaching from behind before changing the lane.

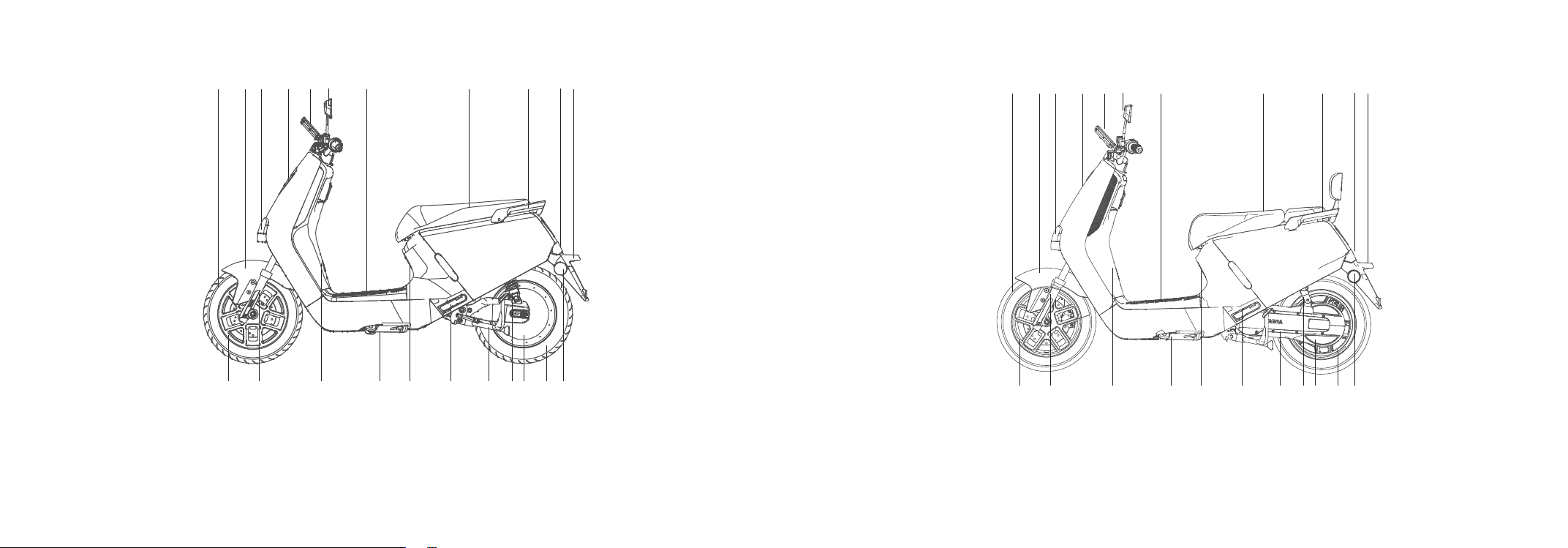

Parts Info(G5/G5Pro/G5S)
4 5
1.Left rear brake handle 2. Left handlebar 3. Left switch group 4. Left disc brake pump 5. Speedometer
6. Right disc brake pump 7. Right switch group 8. Throttle 9. Right front brake handle (upper part)
10.Hook 11. Power lock 12.USB charging hole (lower part)
1 2 3 4 5 6 7 8 9
10 11 12

Parts Info(G5Pro/G5S)Parts Info(G5)
6
1 2 3 4 5 6 7 8 9 10 11
1213141516171819202122
1.Front tire 2. Front fender 3. Headlight 4. LOGO light 5. Speedometer 6. Rear-view mirror 7. Batteries 8. Seat 9. Handrail
10. Taillight 11. Rear license light (upper part) 12. Side reflectors 13. Rear wheel 14. Motor 15. Rear absorbers 16. Main stand
17. Footrest 18. Charging hole 19. Side stand 20. VIN number 21. Front absorbers 22. Front wheel rim (lower part)
1.Front tire 2. Front fender 3. Headlight 4. LOGO light 5. Speedometer 6. Rear-view mirror 7. Batteries 8. Seat 9. Handrail
10. Taillight 11. Rear license light (upper part) 12. Side reflectors 13. Rear wheel 14. Motor 15. Rear absorbers 16. Main stand
17. Footrest 18. Charging hole 19. Side stand 20. VIN number 21. Front absorbers 22. Front wheel rim (lower part)
7
1213141516171819202122
1 2 3 4 5 6 7 8 9 10 11

Operation Guide
Dashboard Display Info (G5/G5Pro)
8 9
Operation Guide
Dashboard Display Info (G5S)
Ready for operation
GPS signal Bluetooth connection Message indication Telephone indication Battery power indication
Low battery indication
Driving current
Mileage displayCharging battery indication Speed display
Right turning light indicationLeft turning light indication
Motor failure indication Constant speed cruise Light failure indication Primary failure ECU failure indication
High beam indication Ready for operation
GPS signal Bluetooth connection Message indication Telephone indication Battery power indication
Low battery indication
Driving current Battery parallel connection
Mileage display
Charging battery indication Speed display
Right turning light indicationLeft turning light indication
Motor failure indication Constant speed cruise Light failure indication Primary failure ECU failure indication
High beam indication

Operation Guide
Power lock switch indication(G5S)
Operation Guide
Power lock switch indication(G5/G5pro)
10 11
OFF
ON
Seat lock
Lock hole
Push and rotate anticlockwise to lock the handle bar
OFF
ON
Lock hole
Seat lcok/Anti-theft lcok
push and rotate anticlockwise to lock the handle bar

High beam
Low beam
Turning light switch
Horn button
Turn left to turn on the left turning light
Turn right to turn on the right turning light
Stop in the middle is turn off the turning light
Constant speed cruise
Operation Guide
Left switch set indication(G5S)
Operation Guide
Left switch set indication(G5/G5pro)
High beam
Low beam
Turning light switch
Horn button
Turn left to turn on the left turning light
Turn right to turn on the right turning light
Stop in the middle is turn off the turning light
12
13

14 15
Warning light on
Warning light off
Light switch group
Shift switch
P-gear switch
Shift
Turn left to turn on the headlight manually,
with the headlight switch in the middle, and turn right to turn off the light.
The operation mode of starting the protection function (P gear) is as follows:
Unlock the P gear: Turn on the power lock and press the P-gear switch.
When the display interface of the instrument changes from the " P" to the " GO" ,
the P gear is unlocked and the whole scooter can ride at this time.
Locking of P gear: when the P gear is unlocked and the scooter is not riding,
press the P gear switch again and the P gear will be locked; Or if the motor stops
rotating for more than 120 seconds after riding, the p gear will be locked automatically.
After the P gear is locked, the instrument display interface will change to the " P", and
the whole scooter will not be able to ride at this time. If you want to ride the scooter,
you need to press P gear again.
Operation Guide
Right switch set indication(G5/G5pro/G5S)

Operation Guide

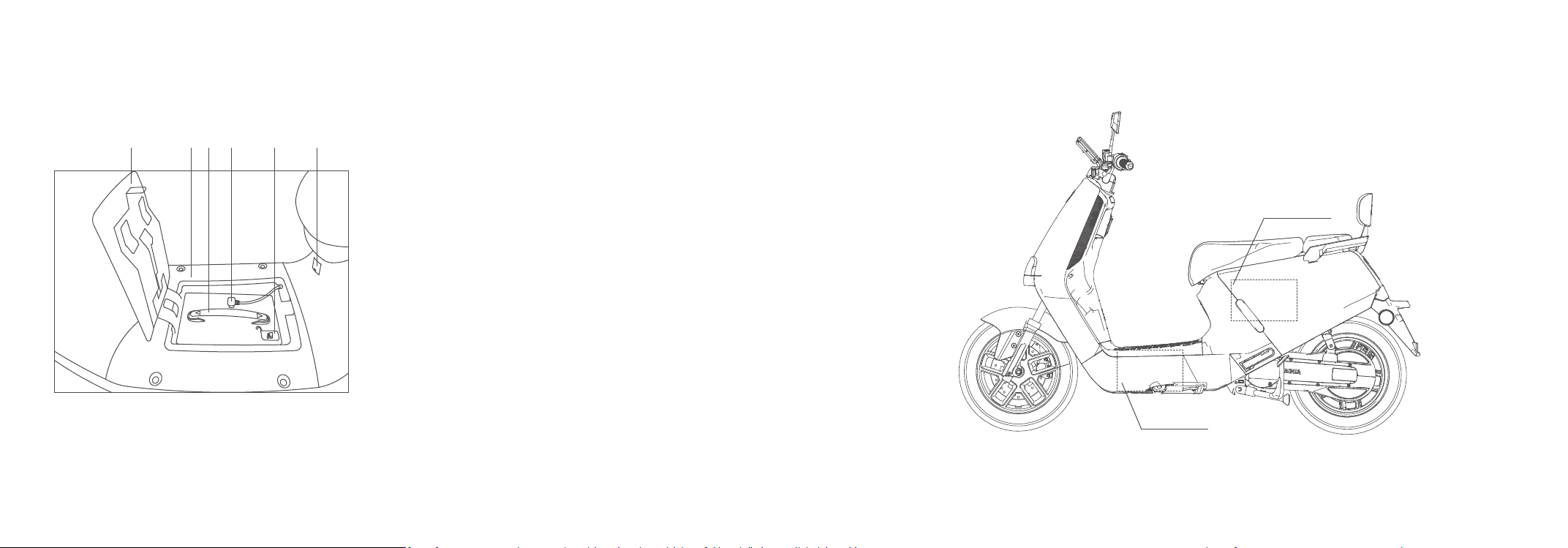

Battery carrying(G5pro/G5S)
16 17
Operation Guide
Battery carrying(G5)
1 2 3 4 5 6
Open the seat, close the air switch. Insert the key into the lock hole of the battery compartment to open
the battery compartment cover. Open the seat, close the air switch. Insert the key into the lock hole of the battery compartment
to open the battery compartment cover.
Battery 2
Battery 1
1. Battery cover
2. Footplate
3. Battery handle
4. Power wire plug
5. Battery charging and discharging socket
6. Charging hole

Operation Guide Battery&Charger Use and Maintenance
1. When the scooter is completely stopped, the turning light switch turns off and the key is turned to the OFF position.
2. When parking, people stand on the left side and flat ground to step on the pedal lever of the main support,
step down with force and lift up with right hand. When you leave the scooter, in order to prevent the scooter be stolen,
please be sure to lock the anti-theft lock and take away the key.
●General use instructions and warnings：
1.Never short circuit the discharge or charge terminals of the battery.
2.Never charge the battery by discharge terminals or discharge the battery by charge terminals.
3.Keep off the battery from fire and excessive heat. Never put the battery into fire.
4.To avoid damage to the battery, never subject it to intense physical shock or severe vibration or impact .
5.Protect the battery from water or other moisture. Protect the discharge and charge terminals of the battery from rain
or water logging.
6.Operating temperature range when charge: 0~45℃
7.Operating temperature range when discharge：-20～45℃
8.Humidity while battery in working state：≤80% RH
9.Keep the battery away from children.
10.When the battery is not in use for an extended period of time, remove the battery from the load for storage.
11.If you have any questions about this battery or its usage,please do not hesitate to contact the customer service department.
12.Never disassemble the battery without permission If you failed to comply with the instructions and warnings described
above, you would be responsible for the deed.
1. Turn the power switch to the ON position, whether all kinds of lights are on, whether all switches are working,
whether the horn is ringing, and whether the gate switch is normal.
2. If there is no difference, lay down the main bracket to make the rear wheel touches the ground.
3. After seated correctly, turn on the power lock and press the p switch. when the display interface of the
instrument jumps from the " p" screen to the " GO" screen, the p is unlocked and the whole vehicle can ride at this time.
1. When braking, It is recommended to brake the rear wheel before the front wheel, The effect is the best.
2. After returning the throttle quickly, hold the brake handle tightly.
3. The best way is to brake slowly and then tighten it.
4. Do not brake sharply or turn sharply. Emergency braking and sharp steering are the main factors causing sideslip
or rollover, which are extremely dangerous.
●Locating
●Start the scooter
●Use of brake
18 19

Battery&Charger Use and Maintenance
●Storage，maintenance and transport
1.If the battery needs to be stored for an extended period , it should be kept at around 50% state of charge (or charge
the battery for 2~3hours after used up), and should be placed in a dry and ventilated circumstance. The battery
should be charged 2~3 hours every two months.If the battery fault caused by long time no charge,
the customer is responsible for the damage.
2.The battery should be kept in storage in a clean, dry and ventilated circumstance, it should be avoided to touch with the
corrosive substance and should be away from excessive heat and open flames.
3. Storage conditions for the battery: circumstance temperature -20～35℃, circumstance relative humidity: 5～65％RH.
4.The battery should be packed into the box for transport, it should be protected from intense physical shock,severe vibration,
impact, direct rays, or water logging. The vehicle can be automobile, train, shipping, airplane, etc.
●Charging battery:
1.Connect the battery to the charger, ensure the output terminal of the charger and the input terminal of the battery are
firmly connected.
2.After plug the charger into the wall outlet, the indicator LED will illuminate RED and the indicator LED will change to
GREEN.
3.When the battery is fully charged, disconnect the charger from the wall outlet before disconnecting the charger from the battery.
20 21

Maintenance and Repair
Attachment
NO Inspetion Item Daily 60 days
■● ■●
■●
■
■◆ ■◆ ■◆
■
■
■
■
■
■
■▲■▲■
■
■
●
■◆
◆
◆◆
◆
◆
▲
▲◆
▲◆
◆
◆
●▲
■●
180 days 360 days
Rotating the handle bar to check whether the steering parts are loose and worn
Whether the pedal parts are worn and whether rotation is flexible
Whether the tire pressure is properly and whether the tire is worn
Whether the lamp bulb is bright
Whether the brake shoe is worn or not
Whether the wheel rim is deflected or deflected
Whether the front fork, frame deflected
Whether the fasteners are looseed
Whether the brake is in good condition
Whether the horn is normal
Attention:
For scooters used by families,the maintenance schedule shall be carried out as specified in the above table.
Pay attention to non-family scooters（e.g.business,commercial,corporate,group purchase, lease）and maintain the schedule at half of the above table
Whether the charger wire is worn
Head tube, rear flat fork and shock absorption which connected with the frame
Remark: ■Check ▲Adjust ◆Replace ●Lubrication
1
2
3
4
5
6
7
8
9
10
11
12
Maintenance and Repair
Users are advised to have the scooter checked and maintained on a regular basis, even for the scooters that are not
used for a long time.
Regular Maintenance
Users are advised to have their scooters checked 2 months after purchased or with 500km travelled distance. Overall
check and maintenance is advised to be conducted every 6 months or 3000km thereafter. (detail as attachment)
Daily Maintenance
If any problem occurs during checks, please look through the Home Repair Instructions or send the scooter to the
dealer’s for checks and maintenance.
Scooter Washing
Please use neutral detergent and water to wash the scooter. Use soft cloth to wipe the scooter after washing to
prevent scratching.
22 23

Storage Method
●Short-time Storage:
1. Keep the scooter in flat, steady, well-ventilated and dry area.
2.Charge the battery to 50% full before storage to maximize battery life.
3.Avoid exposure under sunlight and rain to reduce damage or aging.
●Long-time Storage:
1. Remember to have a cycle of charge and a discharge at least every 2 months and charge the battery to 50%
full before storage to maximize battery life.
2.Charge the battery to 100% full after long-term storage.
3.Check all the parts carefully to make sure that there is no problem before riding it. If there's any problem,
take the scooter to your dealer for maintenance or repair.
Warning: Please take out the battery from the scooter when long-term storage.
Attention:
If the scooter is frequently used in overload, high-speed, bumpy or up/downhill riding conditions,
the maintenance cycle should be shortened.
For more guaranteed quality and longer service life, please use original parts, which are under normal warranty.
Warning:
If incapable of repair or adjustment on his/her own, the scooter owner is advised to send the scooter to the dealer’s
for maintenance and adjustment for the sake of safety.
Always choose a smooth surface road for repair and adjustment. If it’s necessary to repair the scooter during a ride,
please mind the traffic.
Warning:
Do not use pressure washer to wash the scooter, especially around the battery compartment.
Do not flush the rear inner mudguard, where the charger, controller and other parts are installed behind.
If the charging port on the scooter is wetted, please do not charge before the charger dries off.
Contacting your dealer is recommended.
24 25

Troubleshooting List
Malfunction Description
No output when switched on
Motor failure when turning the
twist grip after switched on
Battery charge failure
1.Dead battery
2.Batery not connected
1.Battery voltage is low
2.The power off switch is enabled
when pulling the brake lever
3.The Parking Mode has not been
turned off yet
1.Not properly connected
2.Battery temperature is
too high or too low
1.Check whether the plug
is loosened.
2.Wait for it to achieve normal
temperature
1.Charge the battery.
2.Do not pull the brake lever when
twisting the twist grip.
3.Check “Start the Scooter”
section. Check if the side
stand is on.
1.Charge the battery.
2.Check if it's properly connected
3.Replace Alarm
Causes Troubleshooting
26 27
Troubleshooting List
Malfunction Description
Dropping speed or range
Sudden stop during a ride
1.Low battery level
2.Under-inflation of tyres
3.Frequent braking and overload
4.Battery aging or normal capacity loss
5.Low battery capacity resulting
from low temperature
Dead battery
Identify the fault causes in reference to the meter panel fault codes.
Charge the battery
1.Charge the battery and check if the
plug is properly plugged in and
whether the charger is damaged.
2.Check the tyre inflation every time.
3.Develop good riding habits.
4.Replace the battery.
5.Normal situaiton.
Causes Troubleshooting

Technical Parameters(G5)
28 29
6-8h
45±1A
52.5V
DC Brushless
2300W
530±10 r/min
60V
≤3.1kw/h
13°
75kg
Charging time
Controller max.Current
Vqn
Motor type
Motor rated power
Rated motor speed
Rated voltage
Power consumption(100km)
Grade ability
Loading weight
Dimension (mm)
Wheel base (mm)
GW (kg)
Speed (km/h)
Mileage (per charge) (km)
Tyre (Front/Rear)
Tyre pressure (Front/Rear)
Battery type
Battery capacity
Charging voltage
1810 x 700 x 1150 mm
1270 mm
85±0.5kg
45km/h
55-65km
F: 90/90-12 R: 100/80-12
F: 175kpa R: 250kpa
Lithium
60V26Ah/60V32Ah
220V 50-60Hz
REMARK:The above data are obtained from laboratory tests.For vehicle specifications and standard configuration information in this manual
only for reference, please refer to the information provided in the actual place of purchase.

Dimension (mm)
Wheel base (mm)
GW (kg)
Speed (km/h)
Mileage (per charge) (km)
Tyre (Front/Rear)
Tyre pressure (Front/Rear)
Battery type
Battery capacity
Charging voltage
1810 x 700 x 1150 mm
1270 mm
85±0.5kg
45km/h
120-130km
F: 90/90-12 R: 100/80-12
F: 175kpa R: 250kpa
Lithium
60V/32Ah*2
220V 50-60Hz
6-8h (single set))
55A
52.5V
DC Brushless
3100W
440±10 r/min
60V
≤2.7kw/h
15°
75kg
Charging time
Controller max.Current
Vqn
Motor type
Motor rated power
Rated motor speed
Rated voltage
Power consumption(100km)
Grade ability
Loading weight
REMARK:The above data are obtained from laboratory tests.For vehicle specifications and standard configuration information in this manual
only for reference, please refer to the information provided in the actual place of purchase.
30 31
Technical Parameters(G5pro)

Dimension (mm)
Wheel base (mm)
GW (kg)
Speed (km/h)
Mileage (per charge) (km)
Tyre (Front/Rear)
Tyre pressure (Front/Rear)
Battery type
Battery capacity
Charging voltage
1825 x 700 x 1150
1290
85±0.5kg
80km/h
80km
F: 90/90-12 R: 100/80-12
F: 175kpa R: 250kpa
Lithium
72V/20Ah*2
220V 50-60Hz
8-10h
55A
63V
DC Brushless
3000W
2600±10 r/min
72V
≤2.9kw.h
15°
75kg
Charging time
Controller max.Current
Vqn
Motor type
Motor rated power
Rated motor speed
Rated voltage
Power consumption(100km)
Grade ability
Loading weight
REMARK:The above data are obtained from laboratory tests.For vehicle specifications and standard configuration information in this manual
only for reference, please refer to the information provided in the actual place of purchase.
32 33
Technical Parameters(G5S)

3534
Maintenance Record Maintenance Record
Date Malfuntion Description Malfuntion
Description
Service
Station Serviced by Remarks
Date Malfuntion Description Malfuntion
Description
Service
Station Serviced by Remarks

36
Maintenance Record
Date Malfuntion Description Malfuntion
Description
Service
Station Serviced by Remarks
