Product Intruduction
PRODUCT INTRODUCTION
PART1 Product Description
Attention
When unpacking the electric scooter, please carefully check the contents of the package. If any missing or damaged, please contact local
authorized service station or the after-sales E-mail: afterservice03@Yadea.com. It is recommended to retain the outer packaging for at least
15 days in case you need to ship the scooter in the future.
Installation toolsScrew × 6User Manual
Charging adapterCharger
PRODUCT INTRODUCTION
Component Diagram
Stem
Handlebar
Folding buckle
Turn signal
Rear lights
¦ěðƓƓěǡěČƧŭƓ
Dual-action disc brake
Kickstand
Folding wrench
HƓŭŢƧƓěǡěČƧŭƓ
Headlight
Charging port
Shock absorber of front cantilever
®ŁēěƓěǡěČƧŭƓ
Shock absorber of
rear cantilever
Drum brake
Product Accessories
PRODUCT INTRODUCTION
Instruction to Handlebar Function
Brake lever
Turn signal button Multi-function button
Folding latch
Electric throttle
Bell
Description Function Description
Function Description
Turn signal button
Electric throttle
Brake lever
Folding latch
Bell
Long press the button to turn on/ off
Short press * 1 for headlight switch
Short press * 2 for gear switch
Short press * 3 for metric switch
Power on/off the left/right turn signal.
ijƧěƓƐŭLJěƓŭŢǠƓƛƧƛŗŁēěċǍijŭŭƧƯŢƧŁŗƓěðČļŁŢĴðƛƐěěēŭij˚ŔŠļƧļěŢƐƓěƛƛŁƧƧŭ
accelerate and release to decelerate.
After power on, squeeze the brake lever, the scooter motor will brake and the tail
ŗŁĴļƧLJŁŗŗǡðƛļ
After folding the scooter, hook the latch of stem to the buckle for safety.
It is used to alert pedestrians
PRODUCT INTRODUCTION
Dashboard
Pedestrian Mode
Turn signal
Headlight
D Mode
Abnormal temperature
Bluetooth
Multifunction button
Speed
PRODUCT INTRODUCTION
Dashboard
Description Icon displayNo.
Turn signal
Speed
Speed Mode
Headlight
Bluetooth
Cruise control
Fault warning
Parking Mode
Battery level
1
2
3
4
5
6
7
8
9
10
Light up if the left/right turn button is pressed.
Light up if the headlight is turned on and light off if turned off.
Light up if the Bluetooth is connected and light off if disconnected.
Light up if the cruise control function is enabled.
In case of fault, the fault icon lights up and the fault code is displayed.
Light up if “Bluetooth Parking” is enabled via “Yadea” App.
Display the remaining battery of the scooter.
Icon
S MODE
Cruise control
Parking Mode
Fault warning
Battery level
X MODE
Switch between imperial (mph) and metric (km/h) systems via
“Yadea” App.
Show the current riding Pedestrian Mode, D Mode, S Mode,
and X Mode.
If the battery pack or electric thermometer overheats, the
overtemperature icon lights up.
Abnormal
temperature
Multi-function button
PRODUCT INTRODUCTION
PART2 Function Description
1
3
4
2
Press once & long press
Power on, and the screen lights up. (It will be turned off automatically after 10 min without operation.)
Press once or long press it to power off, and the screen lights off.
Press once & short press
Turn on/off the headlight.
Press twice & continually short press
CǍČŗŁČðŗŗǍƛLJŁƧČļƧļěsŭēěƛƧļěƛČŭŭƧěƓŁƛƛěƧƧŭ'sŭēěijŭƓƧļěǠƓƛƧƛƧðƓƧƯƐðijƧěƓēěŗŁdžěƓǍ
the scooter will keep the pre-shutdown Mode when it is turned on again after power-off.
Press three times & continually short press
Switch between the imperial (mph) and metric (km/h) systems.
#VVGPVKQPỽ6JG:OQFGKUFKUCDNGFD[FGHCWNVYJGPNGCXKPIVJGHCEVQT[CPFTGSWKTGFVQDGWPNQEMGFCHVGT
EQPPGEVKPIVQVJGUEQQVGTXKC;CFGC#22#HVGTWPNQEMKPI[QWECPUYKVEJTKFKPIOQFGUXKCRTGUUKPI
VJGOWNVKHWPEVKQPDWVVQP
Pedestrian Mode
D Mode
S Mode
X Mode
Mode Instruction
Extreme Speed Mode; apply stronger acceleration, recommended to
use after mastering the riding skills.
EN17128
6km/h
15km/h
25km/h
25km/h
UL
6km/h
15km/h
32km/h
32km/h
Push Mode; suitable for pushing the scooter to make beginners
familiar with riding.
Drive Mode; suitable for daily riding.
Sports Mode; recommended to use after mastering the riding skills.
The “Bluetooth parking” function is disabled by default before delivery, and can be enabled via “Yadea ” APP after the
scooter is bound.
In parking Mode, the screen is off and only the parking icon is displayed; the button function is locked, and the throttle
and Brake lever are disabled. In parking mode, if the battery runs out, the Mode is automatically canceled.
After parking for 6 hours, this Mode will be canceled automatically and the scooter will automatically shut down.
VŢƐðƓŔŁŢĴŠŭēěŁijƧļěƛČŭŭƧěƓŁƛēěƧěČƧěēƧŭdžŁċƓðƧěŭƓŠŭdžěƧļěċƯǗǗěƓLJŁŗŗðŗðƓŠðŢēƧļěijƓŭŢƧðŢēƓěðƓŗŁĴļƧƛǡðƛļ
until there is no abnormality.
Bluetooth Parking
The cruise control function can be enabled through the “Yadea ” APP.
After the scooter power on, in the D, S or X Mode, press the thumb throttle to maintain a constant position unchanged
for 8 seconds, the buzzer will beep once and the scooter will enter the cruise control Mode, then release the throttle,
and the scooter will continue to drive at the current speed.
When driving in cruise control Mode, hold the brake handle/press the thumb throttle again to disable the cruise control
function, and the scooter will return to normal driving control.
Attention:To avoid danger and accidents, do not use the cruise control function under complicated road conditions or
bad weather.According to regulatory requirements, only the UL version is suitable for this function, and the actual
product shall prevail.
Cruise control
The scooter’s tilting attitude can be detected over the ride. When the body tilts at an angle of 45°, the power supply of
the scooter will be automatically turned off to avoid secondary injury.
Gyroscope
The “Energy Recovery” function can be enabled through the “Yadea ” APP. Energy recovery intensity: Adjustable at
high, medium and low levels.
During the ride, squeeze the brake lever to activate the electronic brake, store electrical energy through the energy
recovery brake, and further convert it into driving energy.
Energy recovery
HOW TO USE
PART1 Scooter Assembly
Installation Steps
Connect the power cable within the handlebar to the
main line connector of the vertical stem, and install
the handlebar onto the vertical stem.
2
Lock the screws with the hex wrench within the
installation tool.
3
After installation completely, plug the charging
plug into the charging port and connect the
power supply to charge for 2-3 seconds to
activate the battery, and then you can turn on
the scooter to ride.
4
Unfold the stem and secure the folding wrench to
stabilize the scooter.
1
3ʐFix the scooter and stem during installation to avoid
injury caused by tipping.
4ʐDo not turn on the power supply before the installation is
completed. When installing components, please apply
appropriate force to avoid component damage or scooter
body failure.
1ʐPlease follow the instructions to install the
components. Improper installation may cause
safety risks.
2ʐWhen installing the handlebar, please set it in
the correct angle.
Attention
HOW TO USE
PART2 Vehicle Activation
Activation Procedure
1ʐOpen the “Yadea” APP.Follow the
prompts on the APP screen to complete
account registration and login.
2、Scan the QR code on the scooter
ċŭēǍŭƓǠŢēƧļěēědžŁČědžŁð
Bluetooth, and bind the scooter.
3ʐWatch the video “Driving Guide” in its
entirety, and then click "Activate" or
watch the video again.
4ʐThe scooter is activated successfully.
Please start your ride.
HOW TO USE
PART3 Battery Charging
Charging method
Attention
Please charge the scooter with Yadea original charger, and do not use any charger of other brand and Model.
Do not connect the power supply and charger if the charger or power socket is wet.
If the red indicator on the charger is steady on, the battery is under charging. If the green indicator is steady on, the
battery is fully charged and the power supply should be disconnected promptly.
The charging port cap should be covered tightly when not charging or after charging.
It is recommended to place the scooter outdoors to charge, but to protect it from rain and sun exposure.
HOW TO USE
PART4 Folding and Carrying
How to fold the scooter
Hold the stem and push the safety button
with thumb to open the folding wrench, and
then fold down the stem.
Open the wrench, align it to the position
of the folding buckle, hook the folding
latch of the stem to the buckle to
complete the whole folding steps.
Open the charging port cap and connect the charger properly.
2
2
2
1
How to unfold the scooter How to carry the scooter
Rotate the wrench to release it from the hook,
and lift up the handlebar. Unfold the stem to its
maximum position, hold the stem with hand, and
press folding handle until the stem is locked.
Avoid water sources, heavy loads, impacts, severe
drops or strong vibrations when carrying the scooter,
which may cause damage to the batteries and circuits
if they occur or if liquids seep inside the scooter.
Attention
Make sure that the scooter is turned off before carrying
it. After the scooter is folded, a single person can carry it
by holding the stem with both hands at the balance
point.
HŭƓƧļěǠƓƛƧƧŁŠěƐŗěðƛěƐƓðČƧŁČěðČČŭƓēŁŢĴƧŭƧļěŠðŢƯðŗ'ŭŢŭƧƓŁēěƧļěƛČŭŭƧěƓƯŢƧŁŗǍŭƯļðdžěijƯŗŗǍ
mastered the riding skills.
There is a risk of falling or injury during the ride, so please wear a helmet and safety Mode at all times.
The Mode shall be of good quality and worn in the correct position.
HŭƓǍŭƯƓǠƓƛƧƓŁēěƐŗěðƛěƛěŗěČƧðŢŭƐěŢðƓěððŢēðǡðƧƓŭðēðŢēēŭŢŭƧēƓŁdžěŁŢƧŭðƓěðƛLJŁƧļČŭŠƐŗěnj
road conditions.
SAFETY WARNING
PART1 Correct Driving Instructions
Tips for Initial Use Pre-Riding Inspection
Please conduct a basic inspection on the scooter before each ride. If there are obvious abnormalities or abnormal alarm
sound, do not use the scooter. For any questions, please contact an authorized service station or after-sales E-mail:
afterservice03@Yadea.com to obtain professional guidance or maintenance services.
Attention
ʐ$TCMG
ʐ'NGEVTKEVJTQVVNG
ʐ*CPFNGDCT
ʐ(QNFGTKPIYTGPEJ
ʐ&CUJDQCTF
ʐ$CVVGT[NGXGN
ʐ(TQPVCPFTGCTNKIJVU
ʐ4GHNGEVQT
9JGVJGTVJGDTCMGKUNQQUGVQQVKIJV
9JGVJGTKVECPDQWPEGDCEMPQTOCNN[
9JGVJGTKVTQVCVGUHNGZKDN[CPFYJGVJGTKVKUNQQUGQTUVWEM
%JGEMYJGVJGTVJGUETGYUKPVJGHQNFKPIRCTVCTGNQQUGCPFUJCMKPI
9JGVJGTCNNKPFKECVQTUNKIJVWRQHHPQTOCNN[
6WTPQPVJGRQYGTUYKVEJCPFEJGEMYJGVJGTVJGDCVVGT[KUPQTOCNKP51%
9JGVJGTVJG[CTGKPIQQFEQPFKVKQPCPFYQTMPQTOCNN[
9JGVJGTKVKUFCOCIGFQTEQPVCOKPCVGF
SAFETY WARNING
PART1 Correct Driving Instructions
Learn to Drive
3ʐDuring the ride, release the thumb throttle to slow
down the scooter, squeeze the Brake lever tightly
to brake it, and hold the Brake lever strongly to
apply emergency braking.
During emergency braking, it is possible to fall down
and suffer serious injuries due to loss of traction.Please
maintain an appropriate riding speed and be aware of
potential hazards.
4ʐDuring steering, slow down and turn the handlebar
slowly.
Please maintain an appropriate riding speed to avoid
any potential injury caused by sudden turning.
1ʐPut one foot onto the deck and use the ot EN her
foot to push off the ground.
2ʐWhen the scooter starts to slide, put both feet on
the deck, keep your body balance, and gently
press the thumb throttle to accelerate.
To avoid accidental contact, this product is designed
with a non-zero start. When the sliding speed of the
scooter is > 3 km/h, the throttle can be started to
accelerate.
Please check the battery level before riding, and
őƯēĴěLJļěƧļěƓƧļěƓěŠðŁŢŁŢĴƐŭLJěƓŁƛƛƯijǠČŁěŢƧ
according to the travel distance, otherwise please
charge it in time.
SAFETY WARNING
PART2 Safety Instructions

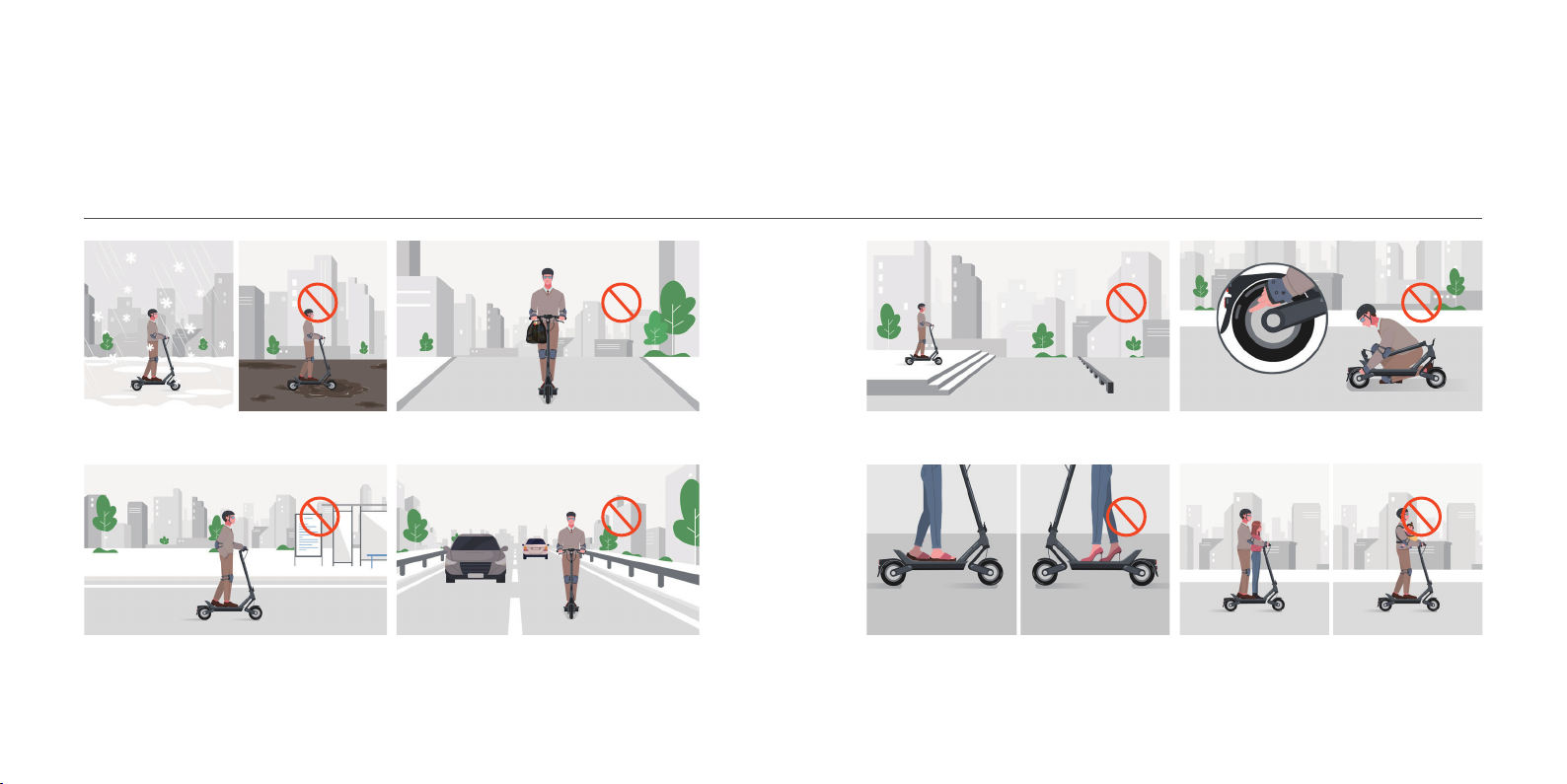

Do not ride in bad weather, or ride in water. Do not hang heavy objects on the handlebar.
Prohibitions for Riding
Do not ride with one hand. 'ŭŢŭƧēƓŁdžěŁŢƧŭƧļěƧƓðijǠČŗðŢěƛ
Do not touch the wheel hub, motor or brake system.
Do not ride up or down steps or stairs or jump
over obstacles.
Do not ride while wearing highheeled shoes or slippers. Do not ride while carrying others or children.
· Before using the electric scooter (hereinafter referred to as the scooter), please read carefully and strictly follow the contents marked
“Warning”, “Attention” in the Manual. Your familiarization and understanding will improve riding safety.
· The scooter is a recreational product. You need to master riding skills through practice. Yadea Technology Group Co., Ltd. will not be liable for
any property damage, incidents, personal injury or legal disputes caused by lack of riding experience or failure to comply with the safety
requirements in the Manual.
· Following the safety precautions in the Manual will reduce risks, but not completely eliminate all risks, because there is a risk of injury or
death due to loss of control, collision or fall when using the scooter.
· Scooter is the same as other vehicles, the faster the speed, the longer the braking distance, and emergency braking on wet road may cause
the wheels to slip and lose balance.
· When the scooter drives into a public area, it will become one of transportation means, so there are also possible safety risks of
transportation means. In order to protect the safety of yourself and others, please strictly follow the instructions in the Manual and comply
LJŁƧļƧļěŢðƧŁŭŢðŗðŢēŗŭČðŗƧƓðijǠČŗðLJƛðŢēƓěĴƯŗðƧŁŭŢƛ'ŭŢŭƧƓŁēěƧļěƛČŭŭƧěƓŁŢðƓěðƛƐƓŭļŁċŁƧěēċǍŗðLJ
· When the scooter is driven on public roads, even if it is operated in full accordance with the safe riding instructions in the Manual, it may be
exposed to risks caused by illegal driving and improper operation by other people and other transportation means.
· Make sure to use parts approved by Yadea. If you need to replace any parts, please contact professional maintenance personnel. There are no
ƯƛěƓƛěƓdžŁČěðċŗěƐðƓƧƛijŭƓƧļŁƛƐƓŭēƯČƧƛŭēŭŢŭƧēŁƛðƛƛěŠċŗěŭƓŠŭēŁijǍƧļěƐěƓijŭƓŠðŢČěðŢēČŭŢǠĴƯƓðƧŁŭŢŭijƧļěƛČŭŭƧěƓċǍǍŭƯƓƛěŗij
Improper installation may result in serious damage or injury and void the warranty, and you will be held liable for any damages incurred.
· Do not lend the scooter to someone who cannot operate it to avoid injury. If lending the scooter, please forward the Manual and ensure the
safety of the new user.
· All accessories, packaging and detachable parts contained in this product should be kept away from children or pets to avoid injury caused by
improper play, suffocation and accidental ingestion.
· Please purchase the electric scooter through formal channels, and properly keep the invoice which is required for warranty in case of quality
problems found during use.
Safety Instructions
SAFETY WARNING
PART2 Safety Instructions
· When riding, you should respect the pedestrians' right of way and avoid scaring them. When approaching pedestrians, ring the bell and slow
down to pass.
· When riding, observe the terrain, maintain an appropriate speed, and keep a reasonable safety distance from other people or other
ƧƓðŢƛƐŭƓƧðƧŁŭŢŠěðŢƛVŢČðƛěŭijēŁijǠČƯŗƧƧěƓƓðŁŢƐŗěðƛěĴěƧŭijijðŢēƐƯƛļƧļěƛČŭŭƧěƓ
· Always keep your hands on the handlebar and feet on the pedals during riding. Concentrate on riding and do not use your phone, wear
headphones, or do anything other than riding.
· Do not ride in environments with dense fog, smoke or low visibility. Make sure that you can see the road clearly and that others can also see
you clearly.
VƧŁƛƓěƒƯŁƓěēƧŭƓŁēěŁŢðŢŭŢŠŭƧŭƓŁǗěēŗðŢěVijŭŢƓŭðēƛLJŁƧļŭƯƧðŢŭŢŠŭƧŭƓŁǗěēŗðŢěēƓŁdžěŭŢƧļěƓŁĴļƧƛŁēěŭƓijŭŗŗŭLJŗŭČðŗƧƓðijǠČŗðLJƛ
ÚļěŢƓŁēŁŢĴðƧŢŁĴļƧŁƧŁƛƓěČŭŠŠěŢēěēƧŭLJěðƓƓěǡěČƧŁdžěČŗŭƧļŁŢĴðŢēēƓŁdžěƛŗŭLJŗǍðƧŗŭLJƛƐěěē
· Do not ride on pothole, mud, sand, grass, gravel pavement or stairs.
· Do not drive through water or directly ride through puddles. Water ingress into the scooter may wet the battery, triggering the risk of
ijƯŢČƧŁŭŢðŗēðŠðĴěǠƓěŭƓědžěŢěnjƐŗŭƛŁŭŢ'ðŠðĴěðŢēŗŭƛƛēƯěƧŭLJðƧěƓŁŢĴƓěƛƛŁƛŢŭƧČŭdžěƓěēŁŢƧļěLJðƓƓðŢƧǍ
· Generally speaking, low temperature affects the battery life of the product, and the battery life and performance are best at room
temperature of 25 °C.
· It is not recommended to use this product at altitudes greater than 2,000 m.
· Do not suddenly speed up or slow down when riding. It is strictly forbidden to brake in downhill or high-speed driving; otherwise there may
be a risk of losing control, collision or falling due to the center of gravity moving forward.
· Do not use the scooter as a goods carrier.
· Do not show your riding skills during the ride.
· Do not press the thumb throttle to accelerate when pushing the scooter.
The following persons are not allowed to ride scooter:
· Individuals who are overtired or feel less energetic;
· Pregnant women, children, and the elderly; age requirement: 16 to 50 years old;
· Individuals affected by alcohol or other drugs;
· Individuals with mobility impairment due to illness;
VŢēŁdžŁēƯðŗƛLJļŭðƓěŭdžěƓLJěŁĴļƧƧļěƓěČŭŠŠěŢēěēŠðnjŁŠƯŠŗŭðēŁƛΨ˘˙˗ŔĴ
· Individuals who are unable to maintain physical balance for other reasons.
Do not wear long skirt or loose clothing when riding
to prevent injuries caused by clothing getting stuck
with body parts.
Riding Precautions
Requirements for Riding Environment
Requirements for Rider
Attention
· The tire of this product is pneumatic vacuum tire, with a recommended tire pressure range from 40 to 50 psio. To ensure riding safety, it is
ƓěČŭŠŠěŢēěēƧŭČļěČŔƧļěƧŁƓěƐƓěƛƛƯƓěŭŢČěðŠŭŢƧļVijƧļěƧŁƓěƐƓěƛƛƯƓěŁƛŁŢƛƯijǠČŁěŢƧƐŗěðƛěŁŢǡðƧěƧļěƧŁƓěŁŢƧŁŠě
· It is complicated to remove the wheel. If you need to replace the tire, please contact professional maintenance personnel. Improper
self-assembly may lead to component failure or scooter body instability.
· Do not remove the battery by yourself. If there is any problem, please contact the customer service department of Yadea or professional
maintenance personnel to deal with it.
· Charge the battery within the ambient temperature range from 0 ℃to 45 ℃.
· When the operating temperature is below 0 ℃, the performance and life of the battery may be reduced.
· Do not discard battery packs at will. For details about recycling and treatment of used or damaged batteries, refer to local laws and
regulations to avoid environmental pollution.
Tire Maintenance
Battery Maintenance
· Do not use alcohol, gasoline, acetone or other corrosive and volatile solvents for cleaning, which may seriously damage the appearance and
internal structure of the scooter.
· Do not wash the scooter with pressure water pipe and water gun or clean it with forcefully.
· Disconnect the power supply of the scooter and keep it off before cleaning. Fasten the rubber cap of the charging port tightly; otherwise
there may be a risk of electric shock or serious damage to the electronic components due to internal water ingress.
· Do not contact live parts with wet hands or metal conductors.
· When used in summer, make sure that the ambient temperature should not above 40℃, and the scooter should not be placed outdoors
under the sun for a long time.
· When used in winter, make sure that the ambient temperature should not be lower than -10 ℃. If the temperature is below 0℃, the scooter
should be placed at normal room temperature for half an hour before charging.
VijƧļěƛČŭŭƧěƓLJŁŗŗŢŭƧċěƯƛěēijŭƓðŗŭŢĴƧŁŠěƐŗěðƛěƛƧŭƓěŁƧŁŢðǡðƧƛƧðċŗěēƓǍðŢēČŭŭŗƓŭŭŠƧŭðdžŭŁēŗŭŢĴƧěƓŠěnjƐŭƛƯƓěƧŭƧļěŭƯƧēŭŭƓƛ
Exposure to sun and rain may corrosion or deterioration of the scooter's components and reduce the service life of the battery pack.
Storage Method
MAINTENANCE AND SERVICES
PART1 Maintenance and Servicing
Warning
Attention
Attention
· The battery will continue to consume power when the scooter is turned off. Under normal circumstances, the battery with 60% battery level
can be standby for about 180 days.
· If the battery will not be used for a long time, it should be stored with 60% battery level or more and is recommended to be charged every
30-60 days to avoid functional damage due to exhaustive discharge of the battery.
· The intelligent device inside the battery can monitor the charging/discharging status of the battery, and damage caused by overcharging or
over-discharging is not covered by the valid warranty.
Cleaning Methods
· If the surface of the scooter is contaminated with stains, wipe the appearance with soft cloth dipped in a small amount of water, and then
dry the body.
· Do not directly pour a large amount of water on the brake parts, motor and battery box to prevent internal water ingress from affecting the
service life of the scooter parts.
Warranty Policy
MAINTENANCE AND SERVICES
PART2 After-sales Service
· YADEA electric scooter products carry out warranty in strict accordance with the laws and regulations of various countries or regions, the
warranty principle is to adjust and repair, replace new parts as a supplement, the vehicle after warranty should ensure that the functions are
normal.
· To the fullest extent permitted by law, YADEA will repair, replace or refund based on actual circumstances. Unless otherwise required by law
or otherwise undertaken by YADEA, the warranty shall be limited to the original country of purchase.
· Normal wear and tear, force majeure, abuse or damage caused by the user's negligence or fault of the user are not covered. For warranty
ēěƧðŁŗƛƐŗěðƛěƓěijěƓƧŭƧļěŭijǠČŁðŗLJěċƛŁƧěŭijà'1LJLJLJǍðēěðČŭŠ
· If you have any questions about after-sales service, please contact the seller for help anytime.
Warning
· Do not use battery packs of other models or brands, or there may be safety risks.
· Do not disassemble, squeeze or puncture this product. Do not open or pierce the shell; avoid short circuit caused by metal objects in contact
with battery contacts; otherwise, the battery may be damaged.
'ŭŢŭƧƐƯƧƧļŁƛƐƓŭēƯČƧŁŢƧŭLJðƧěƓðŢēǠƓěŁŢČŗƯēŁŢĴƛƧŭdžěļěðƧěƓðŢēŭƧļěƓļěðƧƛŭƯƓČěƛŭƓēŁƓěČƧŗǍěnjƐŭƛěŁƧƧŭěŢdžŁƓŭŢŠěŢƧƛLJŁƧļ
temperatures above 50 ℃.
ÚðƧěƓŁŢƧļěċðƧƧěƓǍŠðǍēðŠðĴěƧļěŁŢƧěƓŢðŗČŁƓČƯŁƧLJŁƧļƧļěƓŁƛŔŭijǠƓěŭƓědžěŢěnjƐŗŭƛŁŭŢVijƧļěċðƧƧěƓǍŁƛƛƯƛƐěČƧěēƧŭļðdžěLJðƧěƓ
internally, stop using it immediately and contact the local service station for testing.
· Do not take out the battery pack by yourself, because it is complicated to disassemble the battery and improper operation may affect the
operation of the scooter body.
'ŭŢŭƧēŁƛðƛƛěŠċŗěŭƓƓěƐðŁƓƧļěċðƧƧěƓǍċǍǍŭƯƓƛěŗijŭƧļěƓLJŁƛěŁƧŠðǍƓěƛƯŗƧŁŢċðƧƧěƓǍijðŁŗƯƓěŭdžěƓļěðƧŁŢĴðŢēědžěŢðƓŁƛŔŭijǠƓě
· Do not use the scooter when the ambient temperature exceeds its operating temperature range, because too high/low temperature will
result in maximum power limitation.
APPENDIX
Parameter List
Items ParametersParts
Basic infor-
mation
Scooter
Battery
Charger
YDX1
1220*585*1310mm
1220*585*555mm
29kg
945mm
120kg
eKFV:20km/hừ12mphỬEN17128:25km/hừ15.5mphỬUL:32km/hừ20mphỬ
65kmừ40milesỬ
30%
Rear wheel drive
Drum brake + double-acting disc brake + Electronic brake
IPX5
-10ű~40ű
-20ű~60ű
46.8VDC 14.5Ah
46.8VDC
0-45℃
Over-voltage / under-voltage / short-circuit / over-current / over-heating protection
AC100~240V
54.6V
7-8h
* Rated range: Vehicle under full charge, 75kg load, ambient temperature 25℃ǡðƧƓŭðē˘˜ŔŠļƛƐěěēŠěðƛƯƓěē
* The factors affecting battery life include speed, load, number of starts and stops, ambient temperature, etc.
Parameter List
Items ParametersParts
Motor
Tire
Damping
Type
Rated power
Maximum output power
Type
Size
Damping mode
Hall BLDC
800W
1500W
Self-healing tubeless tires
10 inches
Front & rear polymer shock absorber
Product model
Unfolding size
HŭŗēŁŢĴƛŁǗě
Net weight
Axial distance
Maximum load
Maximum speed
*Rated range
Maximum slope
Driving mode
Braking mode
Waterproof grade
Service temperature
Storage temperature
Battery capacity
Rated voltage
Charging ambient temperature
Intelligent BMS
Input voltage
Rated output voltage
Charging time
Trademark and Legal Statement
· We have tried the best to cover the description and explanation of all the functions of the scooter while printing the Manual. However, due
to the continuous improvement of product characteristics and design changes, your scooter may be different from the color and appearance
shown in the Manual, so actual product shall prevail.
· Yadea Technology Group Co., Ltd. reserves all rights.
· Yadea Technology Group Co., Ltd. Reserves the copyright of the Manual which shall be reproduced without written permission.
· The right of interpretation of this manual belongs to Yadea Technology Group Co., Ltd.
Troubleshooting
Fault indicationFault code
29
30
34
50
51
52
55
Batteriespannung zu hoch
Batteriespannung zu niedrig
Instrumentenkommunikation abnormal
Drehgas abnormal
Bremse links abnormal
Bremse rechts abnormal
Bluetooth-Kommunikation abnormal
Table of contents
Other Yadea Scooter manuals
