Yale Real Living™ Push Button Deadbolt
Installation and Programming Instructions

2
P/N AYRD-210-INST-FUL Rev D
Preparing Door

3
P/N AYRD-210-INST-FUL Rev D
O
x4
1
defaut
2-3/8" position
2-3/4" position
Installing Latch & Strike Plate
Press
Pull
optional
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.

4
P/N AYRD-210-INST-FUL Rev D
2Installing Keypad Escutcheon
Outside of DoorInside of Door
Bolt must be in retracted (unlocked)
position. Note horizontal orientation
of mechanism.

5
P/N AYRD-210-INST-FUL Rev D
x2
3Installing Interior Mounting Plate
Loosen screw to
remove cover.

4Attaching the Cable Assembly
6
P/N AYRD-210-INST-FUL Rev D

7
P/N AYRD-210-INST-FUL Rev D
x3
5Installing Interior Escutcheon

8
P/N AYRD-210-INST-FUL Rev D
3
Testing Operation
Bolt must be in retracted
(unlocked) position before
installing AA batteries.

9
P/N AYRD-210-INST-FUL Rev D
2
Testing Operation

10
P/N AYRD-210-INST-FUL Rev D
6
7Installing Batteries & Cover
Congratulations, you've installed the Yale Real Living™ Push Button Deadbolt!
Turn sheet over for Programming Instructions to customize your product.
Installing Optional Radio Module
Tighten screw
to replace cover.
"Welcome to
Yale Real Living."

Low Battery Warning- Flashes RED
Lock-out Mode- Keypad Flashes
Programming Instructions
Master PIN Code must be created before any further programming.
Max User Codes = 250 with Network Module. Max User Codes = 25 without.
11
P/N AYRD-210-INST-FUL Rev D

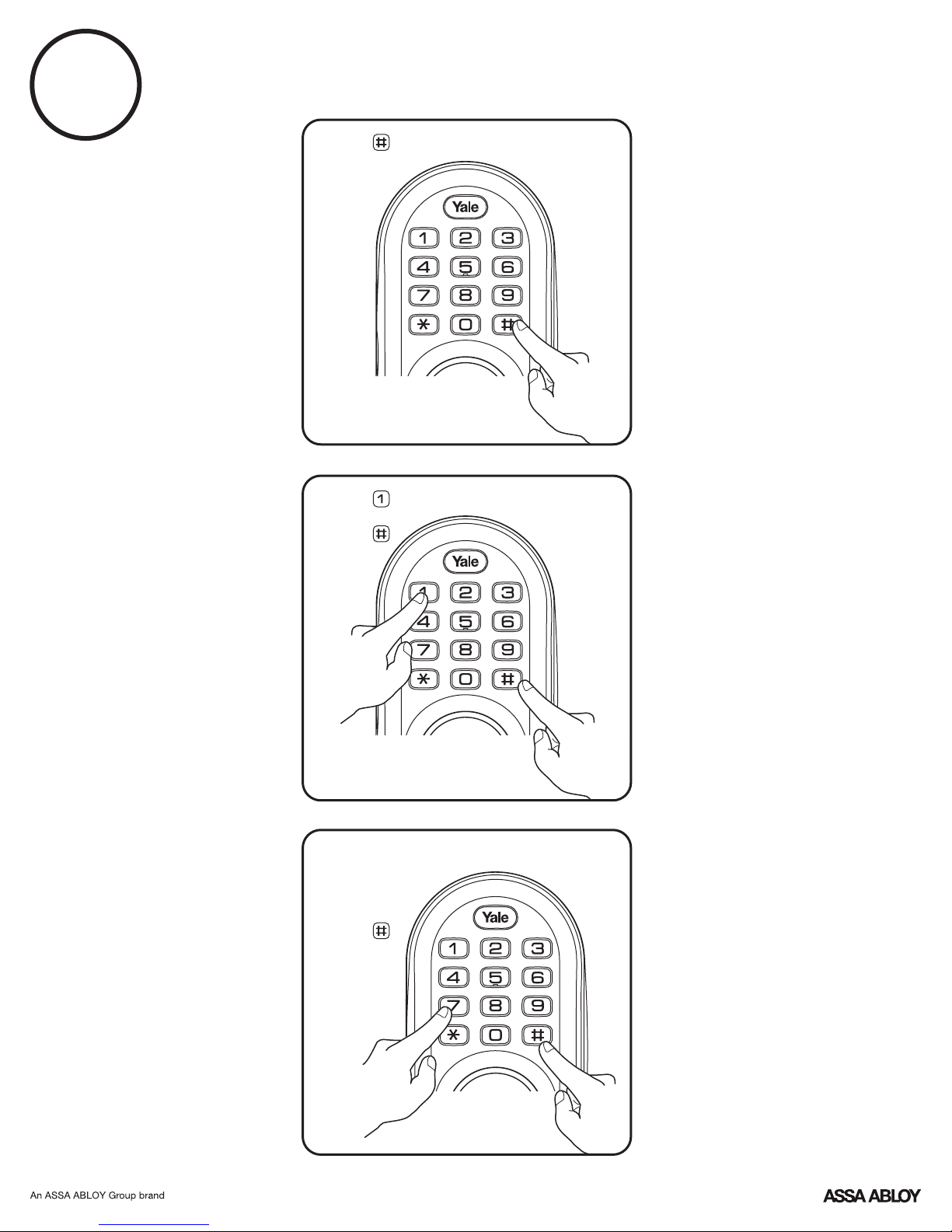

1Creating Master PIN Code
Press
Press
Enter 4-8
digit Master
PIN Code.
Press
Press
12
P/N AYRD-210-INST-FUL Rev D

2Creating User PIN Codes
Master PIN code must be created first.
*Max user codes = 250 with Network Module. Max user codes = 25 without.
Enter Master PIN code
Press
Enter User number
(1-25) or (1-250)*
Enter 4-8 digit PIN code
Press
Press
Press
Press
Press
Press
13
P/N AYRD-210-INST-FUL Rev D

14
P/N AYRD-210-INST-FUL Rev D
3
PIN Code Management (With Network Module - Up to 250 Users)
Master
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
Code Chart Duplicate if necessary
User Name
User Type PIN Code
Unlocking Door with PIN Code
User #
"Unlock"
Enter PIN
Press

15
P/N AYRD-210-INST-FUL Rev D
When lock is reset to factory defaults all user codes
(including the Master PIN code*) are deleted and all
programming features are reset to original default
settings (see below).
1. Remove the battery cover and batteries.
2. Remove the interior escutcheon to access the
reset button.

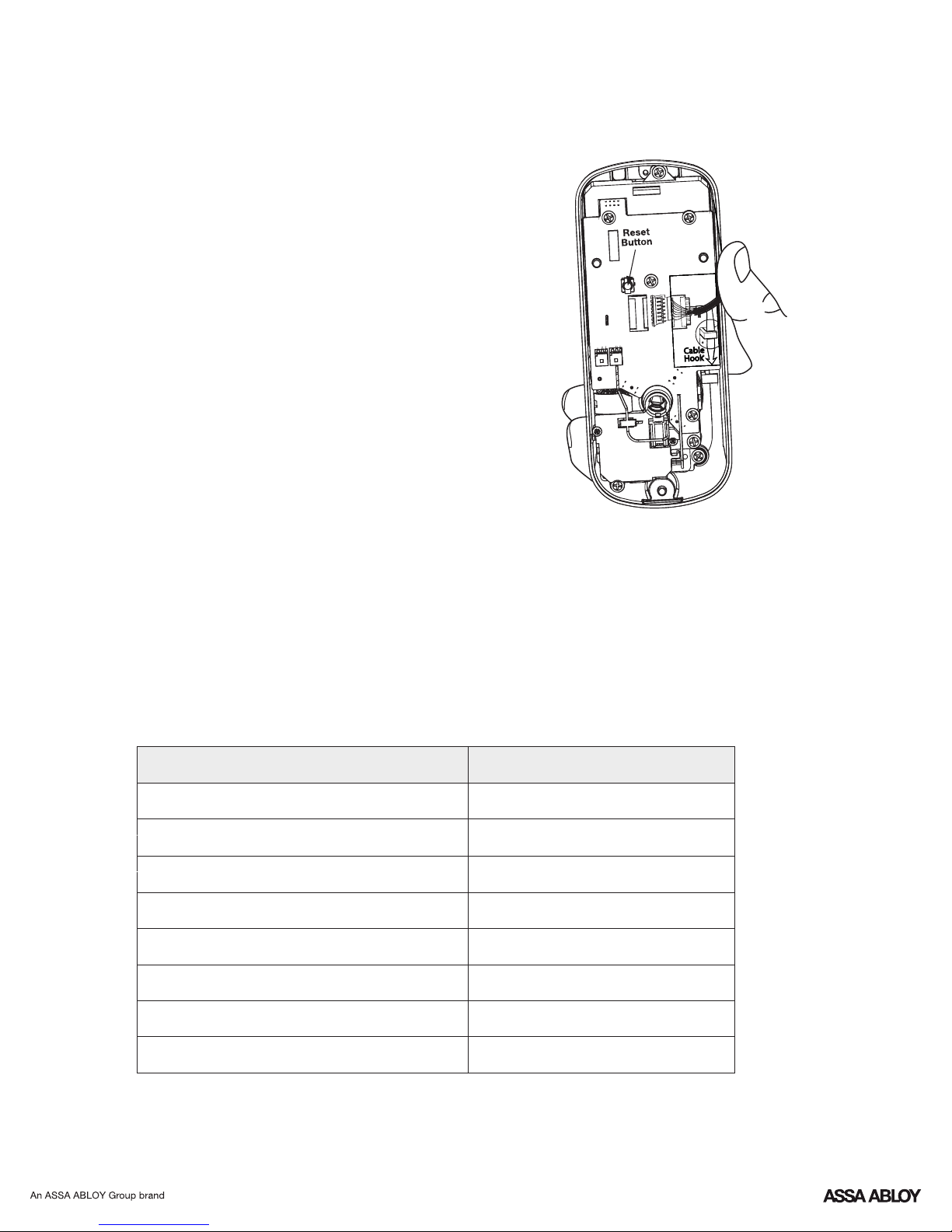

3. The reset button (see image at right) is located
above the PCB cable connector.
4. While pressing the reset button (minimum of 3
seconds) reinstall batteries. Release reset button.
5. Replace battery cover.
Upon reset, Master PIN Code creation is the only
option available and must be performed prior to any
other programming of the lock.
Registration required*
Wrong Code Entry Limit 5 Times
One Touch Locking Enabled
Inside Indicator Light Disabled (Off)
Interior Escutcheon
Factory Settings
Resetting Lock to Factory Default
Settings Factory Setting
Master PIN Code
Automatic Re-lock Disabled
Volume Setting Enabled (Low)
Automatic Re-lock Time 30 Seconds
Shutdown Time 60 Seconds
*The Master PIN code must be registered prior to any other programming of
the lock.

16
P/N AYRD-210-INST-FUL Rev D
Definitions
All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except
Master) PIN code access. When attempting to enter a code while the unit is in Lockout, the keypad flashes 8
times and the lock beeps 3 times as well.
Audio Mode: Choosing Disable (3) in Audio mode shuts off the code confirmation tone play-back for use in quiet
areas. Audio mode is enabled or disabled through feature programming by the Master code.
Automatic Re-lock Time: After a successful unlock, the unit will automatically re-lock after thirty (30) seconds.
Low Battery: When battery power is low, the Status Indicator flashes RED. If battery power is completely lost, use
the key override.
Master PIN Code: The Master PIN code is used for programming and for feature settings. It must be created
prior to programming the lock. The Master code will also operate (unlock/lock) the lock.
Network Setting: This setting is available thru the main Menu (7) and allows the lock to connect with a network
controller. It is also available through the wireless button on the interior escutcheon.
One Touch Locking: When the latch is retracted, activating the keypad will extend the latch (during Automatic Re-
lock duration or when Automatic Re-lock is disabled).
Shutdown Time: The unit will shut down (flashing keypad) for sixty (60) seconds and not allow operation after
the wrong code entry limit has been met.
Tamper Alert: Audible alarm sounds if attempting to forcibly remove outside lock from door.
User PIN Code: The User code operates the lock. Maximum number of user codes is 250 with Network Module;
without Network Module, maximum is 25 user codes.
Wrong Code Entry Limit: After five (5) unsuccessful attempts at entering a valid PIN code, the unit will shut down
and not allow operation.

17
P/N AYRD-210-INST-FUL Rev D
Feature Programming Through Menu Mode
Using Master PIN code*
M
U
Inside Indicator Light
Advanced Lock Settings Automatic Re-lock
One Touch Locking
Continue
Privacy Button Setting
Handing the Lock
Enable
Disable
Enable
Disable
Enable
Disable
Enable
Disable
Performs automatic
handing of the lock
Continue
Complete
Delete
Continue
Complete
Master PIN Code Setting
User PIN Code Registration
Register
Default settings
in bold.
User Number (UN)
1~25: without network module
1~250: with network module
Audio Mode
N/A
All Code Lockout Mode
Network Setting Join the network
Enable
Enable
Disable
Exit the network
Disable
For quiet areas, select Disable (3)
in Audio Mode.
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter digit corresponding to the function to be performed followed by the key.
*The Master PIN code must be registered prior to any other programming
of the lock.
M
1 2 3

18
P/N AYRD-210-INST-FUL Rev D
Programming Troubleshooting
* When batteries are replaced, Network locks have a real time clock that will be set through the User Interface (UI); it
is recommended to verify correct date and time particularly those locks operating under Daylight Saving Time (DST).
Symptom Suggested Action
Lock does not respond –
door is open and
accessible.
• Press each keypad button for response when pressed.
• Check batteries are installed and oriented correctly (polarity)
in the battery case.
• Check batteries are in good condition; replace batteries*
if discharged.
• Check to see if cable is fully connected and not pinched.
• Batteries may be completely discharged.
• Use key to gain entry and replace batteries*.
Unit chimes to indicate
code acceptance, but the
door will not open.
• Check to see if there is another locking device on the door.
• Check the door gaps for any foreign objects between door
and frame.
• Check that the cable is firmly connected to the PC board.
Unit operates to allow
access, but will not
automatically re-lock.
• Check to see if Auto Re-lock Mode is enabled.
• If low battery indicator is lit (see below), change batteries*.
PIN codes will not register.
• PIN codes must consist of 4 to 8 digits to register.
• The same PIN code cannot be used for multiple users.
• Registration/management of PIN codes is set by the
authority of the Master Code.
• Contact the Master user.
• User codes must be entered within 5 seconds or the
process will have to be restarted.
• Star or pound cannot be used as part of the
Upon entering a PIN code
and pressing the (*) key, the
lock gives a series of beeps,
flashes red & blue LEDs 7
times, and does not unlock.
• All Code Lockout Mode is enabled.
• Only the Master can enable/disable All Code Lockout Mode.
• Contact the Master user.
Upon entering a PIN code
and pressing the (*) key,
there are different tones.
• Check to see if the lock is set to All Code Lockout Mode.
• Setting/managing All Code Lockout Mode is done through
Master Code only. Contact the Master user.
The unit operates, but it
makes no sound. • Enable Audio Mode.
The unit displays inter-
mittent RED flashes.
• This is the Low Battery indicator alerting that it is time to
replace the batteries. Replace all four (4) batteries* with
new AA Alkaline batteries.
Upon entering a PIN code
and pressing the (*) key,
the unit responds with a
series of beeps and the
keypad flashes three times.
• The digits entered were incorrect or incomplete. Re-enter
the correct code followed by the check mark (*) key.
Lock does not respond –
door is locked and
inaccessible.
PIN code.

19
P/N AYRD-210-INST-FUL Rev D
L
w
T
Changing Lock: Replacing Cylinder
Hardware Troubleshooting
Cycle lock in both the locked and unlocked positions. If problems are found:
1-3/8"* - 2" thick doors:
L = 3-1/2" (88.8mm)
2" - 2-1/4" thick doors:
L = 3-3/4" (95.3mm)
W = .2" (5.2mm)
Tailpiece
T = .098" (2.5mm)
1. To Remove cylinder:
A. Remove outside escutcheon from door.
B. Remove rubber gasket.
C. Remove two screws holding plastic guide in place.
D. Remove plastic guide.
E. Remove screw with washer holding cylinder in place (visible after
removing plastic guide).
F. Remove cylinder housing by pulling cylinder tailpiece away from
escutcheon.
Before installing cylinder, be sure tailpiece is correct length (see below).
2. To install new cylinder:
A. Reverse previous steps for removing cylinder.
*Requires addition of Thin Door Kit.
Bolt will not deadlock
a. Check for sufficient clearance of the bolt within the strike-side jamb. Correct this by
increasing the depth of the pocket for the bolt.
b. Check for misalignment of bolt and/or strike which may be preventing bolt from
properly entering the strike. With the door open, extend and retract the bolt; if it is
smooth, check the strike alignment.
Bolt does not extend or retract smoothly
a. Bolt and strike are misaligned, see above.
b. Check the backset of door relative to adjustments already made to bolt.
c. Verify proper door preparation and re-bore holes that are too small or misaligned.
d. Verify keypad wire harness is routed under the bolt (see Fig. A).
e. Verify bolt is installed with correct side up (Fig. A).
Keypad numerics are scrolling
Remove interior escutcheon and check to ensure that the wire harness lies flat against
the back recessed area and is properly routed along the side of the escutcheon and
tucked under the plastic cable guide.
Figure A
A
B
C
D
F
E

20
P/N AYRD-210-INST-FUL Rev D
Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Yale Real Living™ is a trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2014, Yale Security Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY is the global leader in door opening solutions,
dedicated to satisfying end-user needs for security, safety and convenience.
Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
YALE, with its unique global reach and range of products, is the world's favorite lock
– the preferred solution for securing your home, family and personal belongings.
FCC:
Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful Interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Industry Canada:
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence canadienne causant des règlements
d'équipement.
Warning: Changes or modifications to this device, not expressly approved by Yale Security Inc. could void the user's authority
to operate the equipment.
