Yale Real Living Assure Lock YRD226 Technical specifications

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
1
Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.
Yale Assure Lock®
® Touchscreen Deadbolt
Installation and Programming Instructions
(YRD226/YRD620/YRD622)
This manual will walk you through all the required steps to add your new
Yale Assure Lock to your door.
• Remove existing deadbolt
• Double check door measurements
• Install your Assure Lock
• Program your Assure Lock
• Add your Assure Lock to your smart home system or Yale
Access app if purchased with Yale Smart Module or Yale Access
Upgrade Kit
Before you begin
Using the app on your smart
phone, scan this QR for step-by
-step installation instructions & to
register your lock
DOWNLOAD
THE BILT APP
Tools Needed
Standard
Phillips Head
Screwdriver
Tools Needed For New
Doors Or Adjusting Existing Door
Utility
Knife
Drill Wood
Mortise
Chisel
Pencil Tape
Measure Level

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
2

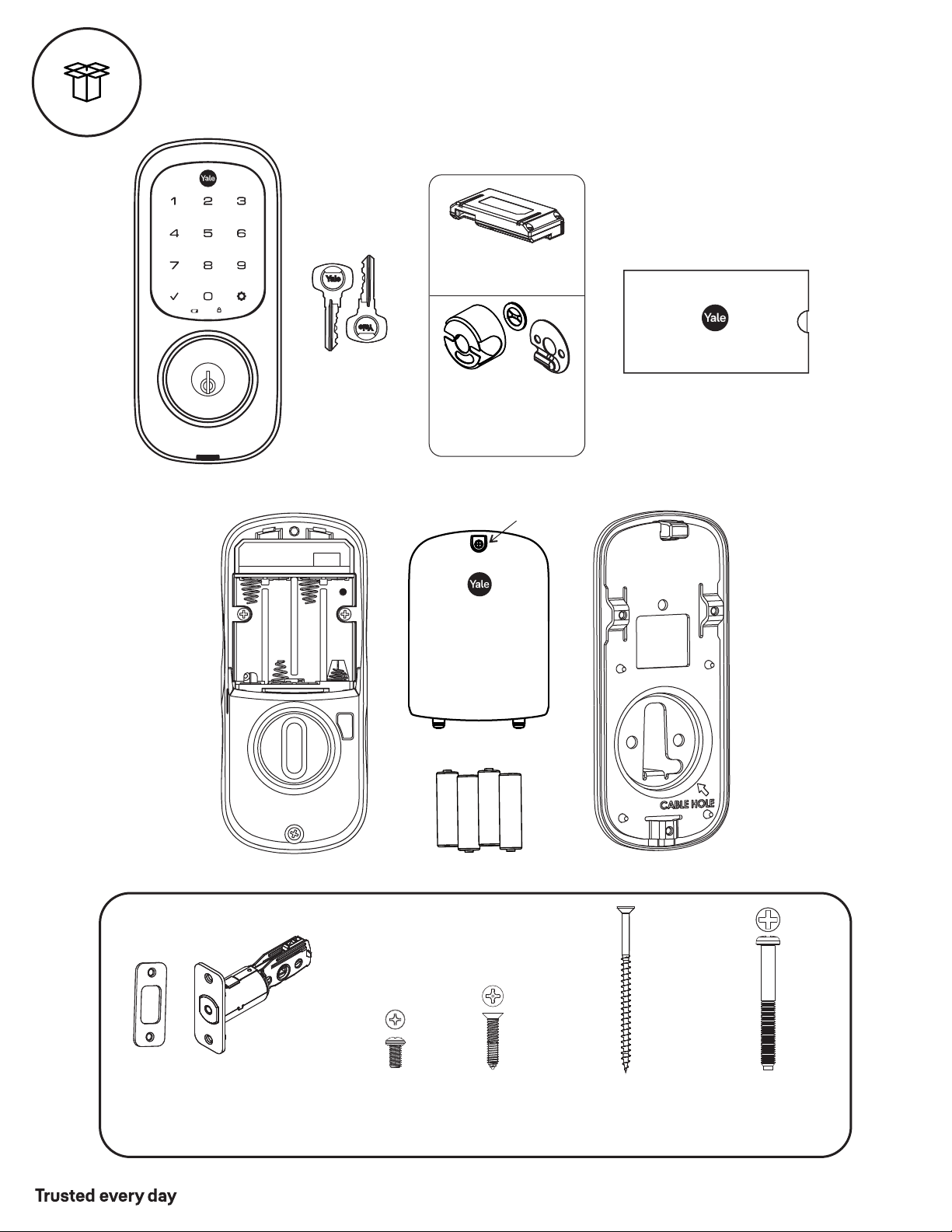

What's In The Box
Installation Guide
and Door Template
Mounting Hardware
Strike Plate Adjustable
Deadbolt
(AYRDB-DRIVE
Adjustable Drive-In Deadbolt
available for purchase)
Strike Plate
and
Deadbolt Screws
Inside Lock
Screws Optional
Security
Strike Plate Screws
Let's Get Started
Touchscreen Keypad
Long Through-bolt for
1-3/4" - 2-1/4"
Door Thickness
Yale Smart Module
(with select models)
Optional
Fire Kit Parts
(Required for
Fire Rated Openings)
x2 x2 x2
x4
Keys
Loosen screw to
remove cover
Battery Cover
Mounting Plate
Inside Lock 4 AA Batteries

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
3

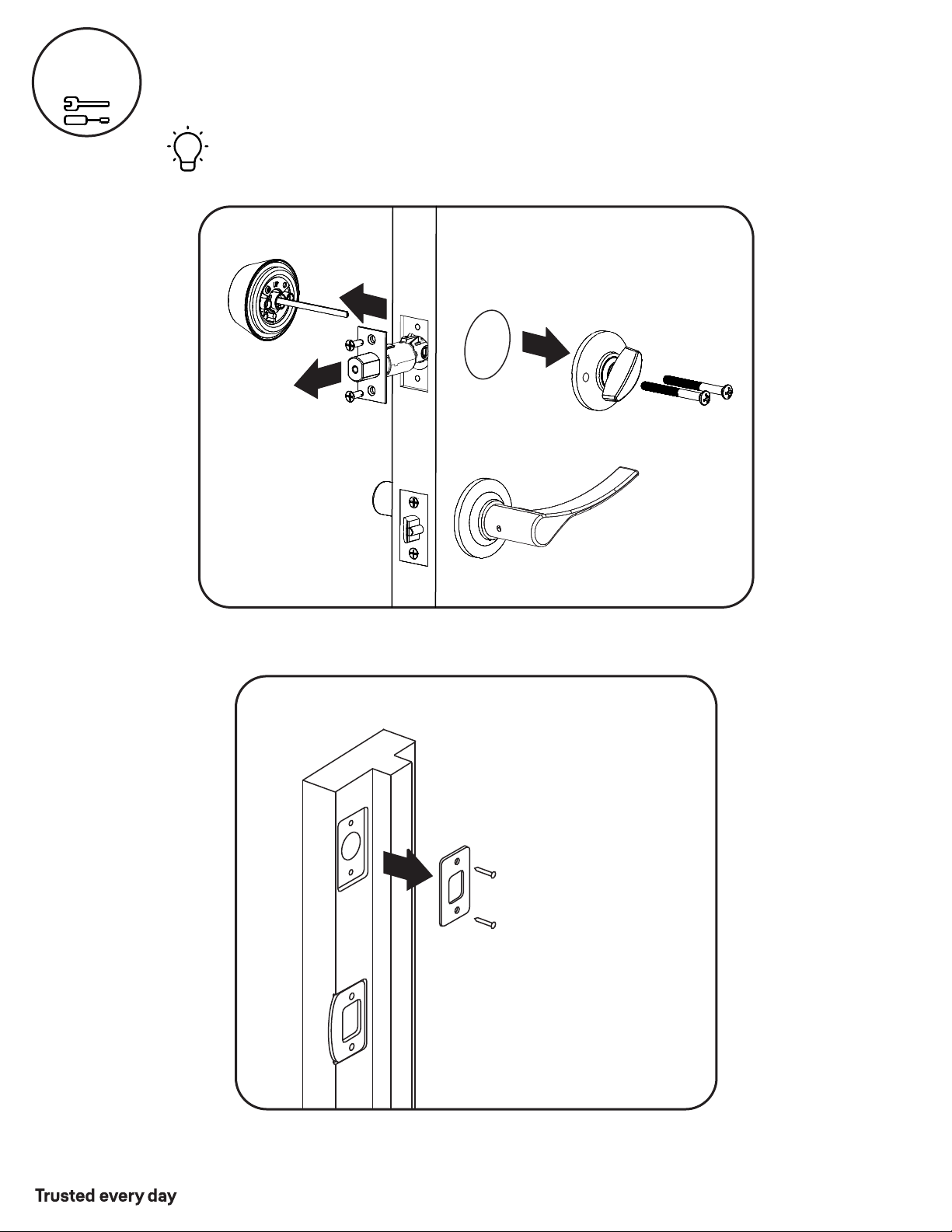

Remove Existing Deadbolt
Do not discard old lock hardware until Assure Lock has been successfully installed.
Frame
1

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
4
New Door Marking Template
2
Door Checker
Check Door Measurements And
Make Adjustments If Needed
Use door checker from installation guide envelope to verify your door
measurements and make any needed adjustments.
With the door checker, use the template from installation guide envelope
to prep a new door that has not been predrilled for hardware.
Inside of Door
O
optional
1 of 3
Install Optional Fire Cup for Fire Rated Openings
Only included with select models
New Door
Marking
Template
Check
Your Door
Guide
Let's Get Started
Let's Get Started

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

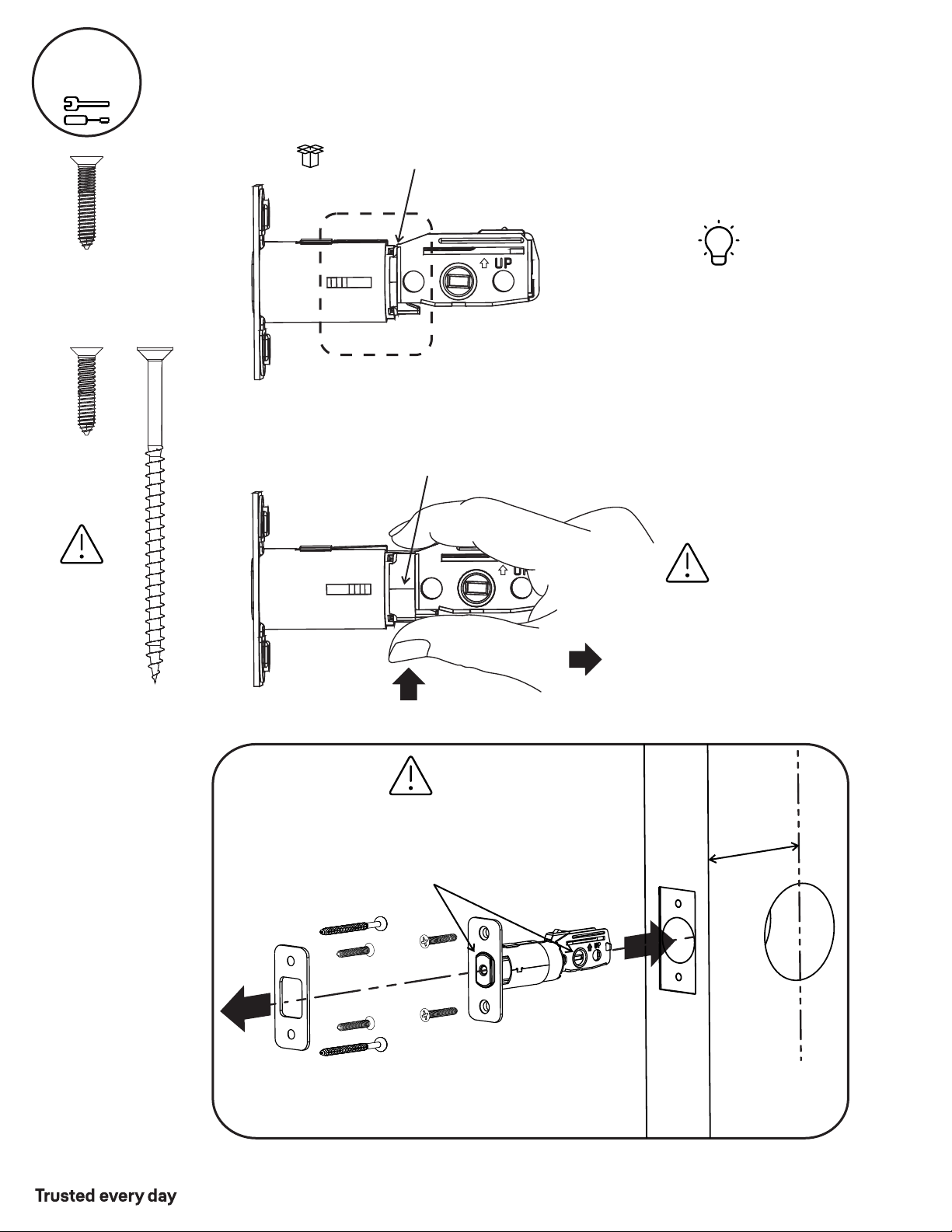

3Install Deadbolt and Strike Plate
x2
For Deadbolt
Actual Size
*Deadbolt position is based on
backset. Choose position
appropriate for your door.
Reference Door Checker
measurements E and F.
AYRDB-DRIVE
Adjustable Drive-In Deadbolt
available for purchase
optional
optional
*2-3/8" Backset, default
*2-3/4" Backset, optional
Press
Pull
Bolt must be in retracted (unlocked)
position. Note horizontal orientation of
tailpiece slot and UP orientation of
deadbolt latch.
Backset
For Strike Plate
Actual Size
x2
Choose
standard strike
plate screws
or security
screws.
For Strike Plate, optional
Actual Size
Bolt must be in
retracted
(unlocked)
position.
x2 O
5

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
6
4Install Touchscreen Keypad
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.
Outside of DoorInside of Door
To be used with Fire Cup
for Fire Rated openings
Door face hole
must be at least
2-1/8".
If hole is too
small, a door lock
installation kit or
jig should be used
to increase hole
size.
O
optional
2 of 3

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
7
5
x2
Actual Size
Install Inside Mounting Plate
To be used with Fire Cup
for Fire Rated openings
O
optional
3 of 3

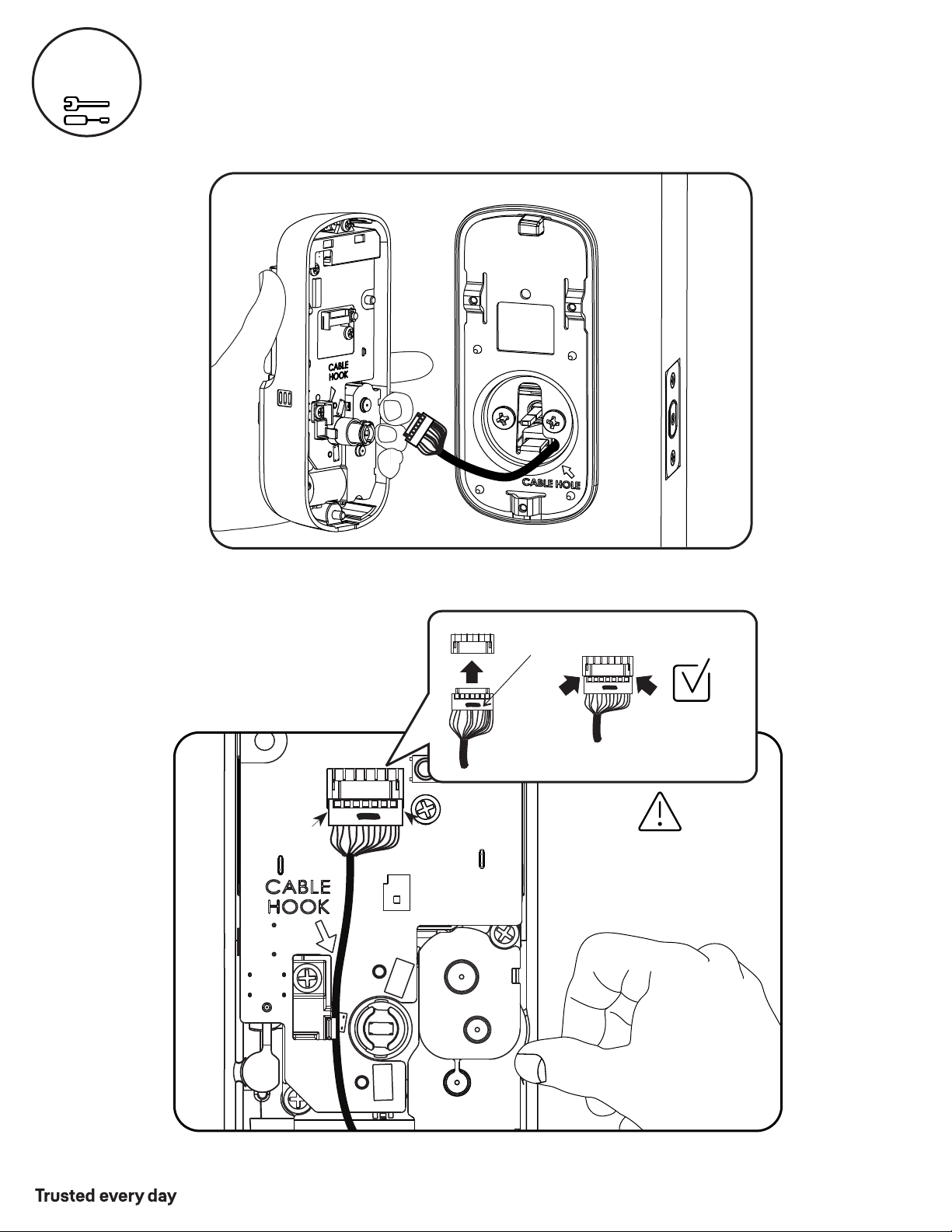

6Attach Cable
This Side Up
mark
Make sure cable
is securely
attached
Use cable hooks for proper
routing, when possible. Position
wires carefully when not using
hook. Do not pinch wire.
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
8

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
9
x3
7Install Inside Lock
Actual Size
Make sure thumbturn
is vertical. If thumbturn does
not move freely, refer to
"Hardware Troubleshooting".

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
10

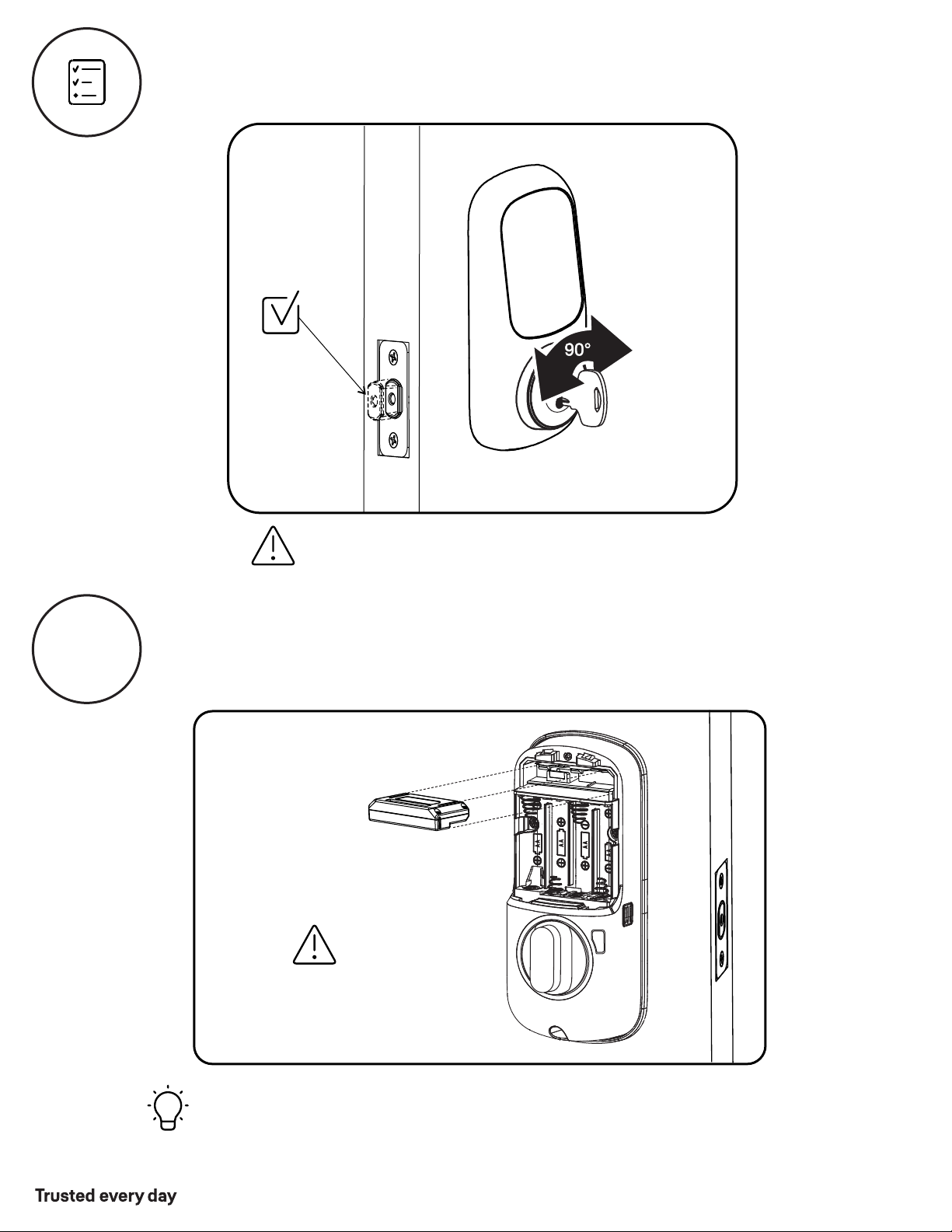

Test Mechanical Operation
If thumbturn operation fails, check the installation beginning with Step 7.

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
11
Batteries must not be installed
prior to inserting and/or
removing Yale Smart module.
Inside of Door
If key operation fails, check installation beginning with Step 4.
Test Mechanical Operation
For more information about Yale Smart modules and smart home features
visit US.YaleHome.com/Smart
O
optional
Install Yale Smart Module
Included with select models

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
12
® ®
Congratulations, you've installed the Yale Assure Lock
Touchscreen Deadbolt ( 226/YRD620/YRD622)!YRD
Using Your Lock instructions will help you customize your lock.

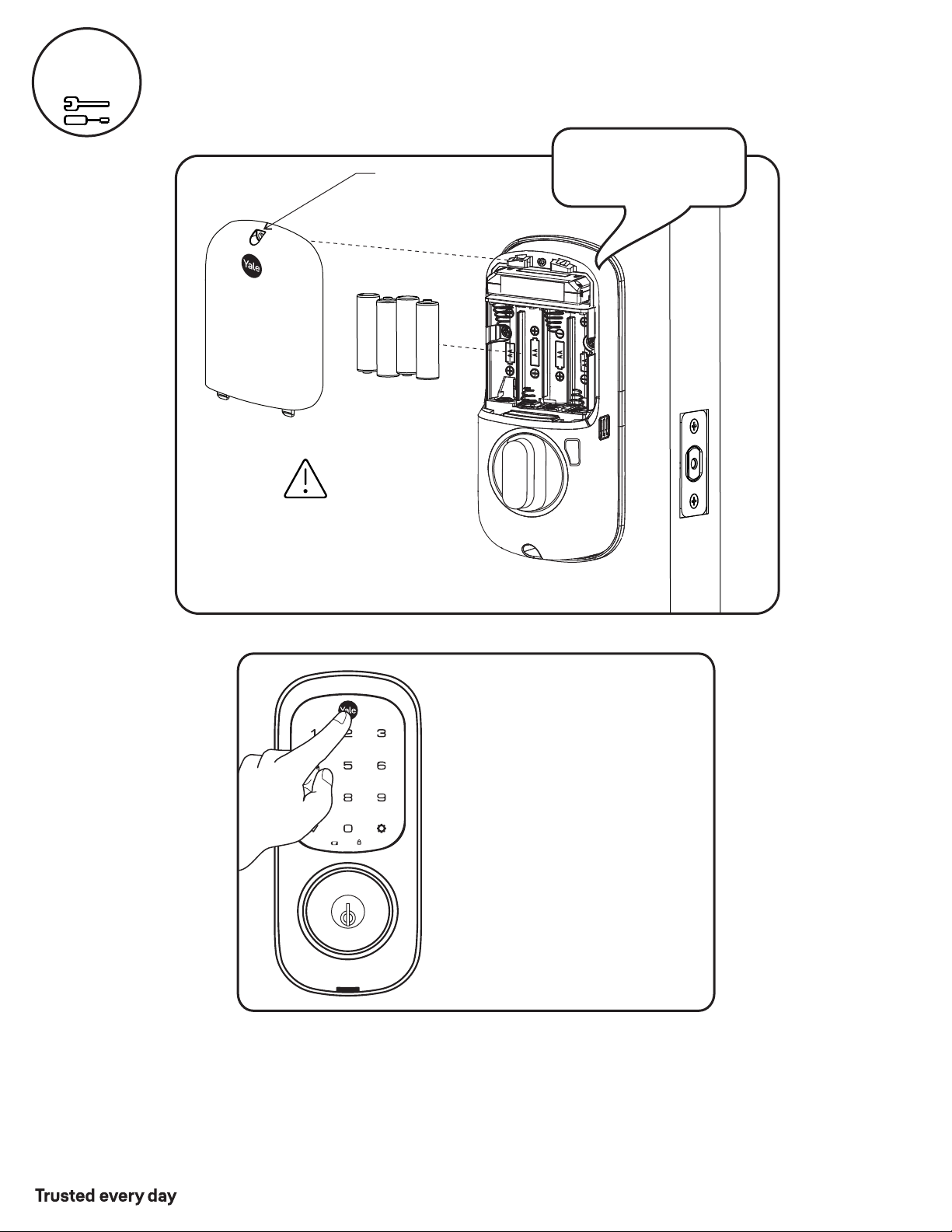

Install Batteries and Cover
Inside of Door
Tighten screw
to replace cover
Bolt must be in retracted
(unlocked) position before
installing batteries.
Press the Yale logo to wake the lock.
You will be guided through setup by
audio instructions on the lock.
Additional entry codes and further
programming can be done through
the Settings Menu. Refer to page 19
for YRD226 or page 20 for
YRD620/YRD622.
"Welcome to
Yale Real Living"
8

13
Using Your Lock
Speaker
Touchscreen Keypad
Inside Lock
Thumbturn for
manual locking
and unlocking
Privacy Button
Battery Cover
Inside Notification
Light
Mechanical Key
Backup Entry Method
Press to wake keypad
or lock door
Enter Master Entry Code
and press to access
Settings Menu
Press to enter
or unlock
Low Battery
Indicator All Code Lockout
Indicator
Speaker
Press to return to
previous Settings Menu
Location of RFID
Signal Receiver
(YRD620/YRD622 ACC ONLY)
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

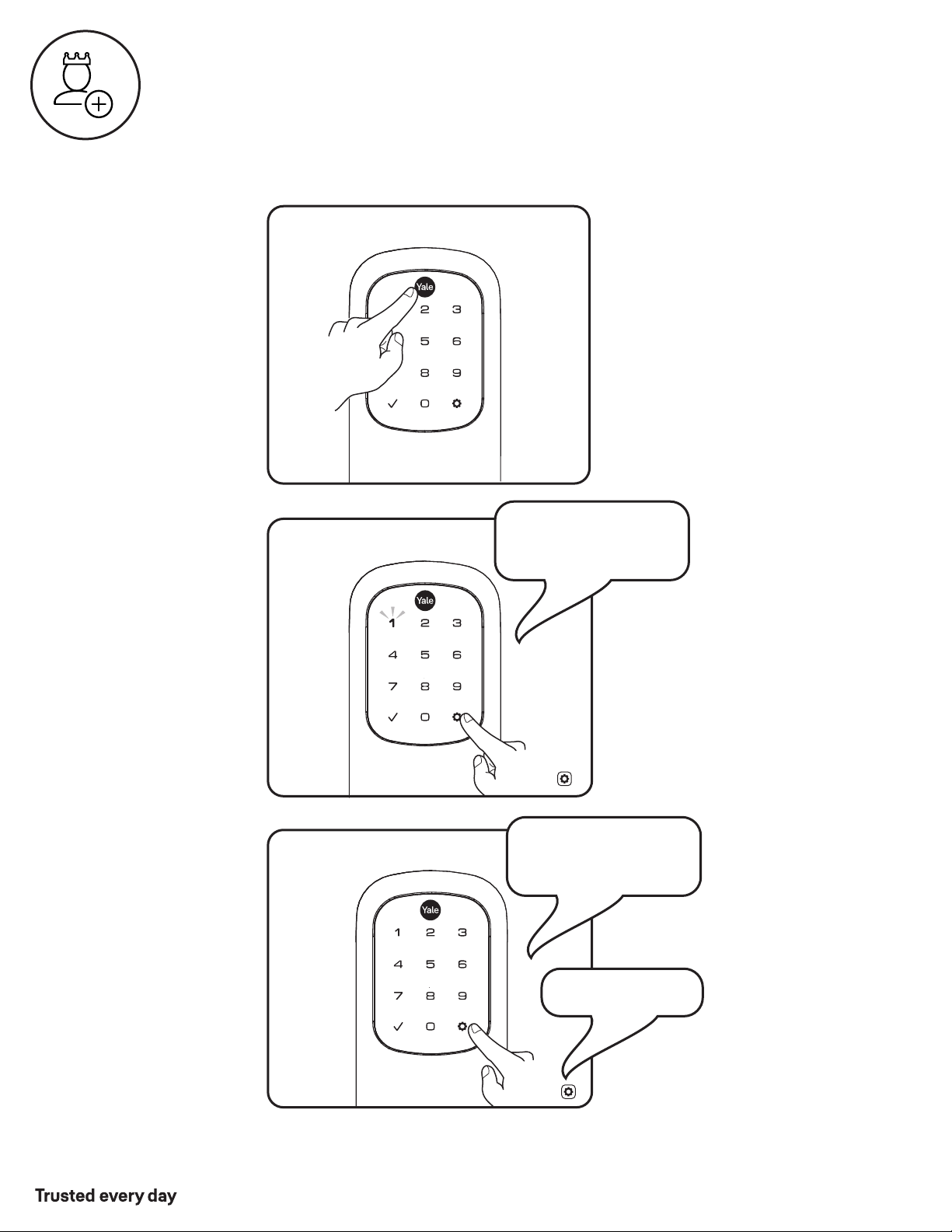

Creating Master Entry Code
The Master Entry Code is used to change lock settings.
A security best practice is to set your Master Entry Code with 6 or more digits
and create a separate code that is used daily to lock and unlock the door.
Enter 4-8 digit
Master
Entry Code
Press
Press
"Register Master
Code. Press the gear
key to continue."
"Enter a 4 to 8 digit
PIN code followed by
the gear key."
"Registered."
14
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

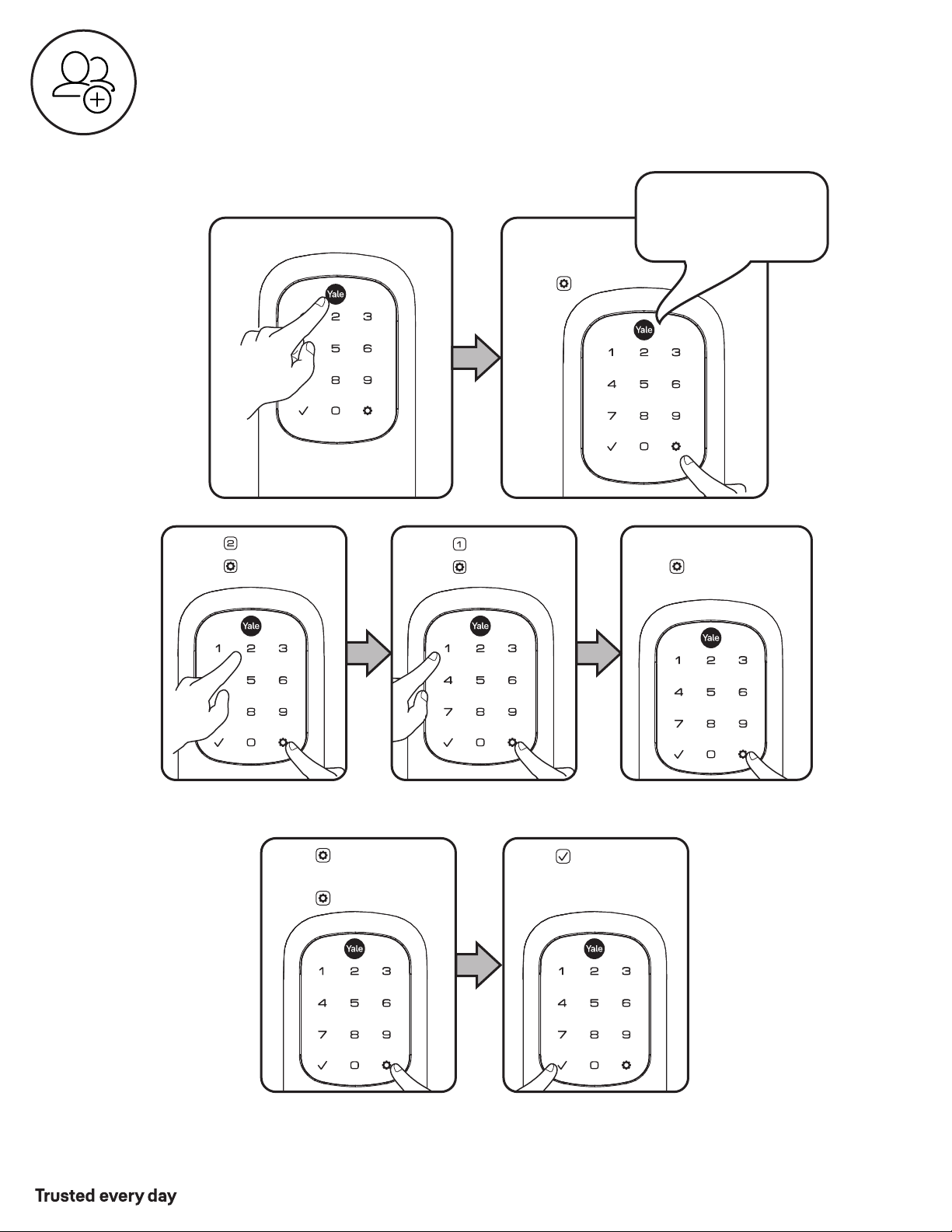

Creating Entry Codes
Master Entry Code must be created first.
*Max Entry Codes = 250 with Smart Module; 25 without.
Enter Master
Entry Code
Press
"Menu Mode,
press the gear key
to continue."
Press
Press
Press
Press
Enter 4-8 digit Entry Code
Press
(code flashes)
Press
Adding more *Entry Codes:
Enter 4-8 digit Entry Code
Press
To end programming:
Press
15
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

Enter Master
Entry Code
"Menu Mode,
enter number,
press the gear key
to continue."
Press

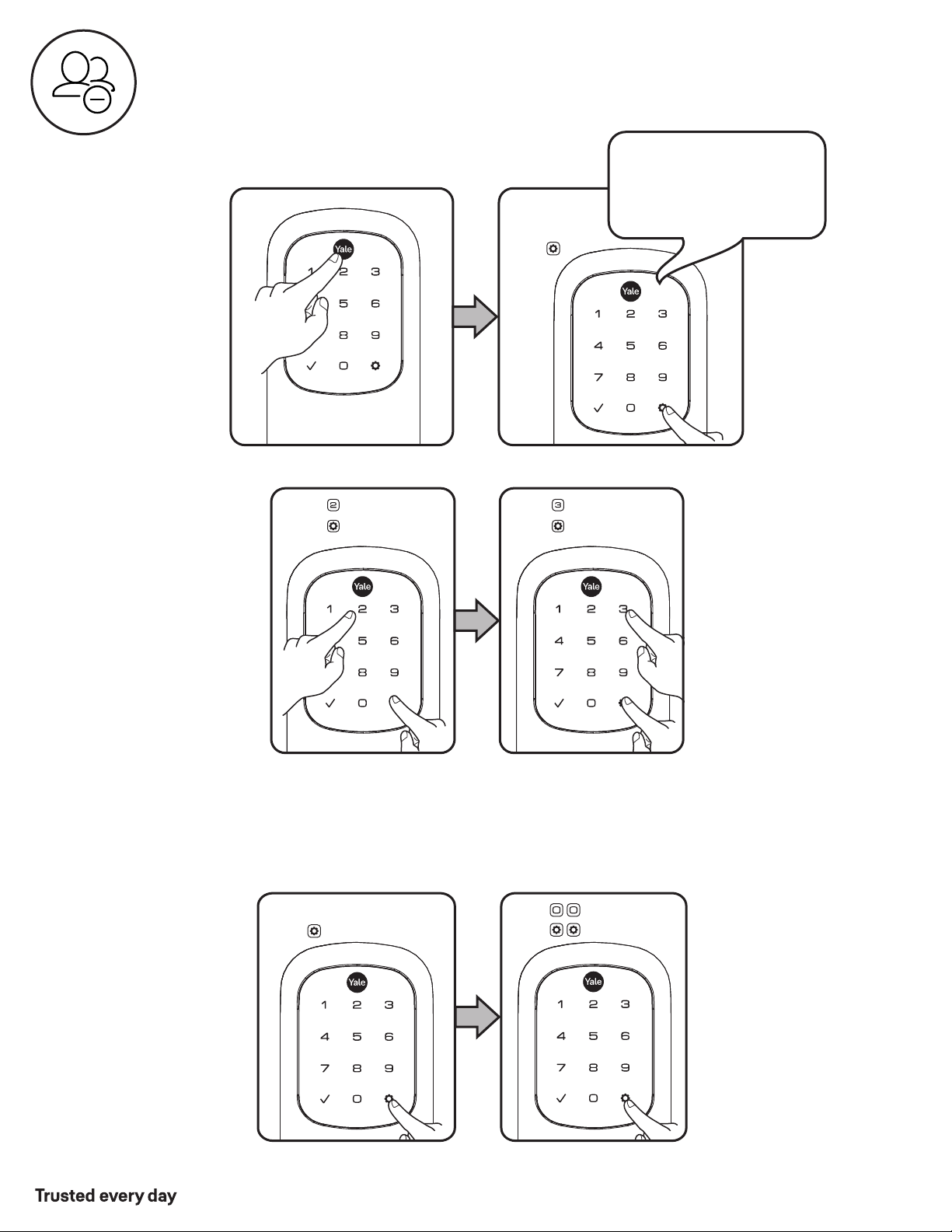

Deleting Entry Codes
Press
Press
Deleting one Entry Code:
Enter 4-8 digit Entry Code
Press
To delete all Entry Codes:
(Does not delete
Master Entry Code)
Press
Press
Press
Enter
To delete one Entry Code,
you must enter the Entry
Code you wish to delete.
16
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
17

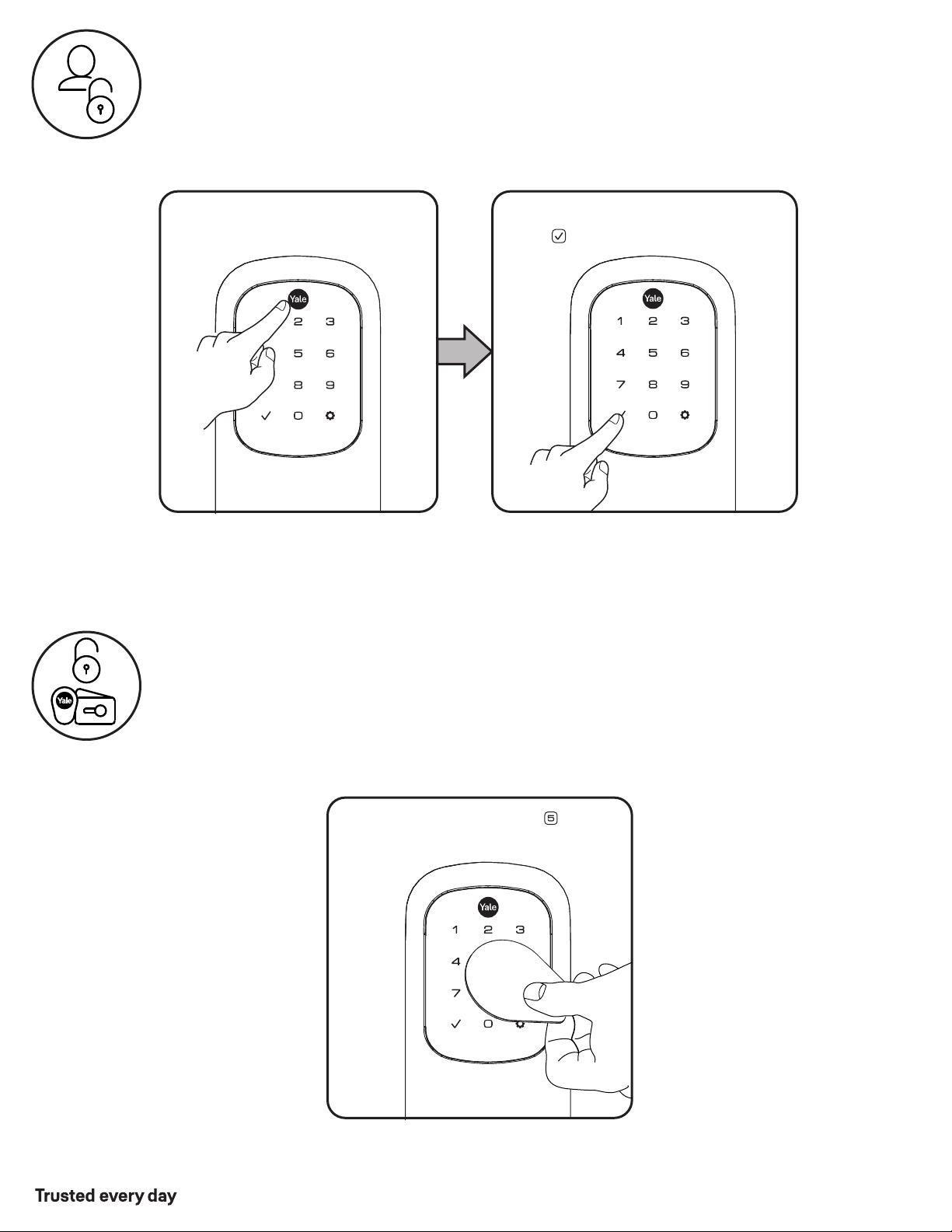

Unlocking Door with Entry Codes
Unlocking Door with RFID
(YRD620/YRD622 ACC ONLY)
See "Customizing YRD620/YRD622 Lock Using Settings Menu", page 20
to configure RFID communication.
Enter Entry Code
Press
Touch and hold fob or card to

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
18
Setting Definitions
*The Master Entry Code must be created prior to any other programming of the lock.
Creation
required*
Inside Indicator Light Disabled (Off)
Master Entry Code
Auto Re-lock Disabled
The Master Entry Code is used for programming
and feature settings. It must be created prior to
programming the lock. The Master Entry Code will also
operate (unlock/lock) the lock.
After a successful code entry or manual unlock
with the key, the lock will automatically re-lock after
each unlock in an effort to keep your home secure.
This feature is optional, and can be turned off.
When enabled, the lock will automatically re-lock
after thirty (30) seconds.
Located on the inside lock. Shows active status
(Locked) of lock and can be enabled or disabled in
Advanced Lock Settings (Main Menu selection #3).
Wrong Code
Entry Limit 5 Times
After five (5) unsuccessful attempts at entering a
valid Entry Code, the lock will shut down and not
allow operation for sixty (60) seconds.
Escape Return Mode
(YRD620/YRD622
ONLY)
Disabled
When enabled, Auto Re-lock is prohibited. Requires
door to be physically manipulated for lock to be re-
locked once door is open from the inside.
Settings Default Setting Definition
One Touch Locking Enabled
Privacy Button Disabled
When the latch is retracted, activating the keypad
will extend the latch (during Auto Re-lock duration
or when Auto Re-lock is disabled). When One-Touch
Re-lock is not in use (disabled), any valid Entry Code
will re-lock the lock.
Privacy mode is disabled by default. When enabled,
activate Privacy mode by pressing the privacy button for
4 seconds to put the lock in do-not-disturb mode (all
Entry Codes are disabled).
Volume Enabled (Low)
The volume setting for Entry Code verification is set
to Low (2) by default; otherwise it can be set to
High (1) or Silent (3) for quiet areas.
Language English
Choosing English (1), Spanish (2) or French (3)
becomes the (default) setting for the lock voice
prompts.
All Code Lockout Disabled
This feature is enabled by the Master Entry Code.
When enabled, it restricts all Entry Code access
(except Master). When attempting to enter a
code while the lock is in All Code Lockout, the RED
locked padlock will appear on the screen.
Shutdown Time 60 Seconds
The lock will shutdown (flashing RED) for sixty
(60) seconds and not allow operation after the
wrong code entry limit (5 attempts) has been met.

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
19

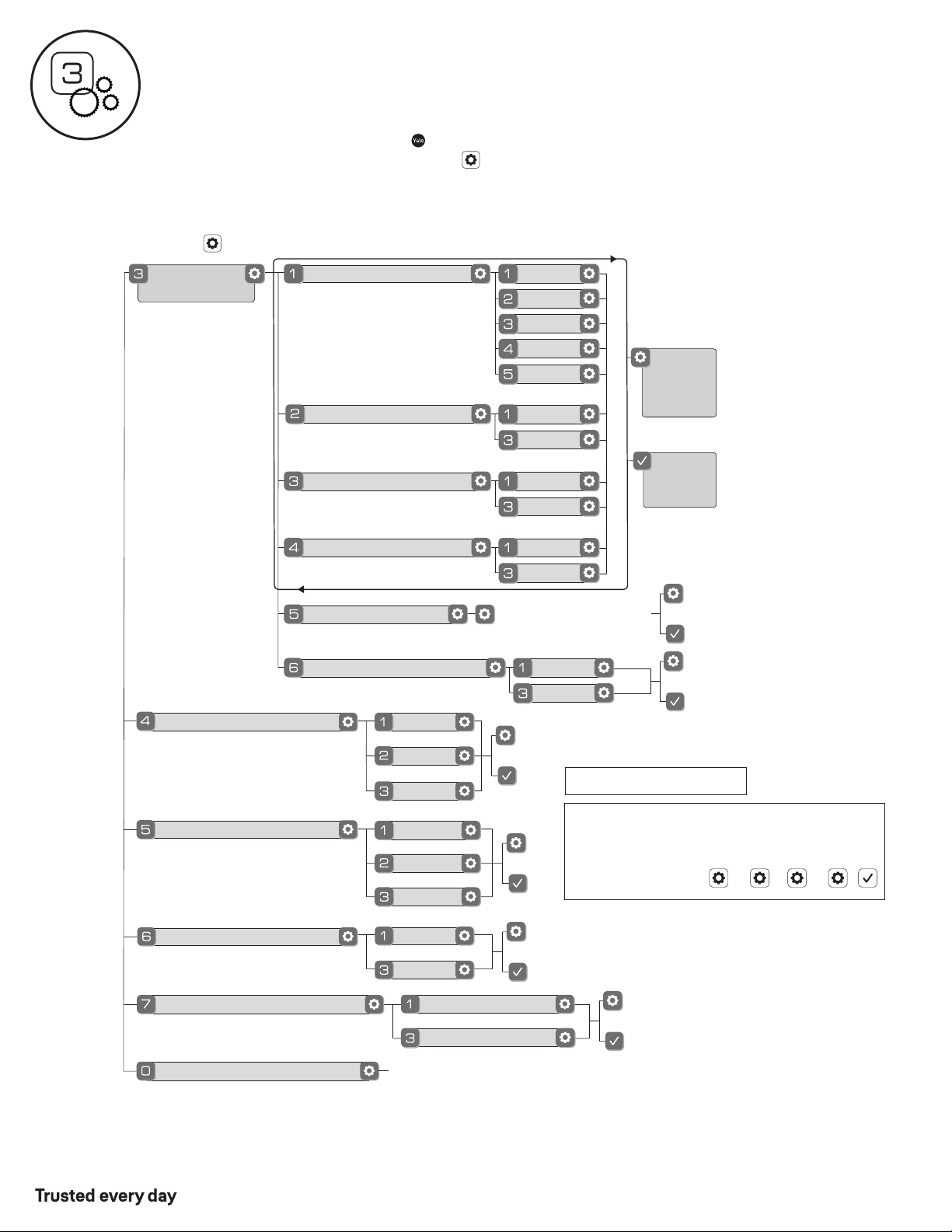

Customizing YRD226 Lock Using Settings Menu
*Master Entry Code required
Join the Network
Enable
Disable
English
Spanish
French
Silent
Low
High
Exit the Network
Volume Setting
Language Setting
All Code Lockout
**Network Module Setting
Default settings in bold.
Privacy Button Setting Enable
Disable
Handing the Lock Preforms automatic
handing of the lock
Advanced
Lock Settings
Auto Re-lock Disable
30 sec
Inside Indicator Light
One Touch Locking Enable
Disable
Enable
60 sec
3 min
2 min
Disable
1. Press Yale logo to wake up lock .
2. Enter Master Entry Code* followed by icon.
Lock Response: "Welcome to the Settings Menu. Press each number to hear
available settings and then press the settings icon to enter."
3. Enter digit corresponding to the function to be performed followed by
the icon. Follow the voice commands.
*The Master Entry Code must be created prior to any other programming of the lock.
**Network Module Setting function appears only with Yale Smart module installed.
Here is an example of how to set Auto Lock to 30 seconds:
Master Entry Code , 3 , 1 , 2 ,
Exit
Settings
Menu
Remain
in
Settings
Menu
or
or
or
or
or
or

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
20
Customizing YRD620/YRD622 ACC ONLY Lock
Using Settings Menu *Master Entry Code Required
Enable
Disable
English
Spanish
French
Silent
Low
High
Volume Setting
Language Setting
All Code Lockout
Privacy Button Setting Enable
Disable
Handing the Lock Preforms automatic
handing of the lock
Advanced
Lock Settings
**Auto Re-lock Disable
30 sec
Inside Indicator Light
One Touch Locking Enable
Disable
Enable
60 sec
3 min
2 min
Disable
*Master Entry Code must be created prior to any other programming of the lock.
**If Escape Return Mode is enabled, Auto Re-lock cannot be enabled.
***Configuration will disable locking/unlocking via Entry Codes.
Exit
Settings
Menu
Remain
in
Settings
Menu
or
or
or
or
orR
***Configure for Accentra
**Escape Return Mode Enable
Disable or
Default settings in bold.
Here is an example of how to set
Auto Lock to 30 seconds:
Master Entry Code , 3 , 1 , 2 ,
Use Yale Accentra Configuration app to complete
1. Press Yale logo to wake up lock .
2. Enter Master Entry Code* followed by icon.
Lock Response: "Welcome to the Settings Menu. Press each number to hear
available settings and then press the settings icon to enter."
3. Enter digit corresponding to the function to be performed followed by
the icon. Follow the voice commands.
Join the Network
Exit the Network
**Network Module Setting
or
