Yardistry CAROLINA User manual

CAROLINA PAVILION
Installaon and Operang Instrucons – YM11726X
Revised 01-09-2019
Height: 10’ 1” (3.07 m)
11’
13’
[39.624 m]
[3352.8]
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Y40000-726X

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your unit
so that it does not create any unreasonable hazards at the time it is discarded. Be sure to
follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• 7/16”, 1/2” & 9/16” Wrench
• 7/16”, 1/2” & 9/16” Socket
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• Check that assembly is square before
tightening bolts

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pavilion.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.

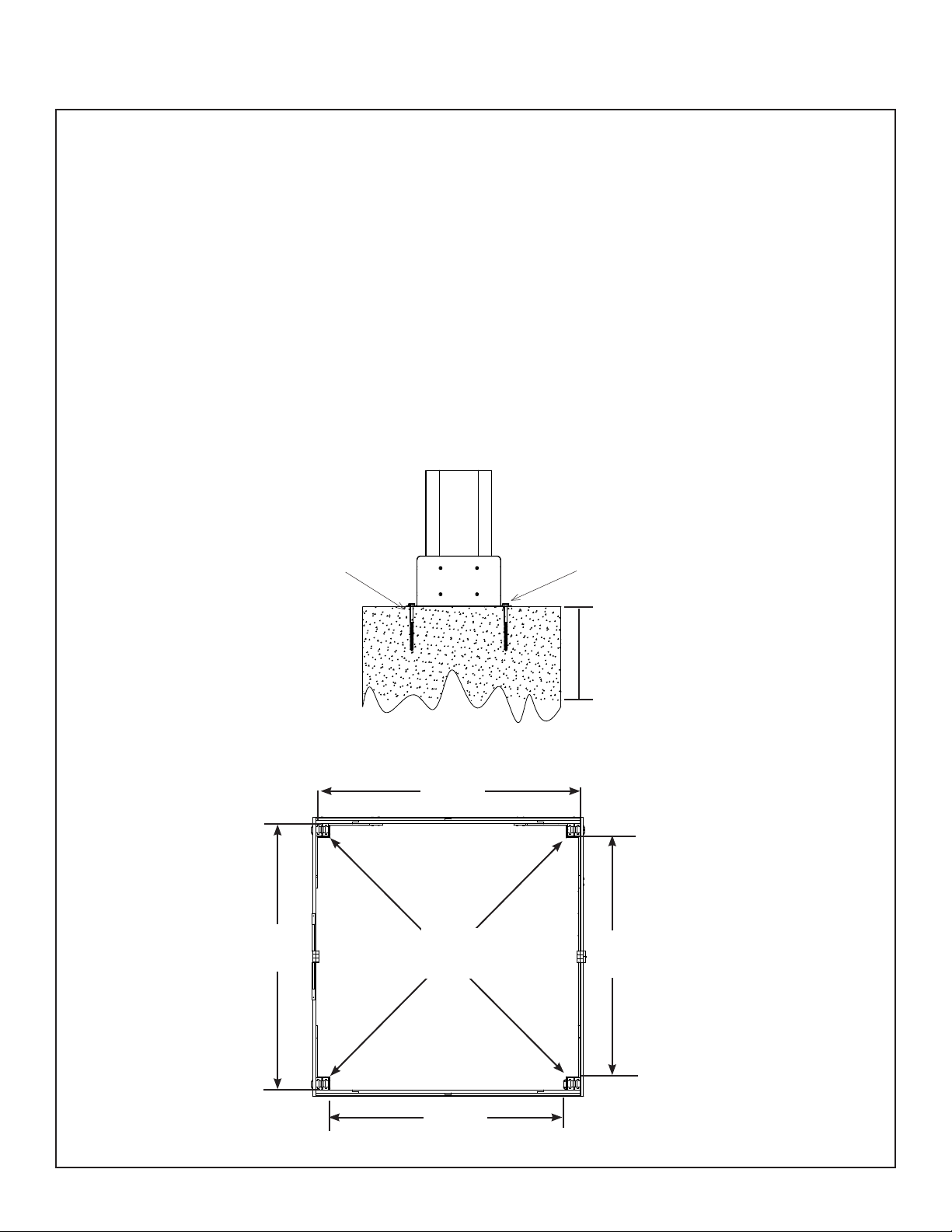

Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
11 x 13 Savannah Pavilion
Post to Post
2
9'-5.50"
1"
Plinth to Plinth
10'-7.00"
"
13'-8
9'-10 1
2
11'-0.00"
9’ 10-1/2”
Plinth to Plinth
Plinth to Plinth
13’ 10-1/2”
Post to Post
11’
Post to Post
9’ 5-1/2”
10’ 7”
Post to Post

7 [email protected]
Permanent Installation Examples cont.
Concrete Patio (min. 11’7” x 12’) with 6” clearance on all sides
Wood Deck (min. 11’ 7” x 12’) with 6” clearance on all sides
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1/2” diameter
hole for anchoring hardware.

8 [email protected]
19.1 x 133.4 x 190.5mm (3/4 x 5-1/4 x 7-1/2")
16pc. (422) Plinth
Y50131-422
(1-3/8 x 7-1/2 x 39-15/16")
4pc. (705) Gusset Right 34.9 x 190.5 x 1015mm
Y70131-705

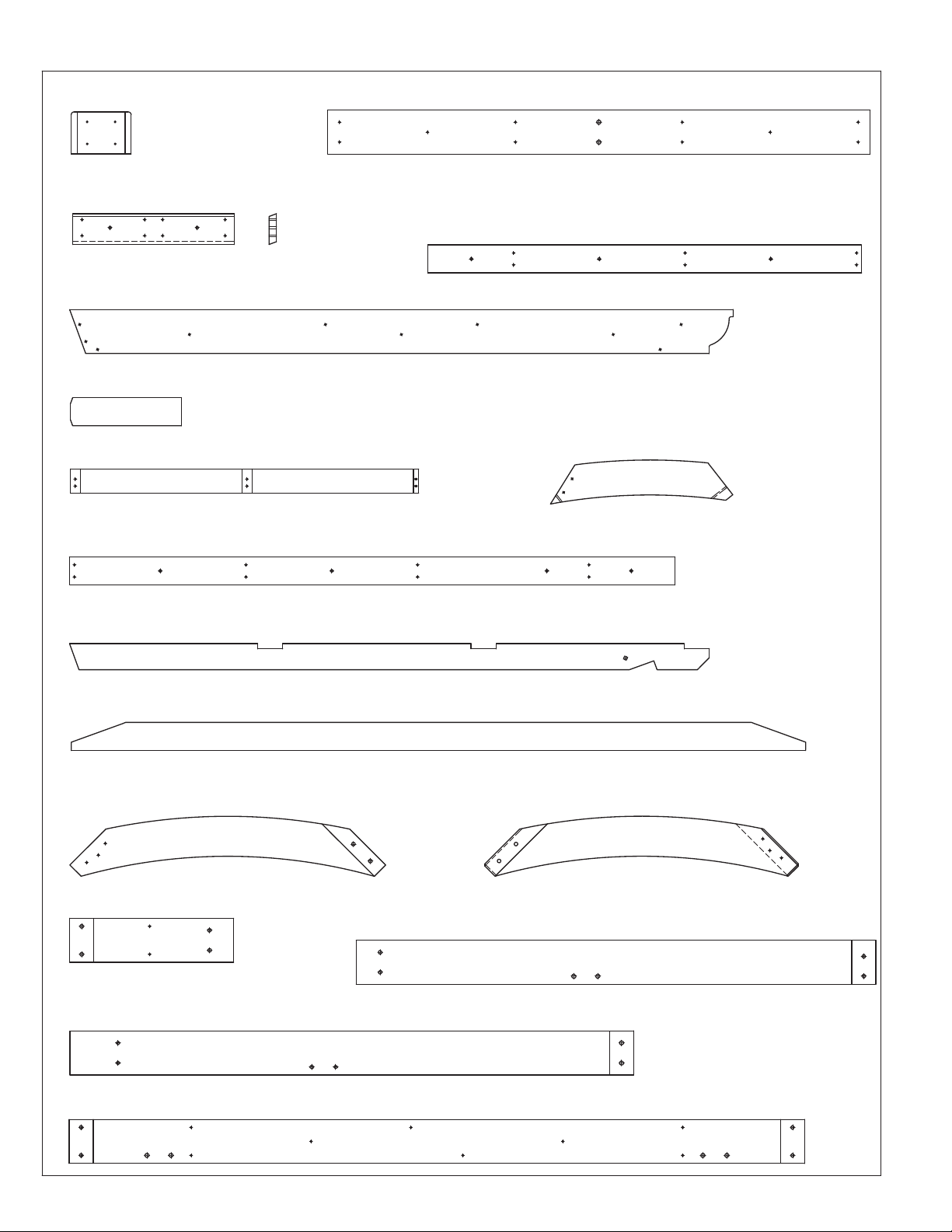

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
(1-3/8 x 7-1/2 x 39-15/16")
4pc. (706) Gusset Left 34.9 x 190.5 x 1015mm
Y70131-706
5pc. (416) Tie 31.8 x 88.9 x 2333.6mm (1-1/4 x 3-1/2 x 91-7/8")
Y50131-416
5pc. (417) Tie Brace 31.8 x 88.9 x 352.6mm (1-1/4 x 3-1/2 x 13-7/8")
Y50131-417
(1-1/4 x 5-1/4 x 22-27/32")
4pc. (414) Gable Gusset 31.8 x 133.4 x 580.1mm
Y50131-414
4pc. (474) Gable Beam 38.1 x 139.7 x 1790.7mm (1½ x 5½ x 70½")
Y50131-474
4pc. (475) Outside Beam 38.1 x 139.7 x 1651mm (1½ x 5½ x 65")
(Y50131-475)
2pc. (472) Inside Centre Beam 92” 38.1 x 139.7 x 2336.8mm (1½ x 5½ x 92")
Y50131-472
4pc. (473) Inside End Beam 38.1 x 139.7 x 520.7mm (1½ x 5½ x 20½")
Y50131-473
14pc. (468) Rafter 31.8 x 82.6 x 2033mm (1¼ x 3¼ x 80-3/64")
Y50131-468
2pc. (467) Rafter Top 25.4 x 88.9 x 1923.6mm (1 x 3½ x -75-47/64")
Y50131-467
Y50131-466
6pc. (466) Short Strap 31.8 x 76.2 x 1106.4mm (1¼ x 3 x 43-9/16")
2pc. (476) Gusset Support 25.4 x 139.7 x 1724mm (1 x 5½ x 67-7/8")
Y50131-476
4pc. (470) Rafter Brace 25.4 x 97.6 x 513.2mm (1 x 3-27/32 x 20-13/64)
Y50131-470 2pc. (469) Rafter Top Short 25.4 x 88.9 x 1378.3mm (1 x 3½ x 54-17/64mm)
Y50131-469
4pc. (471) Gable End 25.4 x 139.7 x 2108.3mm (1 x 5½ x 83")
Y50131-471

9 [email protected]
1pc. #2 x 2" (Y00400-005)
Robertson Driver
smaller or larger.
Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be

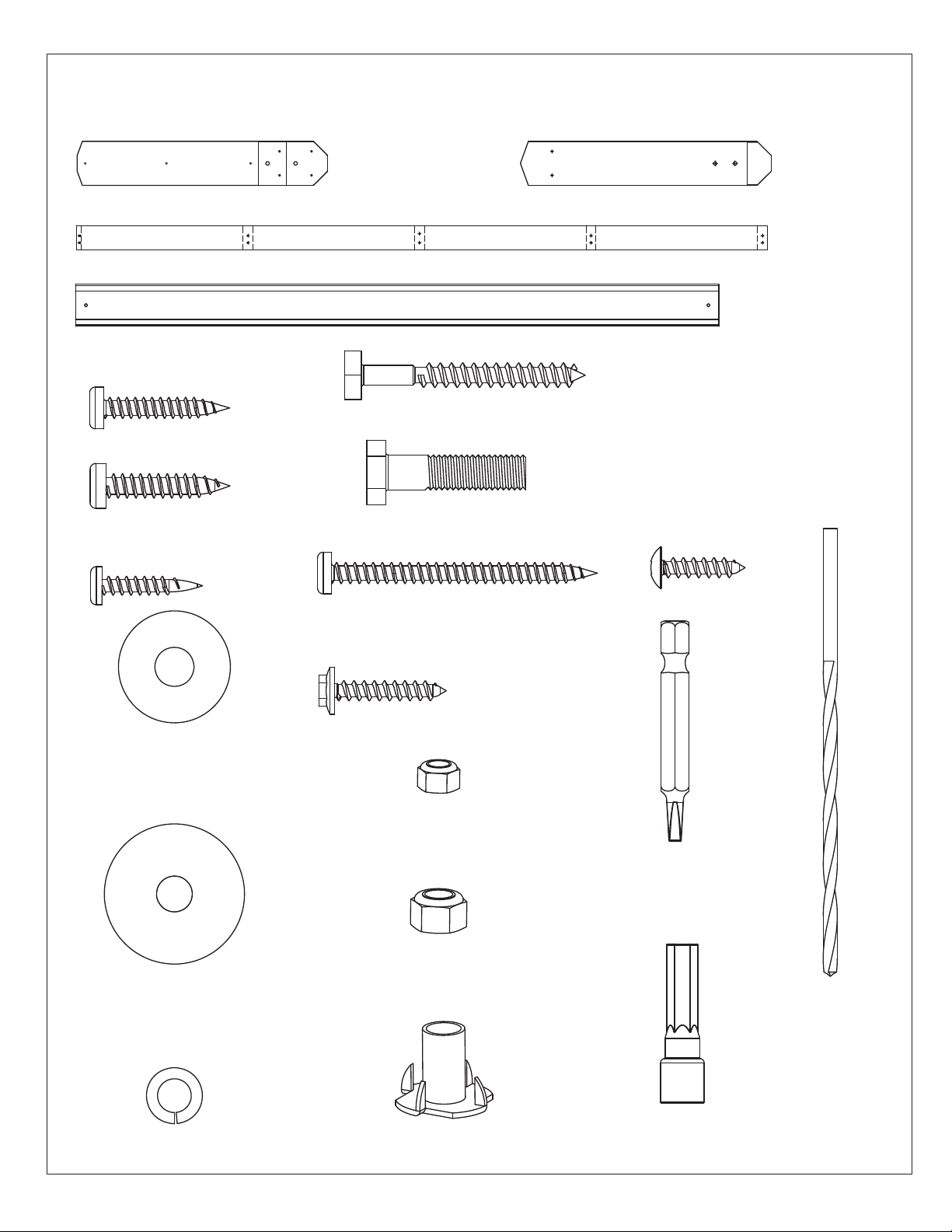

Hardware Identification
1/8" (Y00400-002)
Drill Bit
1pc.
5/16" (Y05318-300)
Lock Washer
40pc.
1pc. Hex Driver (Y00400-004)
40pc. 5/16" (Y08518-300)
T-Nut
3/8 x 1¼" (Y05118-811)
Large Washer
16pc.
18pc. 1/4" (Y08318-203)
Lock Nut
- 5/16 x 1¼" (Y05118-311)1/4
Large Washer
100pc.
Pan Screw
- (Y06491-722)
10pc. #10 x 2-1/2"Sheet Metal Screw
#8x3/4" - (Y06433-503)
4pc.
8pc. 3/8" (Y08318-803)
Lock Nut
106pc. #10 x 1-1/4" (Y06491-711)
Pan Screw
Hex Roofing Screw
(Y06733-510)
152pc. #8x 1"
70pc. #8 x 1" (Y06491-510)
Pan Screw
10pc. Pan Screw #12 x 1-1/4"
(Y06491-611)
(3½ x 5½ x 31-23/64")
2pc. (477) Gable Upright Front 88.9 x 139.7 x 796.5mm
Y70131-477
(3 x 5½ x 32-1/64")
2pc. (480) Gable Upright Back 76.2 x 139.7 x 813.3mm
Y70131-480
6pc. (465) Long Strap 31.8 x 76.2 x 2195.5mm (1¼ x 3 x 86-7/16")
Y50131-465
24pc. Hex Lag Screw 1/4 x 1-15/16"with #12 Shank- (Y06218-219)
8pc. Hex Bolt 5/16 x 1-1/4"
(Y07718-311)
4pc. (696) - M Post 152.4 x 152.4 x 2336.8mm (6 x 6 x 92")
Y70131-696

10 [email protected]
Hardware Identification
Dimensions are approximate and are shown to assist in the identification of parts for
assembly.Actual dimensions may be smaller or larger.
- (Y06218-343)
5/16 x 4-3/4"4pc. Lag Screw
26pc. Wood Screw#7 x 3/4"- (Y06091-003)
32pc. Wood Screw#8 x 2 1/2"- (Y06091-522)
4pc. Hex Bolt 3/8 x 9-1/2"
(Y07718-892)
- (Y07718-220)1/4 x 2"
10pc. Hex Bolt
4pc. Hex Bolt 3/8 x 8"
(Y07718-880)
52pc. Wood Screw#8 x 2 1/4"- (Y06091-521)
12pc. Hex Bolt 5/16 x 4"- (Y07718-340)
- (Y07718-312)
5/16 x 1-1/2"
12pc. Hex Bolt
- (Y07718-321)Hex Bolt 5/16 x 2-1/4"
8pc.
- (Y06218-330)
5/16 x 3" (5/16 Head 1/4" Shank)
4pc. Lag Screw
260pc. Wood Screw#8 x 1-3/4" (Y06091-513)
4pc. Wood Screw#10 x 4" - (Y06091-740)
- (Y07718-223)
1/4 x 2-3/4"4pc. Hex Bolt
- (Y07718-243)
1/4 x 4-3/4"4pc. Hex Bolt

11 [email protected]
1pc. Yardistry Plaque
(Y70800-104)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly.Actual dimensions may be smaller or larger.
Hardware Identification ( )
1pc. - Post Mount
Bracket Set (8Pk)
(Y70819-109)
1pc. Tie Centre
Bracket Set (4Pk)
(Y70819-107)
1pc. Roof Panel Set Y70833-164
6pc. Main Panel - Y01033-164
1pc. Jamb Mount
Bracket Set (10Pk)
(Y70819-157)
1pc. Tie Wrap
Bracket Set (2Pk)
(Y70829-163)
2pc. Roof Edge Left
(Y01033-152)
1pc. Weather Seal - Y70818-156
Ridge Clip (6PK)
2pc. Ridge Clip
(Y01033-114)
2pc. Right Side Panel - Y01033-165
1pc. Corner Bracket
(Y00419-160)
2pc. Roof Edge Right
(Y01033-153)
4pc. Ridge Clip Short
(Y01033-154)
1pc.Ridge Cap 91
(Y01033-117)
2pc. Tie Wrap
Bracket Set (4Pk)
(Y70829-106)1pc. Rafter Beam
Bracket Set (10Pk)
(Y70829-263)
2pc. Ridge Cap Short 21.7
(Y01033-155)

12 [email protected]
PRODUCT NUMBER: YM11726X
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI
warnings; notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four
people, DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check
for gas, telephone, other utilities or sprinkler line locations prior to excavating any
holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if
you contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well
as any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your
assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
Avery Inst 1 - Post Assembly
Avery Inst 1 - Post Assembly
Avery Inst 1 - Post Assembly
A: At the bottom of one (696) 6 x 6 Post insert two 5/16” T-Nuts as shown in g. 2.1.
B: At the bottom of the same (696) 6 x 6 Post place two Post Mounts tight to the bottom and inside faces as
shown in g. 2.1 and 2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16”
large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-3/4” Wood
Screws per mount and then from the inside with two #10 x 1-1/4” Pan Screws per mount These screws are
installed at a slight angle. Tighten bolts.
C: Place one (422) Plinth ush to the bottom and tight to the Post Mounts on each side of the (696) 6 x 6 Post
and attach with four #8 x 1-3/4” Wood Screws per plinth. Rounded edges on top. (g. 2.3 and 2.4)
D: Repeat Steps A - C three more times to make four Post Assemblies.
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.1
(422) Plinth
4 x (696) 6 x 6 Post
16 x (422) Plinth
Top
Bottom
#8 x 1-3/4” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-3/4”
Wood Screws
(x 4 per Plinth)
(696) 6 x 6 Post
Post
Mount
Fig. 2.2
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-3/4” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
Avery Inst 1 - Post Assembly
Fig. 2.4
Post
Mount
(696) 6 x 6 Post
5/16” T-Nut
(x 2 per
Post)
(696) 6 x 6
Post
Rounded
Edge on Top
Fig. 2.3
Post
Mount
#10 x 1-1/4” Pan Screws
(x 2 per Post Mount, from
inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut
(x 2 per
Post)
(696) 6 x 6
Post

14 [email protected]
Savannah Inst 2 - Beam Assembly - Front/Back
Savannah Inst 2 - Beam Assembly - Front/Back
Step 3: Beam Assembly - Front/Back
Hardware
Wood Parts
A: Fit together two (474) Gable Beams so the notched out ends are tight together then place one (477) Gable
Upright Front on one side and one (480) Gable Upright Back and one (476) Gusset Support on the other side.
Loosely attach with two 5/16 x 4” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) from
the front of the assembly. Note: Bolt holes to the bottom of each (474) Gable Beam (g. 3.1 and 3.2)
B: Square then attach the tops of (480) Gable Upright Back and (477) Gable Upright Front with two #8 x 2-1/4”
Wood Screws. Tighten bolts from Step A. (g. 3.1 and 3.2)
C: Attach (476) Gusset Support to each (474) Gable Beam with ten #8 x 2-1/4” Wood Screws. (g. 3.1)
D: Attach (480) Gable Upright Back to (477) Gable Upright Front with two #8 x 1-3/4” Wood Screws and to (474)
Gable Beam with two #8 x 2-1/2” Wood Screws. (g. 3.1)
E: Repeat Steps A - D one more time to make a second Beam Assembly - Front/Back.
Fig. 3.1
4 x 5/16 x 4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
4 x #8 x 1-3/4” Wood Screw
24 x #8 x 2-1/4” Wood Screw
4 x #8 x 2-1/2” Wood Screw
1/4 - 5/16”
Large Washer
5/16 x 4”
Hex Bolt
5/16”
T-nut x 2
Tight
(476) Gusset
Support
(477) Gable
Upright Front
(474) Gable
Beam
Front
4 x (474) Gable Beam
2 x (476) Gusset Support
2 x (480) Gable Upright Back
2 x (477) Gable Upright Front
(480) Gable
Upright Back
5/16” Lock
Washer
#8 x 2-1/2”
Wood Screw
#8 x 1-3/4”
Wood Screw
#8 x 2-1/4”
Wood Screw #8 x 2-1/4”
Wood Screw
x 10
Notice holes
on bottom of
both boards
(474) Gable
Beam
Notice holes
on bottom of
both boards
(480) Gable
Upright Back
(477) Gable
Upright Front
Fig. 3.2
Front

15 [email protected]
Avery Inst 3 - Beam Assembly - Side
HardwareWood Parts
A: Fit two (475) Outside Beams together so the middle pilot holes are at the bottom for both. Connect using two
5/16 x 1-1/2” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 4.1.
B: Connect one (473) Inside End Beam to each end of one (472) Inside Centre Beam 92 using two 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in g. 4.2.
C: Repeat Steps A and B one more time to make two Beam Outside Assemblies and two Beam Inside Assemblies.
4 x (475) Outside Beam
2 x (472) Inside Centre Beam
4 x (473) Inside End Beam
Fig. 4.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 4.2
5/16 x 1-1/2”
Hex Bolt
5/16”
T-nut
Tight
(472) Inside
Centre Beam 92
(475) Outside
Beam
Step 4: Beam Assembly - Side
Part 1
5/16 x 1-1/2”
Hex Bolt
5/16 x 1-1/2”
Hex Bolt
5/16” Lock
Washer
(473) Inside
End Beam
(473) Inside
End Beam
(475) Outside
Beam
1/4 - 5/16”
Large Washer
Notice holes
on bottom of
both boards

16 [email protected]
Avery Inst 3 - Beam Assembly - Side
Hardware
24 x #8 x 2-1/2” Wood Screw
Fig. 4.3
Beam Inside
Assembly
Flush

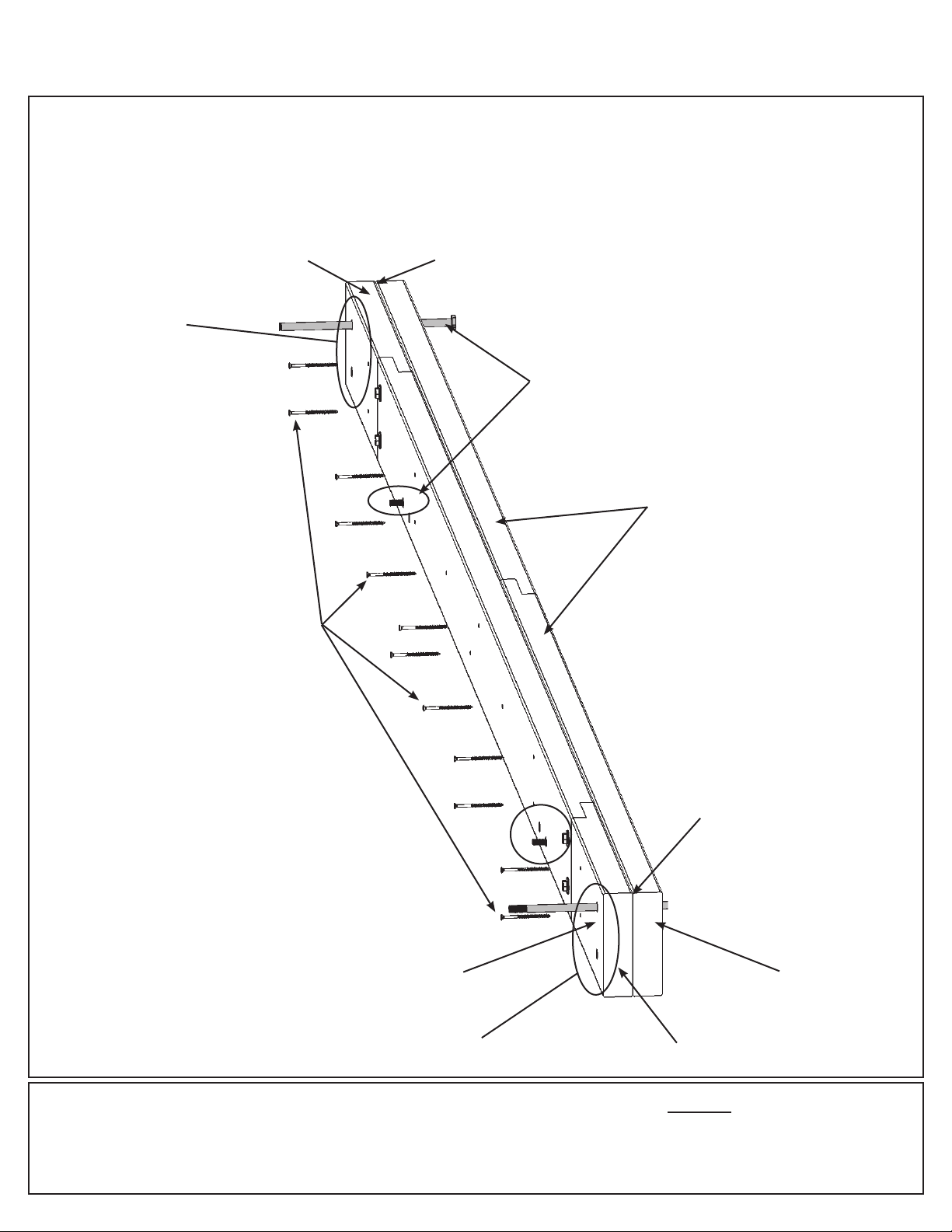

Step 4: Beam Assembly - Side
Part 2
D: Place one Beam Outside Assembly and one Beam Inside Assembly so the ends are ush. Match the bolt
holes in each (473) Inside End Beam with the bolt holes in each (475) Outside Beam. Attach assemblies with 12
#8 x 2-1/2” Wood Screws. (g. 4.3)
E: Repeat Step D one more time to make a second Beam Assembly - Side.
Flush
Beam Outside
Assembly
#8 x 2-1/2” Wood
Screws (x 12 per
assembly)
Match
bolt
holes
(475)
Outside
Beam
(473) Inside
Beam End
Match
bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(473) Inside
Beam End

17 [email protected]

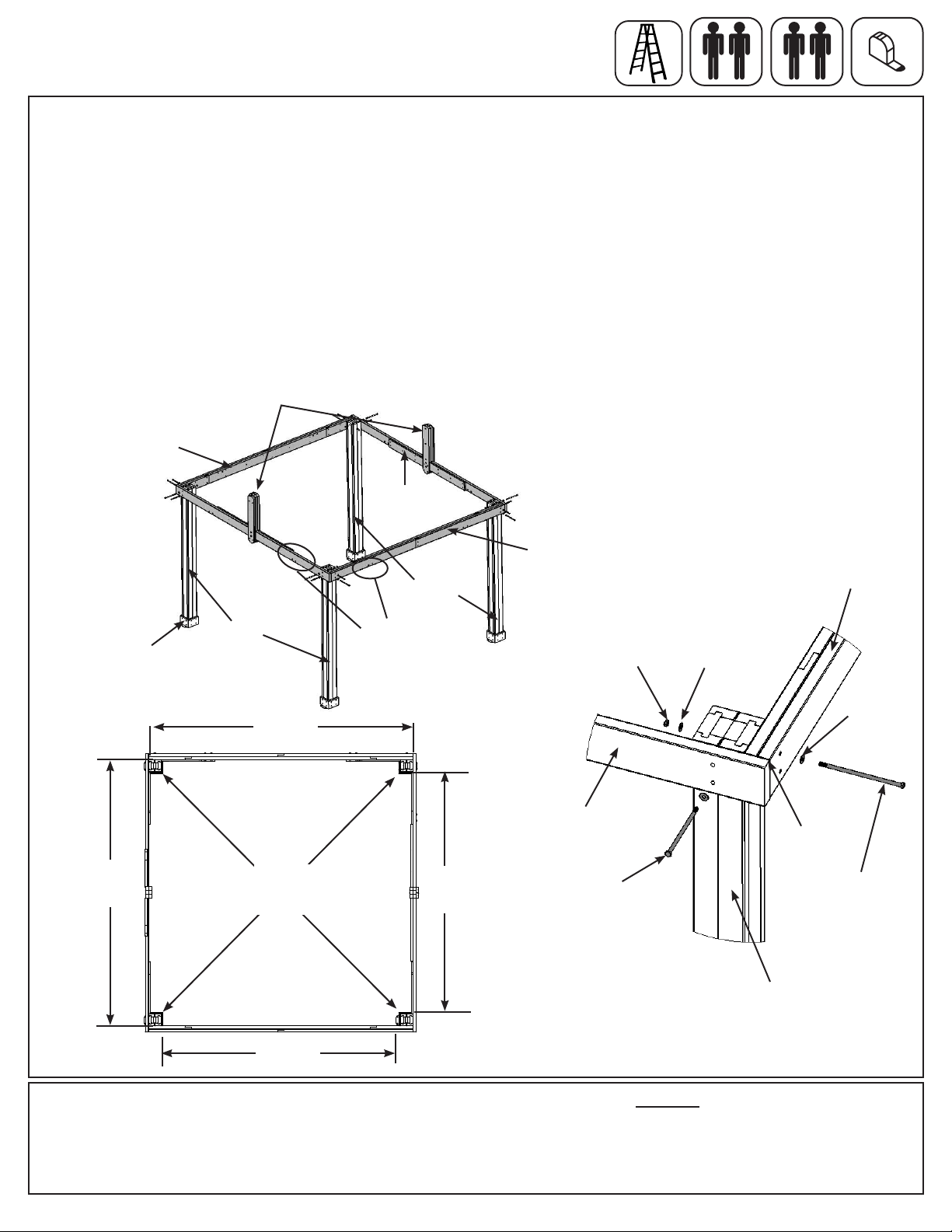

Savannah Inst 4 - Frame Assembly
Avery Inst 4 - Frame Assembly
A: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.
B: With one person at each Post stand two complete Post Assemblies. A third person places one Beam
Assembly - Side against the outside of each Post, ush to the tops and outside corners. Notice bolt hole
orientation on the assemblies. A fourth person attaches Beam to Post with one 3/8 x 9-1/2” Hex Bolt (with two 3/8”
large washers and one 3/8” lock nut) per Post. The distance from the outside of one Post to the outside of the
second Post should be 10’ 7”. (g. 5.1, 5.2 and 5.3)
C: Place one Beam Assembly - Front/Back against two Post Assemblies so the (476) Gusset Support faces the
inside and is ush to the top and outside corner of Beam Assembly - Side, then attach with one 3/8 x 8” Hex Bolt
(with two 3/8” large washers and one 3/8” lock nut) per Post. The distance from the outside of one Post to the
outside of the second Post should be 11’. (g. 5.1 and 5.2) See g. 5.3 for accurate positioning of Posts.
Step 5: Frame Assembly and Anchoring
Part 1
Fig. 5.1
Fig. 5.2
Hardware
4 x 3/8 x 9-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
4 x 3/8 x 8” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Note hole
orientation (on
bottom)
Fig. 5.3
3/8” Lock
Nut
3/8” Large
Washer
3/8” Large
Washer
3/8 x 8”
Hex Bolt
3/8 x 9-1/2”
Hex Bolt
Beam
Assembly -
Side
Post Assembly
Post
Assembly
(476) Gusset
Support
Post
Assembly
Plinth
Beam Assembly
- Front/Back
Beam
Assembly -
Side
Beam Assembly -
Front/Back
Beam Assembly
- Side
11 x 13 Savannah Pavilion
Post to Post
2
9'-5.50"
1"
Plinth to Plinth
10'-7.00"
"
13'-8
9'-10 1
2
11'-0.00"
9’ 10-1/2”
Plinth to Plinth
Plinth to Plinth
13’ 10-1/2”
Post to Post
11’
Post to Post
9’ 5-1/2”
10’ 7”
Post to Post
D: Repeat Steps B and C for remaining
Beam Assemblies. See g. 5.3 for
accurate positioning of Posts.
Flush
x 3

18 [email protected]
Avery Inst 4 - Frame Assembly
E: Make sure each corner is square and level then attach Beam Assembly - Side to Post Assemblies with one
5/16 x 4-3/4” Lag Screw (with 1/4-5/16” large washer) per corner and Beam Assembly - Front/Back to Post
Assemblies with one 5/16 x 3” Lag Screw (with 1/4-5/16” large washer) per corner as shown below. (g. 5.4)
F: Depending on what you are placing the Pavilion on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
4 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
4 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
5/16 x 4-3/4”
Lag Screw
5/16 x 3”
Lag Screw
Fig. 5.4
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
Beam Assembly
- Front/Back
Beam Assembly
- Side
1/4 - 5/16”
Large Washer
1/4 - 5/16”
Large Washer

19 [email protected]

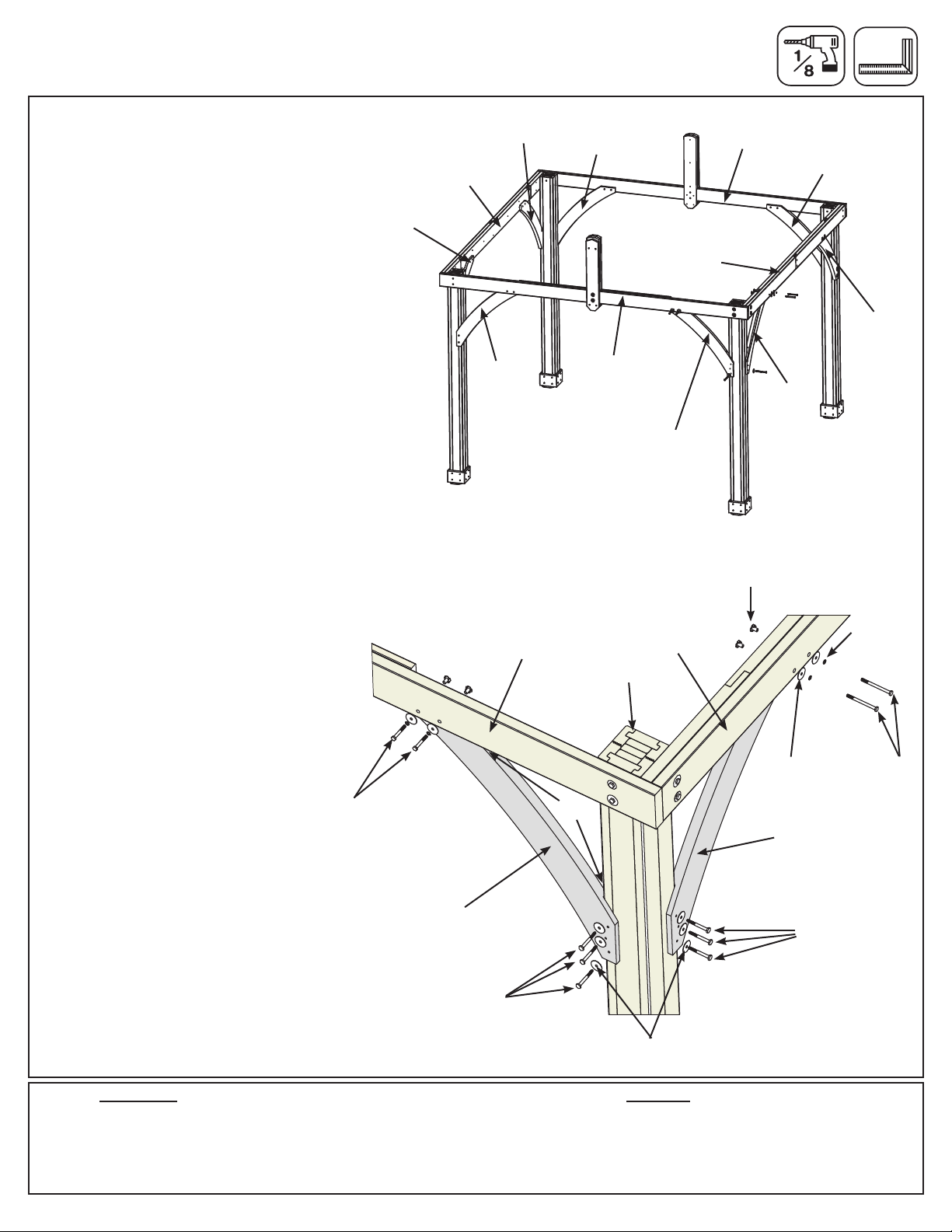

Note: The bevelled ends on each
gusset should always face away from
the wood it is attaching to.
A: Make sure the assembly is still
square and level then facing one Beam
Assembly - Side place one (705) Gusset
Right on the right hand side so the top ts
tight to the Beam Assembly - Side and
the bottom ts tight to the Post Assembly.
Attach gusset to Beam Assembly - Side
with two 5/16 x 4” Hex Bolts (with 5/16”
lock washer, 1/4-5/16” large washer and
5/16” t-nut). Pre-drill with a 1/8” drill bit
then attach gusset to Post Assembly with
three 1/4 x 1-15/16” Lag Screws (with
1/4-5/16” large washer). Repeat for the
left hand side with one (706) Gusset Left.
(g. 6.1 and 6.2)
B: Repeat Step A for Beam Assembly -
Front/Back using two 5/16 x 2-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut) to attach
gussets to Beam Assembly - Front/Back.
(g. 6.1 and 6.2)
C: Repeat Steps A and B so all 8 gussets
are attached. (g. 6.1 and 6.2)
Step 6: Attach Gussets
Fig. 6.1
Tight
4 x (705) Gusset Right
4 x (706) Gusset Left
HardwareWood Parts
24 x 1/4 x 1-15-16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 4” Hex Bolt (5/16” lock washer, 1/4-5/16” large washer,
5/16” t-nut)
8 x 5/16 x 2-1/4” Hex Bolt (5/16” lock washer, 1/4-5/16” large
washer, 5/16” t-nut)
Fig. 6.2
(706)
Gusset
Left
Post
Assembly
(705)
Gusset
Right
(706)
Gusset
Left
5/16”
T-nut
5/16” Lock
Washer
5/16 x 2-1/4”
Hex Bolt
5/16 x 4”
Hex Bolt
(705) Gusset
Right
(706)
Gusset
Left
(705)
Gusset
Right
(706)
Gusset
Left
(705)
Gusset
Right
(705)
Gusset
Right
(706)
Gusset
Left
Beam
Assembly -
Front/Back
Beam
Assembly -
Side
Beam
Assembly -
Side
Beam
Assembly -
Side
Beam
Assembly -
Front/Back
Beam
Assembly -
Front/Back
1/4 - 1-15/16”
Lag Screw
1/4 - 5/16”
Large Washer
1/4 - 5/16”
Large Washer
1/4 - 1-15/16”
Lag Screw

20 [email protected]
Savannah Inst 6A - Frame Roof Panel
Avery Inst 6A - Frame Roof Panel
Avery Inst 6A - Frame Roof Panel
A: Lay out 7 (468) Rafters on a hard at surface as shown in g. 7.1. You will need lots of room for this step.
B: Place 1 (465) Long Strap on the bottom of ve (468) Rafters, ush to the outside edge of the rst and centred
on the last. Be sure the wider gap on (465) Long Strap is on the rst (468) Rafter. Follow by placing one (466)
Short Strap then another (465) Long Strap in the same manner. Make sure the assembly is square, pre-drill the
rst (465) Long Strap with a 1/8” drill bit as shown below, then attach both (465) Long Straps with ten #8 x 1-3/4”
Wood Screws per board and to (466) Short Strap with six #8 x 1-3/4” Wood Screws. The screws on the fourth
(468) Rafter are inserted at an angle. (g. 7.1, 7.2 and 7.3)
C: Place one (469) Rafter Top Short on the angled ends of the (468) Rafters so the outside edges are ush then
attach to three (468) Rafters with six #8 x 2-1/4” Wood Screws. (g. 7.1 and 7.4)
Step 7: Frame Roof Panel
Part 1
Fig. 7.1
Fig. 7.2
HardwareWood Parts
14 x (468) Rafter
2 x (466) Short Strap
4 x (465) Long Strap
2 x (469) Rafter Top Short
52 x #8 x 1-3/4” Wood Screw
12 x #8 x 2-1/4” Wood Screw
(466) Short
Strap
(465) Long Strap
(pre-drill pilot holes
for this board only)
(469)
Rafter Top
Short
(468) Rafter
Flush
Notice
screws at
an angle
Flush
(465) Long
Strap
(468)
Rafter
(468) Rafter
Fig. 7.3
Fig. 7.4
(466) Short
Strap
(465) Long
Strap
Notice large
notch gap on
outside ends Notice small notch
gap on inside ends
where straps meet
Notice large
notch gap on
outside ends
#8 x 1-3/4” Wood
Screws (x 26)
#8 x 2-1/4”
Wood Screws
(x 6)
Side View
Bottom
(469)
Rafter Top
Short
