Yardistry YM12952 User manual

12’ x 20’ WOOD GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM12952
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
[e-mail]
www.yardistrystructures.com
Revised 08-13-2020
20’ 5”
6.22 m
HEIGHT:
3.099 m / 10’2”
12’ 2”
3.71 m
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken
Patents Pending

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chiminea
for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OSHA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
During assembly it is important to closely follow the instructions. Complete the assembly
on a solid, level surface and follow the instructions to square up, level and anchor the structure.
This will reduce the gaps at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not affect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
General Information
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• Claw Hammer
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder x 2
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Rachet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and efcient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
20’ 1-7/8”
Post to Post
Post to Post
10’ 10-3/8” Plinth to Plinth
9’ 8-7/16”
Post to Post
19’ 7/8”
Plinth to Plinth
17’ 5”
Plinth to Plinth
8’ 4-9/16”
Post to Post
9’ 3-7/16”
5.813 m
2.831 m
6.144 m
2.554 m
3.312 m 2.958 m
5.309 m

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware (not included)
Post
Mount
Anchoring Hardware not included
Anchoring Hardware not included
Concrete Patio [min. 3.616 m x 6.1 m (11’ 10-3/8” x 20’ 7/8”)] with 15.24 cm (6”) clearance on all sides
Wood Deck [min. 3.616 m x 6.1 m (11’ 10-3/8” x 20’ 7/8”] with 15.24 cm (6”) clearance on all sides
Post Mounts have a 12.7 mm (1/2”)
diameter hole for anchoring hardware.

8 [email protected]
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

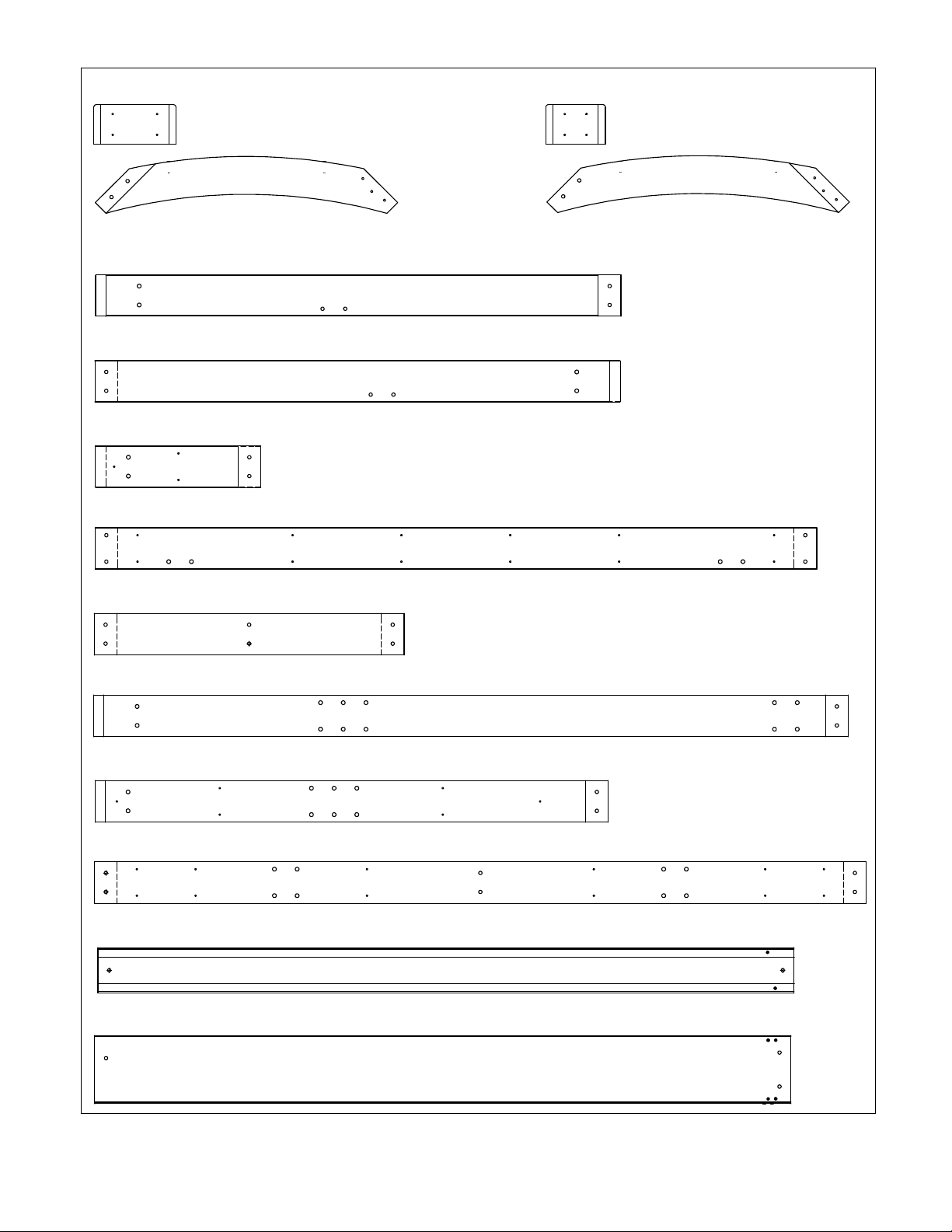

8pc. (460) Plinth Long FSC
276.2mm (10-7/8") Y50229-460 200mm (7-7/8")
16pc. (459) Plinth FSC
Y50229-459
Y50229-694
4pc. (694) Outer Ends FSC 2532.9mm (99-3/4")
4pc. (692) Beam Long Ends FSC 1722.4mm (67-13/16")
4pc. (1006) 6 x 9 Post FSC 2336.8mm (92")
Y70229-696
2pc. (696) 6 x 6 Post FSC 2336.8mm (92")
Y70229-1006
2pc. (691) Beam Long Inside FSC 2590.8mm (102")
Y50229-692
Y50229-691
2pc. (1003) Beam Short Right FSC 1763.3mm (69-7/16")
Y50229-1003
Y70229-705
6pc. (705) Gusset RT FSC 1015mm (39-15/16")
2pc. (1005) Beam Short Centre FSC 2422.1mm (95-3/8")
Y50229-1005
2pc. (1002) Beam Short Left FSC 1763.3mm ( 69-7/16")
Y50229-1002
2pc. (693) Outer Beam Centre FSC 1039.7mm (40-15/16")
Y50229-693
Y50229-1004
4pc. (1004) Beam Short End FSC 555.4mm (21-7/8")
Y70229-706
6pc. (706) Gusset LT FSC 1015mm (39-15/16")

9 [email protected]
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
Part Identification ( )

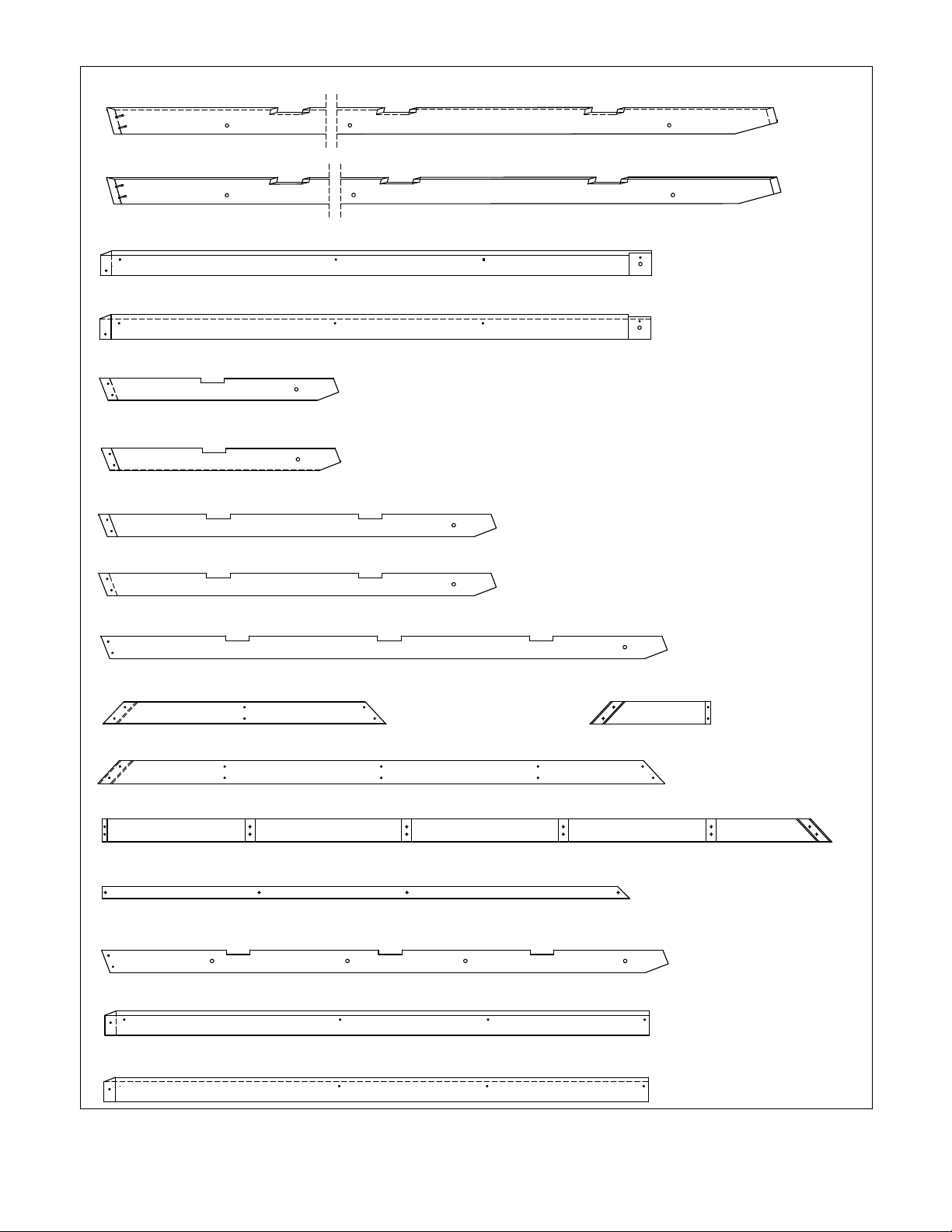

4pc. (630) Rafter Short LT FSC 805.5mm (31-3/4")
Y50229-630
2pc. (627) Fascia Left Short FSC 1855.5mm (73-1/16")
Y50229-627
Y50229-623
4pc. (623) Rafter Corner Right FSC 2597.8mm (102¼")
2pc. (628) Fascia Right Short FSC 1855.5mm (73-1/16")
Y50229-628
Y50229-629
4pc. (629) Rafter Short RT FSC 805.5mm (31-3/4")
2pc. (634) Rafter FSC 1907mm (75-1/16")
Y50229-634
4pc. (631) Rafter Centre LT FSC 1338.9mm (52-3/4")
Y50229-631
2pc. (637) Mid Strap FSC 1908.3mm (75-1/8")
Y50229-637
4pc. (632) Rafter Centre RT FSC 1338.9mm (52-3/4")
Y50229-632
8pc. (675) Middle Rafter FSC 1907mm (75-1/16")
Y50229-675
Y50229-636
2pc. (636) Top Strap FSC 953.8mm (37-9/16")
2pc. (687) Bottom Strap LT FSC 2457mm (96-3/4")
2pc. (688) Bottom Strap RT FSC 406.3mm (16")
Y50229-688
2pc. (677) Right End Fascia FSC 1833.3mm (72-3/16")
Y50229-677
2pc. (676) Left End Fascia FSC 1833.3mm (72-3/16")
Y50229-676
4pc. (648) Soffit FSC 1774.5mm (69-7/8")
Y50229-648
Y50229-687
Y50229-624
4pc. (624) Rafter Corner Left FSC 2597.8mm (102¼")

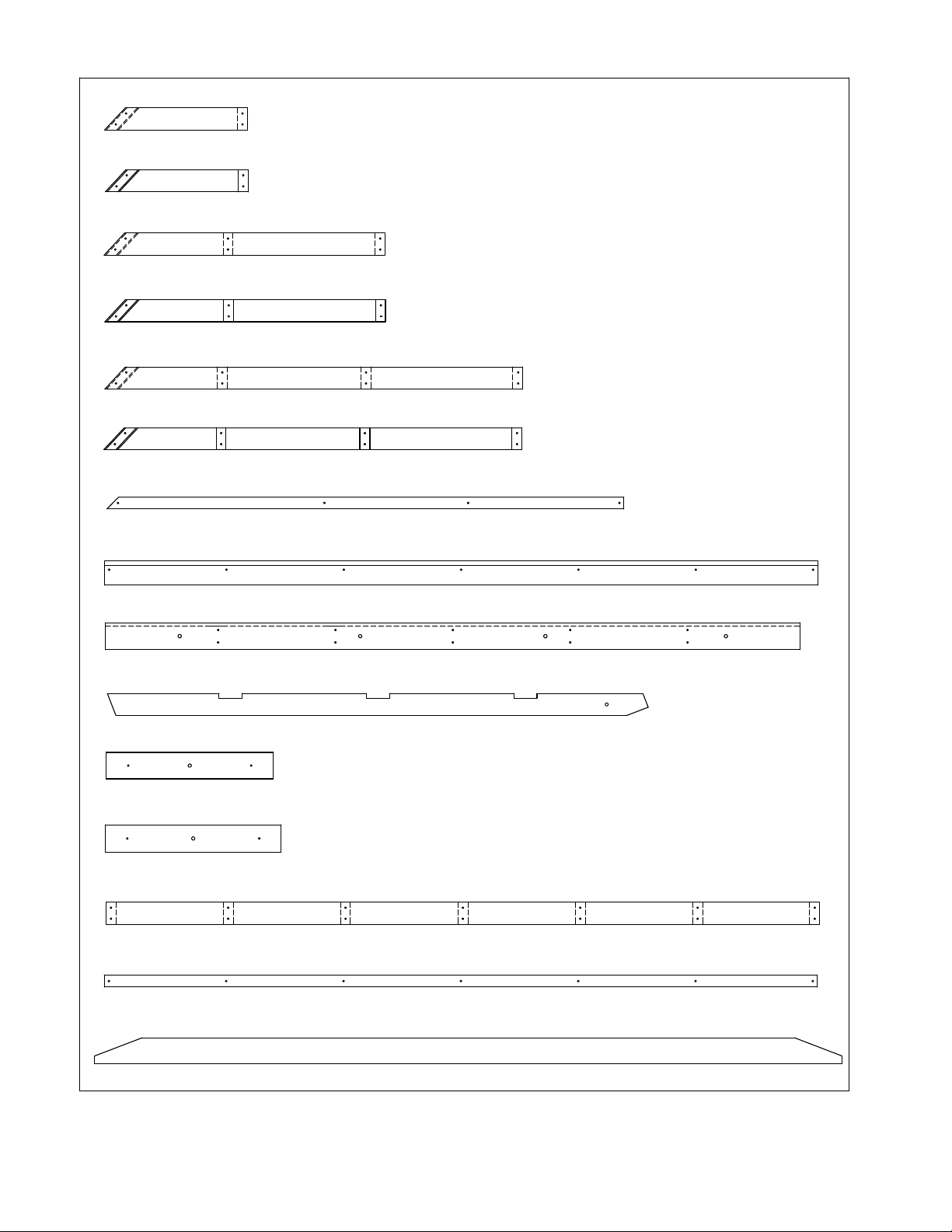

10 [email protected]
2pc. (684) Right Mid Strap FSC 972.3mm (38-1/4")
Y50229-684
2pc. (681) Left Top Strap FSC 495.1mm (19-1/2")
Y50229-681
Y50229-682
2pc. (682) Right Top Strap FSC 495.1mm (19-1/2")
Y50229-683
2pc. (683) Left Mid Strap FSC 972.3mm (38-1/4")
2pc. (686) Right Bot Strap FSC 1448.1mm (57")
Y50229-686
Y50229-645
2pc. (645) Spacer FSC 578.2mm (22-3/4")
2pc. (685) Left Bot Strap FSC 1448.1mm (57")
Y50229-685
Y50229-690
4pc. (690) Soffit End FSC 1792mm (70-9/16")
Y50229-680
2pc. (680) Rafter Top FSC 2407.4mm (94-3/4")
10pc. (633) Centre Rafter FSC 1873.6mm (73-3/4")
Y50229-633
Y50229-678
2pc. (678) Mid Fascia FSC 2470.9mm (97-1/4")
Y50229-689
2pc. (689) Soffit FSC 2470.9mm (97-1/4")
Y50229-679
6pc. (679) Centre Strap FSC 2470.8mm (97-1/4")
Y50229-646
7pc. (646) Tie FSC 2590.8mm (102")
2pc. (695) Spacer Long FSC 609.6mm (24")
Y50229-695
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

11 [email protected]
( )
parts for assembly. Actual dimensions may be smaller or larger.
144pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
10pc. - 3/8" Lock Nut
(Y08318-803)
74pc. 5/16 - T-Nut
(Y08518-300)
(Y07718-891)
6pc. Hex Bolt
3/8 x 9¼"
48pc. Pan Screw #8 x 1"
(Y06491-510)
30pc. Hex Bolt 5/16 x 1-1/2"
(Y07718-312)
110pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
74pc. 5/16" Lock Washer
(Y05318-300)
10pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
114pc. Pan Screw #12 x 1-1/2"
(Y06491-612)
372pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
32pc. Sheet Metal Screw
#8 x 3/4"
(Y06430-503)
66pc. - 1/4" Lock Nut
(Y08318-203)
44pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
380pc.
#8x 1"
(Y06730-510)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
20pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
240pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
28pc. 1/4 x 2 Hex Bolt - (Y07718-220)
14pc. Pan Screw #10 x 2-1/2" - (Y06491-722)
72pc. Wood Screw #7 x 3/4"
(Y06091-003)
24pc. Hex Bolt 5/16 x 3-1/2" - (Y07718-332)
4pc. Hex Bolt
3/8 x 12¼"
(Y07718-821)
36pc. Lag Screw 1/4 x 1-15/16" No.12 Shank
- (Y06218-219)
4pc. 1/4 x 4-1/4" Hex Bolt - (Y07718-241)
20pc. Hex Bolt 5/16 x 1-1/4"
(Y07718-311)
16pc. 1/4 x 3" Hex Bolt - (Y07718-230)
6pc. Pan Bolt 1/4 x 1/2"
(Y07430-202)

12 [email protected]
( )
Dimensions are approximate and are shown to assist in the identication of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identication
(Y01030-197)

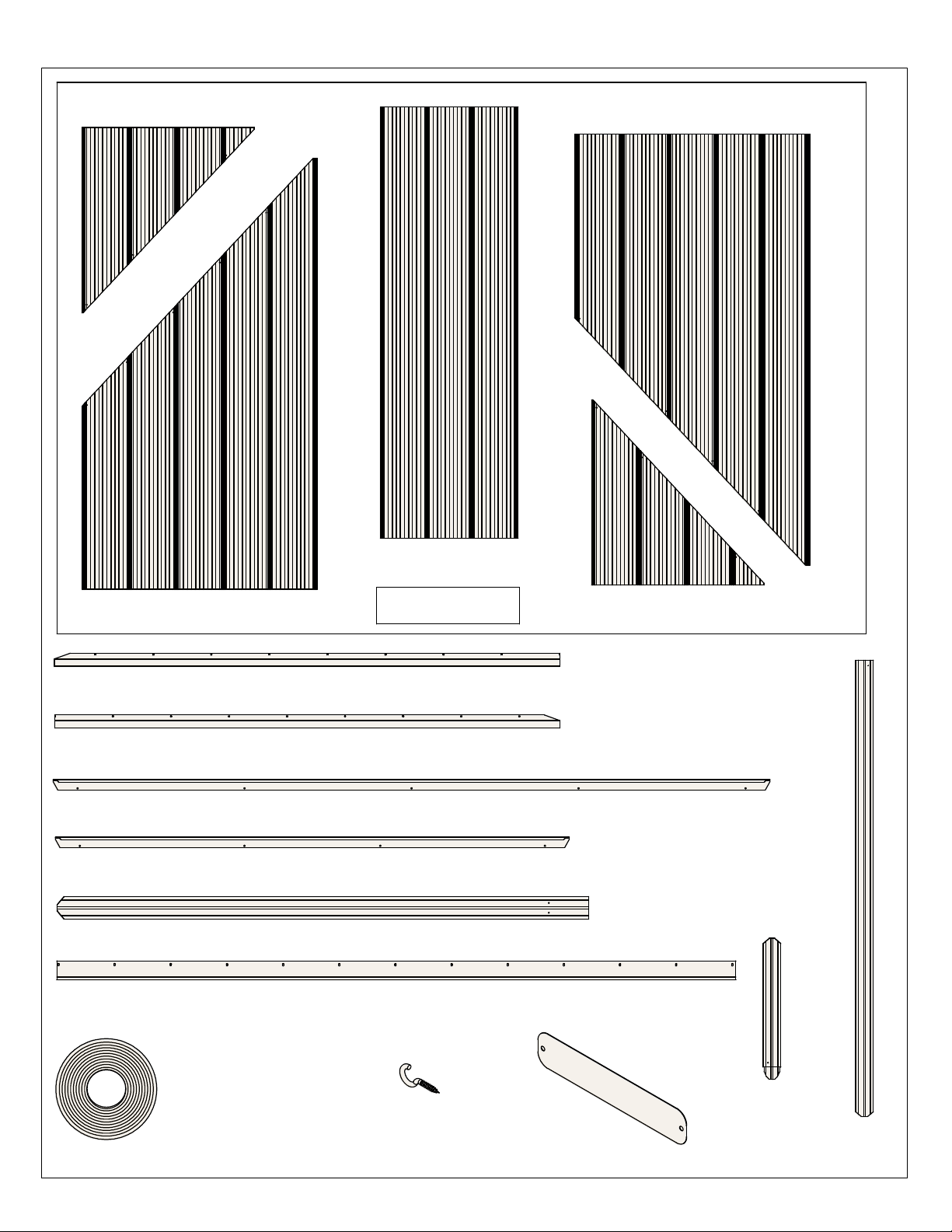

4pc. - Long Panel Right
1pc. - Roof Panel Set
(Y70830-203)
4pc. - Short Panel Left
(Y01030-200)
4pc. - Long Panel Left
(Y01030-198)
8pc. - Middle Panel
(Y01030-196)
4pc. - Short Panel Right
(Y01030-199)
4pc.
Ridge Cap Long 81.5
(Y01030-131)
4pc.
Ridge Cap Short 25.2
(Y01030-132)
4pc. Roof Edge Left 72.2 - (Y01030-134)
4pc. Ridge Cap Middle - (Y01030-207)
8pc. Ridge Clip 102.5 - (Y01030-133)
4pc. Roof Edge Right 72.2 - (Y01030-135)
2pc. - 50mm
Hook
(Y00418-050)
1pc. - Weather Seal
Ridge Clip (8Pk)
(Y70818-074)
1pc. - Weather Seal
Ridge Clip 75-1/2 (8Pk)
(Y70818-208)
1pc. - Gazebo ID Plaque
(Y70800-104)
8pc. Ridge Clip 73.5 - (Y01030-209)
2pc. Ridge Edge Middle - (Y01030-210)

13 [email protected]

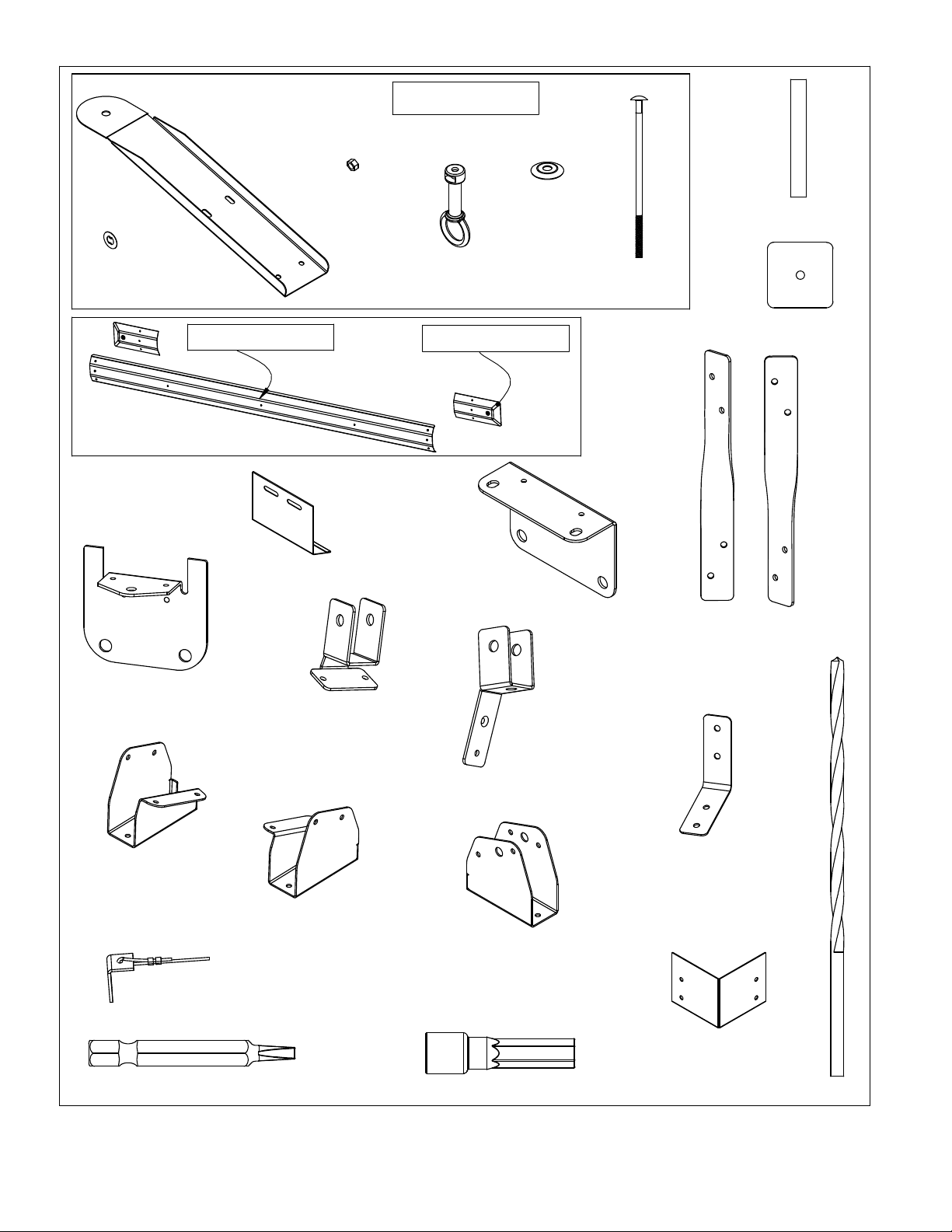

1pc. - 1/8" Drill Bit
(Y00400-002)
1pc. #2 x 2" Robertson Driver (Y00400-005) 1pc. - Hex Driver (Y00400-004)
5pc.
Peak Loop
(Y20018-003)
5pc.
Carriage Bolt
(Y07428-260)
5pc.Peak Post
(Y01000-094)
5pc.
1/4" Nut
(Y08490-200)
1pc. - Post
Mount Set (4Pk)
(Y70819-216)
5pc.
Contour Washer
(Y05918-211)
3pc. Peak Bracket
(Y00429-190)
5pc.
Spring Clip
(Y09490-001)
4pc.
Roof Peak Bracket
(Y00429-125)
1pc. - 45º Twist Bracket LT
(2 PK)(Y70829-191)
1pc. - 45º Twist Bracket RT
(2 PK)(Y70829-192)
1pc. - Post
Mount Set (8Pk)
(Y70829-122)
2pc. - Roof To Beam
Bracket Set (8Pk)
(Y70819-108)
(Y01030-347)
- Peak Cap Detail
2pc.
1pc. - Peak Cap Centre
(Y01030-211)
1pc. Tie Wrap Bracket (2Pk)
(Y70829-163)
1pc. Tie Wrap Bracket (8Pk)
(Y70819-106)
1pc.
Double Tie Wrap
Bracket RT(2Pk)
(Y70829-213)
1pc. - Centre Roof
To Beam Bracket Set
(2Pk) (Y70829-206)
1pc.
Steel Cable with Bracket
(Y70829-204)
1pc.
Double Tie Wrap
Bracket LT(2Pk)
(Y70829-214)
1pc. - Beam to
Rafter Bracket (4Pk)
(Y70829-212)
4pc. - Roof Edge
Centre
(Y01030-217)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
(Y70830-103)
1pc. - Corner Cap Set (4Pk)
1pc. - Roof Peak Set
(Y70829-202)
1pc. - Roof To Beam
Bracket Set (10Pk)
(Y70819-218)

14 [email protected]
PRODUCT NUMBER: YM12952
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI
warnings; notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four
people, DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check
for gas, telephone, other utilities or sprinkler line locations prior to excavating any
holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if
you contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your
assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

15 [email protected]
Step 2: Post Assemblies
Part 1 - Main Posts
Wood Parts
F2.1
(459)
Plinth
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1006) 6 x 9 Post
6 x9 Post Mount
F2.2
F2.3
Rounded
Edge on Top
Hardware
80 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x 6x9 Post Mount
16 x 5/16” T-Nut
16 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
6 x 9 Post
Mount
5/16” T-Nut (x
4 per Post)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(x2 per Post Mount,
from inside)
Short
Side
Long
Side
(459)
Plinth
(460)
Plinth
Long
(460)
Plinth
Long
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)
A: At the bottom of one (1006) 6 x 9 Post insert two 5/16” T-Nuts on the outside of each long side. (F2.2)
B: At the bottom of the same (1006) 6 x 9 Post place two 6 x 9 Post Mounts tight to the bottom and inside faces
on the long sides as shown in F2.1 and F2.2. Loosely attach with two 5/16 x 1-1/4” Hex Bolt (with 5/16” lock
washer and 1/4-5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8
x 1-1/2” Wood Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
C: Flush to the bottom of (1006) 6 x 9 Post place one (460) Plinth Long on each long side and one (459) Plinth on
each short side and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.1, F2.2 and
F2.3)
D: Repeat Steps A - C three more times to make four Main Post Assemblies.
4 x (1006) 6 x 9 Post
8 x (459) Plinth
8 x (460) Plinth Long

16 [email protected]
E: At the bottom of one (696) 6 x 6 Post insert one 5/16” T-Nut on the outside of two sides, as shown in F2.6.
F: At the bottom of the same (696) 6 x 6 Post place two Post Mounts tight to the bottom and inside faces on the
sides as shown in F2.4 and F2.5. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-
5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2” Wood
Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
G: Flush to the bottom of (696) 6 x 6 Post place one (459) Plinth on each side, attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (F2.4, F2.5 and F2.6)
H: Repeat Steps E - G one more time to make two Mid Post Assemblies.
Wood Parts
F2.4
(459)
Plinth
2 x (696) 6 x 6 Post
8 x (459) Plinth
Top
Bottom
#8 x 1-1/2” Wood
Screws (x 2 per Post
Mount, from outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(696) 6 x 6 Post
Post Mount
F2.5
F2.6
Rounded
Edge on Top
Hardware
40 x #8 x 1-1/2” Wood Screw
8 x #10 x 1-1/4” Pan Screw
4 x Post Mount
4 x 5/16” T-Nut
4 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
Post Mount
5/16” T-Nut
(x 2 per Post,
second T-Nut
on opposite
side)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/2” Hex Bolt
(x2 per Post Mount,
from inside)
(459)
Plinth
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)
Step 2: Post Assemblies
Part 2 - Mid Posts
5/16” T-Nut
(not seen on
this side)
(459) Plinth
(459) Plinth

17 [email protected]
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (1002) Beam Short Left and one (1003) Beam Short Right using two 5/16 x 1-1/2” Hex Bolts
(with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1004) Beam Short End to each end of one (1005) Beam Short Centre using two 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F3.1 and F3.2.
C: Repeat Steps A and B one more time to make two Short Beam L-R Assemblies and two Short Beam End
Assemblies.
(1002) Beam
Short Left
4 x (1004) Beam Short End
2 x (1005) Beam Short Centre
2 x (1002) Beam Short Left
2 x (1003) Beam Short Right
F3.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(1003) Beam
Short Right
(1005) Beam
Short Centre
(1004) Beam
Short End
5/16” Lock
Washer
(1004) Beam
Short End
Make sure bolt heads
are on the outside of
each Beam Assembly

18 [email protected]
Hardware
36 x #8 x 2-1/2” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Flush
Short Beam L-R
Assembly
D: Place one Short Beam L-R Assembly tight to one Short Beam End Assembly so the ends are ush. Match
the bolt holes in each (1004) Beam Short End with the bolt holes in (1002) Beam Short Left and (1003) Beam
Short Right. Attach with 18 #8 x 2-1/2” Wood Screws. (F3.3 and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Flush
Short Beam
End Assembly
Short Beam L-R
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
(1002) Beam
Short Left
(1003) Beam
Short Right
(1004) Beam
Short End
Match bolt
holes
Step 3: Short Beam Assembly
Part 2
(1004) Beam
Short End
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete

19 [email protected]
Step 4: Long Beam Assembly
Part 1

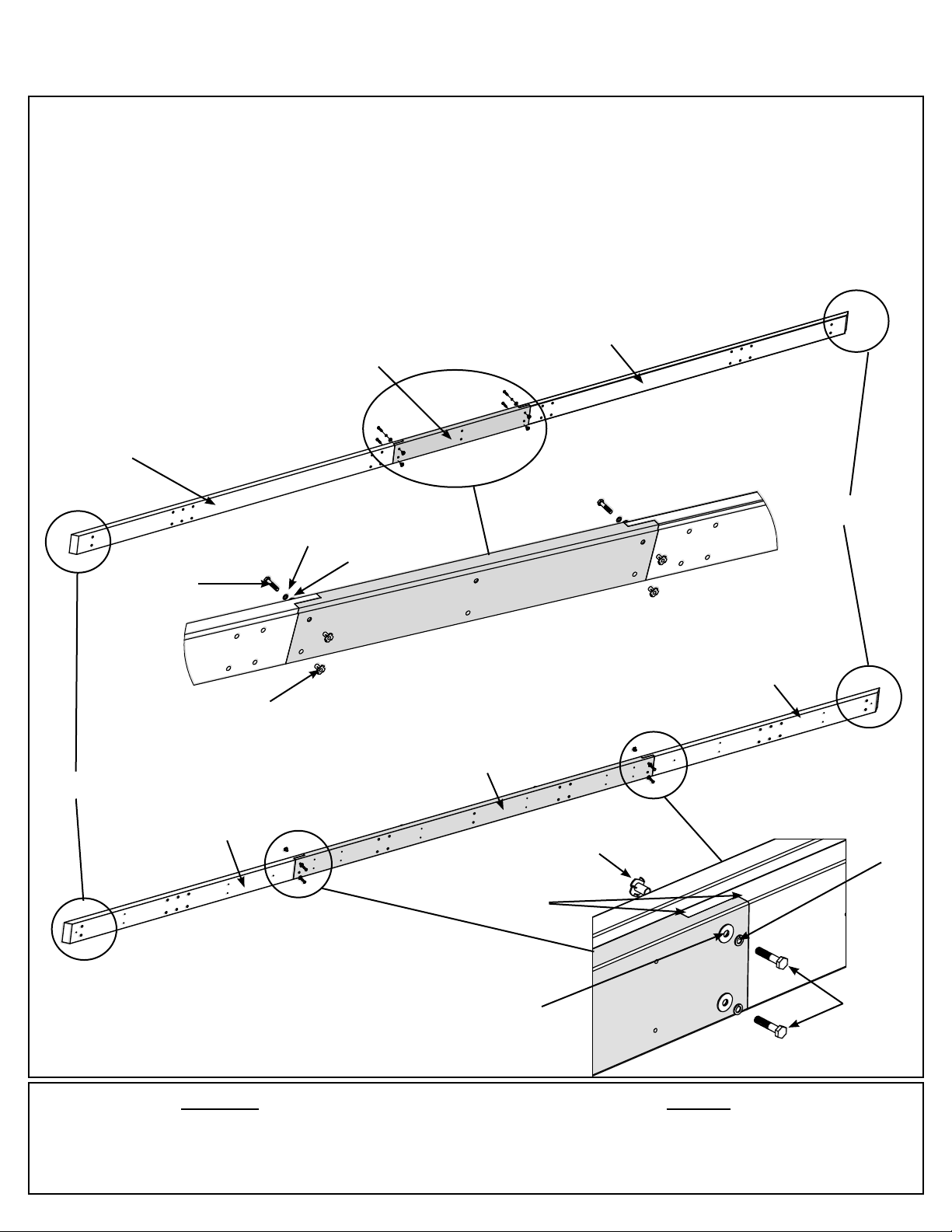

A: Connect one (694) Outer End to each end of one (693) Outer Beam Centre using four 5/16 x 1-1/2” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.1 and F4.2. Notice
orientation of angled ends.
B: Connect one (692) Beam Long End to each end of one (691) Beam Long Inside using four 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.3 and F4.4. Notice
orientation of angled ends.
C: Repeat Steps A and B to make two Outer Beam Assemblies and two Inside Beam Assemblies.
HardwareWood Parts
2 x (691) Beam Long Inside
4 x (692) Beam Long End
2 x (693) Outer Beam Centre
4 x (694) Outer End
16 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16” T-nut
F4.1
F4.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
(691) Beam
Long Inside
(693) Outer
Beam Centre
(694) Outer End
(692) Beam
Long End
Make sure bolt heads are
on the sides as shown
for each Beam Assembly
F4.3
F4.4
(692) Beam
Long End
Notice orientation
of angled ends
Notice orientation
of angled ends
(694) Outer End
Outer Beam
Assembly
Inside Beam
Assembly
5/16” T-nut
5/16” Lock
Washer
1/4-5/16”
Large Washer

20 [email protected]
Hardware
48 x #8 x 2-1/2” Wood Screw
D: Place one Outer Beam Assembly and one Inside Beam Assembly together so the beam assembly ends are
ush and the angled ends match. Bolt heads must be on the outside of both beam assemblies. Match the bolt
holes in (691) Beam Long Inside and each (692) Beam Long End with the bolt holes in each (694) Outer End
then attach with 24 #8 x 2-1/2” Wood Screws. (F4.5 and F4.6)
E: Repeat Step D to make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Outer Beam
Assembly
Inside Beam
Assembly
Flush
#8 x 2-1/2” Wood Screws
(x 24 per assembly)
F4.5
F4.6
Outer Beam
Assembly
Inside Beam
Assembly
Notice orientation
of angled ends
Match bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
