Yardistry YM12935 User manual

3.6m x 3.06m (12’ x 10’) WOOD GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM12935
Revised 11-25-2020
12’ 1/2”
3.670 m
10’ 1/2”
3.061 m
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
HEIGHT:
2.896 m / 9’6”
Y40000-935
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00
pm EST (excl. holidays)
(For extended hours see our website)
English and French Spoken
Patents Pending
YM12935 - 12 x 10 Gazebo
10'0.5"
3.061
3.671
12'0.5"
Height 9 feet 6 inches
2.006m

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chiminea
for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OSHA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
During assembly it is important to closely follow the instructions. Complete the assembly
on a solid, level surface and follow the instructions to square up, level and anchor the structure.
This will reduce the gaps at wood connections during assembly.
General Information
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• Claw Hammer
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Rachet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.

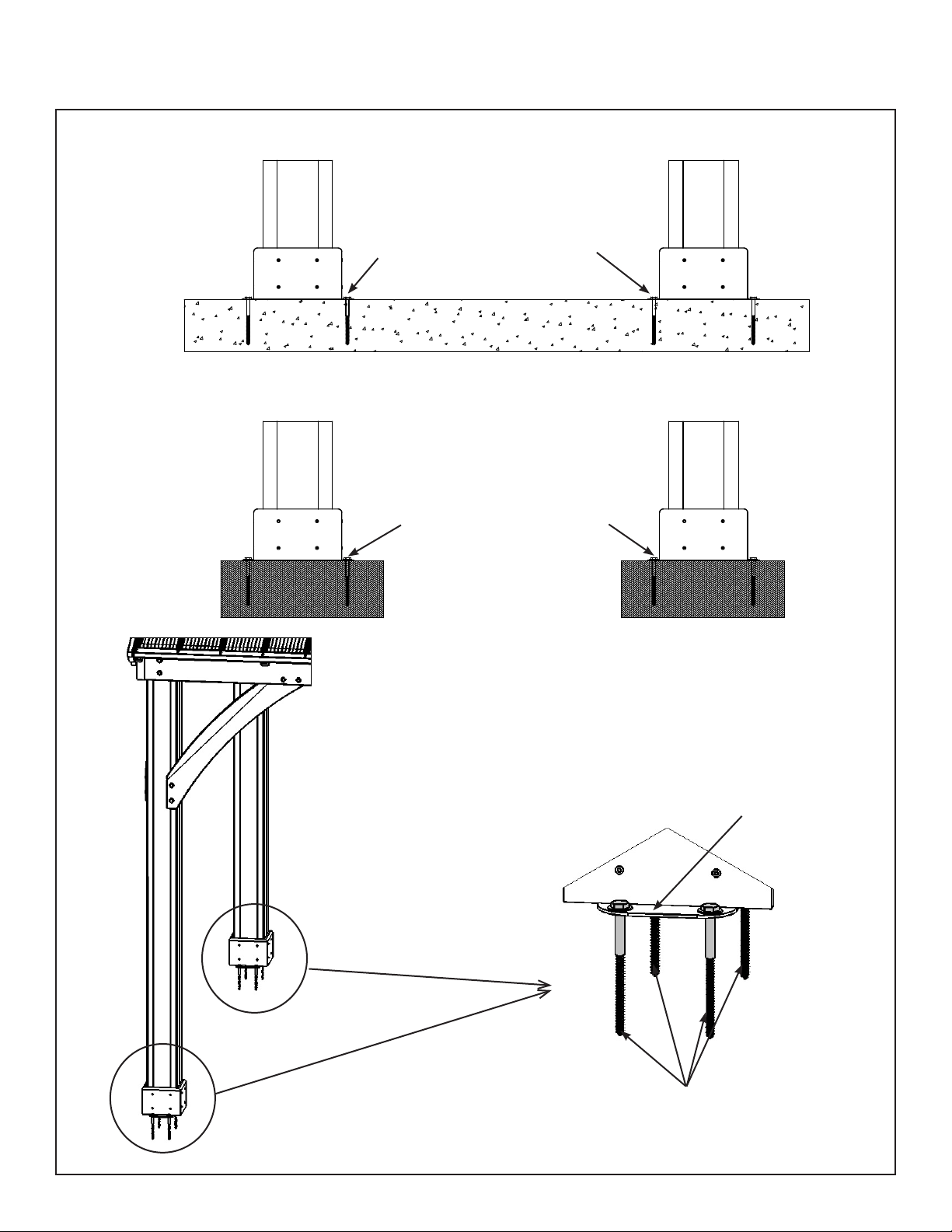

Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
YM12935 - 12 x 10 Gazebo
2.791
9'2"
Outside
Posts 3.935
12'11"
Post to Post
2.441
8'0"
Plinth to
Plinth
3.007
9'10.4"
Plinth to
Plinth
3.401
11'2"
Outside Posts
Post to Post
9’ 1-7/8”
Post to Post
11’ 1-7/8”
8’ 1-7/8”
Inside Post to
Inside Post
12’ 10-3/4”
Post to Post
9’ 11-7/8”
3.931 m
3.400 m
3.045 m
2.486 m
2.791 m
Inside Post to
Inside Post

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware not included
Anchoring Hardware not included
Post Mounts have a 1.27 cm (1/2”) diameter hole
for anchoring hardware.
Concrete Patio [min. 3.705 m x 3.096 m (12’1-7/8” x 10’1-7/8”)]
with 15.24 cm (6”) clearance on all sides
Wood Deck [min. 3.705 m x 3.096 m (12’1-7/8” x 10’1-7/8”)]
with 15.24 cm (6”)clearance on all sides
Anchoring Hardware (not included)
Post Mount

8 [email protected]
2247.9mm (88½")
Dimensions are approximate and are shown to assist in the identification of parts for Part Identification ( )
assembly. Actual dimensions may be smaller or larger.
4pc. (1100) - Post
Y70229-1100
926.9mm (36-1/2") 4pc. (740) - Short Right Gusset
Y70229-740
Y50229-1078
4pc. (1078) - Inside Short Beam 385.8mm (15-3/16")
Y50229-1090
8pc. (1090) - Long Plinth 215.9mm (8½")
926.9mm (36-1/2") 4pc. (739) - Short Left Gusset
Y70229-739
Y50229-1076
2pc. (1076) - Left Outside Beam 1497mm (58-15/16")
Y50229-1077
2pc. (1077) - Right Outside Beam 1497mm (58-15/16")
Y50229-1079
2pc. (1079) - Inside Beam Long 2128.3mm (83-13/16")
Y50229-1089
8pc. (1089) - Plinth 190.5mm (7½")
Y50229-1093
2pc. (1093) - Inside Beam 2235.2mm (88")
Y50229-1094
4pc. (1094) - Inside End Beam 744.1mm (29-5/16")
Y50229-1095
2pc. (1095) - Right Outside Beam Long 1801.8mm (70-15/16")
Y50229-1096
2pc. (1096) - Left Outside Beam Long 1801.8mm (70-15/16")

9 [email protected]
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
2pc. (1085) - Long Strap 2233.6mm (87-15/16")
Y50229-1085
Y50229-1087
4pc. (1087) - Rafter Short Left 864.2mm (34")
4pc. (1080) - LT Corner Rafter 2140mm (84-1/4")
Y50229-1080
Y50229-1081
4pc. (1081) - RT Corner Rafter 2140mm (84-1/4")
Y50229-1082
2pc. (1082) - Fascia Right Short 1530.8mm (60-1/4")
2pc. (1083) - Fascia Left Short 1530.8mm (60-1/4")
Y50229-1083
2pc. (1084) - Short Strap 1111.9mm (43-3/4")
Y50229-1084
4pc. (1086) - Rafter Short Right 864.2mm (34")
Y50229-1086
2pc. (1097) - Top 581mm (22-7/8")
Y50229-1097
Y50229-1099
2pc. (1099) - Strap Long RT 1116.1mm (43-15/16")
6pc. (1088) - Rafter 1575.5mm (62")
Y50229-1088
Y50229-1091
2pc. (1091) - Fascia Right Long 1835.6mm (72-1/4")
2pc. (939) - Strap Long 1721.9mm (67-13/16")
Y50229-939
2pc. (961) - Tie 1985mm (78-1/8")
Y50229-961
2pc. (1092) - Fascia Left Long 1835.6mm (72-1/4")
Y50229-1092
Y50229-1098
2pc. (1098) - Strap Long LT 1726.1mm (67-15/16")
Y50229-936
1pc. (936) - Spacer 581mm (22-7/8")

10 [email protected]

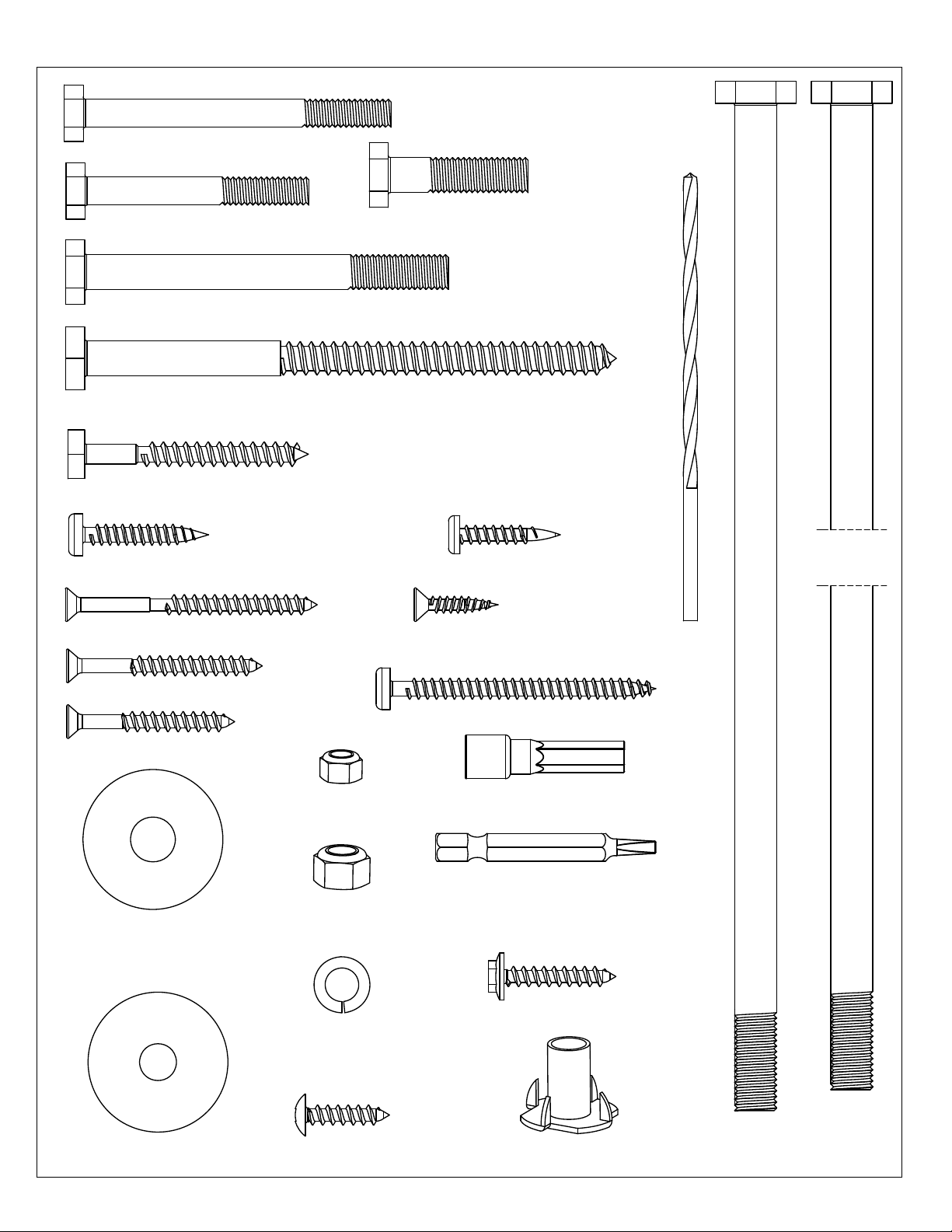

Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
24pc. Wood Screw #8 x 2" - (Y06091-520)
1pc. #2 x 2" Robertson Driver (Y00400-005)
1pc. - 1/8" Drill Bit
(Y00400-002)
32pc. Hex Bolt 5/16 x 1-1/4" - (Y07718-311)
48pc. 5/16 - T-Nut
(Y08518-300)
8pc. - 3/8" Lock Nut
(Y08318-803)
108pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
48pc. 5/16" Lock Washer
(Y05318-300)
192pc. Hex Roofing Screw
#8x 1"
(Y06730-510)
172pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
8pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
24pc. Sheet Metal Screw
#8 x 3/4"
(Y06430-503)
1pc. - Hex Driver (Y00400-004)
120pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
14pc. 1/4 x 2" Hex Bolt - (Y07718-220)
4pc. Hex Bolt
3/8 x 10"
(Y07718-810)
16pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
26pc. - 1/4" Lock Nut
(Y08318-203)
32pc. Wood Screw #7 x 3/4"
(Y06091-003)
16pc. Hex Bolt 5/16 x 3-1/4" - (Y07718-331)
4pc. Hex Bolt
3/8 x 9"
(Y07718-890)
24pc. Lag Screw 1/4" x 1-15/16" No.12 Shank - (Y06218-219)
132pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
18pc. Pan Screw #8 x 1"
(Y06491-510)
4pc. Pan Screw #10 x 2-1/2" (Y06491-722)

11 [email protected]
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
2pc.
Carriage Bolt
(Y07490-260)
1pc. - Weather Seal
Ridge Clip 85¼ (8Pk)
(Y70818-232)
1pc. - Roof Peak Set
(Y70829-125)
1pc. - Gazebo ID Plaque
(Y70800-104)
1pc. - Corner Cap Set (4Pk)
(Y70830-226)
1pc. - Roof Panel Set
(Y70830-362)
4pc. - Long Panel Right
(Y01030-224)
1pc.
Peak Loop
(Y20018-003)
2pc. - 50mm
Hook
(Y00418-050)
2pc.
1/4" Nut
(Y08490-200)
2pc.
Spring Clip
(Y09490-001)
4pc. - Short Panel Left
(Y01030-223)
4pc. - Long Panel Left
(Y01030-222)
8pc. Ridge Clip 85.25 - (Y01030-227)
1pc. - Post
Mount Set (8Pk)
(Y70819-109)
4pc. - Short Panel Right
(Y01030-225)
4pc.
Roof Peak Bracket
(Y00429-125)
1pc. - Rafter/Beam
Bracket Set (14Pk)
(Y70829-365)
2pc. - Middle Panel
(Y01030-363)
2pc. Roof Edge Right 59-3/4" - (Y01030-367)
4pc. Roof Edge Left 59-3/4" - (Y01030-368)
4pc. Ridge Cap 85 - (Y01030-231)
1pc. - 45º Twist
Bracket LT Set (2Pk)
(Y70829-191)
1pc. - 45º Twist
Bracket RT Set (2Pk)
(Y70829-192)
2pc. Roof Edge Right 83-3/4" - (Y01030-364)
2pc.
Contoured Washer
(Y05918-211)
2pc.
Peak Post
(Y01000-094)
1pc.
Peak Cap Long (Y01030-137)
1pc. - Tie Wrap
Bracket (4Pk)
(Y70829-106)

12 [email protected]
PRODUCT NUMBER: YM12935
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)4- 6 x 7 Post -(1100)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)4- 6 x 7 Post -(1100)
A: At the bottom of each (1100) 6 x 7 Post insert one 5/16” T-Nut on the outside of each short side. (F2.1 and
F2.2)
B: At the bottom of each post place two Post Mounts tight to the bottom and inside faces on the short sides as
shown in F2.1 and F2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16”
large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2” Wood
Screws and from the inside with two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.

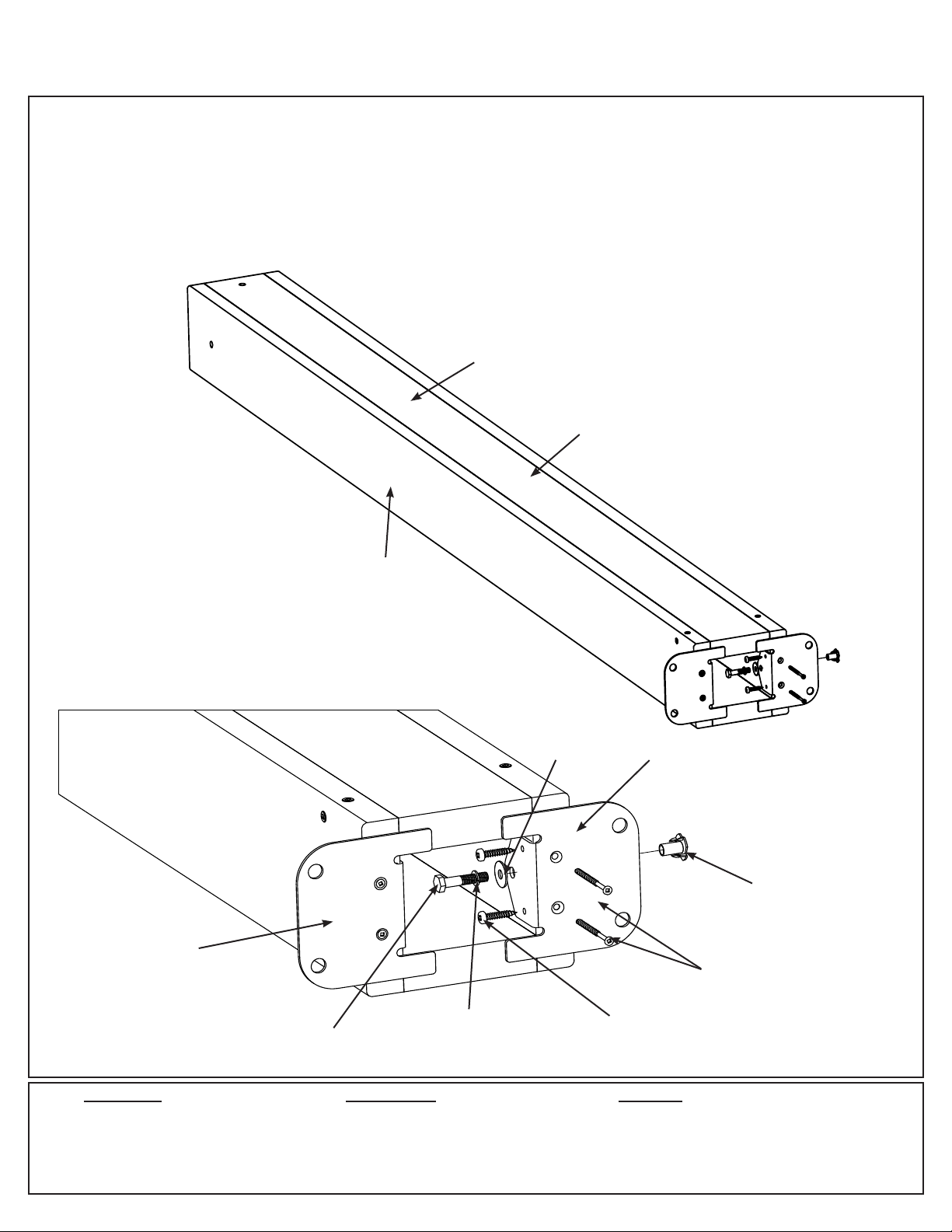

Step 2: Post Assemblies
Part 1
Wood Parts
F2.1
4 x (1100) 6 x 7 Post
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
(1100) 6 x 7 Post
Post
Mount
F2.2
Hardware
16 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer, 5/16” t-nut)
Post Mount
5/16” T-Nut (x 1
per short side)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(from inside)
Short
Side
Long
Side
#10 x 1-1/4” Pan
Screws (x 2 per Post
Mount, from inside)
8 x Post Mount
Components:

14 [email protected]
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
4- 6 x 7 Post -(1100)
8- Plinth Long(1090)
8- Plinth (1089)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
4- 6 x 7 Post -(1100)
8- Plinth Long(1090)
8- Plinth (1089)
C: Flush to the bottom of each (1100) 6 x 7 Post place one (1090) Long Plinth on each long side and one (1089)
Plinth on each short side then attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.3,
F2.4 and F2.5)
There will be four Post Assemblies.
Wood Parts
8 x (1089) Plinth
8 x (1090) Long Plinth
Hardware
64 x #8 x 1-1/2” Wood Screw
Step 2: Post Assemblies
Part 2
F2.3
F2.4
Rounded
Edge on Top
(1089)
Plinth
(1089)
Plinth
(1090) Long
Plinth
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1090) Long
Plinth
(1100) 6 x 7 Post
Flush
F2.5

15 [email protected]
4- Inside Short Beam (1078)
2- Right Outside Beam (1077)
2- Left Outside Beam (1076)
2- Inside Beam -(1093) 12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
4- Inside Short Beam (1078)
2- Right Outside Beam (1077)
2- Left Outside Beam (1076)
2- Inside Beam -(1093) 12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
5/16”
T-nut

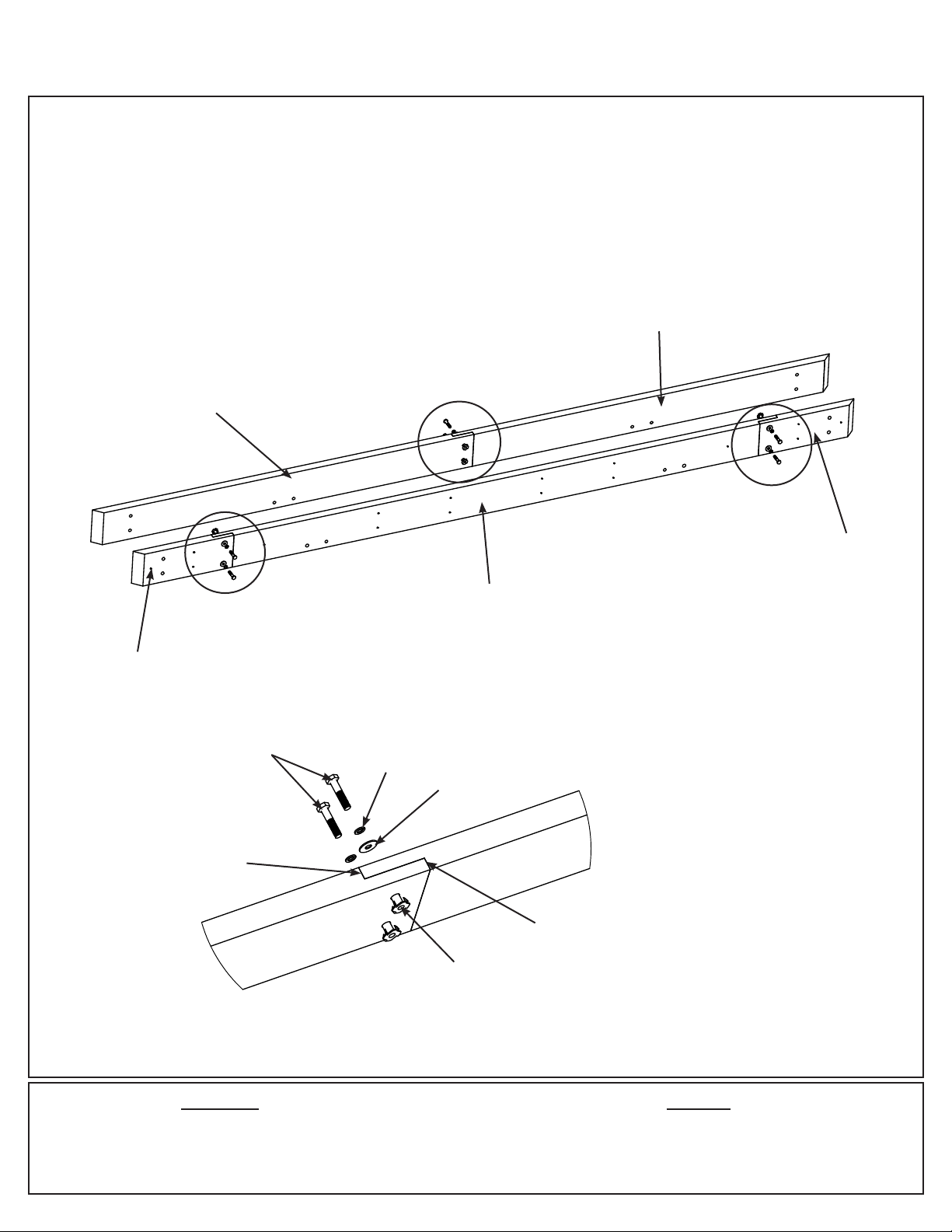

Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (1076) Left Outside Beam and one (1077) Right Outside Beam using two 5/16 x 1-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1078) Inside Short Beam to each end of one (1093) Inside Beam using two 5/16 x 1-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F3.1 and F3.2.
C: Repeat Steps A and B one more time to make two Outside Short Beam Assemblies and two Short Beam End
Assemblies.
2 x (1076) Left Outside Beam
2 x (1077) Right Outside Beam
4 x (1078) Inside Short Beam
2 x (1093) Inside Beam
F3.1
12 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/4”
Hex Bolt
Tight
(1076) Left
Outside Beam
(1093) Inside
Beam
(1078) Inside
Short Beam
5/16” Lock
Washer
Make sure bolt heads
are on the outside of
each Beam Assembly
(1077) Right
Outside Beam
(1078) Inside
Short Beam
Tight

16 [email protected]
32 - #8 x 2-1/4" W.S
32 - #8 x 2-1/4" W.S
Hardware
32 x #8 x 2-1/4” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Flush
Outside Short
Beam Assembly
D: Place one Outside Short Beam Assembly tight to one Short Beam End Assembly so the ends are ush.
Match the bolt holes in each (1078) Inside Short Beam and (1093) Inside Beam with the bolt holes in (1076) Left
Outside Beam and (1077) Right Outside Beam. Attach with 16 #8 x 2-1/4” Wood Screws. (F3.3 and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Flush
Short Beam
End Assembly
#8 x 2-1/4” Wood
Screws (x 16 per
assembly)
Match
bolt
holes
Step 3: Short Beam Assembly
Part 2
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1076) Left
Outside Beam
(1078) Inside
Short Beam
(1077) Right
Outside Beam
(1078) Inside
Short Beam
Outside Short
Beam Assembly
(1093) Inside
Beam

17 [email protected]
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096) 12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096) 12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096) 12- 5/16 x 1-1/4" Hex Bolts
(5/16 Large Flat,Lock Washers, T-nuts)

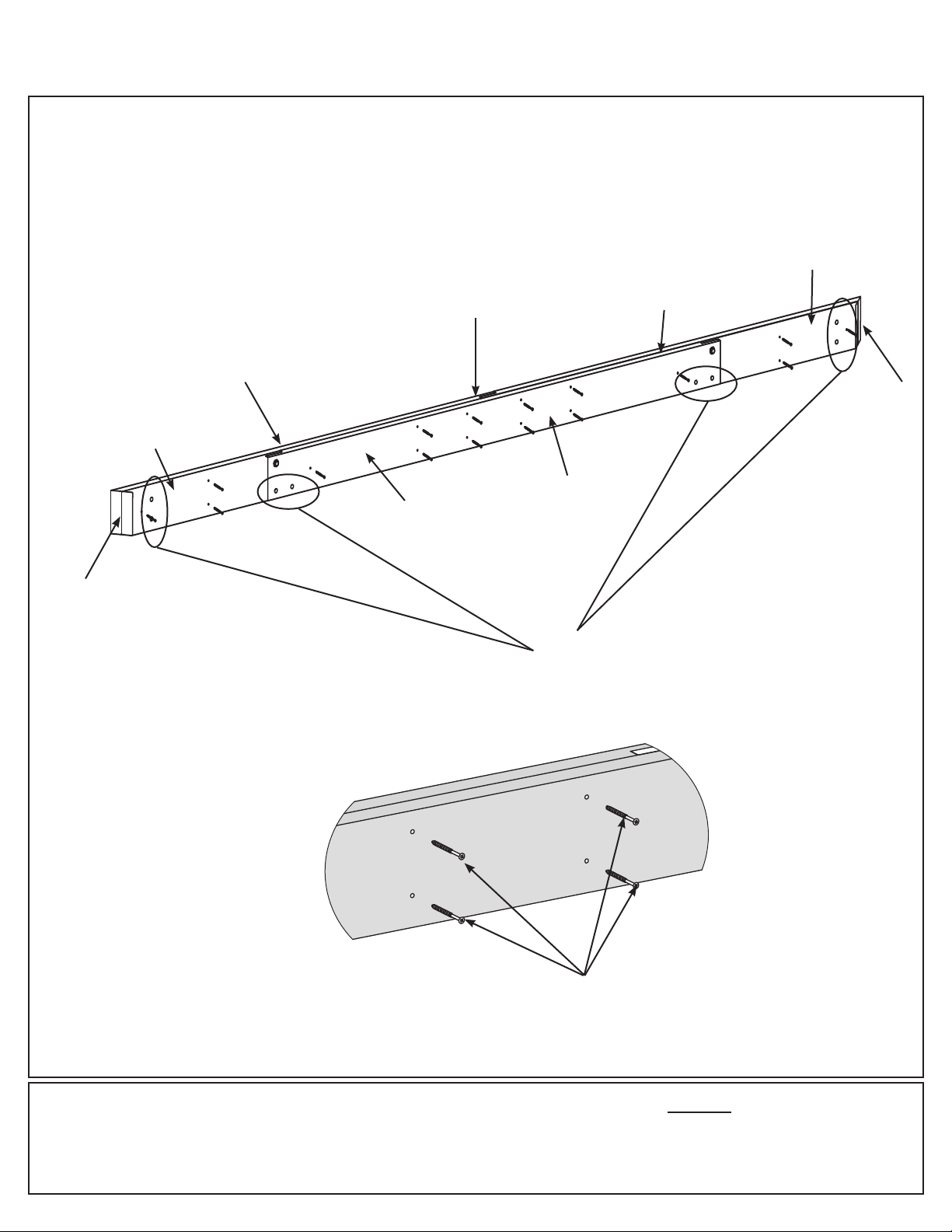

Step 4: Long Beam Assembly
Part 1
A: Connect one (1095) Right Outside Beam Long and one (1096) Left Outside Beam Long using two 5/16 x
1-1/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.1 and F4.2.
B: Connect one (1094) Inside End Beam to each end of one (1079) Inside Beam Long using one 5/16 x 1-1/4”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the top hole only, per end, as shown
in F4.1 and F4.3.
C: Repeat Steps A and B one more time to make two Outside Long Beam Assemblies and two Long Beam End
Assemblies.
HardwareWood Parts
8 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16” T-nut
F4.1
F4.2 1/4-5/16”
Large Washer
Tight
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
(1079) Inside
Beam Long
(1094) Inside
Beam End
Make sure bolt heads
are on the outside of
each Beam Assembly
(1095) Right Outside
Beam Long
2 x (1079) Inside Beam Long
4 x (1094) Inside Beam End
2 x (1095) Right Outside Beam Long
2 x (1096) Left Outside Beam Long
(1096) Left Outside
Beam Long
(1094) Inside
Beam End
Tight
5/16”
T-nut
1/4-5/16”
Large Washer
Tight
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
F4.3 Use
top
hole

18 [email protected]
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096)36 - #8 x 2-1/2" W.S
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096)36 - #8 x 2-1/2" W.S
Hardware
32 x #8 x 2-1/4” Wood Screw
D: Place one Outside Long Beam Assembly tight to one Long Beam End Assembly so the ends are ush. Match
the bolt holes in each (1094) Inside End Beam and (1079) Inside Beam Long with the bolt holes in (1095) Right
Outside Beam Long and (1096) Left Outside Beam Long. Attach with 16 #8 x 2-1/4” Wood Screws. (F4.4 and
F4.5)
E: Repeat Step D to make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Long Beam
End Assembly
Outside Long
Beam Assembly
F4.4
Flush
Flush
#8 x 2-1/4” Wood Screws
(x 16 per assembly)
F4.5
(1094) Inside
Beam End
(1095) Right Outside
Beam Long
(1096) Left Outside
Beam Long
(1094) Inside
Beam End
Match
bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1079) Inside
Beam Long

19 [email protected]
Washer)
4- 5/16 x 4-3/4" Lag Screw (5/16
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
4- 5/16 x 4-3/4" Lag Screw (5/16
Washer)
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
4- 5/16 x 4-3/4" Lag Screw (5/16
Washer)
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
F5.1
Hardware
4 x 3/8 x 10” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8”
Lock
Nut
3/8 x 10”
Hex Bolt
Short Beam
Assembly
Post Assembly
Post
Assembly
Short Beam
Assembly
Short Side
3/8” Large
Washer
Use
bottom
hole

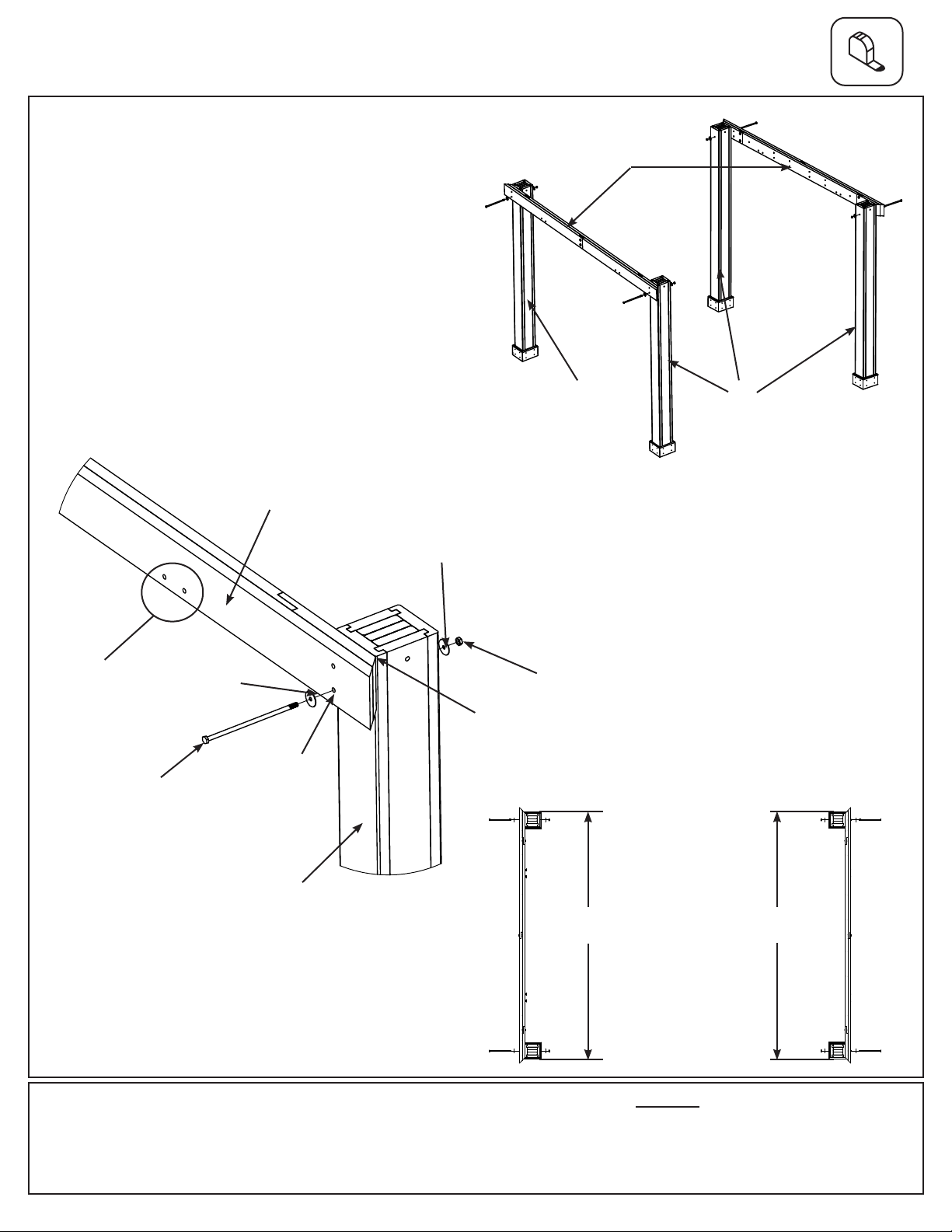

Step 5: Frame Assembly
Part 1 - Short Side
F5.2
Flush
A: On a hard, at surface place one Short Beam
Assembly against the outside of two Post Assemblies
on the short sides, ush to the tops and outside corners.
Notice bolt holes are towards the bottom. Attach Beam
to Post, through the bottom hole, with one 3/8 x 10” Hex
Bolt (with two 3/8” large washers and one 3/8” lock nut)
per post. (F5.1 and F5.2)
The distance from the outside of one Post Assembly to
the outside of the second Post Assembly should be 9’
1-7/8” (2.791m). See F5.3 for accurate positioning of
Posts.
B: Repeat Step A for second Short Beam Assembly.
These will now be referred to as Short Side Assemblies.
(F5.1 and F5.2)
Notice bolt
holes towards
the bottom
3/8” Large
Washer
Post
Assembly
2.791 m
9’ 1-7/8”
F5.3
2.791 m
9’ 1-7/8”

20 [email protected]
2- Gusset Right
2- Gusset Left
8- 5/16 x 3-1/4" Hex Bolts
(5/16 large washer, lock
washer, T nut)
4- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)

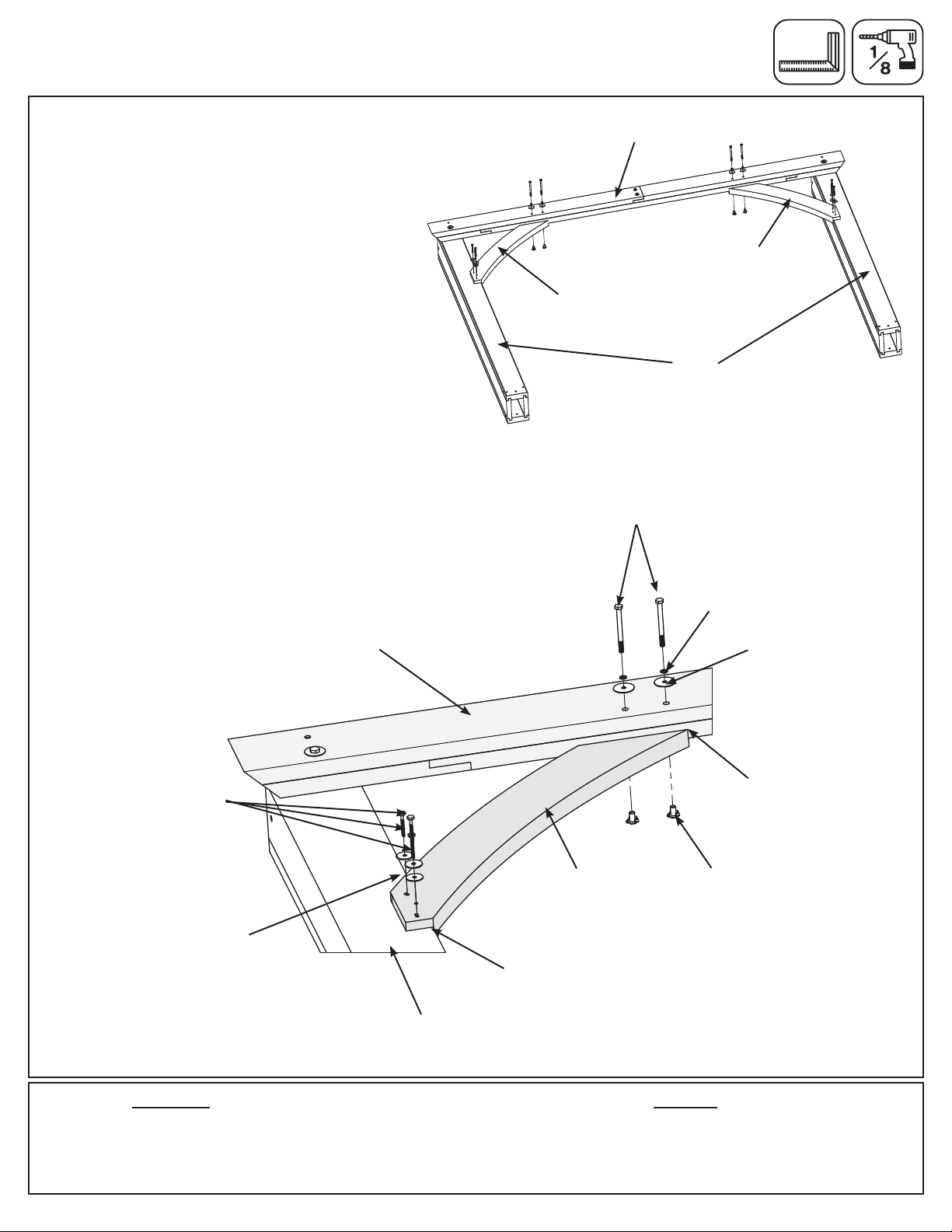

Step 5: Frame Assembly
Part 2 - Short Side
Note: The bevelled ends on each gusset
should always face away from the wood it is
attaching to.
C: Make sure each Short Side assembly is
square with the Post Assemblies then facing
one Short Beam Assembly from the outside
place one (740) Short Right Gusset on the
right hand side so the top ts tight to the Short
Beam Assembly and the bottom ts tight to the
Post Assembly. Attach gusset to Short Beam
Assembly with two 5/16 x 3-1/4” Hex Bolts
(with 5/16” lock washer, 1/4-5/16” large washer
and 5/16” t-nut). Pre-drill with a 1/8” drill bit
then attach to Post Assembly with three 1/4
x 1-15/16” Lag Screws (with 1/4-5/16” large
washer). (F5.4 and F5.5)
D: Repeat Step C on the left hand side with one
(739) Short Left Gusset. (F5.4 and F5.5)
Hardware
12 x 1/4 x 1-15/16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Wood Parts
2 x (740) Short Right Gusset
2 x (739) Short Left Gusset
F5.4
2- Gusset Right
2- Gusset Left
8- 5/16 x 3-1/4" Hex Bolts
(5/16 large washer, lock
washer, T nut)
4- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
Post
Assembly
5/16” T-nut
5/16” Lock
Washer
5/16 x 3-1/4”
Hex Bolt
1/4-5/16”
Large Washer
1/4-5/16”
Large
Washer
1/4 x 1-15/16”
Lag Screw
(739) Short
Left Gusset
(740) Short
Right Gusset
Short Beam
Assembly
Post Assembly
Tight
Tight
Gusset
Short Beam
Assembly
F5.5
