10’ x 10’ GAZEBO
Installaon and Operang Instrucons – YM11895
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Revised 09-14-2023
12'-1 5/32"
3687.1
12'-1 5/32"
3687.1
Y40000-1895
HEIGHT:
9’4” or 2.85m
9‘ 11-1/8”
3.03 m
9‘ 11-1/8”
3.03 m
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimneas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• #2 Phillips Bit or Screwdriver
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.

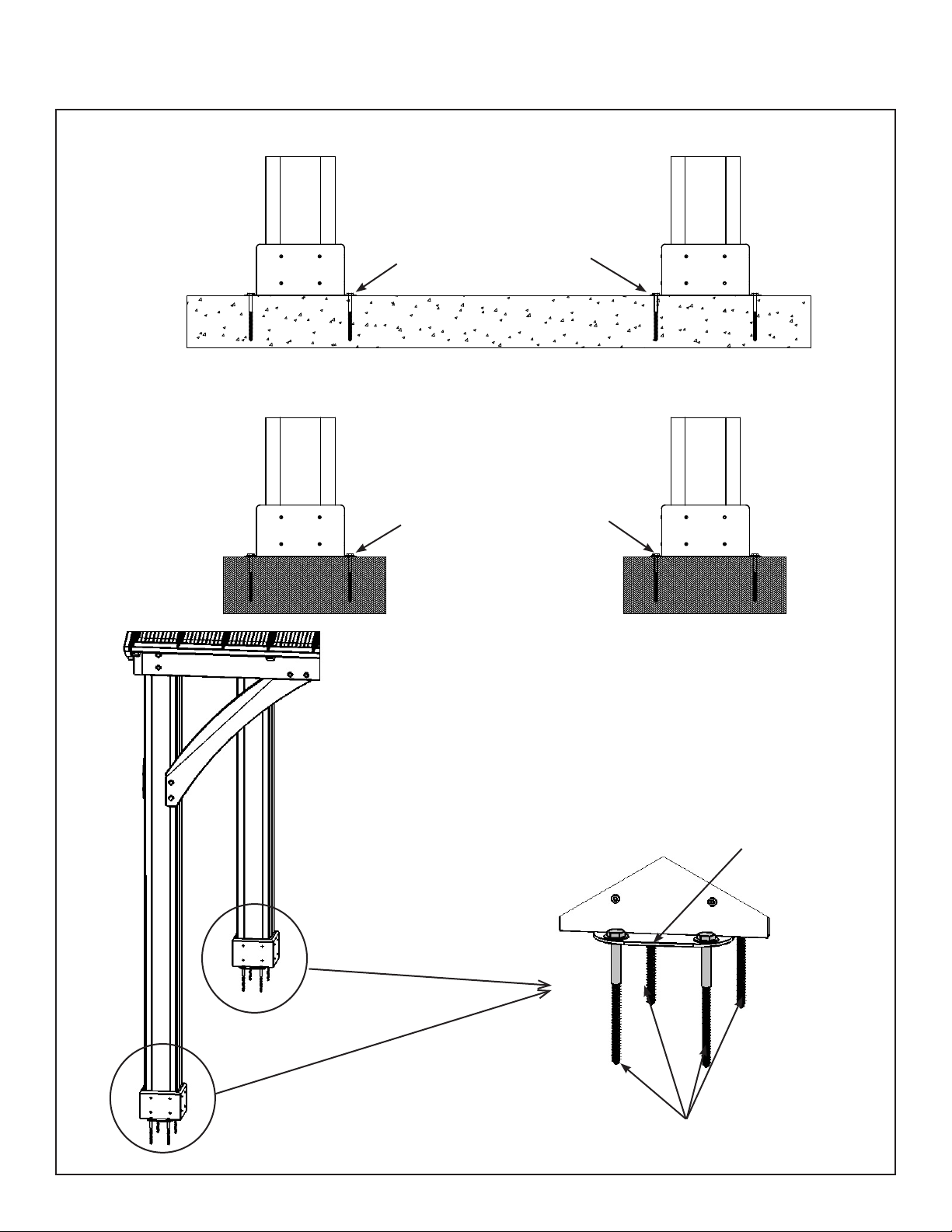

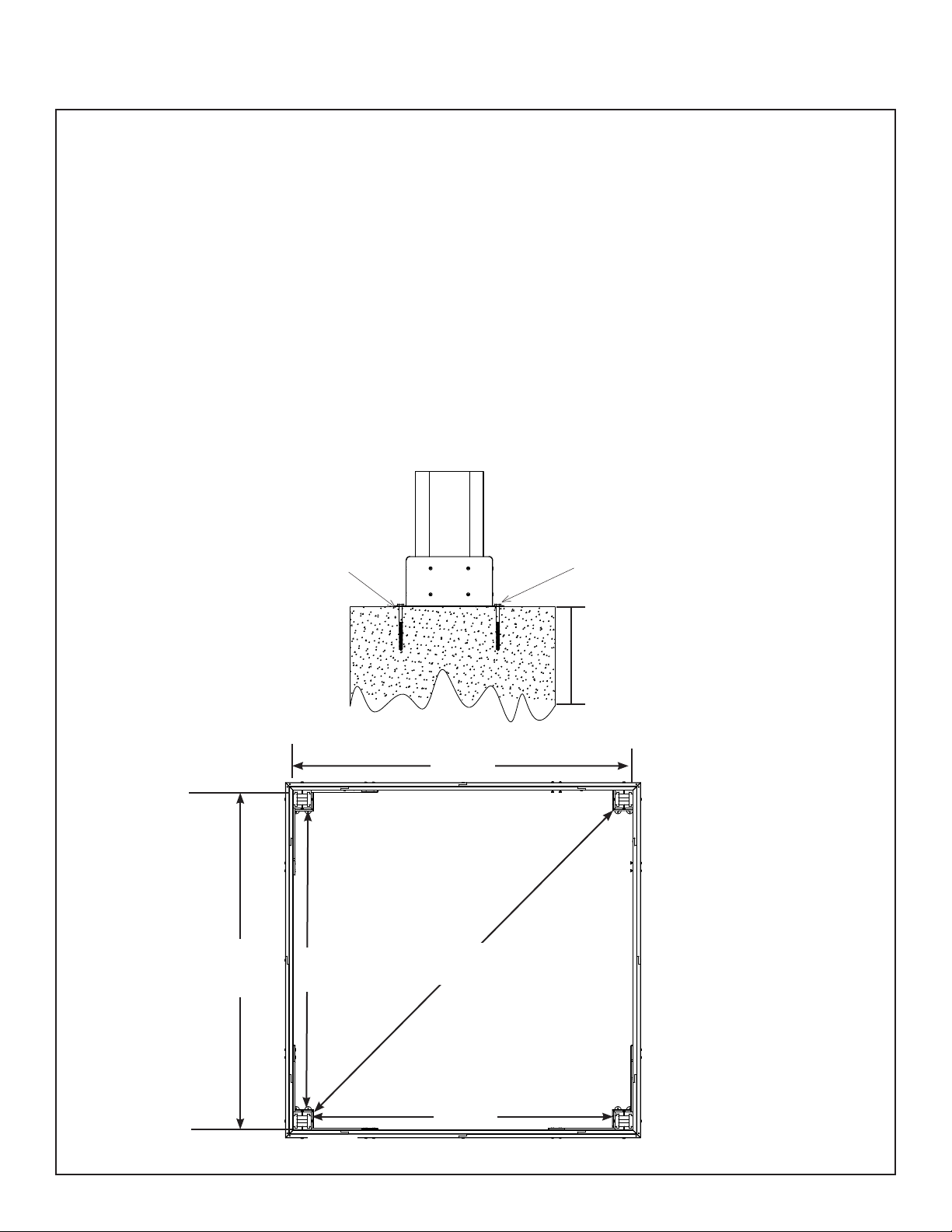

Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
11’ 7-7/8”
Post to Post
Post to Post Plinth to Plinth
8’ 1-3/8”
Post to Post
9’ 1-7/8”
Plinth to Plinth
8’ 1-3/8”
2.473 m
2.473 m 3.553 m
2.791 m
9’ 1-7/8”
2.791 m

7 [email protected]
Permanent Installation Examples cont.
Concrete Patio [min. 10’ 1-7/8” x 10’ 1-7/8” (3.096 m x 3.096 m)] with 6” (15.24 cm) clearance on all sides
Wood Deck [min. 10’ 1-7/8” x 10’ 1-7/8” (3.096 m x 3.096 m)] with 6” (15.24 cm) clearance on all sides
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post Mount

8 [email protected]
19.1 x 127 x 177.8mm (3/4 x 5 x 7")
16pc. (738) - Plinth
Y50142-738
34.9 x 165.1 x 926.9mm (1-3/8 x 6-1/2 x 36-1/2")
4pc. (739) - Short Left Gusset
Y70142-739
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
139.7 x 139.7 x 2235.2mm (5½ x 5½ x 88")
4pc. (752) - Post
Y70142-752
34.9 x 165.1 x 926.9mm (1-3/8 x 6-1/2 x 36-1/2")
4pc. (740) - Short Right Gusset
Y70142-740
Y50142-726
31.8 x 127 x 1497mm (1-1/4 x 5 x 58-15/16")
4pc. (726) - Right Outside Beam
Y50142-732
28.6 x 69.9 x 1112.5mm (1-1/8 x 2-3/4 x 43-3/4")
4pc. (732) - Short Strap
31.8 x 127 x 385.8mm (1-1/4 x 5 x 15-3/16")
8pc. (727) - Inside Short Beam
Y50142-727
Y50142-728
31.8 x 127 x 2235.2mm (1-1/4 x 5 x 88")
4pc. (728) - Inside Long Beam
31.8 x 127 x 1497mm (1-1/4 x 5 x 58-15/16")
4pc. (725) - Left Outside Beam
Y50142-725
28.6 x 69.9 x 2234.5mm (1-1/8 x 2-3/4 x 88")
4pc. (733) - Strap Long
Y50142-733
Y50142-729
25.4 x 80 x 2137mm (1 x 3-1/8 x 84-1/8")
4pc. (729) - Corner LT
Y50142-734
28.6 x 69.9 x 858mm (1-1/8 x 2-3/4 x 33-3/4")
4pc. (734) - Rafter Short Right
Y50142-731
28.6 x 69.9 x 1530.8mm (1-1/8 x 2-3/4 x 60-1/4")
4pc. (731) - Fascia Left Short
28.6 x 69.9 x 1570mm (1-1/8 x 2-3/4 x 61-13/16")
4pc. (736) - Rafter
Y50142-736
25.4 x 80 x 2137mm (1 x 3-1/8 x 84-1/8")
4pc. (737) - Corner RT
Y50142-737
Y50142-730
28.6 x 69.9 x 1530.8mm (1-1/8 x 2-3/4 x 60-1/4")
4pc. (730) - Fascia Right Short
Y50142-735
28.6 x 69.9 x 858mm (1-1/8 x 2-3/4 x 33-3/4")
4pc. (735) - Rafter Short Left

9 [email protected]
1pc.
Carriage Bolt
(Y07490-260)
1pc. - Roof Peak Set
(Y70829-221)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.

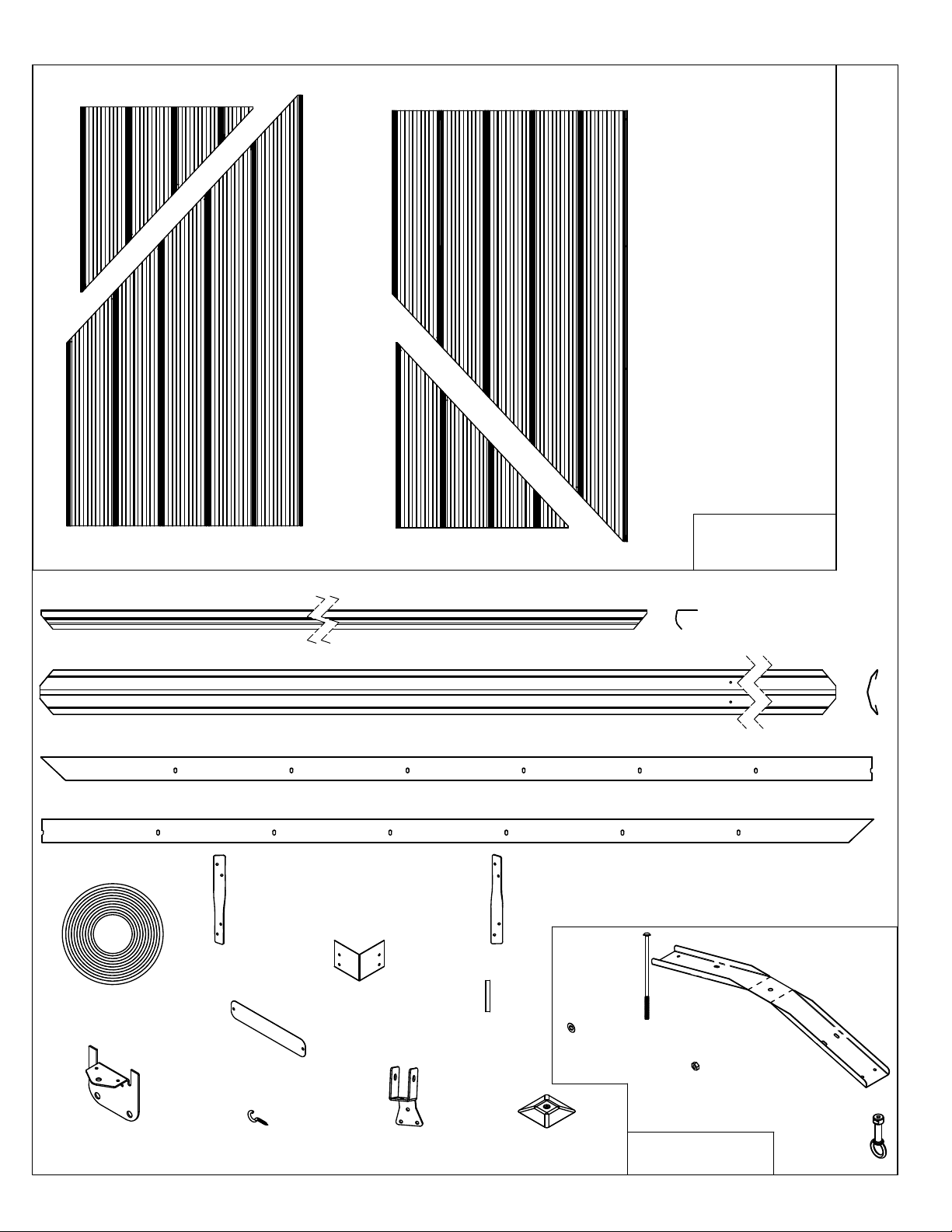

Hardware Identification ( )
1pc.
Peak Post
(Y01000-094)
1pc. - Weather Seal
Ridge Clip 85¼ (8Pk)
(Y70818-232)
1pc.
Peak Loop
(Y20018-003)
2pc. - 50mm
Hook
(Y00418-050)
1pc.
Spring Clip
(Y09490-001)
4pc. - Short Panel Left
(Y01033-223)
1pc.
1/4" Nut
(Y08490-200)
1pc. - Gazebo ID Plaque
(Y70800-104)
1pc. - Corner Cap Set (4Pk)
(Y70833-226)
1pc. - Roof Panel Set
(Y70833-233)
4pc. - Long Panel Left
(Y01033-222)
1pc. - Post
Mount Set (8Pk)
(Y70819-109)
1pc.
Peak Cap
(Y01033-095)
4pc. - Short Panel Right
(Y01033-225)
4pc. - Long Panel Right
(Y01033-224)
8pc. Ridge Clip 85.25 - (Y01033-227)
1pc. - Rafter/Beam
Bracket Set (12Pk)
(Y70829-230)
4pc. Ridge Cap 85 - (Y01033-231)
1pc. - 45º Twist
Bracket RT Set (2Pk)
(Y70829-192)
4pc. Roof Edge Right 59 7/16 - (Y01033-229)
4pc. Roof Edge Left 59-7/16 - (Y01033-228)
1pc. - 45º Twist
Bracket LT Set (2Pk)
(Y70829-191)
2pc.
Roof Peak Bracket
(Y00429-068)

10 [email protected]
24pc. Wood Screw#8 x 2"- (Y06091-520)
1pc.-1/8"Drill Bit
(Y00400-002)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly.Actual dimensions may be smaller or larger.
1pc. #2 x 2" Robertson Driver (Y00400-005)
98pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
52pc. 5/16" Lock Washer
(Y05318-300)
52pc. 5/16 - T-Nut
(Y08518-300)
8pc. - 3/8" Lock Nut
(Y08318-803)
36pc. Hex Bolt 5/16 x 1-1/4" - (Y07718-311)
8pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
24pc. Sheet Metal Screw
#8 x 3/4"
(Y06433-503)
160pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
168pc. Hex Roofing Screw
#8x 1"
(Y06733-510)
1pc. - Hex Driver (Y00400-004)
72pc. Wood Screw#8 x 2 1/4"- (Y06091-521)
16pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
24pc. - 1/4" Lock Nut
(Y08318-203)
32pc. Wood Screw #7 x 3/4"
(Y06091-003)
132pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
24pc. Lag Screw 1/4" x 1-15/16" No.12 Shank- (Y06218-219)
16pc. Hex Bolt 5/16 x 3-1/4" - (Y07718-331)
12pc. 1/4 x 2" Hex Bolt - (Y07718-220)
8pc. Hex Bolt
3/8 x 8-1/2"
(Y07718-882)

11 [email protected]
PRODUCT NUMBER: YM11895
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

12 [email protected]
A: At the bottom of each (752) Post insert two 5/16” T-Nuts as shown in g. 2.1 and 2.2.
B: At the bottom of each (752) Post place two Post Mounts tight to the bottom and inside faces as shown in g. 2.1
and 2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16” large washer) per
mount so they connect to the T-Nuts.
C: On each side of the Posts, place one (738) Plinth ush to the bottom and attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (g. 2.1 and 2.3)
D: From the bottom of each Post Mount attach to posts with two #8 x 1-1/2” Wood Screws per mount and then from
the inside with two #10 x 1-1/4” Pan Screws per mount These screws are installed at a slight angle. Tighten all
bolts. There will be four Post Assemblies. (g. 2.4)
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.2
(738) Plinth
4 x (752) Post
16 x (738) Plinth
Top
Bottom #8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
Post
Mount
Fig. 2.3
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-1/2” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
Fig. 2.1
Post
Mount
(752)
Post
Rounded
Edge on Top
Fig. 2.4
Post
Mount
#10 x 1-1/4” Pan Screws (x 2
per Post Mount, from inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut (x 2
per Post)
Post
Mount
(752)
Post
(752)
Post
(752)
Post

13 [email protected]
3
3
Step 3: Beam Assembly
Part 1
Hardware
Wood Parts
A: Connect one (725) Left Outside Beam and one (726) Right Outside Beam using two 5/16 x 1-1/4” Hex Bolts
(with 5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Connect one (727) Inside Short Beam to each end of one (728) Inside Long Beam using two 5/16 x 1-1/4”
Hex Bolts (with 5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B three more times to make four Outside Beam Assemblies and four Inside Beam
Assemblies.
(725) Left
Outside Beam
4 x (725) Left Outside Beam
4 x (726) Right Outside Beam
8 x (727) Inside Short Beam
4 x (728) Inside Long Beam
Fig. 3.1
24 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
1/4 -5/16”
Large Washer
5/16 x 1-1/4”
Hex Bolt
5/16”
T-nut
Tight
(726) Right
Outside Beam
(728) Inside
Long Beam
(727) Inside
Short Beam
5/16” Lock
Washer
Make sure bolt heads
are on the outside of
each Beam Assembly
(727) Inside
Short Beam

14 [email protected]
Hardware
52 x #8 x 2-1/4” Wood Screw
Fig. 3.3
Inside Beam
Assembly
Fig. 3.4
Flush
Outside Beam
Assembly

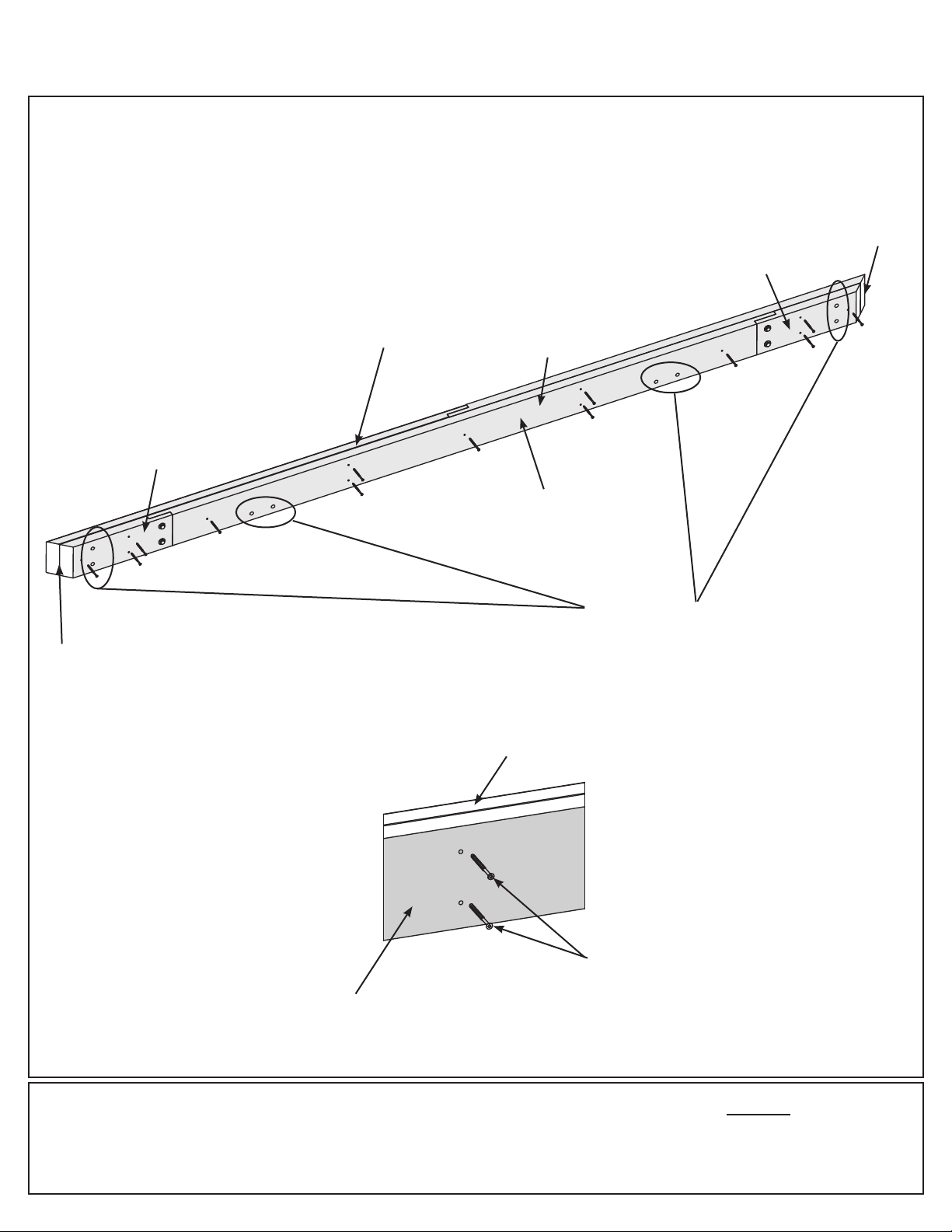

Step 3: Beam Assembly
Part 2
D: Place one Outside Beam Assembly on one Inside Beam Assembly so the ends are ush. Match the bolt
holes in each (727) Inside Short Beam and (728) Inside Long Beam with the bolt holes in (725) Left Outside
Beam and (726) Right Outside Beam. Attach with 13 #8 x 2-1/4” Wood Screws. (g. 3.3 and 3.4)
E: Repeat Step D three more times to make four Beam Assemblies.
Flush
Outside Beam
Assembly
#8 x 2-1/4” Wood Screws
(x 13 per assembly)
(728)
(727)
(727)
Match bolt holes
Inside Beam
Assembly

15 [email protected]

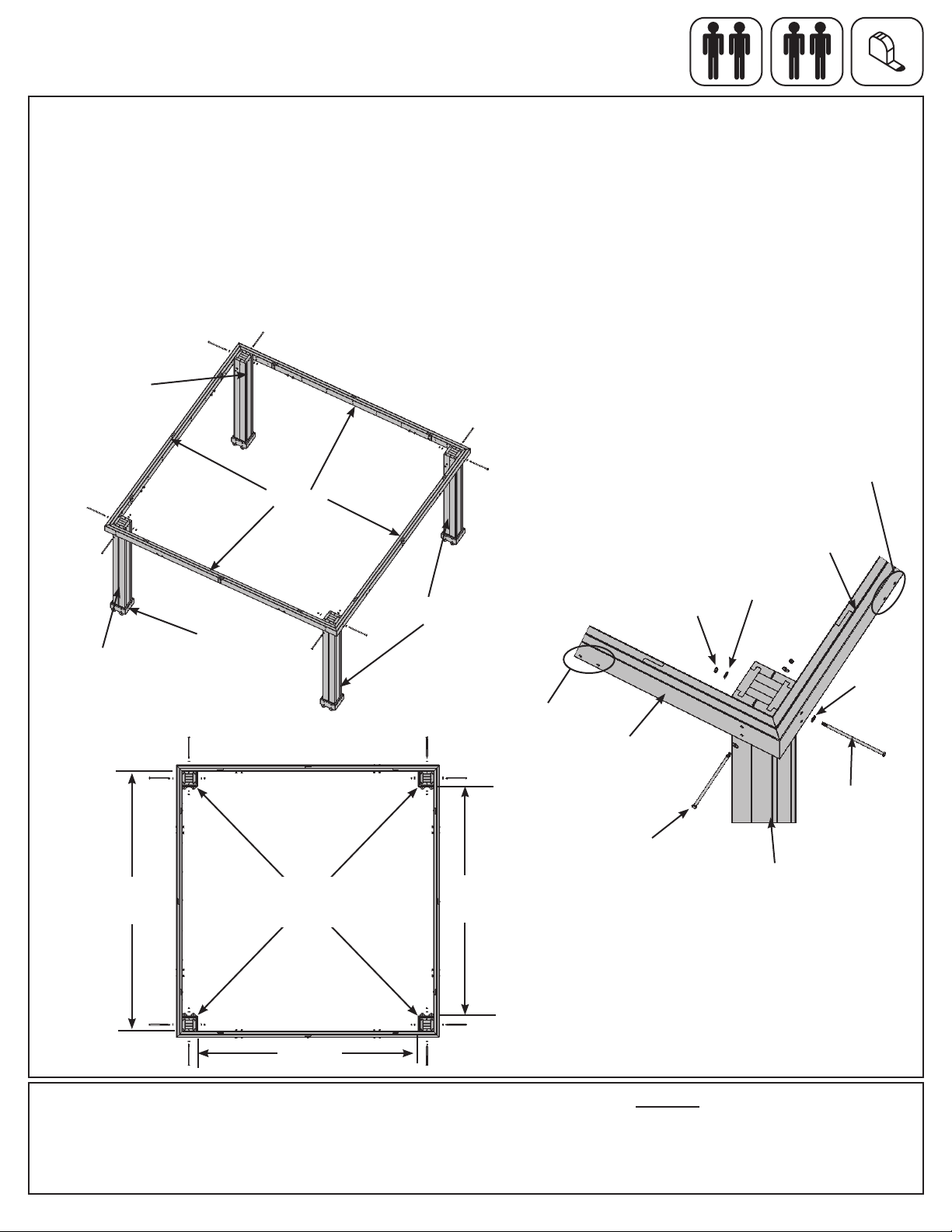

Step 4: Frame Assembly and Anchoring
Part 1
Fig. 4.1
A: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.
B: With one person at each Post stand two complete Post Assemblies. A third person places one Beam
Assembly against the outside of each Post, ush to the tops and outside corners. Notice bolt hole orientation on
the Beam Assembly. A fourth person attaches Beam to Post with one 3/8 x 8-1/2” Hex Bolt (with two 3/8” large
washers and one 3/8” lock nut) per Post. The distance from the outside of one Post to the outside of the second
Post should be 9’ 1-7/8” (2.791 m). (g. 4.1, 4.2 and 4.3)
C: Continue until all four Beam Assemblies are attached and the corners are tight together. (g. 4.1 and 4.2) See
g. 4.3 for accurate positioning of Posts.
Fig. 4.2
Hardware
8 x 3/8 x 8-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Note hole
orientation (on
bottom)
Fig. 4.3
3/8” Lock
Nut
3/8” Large
Washer
3/8” Large
Washer
3/8 x 8-1/2”
Hex Bolt
3/8 x 8-1/2”
Hex Bolt
Beam
Assembly
Beam
Assembly
Beam
Assembly
Post Assembly
Post
Assembly
Post
Assembly
Post
Assembly
Plinth to Plinth
Plinth to Plinth
Post to Post
Post to Post
Plinth
Note hole
orientation (on
bottom)
11’ 7-7/8”
9’ 1-7/8”
8’ 1-3/8”
8’ 1-3/8”
2.473 m
2.791 m
2.473 m
3.553 m

16 [email protected]

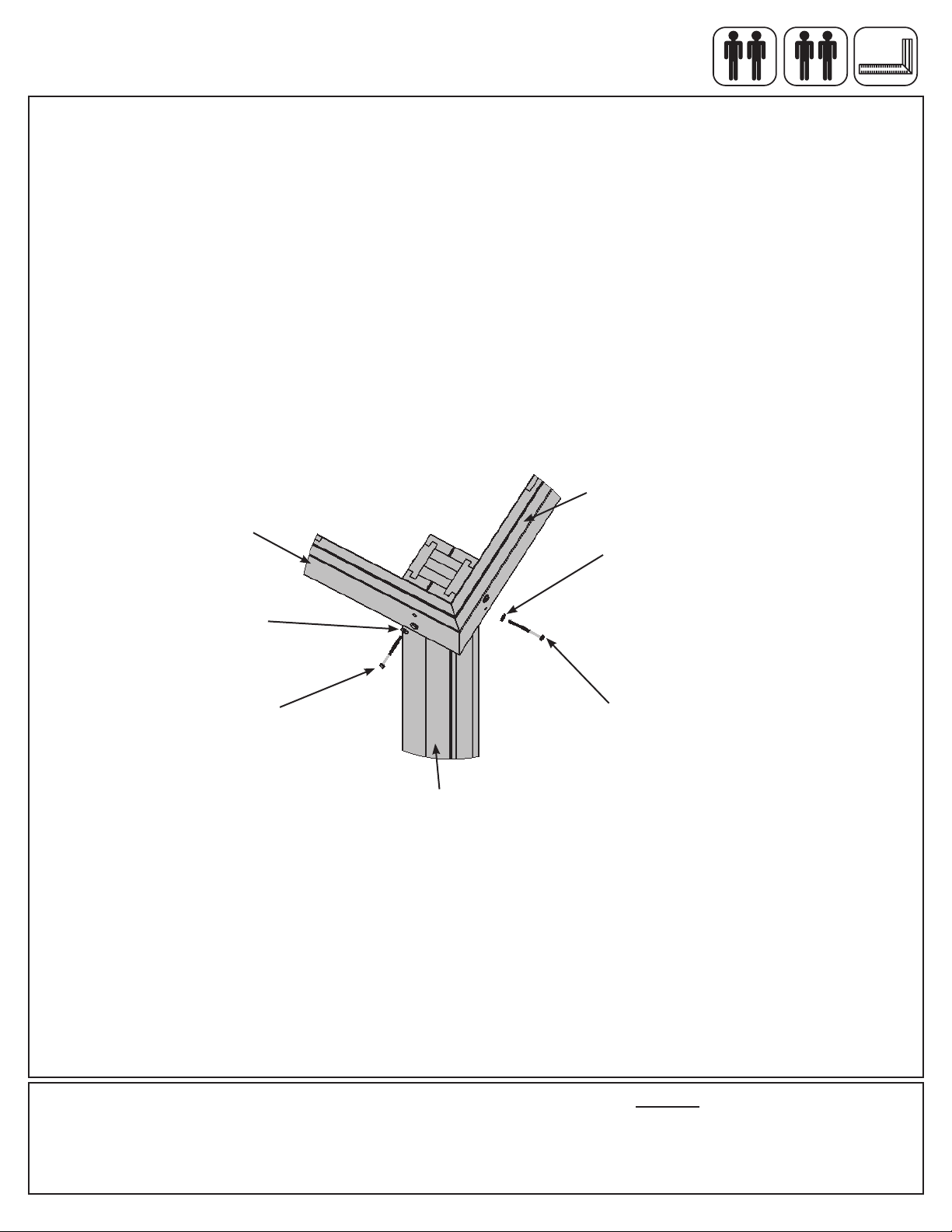

D: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two 5/16
x 4-3/4” Lag Screws (with 1/4-5/16” large washer) per corner. (g. 4.4)
E: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
8 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large
Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw
Fig. 4.4
Beam
Assembly
Beam
Assembly
Post Assembly
Step 4: Frame Assembly and Anchoring
Part 2
1/4-5/16”
Large
Washer

17 [email protected]

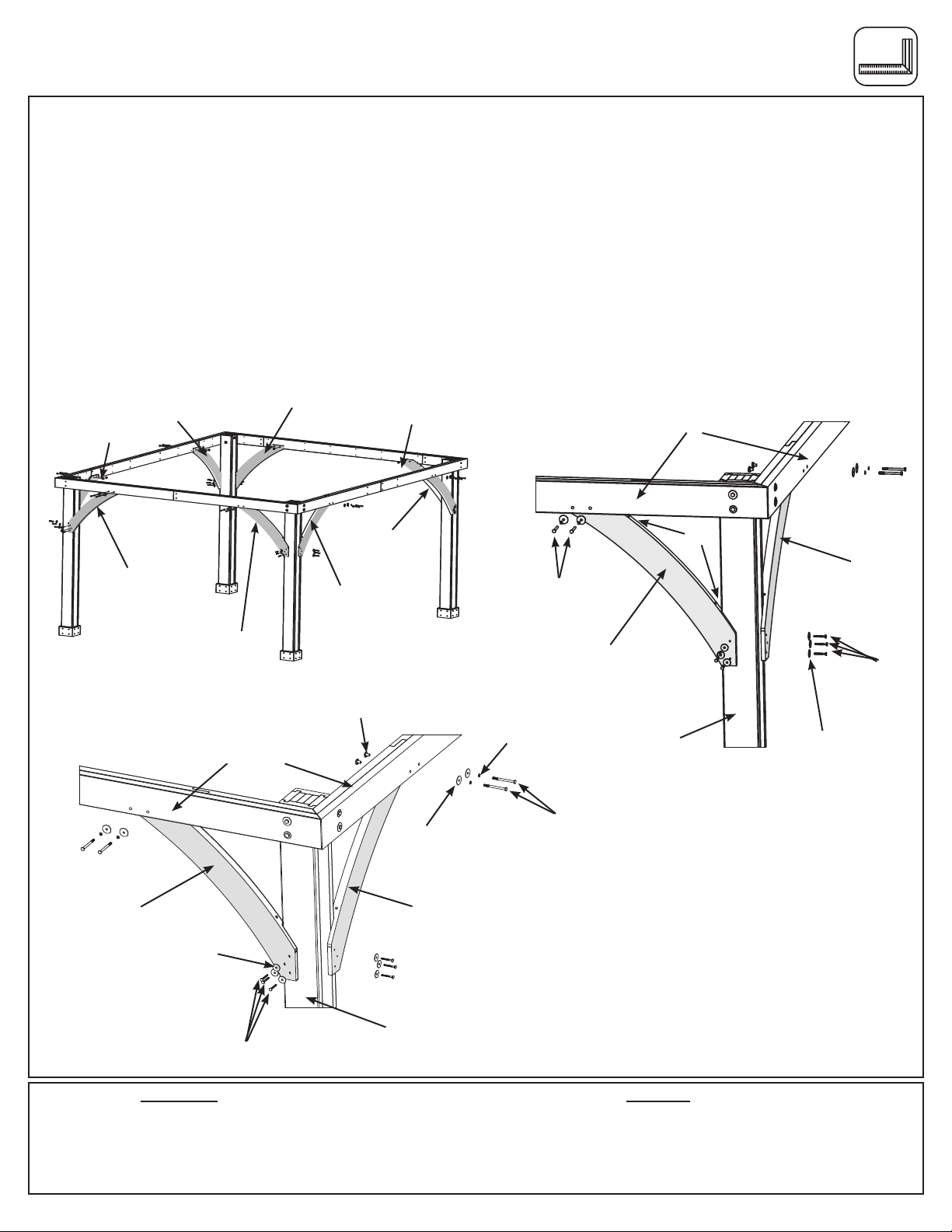

Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
A: Make sure the assembly is still square and level then facing one Beam Assembly place one (740) Short Right
Gusset on the right hand side so the top ts tight to the Beam Assembly and the bottom ts tight to the Post
Assembly. Attach gusset to Beam Assembly with two 5/16 x 3-1/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut) and to Post Assembly with three 1/4 x 1-15/16” Hex Lags (with 1/4-5/16” large
washer). (g. 5.1, 5.2 and 5.3)
B: Repeat Step A on the left hand side with one (739) Short Left Gusset. (g. 5.1, 5.2 and 5.3)
C: Repeat Steps A and B for each Beam Assembly/Post Assembly. (g. 5.1, 5.2 and 5.3)
Step 5: Attach Gussets
Fig. 5.1
HardwareWood Parts
Fig. 5.2
Fig. 5.3
Tight
Post
Assembly
Post
Assembly
1/4 x 1-15/16”
Hex Lag
5/16” T-nut 5/16” Lock
Washer 1/4-5/16”
Large Washer
5/16 x 3-1/4”
Hex Bolt
5/16 x 3-1/4”
Hex Bolt
Beam
Assembly
Beam
Assembly
1/4-5/16”
Large Washer
1/4-5/16”
Large
Washer
1/4 x 1-15/16”
Hex Lag
(739) Short
Left Gusset
(740) Short
Right Gusset
4 x (740) Short Right Gusset
4 x (739) Short Left Gusset
24 x 1/4 x 1-15/16” Hex Lag (1/4-5/16” large washer)
16 x 5/16 x 3-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(739) Short
Left Gusset
(740) Short
Right Gusset
(739) Short
Left Gusset
(740) Short
Right Gusset
(739) Short
Left Gusset
(740) Short
Right Gusset (739) Short
Left Gusset
(740) Short
Right Gusset
(739) Short
Left Gusset
(740) Short
Right Gusset

18 [email protected]

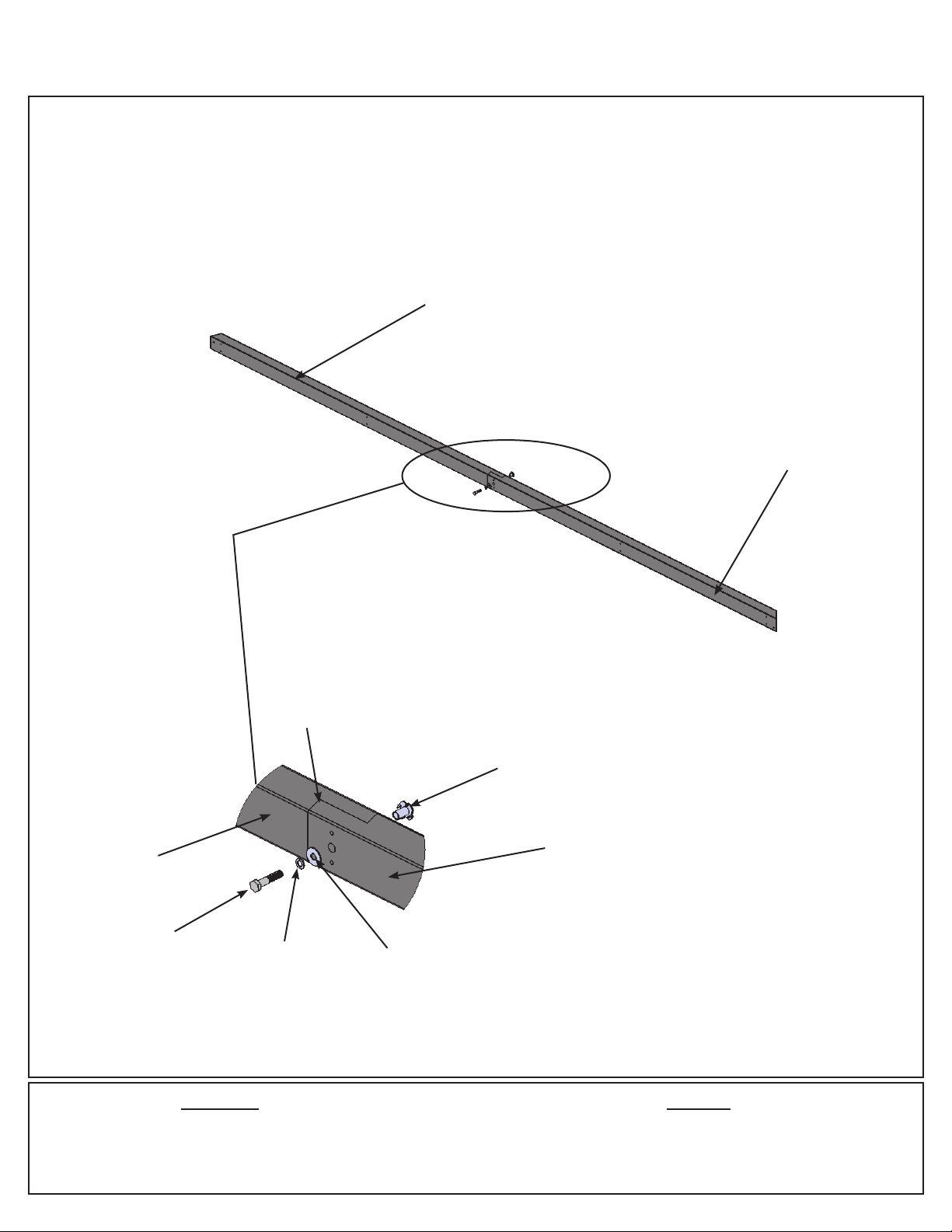

A: Tightly connect one (731) Fascia Left Short and one (730) Fascia Right Short using one 5/16 x 1-1/4” Hex
Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 6.1 and 6.2.
B: Repeat Step A three more times to make four Fascia Beam Assemblies.
Step 6: Fascia Beam Assembly
Fig. 6.1
Fig. 6.2
HardwareWood Parts
4 x (731) Fascia Left Short
4 x (730) Fascia Right Short
4 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(730) Fascia
RIght Short
(731) Fascia
Left Short
(730) Fascia
RIght Short
(731)
Fascia Left
Short
1/4-5/16”
Large
Washer
5/16”
T-nut
5/16 x 1-1/4”
Hex Bolt
Tight
5/16” Lock
Washer

19 [email protected]

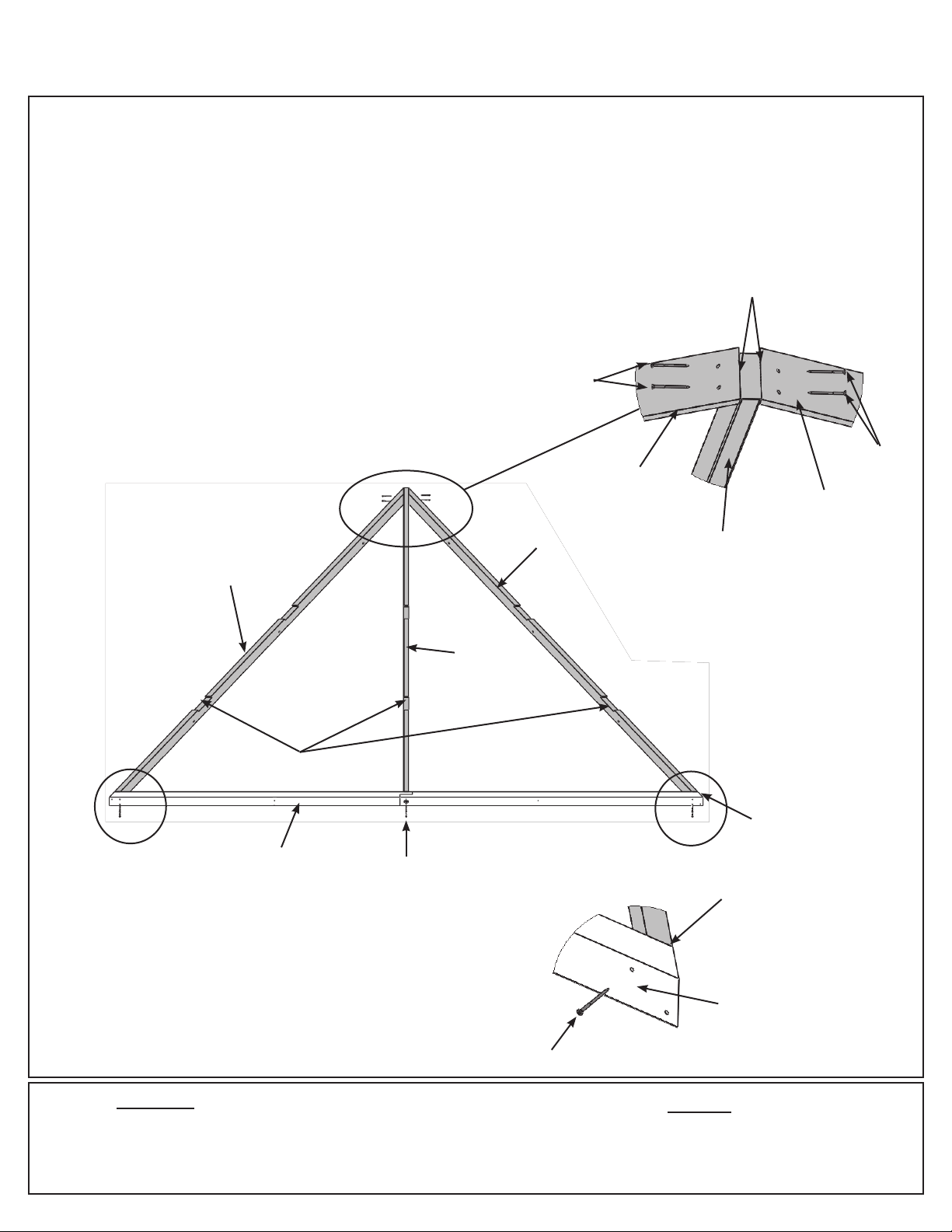

A: On each side of one (736) Rafter place one (729) Corner LT and one (737) Corner RT so the tops and
edges are ush then attach with two #8 x 2” Wood Screws per side. (Fig. 7.1 and 7.2)
B: Place Fascia Beam Assembly from Step 6 on the bottom of (729) Corner LT, (737) Corner RT and (736)
Rafter so the sides are ush then attach with one #8 x 2” Wood Screw at each end and one #8 x 2-1/4” Wood
Screw in the middle. (g. 7.1 and 7.3)
C: Repeat Steps A and B three more times to make four Roof Rafter Assemblies.
9
9
9
Hardware
Wood Parts
#8 x 2” Wood Screw
Top View
Fascia Beam
Assembly
Step 7: Roof Rafter Assembly
Part 1
Fig. 7.1
24 x #8 x 2” Wood Screw
4 x #8 x 2-1/4” Wood Screw
4 x (736) Rafter
4 x (729) Corner LT
4 x (737) Corner RT
Fig. 7.3
Note notches
facing up
Flush
Fascia Beam
Assembly
(736) Rafter
#8 x 2“
Wood
Screws
#8 x 2”
Wood
Screws
Flush
Fig. 7.2
(729)
Corner LT
Front View
Note angle
side up
(736)
Rafter
#8 x 2-1/4”
Wood Screws
(737)
Corner RT
(729)
Corner LT
(737)
Corner RT

20 [email protected]
10
HardwareWood Parts
#8 x 1-1/2” Wood Screws
x 20 per assembly
Fig. 7.4

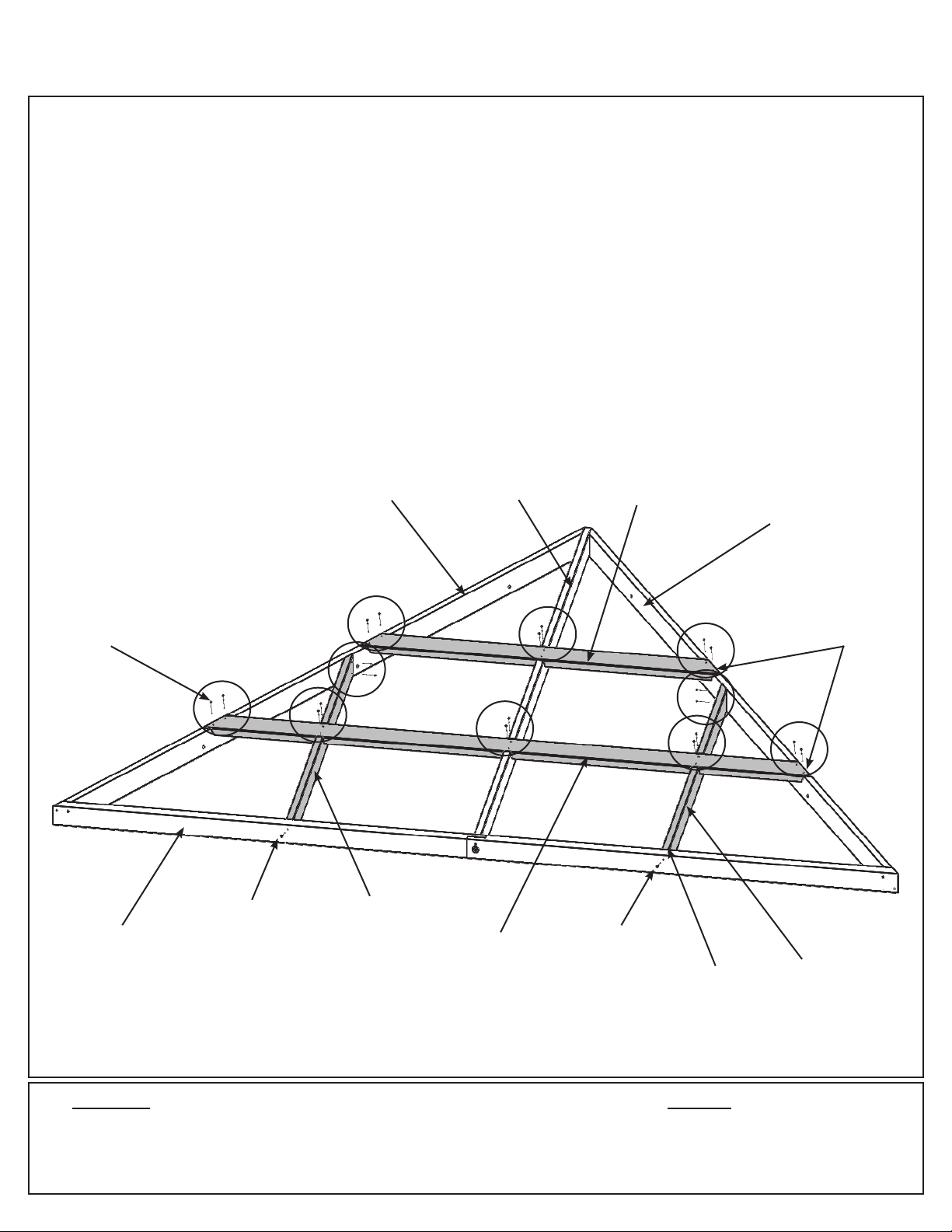

Step 7: Roof Rafter Assembly
Part 2
80 x #8 x 1-1/2” Wood Screw
8 x #8 x 2-1/4” Wood Screw
4 x (732) Short Strap
4 x (733) Strap Long
4 x (734) Rafter Short Right
4 x (735) Rafter Short Left
D: Place one (732) Short Strap in the notches of (729) Corner LT, (737) Corner RT and (736) Rafter so the
ends do not overhang the outside edges of the outside boards then attach with six #8 x 1-1/2” Wood Screws.
(Fig. 7.4)
E: Place one (733) Strap Long in the notches of (729) Corner LT, (737) Corner RT and (736) Rafter so the ends
do not overhang the outside edges of the outside boards. Attach to (729) Corner LT, (737) Corner RT and (736)
Rafter with six #8 x 1-1/2” Wood Screws. (g. 7.4)
F: Place one (734) Rafter Short Right and one (735) Rafter Short Left in the notches of (733) Strap Long and
attach as shown in g. 7.4 with four #8 x 1-1/2” Wood Screws and two #8 x 2-1/4” Wood Screws per board.
G: Complete Steps D, E and F for all four Roof Rafter Assemblies.
(736)
Rafter
No
Overhang
Fascia Beam
Assembly
(729)
Corner LT
(737)
Corner RT
Front View
Flush
(732) Short
Strap
(735) Rafter
Short Left
(733) Strap
Long
(734) Rafter
Short Right
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
