Yardistry YM12810X User manual

3.6m x 3.6m (12’ x 12’) WOOD GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM12810X
Revised 07-31-2020
12'-1 5/32"
3687.1
12'-1 5/32"
3687.1
HEIGHT:
3.2m (10.5’)
Y40000-810X
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00
pm EST (excl. holidays)
(For extended hours see our website)
English and French Spoken
(12’ 1-5/32”)
(12’ 1-5/32”)
3.687 m
3.687 m

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chiminea
for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OSHA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
During assembly it is important to closely follow the instructions. Complete the assembly
on a solid, level surface and follow the instructions to square up, level and anchor the structure.
This will reduce the gaps at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
General Information
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4[email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
•Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• #2 Phillips Bit or Screwdriver
• 7/16” & 9/16” Wrench
Assembly Guides
•8' Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples

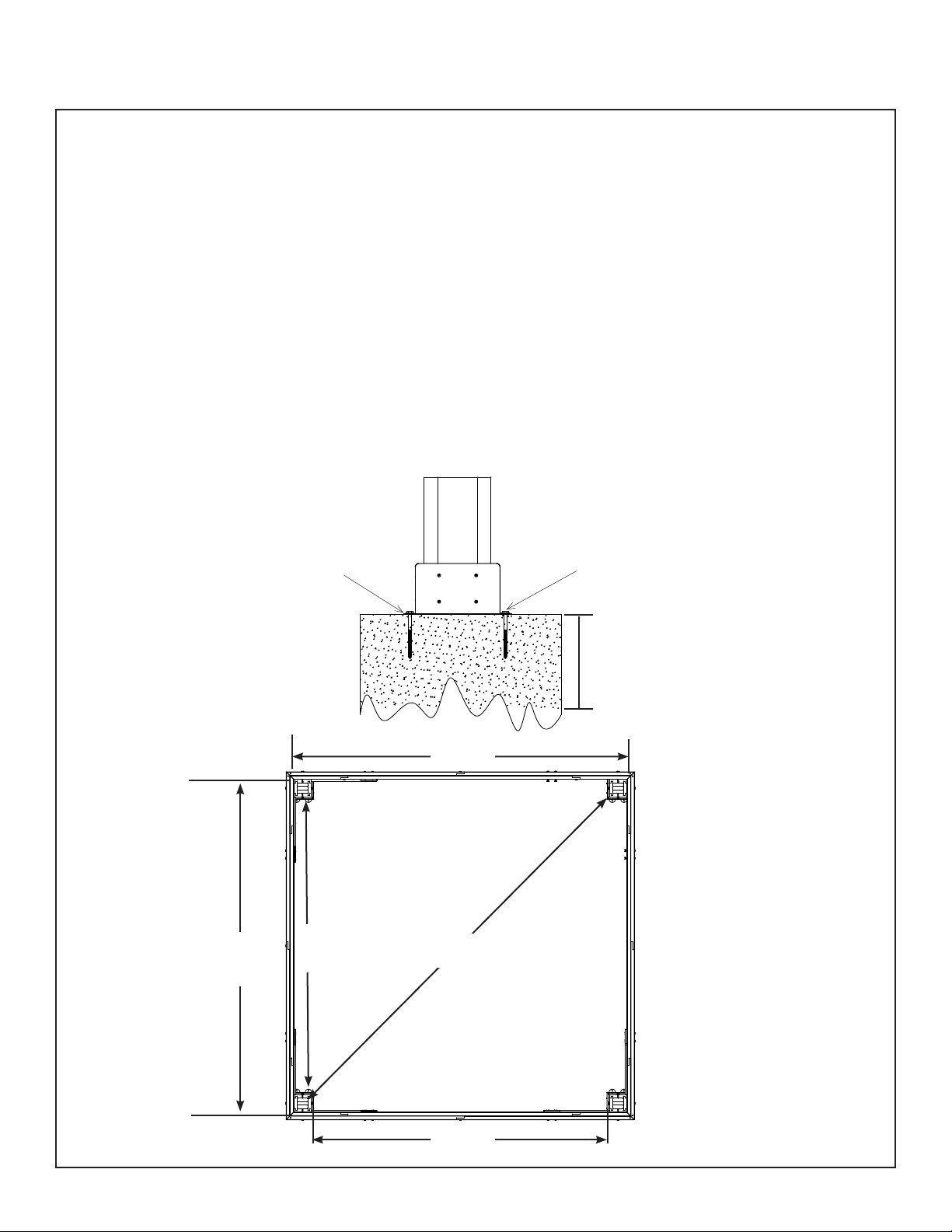

Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
(13’ 11”)
Post to Post
Post to Post
(11’ 0”) Plinth to Plinth
(9’ 8-1/8”)
Post to Post
(11’ 0”)
Plinth to Plinth
(9’ 8-1/8”)
3.353 m
3.353 m
4.242 m
2.95 m
2.95 m

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware not included
Anchoring Hardware not included
Post Mounts
Anchoring Hardware (not included)
Post Mounts
Concrete Patio [min. 3.505 m x 3.505 m (11’6” x 11’6”)] with 15.24 cm (6”) clearance on all sides
Wood Deck [min. 3.505 m x 3.505 m (11’6” x 11’6”)] with 15.24 cm (6”)clearance on all sides

8 [email protected]

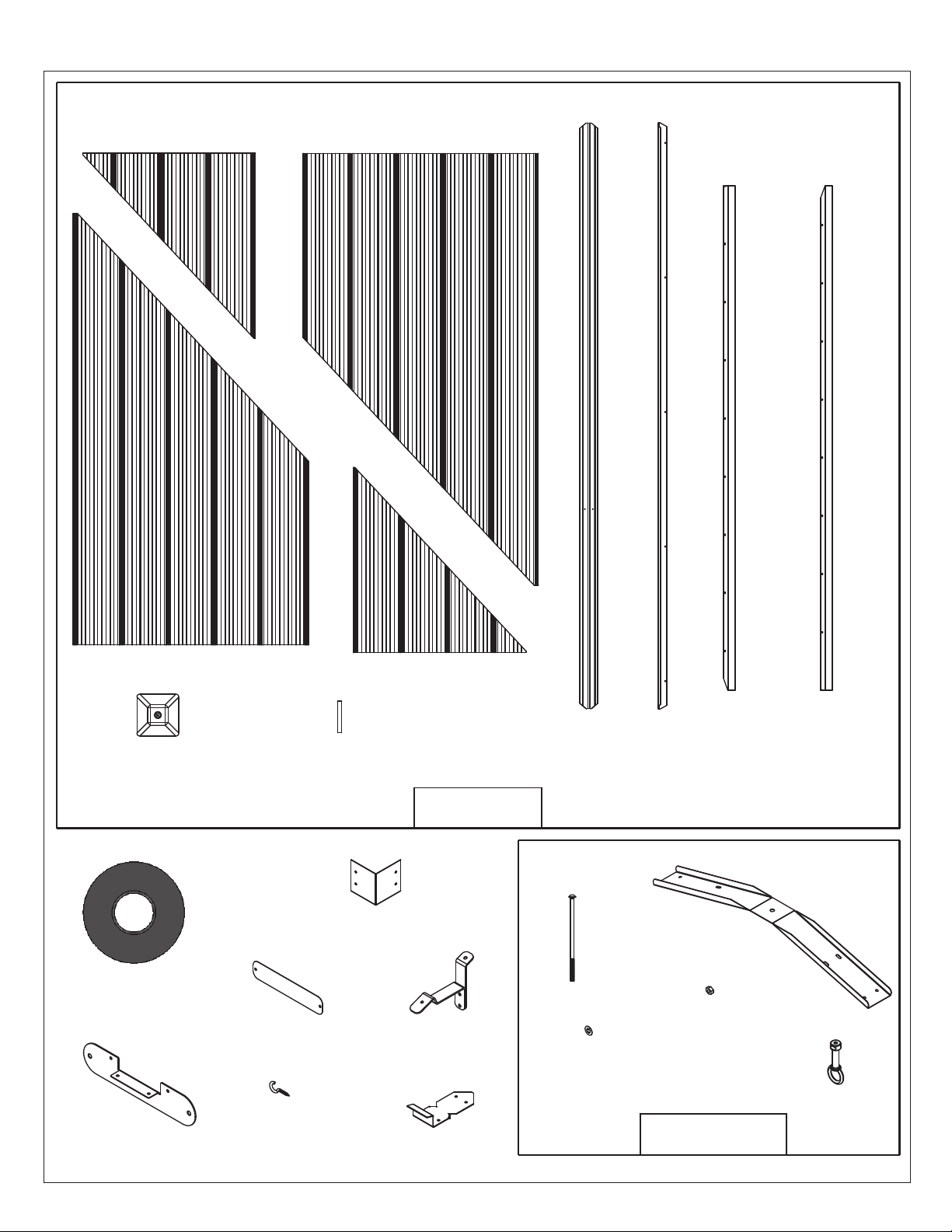

(8X)
Beam End Short FSC (346)
Rafter Short Left FSC (339)
(4X)
Beam End Right FSC (345)
(x4)
Beam FSC (343)
7 x 7 Post FSC (867)
(4x)
Rafter Corner Left FSC (333)
(4x)
(4X)
Gusset Left FSC (331)
Gusset Right FSC (330)
(4x)
(16X)
(8X)
Post Mount
Plinth FSC (329)
Beam End Left FSC (344)
(4X)
(4x)
Rafter Corner Right FSC (334)
(4X)
(4X)
Fascia Left FSC (341)
(4X)
Fascia Right FSC (342)
(4X)
Strap Short FSC (337)
(4X)
Strap FSC (336)
(4X)
Rafter Short Right FSC (338)
Rafter FSC (340)
(4X)
Roof to Beam Bracket
(X12)
Roof To Post Bracket (4x)

9 [email protected]

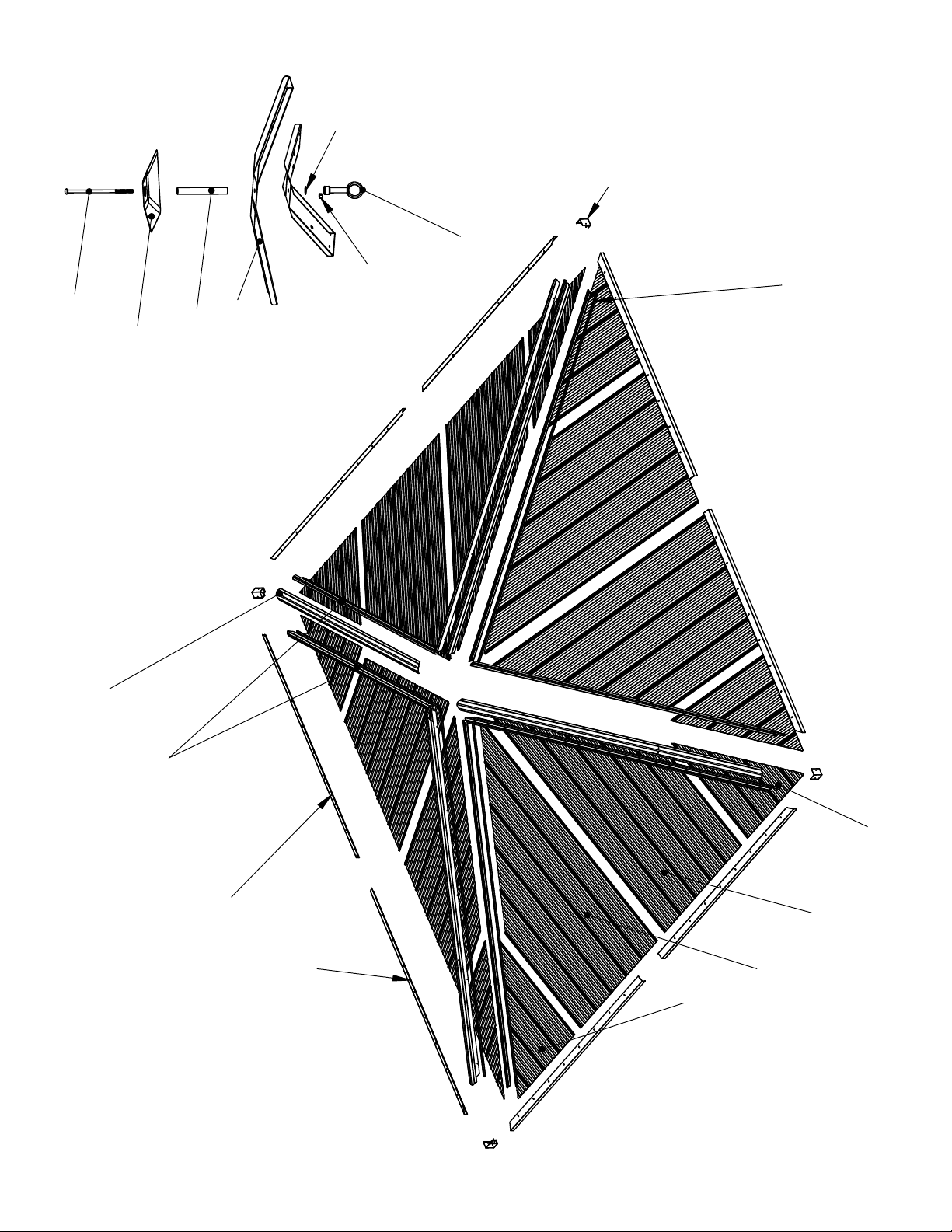

Roof Peak Bracket (2X)
1/4" Nut
Carriage Bolt (Square Shoulder)
Peak Cap
Peak Post
Peak Loop
Spring Clip
Roof Edge Left (4X)
Right Short Panel (4X)
Roof Edge Right (4X)
Left Short Panel (4X)
Left Long Panel (4X)
Right Long Panel (4X)
Ridge Clip (8X)
Corner Cap (4X)
Ridge Cap (4X)
Weather Seal - Ridge Clip (8X)

10 [email protected]
10 [e-mail]
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly.Actual dimensions may be smaller or larger.
Y70229-330
38.1 x 190.5 x 1003.3mm
(1-1/2 x 7-1/2 x 39-1/2")
4pc. (330) - Gusset Right FSC
Y70229-867
177.8 x 177.8 x 2387.6mm
4pc. (867) - 7 x 7 Post FSC
(7 x 7 x 94")
Y50229-329
23.8 x 133.4 x 225.4mm
(5/4 x 6 x 8-7/8")
16pc. (329) - Plinth FSC
Y70229-331
38.1 x 190.5 x 1003.3mm
(1-1/2 x 7-1/2 x 39-1/2")
4pc. (331) - Gusset Left FSC
38.1 x 139.7 x 2413mm
Y50229-343
Beam FSC
4pc. (343) -
(1-1/2 x 5-1/2 x 95")
31.8 x 82.6 x 1866.9mm
Y50229-341
Fascia Left FSC
4pc. (341) -
(1-1/4 x 3-1/4 x 73-1/2")
Y50229-346
38.1 x 139.7 x 584.2mm
(1-1/2 x 5-1/2 x 23")
8pc. (346) - Beam End Short FSC
31.8 x 82.6 x 2628.1mm
Y50229-336
Strap FSC
4pc. (336) -
(1-1/4 x 3-1/4 x 103-7/16")
38.1 x 139.7 x 1790.7mm
Y50229-344
Beam End Left FSC
4pc. (344) -
(1-1/2 x 5-1/2 x 70-1/2")
38.1 x 139.7 x 1790.7mm
Y50229-345
Beam End Right FSC
4pc. (345) -
(1-1/2 x 5-1/2 x 70-1/2")
31.8 x 82.6 x 1866.9mm
Y50229-342
Fascia Right FSC
4pc. (342) -
(1-1/4 x 3-1/4 x 73-1/2")
Y50229-334
25.4 x 88.9 x 2631.5mm
Rafter Corner Right FSC
4pc. (334) -
(1 x 3-1/2 x 103-13/16")
Strap Short FSC
Y50229-337
4pc. (337) -
31.8 x 82.6 x 1561.3mm(1-1/4 x 3-1/4 x 61-7/16")
Y50229-340
31.8 x 76.2 x 1937.1mm
Rafter FSC
4pc. (340) -
(1-1/4 x 3 x 76-1/4")
Y50229-338
31.8 x 76.2 x 1062mm
Rafter Short Right FSC
4pc. (338) -
(1-1/4 x 3 x 41-13/16")
Y50229-339
31.8 x 76.2 x 1062mm
Rafter Short Left FSC
4pc. (339) -
(1-1/4 x 3 x 41-13/16")
Rafter Corner Left FSC
Y50229-333
4pc. (333) -
25.4 x 88.9 x 2631.5mm(1 x 3-1/2 x 103-13/16")
n
n
o
o
t
t
e
e
:
:
Parts have been packed inside
(867) 7 x 7 Post. Check for parts
inside the posts.

11 [email protected]
144pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
56pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
12pc. Hex Bolt 1/4 x 2-3/4" - (Y07718-223)
1pc. - 1/8" Drill Bit
(Y00400-002)
8pc. - 3/8" Lock Nut
(Y08318-803)
16pc. Hex Bolt 5/16 x 3-3/4" - (Y07718-333)
3/8 x 10-1/2"
8pc. Hex Bolt
(Y07718-812)
44pc. 5/16 - T-Nut
(Y08518-300)
40pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
44pc. 5/16" Lock Washer
(Y05318-300)
8pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
22pc. Pan Screw #8 x 1"
(Y06491-510)
40pc. Wood Screw #7 x 18 mm
(Y06091-003)
200pc. Hex Roofing Screw
#8x 1"
(Y06730-510)
24pc. Sheet Metal Screw
#8 x 3/4"
(Y06430-503)
1pc. - Hex Driver
(Y00400-004)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
96pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
1pc. #2 x 2" Robertson Driver (Y00400-005)
36pc. Pan Screw #12 x 1-1/2"
(Y06491-612)
24pc. Hex Bolt 5/16 x 1-1/2"
(Y07718-312)
12pc. - 1/4" Lock Nut
(Y08318-203)
4pc. Hex Bolt 5/16 x 1-1/4"
(Y07718-311)
16pc. Hex Lag (1/4" Shank) 5/16 x 3" - (Y06218-330)
92pc. 1/4" - 5/16" Large Washer
(Y05118-311)
16pc. 3/8" Large Washer
(Y05118-811)

12 [email protected]
12 [e-mail]
1pc.
Spring Clip
(Y09490-001)
2pc. - 50mm
Hook
(Y00418-050)
1pc.
1/4" Nut
(Y08490-200)
1pc.
Carriage Bolt
(Y07490-260)
1pc.
Peak Loop
(Y20018-003)
4pc. - Left Long Panel
(Y01030-097)
4pc. - Right Long Panel
(Y01030-098)
4pc. - Left Short Panel
(Y01030-099)
4pc. - Right Short Panel
(Y01030-100)
1pc. - Corner Cap Set (4Pk)
(Y70830-103)
1pc. - Gazebo ID Plaque
(Y70800-104) 1pc. - Roof To Beam
Bracket Set (12Pk)
(Y70829-151)
1pc. - Post
Mount Set (8Pk)
(Y70819-057)
2pc.
Roof Peak Bracket
(Y00430-068)
1pc. - Roof Set
(Y70830-084)
1pc. - Roof Peak Set
(Y70830-068)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
4pc.
Ridge Cap
(Y01030-093)
4pc.
Roof Edge Left
(Y01030-091)
8pc.
Ridge Clip
(Y01030-090)
1pc.
Peak Cap
(Y01030-095)
1pc. - Weather Seal -
Ridge Clip (8Pk)
(Y70818-074)
4pc.
Roof Edge Right
(Y01030-092)
1pc.
Peak Post
(Y01000-094)
1pc. - Roof To Post
Bracket Set (4Pk)
(Y70829-070)

13 [email protected]
PRODUCT NUMBER: YM12810X
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

14 [email protected]
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.1
A: At the bottom of one (867) 7 x 7 Post place two Post Mounts tight to the bottom and inside faces as shown in
g. 2.1 and 2.2. Attach with two #10 x 1-1/4” Pan Screws per mount from the inside and two #8 x 2-1/2” Wood
Screws per bracket from the outside.
B: Place one (329) Plinth ush to the bottom and tight to the Post Mounts on each side of the (867) 7 x 7 Post
and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (g. 2.1, 2.2 and 2.3)
C: Repeat Steps A and B three more times to make four Post Assemblies.
(329)
Plinth
Tight
4 x (867) 7 x 7 Post
16 x (329) Plinth
16 x #10 x 1-1/4” Pan Screw
16 x #8 x 2-1/2” Wood Screw
64 x #8 x 1-1/2” Wood Screw
8 x Post Mount
Top
Bottom
#8 x 2-1/2” Wood
Screws (x 2 per Post
Mount, from outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(867) 7 x 7 Post
Post
Mount
(867) 7 x 7 Post
Fig. 2.2
(329)
Plinth
#10 x 1-1/4” Pan Screws
(x 2 per Post Mount, from
inside)
Rounded
Edge on
Top
Fig. 2.3
Rounded
Edge on Top

15 [email protected]
Step 3: Beam Assembly
Part 1
HardwareWood Parts

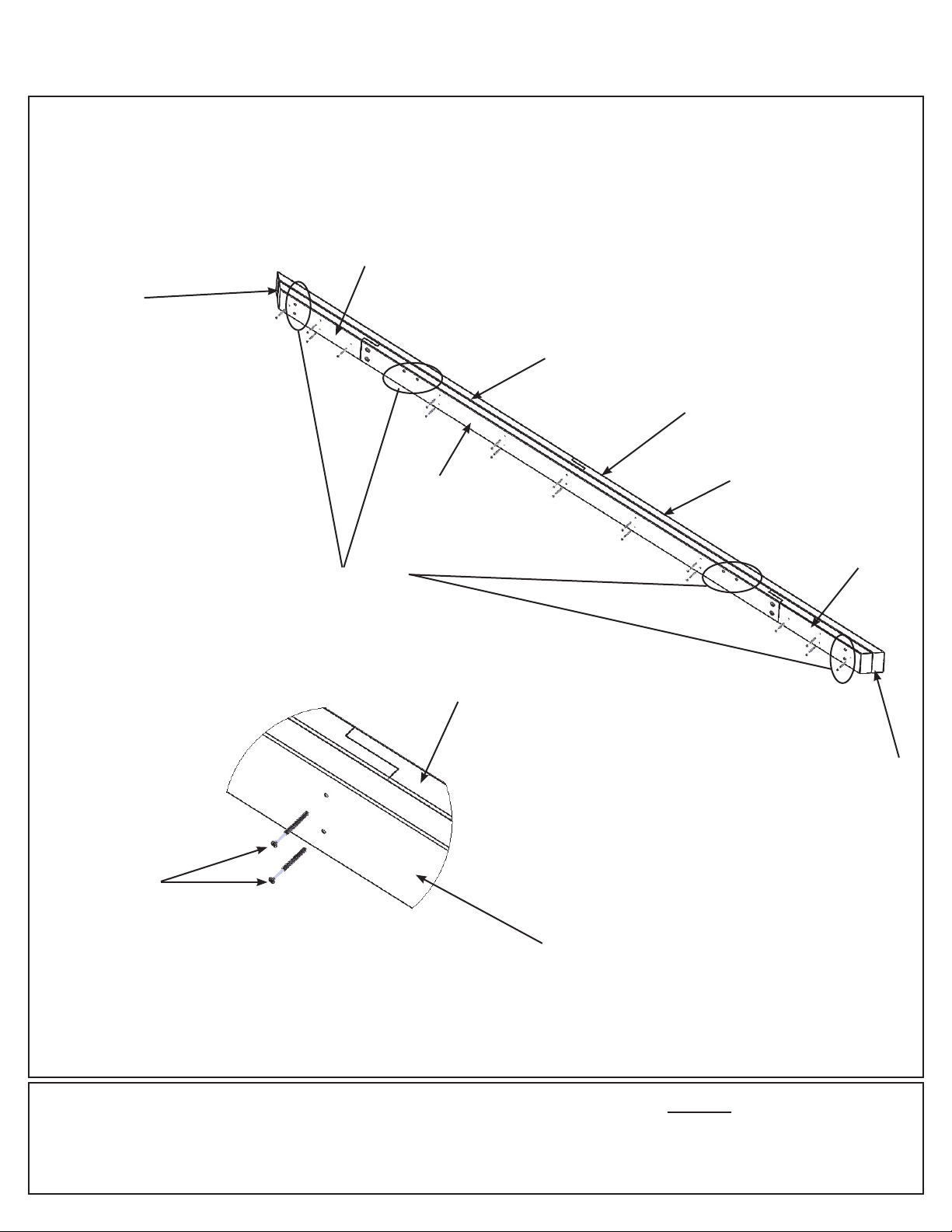

A: Connect one (344) Beam End Left and one (345) Beam End Right using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Connect one (346) Beam End Short to each end of one (343) Beam using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4 - 5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B three more times to make four Beam Short Assemblies and four Beam End
Assemblies.
(344) Beam
End Left
4 x (344) Beam End Left
4 x (345) Beam End Right
8 x (346) Beam End Short
4 x (343) Beam
Fig. 3.1
24 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
1/4 -5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
5/16”
T-nut
Tight
(345) Beam
End Right
(343) Beam
(346) Beam
End Short
(346) Beam
End Short
5/16” Lock
Washer
Make sure bolt heads
are on the outside of
each Beam Assembly

16 [email protected]
Hardware
72 x #8 x 2-1/2” Wood Screw
Fig. 3.3
Beam Short
Assembly
Fig. 3.4
Flush
Beam End
Assembly
Step 3: Beam Assembly
Part 2
D: Place one Beam Short Assembly on one Beam End Assembly so the ends are ush. Match the bolt holes in
each (346) Beam End Short with the bolt holes in (344) Beam End Left and (345) Beam End Right. Attach with
18 #8 x 2-1/2” Wood Screws. (g. 3.3 and 3.4)
E: Repeat Step D three more times to make four Beam Assemblies.
Flush
Beam Short
Assembly
Beam End
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
(344) Beam
End Left
(345) Beam
End Right
(346) Beam
End Short
(346) Beam
End Short
Match bolt holes

17 [email protected]
Step 4: Frame Assembly and Anchoring
Part 1
Fig. 4.1
A: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.
B: With one person at each Post stand two complete Post Assemblies. A third person places one Beam
Assembly against the outside of each Post, ush to the tops and outside corners. Notice bolt hole orientation on
the Beam Assembly. A fourth person attaches Beam to Post with one 3/8 x 10-1/2” Hex Bolt (with two 3/8” large
washers and one 3/8” lock nut) per Post. The distance from the outside of one Post to the outside of the second
Post should be 11’ 0”. (g. 4.1, 4.2 and 4.3)
C: Continue until all four Beam Assemblies are attached and the corners are tight together. (g. 4.1 and 4.2) See
g. 4.3 for accurate positioning of Posts.
Fig. 4.2
Hardware
8 x 3/8 x 10-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Note hole
orientation (on
bottom)
Fig. 4.3
(9’ 8-1/8”)
(9’ 8-1/8”)
3/8” Lock
Nut
3/8” Large
Washer
3/8” Large
Washer
3/8 x 10-1/2”
Hex Bolt
3/8 x 10-1/2”
Hex Bolt
Beam
Assembly
Beam
Assembly
Beam
Assembly
Post Assembly
Post
Assembly
Post
Assembly
Post
Assembly
Plinth to Plinth
Plinth to Plinth
(13’11”)
Post to Post
(11’ 0”)
Post to Post
Plinth
Note hole
orientation (on
bottom)
3.353 m
4.242 m
2.95 m
2.95 m

18 [email protected]
D: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two 5/16
x 4-3/4” Lag Screws (with 1/4-5/16” large washer) per corner. (g. 4.4)
E: Depending on what you are placing the Pergola Room on will determine how you anchor it to that surface.
Please refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
8 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large
Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw
Fig. 4.4
Beam
Assembly
Beam
Assembly
Post Assembly
Step 4: Frame Assembly and Anchoring
Part 2
1/4-5/16”
Large
Washer

19 [email protected]

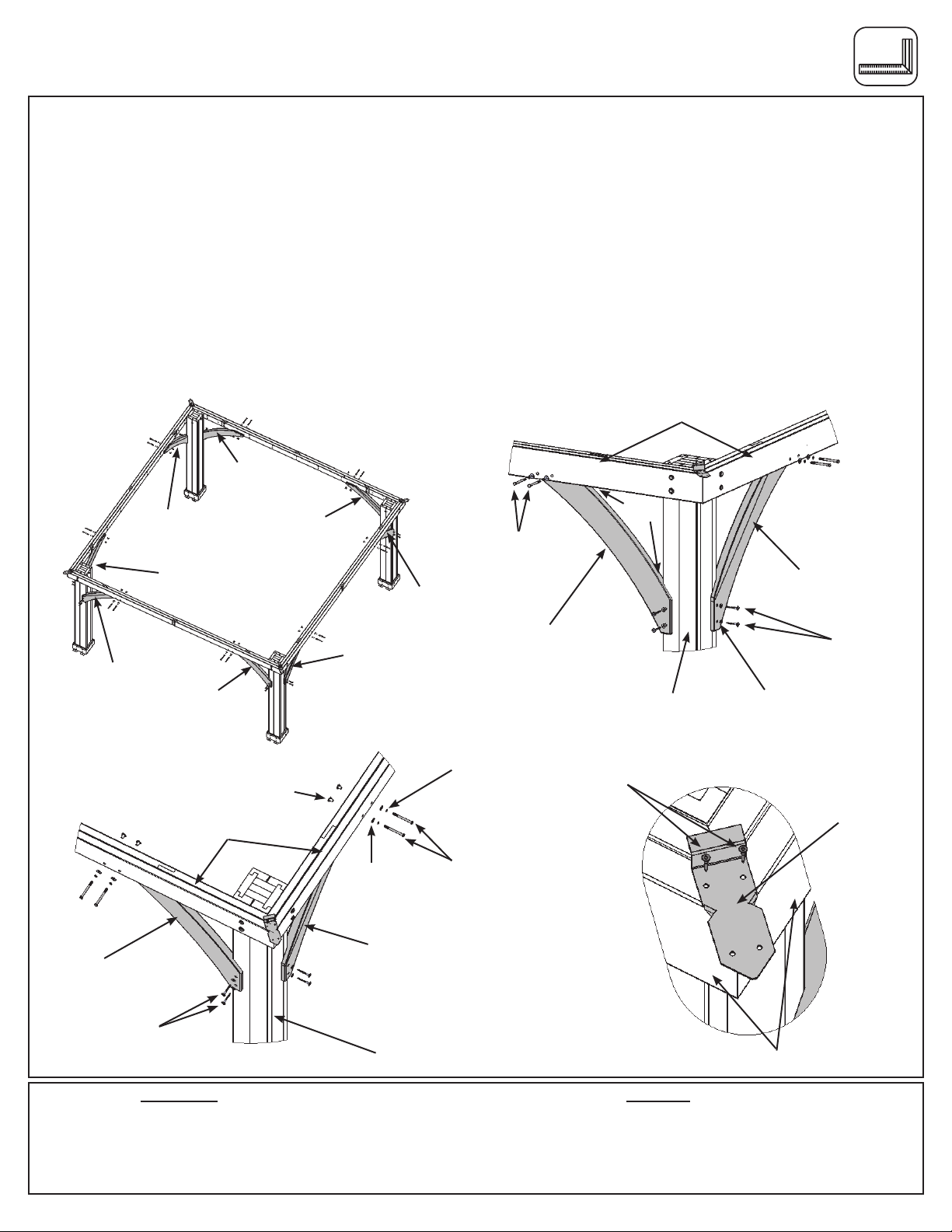

Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
A: Make sure the assembly is still square and level then facing one Beam Assembly place one (330) Gusset
Right on the right hand side so the top ts tight to the Beam Assembly and the bottom ts tight to the Post
Assembly. Attach gusset to Beam Assembly with two 5/16 x 3-3/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut) and to Post Assembly with two 1/4 x 3” Hex Lags (with 1/4-5/16” large washer). (g.
5.1, 5.2 and 5.3)
B: Repeat Step A on the left hand side with one (331) Gusset Left. (g. 5.1, 5.2 and 5.3)
C: Repeat Steps A and B for each Beam Assembly/Post Assembly. (g. 5.1, 5.2 and 5.3)
D: At each corner, tight to the outside edges of the joining Beam Assemblies attach one Roof to Post Bracket with
two #10 x 1-1/4” Pan Screws. (g. 5.3 and 5.4)
Step 5: Attach Gussets and Roof Brackets
Fig. 5.1
Tight
4 x (330) Gusset Right
4 x (331) Gusset Left
HardwareWood Parts 16 x 1/4 x 3” Hex Lag (1/4-5/16” large washer)
16 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
8 x #10 x 1-1/4” Pan Screw
4 x Roof to Post Bracket
Fig. 5.2
Roof to Post
Bracket
#10 x 1-1/4”
Pan Screw
(331) Gusset
Left
Beam
Assembly
Post
Assembly
(331) Gusset
Left
Beam
Assembly
Post
Assembly Beam
Assembly
1/4 x 3”
Hex Lag
5/16”
T-nut
5/16” Lock
Washer
5/16 x 3-3/4”
Hex Bolt
5/16 x 3-3/4”
Hex Bolt
Fig. 5.3 Fig. 5.4
(331) Gusset
Left
(331) Gusset
Left
(330) Gusset
Right
(331) Gusset
Left
(330) Gusset
RIght
(331) Gusset
Left
1/4-5/16”
Large
Washer
1/4-5/16”
Large
Washer
1/4 x 3”
Hex Lag
(330) Gusset
Right
(330) Gusset
Right
(330) Gusset
Right
(330)
Gusset
Right

20 [email protected]

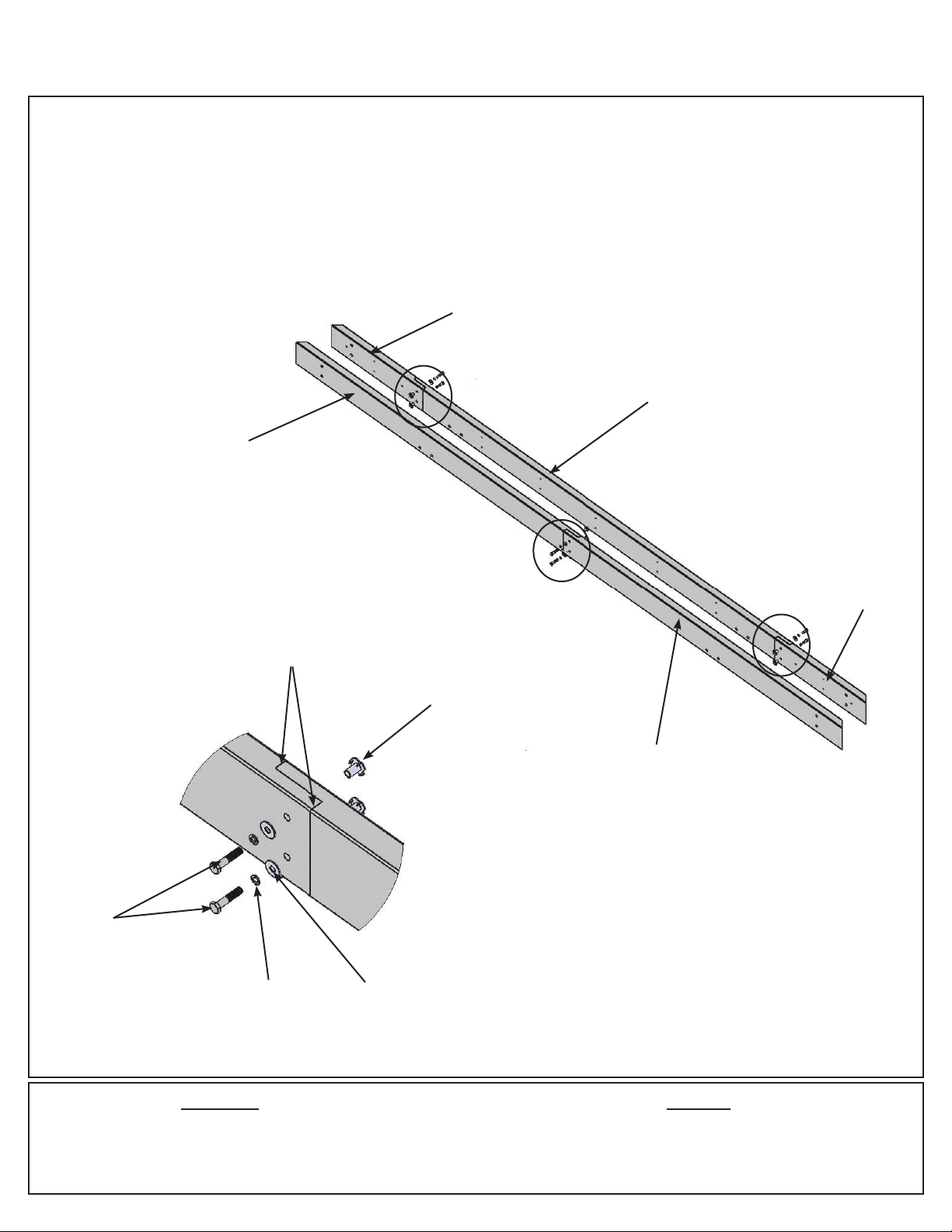

A: Tightly connect one (341) Fascia Left and one (342) Fascia Right using one 5/16 x 1-1/4” Hex Bolt (with 5/16”
lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 6.1 and 6.2.
B: Repeat Step A three more times to make four Fascia Beam Assemblies.
Step 6: Fascia Beam Assembly
Fig. 6.1
Fig. 6.2
HardwareWood Parts
4 x (341) Fascia Left
4 x (342) Fascia Right
4 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(342) Fascia
RIght
(341) Fascia
Left
(342) Fascia
RIght
(341)
Fascia Left
1/4-5/16”
Large
Washer
5/16”
T-nut
5/16 x 1-1/4”
Hex Bolt
Tight
5/16” Lock
Washer
