Yardistry YM11629 User manual

1 [email protected]
Garden Arbor - Faux Glass
Installation and Operating Instructions – YM11629
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
[e-mail]
www.yardistrystructures.com
Yardistry / Selwood Products – Europe
Customer Support: [phone]
[e-mail]
www.selwoodproducts.com
Revised 01/28/2013

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Permanent structures may require a building permit. As the purchaser and or installer
of this product you are advised to consult local planning, zoning and building inspection
departments for guidance on applicable building codes and/or zoning requirements.
Wood in NOT ame retardant and will burn. Grills, re pits and chimineas are a re
hazard if placed too close to a Yardistry structure. Consult user’s manual of the grill, re
pit or chimnea for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before
assembly.
During installation, follow all safety warnings provided with your tools and use
OHSA approved safety glasses. Some structures may require two or more people to
install safely.
Check for underground utilities before digging or driving stakes into the ground!
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not affect the strength of the product.
Annual application of a water-based water repellent sealant or stain will help reduce
weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
Limited Warranty
Yardistry warrants that this product is free from defect in materials and workmanship
for a period of one year from the original date of purchase. In addition, all lumber is
warranted for 5 years against rot and decay. This warranty applies to the original owner
and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection cost.
This Limited Warranty does not cover:
• Labor for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not affect performance or integrity;
• Vandalism; improper use or installation; acts of nature;
• Actsofnatureincludingbutnotlimitedtowind,storms,hail,oods,excessivewater
 exposure;
• Minor twisting, warping, checking, or any other natural occurring properties of wood that
do not affect performance or integrity.
Yardistryproductshavebeendesignedforsafetyandquality.Anymodicationsmadetothe
original product could damage the structural integrity of the product leading to failure and
possibleinjury.Yardistrycannotassumeanyresponsibilityformodiedproducts.Furthermore,
modicationvoidsanyandallwarranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state or province to
province. This warranty excludes all consequential damages, however, some states do not allow the limitation or exclusion of
consequential damages, and therefore this limitation may not apply to you.
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor products it will
weather and wear. To maximize the enjoyment, safety and life of your structure it is important that you, the owner,
properly maintain it.
If you dispose of your Yardistry structure: Please disassemble and dispose of your unit so that it does not cre-
ate any unreasonable hazards at the time it is discarded. Be sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and then annually.
Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Unprotected they will appear weathered over time. Periodic application of an exterior water repelllent or
stain (water-based) will help improve appearance and life.
• Check all wood members for deterioration, structural damage and splintering. Sand down splinters and
replace deteriorated wood members. As with all wood, some checking and small cracks in grain is normal

4 [email protected]
4pc. (206) - Engineered Panel Post 50.8 x 76.2 x 2286mm
2pc. (316) - 3 High Faux Glass Panel 38.1 x 495.3 x 1409.7mm
4pc. (208) - Arbor Ends 25.4 x 114.3 x 254mm
2pc. (204) - Arbor Side 25.4 x 114.3 x 582.1mm
5pc. (203) - Arbor Trellis 25.4 x 76.2 x 1041.4mm
4pc. (209) - Cross Brace 38.1 x 76.2 x 496.3mm
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
2pc. (200) - Arbor Arch Beam 25.4 x 292.1 x 1746.3mm

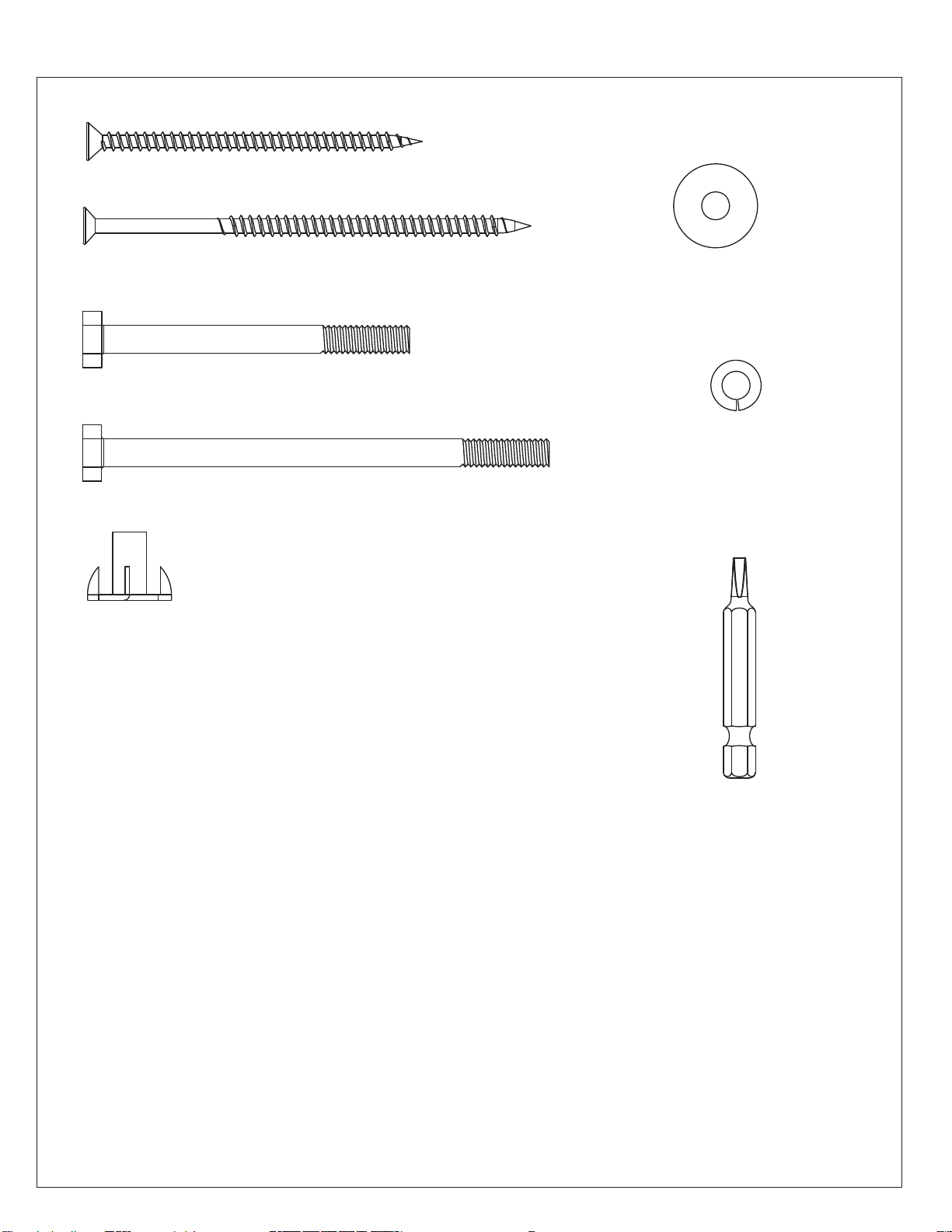

5 [email protected]
16pc. -1/4" Flat Washer
(Y05416-201)
16pc. -1/4" Lock Washer
(Y05416-204)
12pc. - Hex Bolt 1/4 x 2-3/4" - (Y07416-223)
16pc. - Tee Nut 1/4" - (Y08416-206)
4pc. - Hex Bolt 1/4 x 4" - (Y07416-249)
10pc. - Wood Screw #10 x 4" - (Y06416-940)
32pc. - Wood Screw #8 x 3" - (Y06416-530)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
1pc.-#2x2"RobertsonDriver
(9200014)

6 [email protected]
PRODUCT NUMBER: YM11629
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by two people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D.
Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

7 [email protected]

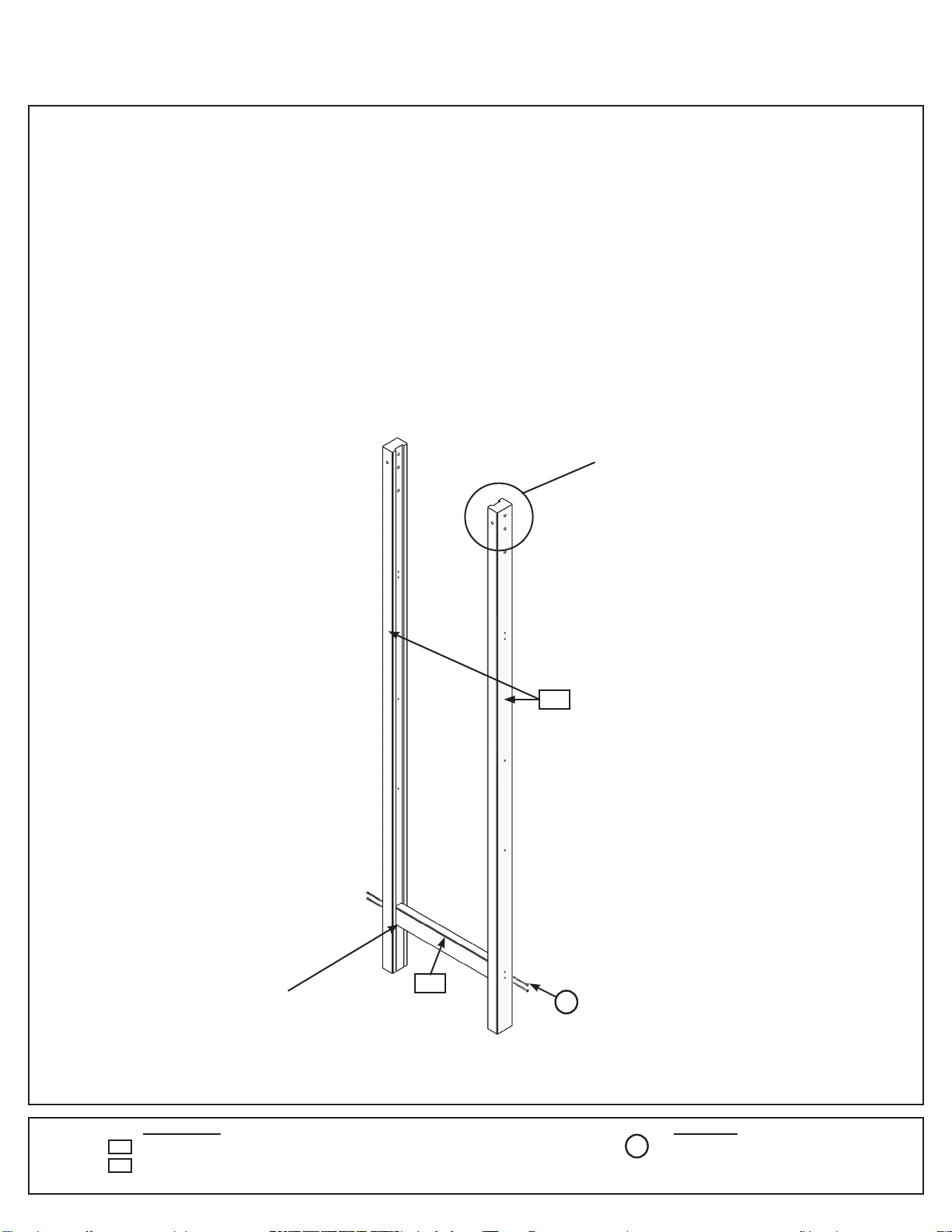

Step 1: Assemble Panels
HardwareWood Parts
A: Lay both (206) Engineered Panel Posts on edge so the grooved sides face each other, on a level surface.
B: Place one (209) Cross Brace in between the posts tight to the top of the ledge of the (206) Engineered Panel
Posts and attach with two (YS4) #8 x 3” Wood Screws per side as shown in g. 1.1.
Repeat for a second assembly.
8 x #8 x 3” Wood Screw
4 x Engineered Panel Post 50.8 x 76.2 x 2286 mm
2 x Cross Brace 38.1 x 76.2 x 496.3 mm
206
206
YS4 x 4
Note hole orientation.
YS4
Flush to top of
post ledge on
both sides.
209
Fig. 1.1
209

8 [email protected]
Step 2: Assemble Panels
HardwareWood Parts
A: Insert into the grooves of both (206) Engineered Panel Posts, one (316) Window Triple Panel ush to top of
previously installed (209) Cross Brace and attach with two (YS4) #8 x 3” Wood Screws per side as shown in
g. 2.1.
B: Place one (209) Cross Brace in between the posts, tight to the top of the (316) Window Triple Panel and attach
with two (YS4) #8 x 3” Wood Screws per side as shown in g. 2.1.
Repeat for second assembly.
16 x #8 x 3” Wood Screw2 x Cross Brace 38.1 x 76.2 x 496.3 mm
2 x Window Triple Panel 38.1 x 495.3 x 1409.7 mm
206
x 2 per side
Flush
209
Fig. 2.1
209
209
YS4 x 2 per side
206
YS4
316
316
YS4
Note glass orientation

9 [email protected]
Step 3: Attach Arbor Side
HardwareWood Parts
A: Place one (204) Arbor Side ush to the top and outside edge of (206) Engineered Panel Post, and attach with
two (H4) 1/4 x 4” Hex Bolts (with at washer, lock washer and t-nut) per side as shown in g. 3.1.
Repeat for second assembly.
2 x Arbor Side 25.4 x 114.3 x 582.1 mm
206
Flush
Fig. 3.1
204
206
1/4” at
washer
4 x 1/4 x 4” Hex Bolt
(1/4” lock washer, 1/4” at washer, 1/4” t-nut)
H4
H4
1/4” lock
washer
1/4” t-nut
204

10 [email protected]

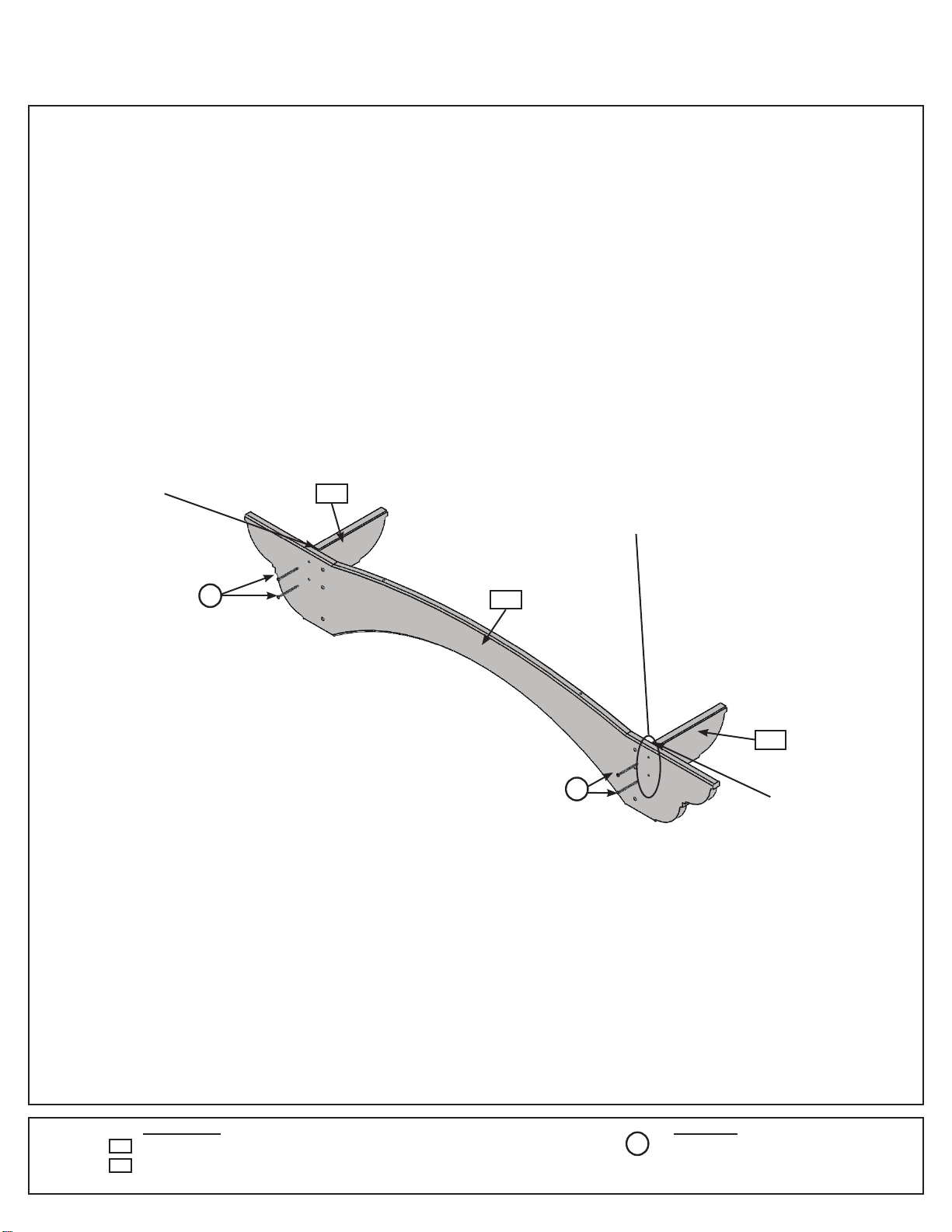

Step 4: Assemble Arch Beam Assemblies
HardwareWood Parts
A: Attach two (208) Arbor Ends ush to the top of (200) Arbor Arch Beam and centred over holes, using two (YS4)
#8 x 3” Wood Screws per side. Ensure that you are using the outside holes as shown in g. 4.1.
Repeat for second assembly.
8 x #8 x 3” Wood Screw
2 x Arbor Arch Beam 25.4 mm x 292.1 x 1746.3 mm
4 x Arbor End 25.4 x 114.3 x 254 mm
200
Flush
Fig. 4.1
200
208
208
Flush
Notice hole location on
outside edge, on both sides
of (200)Arbor Arch Beam.
208
YS4
YS4
YS4

11 [email protected]

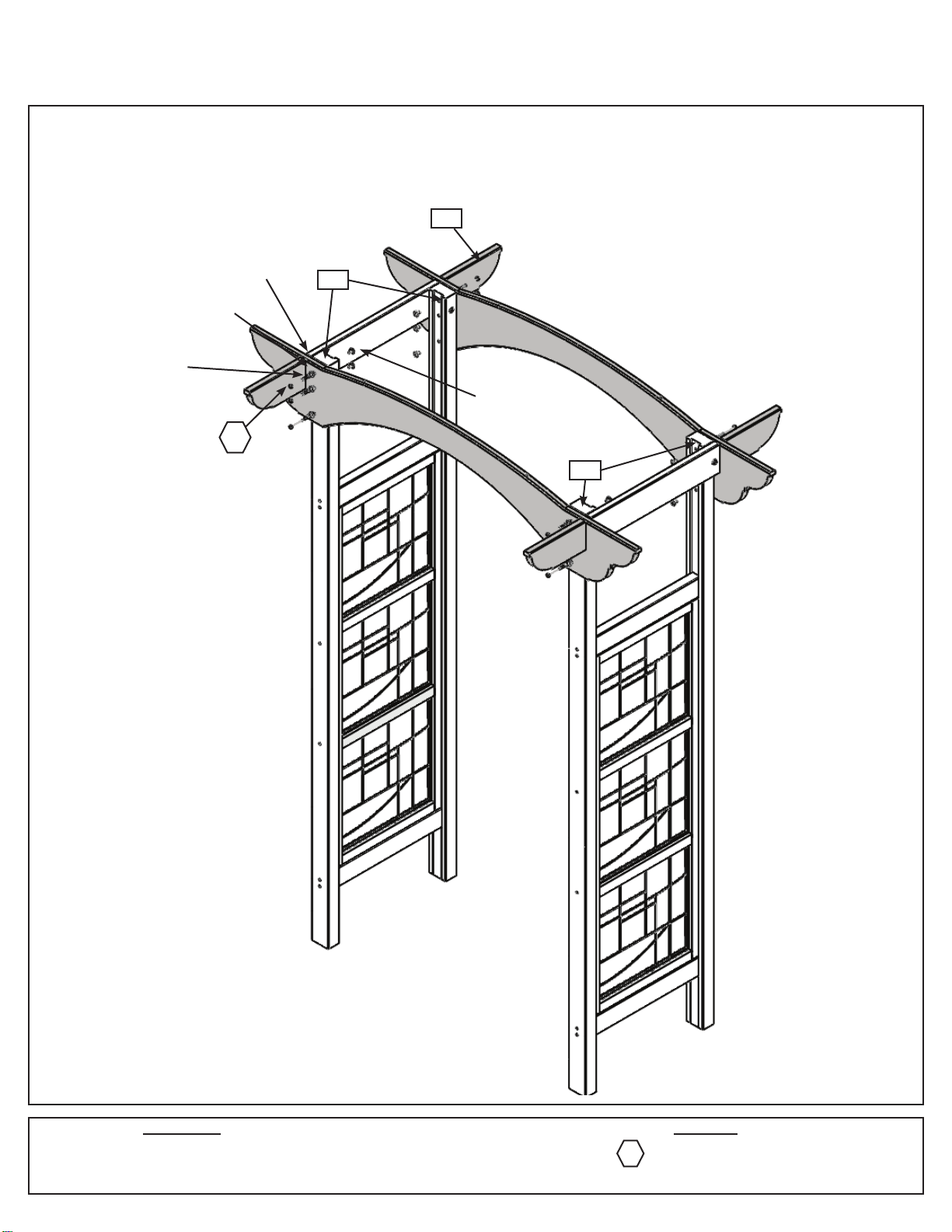

Step 5: Attach Arch Beam Assemblies
HardwareWood Parts
A: Attach one Arch Beam Assembly, with (208) Arbor Ends facing out (g. 5.1), ush to the top of and into (206)
Engineered Panel Post assembly using 3 (H11) 1/4 x 2-3/4” Hex Bolts per side. (g. 5.1)
Repeat for second assembly.
2 x Arch Beam Assembly
206
Flush
Fig. 5.1
1/4” at
washer
12 x 1/4 x 2-3/4” Hex Bolt
(1/4” lock washer, 1/4” at washer, 1/4” t-nut)
H11
1/4” lock
washer
1/4” t-nut
x 6 per
assembly
H11
206
208

12 [email protected]

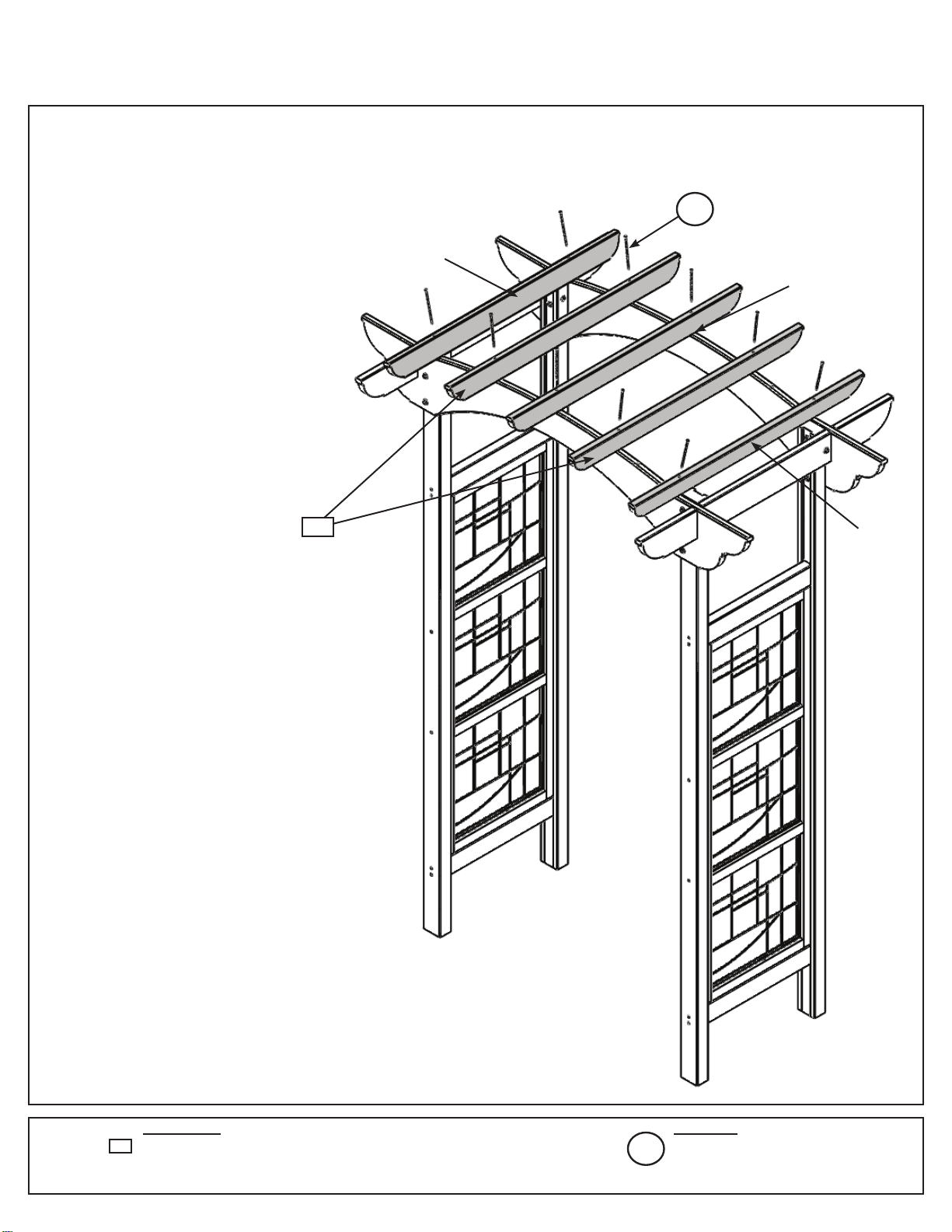

Step 6: Attach Arbor Trellis
HardwareWood Parts
A: Attach one (203) Arbor Trellis
centred on the top of both Arch Beam
Assemblies, with two (YS24) #10 x 4”
Wood Screws, as shown in g. 6.1.
B: Place two (203) Arbor Trellis on
the outside edges of the arches. (See
location of the Trellis labeled B in
the image.) Attach using two (YS24)
#10 x 4” Wood Screws per trellis as
shown g. 6.1.
C: Evenly space the remaning two
(203) Arbor Trellis between the middle
and outside pieces, and attach using
two (YS24) #10 x 4” Wood Screws
per trellis as shown in g. 6.1.
Fig. 6.1 x 2 per
Arbor Trellis
10 x #10 x 4” Wood Screw
5 x Arbor Trellis 25.4 x 76.2 x 1041.4 mm
203
YS24
203
Centred
Evenly space
B
B
YS24
Notice: Posts must be securely installed to
support structure. Consult local building
codes and ground conditions for required
footing design.

13 [email protected]
NOTES

14 [email protected]
NOTES

15 [email protected]
NOTES

16 [email protected]
YARDISTRY
Consumer Registration Card
First Name Initial Last Name
Street Apt. No.
City State/Province ZIP/Postal Code
Country Telephone Number
E-Mail Address
Model Name Model Number (Box Labels)
Date Purchase Purchased From
How would you rate this product for quality?
Excellent Very Good Average Below Average Poor
How would you rate this product for ease of assembly?
Excellent Very Good Average Below Average Poor
How would you rate our instructions?
Excellent Very Good Average Below Average Poor
How would you rate the quality of packaging?
Excellent Very Good Average Below Average Poor
Would you recommend the purchase of our products to friends and family?
Yes No
Comments:
MM / DD / YY
REVISION: 10/18/11
MAIL TO:
Yardistry c/o Solowave DesignTM
375 Sligo Road W.
Mount Forest, Ontario, Canada
N0G 2L0
Attention: Customer Service
CUT ALONG LINE
Yardistry would like to say Thank You for your time and feedback.
