Yardistry YM12949 User manual

14’ x 12’ PAVILION
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM12949
Revised 08-09-2018
Height: 10’ 10” (3.3 m)
HEIGHT:
10’10” or 3.3 m
12’
[3657.8]
14’
[4267.2]
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
[e-mail]
www.yardistrystructures.com
For Spanish instrucons visit our website at:
(Para obtener instrucciones españoles, visite nuestro sio web en:)
hp://yardistrystructures.com/instrucon-manuals/

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not affect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacment of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not affect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not affect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• 7/16”, 1/2” & 9/16” Wrench
• 7/16”, 1/2” & 9/16” Socket
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• Check that assembly is square before
tightening bolts

5 [email protected]
Following are some helpful tips to make the assembly process smooth and efcient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pavilion.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
14 x 12 - Pavilion
10'-5"
10'-4"
Post To Post
Plinth to Plinth
11'-7.00"
12'-0"
14'-11"
Plinth to Plinth
Plinth to Plinth
14’ 11”
Post to Post
Post to Post
Post to Post
12’ 0”
11’ 7” 10’ 5”
10’ 4”

7 [email protected]
Permanent Installation Examples cont.
Concrete Patio (min. 12’ 7” x 13’) with 6” clearance on all sides
Wood Deck (min. 12’7” x 13’) with 6” clearance on all sides
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1/2” diameter
hole for anchoring hardware.

8 [email protected]

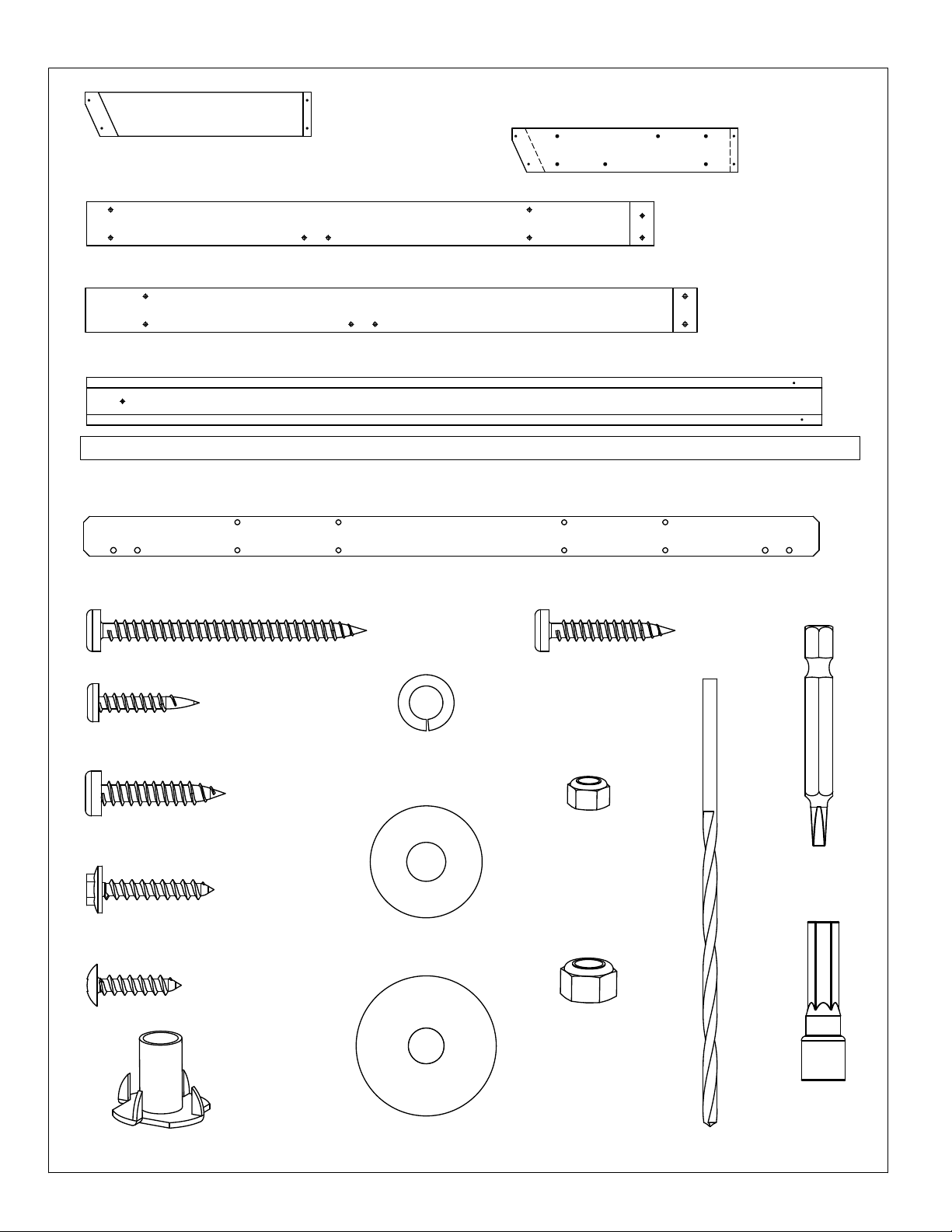

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
23.8 x 133.4 x 200mm (5/4 x 6 x 7-7/8")
8pc. (459) Plinth FSC
Y50229-459
Y50229-460
8pc. (460) Plinth Long FSC
23.8 x 133.4 x 276.2mm (5/4 x 6 x 10-7/8")
Y50229-547
5pc. (547) Tie Brace FSC 31.8 x 88.9 x 454mm
(1¼ x 3½ x 17-7/8")
Y50229-542
2pc. (542) Ridge Short FSC 25.4 x 101.6 x 1541.4mm (1 x 4 x 60-11/16")
Y50229-541
2pc. (541) Ridge Long FSC 25.4 x 101.6 x 2065.3mm (1 x 4 x 81-5/16")
Y50229-550
4pc. (550) Fascia FSC 25.4 x 139.7 x 2344.7mm (1 x 5½ x 92-5/16")
Y50229-545
4pc. (545) Rafter Brace FSC 25.4 x 101.6 x 489mm (1 x 4 x 19-1/4")
5pc. (546) Tie FSC 31.8 x 88.9 x 2333.6mm (1¼ x 3½ x 91-7/8")
Y50229-546
Y50229-539
10pc. (539) Rafter A FSC 31.8 x 88.9 x 2272.1mm (1¼ x 3½ x 89-29/64")
Y50229-548
4pc. (548) Gable End FSC 38.1 x 63.5 x 430mm
(1½ x 2½ x 16-15/16")
38.1 x 139.7 x 1003.3mm (1½ x 5½ x 39½")
4pc. (577) Right Gusset FSC
Y50229-577
Y50229-549
2pc. (549) Gable Inside FSC 38.1 x 63.5 x 2336.8mm (1½ x 2½ x 92")
Y50229-538
4pc. (538) Side Beam Ends FSC 38.1 x 139.7 x 729.8mm (1½ x 5½ x 28-47/64")
Y50229-540
4pc. (540) Rafter B FSC 38.1 x 88.9 x 2272.1mm (1½ x 3½ x 89-29/64")
Y50229-551
4pc. (551) Left Gusset FSC 38.1 x 139.7 x 1003.3mm (1½ x 5½ x 39½")
Y50229-544
8pc. (544) Strap Short FSC 31.8 x 76.2 x 1279.1mm (1¼ x 3 x 50-23/64")
8pc. (543) Strap Long FSC 31.8 x 76.2 x 2326.9mm (1¼ x 3 x 91-5/8")
Y50229-543
Y50229-537
2pc. (537) Side Beam Inside FSC 38.1 x 139.7 x 2223.4mm (1½ x 5½ x 87-35/64")

9 [email protected]
52pc. 5/16" (Y05318-300)
Lock Washer
1pc. Hex Driver
(Y00400-004)
52pc. 5/16" (Y08518-300)
T-Nut
1pc. 1/8" (Y00400-002)
Drill Bit
1pc. #2 x 2"
(Y00400-005)
Robertson Driver
16pc. 3/8 x 1¼" (Y05118-811)
Large Washer
10pc. #10 x 2-1/2" - (Y06491-722) Pan Screw
116pc. 1/4 - 5/16 x 1¼" (Y05118-311)
Large Washer
20pc. 1/4" (Y08318-203)
Lock Nut
4pc. #8x3/4" - (Y06430-503)
Sheet Metal Screw
202pc. #8x 1" (Y06730-510)
Hex Roofing Screw
116pc. #10 x 1-1/4" (Y06491-711) Pan Screw
10pc. Pan Screw #12 x 1-1/4"
(Y06491-611)
8pc. 3/8" (Y08318-803)
Lock Nut
70pc. #8 x 1" (Y06491-510) Pan Screw
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
Part Identification ( )
2pc. (552) Gable Upright Assemby Right FSC 76.2 x 139.7 x 717.4mm (3 x 5½ x 28¼")
Y70229-552
4pc. (536) Side Beam Outside FSC 38.1 x 139.7 x 1803.4mm (1½ x 5½ x 71")
Y50229-536
NOTE: Parts have been packed inside (530) 6 x 9 Post. Check for parts inside the posts.
76.2 x 139.7 x 717.4mm (3 x 5½ x 28¼")
2pc. (553) Gable Upright Assemby Left FSC
Y70229-553
4pc. (535) Gable Beam FSC 38.1 x 139.7 x 1943.1mm (1½ x 5½ x 76½")
Y50229-535
4pc. (530) 6 x 9 Post FSC 152.4 x 228.6 x 2336.8mm (6 x 9 x 92")
Y70229-530
2pc. Beam Insert 2.7 x 127 x 2336.8mm (7/64 x 5 x 92")
Y00429-161

10 [email protected]
108pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
8pc. Hex Bolt 5/16 x 3-3/4" - (Y07718-333)

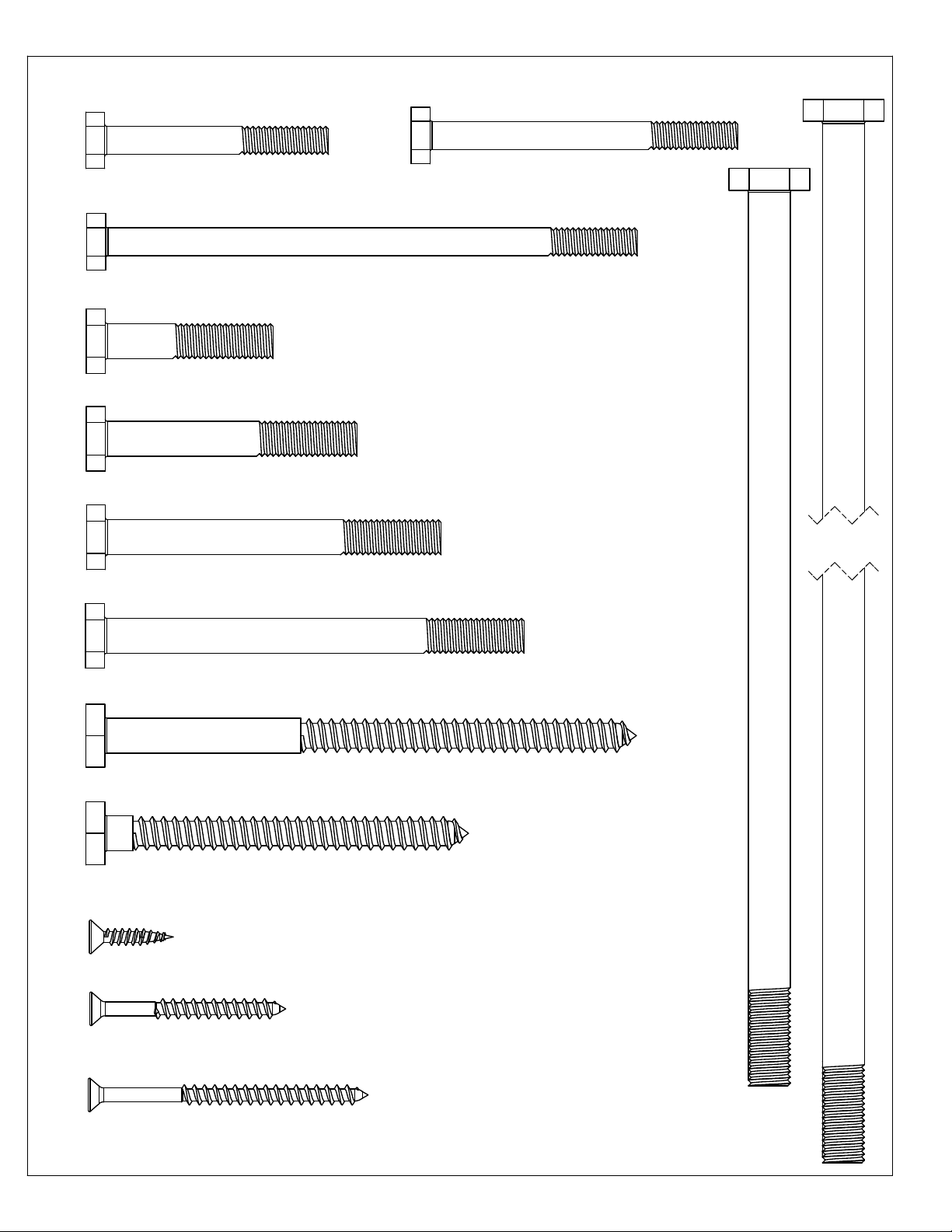

Hardware Identification
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
- (Y06218-343)
5/16 x 4-3/4"
4pc. Lag Screw
4pc. Hex Bolt 3/8 x 12-1/2"
(Y07718-822)
30pc. Wood Screw #7 x 3/4" - (Y06091-003)
- (Y06218-330)
5/16 x 3" (5/16 Head 1/4" Shank)20pc. Lag Screw
- (Y07718-220)
1/4 x 2"
10pc. Hex Bolt
4pc. Hex Bolt 3/8 x 8"
(Y07718-880)
- (Y07718-312) 5/16 x 1-1/2"
28pc. Hex Bolt
8pc. Hex Bolt 5/16 x 3" - (Y07718-330)
- (Y07718-243)
1/4 x 4-3/4"4pc. Hex Bolt
- (Y07718-321)
5/16 x 2-1/4"
8pc. Hex Bolt
#8 x 1-3/4" (Y06091-513)
264pc. Wood Screw
- (Y07718-223)
1/4 x 2-3/4"6pc. Hex Bolt

11 [email protected]
1pc. Gazebo ID Plaque
(Y70800-104)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
1pc. Tie Wrap
Bracket Set (2Pk)
(Y70829-163)
1pc. Jamb Mount
Bracket Set (10Pk)
(Y70819-157)
1pc. Tie Centre
Bracket Set (4Pk)
(Y70819-107)
2pc. Roof Edge Left
(Y01030-152)
2pc. Ridge Clip
(Y01030-114)
1pc. Weather Seal - Y70818-171
Ridge Clip (6PK)
1pc. Corner Bracket
(Y00419-160)
2pc. Roof Edge Right 75.2
(Y01030-169)
1pc.Ridge Cap 91
(Y01030-117)
1pc. Rafter To Beam
Bracket (10Pk)
(Y70819-175)
2pc. Tie Wrap
Bracket Set (4Pk)
(Y70829-106)
4pc. Ridge Clip Short 27.5
(Y01030-168)
2pc. Ridge Cap Short 27.5
(Y01030-167)
1pc. - Post Mount 9"(8Pk)
(Y70829-122)
6pc. Main Panel - Y01030-173
1pc. 12 x 14 Pavilion Roof Set
Y70830-173
2pc. Right Side Panel - Y01030-174

12 [email protected]
PRODUCT NUMBER: YM12949
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
14 x 12 - Pavilion
A: At the bottom of one (530) 6 x 9 Post insert two 5/16” T-Nuts on the outside of each long side. (g. 2.2)
B: At the bottom of the same (530) 6 x 9 Post place two Post Mounts tight to the bottom and inside faces on the
long sides as shown in g. 2.1 and 2.2. Loosely attach with two 5/16 x 1-1/2” Hex Bolt (with 5/16” lock washer
and 1/4-5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 2-1/2”
Wood Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
C: Flush to the bottom of (530) 6 x 9 Post place one (460) Plinth Long on each long side and one (459) Plinth on
each short side and attach with four #8 x 1-3/4” Wood Screws per plinth. Rounded edges on top. (g. 2.1, 2.2
and 2.3)
D: Repeat Steps A - C three more times to make four Post Assemblies.
Step 2: Post Assemblies
Wood Parts
Fig. 2.1
(459)
Plinth
4 x (530) 6 x 9 Post 152.4 x 228.6 x 2336.8 mm (6 x 9 x 92”)
8 x (459) Plinth 23.8 x 133.4 x 200 mm (5/4 x 6 x 7-7/8”)
8 x (460) Plinth Long 23.8 x 133.4 x 276.2 mm (5/4 x 6 x 10-7/8”)
Top
Bottom
#8 x 2-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
#8 x 1-3/4”
Wood Screws
(x 4 per Plinth)
(530) 6 x 9 Post
Post
Mount
Fig. 2.2
Fig. 2.3 Rounded
Edge on Top
Hardware
16 x #8 x 2-1/2” Wood Screw
64 x #8 x 1-3/4” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x Post Mount
16 x 5/16” T-Nut
16 x 5/16 x 1-1/2” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
Post Mount
5/16” T-Nut (x
4 per Post)
1/4-5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/2” Hex Bolt
(x2 per Post Mount,
from inside)
Short
Side
Long
Side
(459)
Plinth
(460)
Plinth
Long
(460)
Plinth
Long
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)

14 [email protected]
5/16”
T-nut
Step 3: Gable Beam Assembly
HardwareWood Parts
A: Connect one (535) Gable Beam to a second (535) Gable Beam using two 5/16 x 1-1/2” Hex Bolts (with 5/16”
lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Repeat Step A one more time to make two Gable Beam Assemblies.
4 x (535) Gable Beam 38.1 x 139.7 x 1943.1 mm (1-1/2 x 5-1/2 x 76-1/2”)
Fig. 3.1
4 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
5/16 x 1-1/2”
Hex Bolt
Tight
(535) Gable Beam
5/16” Lock
Washer
(535) Gable Beam
(535) Gable Beam
(535) Gable Beam
1/4-5/16”
Large Washer

15 [email protected]
Step 4: Side Beam Assembly
Part 1
A: Connect one (536) Side Beam Outside to a second (536) Side Beam Outside using two 5/16 x 1-1/2” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 4.1.
B: Connect one (538) Side Beam End to each end of one (537) Side Beam Inside using one 5/16 x 1-1/2” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the top holes per end as shown in g. 4.1
and 4.2.
C: Repeat Steps A and B one more time to make two Side Beam Outside Assemblies and two Side Beam Inside
Assemblies.
HardwareWood Parts
4 x (536) Side Beam Outside 38.1 x 139.7 x 1803.4 mm (1-1/2 x 5-1/2 x 71”)
2 x (537) Side Beam Inside 38.1 x 139.7 x 2223.4 mm (1-1/2 x 5-1/2 x 87-35-64”)
4 x (538) Side Beam Ends 38.1 x 139.7 x 729.8 mm (1-1/2 x 5-1/2 x 28-47/64”)
8 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16” T-nut
Fig. 4.1
Fig. 4.2
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
(536) Side
Beam
Outside
(537) Side
Beam Inside
(538) Side
Beam Ends
Use top
holes
See Part 2
for this piece
(536) Side
Beam
Outside
(538) Side
Beam Ends
Make sure bolt heads
are on the outside of
each Beam Assembly
1/4-5/16”
Large Washer

16 [email protected]
Hardware
20 x #8 x 2-1/2” Wood Screw
8 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
D: Place one Beam Insert in between one Side Beam Outside Assembly and one Side Beam Inside Assembly
then t tight together so the beam assembly ends are ush. Match the bolt holes and wood screw pilot holes in
both beam assemblies and Beam Insert. (g. 4.3, 4.4 and 4.5)
E: Attach beam assemblies and Beam Insert together with four 5/16 x 3” Hex Bolts (with 5/16” lock washer, 1/4-
5/16” large washer and 5/16” t-nut) and ten #8 x 2-1/2” Wood Screws. (g. 4.5 and 4.6)
F: Repeat Step D-E to make a second Side Beam Assembly.
Step 4: Side Beam Assembly
Part 2
Align holes in all
3 pieces with 5/16
x 3” hex bolts
Beam
Insert
Side Beam
Inside
Assembly
Side Beam
Outside Assembly
Beam
Insert
Fig. 4.4
Fig. 4.3
Flush
Flush
#8 x 2-1/2”
Wood Screws
(x 10 per
assembly)
5/16”
T-nut
5/16 x 3”
Hex Bolt x 4
5/16” Lock
Washer
Beam
Insert
Fig. 4.5 Fig. 4.6
Componets:
2 x Beam Insert
This bolt was
previously installed
in Step 4, Part 1B
Side Beam
Outside Assembly
Side Beam Inside
Assembly
Side Beam
Outside Assembly
Side Beam Inside
Assembly
Notice the side the bolts
and screws are installed in
g. 4.3, 4.5 and 4.6. Bolts
are on the opposite side of
the screws
1/4-5/16”
Large Washer

17 [email protected]
Step 5: Frame Assembly and Anchoring
Part 1
Fig. 5.1
A: Move your Post Assemblies to the nal location.
Make sure the ground is at and level before
continuing assembly.
B: With one person at each Post stand two
complete Post Assemblies. A third person places
one Side Beam Assembly against the outside of two
Posts, ush to the tops and outside corners. Notice
bolt hole orientation on the Side Beam Assembly
and the short side of the Post Assembly is along
the Side Beam Assembly. A fourth person attaches
Beam to Post with one 3/8 x 12-1/2” Hex Bolt (with
two 3/8” large washers and one 3/8” lock nut) per
Post. The distance from the outside of one Post
to the outside of the second Post should be 11’ 7”.
(g. 5.1, 5.2 and 5.3)
C: Place one Gable Beam Assembly against the
outside of two Posts, ush to the tops and outside
corners and tight to Side Beam Assembly. Notice
bolt hole orientation on the Gable Beam Assembly
and the long side of the Post Assembly is along the
Gable Beam Assembly. Attach Beam to Post with
one 3/8 x 8” Hex Bolt (with two 3/8” large washers
and one 3/8” lock nut) per Post. The distance from
the outside of one Post to the outside of the second
Post should be 12’. Continue until all four Beam
Assemblies are attached and the corners are tight
together. (g. 5.1 and 5.2) See g. 5.3 for accurate
positioning of Posts.
Fig. 5.2
Hardware
4 x 3/8 x 8” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
4 x 3/8 x 12-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Fig. 5.3
3/8” Large
Washer
3/8 x 8”
Hex Bolt
3/8 x 12-1/2”
Hex Bolt
Post Assembly
Post
Assembly
Post
Assembly
Plinth
Gable Beam
Assembly
Side Beam
Assembly
3/8” Large
Washer
3/8” Lock Nut
Short
Side
3/8” Large
Washer
x 3
Side Beam
Assembly
Gable Beam
Assembly
Note hole
orientation (on
bottom)
Side Beam
Assembly
Gable Beam
Assembly
Long
Side
14 x 12 - Pavilion
10'-5"
10'-4"
Post To Post
Plinth to Plinth
11'-7.00"
12'-0"
14'-11"
Plinth to Plinth
Plinth to Plinth
14’ 11”
Post to Post
Post to Post
Post to Post
12’ 0”
11’ 7” 10’ 5”
10’ 4”

18 [email protected]
E: Make sure each corner is square and level then attach Side Beam Assembly to Post Assemblies with
one 5/16 x 4-3/4” Lag Screw (with 1/4-5/16” large washer) per corner and Gable Beam Assembly to Post
Assemblies with one 5/16 x 3” Lag Screw (with 1/4-5/16” large washer) per corner as shown below. (g. 5.4)
F: Depending on what you are placing the Pavilion on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
4 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
4 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
5/16 x 4-3/4”
Lag Screw
5/16 x 3”
Lag Screw
Fig. 5.4
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
Gable Beam
Assembly
Side Beam
Assembly
1/4-5/16”
Large
Washer
1/4-5/16”
Large Washer

19 [email protected]
Note: The bevelled ends on each
gusset should always face away from
the wood it is attaching to.
A: Make sure the assembly is still
square and level then facing one Side
Beam Assembly place one (577) Right
Gusset on the right hand side so the top
ts tight to the Side Beam Assembly and
the bottom ts tight to the Post Assembly.
Attach gusset to Side Beam Assembly
with two 5/16 x 3-3/4” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut). Pre-drill with a
1/8” drill bit then attach gusset to Post
Assembly with two 5/16 x 3” Lag Screws
(with 1/4-5/16” large washer). Repeat
for the left hand side with one (551) Left
Gusset. (g. 6.1 and 6.2)
B: Repeat Step A for Gable Beam
Assembly using two 5/16 x 2-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut) to attach
gussets to Gable Beam Assembly. (g.
6.1 and 6.2)
C: Repeat Steps A and B so all 8 gussets
are attached. (g. 6.1 and 6.2)

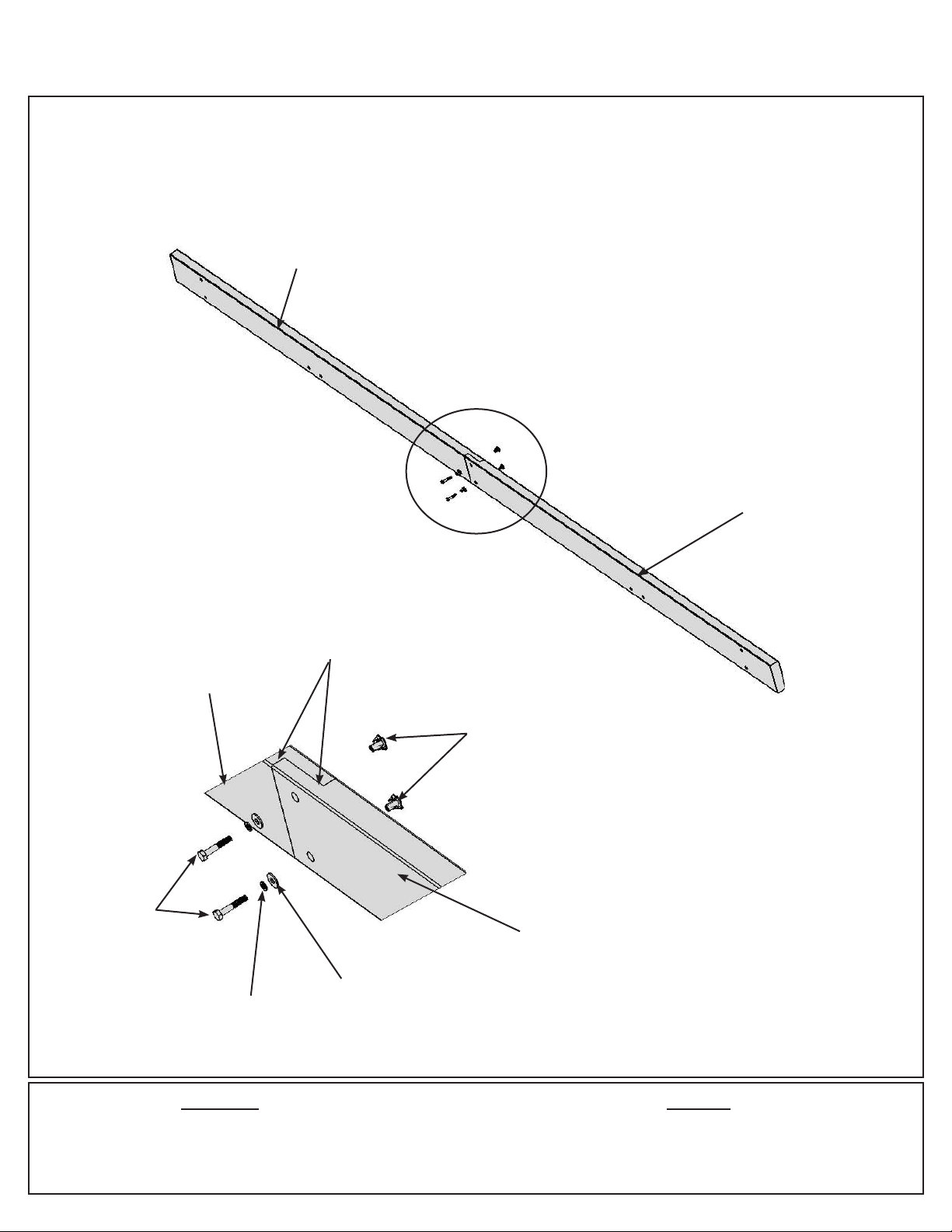

Step 6: Attach Gussets
Fig. 6.1
Tight
4 x (577) Right Gusset 38.1 x 139.7 x 1003.3 mm (1-1/2 x 5-1/2 x 39-1/2”)
4 x (551) Left Gusset 38.1 x 139.7 x 1003.3 mm (1-1/2 x 5-1/2 x 39-1/2”)
HardwareWood Parts
16 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
8 x 5/16 x 2-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 6.2
Post
Assembly
5/16 x 3”
Lag Screw
5/16”
T-nut
5/16” Lock
Washer
5/16 x 3-3/4”
Hex Bolt
5/16 x 2-1/4”
Hex Bolt
(577) Right
Gusset
(551) Left
Gussett
Gable Beam
Assembly
Side Beam
Assembly
Side Beam
Assembly Gable Beam
Assembly
5/16 x 3”
Lag Screw
(577) Right
Gusset
(551) Left
Gussett
(577) Right
Gusset
(577) Right
Gusset
(551) Left
Gussett
(551) Left
Gussett
Side Beam
Assembly
(577) Right
Gusset
(551) Left
Gussett
Gable Beam
Assembly
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer

20 [email protected]

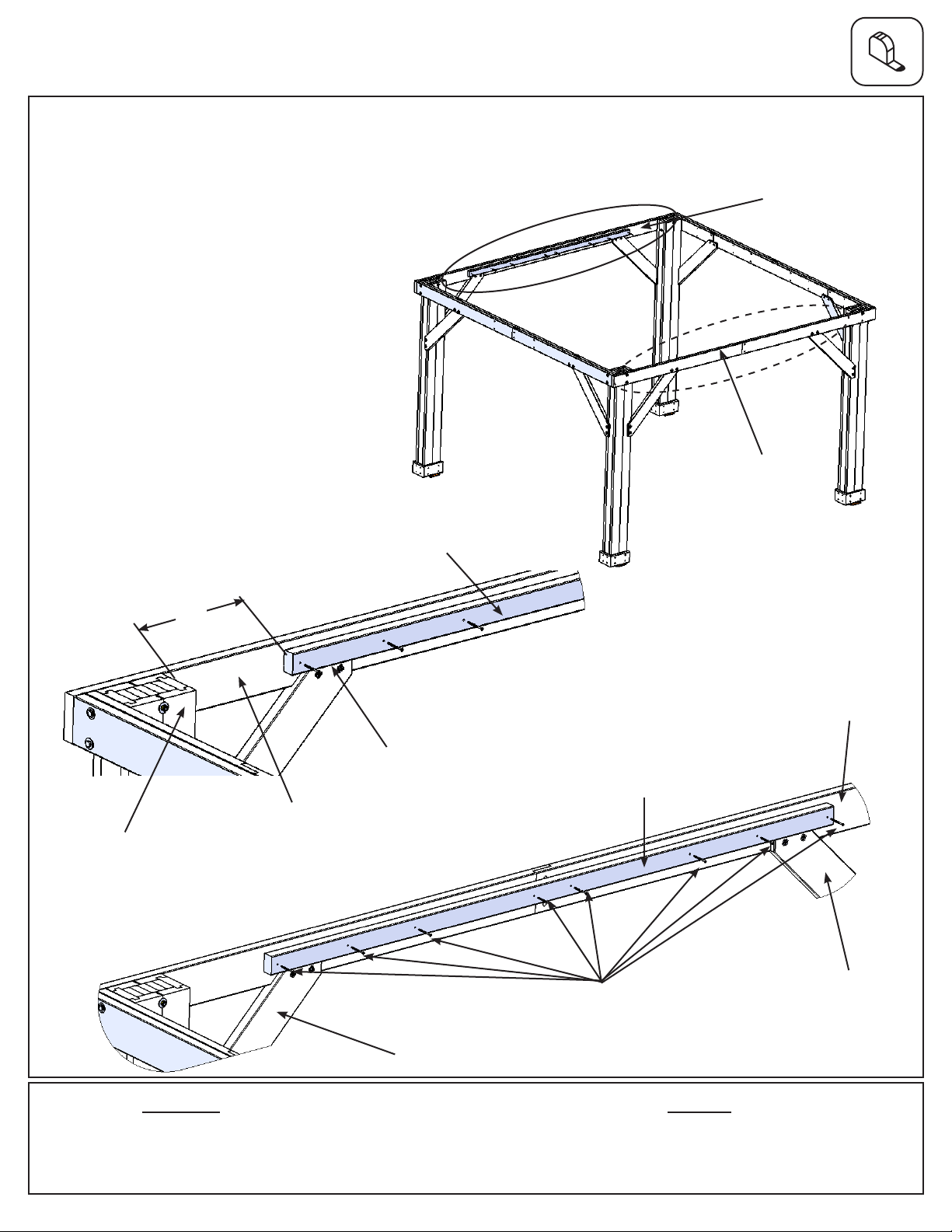

Step 7: Gable Frame Assembly
Part 1
A: Place one (549) Gable Inside against one Gable Beam Assembly, on the inside, tight to the top of (551) Left
Gusset and (577) Right Gusset. The ends of (549) Gable Inside measures 17” from the Post Assemblies. Attach
(549) Gable Inside to Gable Beam Assembly with eight #8 x 2-1/2” Wood Screws. (g. 7.1, 7.2 and 7.3)
B: Repeat Step A for the other Gable Beam Assembly.
2 x (549) Gable Inside 38.1 x 63.5 x 2336.8 mm (1-1/2 x 2-1/2 x 92”)
Wood Parts Hardware
16 x #8 x 2-1/2” Wood Screw
17"fromGableSupport
endandpost
17"fromGableSupport
endandpost
17"fromGableSupport
endandpost
Fig. 7.1
Fig. 7.2
Gable Beam
Assembly
Gable Beam
Assembly
Fig. 7.3
Gable Beam
Assembly
Gable Beam
Assembly
(549) Gable
Inside
(549) Gable
Inside
Post Assembly
(577) Right
Gusset
(551) Left
Gussett
Tight
#8 x 2-1/2”
Wood Screw
17”
