Yardistry YM12978 User manual

3.7m x 4.3m (12.1’ x 14.1’) GRAND GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM12978
02-22-2021
14’ 1”
4.293 m
12’ 1”
3.683 m
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
HEIGHT:
3.175m / 10’5”
Y40000-978
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00
pm EST (excl. holidays)
(For extended hours see our website)
English and French Spoken
Patents Pending

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chiminea
for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OSHA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
During assembly it is important to closely follow the instructions. Complete the assembly
on a solid, level surface and follow the instructions to square up, level and anchor the structure.
This will reduce the gaps at wood connections during assembly.
General Information
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• Claw Hammer
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Rachet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.

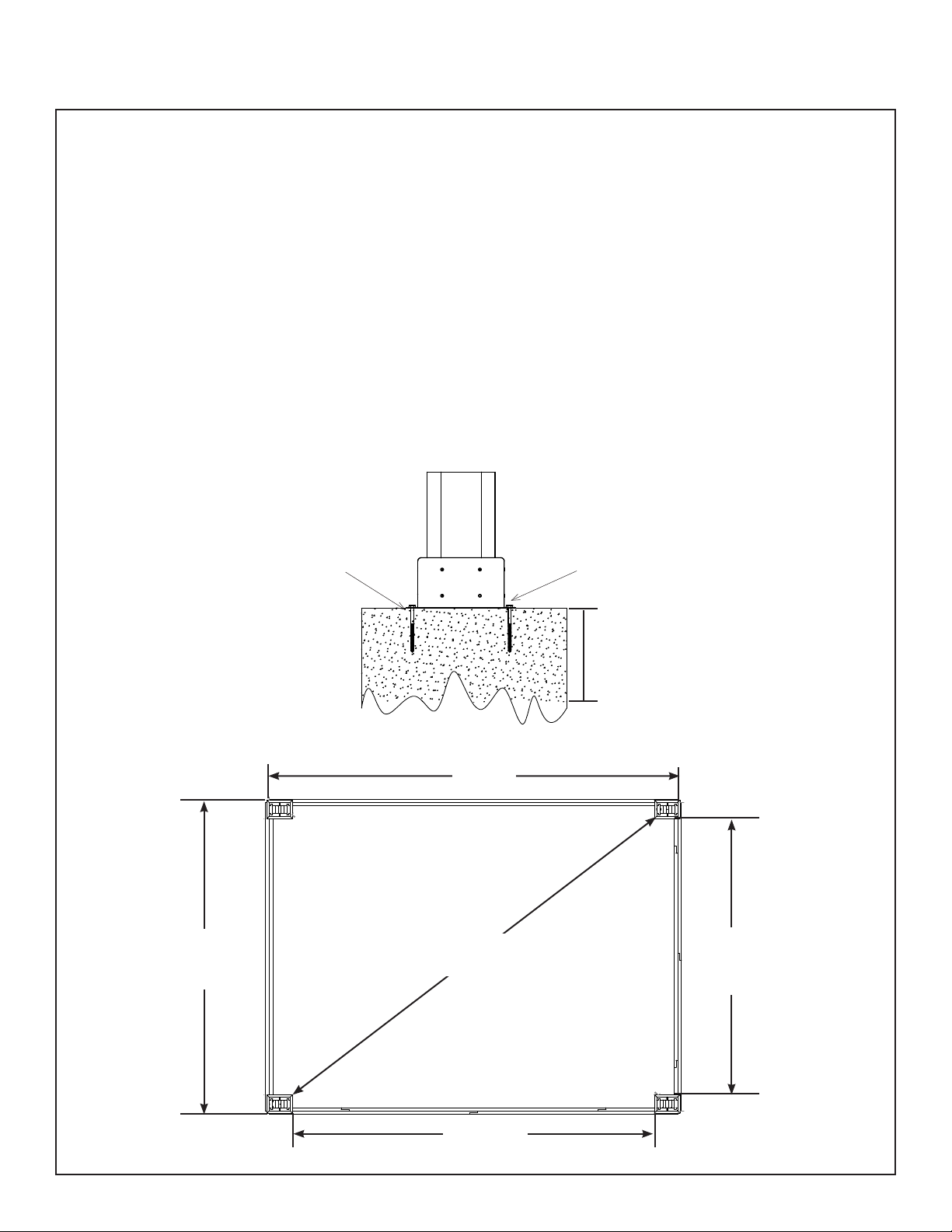

Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
YM12978 - 12 x 14 Grand
Plinth to Plinth
9'-11
"
13'-1"
1"
4
Post to Post
15'-6"
Post to Post
Plinth to Plinth
11'-7 1
4
11'-1"
Post to Post
10’ 10-3/8”
Post to Post
12’ 10-3/8”
9’ 10-3/8”
Inside Post to
Inside Post
15’ 2-1/8”
Post to Post
11’ 6-3/8”
4.626 m
3.921 m
3.515 m
3.007 m
3.312 m
Inside Post to
Inside Post
Post to Post

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1.27 cm (1/2”) diameter hole
for anchoring hardware.
Concrete Patio [min. 3.616 m x 4.226 m (11’10-3/8” x 13’10-3/8”)]
with 15.24 cm (6”) clearance on all sides
Wood Deck [min. 3.616 m x 4.226 m (11’10-3/8” x 13’10-3/8”)]
with 15.24 cm (6”)clearance on all sides
Post
Mount

8 [email protected]

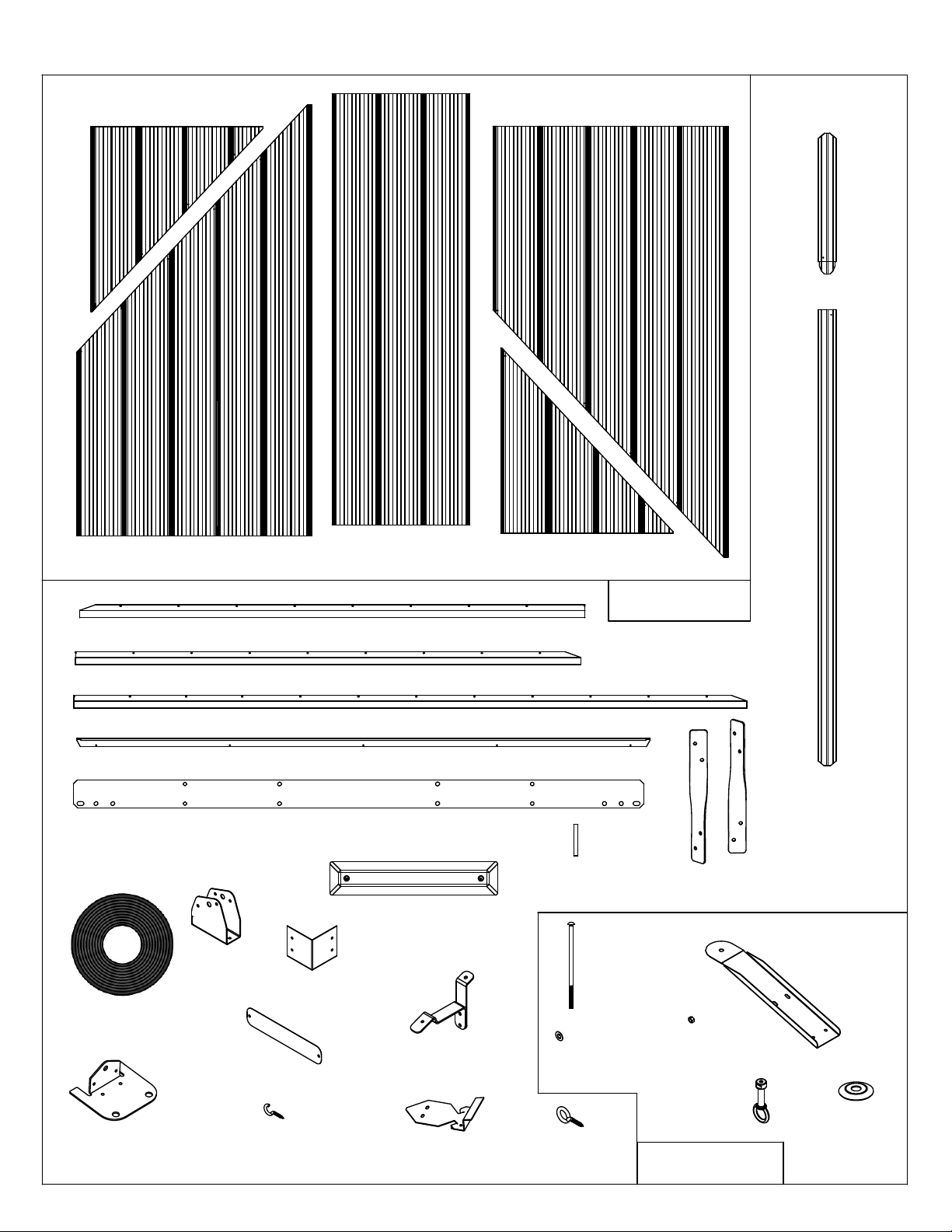

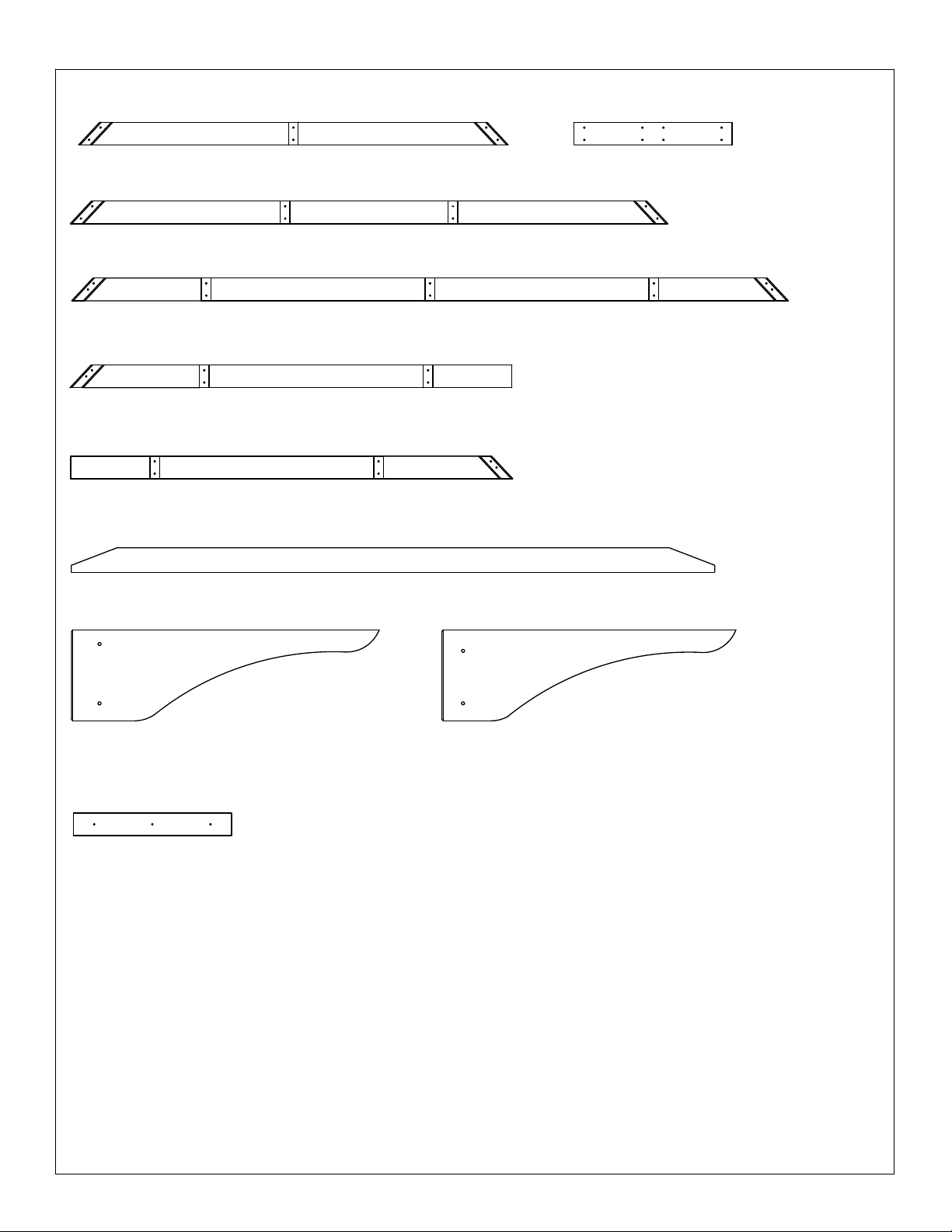

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
8pc. (459) - Plinth 200mm
(7 7/8") Y50229-459
8pc. (1048) - Plinth Long 250.8mm
(9 7/8") Y50229-1048
2pc. (444) - Fascia Right 1853mm
(72 -15/16") Y50229-444
4pc. (439) - Rafter Corner Right 2601.9mm
(102 7/16") Y50229-439
2pc. (435) - Fascia Left - Large Roof 2157.7mm
(84 -15/16") Y50229-435
4pc. (442) - Rafter Short Right 1040.2mm
(40 15/16") Y50229-442
2pc. (436) - Fascia Right - Large Roof 2157.7mm
(84 -15/16") Y50229-436
2pc. (443) - Fascia Left 1853mm
(72 -15/16") Y50229-443
6pc. (440) - Rafter 1915.4mm
(75 7/16") Y50229-440
4pc. (441) - Rafter Short Left 1040.2mm
(40 15/16") Y50229-441
4pc. (438) - Rafter Corner Left 2601.9mm
(102 7/16") Y50229-438
2pc. (1035) - 6 x 8 Post Left Side 2387.6mm
(94") Y70229-1035
2pc. (434) - Top 577.9mm
(22 3/4") Y50229-434
2pc. (1036) - 6 x 8 Post Right Side 2387.6mm
(94") Y70229-1036
4pc. (1047) - Beam Long End
706.5mm (27 13/16") Y50229-1047
4pc. (1045) - Beam Long 1998.7mm
(78 11/16") Y50229-1045
2pc. (1046) - Long Beam Centre
2587.5mm (101 7/8") Y50229-1046
2pc. (1042) - Short Beam Centre
2422.1mm (95 3/8") Y50229-1042
4pc. (1043) - Beam Short End
519.4mm (20 7/16") Y50229-1043
4pc. (1044) - Beam Short 1693.9mm
(66 11/16") Y50229-1044

9 [email protected]
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
2pc. (337) - Strap Short 1561.3mm
(61 1/2") Y50229-337
2pc. (430) - Strap Short - Large Roof 2170.9mm
(85 1/2") Y50229-430
2pc. (432) - Strap Right - Large Roof 1605.6mm
(63 3/16") Y50229-432
2pc. (437) - Strap 2603.5mm
(102 1/2") Y50229-437
2pc. (433) - Strap Brace 574.7mm
(22 5/8") Y50229-433
2pc. (431) - Strap Left - Large Roof 1605.6mm
(63 3/16") Y50229-431
2pc. (461) - Tie 2336.8mm
(92") Y50229-461
4pc. (1049) - Arched Gusset 1117.6mm
(44") Y70229-1049
1pc. (463) - Spacer Top 574.7mm
(22 5/8") Y50229-463
4pc. (1053) - Arched Gusset Short 1066.8mm
(42") Y70229-1053

10 [email protected]

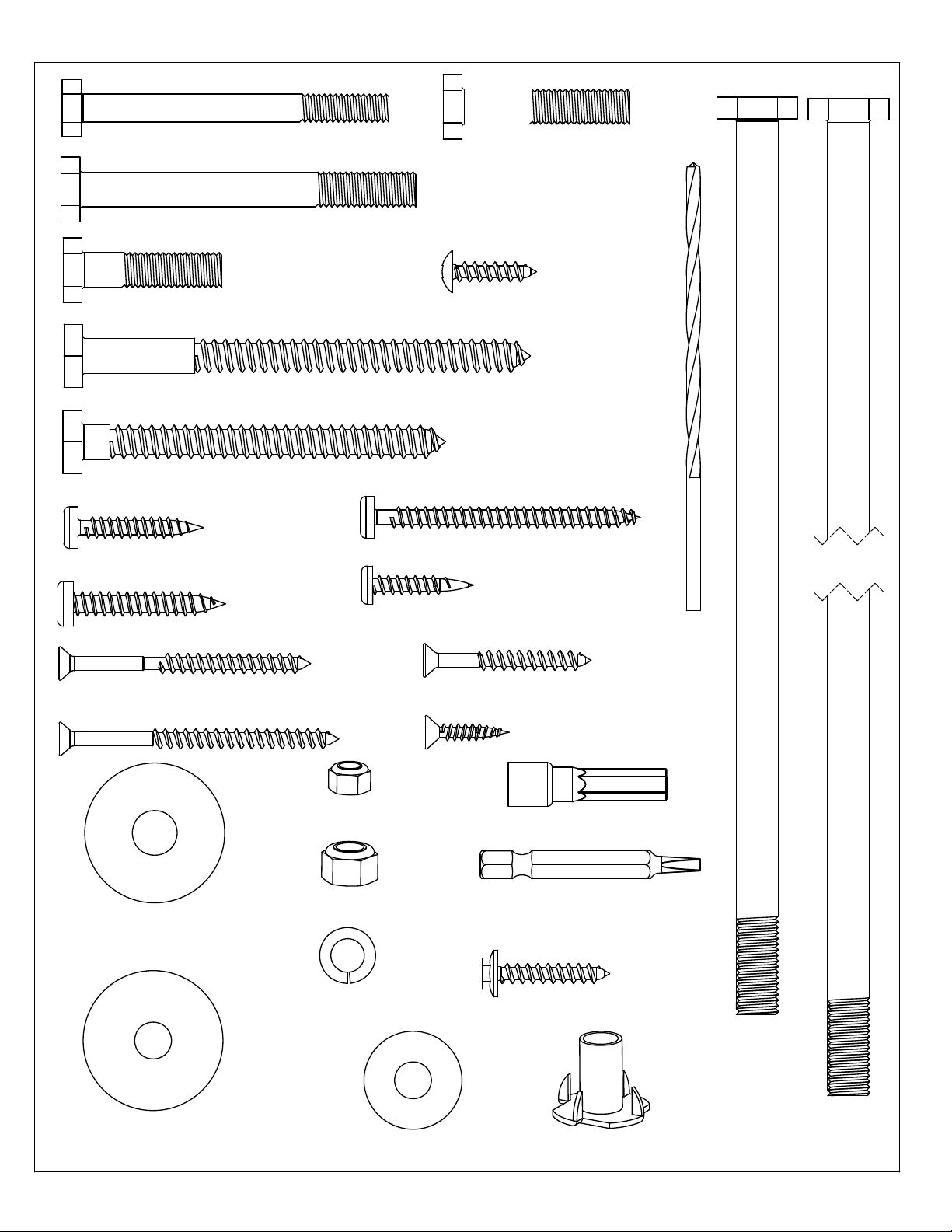

Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
80pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
1pc. -1/8"Drill Bit
(Y00400-002)
16pc. 5/16" Flat Washer
(Y05118-203)
1pc. #2 x 2" Robertson Driver
(Y00400-005)
44pc. 5/16" Lock Washer
(Y05318-300)
8pc. Hex Bolt
3/8 x 8"
(Y07718-880)
24pc. Hex Bolt 5/16 x 1-1/2" - (Y07718-312)
16pc. - 3/8" Lock Nut
(Y08318-803)
44pc. 5/16 - T-Nut
(Y08518-300)
52pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
32pc. Pan Screw #8 x 1"
(Y06491-510)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
240pc. Hex Roofing Screw
#8x 1"
(Y06730-510)
24pc. Sheet Metal Screw
#8 x 3/4"
(Y06430-503)
1pc. - Hex Driver
(Y00400-004)
168pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
79pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
16pc. Lag Screw 5/16 x 3" - (Y06218-330)
84pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
32pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
12pc. - 1/4" Lock Nut
(Y08318-203)
40pc. Wood Screw #7 x 3/4"
(Y06091-003)
4pc. Pan Screw #10 x 2-1/2" - (Y06491-722)
58pc. Pan Screw #12 x 1-1/2"
(Y06091-612)
12pc. Hex Bolt 5/16 x 3" - (Y07718-330)
16pc. Lag Screw 5/16 x 4" - (Y06218-340)
8pc. Hex Bolt 5/16 x 1-1/4" - (Y07718-311)
8pc. Hex Bolt
3/8 x 10"
(Y07718-810)

11 [email protected]
1pc. - Weather Seal -
Ridge Clip (8Pk)
(Y70818-074)
2pc.
Peak Loop
(Y20018-003)
1pc.
(Y70830-103)
- Corner Cap Set (4Pk)
1pc. - Roof Panel Set
(Y70837-138)
2pc. Long Beam Insert - (Y00429-124)
2pc.
Peak Post
(Y01000-094)
2pc.
Carriage Bolt
(Y07428-260)
2pc.
1/4" Nut
(Y08490-200)
2pc.
Spring Clip
(Y09490-001)
2pc. - 50mm
Hook
(Y00418-050)
1pc. - Gazebo ID Plaque
(Y70800-104)
4pc. - Long Panel Right
(Y01037-129)
4pc. - Short Panel Right
(Y01037-128)
2pc. - Middle Panel
(Y01037-130)
4pc. - Long Panel Left
(Y01037-127)
4pc. - Short Panel Left
(Y01037-126)
4pc.
Ridge Cap Long 81.5
(Y01030-131)
4pc.
Ridge Cap Short 25.2
(Y01030-132)
4pc.
Roof Peak Bracket
(Y00429-125)
2pc. Roof Edge Right 72.2 - (Y01030-135)
8pc. Ridge Clip 102.5 - (Y01030-133)
1pc.
Peak Cap Long
(Y01030-137)
4pc. Roof Edge Left 72.2 - (Y01030-134)
1pc. - Roof To Beam
Bracket Set (14Pk)
(Y70829-123)
2pc. Roof Edge Right 96.2 - (Y01030-136)
2pc.
Contoured Washer
(Y05918-211)
1pc.
1/4" Eye Lag
(Y00218-001)
1pc. - Post
Mount Set (8Pk)
(Y70819-109)
1pc. (2 Pk)
45º Twist Bracket RT
(Y70829-192)
1pc. - Rafter To Post
Bracket Set (4Pk)
(Y70829-350)
1pc.
Tie Wrap Bracket (4Pk)
(Y70829-106)
1pc. (2 Pk)
45º Twist Bracket LT
(Y70829-191)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
1pc. - Roof Peak Set
(Y70829-125)

12 [email protected]
PRODUCT NUMBER: YM12978
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- Post Mounts - (190)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- Post Mounts - (190)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S

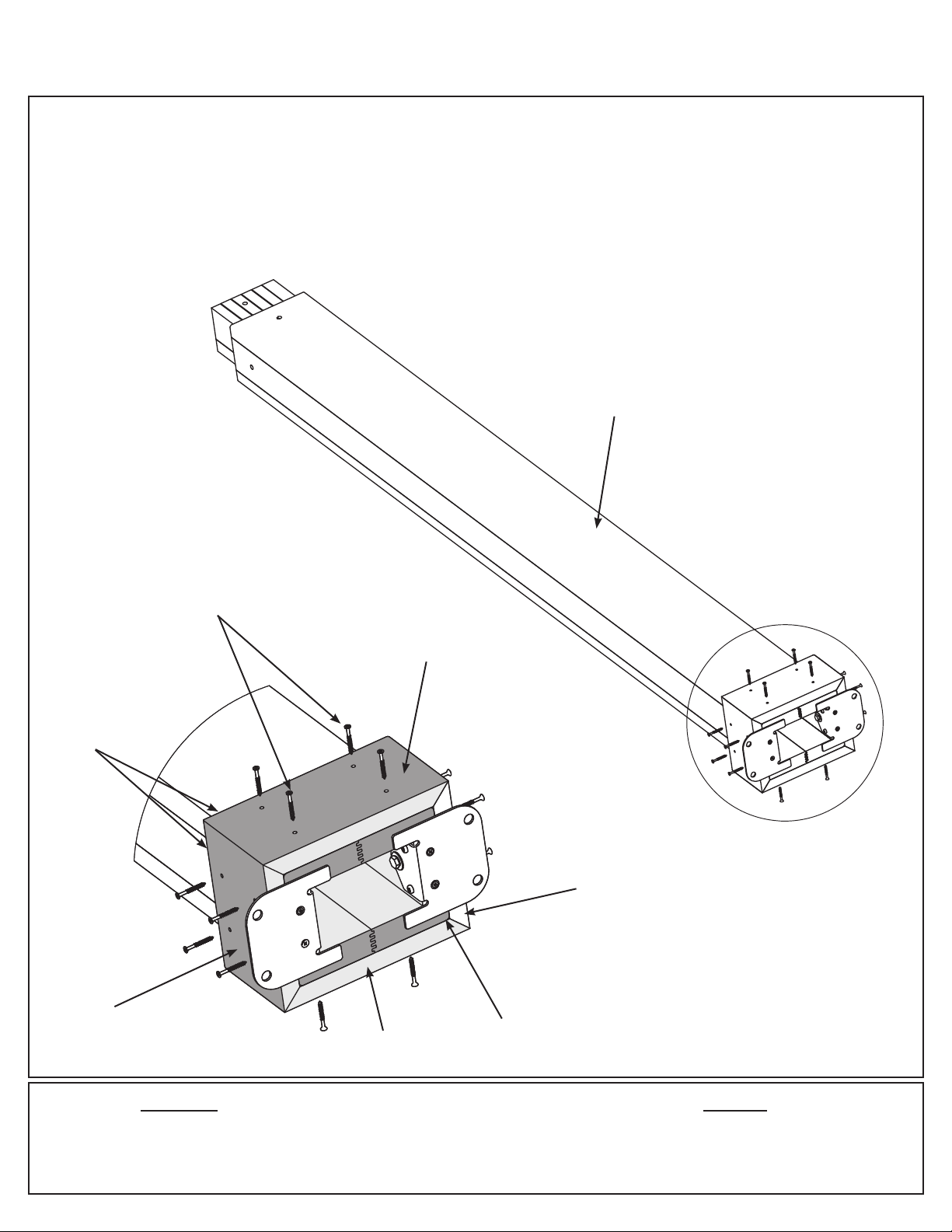

A: At the bottom of one (1035) 6 x 8 Post Left Side insert one 5/16” T-Nut on the outside of each short side. (F2.1
and F2.2)
B: At the bottom of the same post place two Post Mounts tight to the bottom and inside faces on the short sides
as shown in F2.1 and F2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-
5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2” Wood
Screws and from the inside with two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
Step 2: Post Assemblies
Part 1
Wood Parts
F2.1
2 x (1035) 6 x 8 Post Left Side
2 x (1036) 6 x 8 Post Right Side
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
(1035) 6 x 8 Post Left Side /
(1036) 6 x 8 Post Right Side
Post
Mount
F2.2
Hardware
16 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer, 5/16” t-nut)
Post Mount
5/16” T-Nut (x 1 per
short side)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(x2 per Post Mount,
from inside)
Short
Side
Long
Side
#10 x 1-1/4” Pan
Screws (x 2 per Post
Mount, from inside)
8 x Post Mount
Components:

14 [email protected]
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
C: Flush to the bottom of (1035) 6 x 8 Post Left Side place one (1048) Plinth Long on each long side and one
(459) Plinth on each short side then attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top.
(F2.3 and F2.4)
D: Repeat Steps A - C one more time to make two Post Left Assemblies.
E: Repeat Steps A - C twice more using (1036) 6 x 8 Post Right Sides to make two Post Right Assemblies.
Wood Parts
8 x (459) Plinth
8 x (1048) Plinth Long
Hardware
64 x #8 x 1-1/2” Wood Screw
Step 2: Post Assemblies
Part 2
F2.3
F2.4
Rounded
Edge on
Top
(459)
Plinth
(459)
Plinth
(1048) Plinth
Long
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1048) Plinth
Long
(1035) 6 x 8 Post Left Side /
(1036) 6 x 8 Post Right Side
Flush

15 [email protected]
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts

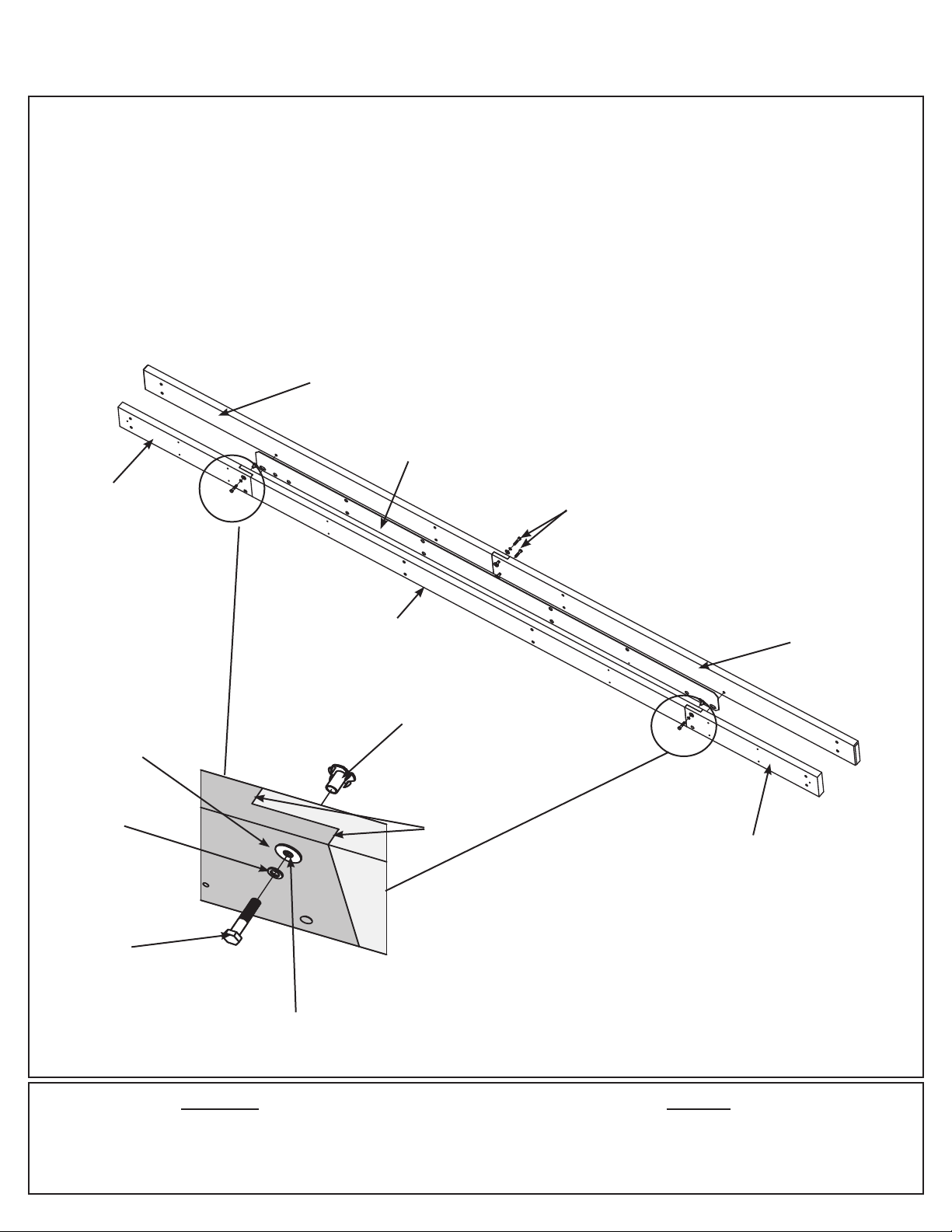

A: Connect two (1044) Beam Shorts using two 5/16 x 1-1/2” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1043) Beam Short End to each end of one (1042) Short Beam Centre using two 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B one more time to make two Beam Short Assemblies and two Short Beam End
Assemblies.
4 x (1043) Beam Short End
2 x (1042) Short Beam Centre
4 x (1044) Beam Short
F3.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(1044) Beam
Short
(1042) Short
Beam Centre
(1043) Beam
Short End
5/16” Lock
Washer
(1043) Beam
Short End
Make sure bolt heads
are on the outside of
each Beam Assembly

16 [email protected]
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
Hardware
36 x #8 x 2-1/2” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Beam Short
Assembly

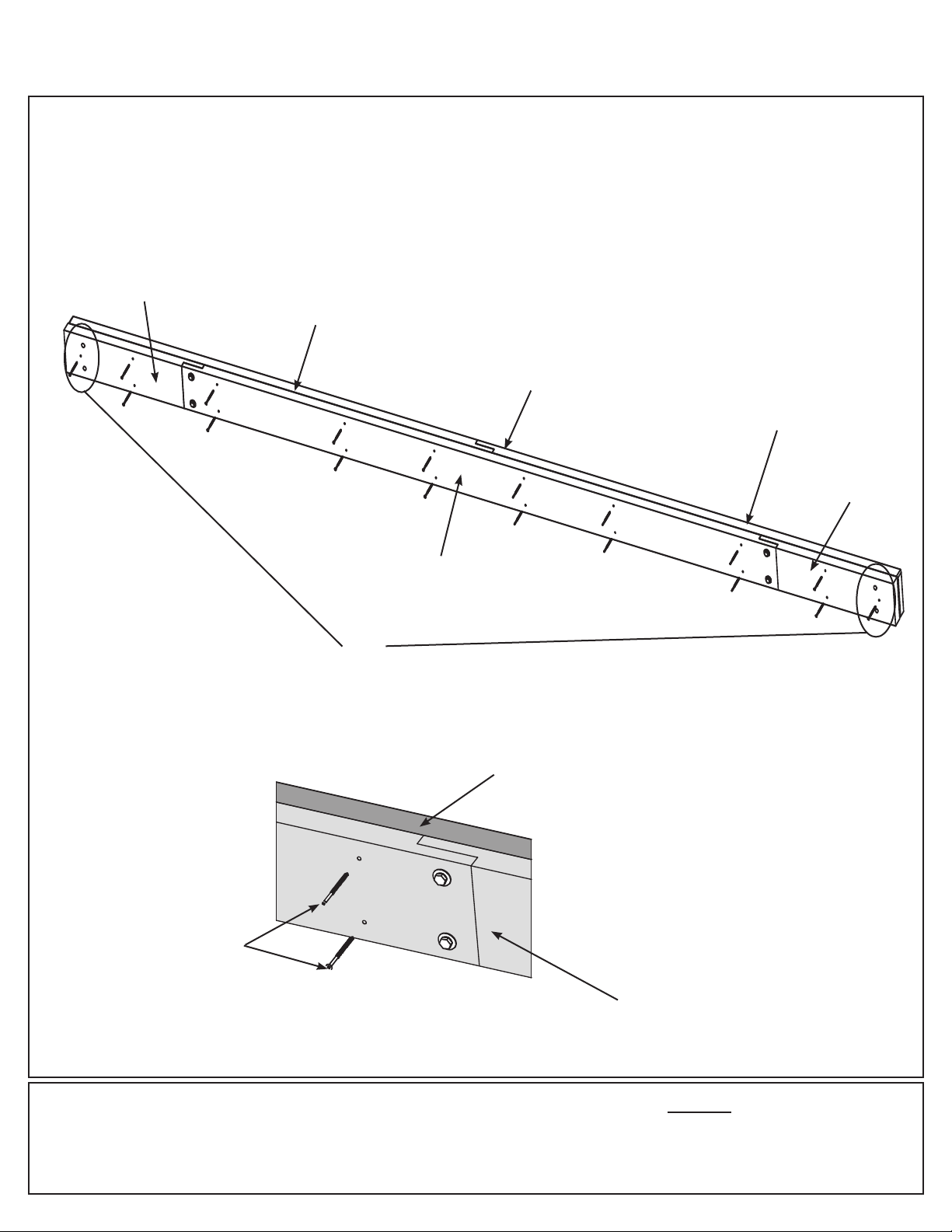

D: Place one Beam Short Assembly tight to one Short Beam End Assembly. Match the bolt holes in each (1043)
Beam Short End with the bolt holes in each (1044) Beam Short. Attach with 18 #8 x 2-1/2” Wood Screws. (F3.3
and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Short Beam
End Assembly
Beam Short
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
Match
bolt
holes
Step 3: Short Beam Assembly
Part 2
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1044)
Beam Short
(1043) Beam
Short End (1044)
Beam Short
(1043) Beam
Short End

17 [email protected]
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
Step 4: Long Beam Assembly
Part 1
A: Connect two (1045) Beam Longs using two 5/16 x 1-1/2” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut) as shown in F4.1 and F4.2.
B: Connect one (1047) Beam Long End to each end of one (1046) Long Beam Centre using one 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the top hole, per end as shown in
F4.1 and F4.2.
C: Repeat Steps A and B one more time to make two Beam Long Assemblies and two Long Beam End
Assemblies.
HardwareWood Parts
4 x (1045) Beam Long
2 x (1046) Long Beam Centre
4 x (1047) Beam Long End
8 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16” T-nut
F4.1
F4.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
(1045)
Beam Long
(1046) Long
Beam Centre
(1047) Beam
Long End
Use top
holes
See Part 2
for this piece
Make sure bolt heads
are on the outside of
each Beam Assembly
(1045)
Beam Long
(1047) Beam
Long End

18 [email protected]
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
(Flat,Lock Washers, T-nuts)
28 - #8 x 2-1/2" W.S
(Flat,Lock Washers, T-nuts)
12- 5/16 x 3" Hex Bolts
8- 5/16 x 1-1/2" Hex Bolts
2- Long Beam Centre -(1046)
4- Beam Long End (1047)
4- Beam L0ng (1045)
2- Long Beam Insert (124)
Hardware
28 x #8 x 2-1/2” Wood Screw
12 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
D: Place one Long Beam Insert in between one Beam Long Assembly and one Long Beam End Assembly then
t tight together. Beam Long Assembly overhangs Long Beam End Assembly by 1-3/8” on each end. Match the
bolt holes and wood screw pilot holes in both beam assemblies and Long Beam Insert. (F4.3, F4.4 and F4.5)
E: Attach beam assemblies and Long Beam Insert together with six 5/16 x 3” Hex Bolts (with 5/16” lock washer,
1/4-5/16” large washer and 5/16” t-nut) and 14 #8 x 2-1/2” Wood Screws. (F4.5, F4.6 and F4.7)
F: Repeat Step D-E make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Align holes
in all 3
pieces
Long Beam
End Assembly
Beam Long
Assembly
Long Beam
Insert
Long Beam
End Assembly
Beam Long
Assembly
Long Beam
Insert
F4.4
F4.3
#8 x 2-1/2” Wood Screws
(x 14 per assembly)
Long Beam
End Assembly
Beam Long
Assembly
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt x 6
5/16” Lock
Washer
Long Beam
Insert
F4.5
F4.6
Componets:
2 x Long Beam Insert
This bolt was
previously installed
in Step 4, Part 1B
Notice the side the bolts
and screws are installed in
F4.5, F4.6 and F4.7. Bolts
are on the opposite side of
the screws
F4.7
1-3/8”
1-3/8”

19 [email protected]
2- Post Left Side -Y70000-1035
2- Post Right Side -Y70000-1036
2- Short Beam Assemblies
4- Arched Gusset Short -(Y70-1053)
8- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
4- 5/16 x 3" Lag Screw (5/16 Washer)
2- Post Left Side -Y70000-1035
2- Post Right Side -Y70000-1036
2- Short Beam Assemblies
4- Arched Gusset Short -(Y70-1053)
8- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
4- 5/16 x 3" Lag Screw (5/16 Washer)

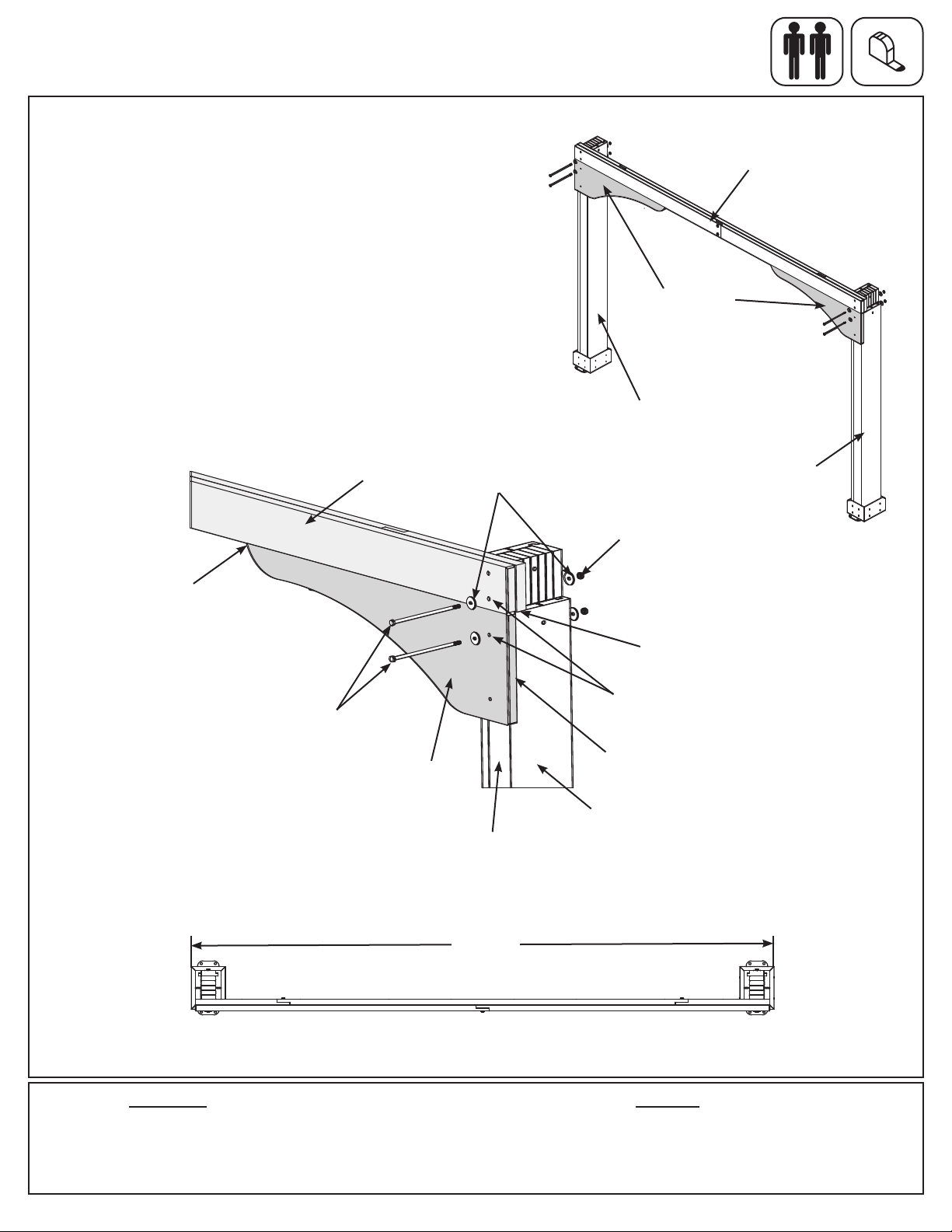

F5.1
A: Against the short sides of one Post Right Assembly and
one Post Left Assembly place one Short Beam Assembly and
loosely attach with one 3/8 x 10” Hex Bolt (with two 3/8” large
washers and one 3/8” lock nut) per post in the bottom holes.
The distance from the outside of one post to the outside of the
second post should be 10’ 10-3/8” (3.312m). (F5.1, F5.2 and
F5.3)
B: On each end of the Short Beam Assembly, tight to the
bottom and ush to the outside edges, place one (1053) Arched
Gusset Short. Loosely attach gussets, in the top holes, with
one 3/8 x 10” Hex Bolt (with two 3/8” large washers and one
3/8” lock nut) per post. (F5.1 and F5.2)
F5.3
Hardware
8 x 3/8 x 10” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8” Lock
Nut
3/8 x 10”
Hex Bolt
(1053) Arched
Gusset Short
Post
Post Right
Assembly
Post Left
Assembly
Short Beam
Assembly
Short Beam
Assembly
Short Side
3/8” Large
Washer
Step 5: Frame Assembly
Part 1 - Short Side
Wood Parts
4 x (1053) Arched Gusset Short
F5.2
(1053) Arched
Gusset Short
Use
these
holes
3.312 m
10’ 10-3/8”
Tight
Flush
Flush

20 [email protected]

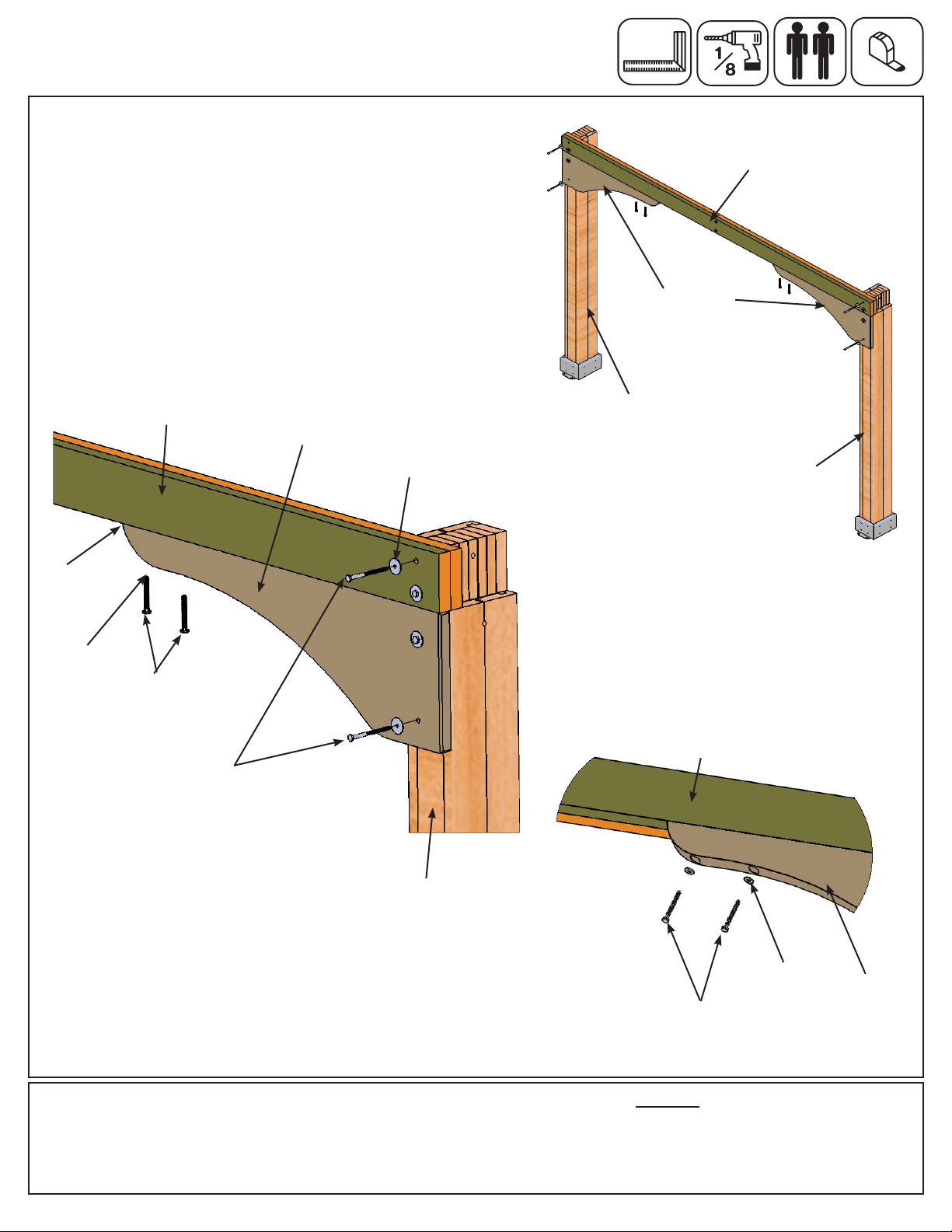

F5.4
C: Make sure Short Beam Assembly is square to Posts then
pre-drill with a 1/8” drill bit in the top holes of each Short Beam
Assembly and bottom hole of (1053) Arched Gusset Short,
then attach with two 5/16 x 4” Lag Screws (with 1/4-5/16” large
washer) per end. Tighten all bolts. (F5.4 and F5.5)
D: Pre-drill with a 1/8” drill bit then attach each (1053) Arched
Gusset Short to Short Beam Assembly with two 5/16 x 3” Lag
Screws (with 5/16” at washer) per gusset. (F5.4, F5.5 and
F5.6)
E: Repeat Step A-D make a second Short Side Assembly.
F5.6
Hardware
8 x 5/16 x 3” Lag Screw (5/16” at washer)
8 x 5/16 x 4” Lag Screw (1/4-5/16” large washer)
(1053) Arched
Gusset Short
Short Beam
Assembly
Post
Post Right
Assembly
Post Left
Assembly
Short Beam
Assembly
Short Beam
Assembly
Short Side
Step 5: Frame Assembly
Part 2 - Short Side
F5.5
(1053) Arched
Gusset Short
5/16 x 3”
Lag Screw
5/16 x 3”
Lag Screw
(1053) Arched
Gusset Short
Tight
5/16” Flat
Washer
1/4-5/16”
Large Washer
5/16 x 4”
Lag Screw
5/16” Flat
Washer
