Yardistry YM11915 User manual

Height : 10ft - 4inches
12 x 16 Gazebo
16'-1"
12'-2"
12’x16’ MERIDIAN WOOD GAZEBO
with ALUMINUM ROOF
Installaon and Operang Instrucons – YM11915
Revised 10-22-2020
16’ 1”
4.9 m
HEIGHT:
10’4” / 3.15m
12’ 2”
3.71 m
Y40000-915
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• Claw Hammer
• 7/16” & 9/16” Wrench
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 3
• Square
• Rachet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples

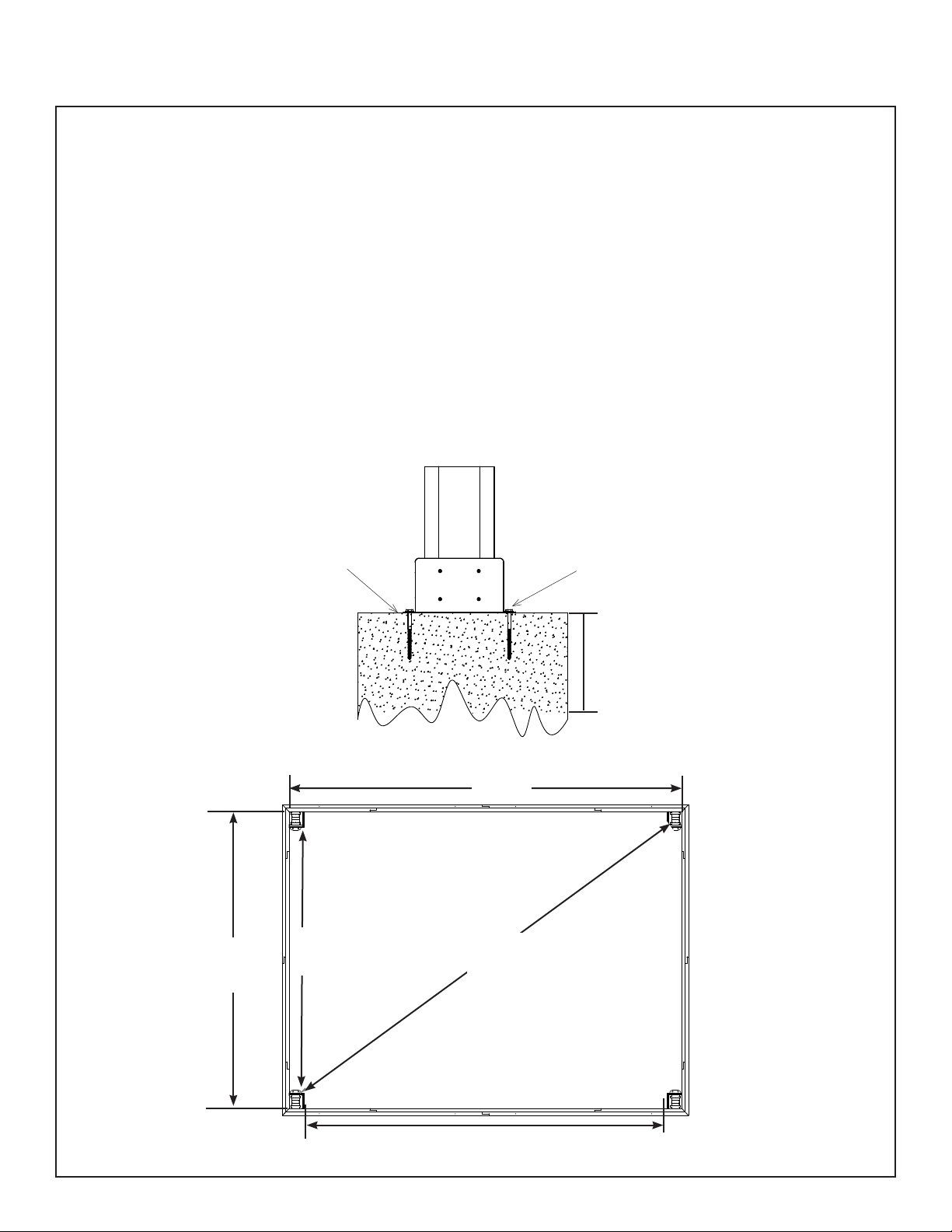

Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
4.19
7 8
13'-8
2.97
9' - 8-7/8"
Plinth to Plinth
3.31
to Plinth
14'-10 "
8
4.53
Outside Plinth
Posts
"
3
10' - 10-3/8"
Outside Posts
5.20
17'-1"
Post to Post
Post to Post
10’ 10-5/16”
3.31 m Plinth to Plinth
9’ 8-13/16”
2.967 m
Post to Post
14’ 10-3/8”
4.531 m
Plinth to Plinth
13’ 8-7/8”
4.188 m
Post to Post
17’ 3/16”
5.186 m

7 [email protected]
74
74

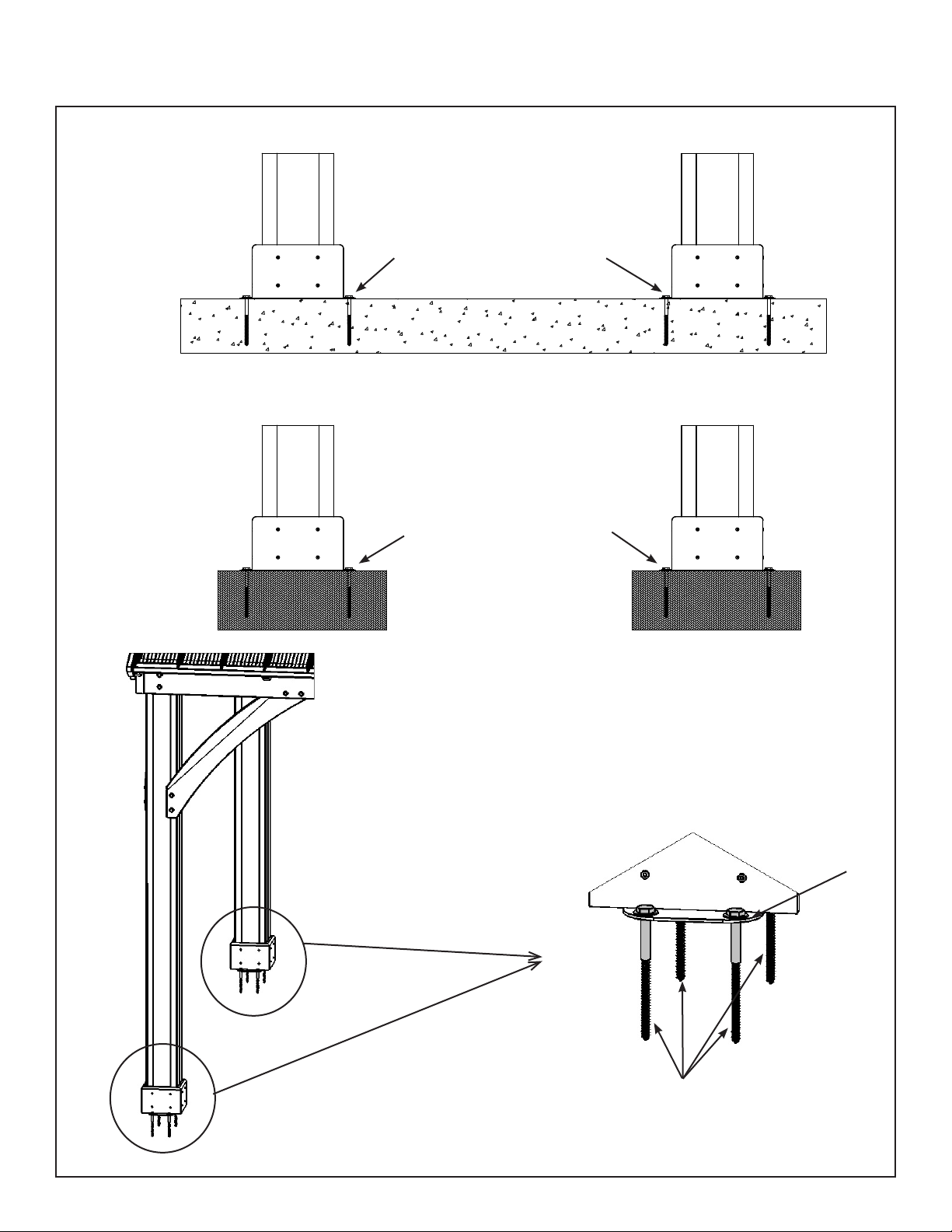

Permanent Installation Examples cont.
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1/2” (12.7 mm)
diameter hole for anchoring hardware.
Concrete Patio [min. 11’ 10-3/8” x 15’ 10-3/8” (3.616 m x 4.836 m)] with 6” (15.24 cm) clearance on all sides
Wood Deck [min. 11’ 10-3/8” x 15’ 10-3/8” (3.616 m x 4.836 m)] with 6” (15.24 cm)clearance on all sides
Anchoring Hardware not included
Anchoring Hardware not included

8 [email protected]
2pc. (649) Outer End Right 2379.7mm (93-11/16")
Y70131-649
4pc. (656) Inside Beam 1046.2mm (41-3/16")
Y70131-656
Y70131-650
2pc. (650) Outer End Left 2379.7mm (93-11/16")
16pc. (422) Plinth 190.5mm (7-1/2")
Y50131-422
4pc. (665) End Short Beam 558.6mm (22")
Y70131-665
Y70131-660
2pc. (660) Left Beam Short 1769.7mm (69-5/8")
Y50131-1012
2pc. (1012) Straight Gusset Right 1153mm (45-3/8")
2pc. (664) Centre Beam Short 2422.1mm (95-3/8")
Y70131-664
Y70131-661
2pc. (661) Right Beam Short 1769.7mm (69-5/8")
Y50131-1011
2pc. (1011) Straight Gusset Left 1153mm (45-3/8")
2pc. (1016) - Short Gusset LT 1096.3mm (43-3/16")
Y50131-1016
2pc. (1017) Short Gusset RT 1096.3mm (43-3/16")
Y50131-1017
4pc. (1018) - M-Post 2387.6mm (94”)
Y70131-1018
2pc. (653) Inside Long Beam 2667mm (105")
Y70131-653
assembly. Actual dimensions may be smaller or larger.

9 [email protected]
Part Identication ( )
Y50131-623
4pc. (623) Rafter Corner Right 2597.8mm (102¼")
2pc. (627) Fascia Left Short 1855.5mm (73-1/16")
Y50131-627
Y50131-630
4pc. (630) Rafter Short LT 805.5mm (31-3/4")
Y50131-629
4pc. (629) Rafter Short RT 805.5mm (31-3/4")
Y50131-628
2pc. (628) Fascia Right Short 1855.5mm (73-1/16")
6pc. (634) Rafter 1907mm (75-1/16")
Y50131-634
Y50131-631
4pc. (631) Rafter Centre LT 1338.9mm (52-3/4")
2pc. (636) Top Strap 953.8mm (37-35/64")
Y50131-636
Y50131-637
2pc. (637) Mid Strap 1908.3mm (75-1/8")
4pc. (632) Rafter Centre RT 1338.9mm (52-3/4")
Y50131-632
Y50131-647
4pc. (647) Sot Long 2383mm (93-13/16")
4pc. (648) Sot 1774.5mm (69-7/8")
Y50131-648
2pc. (688) Bottom Strap RT 406.3mm (16")
Y50131-688
2pc. (687) Bottom Strap LT 2457mm (96-3/4")
Y50131-687
Dimensions are approximate and are shown to assist in the identication of parts for
assembly. Actual dimensions may be smaller or larger.
Y50131-624
4pc. (624) Rafter Corner Left 2597.8mm (102¼")

10 [email protected]
Y50131-633
4pc. (633) Centre Rafter 1873.6mm (73-3/4")
2pc. (645) Spacer 578.2mm (22-3/4")
Y50131-645
assembly. Actual dimensions may be smaller or larger.
2pc. (643) Strap Bot LT 2651.4mm (104-3/8")
Y50131-643
Y50131-635
2pc. (635) Long Roof Top 1188.2mm (46-3/4")
Y50131-646
4pc. (646) Tie 2590.8mm (102")
2pc. (641) Strap Mid LT 955.9mm (37-5/8")
Y50131-641
2pc. (640) Strap Top Lg 2179mm (85-13/16")
Y50131-640
2pc. (642) Strap Mid RT 2175.8mm (85-5/8")
Y50131-642
2pc. (644) Strap Bot RT 1431.5mm (56-3/8")
Y50131-644
2pc. (626) Fascia RT Long 2465.5mm (97-1/16")
Y50131-626
2pc. (625) Fascia LT Long 2465.5mm (97-1/16")
Y50131-625
Y50131-639
2pc. (639) Fascia Block 368mm (14½")

11 [email protected]
( )

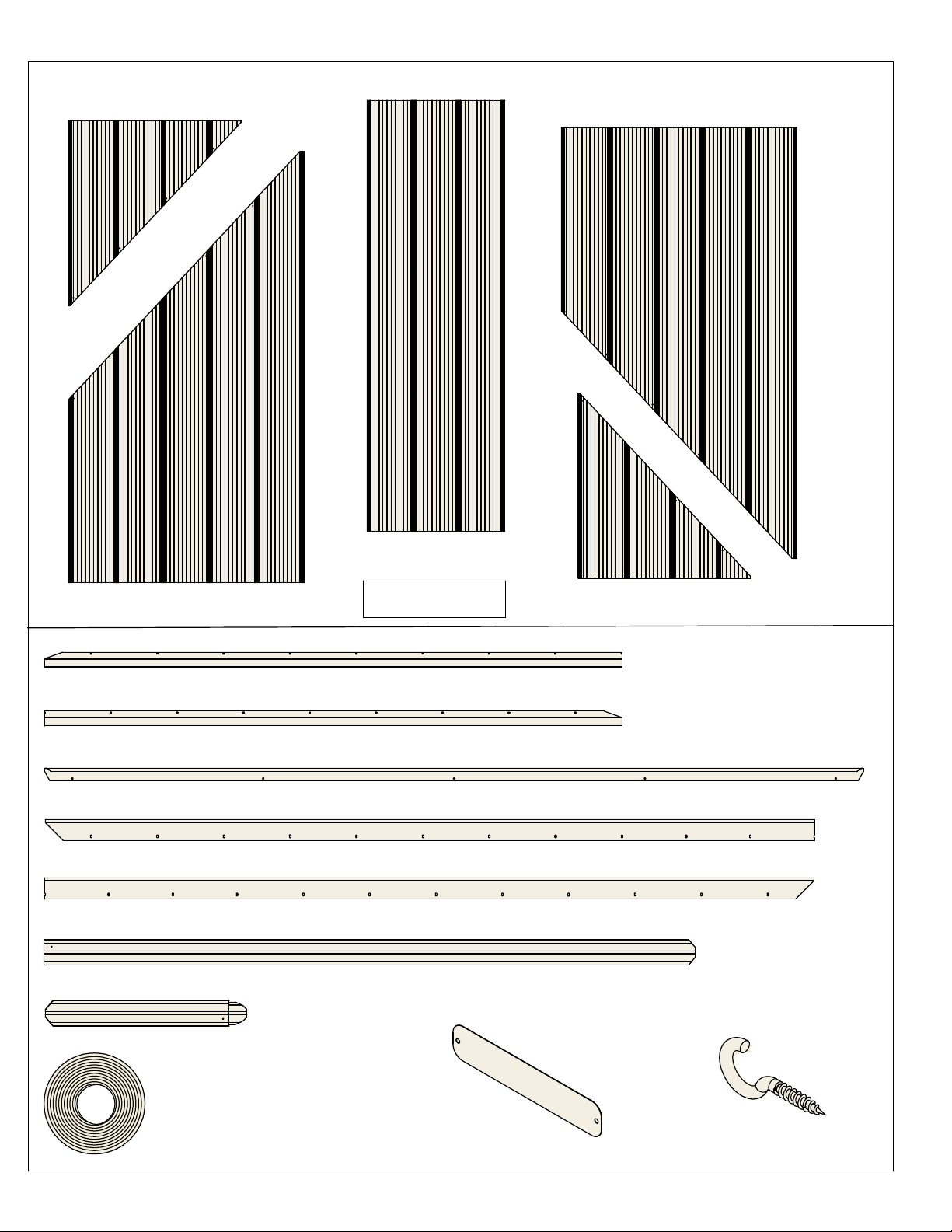

4pc. Ridge Cap Short 25.2 (Y01033-132)
2pc. Roof Edge Left 72.2 - (Y01033-134)
4pc. - Short Panel Right
(Y01033-199)
4pc. - Short Panel Left
(Y01033-200)
4pc. - Middle Panel
(Y01033-196)
4pc. - Long Panel Left
(Y01033-198)
- Long Panel Right
(Y01033-197)
4pc.
1pc. - Roof Panel Set
(Y70833-195)
4pc. Ridge Cap Long 81.5 - (Y01033-131)
2pc. Roof Edge Right 96.2 - (Y01033-136)
1pc. - Gazebo ID Plaque
(Y70800-104)
2pc. Roof Edge Right 72.2 - (Y01033-135)
2pc. - 50mm Hook
(Y00418-050)
2pc. Roof Edge Left 96.2 - (Y01033-201)
8pc. Ridge Clip 102.5 - (Y01033-133)
1pc. - Weather Seal
Ridge Clip (8Pk)
(Y70818-074)
Dimensions are approximate and are shown to assist in the identication of
parts for assembly. Actual dimensions may be smaller or larger.

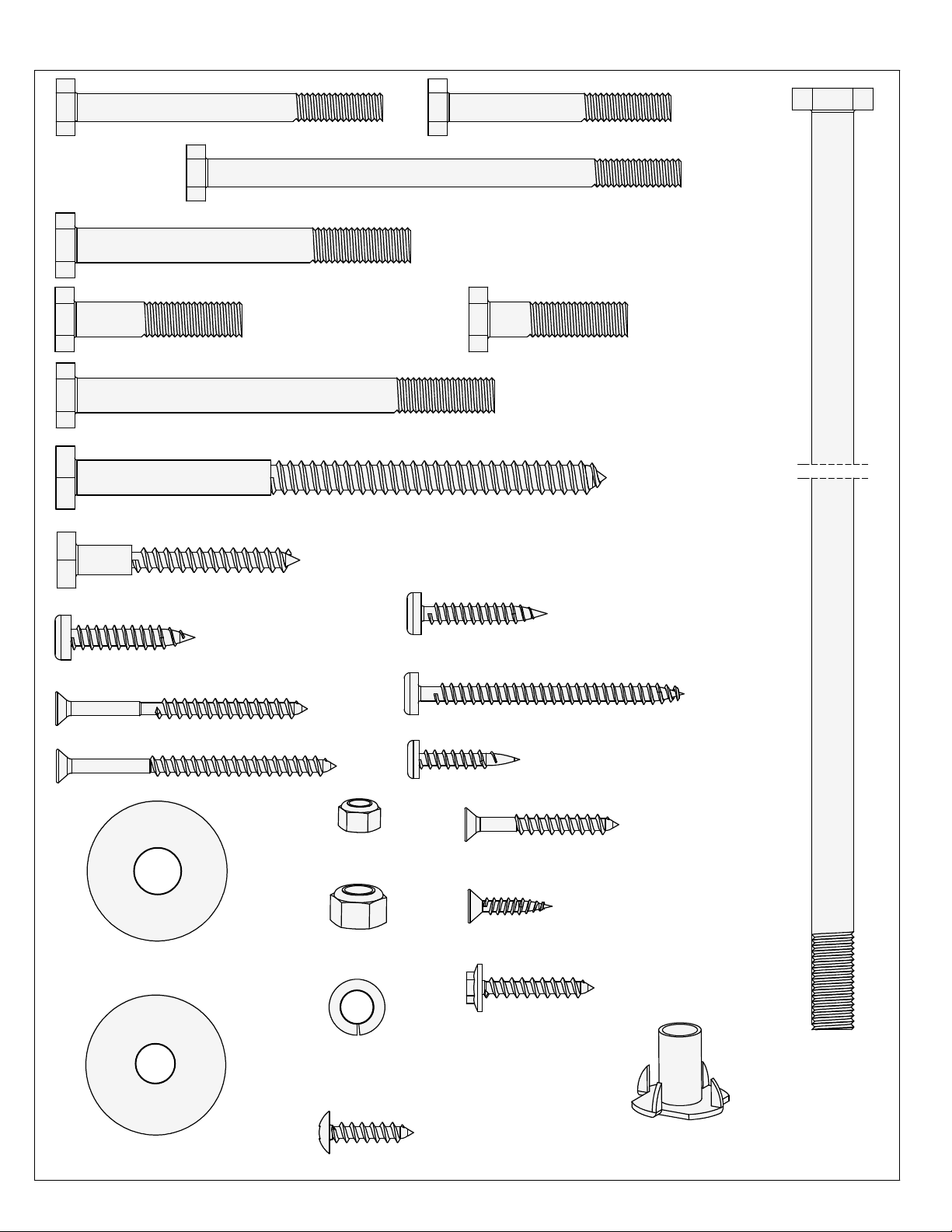

Hardware Identication

12 [email protected]
Hardware Identication
( )
Dimensions are approximate and are shown to assist in the identication of
parts for assembly. Actual dimensions may be smaller or larger.
84pc. 5/16 - T-Nut
(Y08518-300)
110pc. Wood Screw #8 x 2 1/2" - (Y06091-522)
12pc. - 3/8" Lock Nut
(Y08318-803)
30pc. Hex Bolt 5/16 x 1-1/2"
(Y07718-312)
74pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
12pc. Lag Screw 5/16 x 4-3/4" - (Y06218-343)
84pc. 5/16" Lock Washer
(Y05318-300)
40pc. Pan Screw #8 x 1"
(Y06491-510)
304pc. Hex Roong Screw
#8x 1"
(Y06733-510)
24pc. Sheet Metal Screw
#8 x 3/4"
( Y06433-503)
3/8 x 9-1/2"
12pc. Hex Bolt
(Y07718-892)
40pc. - 1/4" Lock Nut
(Y08318-203)
8pc. Pan Screw #10 x 2-1/2" - (Y06491-722)
40pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
60pc. Wood Screw #7 x 3/4"
(Y06091-003)
12pc. 1/4 x 2-3/4 Hex Bolt - (Y07718-223)
280pc. Wood Screw #8 x 1-1/2"
(Y06091-512)
90pc. Pan Screw #12 x1-1/2"
(Y06491-612)
24pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
8pc. Hex Bolt 5/16 x 1-1/4"
(Y07718-311)
30pc. 5/16 x 3" Hex Bolt - (Y07718-330)
200pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
16pc. Hex Bolt 5/16 x 3-3/4" - (Y07718-333)
2pc. 1/4 x 4-1/4" Hex Bolt - (Y07718-241)
26pc. 1/4 x 2 Hex Bolt - (Y07718-220)
24pc. Lag Screw 1/4 x 1-15/16" - (Y06218-219)

13 [email protected]
( )
parts for assembly. Actual dimensions may be smaller or larger.
3pc.
Carriage Bolt
(Y07428-260)
3pc.
Spring Clip
(Y09490-001)
1pc. Peak Bracket
(Y00429-190)
4pc.
Roof Peak Bracket
(Y00429-125)
3pc.
Loop
(Y20018-003)
3pc.
1/4" Nut
(Y08490-200)
3pc.
Contour Washer
(Y05918-211)
1pc. - Corner Cap Set (4Pk)
(Y70833-103)
1pc. -(2 Pack) 45º Twist
Bracket LT (Y70829-191)
1pc. Tie Wrap Bracket (8Pk)
(Y70819-106)
1pc. - Peak Cap Assembly
(Y70833-249)
1pc. Post Mount (8Pk)
(Y70819-109)
1pc. - (2 Pack) 45º Twist
Bracket RT (Y70829-192)
2pc. Long Beam Insert- (Y00429-194)
1pc. - Roof To Beam Bracket Set
(10Pk) (Y70819-218)
1pc. - 1/8" Drill B it
(Y 00400-002)
1pc. - Hex Driver (Y00400-004)
3pc. Peak Post
(Y01000-094)
1pc. - Roof Peak Set
(Y70829-215)
2pc. - Roof To Beam Bracket Set
(8Pk) (Y70819-108)
1pc. #2 x 2" Robertson Driver (Y00400-005)

14 [email protected]
PRODUCT NUMBER: YM11915
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI
warnings; notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four
people, DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check
for gas, telephone, other utilities or sprinkler line locations prior to excavating any
holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if
you contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your
assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

15 [email protected]

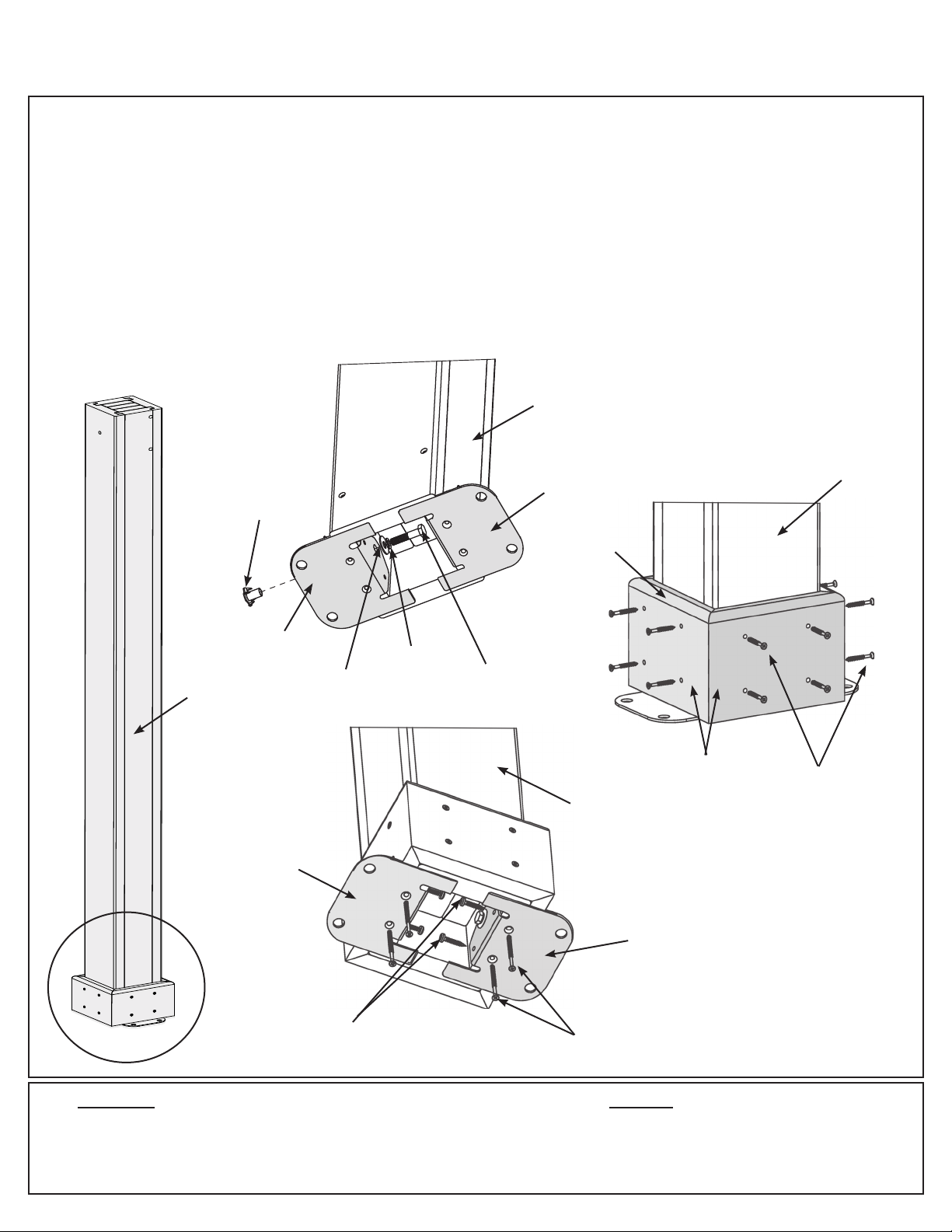

Step 2: Post Assemblies
HardwareWood Parts
F2.2
(422) Plinth
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
Post
Mount
F2.3
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-1/2” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
F2.1
Post
Mount
Rounded
Edge on Top
F2.4
Post
Mount
#10 x 1-1/4” Pan Screws (x 2
per Post Mount, from inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer 5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut (x 2
per Post)
Post
Mount
A: At the bottom of four (1018) M Posts insert two 5/16” T-Nuts as shown in F2.1 and F2.2.
B: At the bottom of each (1018) M Post place two Post Mounts tight to the bottom and inside faces as shown in
F2.1 and F2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16” large washer)
per mount so they connect to the T-Nuts.
C: On each side of the Posts, place one (422) Plinth ush to the bottom and attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (F2.1 and F2.3)
D: From the bottom of each Post Mount attach to posts with two #8 x 1-1/2” Wood Screws per mount and then from
the inside with two #10 x 1-1/4” Pan Screws per mount These screws are installed at a slight angle. Tighten all
bolts. There will be four M Post Assemblies. (F2.4)
4 x (1018) M Post
16 x (422) Plinth
(1018) M Post
(1018) M Post
(1018) M
Post
(1018) M Post

16 [email protected]
6
6
6
5/16” T-nut

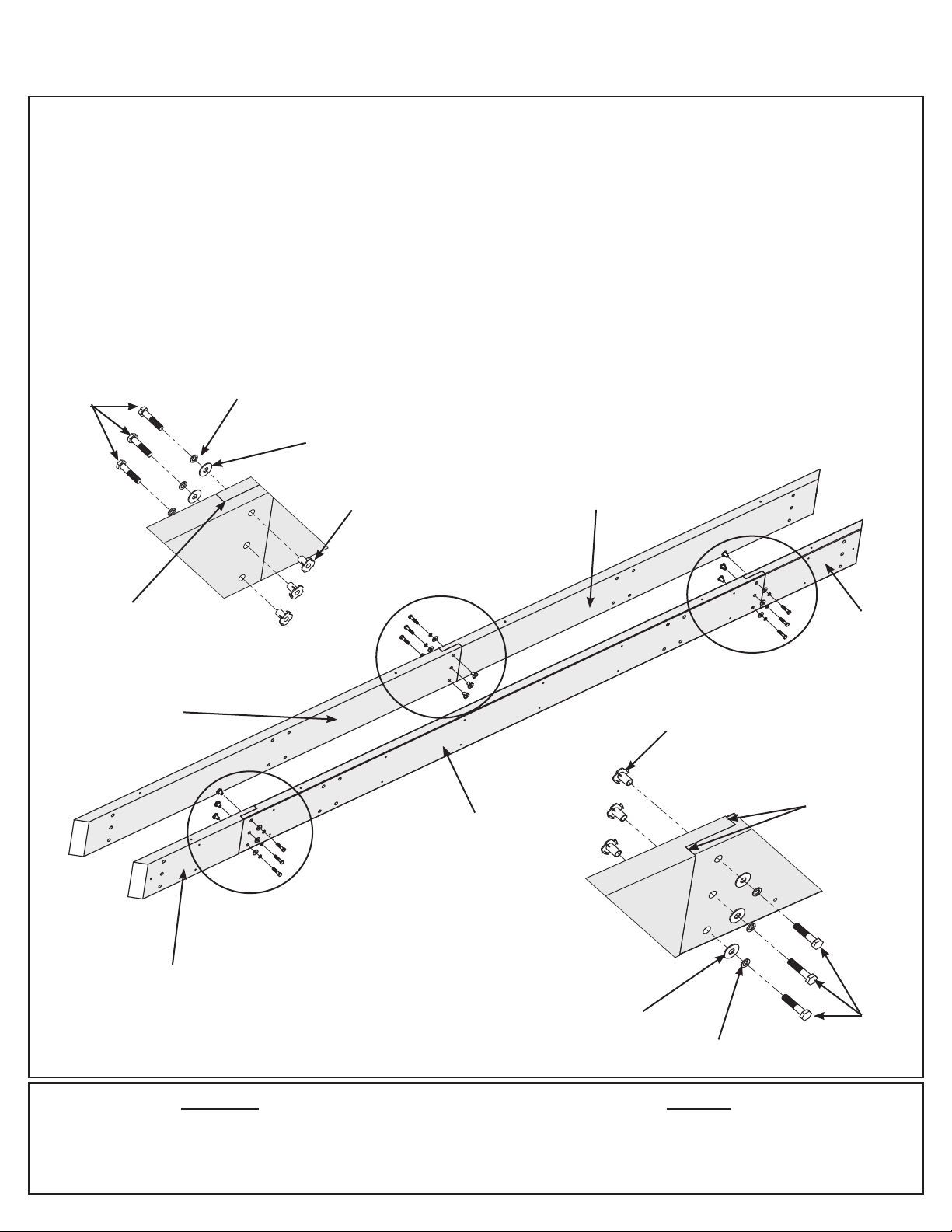

Step 3: Short Beam Assembly
Part 1
HardwareWood Parts
A: Connect one (660) Left Beam Short and one (661) Right Beam Short using three 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F3.1 and F3.2. Notice orientation of bolt
heads.
B: Connect one (665) End Short Beam to each end of one (664) Centre Beam Short using three 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F3.1 and F3.3.
Notice orientation of bolt heads.
C: Repeat Steps A and B one more time to make two Short Beam L-R Assemblies and two End Short Beam
Assemblies.
(660) Left
Beam Short
2 x (664) Centre Beam Short
4 x (665) End Short Beam
2 x (660) Left Beam Short
2 x (661) Right Beam Short
F3.1
18 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(661) Right
Beam Short
(664) Centre
Beam Short
(665) End
Short Beam
5/16” Lock
Washer
(665) End
Short Beam
Make sure bolt heads
are on the outside of
each Beam Assembly
F3.3
5/16 x
1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
1/4-5/16”
Large Washer
5/16” T-nut

17 [email protected]
Hardware
F3.4
End Short
Beam
Assembly
F3.5
Flush
Short Beam L-R
Assembly
D: Place one Short Beam L-R Assembly and one End Short Beam Assembly together so the beam assembly
ends are ush and the angled ends match. Bolt heads must be on the outside of both beam assemblies. Match
the bolt holes in each assembly then loosely attach with four 5/16 x 3” Hex Bolts (with 5/16” lock washer, 1/4-
5/16” large washer and 5/16” t-nut) in the top holes. (F3.4 and F3.5)
E: Secure assemblies with 18 #8 x 2-1/2” Wood Screws then tighten bolts. (F3.4)
F: Repeat Step D and E one more time to make two Short Beam Assemblies.
End Short
Beam
Assembly
Short Beam
L-R Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
Step 3: Short Beam Assembly
Part 2
36 x #8 x 2-1/2” Wood Screw
8 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt 5/16” Lock
Washer
Use the
top holes
Flush

18 [email protected]
3
3
3

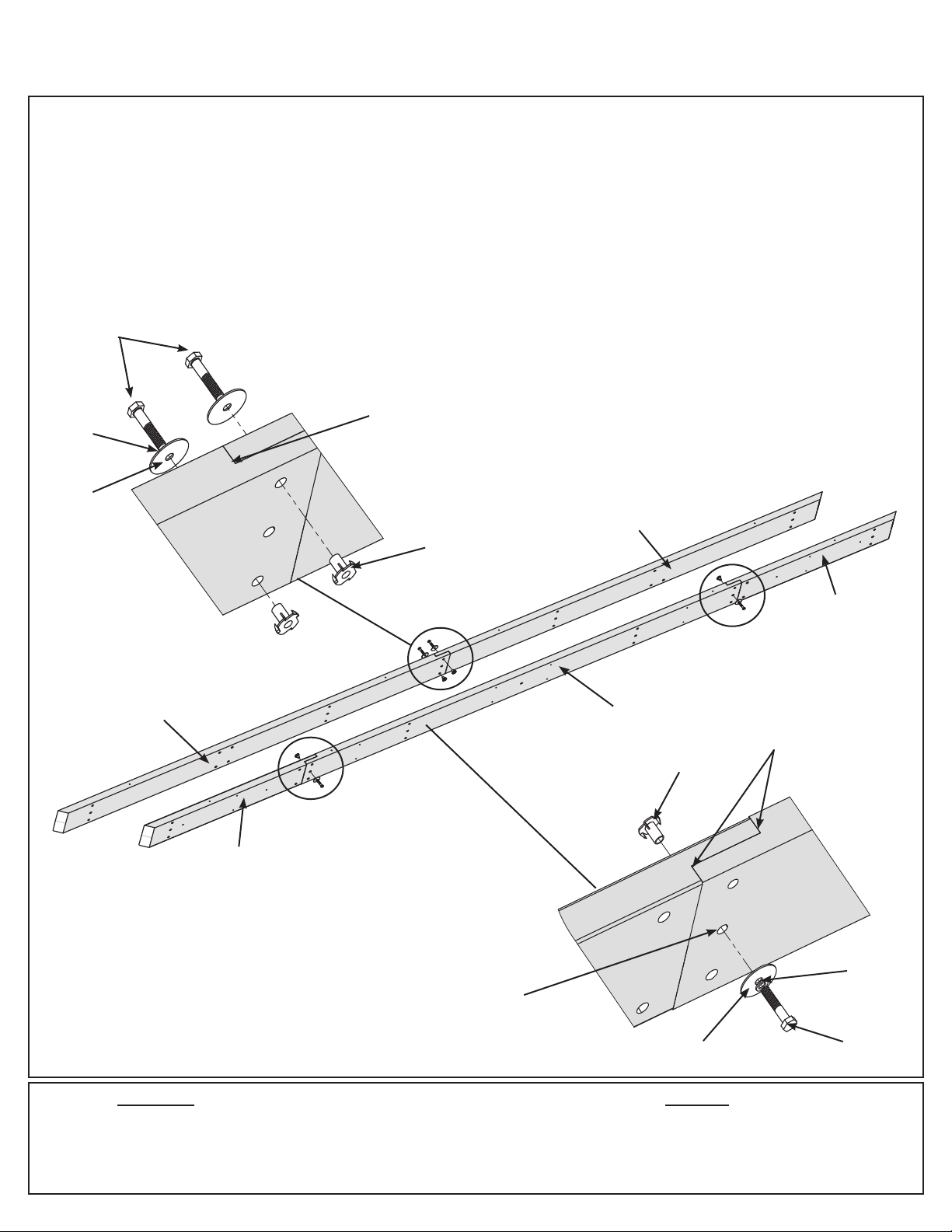

Step 4: Long Beam Assembly
Part 1
A: Connect one (649) Outer End Right and one (650) Outer End Left using two 5/16 x 1-1/2” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.1 and F4.2. Notice orientation of bolt
heads.
B: Connect one (656) Inside Beam to each end of one (653) Inside Long Beam using two 5/16 x 1-1/2” Hex Bolts
(with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut), in the middle holes, as shown in F4.1 and F4.3.
Notice orientation of bolt heads.
C: Repeat Steps A and B to make two Outer Beam Assemblies and two Inside Beam Assemblies.
HardwareWood Parts
2 x (649) Outer End Right
2 x (650) Outer End Left
2 x (653) Inside Long Beam
4 x (656) Inside Beam
8 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16” T-nut
F4.1
F4.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
(656) Inside
Beam
(649) Outer
End Right
(656) Inside
Beam
Make sure bolt heads are
on the sides as shown
for each Beam Assembly
F4.3
(653 Inside
Long Beam
Use the
middle hole
(650) Outer
End Left
Outer Beam
Assembly
Inside Beam
Assembly
5/16”
T-nut
5/16” Lock
Washer
1/4-5/16”
Large Washer
Tight

19 [email protected]
4
D: Place one Long Beam Insert centred on the inside of one Inside Beam Assembly (t-nut side). Match the bolt
holes in the Inside Beam Assembly and Long Beam Insert then attach with ten #7 x 3/4” Wood Screws. (F4.4,
F4.5 and F4.6)
E: Repeat Step D for the second Inside Beam Assembly.
Notice orientation
of angled ends
Inside Beam
Assembly
Long Beam
Insert
Hardware
20 x #7 x 3/4” Wood Screw
#7 x 3/4”
Wood Screw
Components:
2 x Long Beam Insert
Inside Beam
Assembly
Inside Beam
Assembly
Long
Beam
Insert
Long Beam
Insert
Match bolt
holes
F4.5
F4.6
F4.4
Notice countersink
holes are on the
screw side
Step 4: Long Beam Assembly
Part 2

20 [email protected]
Hardware

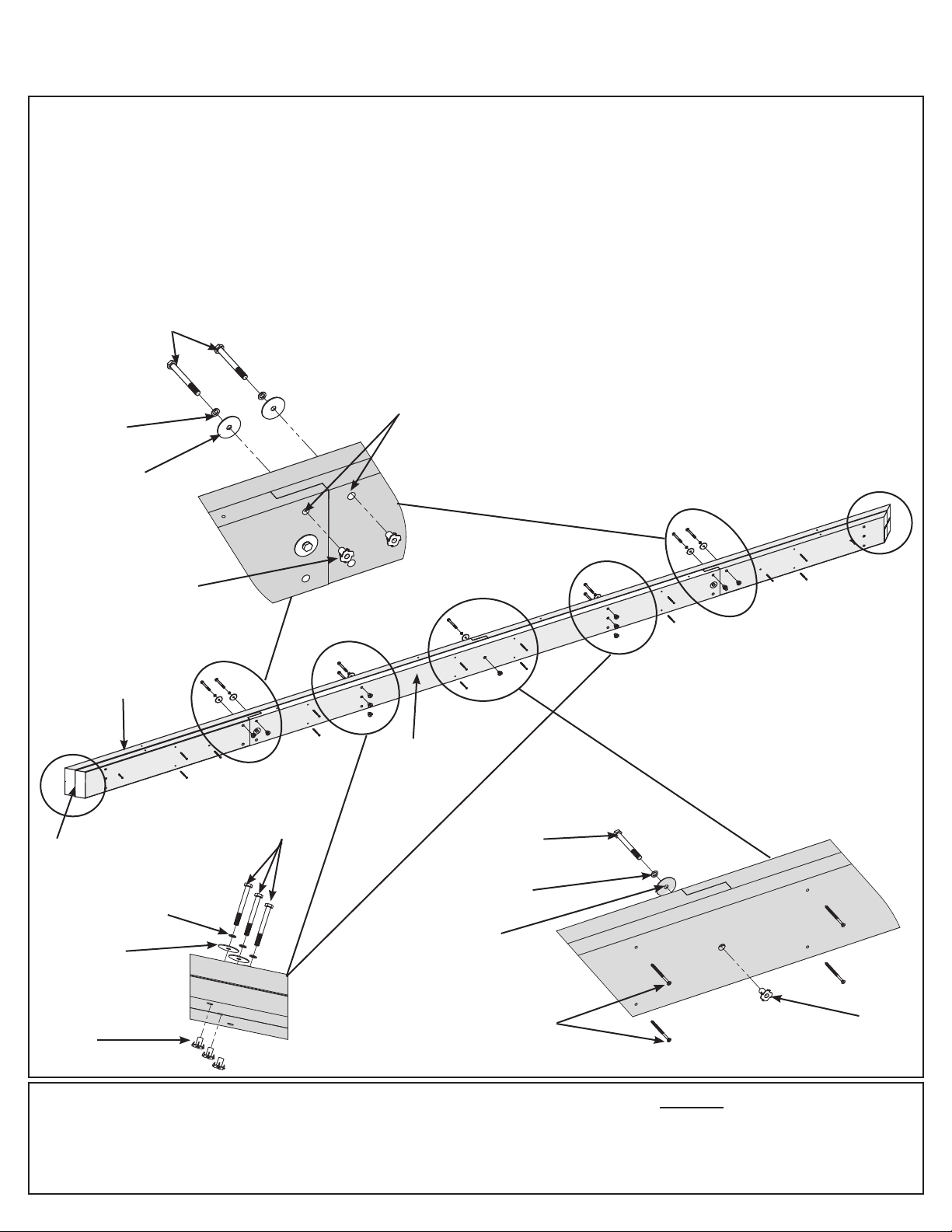

F: Place one Outer Beam Assembly and one Inside Beam Assembly together so the beam assembly ends are
ush and the angled ends match. Bolt heads must be on the outside of both beam assemblies. Match the bolt
holes in each assembly then loosely attach with eleven 5/16 x 3” Hex Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut). The bolts at each end must go in the top holes. (F4.7, F4.8, F4.9 and F4.10)
G: Secure assemblies with 16 #8 x 2-1/2” Wood Screws then tighten bolts. (F4.7 and F4.9)
H: Repeat Step F and G to make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 3
Flush
#8 x 2-1/2” Wood
Screws (x 16 per
assembly)
F4.8
F4.9
Outer Beam
Assembly
Inside Beam
Assembly
Notice orientation
of angled ends
F4.7
32 x #8 x 2-1/2” Wood Screw
22 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt
5/16” Lock
Washer
Use the
top holes
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt
5/16” Lock
Washer
F4.10
5/16 x 3”
Hex Bolt
5/16” Lock
Washer
5/16”
T-nut
1/4-5/16”
Large Washer
