YASKAWA JVOP-KPLCC04A Series User manual

MANUAL NO. TOEP C730600 94D
Yaskawa AC Drive Option
Bluetooth LCD Keypad
Installation Manual
Type: JVOP-KPLCC04Axx, JVOP-KPLCC04Mxx
To properly use the product, read this manual thoroughly and retain for easy
reference, inspection, and maintenance. Ensure the end user receives this
manual.

This Page Intentionally Blank
2YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual

YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 3
Table of Contents
1. Preface and Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Applicable Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Registered Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Supplemental Safety Information . . . . . . . . . . . . . . . . . . . . . . . 7
Use Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Receiving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. Component Names and Functions . . . . . . . . . . . . . . . .11
Indicator LEDs and Drive Status. . . . . . . . . . . . . . . . . . . . . . . 15
5. Installation and Primary Operation . . . . . . . . . . . . . . . 17
Section Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing the Keypad on the Drive . . . . . . . . . . . . . . . . . . . . . 17
Connecting the Keypad and Smart Device . . . . . . . . . . . . . . 18
Prepare the Information Necessary for
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Install DriveWizard Mobile. . . . . . . . . . . . . . . . . . . . . . . . 19
Enabling Bluetooth Communications . . . . . . . . . . . . . . . 20
Connect to the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disconnect Bluetooth Communications . . . . . . . . . . . . . 30
Bluetooth Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
Bluetooth Mode and Normal Operation Mode. . . . . . . 32
Key Functions in Bluetooth Mode . . . . . . . . . . . . . . . . 33
Bluetooth Mode Screen Displays. . . . . . . . . . . . . . . . . 34
Connecting the Keypad and Smart Device (REV: C or
Earlier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Prepare the Information Necessary for
Connection (REV: C or Earlier) . . . . . . . . . . . . . . . . . . 35
Install DriveWizard Mobile (REV: C or Earlier) . . . . . . 35
Connect to the Drive (REV: C or Earlier) . . . . . . . . . . . 36
Disconnect Bluetooth Communications (REV: C
or Earlier). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Bluetooth Mode (REV: C or Earlier). . . . . . . . . . . . . . . . . . . 46
Bluetooth Mode and Normal Operation Mode
(REV: C or Earlier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Key Functions in Bluetooth Mode (REV: C or
Earlier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Bluetooth Mode Screen Displays (REV: C or
Earlier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Remote Keypad Installation Methods . . . . . . . . . . . . . . . . . 49
External Dimensions of Keypad. . . . . . . . . . . . . . . . . . 51
Procedure A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Procedure B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Replace the Keypad Battery. . . . . . . . . . . . . . . . . . . . . . . . . 71
6. Related Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . 75
7. Fault Diagnostics and Solutions . . . . . . . . . . . . . . . . 76
8. Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . 77
European Standards (RE Directives). . . . . . . . . . . . . . . . . . 77
FCC and IC Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 78
CMIIT Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Japan Radio Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9. Disposal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 79
WEEE Directive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
10. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 5
11. Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Warranty Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Post-Warranty Repair Period . . . . . . . . . . . . . . . . . . . . . . . . 82
Cyber Security Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . 83
About Application of This Product . . . . . . . . . . . . . . . . . . . . 83
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

1 Preface and Safety
6YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
1 Preface and Safety
◆Applicable Documentation
Document Description
Yaskawa AC Drive Option
Bluetooth LCD Keypad
Installation Manual
Read this manual before you install this option to
the drive.
The manual contains basic information about how
to install, wire, and connect and disconnect
smartphones or tablets through Bluetooth
communication.
This manual is in the product package.
Yaskawa AC Drive
Manuals
For information about drive settings, refer to the
manuals for the drive on which you will use this
kit.
The manuals provide information about basic
installation, wiring, operation procedures,
functions, troubleshooting, and maintenance.
The manuals also include important information
about parameter settings and tuning the drive.
You can download drive manuals from the
Yaskawa product and technical information
website shown on the back cover of this manual.
Note:
This manual shows typical examples. Different drive models can have different
functions. Refer to the drive manuals for more information.
◆Glossary
Phrase Definition
Drive
•YASKAWA AC Drive GA500
•YASKAWA AC Drive GA700
•YASKAWA AC Drive GA800
•YASKAWA AC Drive CH700
•YASKAWA AC Drive CR700
Keypad
Bluetooth Keypad Yaskawa AC Drive Option Bluetooth LCD Keypad

1 Preface and Safety
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 7
Phrase Definition
Standard Keypad LCD keypad without Bluetooth capability
Bluetooth Mode
A mode where the Bluetooth Keypad broadcasts
Bluetooth. A smart device using the DriveWizard Mobile
App can communicate with the drive through Bluetooth.
Normal Operation Mode
A mode where the Bluetooth Keypad does not broadcast
Bluetooth. The Bluetooth Keypad can be used as the
Standard Keypad.
DriveWizard Mobile A mobile app for Android and iOS that simplifies drive
parameter management and monitoring.
◆Registered Trademarks
•Bluetooth®is a trademark or registered trademark of Bluetooth
SIG, Inc. USA.
•Google Play and the Google Play logo are trademarks of Google
LLC.
•Apple and the Apple logo are trademarks of Apple Inc.,
registered in the U.S. and other countries.
•App Store is a service mark of Apple Inc.
•The iOS trademark is used under license of Cisco in the U.S.
•QR Code is a registered trademark of DENSO WAVE
INCORPORATED.
•Other company names and product names in this manual are
trademarks or registered trademarks of the respective companies.
◆Supplemental Safety Information
Read and understand this manual before you install, operate, or do
maintenance on the option. Use this option as specified by this
manual and local codes.
The symbol marks in this section identify safety messages in this
manual. If you do not obey these safety messages, the hazards can
cause serious injury, death, or damage to the products and related
equipment and systems.

2 Overview
8YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
DANGER This signal word identifies a hazard that will cause
serious injury or death if you do not prevent it.
WARNING This signal word identifies a hazard that can cause
death or serious injuries if you do not prevent it.
CAUTION Identifies a hazardous situation, which, if not avoided,
can cause minor or moderate injury.
NOTICE This signal word identifies a property damage message
that is not related to personal injury.
■General Safety
General Precautions
•The figures in this manual can possibly include options and drives without covers
or safety shields to show detail. Install missing covers or safety shields before
you operate the drive. Use the option only as specified by the instructions in this
manual.
•The diagrams in this manual are only examples and are not always related to all
the products included in this manual.
•Yaskawa can change the products and specifications in this manual or the content
and presentation of the manual without notice to improve the product and/or the
manual.
•If you damage or lose manuals, contact a Yaskawa representative or the nearest
Yaskawa sales office shown on the rear cover of the manual, and tell them the
document number on the front cover to order new copies.
DANGER Do not ignore the safety messages in this manual. If you
ignore the safety messages in this manual, it will cause serious injury or death.
The manufacturer is not responsible for injuries or damage to equipment.
◆Use Precautions
This product includes a wireless device. Some countries restrict the
use of wireless devices as specified by their radio laws. Confirm
the radio laws of the country in which you will use the device.
2 Overview
Use a Bluetooth Keypad and the DriveWizard Mobile App to use
Bluetooth to communicate with the drive. The Bluetooth keypad

2 Overview
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 9
has all of the functions of the standard keypad plus Bluetooth
connectivity.
Key features of this keypad include the ability to:
•Read and modify drive parameter settings
•Back up, restore, and verify drive parameters
•Monitor drive operation status
◆Compatible Products
Drive Drive Software Version *1
GA500 All
GA700 1016 or later
GA800 All
CH700 All
CR700 All
*1 Refer to "PRG" on the drive nameplate for the software version number.

3 Receiving
10 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
3 Receiving
1. Make sure that there is no damage to the keypad and no parts
are missing.
If there is damage to the products, contact the shipping
company immediately. The Yaskawa warranty does not
include damage from shipping.
2. Make sure that the model number on the option nameplate and
the model number on the purchase order are the same.
If you have problems with the option, contact the distributor
where you purchased the option or the Yaskawa sales office
immediately.
◆Option Package Contents
Option Contents Quantity
Bluetooth LCD Keypad 1
Installation Manual
(This document) 1

4 Component Names and Functions
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 11
4 Component Names and Functions
Figure 4.1 Keypad
Table 4.1 Component Names and Functions
- Name Functions
A
RUN LED Illuminates while the drive is operating the motor.
B
ALM LED Illuminates when the drive detects a fault.
CmicroSD
Card Slot
The slot for a microSD card.

4 Component Names and Functions
12 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
- Name Functions
D
Function
Keys
F1, F2, F3
The menu shown on the keypad sets the functions for function
keys.
The name of each function is directly above each key in the LCD
display window.
E
LO/RE LED Illuminates when you select the keypad for Run command and
frequency reference control (LOCAL).
F
LO/RE
Selection
Key
Switches drive control for the Run command and frequency
reference between the keypad (LOCAL) and an external source
(REMOTE).
Note:
•The drive will not switch between LOCAL and REMOTE
when it is receiving a Run command from an external
source.
•When you stop the drive in Drive Mode, the LOCAL/
REMOTE Selection Key stays enabled. If the application
must not switch from REMOTE to LOCAL because it will
have a negative effect on system performance, set o2-01 =
0 [LO/RE Key Function Selection = Disabled] to disable
.
GSTOP Key
Stops drive operation.
Note:
Push to stop the motor. This will also stop the
motor when a Run command is active at an external Run
command source (REMOTE Mode). To disable
priority, set o2-02 = 0 [STOP Key Function Selection =
Disabled].

4 Component Names and Functions
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 13
- Name Functions
H
Left Arrow
Key
Moves the cursor to the left.
Up Arrow
Key/Down
Arrow Key
/
•Scrolls up or down to show the next item or the previous
item.
•Selects parameter numbers, and increments or decrements
setting values.
Right Arrow
Key
(RESET)
•Moves the cursor to the right.
•Continues to the next screen.
•Clears drive faults.
ENTER Key •Enters parameter values and settings.
•Selects menu items to move the user between keypad
displays.
•Selects each mode, parameter, and set value.
I
RUN Key
Starts the drive in LOCAL Mode.
Starts the motor tuning procedure in Auto-Tuning Mode.
Note:
Before you use the keypad to operate the motor, push
on the keypad to set the drive to LOCAL Mode.
JUSB
Terminal
Factory use for maintenance.
KRJ-45
Connector
Connects to the drive using an RJ-45 8-pin straight through UTP
CAT5e extension cable or keypad connector.
L
Clock
Battery
Cover
Cover for the clock battery.

4 Component Names and Functions
14 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
- Name Functions
MInsulation
Sheet
Remove the insulation sheet before you use the clock function.
Note:
An insulating sheet is attached to the keypad with built-in
battery.
NNameplate
Shows the model number of the keypad and other information
Note:
• “REV”identifies the hardware and software version of the
keypad.
• “FCC ID”is the ID issued by the U.S. Federal
Communications Commission.
• “IC”is the Canadian authentication code.
WARNING Sudden Movement Hazard. If you change the control
source when b1-07 = 1 [LOCAL/REMOTE Run Selection = Accept Existing
RUN Command], the drive can start suddenly. Before you change the control
source, remove all personnel from the area around the drive, motor, and load.
Sudden starts can cause serious injury or death.

4 Component Names and Functions
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 15
◆Indicator LEDs and Drive Status
LED Display Drive Status
RUN LED
Illuminated The drive is operating the motor.
Flashing
•The drive is decelerating to stop.
•The drive received a Run command with a
frequency reference of 0 Hz, but the drive is not
set for zero speed control.
•The drive received a DC Injection Braking
command.
Flashing
Quickly
•The drive received a Run command from the
MFDI terminals and is switching to REMOTE
Mode while the drive is in LOCAL Mode.
•The drive received a Run command from an
external source and the drive is not in Drive Ready
(READY) condition.
•The drive received a Fast Stop command.
•The safety function shut off the drive output.
•You pushed on the keypad while the
drive is operating in REMOTE Mode.
•The drive is energized with an active Run
command and b1-17 = 0 [Run Command at Power
Up = Disregard Existing RUN Command].
•When b1-03 = 3 [Stopping Method Selection =
Coast to Stop with Timer], the Run command is
disabled then enabled during the Run wait time.
•The drive received a DC Injection Braking
command.
•The voltage of the main circuit power supply
decreased, and the 24 V power supply is supplying
power only the the drive.
OFF The motor is stopped.

4 Component Names and Functions
16 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
LED Display Drive Status
ALM LED
Illuminated The drive detects a fault.
Flashing
The drive detected one of the following:
•An alarm
•An oPE parameter setting error
•A fault or error during Auto-Tuning
Note:
The digital characters displayed on the keypad
will also flash.
OFF There are no drive faults or alarms.
LO/RE LED Illuminated The keypad controls the Run command (LOCAL
Mode).
OFF The control circuit terminal or serial transmission
device controls the Run command (REMOTE Mode).
■LED Flashing Statuses
Refer to Figure 4.2 for information about the differences between
flashing and “flashing quickly”.
Figure 4.2 LED Flashing Statuses
Figure 4.3 Relation between RUN indicator and Drive Operation
/

5 Installation and Primary Operation
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 17
5 Installation and Primary Operation
◆Section Safety
NOTICE Damage to Equipment. Correctly connect all pins and
connectors. If the pins and connectors are incorrect, it can cause damage to
equipment and incorrect operation.
NOTICE Damage to Equipment. Do not bend the communication
cables more than the bend radius specifications. If you bend the cables too
much, it can break the wires and loosen connections.
Note:
Use Yaskawa connection cables or recommended cables only. Incorrect cables can
cause the drive or option to function incorrectly.
◆Installing the Keypad on the Drive
Refer to Remote Keypad Installation Methods on page 49 when
you install the keypad on an enclosure panel.
1. Remove the standard keypad that shipped with the drive.
Figure 5.1 Remove the Keypad

5 Installation and Primary Operation
18 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
2. Put the bottom of the Bluetooth keypad into position first,
then carefully push on the top of the keypad until the hook
clicks into place.

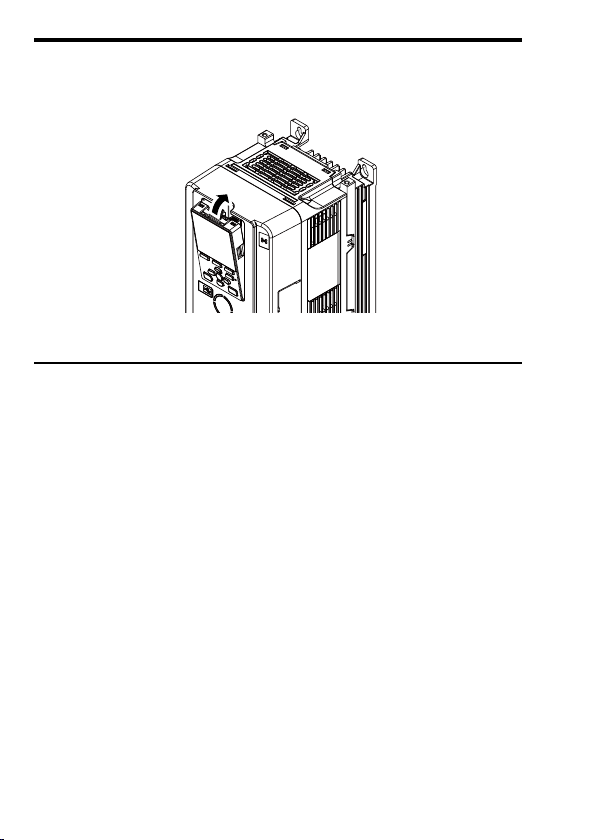

Figure 5.2 Attach the Keypad
◆Connecting the Keypad and Smart Device
The procedure to connect the keypad and smart device is different
for different keypad versions. When you have a REV: C or earlier
keypad, refer to Connecting the Keypad and Smart Device (REV: C
or Earlier) on page 35. Refer to “REV”on the keypad nameplate
for the keypad version.
■Prepare the Information Necessary for Connection
Collect this information before you connect the keypad to a
smartphone or tablet with Bluetooth communications:
1. Yaskawa Drive Cloud account Member ID and Password.
Note:
•Access the URL on the back cover of this manual to register for an account.
•For Japan: Member ID and password to the Yaskawa product and technical
information website
2. Setting value of A1-12 [Bluetooth ID]
Note:
When A1-12 = 0000, Bluetooth communication is disabled. Set the Bluetooth ID
≠0000 to enable Bluetooth. Refer to Enabling Bluetooth Communications on page
20 for more information.

5 Installation and Primary Operation
YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual 19
3. Drive series and serial number of the drive to which you will
connect
Note:
•To retrieve the Device Name transmitted by Bluetooth, push (Device
Name).
Figure 5.3 Device Name
•Use the Device Name when you connect a smartphone or tablet to the drive to
identify your drive from the other devices that are transmitting Bluetooth.
■Install DriveWizard Mobile
Download DriveWizard Mobile to your smartphone or tablet
through the Apple App Store or Google Play Store.
•For Android devices: Google Play Store
•For iOS devices: App Store
Table 5.1 QR Codes
Google Play Store App Store
Refer to Table 5.2 for operating systems and drives compatible
with the DriveWizard Mobile App.

5 Installation and Primary Operation
20 YASKAWA TOEP C730600 94D Bluetooth LCD Keypad Installation Manual
Table 5.2 DriveWizard Mobile Specifications
Item Description
Compatible Drive Series •YASKAWA AC Drive GA500
•YASKAWA AC Drive GA700
•YASKAWA AC Drive GA800
•YASKAWA AC Drive CH700
•YASKAWA AC Drive CR700
Recommended Operating Environment
for Smart Device
•OS: Android 6.0, 7.0, 7.1, 8.0, 8.1 or
iOS 10, 11, 12
•Support for Bluetooth 4.0 or 4.1
■Enabling Bluetooth Communications
1. Push two times on the initial Setup screen.
2. Push to select [Parameters] then push .
