Introduction

This Configuration Guide is written as general guide on how to configure the Yealink phone
model CP935W to work with PBXware 6.6.1.
Requirements
Identifying phone model
To start and successfully complete registration of your Yealink phone you need to know which
phone model you will setup.
From the back of each Yealink phone there are exact model information that you should check.
Although different phone models can have exactly the same requirements and installation
procedure, phone models can also have significantly different requirements and installation
procedure, so that ignorance of your own model may result in the inability to successfully set up
your phone.
Phone firmware
Make sure that your phone is loaded with appropriate firmware version, 148.86.0.5.
■
To find out the firmware version of your Yealink phone model open a new browser window and
■
enter your phone IP address in order to access the phone web administration interface login
screen. Example: http://192.168.1.22.
Login to phone web administration interface with your username and password. Please note,
■
factory default login details are username: admin and password: admin.

DHCP server
Fully configured and operational DHCP server.
PBXware version
PBXware version 6.6.1
In order to find out the PBXware version:
Login to PBXware
■
Navigate to Settings: About.
■
On the top of About page is a code similar to this one PBXware Edition: Business, Release:
6.6 (387597b7), Running: 16.16.1-gc-c0d40968, PBXware Proxy v6.6 (7009484), API: 6,
libmemcached version: 1.0.14, where Release denotes the exact version of your PBXware.
Installation
This chapter describes how to install and connect the phone to the electrical power and data
network as well as how to apply factory settings.
The following topics are covered:
Power adapter
■
Factory Settings
■
Power adapter
Connect the Network and Power
Connect the charging cradle to the phone to charge the CP935W device.
■

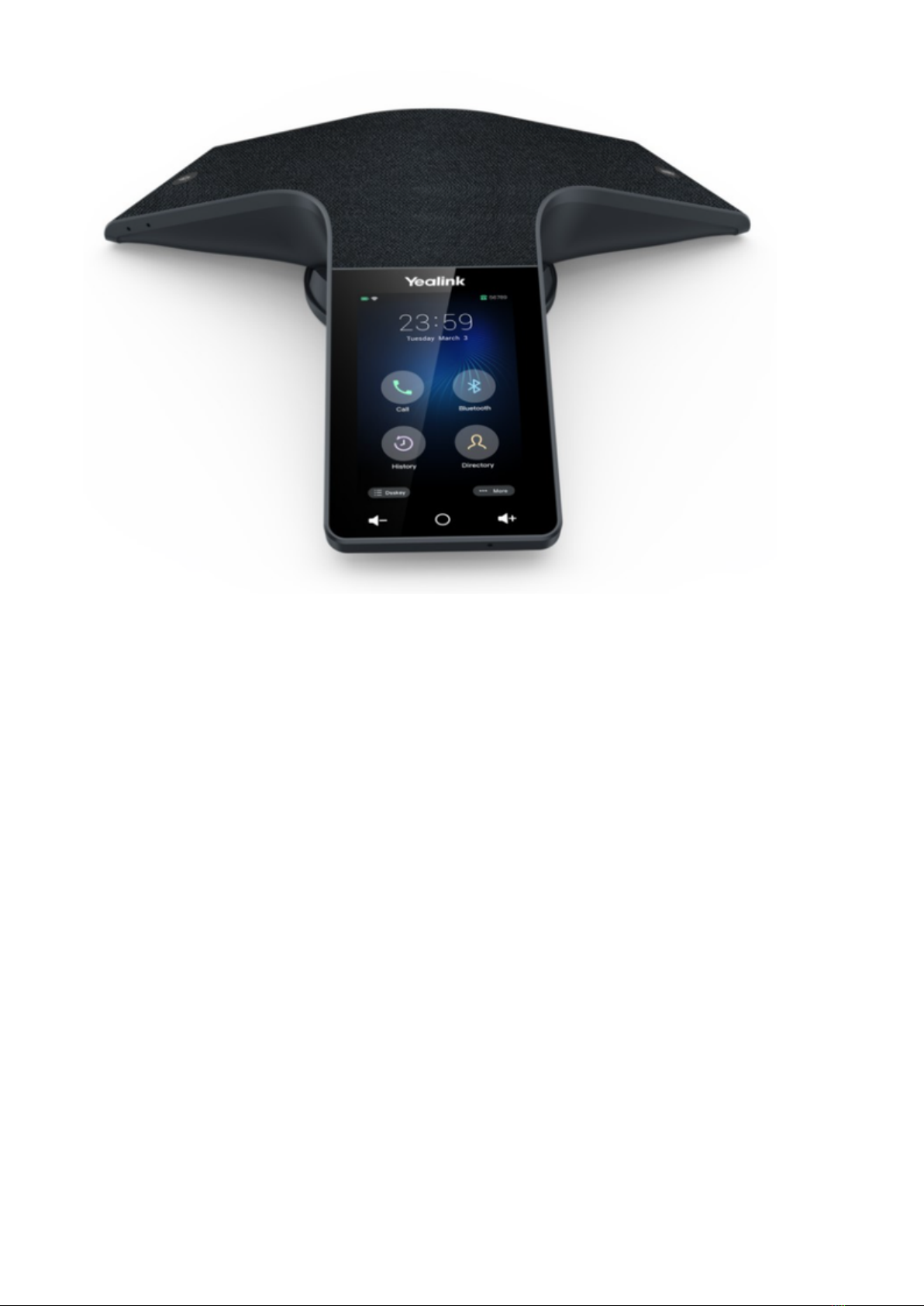

Yealink CP935W is a wireless touch-sensitive HD conference phone, you can register a SIP
■
account directly through Wi-Fi.
Find the phone IP address
Find out your Yealink phone IP Address.
Go to More.
■
Select Status.
■
Select General.
■
The IP address will be displayed on the top of display.
Reset to factory settings
This step is not required for brand new out-of-the-box phones, however, if the phone has been
already used then it is a must.

Go to More.
■
Go to Advanced section at the bottom and enter admin password. NOTE: Default admin
■
password for Yealink CP935W is admin.
Select Reset Config
■
Select Reset to Factory option and confirm with OK.
■
Wait sometime prior for device to reboot.
■
NOTE: Do not unplug or remove power to the phone while it is updating firmware and
configurations.
Registering phone
This chapter describes how to identify Yealink phone model, requirements that must be met and
how to register the phone using manual configuration or auto provisioning.
The following topics are covered:
Manual configuration
■
Auto provisioning
■
Manual configuration
This chapter describes how to set UAD settings, create PBXware extension and register the
phone.
The following topics are covered:
UAD settings
■
Creating extension
■
Registering phone
■
UAD Settings
UAD settings
Login to PBXware web administration interface
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
UAD settings

Navigate to Settings:UAD.
■
Make sure Yealink UAD is enabled. To check the UAD status click on the edit icon
■
corresponding to your Yealink phone.
Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating extension
Creating Extension
Add Extension
Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Yealink phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all extensions registered on the LAN and Remote is for all extensions
registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■
Extension values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected]
Department
■
Department to which extension will belong to. Example: Sales.
Click on the Save button.
■

Registering Phone
This chapter describes how to register Yealink phone using Hostname or IP Address.
The following topics are covered:
Hostname or IP Address
■
Hostname or IP Address
Login to phone web administration interface
Open a new browser window and enter your phone IP address in order to access the phone
■
web administration interface login screen. Example: http://192.168.1.22
Login to phone web administration interface with your username and password. Please note,
■
factory default login details are username: admin and password: admin.
Click on Account.
■
Click on Register.
■
Enter or set the following details into the respective fields.
■
REQUIRED FIELDS:
Line Active
■
Make sure the On radio box is selected.
Register Name
■
PBXware extension number. Example: 1003
User Name
■
Usually the same number as the Phone Number.
Password
■
The Secret of the extension as received in the e-mail associated with this extension.
Example: _%Z4M3*Ts9y7. A password is generated automatically for each newly created
extension.
Server Host
■
Enter the Hostname or IP Address of the PBXware.
- Example for Hostname: voip.bicomsystems.com

- Example for IP Address: 192.168.1.10
Click on the Confirm button.
■
You'll have to wait sometime prior for the device to reboot. If everything is done as above
■
described, you should have successfully registered your phone to PBXware. Dial *123 to verify
registration.
Auto Provisioning
This chapter describes how to set UAD settings, create PBXware extension and register the
phone using DHCP or Static IP address.
The following topics are covered:
UAD Settings
■
Creating Extension
■
Registering Phone
■
UAD Settings
UAD settings
Login to PBXware web administration interface.
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
UAD settings.
Navigate to Settings:UAD.
■
Make sure Yealink UAD is enabled. To check the UAD status click on the edit icon
■
corresponding to your Yealink phone.
Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating Extension
Creating Extension

Add Extension
Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Yealink phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all extensions registered on the LAN and Remote is for all extensions
registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■
Extension values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected]
Auto Provisioning
■
Set to Yes.
MAC Address
■
Enter Yealink phone MAC address. Example: 001565FF1536. MAC address can be found
at the back of the phone.
Click on the Save button.
■
Registering Phone
This chapter describes how to register Yealink phone using DHCP, TFTP, HTTP & HTTPS.
The following topics are covered:
DHCP
■
TFTP or HTTP & HTTPS
■

DHCP
Configure DHCP
Make sure your DHCP router is configured to use option 66 to automatically instruct phones
■
with the URL for auto provisioning. For more information refer to your router documentation
or contact your network administrator.
Phone first boot or user initiated reboot
Auto provisioning process will start during phone first boot or after reboot process has been
■
initiated by user. DHCP server will instruct the phone where from to pickup appropriate
configuration file. If everything is done as above described, you should have successfully
registered your phone to PBXware. Dial *123 to verify registration.
TFTP or HTTP & HTTPS
Open a new browser window and enter your phone IP address, e.g. http://192.168.1.22.
■
Enter username and password and press Confirm button. NOTE: Factory default login
■
details are username: admin and password: admin.
Click on Settings tab.
■
Click on Auto Provision link in the left hand navigation menu.
■
Choose what server type you intend to use: HTTP, HTTPS and Trivial FTP. NOTE: Our
■
recommendation is to use the HTTP.
If you choose to use server type HTTP or HTTPS enter http:// or https:// followed
by Hostname or IP Address, followed then by /prov in Server URL field.
Example for Hostname using HTTP: http://abc.bicomsystems.com/prov
Example for Hostname using HTTPS: https://abc.bicomsystems.com/prov
Example for IP Address using HTTP: http://192.168.1.10/prov

Example for IP Address USING HTTPS: https://192.168.1.10/prov
Enter Auto Provisioning username and password into Username and Password fields.
■
If you choose to use server type TFTP enter tftp:// followed by Hostname or IP
Address
Example for Hostname: tftp://voip.bicomsystems.com
Example for IP Address: tftp://192.168.1.10
Click on Confirm button.
■
Click on Autoprovision Now button.
■
A pop up window will show up, click on OK button to confirm your action.
■
You'll have to wait couple of seconds for the configuration to be updated. NOTE: Do not power
■
off your phone.
Auto provisioning process will start during phone reboot process, phone will pickup
■
appropriate configuration file from PBXware. If everything is done as above described, you
should have successfully registered your phone to PBXware. Dial *123 to verify registration.
Using TLS
NOTE: If you choose to use HTTPS as a protocol for registering your phone:
Open a new browser window and enter your phone IP address, e.g. http://192.168.1.22.
■
Enter username and password and press Confirm button. NOTE: Factory default login
■
details are username: admin and password: admin.
Click on Security tab and go to Trusted certificates and disable the option Only Accept
■
Trusted Certificates.

Additional Configuration Template
If You want to include some additional UAD configuration for Yealink CP935W, just add fields to
User Agent General Auto Provisioning Template in Settings -> UAD -> Yealink CP935W
menu, or add them directly to the extension in UAD Auto Provisioning Template section.
