Zeiss OPMI Vario User manual

OPMI®VARIO
on S8, S81 & S88
Suspension Systems
Instructions for use
G-30-1607-en
Issue 5.0
Printed on 30. 01. 2009

2
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Key to symbols
Different symbols used in this manual draw your attention to safety as-
pects and useful tips. These symbols are explained in the following.
Warning!
The warning triangle indicates potential sources of danger which may
constitute a risk of injury for the user or a health hazard.
Caution:
The square indicates situations which may lead to malfunction, defects,
collision or damage of the instrument.
Note:
The hand provides hints on the use of the instrument or other tips for the
user.
OPMI®is a registered trademark of Carl Zeiss Surgical GmbH.

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
3
Contents
– Key to symbols 2
Functions at a glance 7
– OPMI® VARIO 8
– S88 floor stand 10
– S88 floor stand with lifting column 12
– S8 ceiling mount 14
– S81 ceiling mount 16
Safety 19
– Notes on installation and use 21
– Safety devices of the suspension systems 28
– Warning labels and notes 38
Description 47
OPMI® VARIO surgical microscope 50
– Intended use 50
– Special properties 51
– Design 52
– Controls, displays, connections 54
– Binocular tubes and eyepieces 62
Xenon illumination system 66
Identical modules of the suspension systems 72
– Suspension arm 72
– Display field with control keys 74
S88 floor stand 76
– Intended use 76
– Description of the modules 77
– Design 78
– Stand base with column 80
– Connection panel 82

4
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
– Instrument tray (option) 84
– Video monitor (option) 86
S88 floor stand with lifting column 94
– Intended use 94
– Description of the modules 95
– Design 96
– Stand base with lifting column 98
– Connector panel 100
S8 ceiling mount 102
– Intended use 102
– Description of the modules 103
–Design 104
– Power switch with connector (option) 106
S81 ceiling mount 108
– Intended use 108
– Description of the modules 109
–Design 110
– Power switch, connector and socket (option) 112
VARIO surgical microscope on S88 floor stand 114
– Intended use 114
–Design 114
VARIO surgical microscope on S88 floor stand
with lifting column 116
– Intended use 116
–Design 116
VARIO surgical microscope on S8 ceiling mount 118
– Intended use 118
–Design 118
VARIO surgical microscope on S81 ceiling mount 120
– Intended use 120
–Design 120
Foot control panel (option) 122
– Intended use 122
–Design 122

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
5
– Foot control panel with 14 functions 124
– Foot control panel with 8 functions 125
Preparations 127
Attaching the equipment 128
– Mounting the surgical microscope 128
– Attaching accessories 130
– Mounting the tube and eyepieces 132
Connections 134
– Connecting the surgical microscope 134
– Mounting the light guide 134
– Aligning the X-Y coupling 138
– Strain relief device on S88 floor stand 140
– Connecting the S88 floor stand 142
Adjusting the supension system 144
– S88 floor stand with lifting column -
Setting the ergonomic working height 144
– Adjusting the balance setting of the suspension arm 146
– Adjusting the limit of downward movement 148
– Positioning the S8 ceiling mount 150
Settings on the control and display panel 153
– Adjusting the suspension system 153
Balancing the surgical microscope 154
Adjusting the surgical microscope 156
Surgical microscope with a laser micromanipulator 157
Relocating the system 160
Operation 163
Checklist 164
Positioning the S88 floor stand 168
Using the display and key field 170
– General functions 170
– OPMI Vario on the suspension system, user interface
with SpeedFokus option 174
Procedure 194

6
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
What to do in an emergency 196
– Failure of a xenon lamp 196
– Failure of lamp control 200
– Failure of the zoom function 201
– Failure of the focusing function 202
– Failure of magnetic brakes 203
Maintenance / Further information 205
– Trouble-shooting 206
– Changing the xenon lamp module 214
– Adjusting the monitor arm 218
– Magnifications / Fields of view 220
– Care of the unit 222
– Sterilization 223
– Disinfecting the control keys 224
– Ordering data 226
– Spare parts 230
– Accessories 231
– Disposal 233
Technical data 235
– Technical data of OPMI VARIO 237
– Technical data of S88 floor stand 238
– Technical data of S88 floor stand with lifting column 240
– Technical data of S8 ceiling mount 246
– Technical data of S81 ceiling mount 250
– Ambient requirements 253
– CE conformity 253
– Changes to the system 253
Index 255

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 7
Functions at a glance
OPMI® VARIO 8
S88 floor stand 10
S88 floor stand with lifting column 12
S8 ceiling mount 14
S81 ceiling mount 16

8Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
OPMI®VARIO
1 Adjusting the eyecup and the prescription page 64
2 Adjusting the interpupillary distance page 62
3 Adjusting the friction of vertical adjustment page 54
4 Recentering the X-Y coupling page 60
5 Adjusting the friction of the OPMI® axis of rotation page 60
6 Manual zoom setting page 56
7 Manual focusing page 56
8 Manual setting of the illuminated field diameter page 56
9 Connecting the light guide page 134
10 Balance setting of the microscope's
front-to-back tilt
page 54
11 Balance setting of the microscope's
lateral tilt
page 54
12 Motorized focusing page 58
13 Motorized zoom setting page 58
14 Display of the magnification factor of
the zoom system
page 54
15 Releasing the magnetic brakes page 58
16 Programmable release buttons page 58
17 Switching off the electrical drive of the
focusing system
page 56
18 Connecting the mouth switch page 54

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 9
5
186
123 4
78 11 12 13 14 15 16 17910

10 Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
S88 floor stand
1 Control panel page 70
2 Illumination system page 66
3 Releasing the magnetic brakes of the suspension
system
page 72
4 Limiting the suspension arm's downward movement page 72
5 Removing/mounting the coupling for the
surgical microscope
page 72
6 Balance setting page 72
7 Locking the stand in position page 80
8 Locking the suspension arm in its horizontal position page 72
9 Connecting the foot control panel or hand switch,
plugging in the remote control connector
page 82
10 Rated voltage display page 82
11 Connector panel page 82
12 Switching on the suspension system page 82

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 11
12 4356
7 4 8910,11,12

12 Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
S88 floor stand with lifting column
Xenon illumination system
1 Selecting a filter page 68
2 Manual activation of backup bulb page 66
3 Resetting the counter page 68
4 Opening the lamp module page 68
5 Red segment is lit - backup bulb is in use page 66
6 Control panel
7 Lamp housing of xenon illumination system page 66
8 Unlocking the magnetic brakes of the suspension
system
page 72
9 Limiting the suspension arm's downward movement
10 Removing/mounting the coupling for the
surgical microscope
page 72
11 Balance setting
12 Locking the stand in position page 80
13 Raising/lowering the lifting column page 144
14 Locking the suspension arm in its horizontal position page 72
15 Connecting the foot control panel or hand switch,
Connecting the remote control connector
page 82
16 Rated voltage display page 82
17 Connector panel page 82
18 Turning on the suspension system page 82
421 53

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 13
67 9810 11
12 13 9 14 15 16, 17, 18

14 Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009

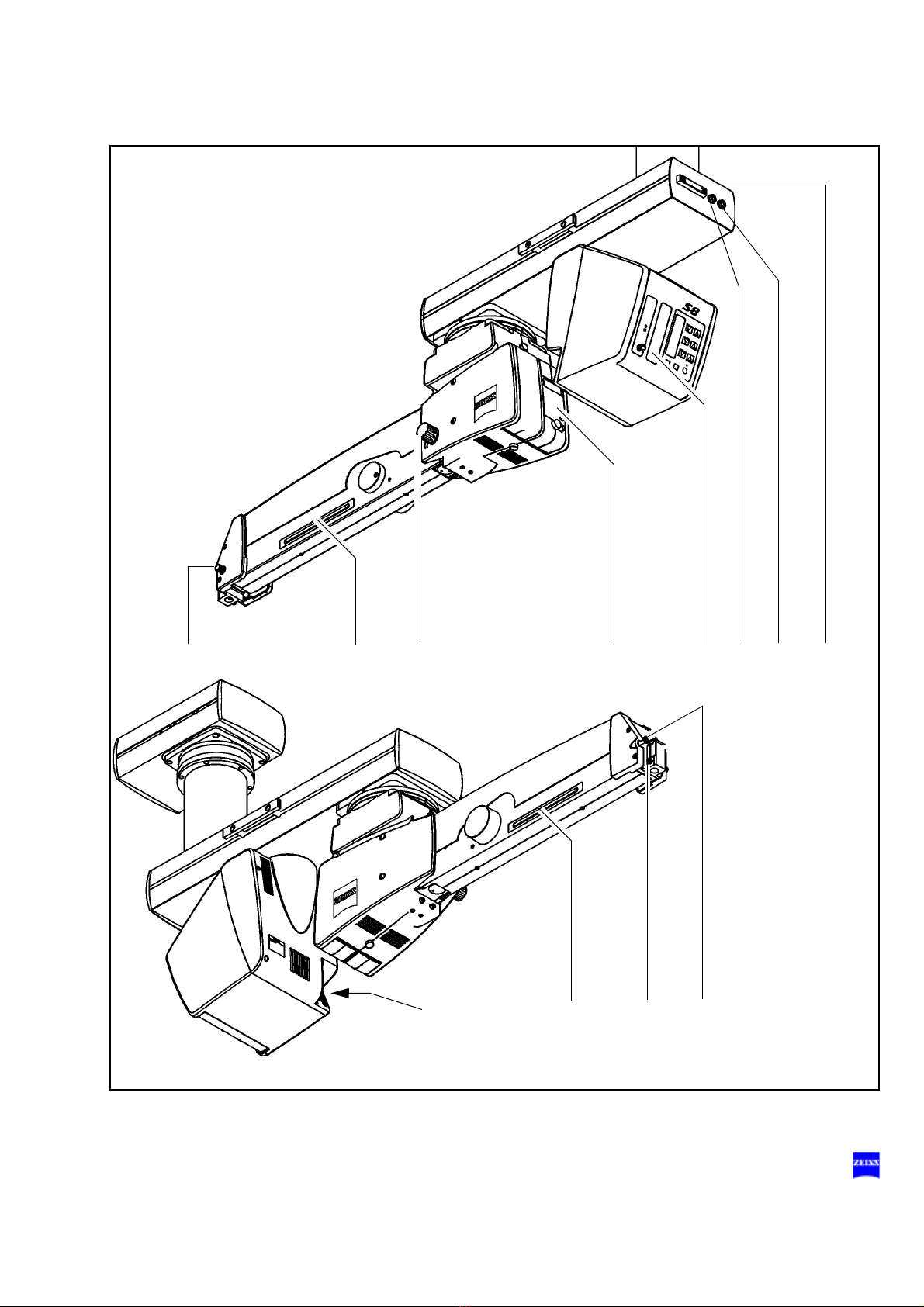

S8 ceiling mount
1 Locking the suspension arm in its horizontal position page 72
2 Releasing the magnetic brakes of the suspension system page 72
3 Balance setting page 72
4 Illumination system page 66
5 Control panel (rotatable through 180° or 70°) page 70
6 Connecting the foot control panel or hand switch,
plugging in the remote control connector
page 106
7 Switching on the suspension system page 106
8 Releasing - moving - locking the lift arm page 104
9 Removing/mounting the coupling for the
surgical microscope
page 72
10 Setting the limit of downward travel page 72

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 15
102798
15623 4

16 Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
S81 ceiling mount
1 Locking the suspension arm in its horizontal position page 72
2 Releasing the magnetic brakes of the suspension system page 72
3 Balance setting page 72
4 Illumination system page 66
5 Control panel (rotatable through 180° or 70°) page 70
6 Option: hand control panel socket for ceiling track mount page 112
7 Plugging in the remote control connector page 112
8 Connecting the foot control panel or hand switch page 112
9 Switching on the suspension system page 112
10 Removing/mounting the coupling for the
surgical microscope
page 72
11 Setting the limit of downward travel page 72

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Functions at a glance 17
10 112
9
456123 87

18 Functions at a glance
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009

G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
Safety 19
Safety
Notes on installation and use 21
Safety devices of the suspension systems 28
Warning labels and notes 38

20 Safety
G-30-1607-en OPMI® VARIO on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 30. 01. 2009
The device described in this manual has been designed and tested in ac-
cordance with Carl Zeiss safety standards as well as German and inter-
national standards. This guarantees a high degree of instrument safety.
The system described in this user manual has been designed in compli-
ance with the requirements of:
In accordance with Directive 93/42/EEC for medical devices, the com-
plete quality management system of the company Carl Zeiss Surgical
GmbH, 73446 Oberkochen, Germany, has been certified by DQS Deut-
sche Gesellschaft zur Zertifizierung von Managementsystemen GmbH, a
notified body, under registration number 250758 MP23.
– As per Directive 93/42/EEC, the unit is a Class I instrument.
– For USA: FDA classification Class I.
We would like to provide you with information about safety aspects which
must be observed when handling this device. This chapter contains a
summary of the most important information concerning matters relevant
to instrument safety.
Important safety information has been incorporated in this manual and is
marked with a warning triangle accordingly. Please give this information
your special attention.
The correct use of the system is absolutely vital for safe operation. Please
make yourself totally familiar with the contents of this manual prior to start-
up of the instrument. Please also observe the user manuals of any addi-
tional equipment. Further information is available from our service depart-
ment or from authorized representatives.
• Please observe all applicable accident prevention regulations.
• The instrument must be connected to a special emergency backup
line supply in accordance with the regulations or directives which ap-
ply in your country.
–EN –IEC –UL –CSA
