Zeiss S100/OPMI pico User manual

S100 / OPMI® pico
Instructions for Repair and Alignment
Service Instructions
Confidential and Proprietary
SM-30-0030-A02
Version 07, 2015-12-03
Order No. -

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 2 / 27 Version 07, 2015-12-03

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 3 / 27 Order No. -
1Contents
1Contents................................................................................................................... 3
2Update information.................................................................................................. 4
3General information................................................................................................. 5
3.1 Additional literature .................................................................................................... 5
3.2 Special tools and supplies............................................................................................ 5
4Alignment template ................................................................................................. 6
5OPMI

pico............................................................................................................... 7
5.1 Removing, installing and adjusting the OPMI® pico illumination module.................... 7
5.2 Exchanging a filter....................................................................................................... 7
5.3 Removing, installing and adjusting the magnification changer.................................... 9
5.4 Removing, installing and adjusting the camera module............................................. 11
6S 100 suspension systems...................................................................................... 13
6.1 Changing the pneumatic spring................................................................................. 13
6.2 Changing and adjusting the inclination switch .......................................................... 15
6.2.1 Setting the inclination switch........................................................................................16
6.3 Changing the illumination potentiometer .................................................................. 16
6.4 Changing the suspension arm.................................................................................... 18
7Halogen lamp housing ........................................................................................... 20
7.1 Opening the illumination unit .................................................................................... 20
7.2 Checking and adjusting the maximum lamp voltage ................................................. 20
8LED illumination unit.............................................................................................. 23
8.1 Changing the power supply board............................................................................. 23
8.2 Changing the PCB Control S100 Video / LED ............................................................. 25
8.3 Changing the LED light source................................................................................... 25

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 4 / 27 Version 07, 2015-12-03
2Update information
Version Comments
01 25.11.2000
02 31.08.2001
03 30.01.2002
04 18.01.2005 -"Checking and adjusting the lamp voltage" added
05 2006-08-08 -"Exchanging a filter" added
06 2013-01-25 -“LED” added, page 23
07 2015-12-03 -Added:
7.3 Exchanging the conductor rails for halogen lamp housing, page 21
7.4 Changing the small fan, page 22
8.4 Changing the Fan, page 27

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 5 / 27 Order No. -
3General information
3.1 Additional literature
Service manual SM-30-0030
Instructions for installation SM-30-0030-A1
3.2 Special tools and supplies
Objective lens f = 200 mm 305132-0000-000
Scribing iron 0015-690
Alignment template see page 6
GF 50 grease (30g) INR 0117-471
GF 100 grease (30g) INR 0117-472
Threadlocker, blue (20ml) INR 0360-167
KL 44 threadlocker (20ml) INR 0069-820

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 6 / 27 Version 07, 2015-12-03
4Alignment template
Justiervorlage für OPMI®pico
Objektiv: f = 200 mm
Tubus: f = 170 mm
Okulare: 10x oder 12,5x
(Bei Bedarf kopieren)
Alignment template for OPMI®pico
Objective lens: f = 200 mm
Binocular tube: f = 170 mm
Eyepieces: 10x or 12.5x
(Copy as required).

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 7 / 27 Order No. -
5OPMI

pico
5.1 Removing, installing and adjusting the OPMI® pico illumination
module
Removal:
1) Disconnect the light guide and (if necessary) the
system cable (video cable) from the OPMI®
microscope.
2) Remove four screws (1) and cover (2).

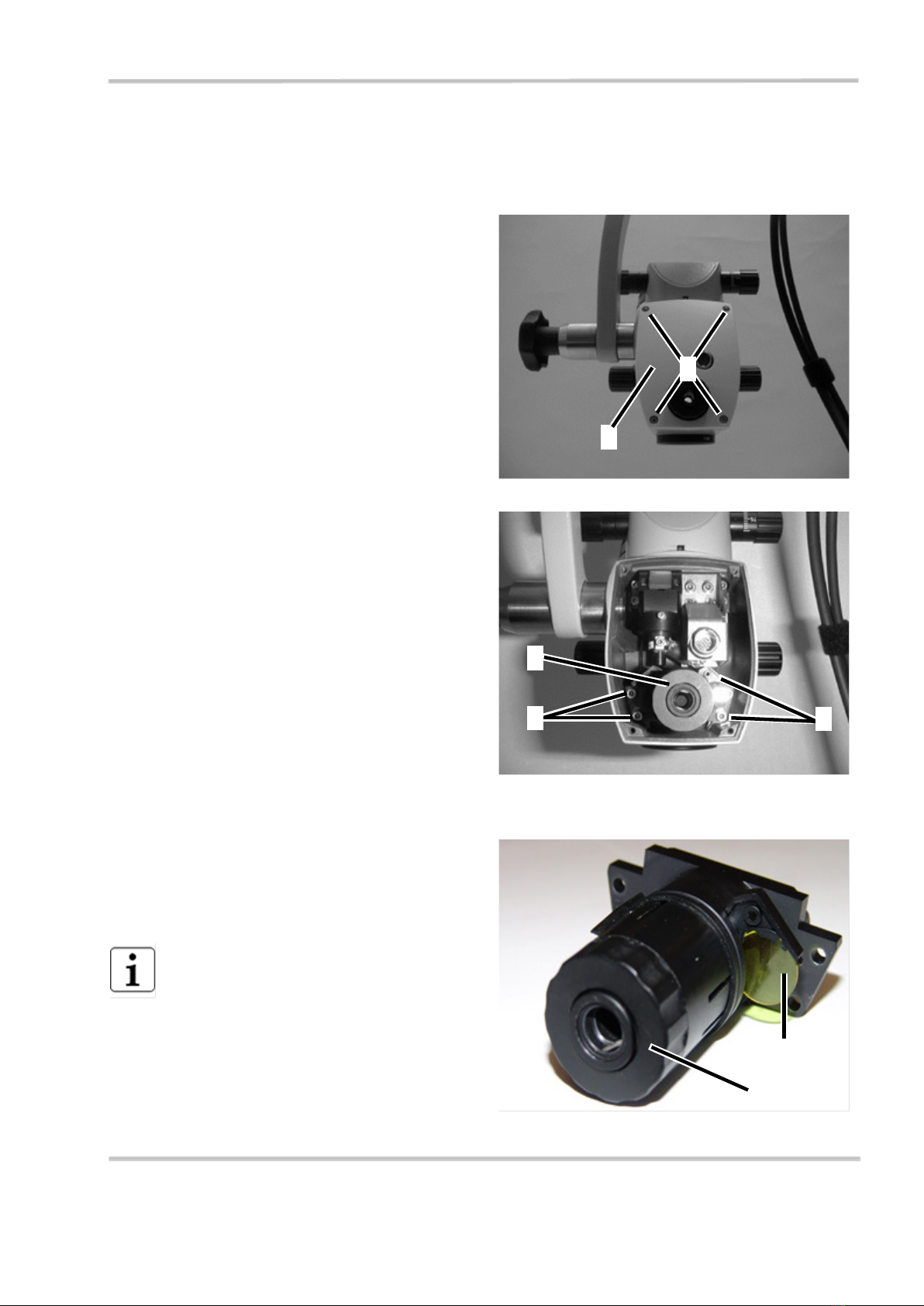

Fig. 1: Remove cover
3) Unscrew four screws (3) and remove OPMI®
pico illumination module (4).
Installation:
1) Insert OPMI® pico illumination module (4) and
mount it by tightening four screws (3) only
slightly.
Fig. 2: Remove OPMI® pico illumination module
5.2 Exchanging a filter
1) Swing out the filter to be exchanged (5) by
turning filter selection ring (6).
2) Remove filter (5) from the mount and insert the
new filter.
Note
Make sure that the filter is absolutely clean:
Any contaminations present on the filter
are imaged in the illuminated field.
3) Proceed in the reverse order for assembly.
Subsequent adjustment is required.
Fig. 3: Exchange the filter
2
1
4
3
3
6
5

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 8 / 27 Version 07, 2015-12-03
Adjustment:
1) Switch the magnification changer to its free-
passage position (position 1).
2) Align OPMI® with the test object (alignment
template enclosed) and focus the microscope
on it.
3) Move and tilt the illumination module in such a
way that the illuminated field is radially
centered to within ± 1 mm relative to the outer
reference circle.

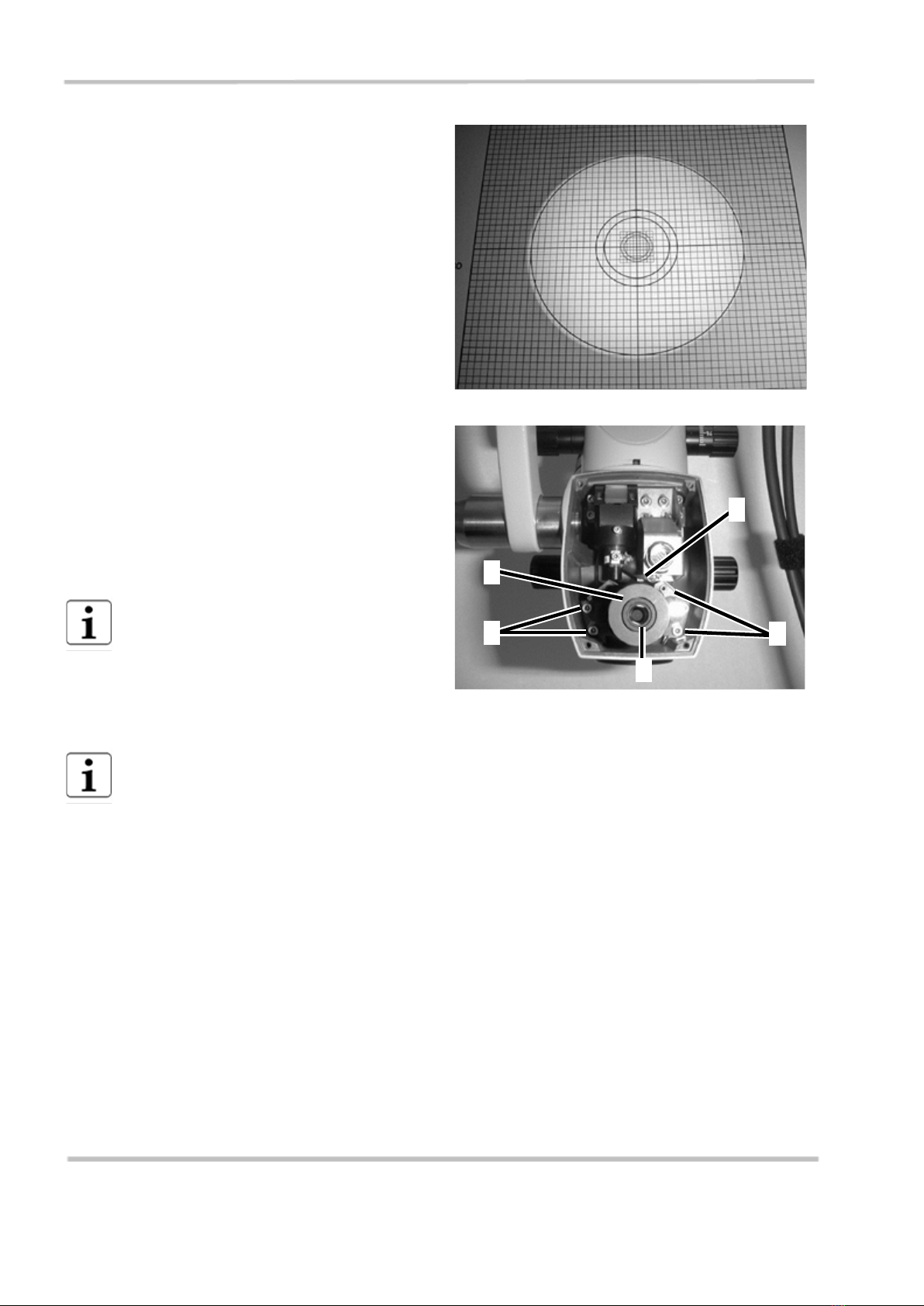

Fig. 4: Focus the microscope
4) Tighten screws (1) and secure them in position
by applying blue threadlocker to their heads.
5) If the edge of the illumination field is out of
focus, loosen the set screw (2) and shift the
light guide sleeve (3) to obtain correct focus.
6) Tighten set screw (2)
7) Re-attach cover (2 Fig. 1).
Note
In case of a not adjustable offset in vertical
direction, shims must be inserted between
illumination unit and OPMI body at the two
upper or lower screws (1) depend on the
offset direction (see drawing OPMI® pico
Basis –1095-102).
Fig. 5: Secure the microscope in position
Note
There are two versions of illumination units existing.
One version (no. 1053-917) without UV safety filter for OPMI® pico and the
other version (no. 1153-460) with UV safety filter for OPMI® pico i (ophthalmic version).
For easy differentiation between the two versions, the front surface of the light guide sleeve
is anodized black for the unit without safety filter and
anodized to natural aluminium for the unit with safety filter
When installing an illumination unit in an OPMI® pico i, make sure, to use the version
1153-460 (with safety filter) as otherwise damage to the patient`s eye is possible.
1
1
4
2
3

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 9 / 27 Order No. -
5.3 Removing, installing and adjusting the magnification changer
Removal:
1) Disconnect the light guide and (if necessary) the
system cable (video cable) from the OPMI®
microscope.
2) Remove four screws (1) and cover (2).
Fig. 6: Remove cover
3) Remove the camera module as described in
point 5.3.
4) Loosen setscrews (3) and remove knobs (4).
Mark the knobs to ensure correct assignment to
the right/left side.
5) Unscrew shafts (5) (to achieve this, insert two
pins in their boreholes and loosen the shafts by
turning them counterclockwise).
6) If one of the shafts remains fixed, unscrew the
objective lens and switch the magnification
changer to its free-passage position. Secure the
changer in this position using a piece of round
wood or a similar device and remove the shaft.
Fig. 7: Remove the camera module
7) Remove changer drum (6).
8) If necessary, remove screw (7) and catch
spring (8).
Note
Do not remove the optics of the changer.
Installation:
1) If necessary, re-install catch spring (8) and
screw (7).
2) Lubricate the changer's running surface for the
catch spring with GF 100 grease.
3) Lubricate the front surfaces of the changer with
GF 50 grease.
4) Re-install the changer drum in laterally correct
position.
Fig. 8: Remove changer drum
5) Lubricate the running surfaces of shafts (9) with GF 50 grease. Screw them back in and tighten
them (2 ± 0.5 Nm).
6) Mount knobs (10) on their respective sides, making sure that their scales are correctly set.
2
1
4
3
5
6
8
7
9
10

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 10 / 27 Version 07, 2015-12-03
Adjustment:
Note
The following description assumes that the optics in the changer has been correctly
adjusted, i.e. no image shift or binocular error occurs when the changer is switched from
one magnification step to another as well as no focus differences.
Tolerances:
Binocular alignment:
Convergent deviation ≤ 15´
Divergent deviation ≤ 5´
Hight deviation ≤ ± 5´
Focus alignment:
Difference of focal planes left / right
≤ ± 0.25 mm at γ= 2.5
≤ ± 2 mm at γ= 0.4

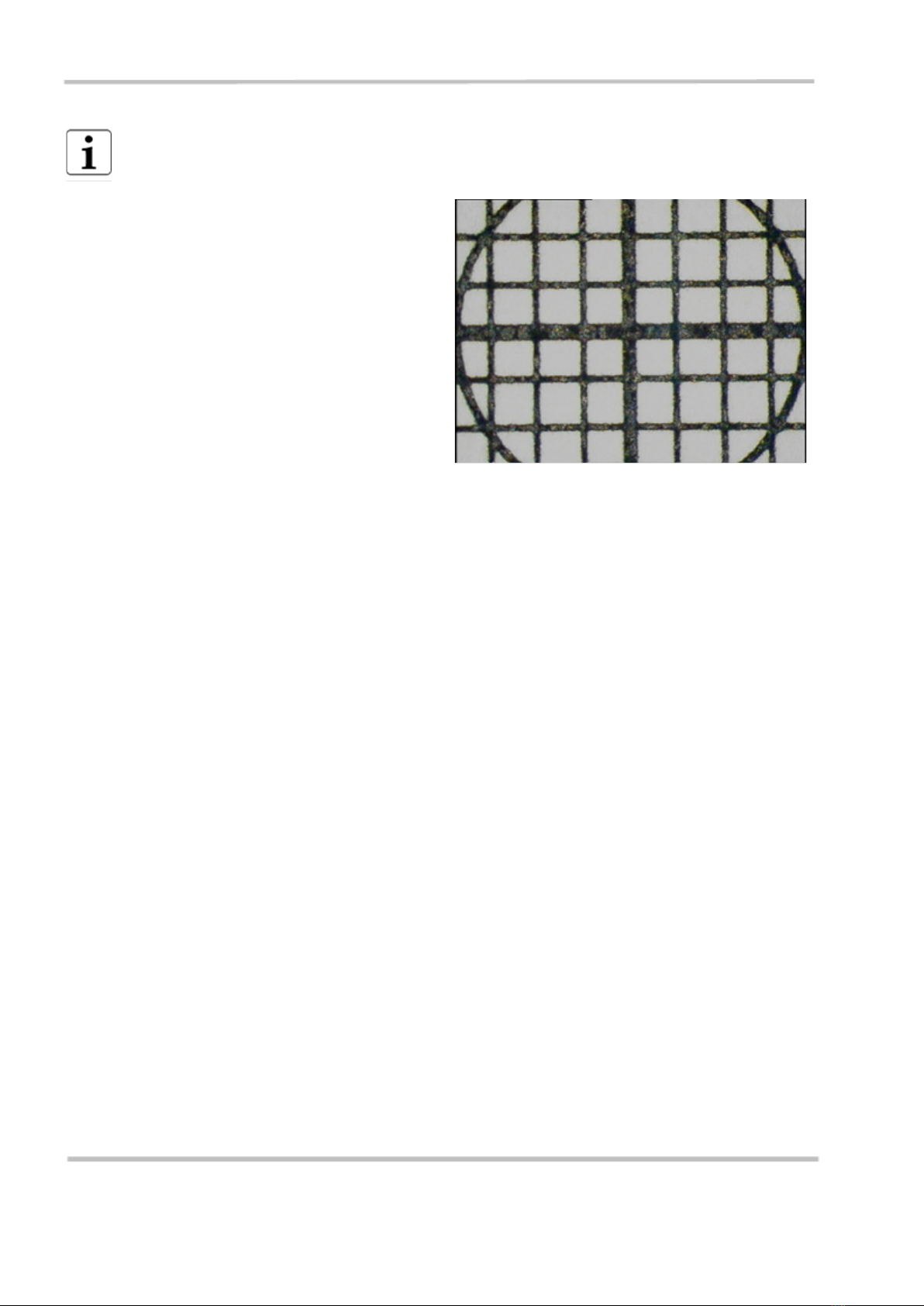

Fig. 9: Alignment template
7) If provided, insert an eyepiece including a reticle
in the port on the right-hand side of the tube.
8) Switch the magnification changer to the free-
passage position (position 1) and align and
focus OPMI® on the test object (alignment
template enclosed).
9) Switch to magnification step 2.5.
10) If an image jump occurs in the vertical direction
of ≥ ± 0.5 mm, loosen screw (1) and move
catch spring (2) using a scriber or a similar
device in such a way that no image jump
≥ ± 0.5 mm occurs any longer when the
changer is switched from position 1 to
position 2.5.
11) Tighten screw (1) and secure it in position by
applying blue threadlocker to its head.
12) Re-attach cover (2 Fig. 1).
Fig. 10: Secure the screw
9
2
1

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 11 / 27 Order No. -
5.4 Removing, installing and adjusting the camera module
Removal:
1) Unscrew four screws (1) and remove cover (2).
Fig. 11: Remove cover
2) Unscrew four screws (3) and remove camera
module (4).
Installation:
1) Insert camera module (4), push it up all the way
and tighten screws (3).
Fig. 12: Remove camera module
Adjustment:
Align and focus OPMI® on the test object
(alignment template enclosed).
1) Set maximum magnification (2.5).
2) Connect the monitor to the camera control
unit.
3) If the monitor image is not radially centered to
within ± 0.6mm, loosen screws (4) and
reposition the camera (5) as required. Take care
not to twist the monitor image in the process.
4) Tighten screws (4).
5) Select a magnification of 2.5 (max.
magnification) and focus the OPMI® exactly on
the test pattern.
6) Select a magnification of 0.4 (lowest
magnification) and check the focus of the
monitor image (video image).
Fig. 13: Reposition the camera
7) If the two focal planes (OPMI® / camera) differ by more than ± 0.56 mm, loosen screw (6) and shift
the camera chip (7) to obtain correct focus (see Fig.14).
3
4
3
4
6
2
5
7
1

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 12 / 27 Version 07, 2015-12-03
Note
Take care not to twist the monitor image during this adjustment.
8) After the adjustment, secure all fastening
screws in position by applying blue threadlocker
to their heads.
9) Re-attach cover (2 Fig. 1).
Fig. 14: Alignment template

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 13 / 27 Order No. -
6S 100 suspension systems
6.1 Changing the pneumatic spring
Removal:
1) Remove OPMI® from the suspension arm.
2) Set balancing screw to maximum weight (turn
cw).
3) Remove the locking screw and the top cover
from the suspension arm.
4) Remove protection flap (1).
5) Loosen setscrew (2) and push out pin (3).
Fig. 15: Remove OPMI, locking screw, protection
flap
Note
Hold the two halves of the suspension arm together by hand while pushing out pin (3).
6) Allow the halves of the arm to slowly move
apart. If necessary, remove the cable clamp, to
the illumination potentiometer from the clip on
the upper half of the arm.
7) Remove the cover plate from below the
balancing screw.
8) Remove support plate (4) and unscrew
balancing screw (5).
9) Remove the pneumatic spring.
Fig. 16: Remove the pneumatic spring
Installation:
1) Insert the pneumatic spring in the suspension
arm.
Note
The long side of the threaded block must
point upward when inserting spring (6).
Fig. 17: Insert the pneumatic spring
1
2
3
4
5
6

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 14 / 27 Version 07, 2015-12-03

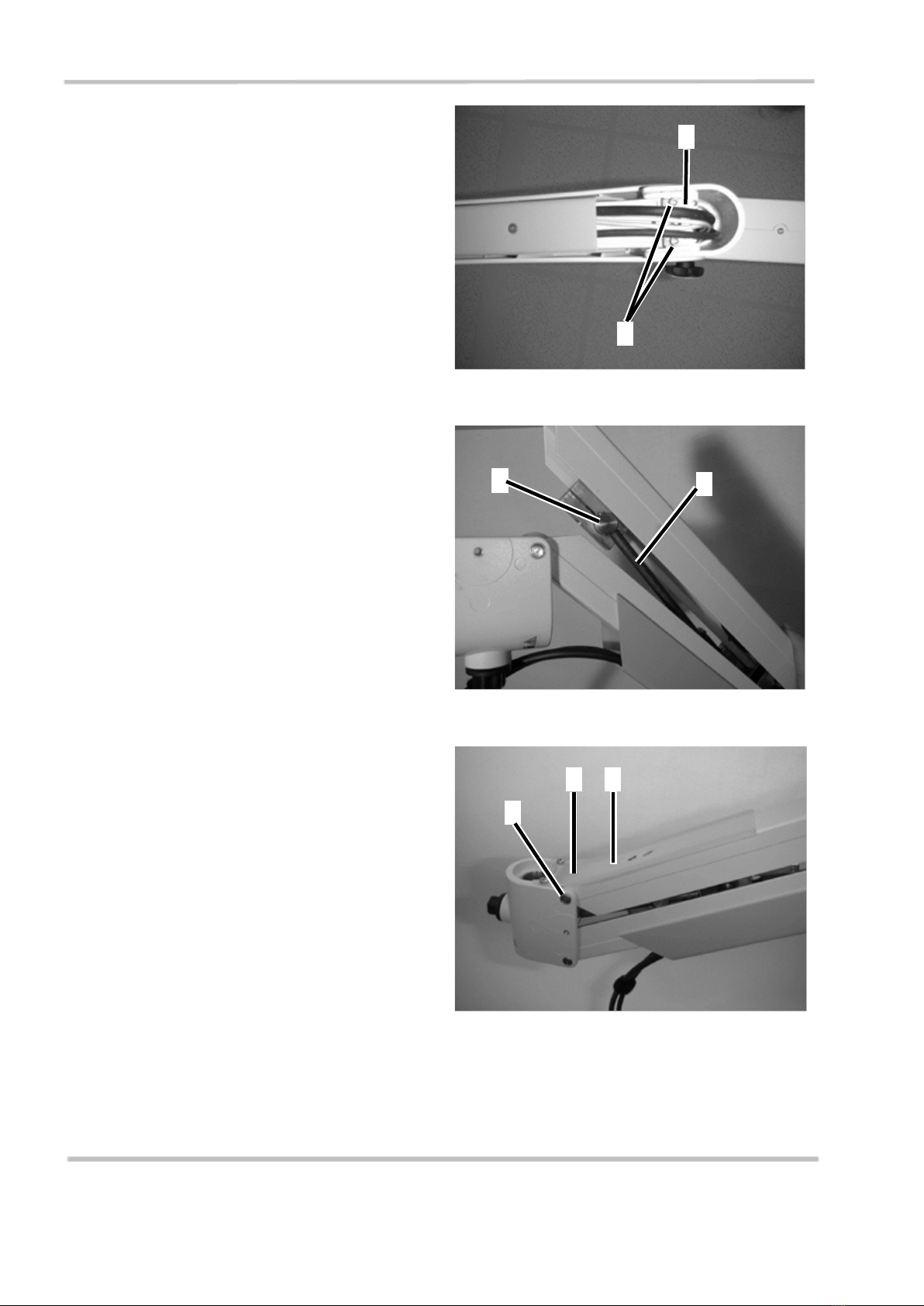

2) Lubricate the balancing screw with GF 100
grease and screw it in.
3) Re-attach support plate (1). To do this, apply
KL 44 threadlocker to the thread of screws (2),
screw them in and tighten them only to such an
extent that the balancing screw can still be
turned and no snapping noise can be heard
when the suspension arm is moved up or down.
4) Re-attach the cover plate below the balancing
screw.
Fig. 18: Re-attach the cover plate
5) Slightly press the halves of the arm together
and secure the cable leading from the
illumination potentiometer in the clip on the
upper half of the arm, if necessary.
6) Insert pin (3) in lock (4).
Fig. 19: Insert pin in lock
7) Insert pin (5) and secure it in position with
setscrew (6).
8) Re-attach protection flap (7).
9) Mount the top cover and the locking screw of
the suspension arm.
10) Re-insert OPMI®.
11) Balance the suspension arm.
Fig. 20: Re-attach protection flap, locking screw
OPMI and balance the suspension arm
1
2
4
3
7
6
5

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 15 / 27 Order No. -
6.2 Changing and adjusting the inclination switch
Removal:
1) Remove OPMI® from the suspension arm.
2) Set balancing screw to minimum weight (turn
ccw).
3) Remove the locking screw and the top cover
from the suspension arm.
4) Remove protection flap (1).
5) Loosen setscrew (2) and push out pin (3).
Note
Hold the two halves of the suspension arm
together by hand while pushing out pin (3).
Fig. 21: Remove OPMI, locking screw, protection
flap
6) Allow the arm halves to slowly move apart. If
necessary, remove the cable clamp, to the
illumination potentiometer from the clip on the
upper half of the arm.
7) Remove microswitch (4) and desolder it, or
remove the cable up to the illumination unit.
Fig. 22: Remove microswitch
Installation:
1) Insert the microswitch and make soldering
connections (cover connections with shrink
tubing) or route cable up to the illumination
unit.
2) Slightly press the halves of the arm together
and secure the cable from the illumination
potentiometer in the clip on the upper half of
the arm, if necessary. Insert pin (5) in lock (6).
Fig. 23: Insert pin in lock
1
2
3
4
6
5

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 16 / 27 Version 07, 2015-12-03

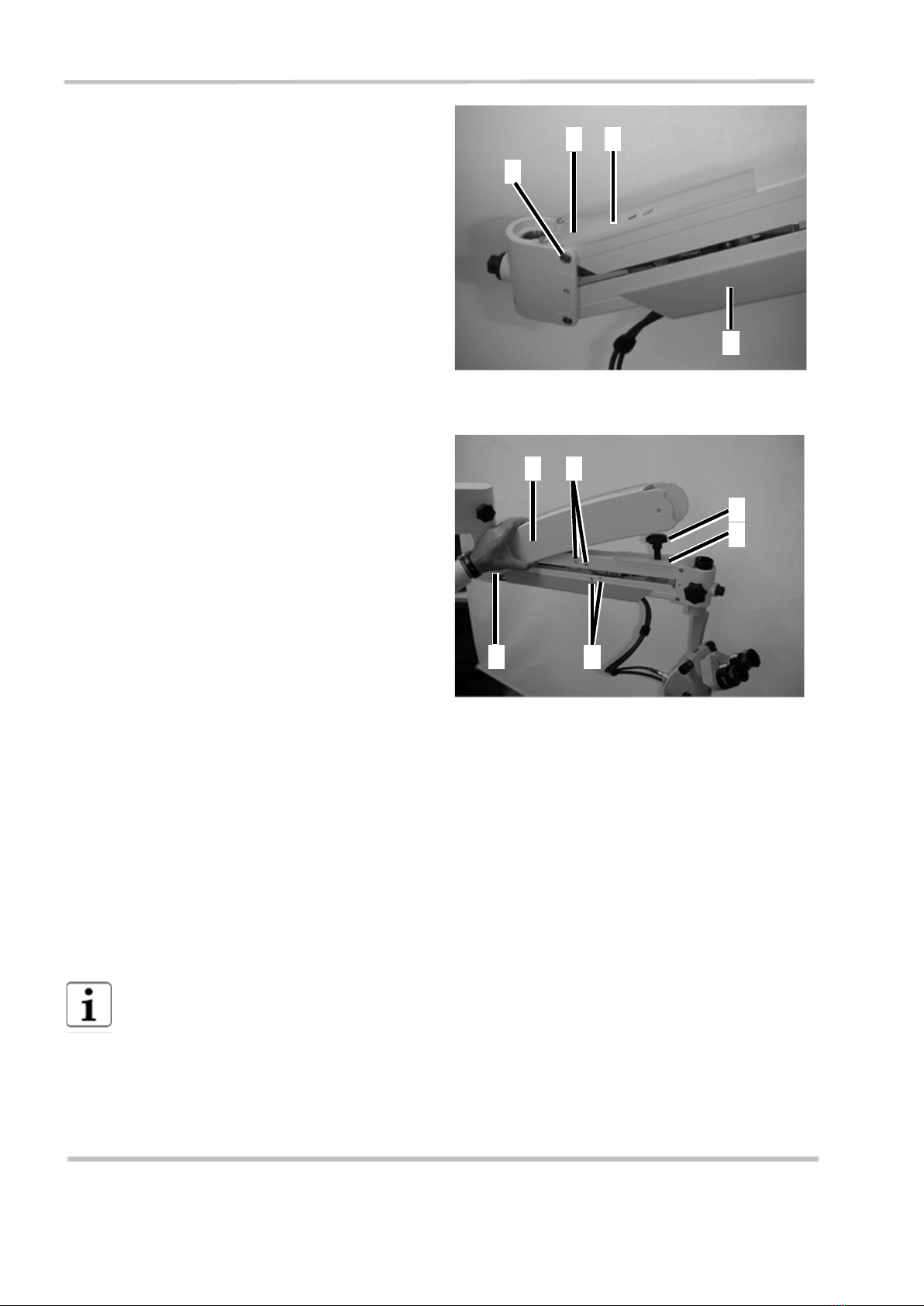

3) Re-insert pin (1) and tighten setscrew (2).
4) Re-attach protection flap (3).
Fig. 24: Re-attach protection flap
6.2.1 Setting the inclination switch
1) Loosen screws (5) and adjust the switching cam
in such a way that the inclination switch
switches on the OPMI® illumination at the
required position of the tilting arm, or loosen
screws (6) and adjust the microswitch if
necessary.
2) Tighten screws (5and/or 6).
3) Slide protection flaps (7) correctly in the guiding
grooves of the cover (8) while positioning the
cover.
4) Mount cover (7)
5) Insert OPMI®.
6) Balance the suspension arm.
Fig. 25: Set the inclination switch
6.3 Changing the illumination potentiometer
Removal:
1) Remove OPMI® from the suspension arm.
2) Set balancing screw to minimum weight (turn ccw).
3) Remove the locking screw and the top cover from the suspension arm.
4) Remove cable conduit (4 Fig. 24).
5) Remove protection flap (3 Fig. 24).
6) Loosen setscrew (2 Fig. 24) and push out pin (1 Fig. 24).
Note
Hold the two halves of the suspension arm together by hand.
7) Allow the arm halves to slowly move apart. If necessary, remove the cable leading to the
illumination potentiometer from the clip mounted on the upper half of the arm.
3
2
1
7
5
8
6
2
7
4

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 17 / 27 Order No. -

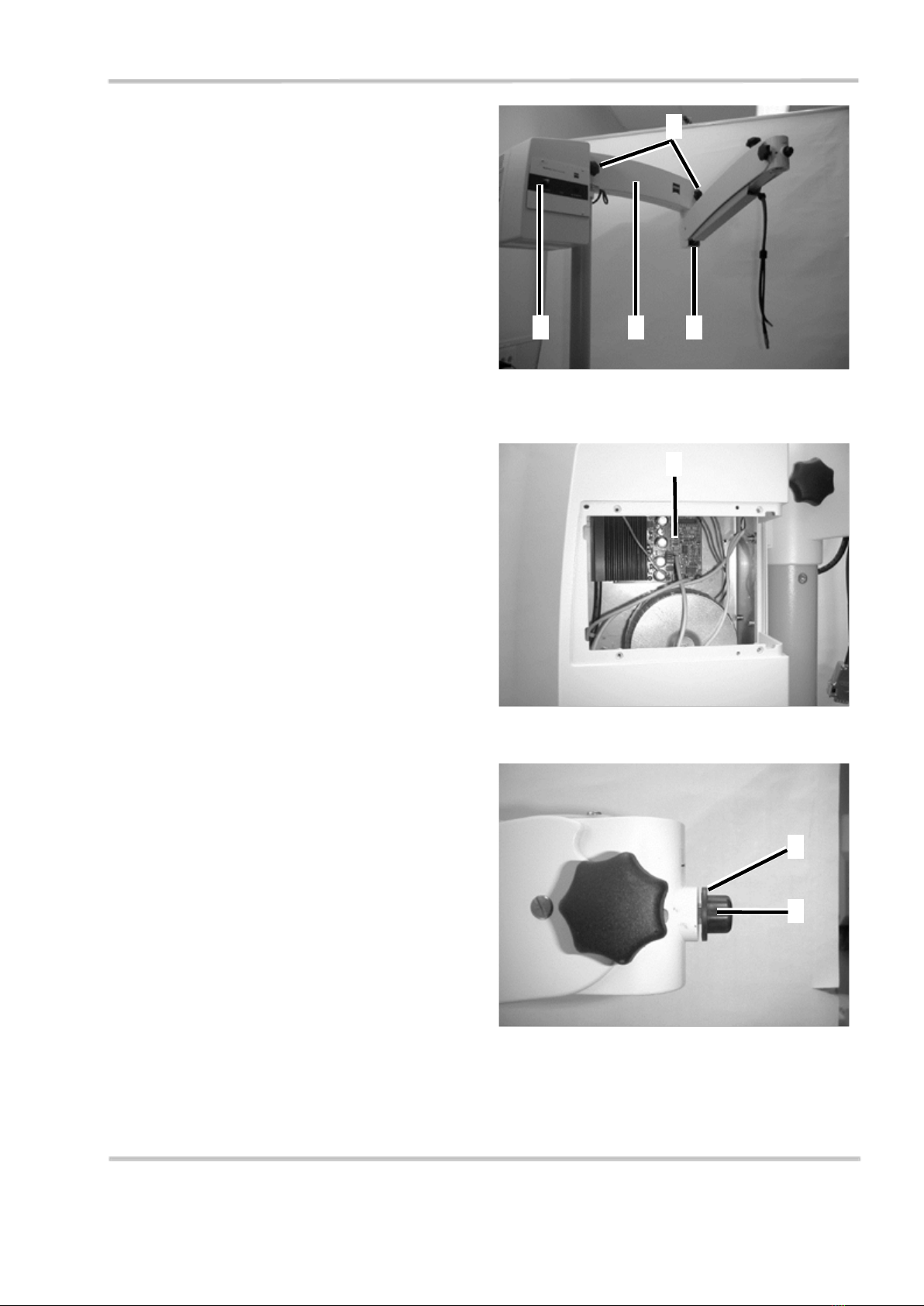

8) Remove cover (1).
9) Remove locking screws (2) and covers (3).
10) Remove cover or camera control unit (4).
Fig. 26: Remove cover, locking screws, camera
control unit
11) Disconnect cable (5) and remove it from the
suspension arm (cut open cable ties).
Fig. 27: Disconnect cable
12) Remove cap (6) and then the knob.
13) Remove nut (7) and then the potentiometer.
Fig. 28: Remove cap, knob, nut, potentiometer
4
2
3
1
5
6
7

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 18 / 27 Version 07, 2015-12-03
Installation:
1) Thread the cable through the suspension arm
and secure it position using cable ties.
2) Mount the potentiometer.
3) Re-attach the knob and the cap.
4) Slightly press the halves of the arm together
and secure the cable from the illumination
potentiometer in the clip on the upper half of
the arm, if necessary.
5) Insert pin (1) in lock (2).
Fig. 29: Insert pin in lock
6) Re-insert pin (3) and tighten setscrew (4).
7) Re-attach protection flap (5).
8) Adjust the activation point of the microswitch.
9) Mount the top cover and the locking screw of
the suspension arm.
10) Re-attach cable conduit (6).
11) Insert OPMI®.
12) Balance the suspension arm.
13) Connect cable (5 Fig. 27).
14) Re-attach covers and locking screws
(2 + 3 Fig. 26)
15) Re-insert cover or camera control unit
(4 Fig. 26)
Fig. 30: Re-attach protection flap, cable conduit,
OPMI, balance the suspension arm
6.4 Changing the suspension arm
Removal:
1) Remove OPMI® from the suspension arm.
2) Remove locking screw (7), cover (8) and cable
conduit (9).
3) Remove locking screws (10) and cover (11).
4) Remove cover (12).
5) Remove cover or camera control unit (13).
Fig. 31: Change the suspension arm
2
1
5
4
3
6
13
10
11
12
8
9
7

S100 / OPMI® pico
SM-30-0030-A02 Confidential and Proprietary Service Instructions
Version 07, 2015-12-03 19 / 27 Order No. -
6) Disconnect cables (1 + 2) and remove them
from the illumination unit.
7) Cut open the cable ties and remove the cable
from the rear tube.
8) Pull the cables out of the suspension arm joint
in an upward or downward direction.
Fig. 32: Disconnect cables
9) Remove stop screw / screws (5)
10) Remove two C-clips (3), washer 4) and pull out
the suspension arm from the rear tube bearing.
Installation:
1) Insert the new suspension arm in the rear tube
bearing and secure it in position using
washer (4) and two C-clips (3).
Fig. 33: Remove stop screw, C-clips, washer
2) Pull the cables through the arm joint in an
upward or downward direction.
3) Fasten the cables to the rear tube using cable
ties.
4) Route the light guide and the video cable in the
suspension arm and re-attach the cable conduit.
5) Pull cables (1 + 2) into the illumination unit and
plug them in.
6) Re-attach the cover or the camera control unit.
7) Insert OPMI®.
8) Balance the suspension arm.
9) Adjust inclination switch (see Page 16).
Fig. 34: Connect cables
1
2
3
4
5
1
2

S100 / OPMI® pico
Service Instructions Confidential and Proprietary SM-30-0030-A02
Order No. - 20 / 27 Version 07, 2015-12-03
7Halogen lamp housing
7.1 Opening the illumination unit
Opening:
1) Remove the lamp slide-in module.
2) Disconnect the light guide.
3) Remove the camera control unit, if necessary.
4) Remove four Phillips screws (1) and two hex
socket head screws (2).
5) Remove the halves of the housing: press the
power switch slightly inward and make sure you
do not damage or lose the release button for
the lamp module when removing the other half
of the housing.
Mounting:
1) Insert the release button for the lamp module in
the housing and re-attach the halves of the
housing, making sure that the release button is
correctly positioned.
Fig. 35: Remove the lamp slide-in module
2) Align the halves of the housing with each other and screw them together using screws (1 + 2).
3) Insert the lamp module and check that it is smoothly ejected. If necessary, loosen the halves of the
housing and re-align them.
4) If provided, re-install the camera control unit.
5) Connect the light guide.
7.2 Checking and adjusting the maximum lamp voltage
1) Turn the brightness potentiometer on the
suspension arm ccw as far as it will go.
2) Move the suspension arm downward until the
inclination switch is activated.
3) Set the measuring range of the True-RMS
voltmeter to 20 or 25V AC.
4) Connect the voltmeter to X17 and X18
terminals (3 + 4).
5) Switch on the power switch.
6) Turn the brightness potentiometer slowly cw as
far as it will go. The maximum lamp voltage
must be 12.4 +0V / –0.3V under load with the
halogen lamp.
7) If the voltage deviates from this value, use R 13
potentiometer (5) to adjust the voltage
to 12.4 –0.1V.
Fig. 36: Check, adjust the lamp voltage
Caution
Do not exceed 12.5 V during the adjusting procedure.
8) Re-install the dummy cover or camera control unit (4 Fig. 26).
9) If provided, connect video cable and secure plug with locking screws.
2
1
3
5
4
