Zip HydroTap G4 User manual

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 1 of 16
Zip HydroTap G4
Installation instructions
Filtered and chilled drinking water for commercial kitchens.
®
Affix model number label
here
801525UK
VENTILATION IS
ESSENTIAL
SECTION 2 'VENTILATION'
READ BEFORE YOU START
!
READ

Page 2 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Tap options
The G4 series offers a range of interchangeable taps to suit the customer's needs
Classic HydroTap®G4 range
Arc / Cube range
Elite range
These standalone taps are directly compatible with
the G4 Command-CentreTM.

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 3 of 16
HydroTap®G4 specifications
Installation check list .................................................................................................................... 4
General product features ............................................................................................................. 5
Important safety instructions ........................................................................................................ 6
Warnings and regulatory information ........................................................................................... 7
Major components and accessories............................................................................................. 8
Technical specifications ............................................................................................................... 8
Before installation and site requirements..................................................................................... 9
Installation instructions
Step 1 - Measure and cut all the tap holes, fit the taps : Refer to 803341UK Tap installation
instructions supplied with the tap head.
Step 2 - Check for adequate ventilation.
Section 1- Ventilation.
1.1- Ventilation for all models.............................................................................................10-11
Step 3 - Install the Command-CentreTM.
Section 2 - Command-CentreTM installation.
2.1- HydroTap®G4 chilled models..................................................................................... 12
Step 4 - Commission the HydroTap®G4.
Section 3 - Commissioning.
3.1 - Select the language .................................................................................................. 13
3.2 - Filter flush ................................................................................................................. 13
3.3 - Flow calibration......................................................................................................... 14
Trouble shooting
Trouble shooting table.................................................................................................................. 14
End of life disposal....................................................................................................................... 15
Warranty....................................................................................................................................... 15
Contact details ............................................................................................................................. 16
Index

Page 4 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Before installation
• Read the instructions and check if there is adequate space to install all of the components.
• Note Not all fittings are supplied with the appliance kit. Isolation valves are not supplied.
• Check the mains water pressure is within min. / max. requirements (see page 9).
• Note This product must be fitted to a potable water supply.
• Check the Command-CentreTM rating plate and ensure correct power is available.
• Check the under counter cupboard floor supporting the Command-CentreTM is adequate for its
total weight, when full of water.
Before commissioning
• Check the system has been installed correctly.
• Check all plumbing fittings have been tightened.
• Ensure the outlet and vent pipes are positioned to drain correctly.
• Ensure there is adequate ventilation.
• Check tubes from the Command-CentreTM to the tap have a constant rise and there are no sags or
kinks in the hoses.
• Check all electrical connections are correct and there are no loose wires.
Commissioning (see section 3)
• Flush the supply line before connecting.
• Turn on the water and check for leaks.
• Flush the filter.
• Where applicable, programme the Command-CentreTM to suit the customer’s requirements.
Installation checklist

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 5 of 16
Thank you for purchasing a Zip HydroTap®G4. Please read and follow these instructions carefully to ensure
safe and trouble free operation. If help and advice is required, please call 0345 6 005 005.
What is the Zip HydroTap®G4 ?
This Zip HydroTap
®G4
is an electronically controlled, filtered and chilled water drinking system for the kitchen.
The HydroTap®G4 systems are under counter drinking water appliances with a dispensing tap mounted
on a sink or worktop, which has been designed for commercial applications. The HydroTap®G4 utilises a
conventional refrigerant compressor to chill the water. This chilled model will dispense chilled water, factory
set to 5-9°C. These units are NOT designed to be used as sanitary fixtures.
The water filter is a disposable item which will require periodic replacement and is covered by a limited OEM
warranty.
It is important that the installation be undertaken safely, correctly and completely in order to utilise all the
benefits that the HydroTap
®G4
can provide. Each tap can be ordered with the tap head assembly for disabled
use. The disabled levers are supplied with Braille caps for the visually impaired.
General product features
Usage
The commercial HydroTap®G4 range are intended for commercial use.

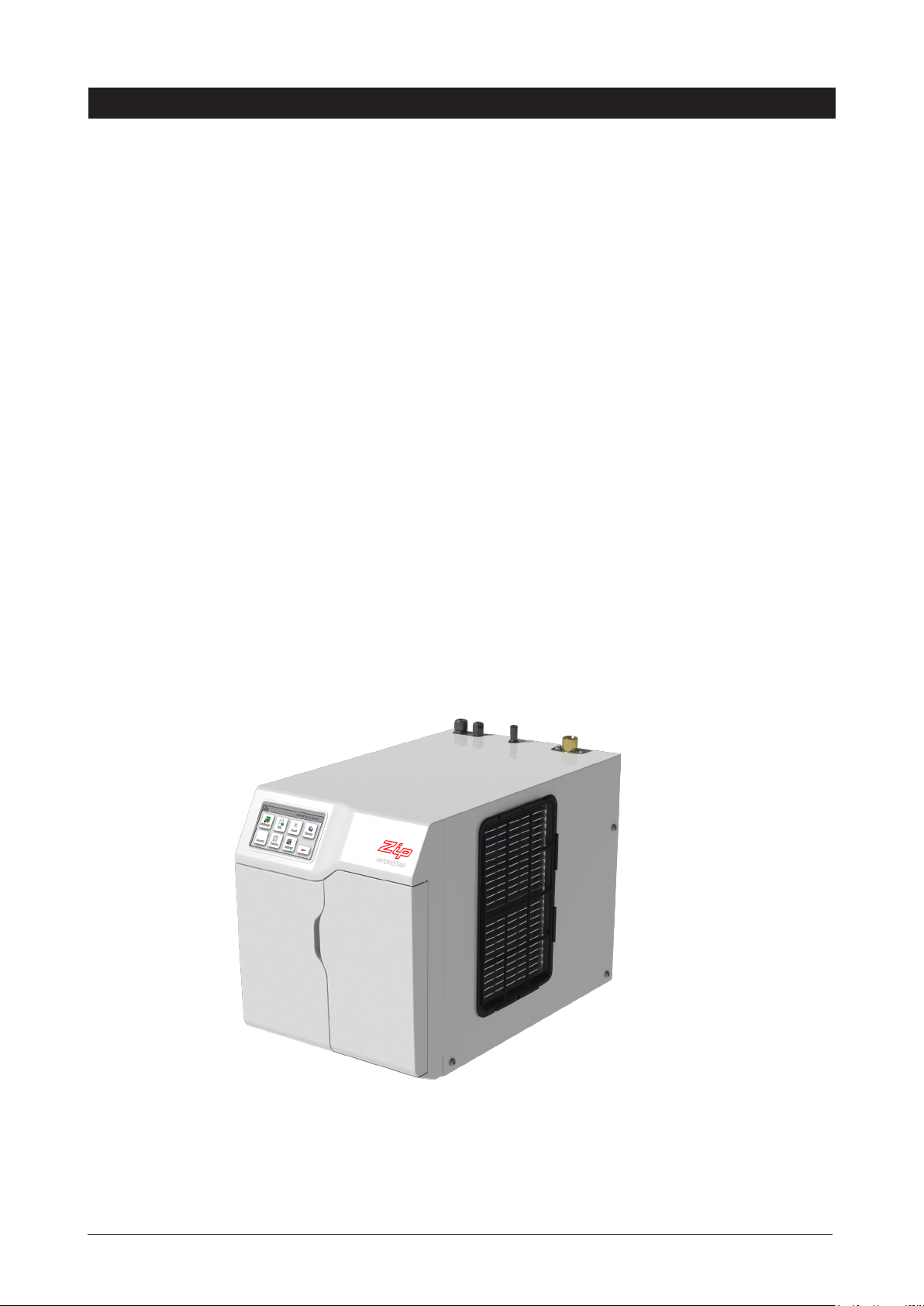

Chilled Command-CentreTM

Page 6 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Important safety instructions
This manual contains important safety and installation instructions for the Zip HydroTap®G4.
Please read all warnings, installation requirements and installation instructions before installing any Zip
HydroTap®G4. This system must be installed in accordance with water supply byelaws,
current IEE regulations and relevant local authority byelaws.
Safety
This appliance is not intended for use by children under 8 or persons (including children
under 8) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Refrigerant
The Zip HydroTap®G4 Command-CentreTM contains R134A refrigerant under pressure. Maintenance of the
refrigeration unit must be carried out by an accredited service provider or qualified refrigeration technician.
Qualifications
If the power cable is damaged it must be repaired only by a qualified technician. To avoid hazards, all
installation procedures must be carried out by a suitably qualified tradesperson. The power cable and power
outlet must be in a safe visible position for connection.
Lifting
Take care when lifting the Zip HydroTap®G4. The Command-CentreTM may exceed safe lifting limits. If
you feel this is beyond your personal capabilities, please seek assistance with the lift. The weight of the
Command-CentreTM is marked on the packaging. Do not lift the Command-CentreTM by the front cover or any
of its connections. Refer to the technical specification, see page 8, for the weight of the product.
Airflow
The Zip HydroTap®G4 operates within the ambient temperature range 5ºC - 35ºC. Proper air circulation
must be provided. The system will operate satisfactorily only if the recommended air gaps are provided. See
Section 1 Ventilation, page 10, for correct installation to prevent overheating.
Frost protection
If the HydroTap®G4 is located where the ambient air temperature could fall below 5ºC when the heater is
not in use, do not turn off the appliance electrically. This safeguard does not offer the same protection to the
connecting pipework and fittings.o
Positioning

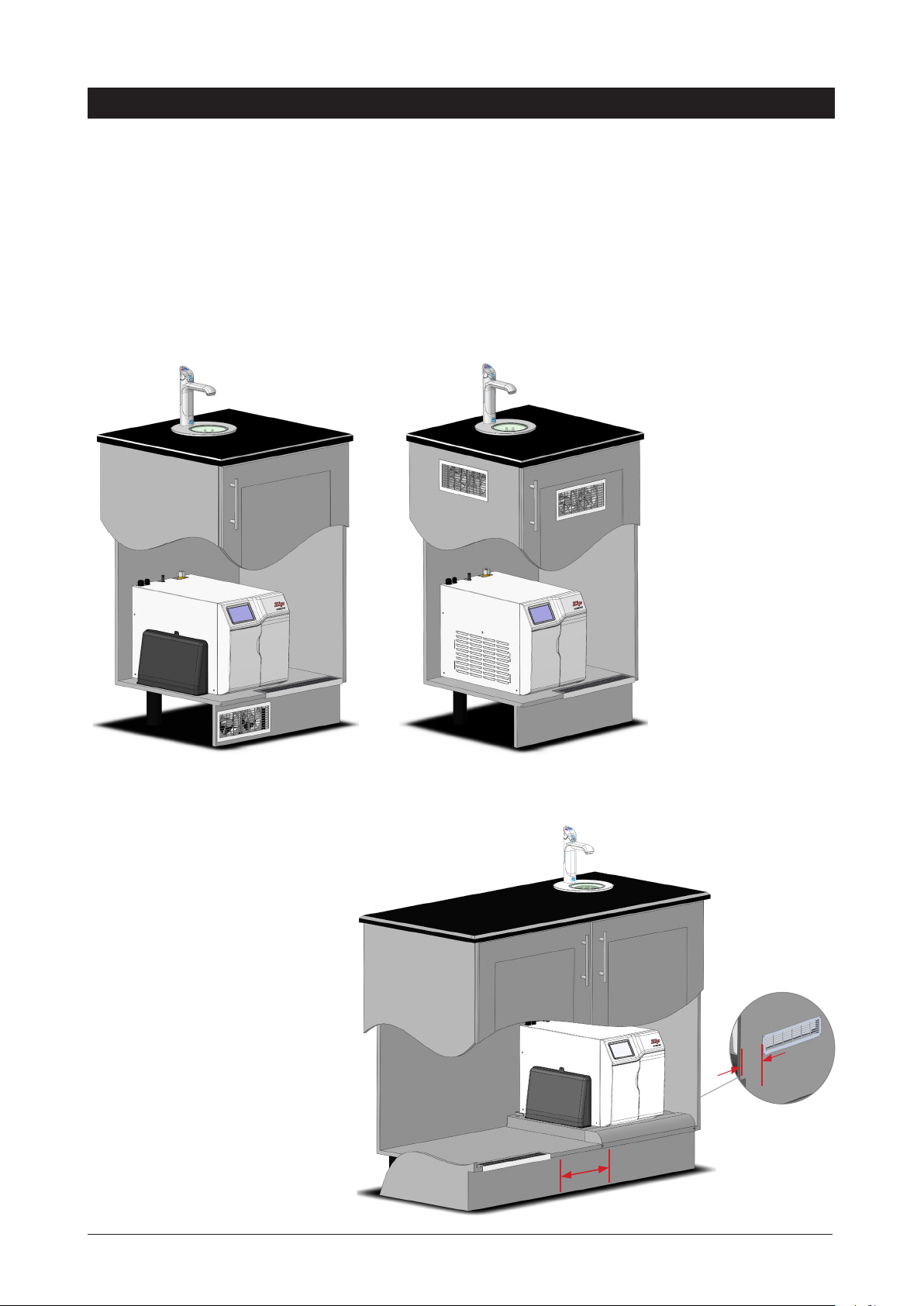

It is important to ensure the Command-CentreTM is positioned in an accessible area close to the floor level.
The Command-CentreTM must have it’s base mounted in a horizontal position with all inlets and outlets facing
up. The tap must be located above the Command-CentreTM. See Section 2, Command-CentreTM installation,
pages 12.

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 7 of 16
Warnings and regulatory information
Warnings
• The Zip HydroTap®G4 must be earthed. The resistance of the earth
connection from each exposed metal part must be less than 1Ω.
• All installation and service work must be completed by trained and
suitably qualified tradespeople. Faulty operation due to unqualified
persons working on this product, or any other Zip product may void
warranty coverage.
• As the installer, it is your responsibility to supply (if necessary)
and install all valves as required by local regulations and relevant
standards.
• The HydroTap®G4 is rated for 230V 50Hz AC operation.
• Do not remove the cover of the appliance under any circumstances
without first isolating the appliance from the power supply.
• Never locate the Command-CentreTM near, or clean with water jets.
• Do not expose the Zip HydroTap®G4 to the elements of nature.
• Due to the process of continuous improvement, Zip Water UK reserves
the right to change details mentioned in this manual, without notice.
• Visit www.zipwater.com/uk to ensure you have the latest copy of this
document.

Page 8 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Technical specifications
** Add an extra 3-4kg when full of water.
Major components and accessories
Accessories Description
Font Arc / Cube
93441UK**
Font Classic / Elite
90915UK**
Replacement
internal 0.2 micron
filter
ZT402
Disabled lever kit
SP91563
Recommended
water block
HE45004
801599-HydroTap User Guide - Nov 2013 UK - V1.05 Page1of 20
ZIP HydroTap
User Guide
®
• Tap Operation...................(Pages 2-5)
• LCD Screen & Menu .......(Pages 6-18)
• Maintenance.................... (Pages 18-20)
• Date of Installation.........
Affix Model Number Label
Here
801599
BC160/125G4
BC240/175G4
BCH160/125G4
BCH240/175G4
AV160/125G4
AN160/125G4
AV240/175G4
AN240/175G4
801600 - Zip Quick Start Guide - October 2013 - V1.06
Parts Supplied Description Parts Supplied Description
1 off
Hydrotap Tap
and hoses
Duct kit
1x Air Duct
1 x Mounting
plate
1 off
Undersink Unit
with air and water-
filter
Vent kit
1 x Kickboard
louvre
1 x Door vent
louvre
1 x front vent grill
1 x Restrictaflow
valve and Tee
piece for Mixer
Taps
1 off
HydroTap
Booster heater
and hoses
(Supplied with
240/175 models)
1 off Mains water
connection hose
QUICK START GUIDE
Note: This quick start guide must be read in conjunction with
the main installation and user instructions
• Before proceeding, read the installation and user instructions
• Check all the components are present and correct.
• Check that you have all the necessary tools
•
Ensure the underbench can support the product weight when full of water,
(Check the specifications in the main book and allow an extra 5-8kg when full. )
Before installing ensure the following have been provided at
the installation site:
• Sufficient space in the cupboard to install all of the undersink units in accordance
with these Installation Instructions. Refer to technical specification for dimensions. If
required, make allowance for a booster heater. (Refer to the main book, for detailed
installation instructions).
• A potable water supply connection with isolating valve inside the cupboard within
reach of the flexible braided hose and positioned so that the connection point and the
stop cock will not be obstructed when all the undersink units are installed.
• For Zip HydroTap 160/125 &160/175 models, a 220-240Vac, 10A GPO will be
required. For Zip HydroTap 240/175 models, two 220-240Vac, 10A GPOs will be
required. (One GPO is for the Zip HydroTap and the other for the Booster heater).
NOTE: Check the cable lengths and outlet positions before proceeding.
• A potable cold water supply with a minimum working pressure of 172kPa and a
maximum working pressure of 700kPa connected via an isolation valve.
• For the mains pressure All-IN-ONE, both a hot and cold water supply will be required.
• The undersink appliances must be mounted in upright positions as shown in the
diagrams.
IMPORTANT! Do not proceed with the installation if these
requirements are not met.
STEP 1- Prepare and fit the Taps
Hole positioning: Position the tap such that it dispenses into
the sink bowl with ample clearance for a cup or tea pot. Alternatively,
the tap could be mounted away from the sink using a Zip Font, avail-
able as an accessory.
Apply a light smearing of silicon sealant
on the underside of the upper spacer to
ensure a watertight fi t.
For HydroTap and Mixer taps
cut a 35mm hole in the bench / sink top.
BENCH TOP
Ø35mm
HydroTap Tap
Mixer Tap 4-in-1
(If required)
NUT
LOWER RUBBER
WASHER
UPPER
RUBBER
WASHER
WASHER
BRAIDED
HOSE x 3
UPPER RUB-
BER WASHER
LOWER RUB-
BER WASHER
WASHER
NUT
White Hose
Ext. Mains
Blue band
Mixer IN
Red band
Mixer Out
O-RING
BASE
BLOCK
SPIDER
BASE
BLOCK
NUT USB
CABLE
ALL
THREAD
ROD
NOTE: feed each of
the tubes and elec-
trical cable evenly in
between the legs of
the BASE BLOCK
SPIDER.
All-In-One Tap (If required)
For AIO mains and vented Taps
Cut a 50mm hole in the bench / sink top.
NOTE: make sure the tap location will allow the nozzle to drain into the sink.
SINK TOP
50mm
ALL THREAD
ROD
STAINLESS
STEEL
WASHER
SPIDER
CLAMP
NUT
BLACK
PLASTIC
SPACER
NOTE: feed each of the three tubes and
electrical cable evenly in between the legs of
the SPIDER CLAMP when installing.
Fit the
STAINLESS STEEL
WASHER,
SPIDER CLAMP,
AND 6mm NUT.
6mm
NUT
SPIDER
CLAMP
Stainless
washer
Black plastic
spacer
35mm dia hole
Sink
O-RING SINK TOP
Fit the O-ring to the underside of the AIO tap
then pass all hoses through the 50mm hole.
Chiller
connection
BLUE
From Mixer OUT to Tap - Vented version only
Boiler
connection
RED
Blue ring on
RHS mains IN to
Mixer IN
White ring
on LHS to
Mains in
Tap
O ring Base
Clear tube to Vent
Parts supplied Description
Tap options*
1 x HydroTap®G4
Classic
Elite or #Arc / Cube
#(inc. Tube kit)
Command-CentreTM and components
1 x
Command-CentreTM
with air and water
filters
1 x Mains water
connection hose
Duct kit
1 x Exhaust duct
1 x Mounting plate
2 x Outlet vent
1 x Inlet vent
1 x User guide and
1 x Quick start
guide
1 x Installation
instruction
Chilled and filtered.
Commercial Chilled HydroTap®G4 range
HydroTap®s
Specifications
Capacity
Chilled
(200ml
glasses/hr)
13A Socket
Required
Power
Rating
(kW @230V)
Unit Dimensions
W x D x H (mm)
With exhaust duct
**Dry
Weight
(Kg)
Chilled only
175 1x13A 0.30 336 x 480 x 335 24
** Chrome finish part numbers are shown,
alternative finishes are available.
* Finish dependant upon model purchased.

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 9 of 16
Min / Max water supply pressure
HydroTaps.................................................0.17 MPa (1.7 bar) - 0.7 MPa (7 bar)
Note Chilled water will continue to be dispensed after the rated capacity has been used, although this may
affect the dispense temperature.
Technical specifications
Before installation
Before installation ensure that the following have been
provided at the installation site
• Review of all the technical specifications.
• Ensure the under counter cupboard floor can support the product weight
when full of water (allow an extra 3-4kg when full).
• Sufficient space in the cupboard to install the Command-CentreTM and
other components in accordance with these installation instructions. See
Technical specification, page 8 for dimensions. See sections 2, page 12
for installation instructions.
• For Zip HydroTap®G Chilled models, 1 x 220-240V AC, 13A socket will be
required.
• The Command-Centre must be installed in accordance with IEE
regulations. See Technical specification, page 8 for power ratings.
Note check all cable and hose lengths against inlet /outlet positions before
proceeding (see section 2 page 12 for general layout).
• A potable water supply connection with isolating valve inside the
cupboard within reach of the braided hose and positioned so that the
connection point and the stop cock will not be obstructed when the
Command-CentreTM is installed.
• A potable cold water supply with a minimum working pressure of:
(see above, min. / max. water supply pressure).
• If pressure is likely to exceed 0.7 MPa (7 bar), install a 0.35 MPa (3.5
bar) pressure limiting valve.
• The appliance must be placed with its base in a horizontal position.
IMPORTANT! Do not proceed with the installation if these requirements are
not met.

Page 10 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Section 1
Ventilation
When installing air flow vents, the following tools will be required
• Jigsaw and drill.
• Keyhole or wall board saw.
Important See section 2 Command-CentreTM installation,
page 12
Vent cut-out details
AAir outlet vent
BAir inlet vent
1.1 Preferred ventilation arrangement shown below.
The ducted vent kit supplied with the Command-CentreTM exhausting through the kick-space should be used,
to provide adequate ventilation in all conditions. (Ancillary components are not shown in these diagrams).
A
B
C
CDucted vent
Cupboard back must
be fully closed to
prevent recirculation
into cupboard from
kick space.
100mm
min.
A
Inlet grille should be
fitted in baseboard
Position vent grille on either the kick
board or the cupboard ends

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 11 of 16
1.2 Alternative arrangements (Dual fan kit)
In situations where the preferred arrangement cannot be used or will not work effectively e.g.
• Single cupboard where the 100mm grille spacing cannot be achieved.
• Where there are openings in the back of the cupboard allowing exhaust air to recirculate into the cupboard
space.
An SP93156 Dual exhaust fan kit* must be fitted in either arrangement A or B shown below and connected to
the DIN socket on the Command-CentreTM .
AFan kit fitted to kick board and with kick space duct fitted to the Command-CentreTM.
BFan kit fitted to cupboard door (position B1) or side (position B2) and without kick space duct fitted to the
Command-CentreTM.
BA
B1
B2
Ventilation
*For dual exhaust fan
cut-out dimensions
see the instructions
provided with the kit.
100mm
min.
1.3 Alternative arrangements (Vent tray)
In situations where cupboard width is 1000mm or greater, without central pillar and where
vent grilles cannot be fitted in the kick
board (e.g. hospitals) use a
Vent tray kit (SP93541).
• The flat vent grille, supplied
should be used as an inlet vent
and fitted to the cabinet side
(adjacent to the Command-Centre
air inlet) or the angled inlet grille
supplied should be fitted in the
baseboard, observing 100mm
separation from the vent tray
exhaust.
Vent tray
100mm
min.
Position a flat
vent grille in the
cupboard end or
angled inlet grille
on the baseboard

Page 12 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Section 2
Command-CentreTM installation

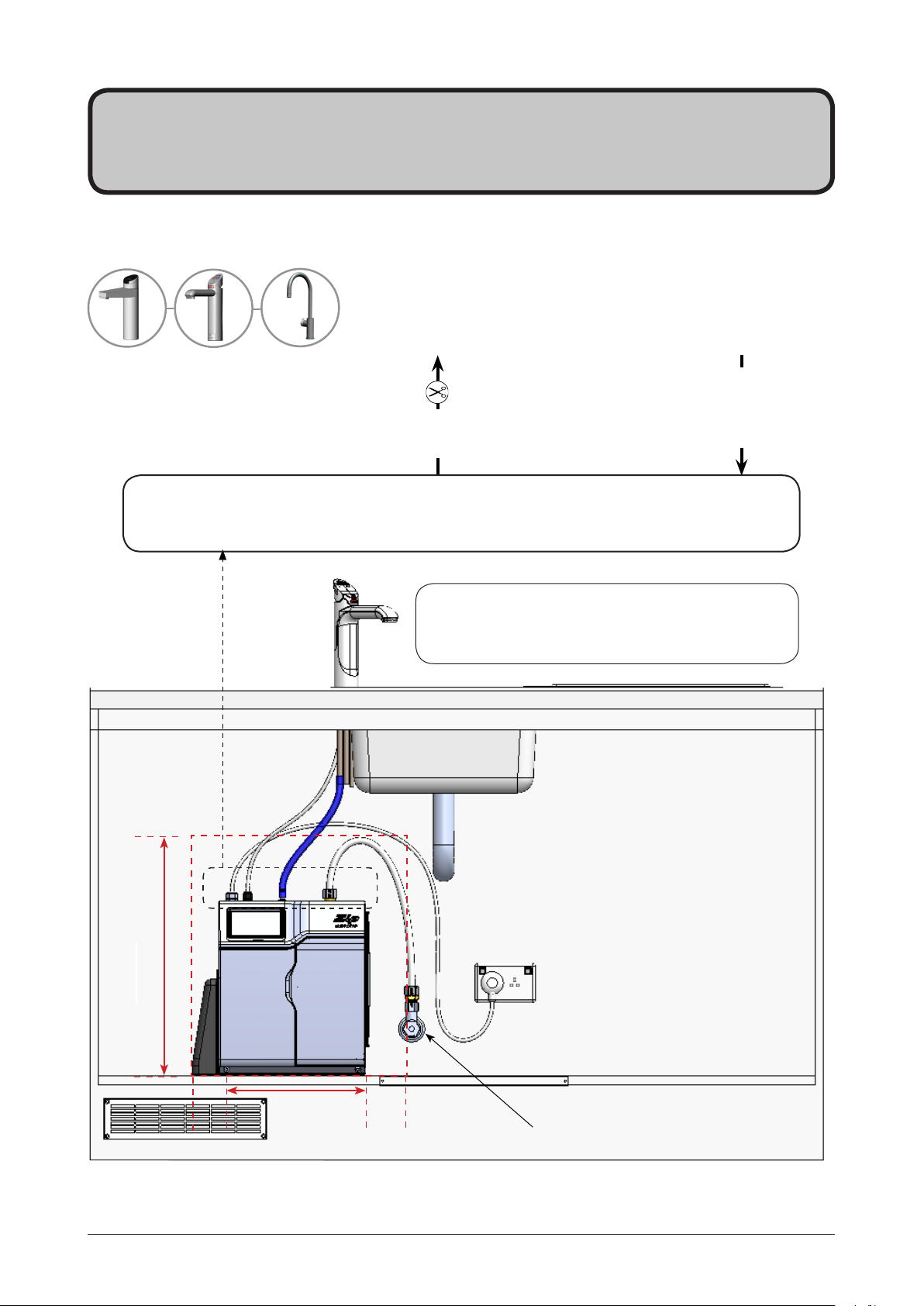

2.1 HydroTap®G4 Chilled models Refer to 803341UK Tap installation instructions (for Arc / Cube
also refer to the tube kit assembly instructions) supplied with the tap.
Arc / Cube
Elite Classic
Note The braided hoses and connection tubes supplied with the tap head assembly and cold inlet CANNOT
be lengthened. Insulation provided must be fitted over the blue chilled tube, after trimming to length.
Note All silicon tubes must be cut to size. They must
have a constant fall back to the
Command-CentreTM
BLUE
BRAIDED
Note Ambient mains water
braided hose length is 750mm.
Electrical power cable length is
3.0m nom.
Position the Command-CentreTM
according to the hose and cable
lengths supplied.
POWER
CABLE
USB MAINS
IN
CHILLED
OUT
Clearance envelope
286mm
50mm
50mm
COLD isolation valve
(not supplied)
535mm
Braidedhosetting
Install the mains water braided hoses to the
Command-CentreTM before locating in place.

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 13 of 16
The HydroTap®G4 is now ready to be commissioned.
• Turn the water on and check for any leaks.
• Turn the electrical power on.
• Familiarise yourself with the operation of the tap, in preparation for use, see the User manual.
• Follow the installation instructions below (and read section C of the User manual).
• After commissioning, the system may be customised by selecting further options in section G - settings
of the User manual.
Have a bucket or similar container (not supplied) at the ready to hold a quantity of water that will be ejected
while the filter flush mode is in operation. Open the filter access door on the front of the HydroTap®G4 and
the filter cartridge will be exposed. Located to the rear right hand side of the cartridge is a flush line, approx
600mm long and the flush line stop cock. Place the free end of the flush line into the bucket or container (not
supplied). At first commissioning, the system will select the filter flush screen automatically.
3.2Filterush
Prepare filter flush as per instructions
and press START
03:01 PM, TUE 12, Feb 2013
Chilled
Zip
START STOP
Section 3
Commissioning
NEXT
OPEN Position
CLOSED Position
ON
OFF
Flush line position
Stop cock
operation
• Press [START] / [STOP] button to start and stop the filter
flush.
• Turn the flush stop cock on.
• Allow at least 10 litres of water to flush through the filter.
• Once the filter flush is finished, Turn the stop cock off
then press [STOP] to end filter flush mode.
• Press [NEXT] for the flow calibration screen.
3.1 Select the language
Initial commissioning screen Language selection screen
Zip Chilled Zip
Zip Chilled

Page 14 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Note foranysubsequentlterchangesoranyoperational
procedures, please refer to the HydroTap®G4 User manual,
locatedinsidethelterhousingaccessdoor.
Trouble shooting
System fault
message Possible cause Solutions
Power Board Fault Electrical disruption Check power supply and all fuses
Interface Fault Internal fault Call Zip Service
Level Board Fault Internal fault Call Zip Service
Condenser Screen Blocked Blocked air filter Remove blockage / clean filter / check user guide
Water leak, Isolate Mains Water leak Turn off mains water supply / call for service
Compressor Over Run Compressor too hot Check ventilation
Water Supply Failure No water Check water supply is turned ON
Cold Sensor Open Internal fault Call Zip Service
Cold Sensor Closed Internal fault Call Zip Service
Flood Sensor Open Internal fault Call Zip Service
Condenser Sensor Closed Internal fault Check ventilation / call Zip Service
Condenser Sensor Open Internal fault Check ventilation / call Zip service
Compressor Driver Fault No chilled water Call Zip Service
Condenser Overtemp Blocked air filter Remove blockage / clean filter / check user guide
Calibration Auto calibration reset Normal operation, once per month
Overload Reset Internal fault Call Zip Service
Flash Mem corrupted Internal fault Call Zip Service
Flow sensor fault Internal fault Call Zip Service
Call an electrician, a plumber, or Zip on 0345 6 005 005 for assistance, service, spare parts or enquiries.
To calibrate flow sensor
press START button
NEXT
03:01 PM, TUE 12, Feb 2013
Chilled
Zip
START
Pulses/L (360 - 440)
3.3 Flow calibration
Installation instructions
• Press the [START] button and the tank will first empty
then fill. Upon completion the pulse count will be
displayed. Check the value is within limits.

801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04 Page 15 of 16
End of life disposal
The use of this crossed out wheeled bin logo indicates that this product needs to be disposed of
separately to any other household waste.
Within each of the European Union member countries, provisions have been made for collection
and recycling of unwanted electrical and electronic equipment. In order to help preserve our
environment we ask that you dispose of this product correctly. Please contact Zip Customer
Service on 0345 6 005 005 for advice.
Warranty
Certain warranties may be implied by law into your contract with Zip. The warranty provided below is
additional to these implied warranties and nothing set out below shall limit your statutory rights or rights at law.
Zip Heaters (UK) warrants that, should the hot tank fail within five years of installation subject to satisfactory
maintenance and registration of the product, or any part fail within two years of installation, the part will be
repaired or replaced free of charge by Zip, its distributor or service provider, (except as set out below),
provided the appliance is installed and used strictly in accordance with the instructions supplied, and that
failure is not due to accident, misuse, abuse, unsuitable water conditions, or to any alteration, modification or
repair by any party not expressly nominated by Zip.
No costs are payable by the customer other than any mileage or travelling-time charges incurred by a Zip
service provider or the cost of removal, cartage and re-installation of any component of the appliance if it
needs to be returned for repair to Zip or its distributor.
This warranty does not cover damage resulting from non-operation of the appliance, the use of non authorised
parts or consequential damage to any other goods, furnishings or property.
No warranty applies to the life of any filtration cartridge installed with the appliance as cartridge life may vary
according to water quality and the rate of water consumption.
Zip does not exclude, restrict or modify any liability that cannot be excluded, restricted or modified or which
cannot, except to a limited extent, be excluded, restricted or modified as between the owner or user and Zip
under the laws applicable.
Furthermore this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled
to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the
appliance or supply of equivalent appliance, the payment of the cost of replacing the appliance or acquiring an
equivalent appliance, or the payment of the cost of having the appliance repaired or the repair of the
appliance.
HydroTap®G4 residential models are designed specifically for use in a domestic environment and
inappropriate installations such as in a commercial location will invalidate the warranty.
Registering your purchase.
Registering your Zip installation on the Zip website may help to establish date of installation should it become
necessary to service the appliance under terms of the Zip warranty. To register your installation go to
www.zipwater.com/uk and look under the heading “Warranty”.

Page 16 of 16 801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Contact Details
The standard cup referred to in this publication is 167 ml (6 fl oz).
The standard glass is 200 ml (7 fl oz).
The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd.
Zip products described in this publication are manufactured under one or more of the following patents: AU675601,
AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859, US5099825 and SA2006/08043. Other
patents are in force and patent applications are pending.
Head Office
Zip Water UK
14 Bertie Ward Way
Dereham
Norfolk
NR19 1TE
Website: www.zipwater.com/uk
Email: [email protected]
Facsimile: 01362 692 448
Telephone: [phone]
