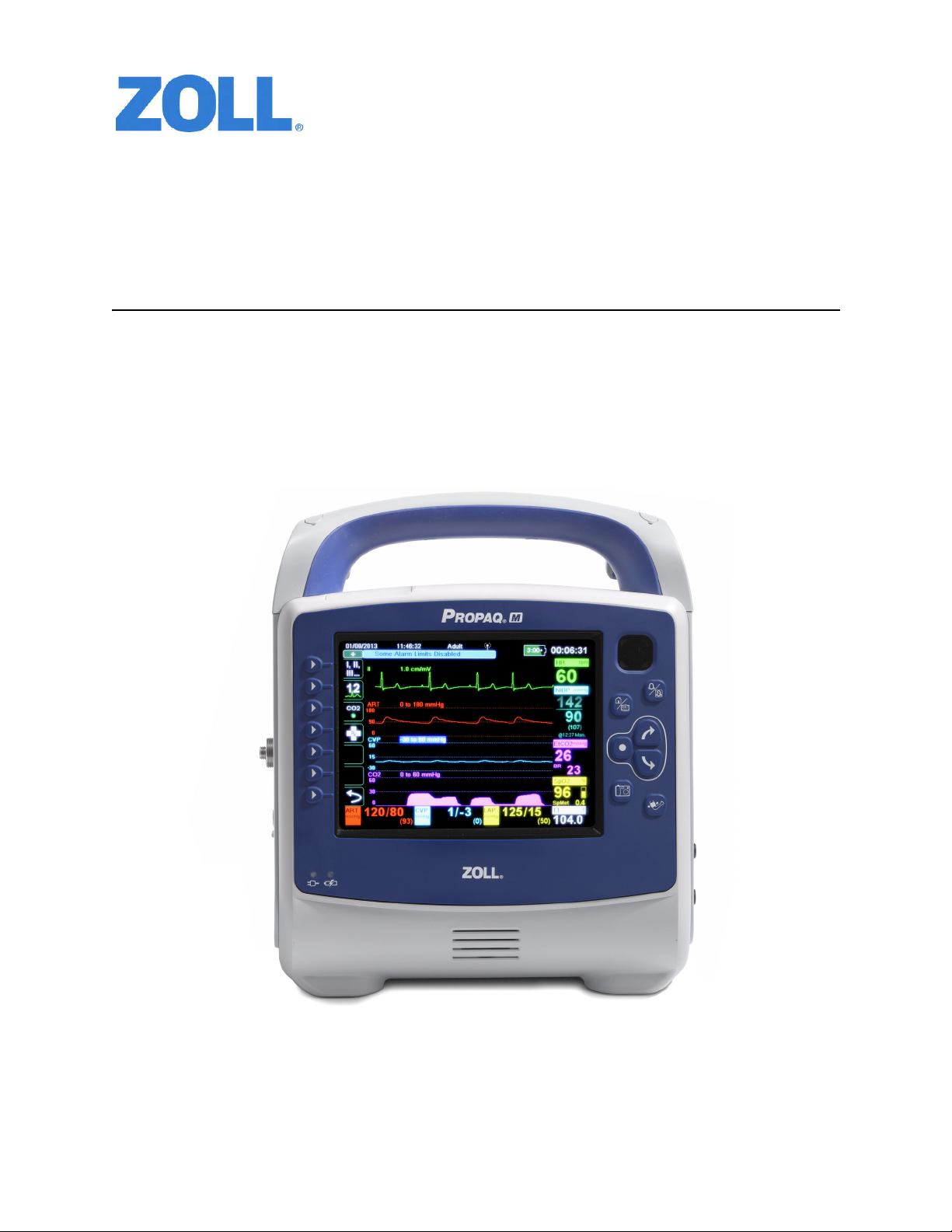

Propaq®M Service Manual
9650-000821-01 Rev. C

Use this guide with MP App software version 02.06.07.00 or higher.
The issue date for the Propaq M Service Manual (REF 9650-000821-01 Rev. C)is May,2017.
If more than 3years have elapsed since the issue date, contact ZOLL Medical Corporation to determine if
additional product information updates are available.
Copyright © 2017ZOLL Medical Corporation. All rights reserved. SurePower and ZOLL are trademarks or
registered trademarks of ZOLL Medical Corporation in the United States and/or other countries.
Masimo and Rainbow are trademarks or registered trademarks of Masimo Corporation in the United States
and/or other countries.
Propaq is a registered trademark of Welch Allyn Inc.
0123
ZOLL Medical Corporation
269 Mill Road
Chelmsford, MA USA
01824-4105
ZOLL International Holding B.V.
Newtonweg 18
6662 PV ELST
The Netherlands

9650-000821-01 Rev. C Propaq M Service Manual 1
Table of Contents
Preface
Overview................................................................................................................................ 1
Safety Considerations............................................................................................................ 2
Additional Reference Material................................................................................................ 2
Conventions........................................................................................................................... 2
Service Policy Warranty.........................................................................................................3
Technical Service................................................................................................................... 3
Technical Service for International Customers ...................................................................... 3
Chapter 1 Maintenance Tests
Propaq M Overview ...............................................................................................................5
Maintenance Tests................................................................................................................. 8
Chapter 2 Troubleshooting
Overview.............................................................................................................................. 43
Propaq M Error Messages................................................................................................... 43
Chapter 3 Disassembly Procedures
Overview.............................................................................................................................. 53
Required Equipment ............................................................................................................ 53
Safety Precautions............................................................................................................... 54
Modules ............................................................................................................................... 54
Removing the Handle .......................................................................................................... 55
Disassembling the Main Unit ............................................................................................... 56
Removing the Front Enclosure Module ............................................................................... 58
Removing the Display Module ............................................................................................. 60
Removing the EtCO2 and NIBP Modules............................................................................ 63
Removing the Monitor Board and SpO2 Modules ............................................................... 65
Chapter 4 Replacement Parts
Overview.............................................................................................................................. 69
Replacement Parts .............................................................................................................. 70

TABLE OF CONTENTS
29650-000821-01 Rev. C
Chapter 5 Functional Description
Overview.............................................................................................................................. 73
Appendix A
Overview.............................................................................................................................. 77
Propaq M Electrical Hardware Interconnect Diagram.......................................................... 78
Propaq M Signal and Power Interconnect Schematic.......................................................... 79
Appendix B
Overview.............................................................................................................................. 81
Maintenance Test Checklist
Overview.............................................................................................................................. 85

9650-000821-01 Rev. C Propaq M Service Manual 1
Preface
Overview
ZOLL®Medical Corporation’s Propaq®M Service Manual is intended for the trained
biomedical technician whose responsibility is to identify malfunctions and/or make repairs at
the subassembly level. The Propaq M Service Manual has five main sections and two
appendixes.
Preface—Contains safety warnings and an overview of the manual’s contents. Be sure to
review this section thoroughly before attempting to use or service the Propaq M unit.
Chapter 1—Maintenance Tests describes various maintenance tests, including annual
calibration tests for NIBP and EtCO2modules, and operational tests that need to be performed
at regular intervals to augment the automatic testing the Propaq M does to ensure readiness.
Chapter 2—Troubleshooting provides a listing of error messages to help the service
technician detect faults and repair them.
Chapter 3—Disassembly Procedures describes step-by-step procedures for removing
subassemblies from the Propaq M unit.
Chapter 4—Replacement Parts List displays a complete list of ZOLL part numbers for field
replaceable parts available for the Propaq M unit, allowing the service person to identify and
order replacement parts from ZOLL.
Chapter 5—Functional Description provides technical descriptions for the Propaq M major
subassembly modules.

PREFACE
29650-000821-01 Rev. C
Appendix A—Propaq M Electrical Hardware Interconnect Diagram and Propaq M Signal and
Power Interconnect Schematic.
Appendix B—Contains simulators and settings that may be used to assess the performance of
the NIBP module.
Safety Considerations
The following section describes general warnings and safety considerations for operators and
patients. Service technicians should review the safety considerations prior to servicing any
equipment and read the manual carefully before attempting to disassemble the unit. Only
qualified personnel should service the Propaq M unit.
Federal (U.S.A.) law restricts this unit for use by or on the order of a physician.
Safety and effectiveness data submitted by ZOLL Medical Corporation to the Food and Drug
Administration (FDA) under section 510(K) of the Medical Device Act to obtain approval to
market is based upon the use of ZOLL accessories such as disposable electrodes, patient cables
and batteries.
Only qualified personnel should disassemble the Propaq M unit.
Do not discharge a battery pack except in a ZOLL SurePowerTM Charging Station.
Do not use the Propaq M in the presence of flammable agents (such as gasoline), oxygen-rich
atmospheres, or flammable anesthetics. Using the unit near the site of a gasoline spill may
cause an explosion.
Do not use the unit near or within puddles of water.
Additional Reference Material
In addition to this guide, there is a Propaq M Operator’s Guide which is a comprehensive
reference work that describes all the user tasks needed to operate the Propaq M unit.
Conventions
WARNING! Warning statements describe conditions or actions that can result in personal injury or death.
Caution Caution statements describe conditions or actions that can result in damage to the unit.
Note: Notes contain additional information on using the monitor.

Service Policy Warranty
9650-000821-01 Rev. C Propaq M Service Manual 3
Service Policy Warranty
In North America: Consult your purchasing agreement for terms and conditions associated with
your warranty. Outside of North America, consult ZOLL authorized representative.
In order to maintain this warranty, the instructions and procedures contained in this manual
must be strictly followed. For additional information, please call the ZOLL Technical Service
Department 1-800-348-9011 in North America.
Technical Service
If the ZOLL Propaq M unit requires service, contact the ZOLL Technical Service Department:
Telephone: [phone]
Fax: [phone]
Email: [e-mail]
Have the following information available for the Technical Service representative:
•Unit serial number.
•Description of the problem.
•Department where equipment is used.
•Sample chart recorder strips or electronic log files documenting the problem, if applicable.
•Purchase Order to allow tracking of loan equipment.
•Purchase Order for a unit with an expired warranty.
If the unit needs to be sent to ZOLL Medical Corporation, obtain a service request number
(SR#) from the Technical Service representative. Return the unit in its original container to:
ZOLL Medical Corporation
269 Mill Road
Chelmsford, Massachusetts 01824-4105
Attn: Technical Service Department (SR#)
Telephone: [phone] FAX: [phone]
Technical Service for International Customers
International customers should return the unit in its original container to the nearest authorized
ZOLL Medical Corporation Service Center. To locate an authorized service center, contact the
International Sales Department at ZOLL Medical at the above address.

ii–4 www.zoll.com 9650-000821-01 Rev. C
(This page intentionally left blank.)

9650-000821-01 Rev. C Propaq M Service Manual 5
Chapter 1
Maintenance Tests
Propaq M Overview
This chapter includes step-by-step procedures for various maintenance tests. At a minimum, a
trained biomedical technician must perform a CO2calibration and an NIBP calibration check
once per year. A CO2calibration check may be performed at any time to verify the CO2
calibration. It is necessary to perform maintenance tests after a module is repaired to ensure that
the functions of the Propaq M unit work properly. Use the checklist at the back of this
document (ZOLL Propaq M Maintenance Tests Checklist) to record your results of the
maintenance tests.
Because the Propaq M units must be maintained ready for immediate use, it is important for
users to conduct the Operator’s Shift Checklist procedure at the beginning of every shift. This
procedure can be completed in a few minutes and requires no additional test equipment. (See
the ZOLL Propaq M Operator’s Guide for the Operator’s Shift Checklist.)

CHAPTER 1MAINTENANCE TESTS
69650-000821-01 Rev. C
This chapter describes the following maintenance tests:
•Physical Inspection of the Unit
•Operational Tests
•Leads Test
•Heart Rate Display Test
•Heart Rate Alarm Test
•Power Supply Test
•Leakage Current Test
•Printer Test
•SpO2 Test (for SpO2 feature without SpCO and SpMet)
•SpO2, SpCO, and SpMet Test
(for SpO2 feature with SpCO, or SpO2 with SpCO and SpMet)
•Sp02, SpCO, SpMet, and SpHb Test
(for Sp02 feature with SpCO, SpHb, or SpCO and SpMet)
•EtCO2Calibration
•EtCO2Calibration Check
•EtCO2 Test
•IBP Test
•NIBP Calibration Test
•NIBP Leak Test
•NIBP Deflation Test
•NIBP Inflation Test
•NIBP Test
•Temperature Test
•Wi-Fi Test (Optional)
Before You Begin the Maintenance Tests
•Assemble the tools listed in following section, “Equipment You Need to Perform the
Maintenance Tests.”
•Keep an extra fully charged Propaq M battery available.
•Schedule an hour to conduct the entire maintenance test.
•Perform the tests in the order presented.
•Perform all the steps of each test procedure.
•Complete all the steps of the procedure before evaluating the test results.
Equipment You Need to Perform the Maintenance Tests
For testing purposes, you can substitute an equivalent device.
•Fluke Impulse 7000DP Analyzer, with appropriate interface adapter (Fluke Biomedical
BP Pump/Dynatech Nevada Inc. part number 3010-0378)
•ECG simulator
•Fluke Index 2 SpO2simulator
•IBP/Temp simulator
•NIBP simulator
•5% CO2calibration gas cylinder with CO2sample line (kit available from Scott Medical
Products, PN 4653ORF-BD)
•CO2sampling line airway adapter
•Stop watch

Propaq M Overview
9650-000821-01 Rev. C Propaq M Service Manual 7
Accessories You Need for the Propaq M Options Maintenance Tests
•3-lead, 5-lead and 12-lead ECG cables (12-lead cable needed if 12-lead option is
installed.)
•Masimo Rainbow 3 ft BioTek Test Sensor (Masimo P/N 3379) or Masimo Rainbow 3 ft
Direct Connect Optical Test Sensor
•Single or dual lumen NIBP hose
•IBP cable
•SpO2 cable and sensor
•EtCO2 cable and sensor
•Battery
•Auxiliary power source
•USB thumb drive

CHAPTER 1MAINTENANCE TESTS
89650-000821-01 Rev. C
Maintenance Tests
Physical Inspection of the Unit
Observe this... Pass/Fail
1.
Housing
Is the unit clean and undamaged? oo
2. Does the unit show signs of excessive wear? oo
3. Does the handle work properly? oo
4. Does the recorder drawer open and close properly? oo
5. Are input connectors clean and undamaged? oo
6. Are there any cracks in the housing? oo
7. Does the front panel have any damage or cracks? oo
8. Are there any loose housing parts? oo
9.
Cables
Are all cables free of cracks, cuts, exposed or broken wires? oo
10. Are all bend/strain reliefs undamaged and free of excessive cable wear? oo
11.
Battery
Is the Propaq M battery fully charged? oo
12. Is the battery seated in the battery well correctly? oo
13. Is battery housing free of cracks and damage? oo
14. Are connectors free of damage and excessive wear? oo

Maintenance Tests
9650-000821-01 Rev. C Propaq M Service Manual 9
Operational Tests
The Propaq M unit comes equipped with routine operational tests that can be performed
periodically. With the exception of the Physical Inspection of the Unit test, these tests contain
instructions within them that provide guidance during the tests.
The operational tests on the unit can be accessed by doing the following:
1. Turn on the Propaq M unit.
2. Press the More ( ) then the Setup ( ) quick access keys.
3. Use the navigation keys to select Supervisor>Service>Device Tests. The operational tests
are displayed. Use the navigation keys to select one of the tests.
Note: You need a supervisor passcode to enter the Supervisor menu.

CHAPTER 1MAINTENANCE TESTS
10 9650-000821-01 Rev. C
Keypad Test
This test checks all the front panel buttons on the unit to make sure they are working correctly.
Follow the instructions and use the navigation keys to move around the display and make
selections.
LED Test
This test checks all the Light Emitting Diodes in the unit to make sure they are working
correctly.
Follow the instructions and use the navigation keys to move around the display and make
selections.
Note: The speed of the flash varies by color.

Maintenance Tests
9650-000821-01 Rev. C Propaq M Service Manual 11

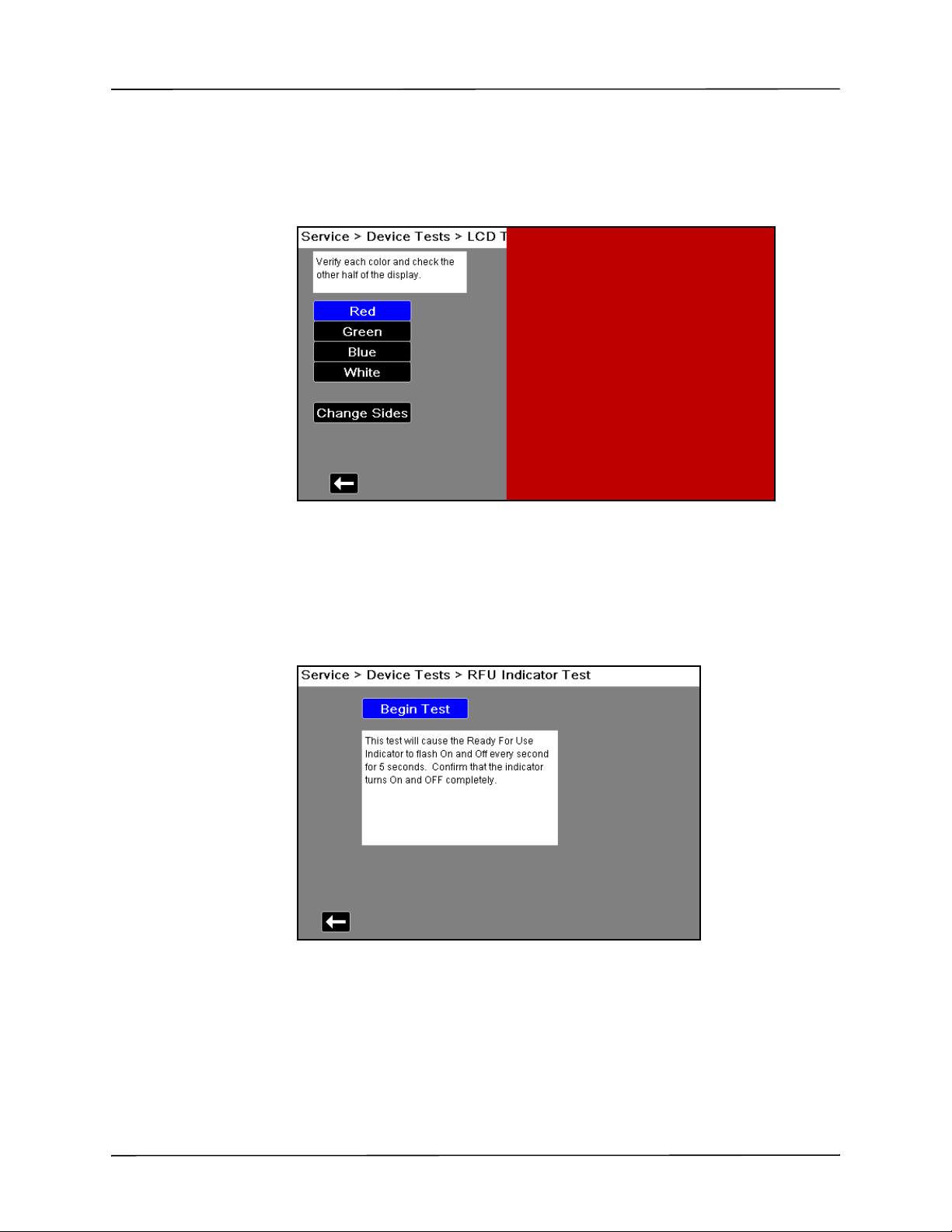

LCD Test
This test checks the colors of the Liquid Crystal Display on the unit.
Follow the instructions and use the navigation keys to move around the display and make
selections.
RFU Indicator Test
This test checks the Ready For Use Indicator on the unit to make sure it is working correctly.
Follow the instructions shown on the display.

CHAPTER 1MAINTENANCE TESTS
12 9650-000821-01 Rev. C

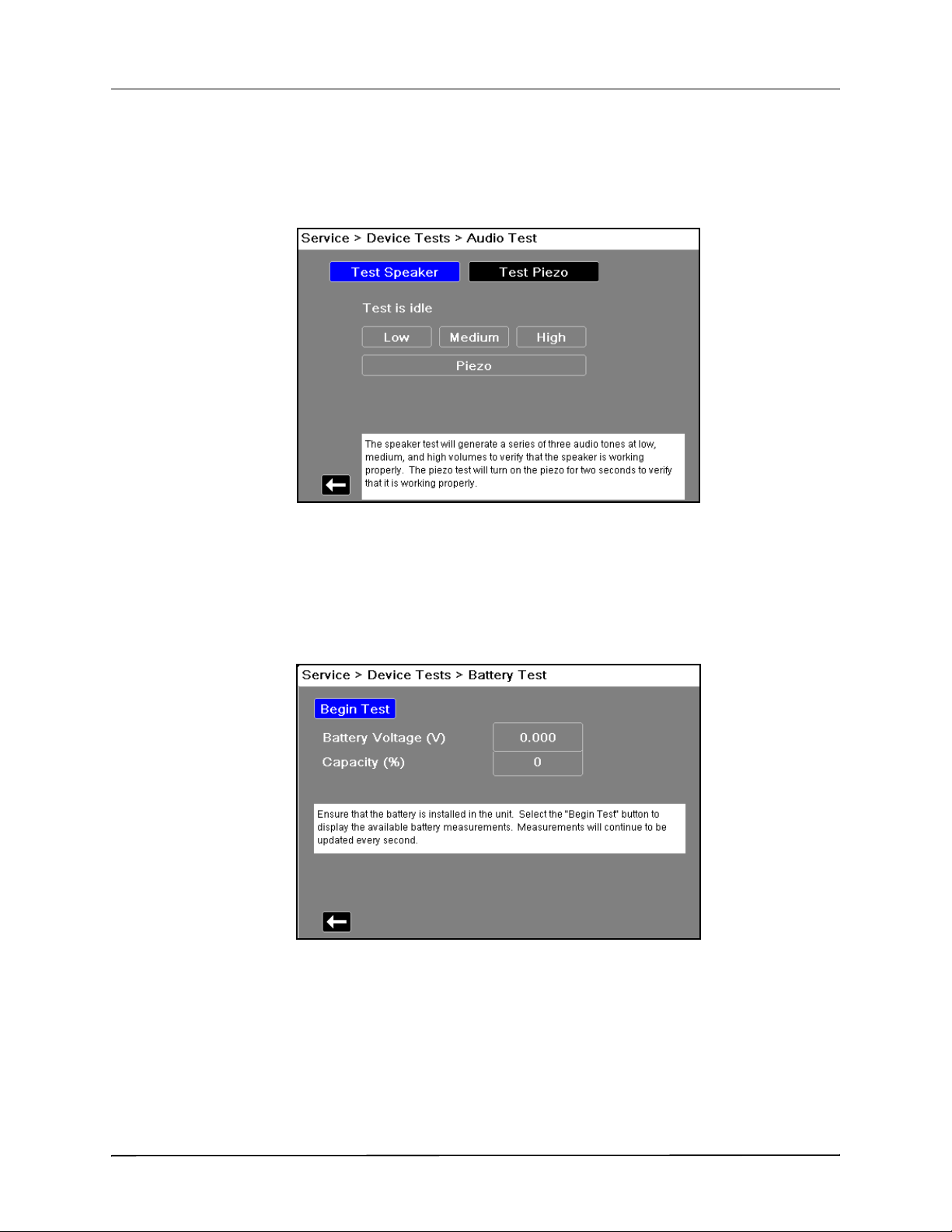

Audio Test
This test checks the audio tones on the unit to make sure they are working correctly.
Follow the instructions and use the navigation keys to move around the display and make
selections.
Battery Test
This test checks the battery to make sure it is working correctly.
Follow the instructions on the display.

Maintenance Tests
9650-000821-01 Rev. C Propaq M Service Manual 13

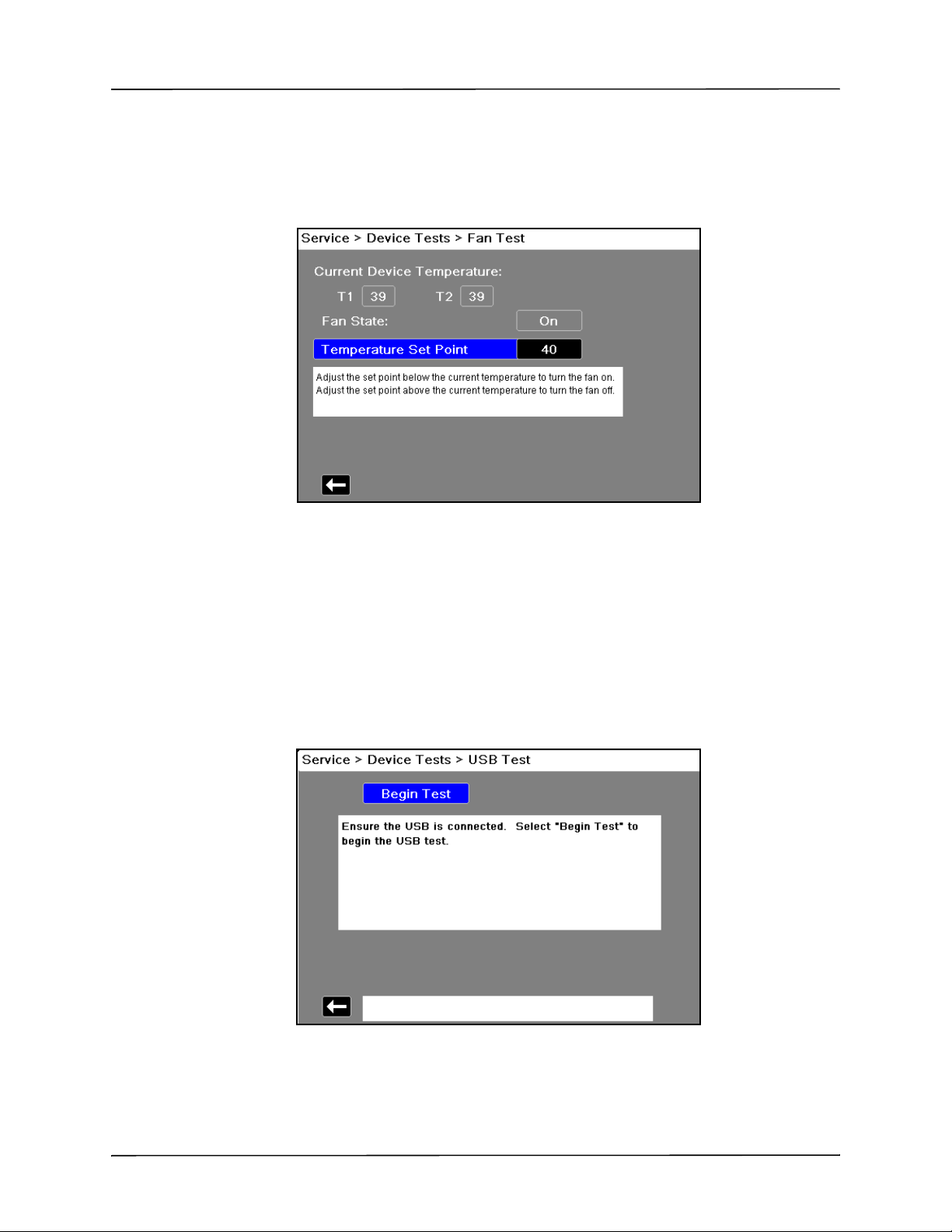

Fan Test
This test checks the fan in the unit to make sure it is working correctly.
Follow the instructions and use the navigation keys to move around the display and make
selections.
USB Test (Optional)
Note: Before starting this test, contact the ZOLL Technical Service Department to obtain a
test file, or create a file (see instructions below). Once you have obtained a copy, save
it on a USB thumb drive.
This test allows you to perform the USB test to make sure it is working correctly.
Follow the instructions and use the navigation keys to move around the display and make
selections.

CHAPTER 1MAINTENANCE TESTS
14 9650-000821-01 Rev. C
When these tests are completed, use the navigation keys to exit out of the Service menu.
1. Create a Text file using Microsoft Notebook.
2. Open new file in Notebook.
3. Click in the first line of the file and type THUNDERBOLT TESTFILE.
4. Save file as Tbolt_usb.txt.

Maintenance Tests
9650-000821-01 Rev. C Propaq M Service Manual 15
Leads Test
Equipment 3-lead, 5-lead, and 12-lead cables, Fluke Impulse 7000DP Analyzer
Note: Test each cable separately.
Test Setup Connect the lead wires appropriate for each test to the Fluke Impulse 7000DP Analyzer or
equivalent, then connect the ECG cable to the Propaq M unit.
Do this... Observe this... Pass/Fail
1. Turn on the Propaq M unit. No ECG LEAD FAULT message
displayed.
oo
2. Disconnect one lead from the
simulator.
The ECG LEAD FAULT message displays
within 3 seconds (if configured).
oo
3. Reconnect the lead. Repeat step 2
with the remaining leads.
Wait for ECG LEAD FAULT message to
clear from the display (if configured).
oo
4. Repeat steps 2 and 3 for 5 lead and 12
lead cables.
Note: If heart rate alarm sounds, on the
Propaq M unit:
Press the More quick access key ( ) key
to access the second set of quick access
keys.
Press the Alarm quick access key ().
Press the Alarm Cancel quick access key
().
oo

CHAPTER 1MAINTENANCE TESTS
16 9650-000821-01 Rev. C
Heart Rate Display Test
Equipment Fluke Impulse 7000DP Analyzer
ECG Cable (3-lead, 5-lead or 12-lead)
Test Setup Press Lead quick access key until II displays.
Connect the ECG leads to the ECG studs on Analyzer.
Do this... Observe this... Pass/Fail
1. Set the ECG Simulator to 120BPM. The Heart Rate displays as 120 +/- 4 bpm. oo
