2N ATEUS 501101E User manual

ATEUS® - GSM GATEWAY COMPACT 2000
Model: 501101E
User Manual
Version of manual: 1.3
Version of firmware: 2.43

1
Dear customer,
Let us congratulate you on purchasing our ATEUS ® - GSM Gateway Compact 2000.
During the development and production of this product, care was taken to maximise
its value, quality and reliability. We hope you will use the GSM Gateway to it full
potential with long lasting benefits.
! Important !
• The manufacturer currently updates the firmware integrated into this product. An authorized
distributor with necessary technical basis can upgrade the product, if necessary.
• To program your GSM Gateway parameters using a remote programming you need the
“GSM – Program Software“. For the most recent version of this programming tool please
refer to www.2n.cz.
• You will find the latest version of this Manual in the popular .PDF format on www.2n.cz also.
You are recommended to view the latest version in case of software update to find
explanations of new functions.
• Please read this Manual carefully before installing and using this product for the first time.
The manufacturer is not liable for any loss incurred by the user as a result of incorrect usage
of the unit. Our warranty terms and conditions do not cover damage caused by rough
handling, improper storage, or exceeding the specified technical parameters.
• This Manual is quite comprehensive and includes sections that are not necessary for the
basic installation of the unit. Before you begin installation, take focus to instructions for
installation, functional verefication and putting into operation.
• Preliminary information on functions that will be available in later software releases will have
a light-grey background or in grey font.

2
History
Version What has changed or new in this version
1.0 • The manual was extracted from version 8.6 of collective manual for GSM
gateway family COMPACT 2000. Information not applicable to model 501101E,
was removed.
1.1
• New parameter 115 - interantional prefix (usually 00)
• New parameter 116 - country code (sooner parameter 6002)
• New parameter 117 - long distance code (usually 0 or none)
• New parameter 118 - operator prefix (reserved for future use)
• New subchapter 5.3.6 Erasing of parameters
1.3 • New parameters 158 and 159 - maximum time of call

3
Checklist
Packaging list, please check the contents of your unit:
Item Quantity Notes
GSM Gateway COMPACT 2000, model 501101E 1
Mains (A.C. power supply) cord 1 1)
Telephone line cord 1
Antenna 1 1)
Holder (for fixing to the wall) 1
Rawlplugs 2
Screws 2
This manual 1
Warranty Certificate 1
GSM program software on floppy or CD-ROM 1
Notes:
1) Versions shipped without mains cord or without antenna are available on request.

4
Contents
1. Introduction............................................................................................5
1.1. PURPOSE.......................................................................................................................... 5
1.2. HOW TO SAVE GSM CALL COSTS....................................................................................... 5
1.3. OTHER ADVANTAGES AND APPLICATIONS ............................................................................5
1.4. PRODUCT OVERVIEW .........................................................................................................6
1.5. MAIN FEATURES ................................................................................................................6
2. Basic Installation Instructions ................................................................7
2.1. PROPER LOCATION ............................................................................................................7
2.2. TELEPHONE LINE CONNECTION...........................................................................................8
2.3. EXTERNAL ANTENNA CONNECTION......................................................................................9
2.4. SIM CARD SET-UP AND INSTALLATION................................................................................. 9
2.5. POWER SUPPLY CONNECTION ..........................................................................................10
2.6. FUNCTIONAL VERIFICATION ...............................................................................................10
2.7. LED INDICATORS............................................................................................................. 11
3. Functional Descriptoin..........................................................................12
3.1. OUTGOING CALL.............................................................................................................. 12
3.2. INCOMING CALL ...............................................................................................................13
3.3. AUTOMATIC DIALING ("BABY CALL")....................................................................................14
3.4. INTELLIGENT INCOMING CALL ROUTING.............................................................................. 14
3.5. TELEPHONE LINE TONES, RINGING COURSE - SUMMARY ....................................................16
3.6. PIN/PUK CODE ENTERING ..............................................................................................17
3.7. NOTES ............................................................................................................................18
3.8. INSTRUCTIONS FOR USE FOR COMMON USERS...................................................................19
4. Installation Instructions for Advanced Users ........................................20
4.1. OUTSIDE DESCRIPTION ....................................................................................................20
4.2. DESCRIPTION OF GSM GATEWAY PCB............................................................................. 22
4.3. FUSE EXCHANGE .............................................................................................................23
5. Programming ........................................................................................24
5.1. HOW TO PROGRAM .......................................................................................................... 24
5.2. BEFORE PROGRAMMING...................................................................................................24
5.3. HANDSET-BASED PROGRAMMING...................................................................................... 25
5.4. REMOTE PROGRAMMING BY PC ........................................................................................ 28
6. Parameter Tables..................................................................................34
6.1. BASIC PARAMETERS ........................................................................................................34
6.2. LINE INTERFACE PARAMETERS.......................................................................................... 38
6.3. CALL SORTING TABLE ...................................................................................................... 40
6.4. INTELLIGENT INCOMING CALL ROUTING TABLE ...................................................................46
6.5. OPERATION MONITORING PARAMETERS ............................................................................47
6.6. SERVICE PARAMETERS ....................................................................................................49
7. Miscellaneous.......................................................................................51
7.1. TELEPHONE COST SAVING TIPS ........................................................................................51
7.2. TROUBLE SHOOTING ........................................................................................................ 52
7.3. LIST OF ABBREVIATIONS ................................................................................................... 52
8. Technical Parameters ...........................................................................53

5
1. Introduction
1.1. Purpose
• When connected to a PBX, the ATEUS® - GSM GATEWAY COMPACT allows its users to
make direct calls via the GSM network. It can work with a telephone set, coin-operated
automatic machines, etc.
• The voice mode, i.e. an outgoing or incoming call, is the basic function of the GSM Gateway.
The Gateway is equipped with all functions necessary for this purpose and offers ease of
use in this mode.
1.2. How to Save GSM Call Costs
• By connecting a GSM Gateway to your PBX you can make direct calls into a mobile network.
This saves PSTN – GSM connection costs. Mobile telephone calls made by your colleagues
from outside to your headquarters will be cheaper too.
• With the GSM Gateway you can use the most convenient tariff rate of your GSM operator,
because calls of all your GSM Gateway users will be billed together.
• If you use an answering and recording machine – a GSM service, you may pay for retrieving
messages. If you connect an answering machine of your own to the GSM Gateway, you pay
nothing for the retrieval.
• With the GSM Gateway you can eliminate selected numbers. You won’t pay for a call that is
disabled.
• You can also get a listing of the time and length of selected calls to find easily why your bill is
higher than it should be.
1.3. Other Advantages and Applications
• You can establish a telephone connection even where there are no fixed telephone lines
available (exhibitions, fairs, conferences, chalets...).
• You are not exposed to the high-frequency electromagnetic field as with a mobile telephone.
• You can also attach a coin-telephone to the GSM Gateway, as it is able to send tariff pulses.
You can assess the price for call connections yourself (with profit).

6
1.4. Product Overview
Model Order No.
Older model for 1 PBX CO line (only for comparison) 501052E
For 1 PBX CO line, power supply w/o back-up,
low-cost model without serial interface 501101E
For 1 PBX CO line, power supply w/o back-up, 501100E
For 1 PBX CO line, power supply w/o back-up, GPRS !) 501105E
For 1 PBX CO line, power supply with back-up, 501063E
For 1 PBX extension, power supply w/o back-up, 501061E
For 1 PBX CO line, for 19" rack, 504063E
For 1 PBX extension, for 19" rack, 504061E
Rack 19" with bus and power supply unit (see below) 506000E
Battery set for 19“ models, 2x 6V / 10 Ah 506010E
Power supply, for 19“ models, w/ back- up, max. 12channels 910121220
Battery pack with cover, for models with back-up, not for 19" 910121090
1.5. Main Features
• DTMF dialling !!!!!!!
!!
!!
• Pulse dialling !!!!!!!
!!
!
• Operates on PBX CO line !!!!!
!!
!!
• Operates with answering machine or telephone !!!!!
!!
!!
• Operates on PBX extension line !!
• GSM module SIEMENS TC-35, 900 and 1800 MHz band !!!!!!!
!!
!!
• High quality voltage protection at line interface !!!!!!!
!!
!!
• No external mobile phone needed !!!!!!!
!!
!!
• An easy installation – Plug & Play !!!!!!!
!!
!!
• Battery operation during AC power failure !!!!
• Barring possibility for selected calls !!!!!!!
!!
!*)
• Intelligent end of dialling recognition – faster connection !!!!!!!
!!
!
• Intelligent Incoming Call Routing !!!!!!!
!!
!
• Service buffer – list of selected events and calls !!!!!!!
!!
!
• Tariff pulse transmitter – e.g. for coin-phone !!!!!
!!
!
• Begin & end of call signalling supported !!!!!!!
!!
!
• Two binary inputs – transmits SMS, for watching whatever you need !!!!!!
• Serial port RS-232C – for connecting to any PC !!!!!!
• SMS messages can be received & transmitted by PC !!!!!!
• Data mode – can be used as a modem with any PC !!!!!!
• GPRS data mode, 4+1, class B !
• Two universal outputs – for controlling whatever you need by SMS !!!!!!
• Programming by phone !!!!!!!
!!
!!
• Programming by PC !!!!!!
• Remote programming by PC !!!!!!!
!!
!
• Acoustic failure signalisation !!
Explanatory Notes:
!
!!
!Yes
*) Yes, but with limited capabilities
!) New model

7
2. Basic Installation Instructions
This chapter describes the basic connection of the GSM Gateway that can be made in a few
minutes. All you have to do is to connect an antenna, the power supply cable and telephone
line, insert your SIM card and the GSM Gateway is ready to work.
2.1. Proper Location
• The ATEUS® - GSM GATEWAY COMPACT is a transmitter in principle. You must comply
with the local regulations and laws in your country pertinent to usage of mobile phones and
transmitters!
• The ATEUS® - GSM GATEWAY COMPACT is designed for vertical mounting. For the
required working position see Fig.1.
• The GSM Gateway may be operated in a position other than vertical (on a desk, e.g.) for a
short time only – for quick maintenance testing, for example.
• For the acceptable range of operating temperature and humidity refer to the “Technical
Parameters”.
• The GSM Gateway may not be operated at places
exposed to direct solar or heat radiation.
• Exceeding the acceptable operating temperature
does not have an immediate impact on the GSM
Gateway function, but may result in accelerated
ageing and lower reliability.
• The GSM Gateway is designed for indoor use. It
must not be exposed to rain, water, condensed
moisture, fog, etc.
• The GSM Gateway must not be exposed to corrosive
gas, fumes of acids or solvents, etc., or corrosive
liquids, during cover cleaning, for example.
• The GSM Gateway is not intended for use in high-
vibration locations such as means of transport,
machine rooms, etc.
• The GSM Gateway should be located with respect to
the GSM signal quality.
• A free space should be left over and under the GSM
Gateway for cables and flowing air that removes heat
produced during the operation.
Fig. 1.: GSM Gateway Working Position

8
2.2. Telephone Line Connection

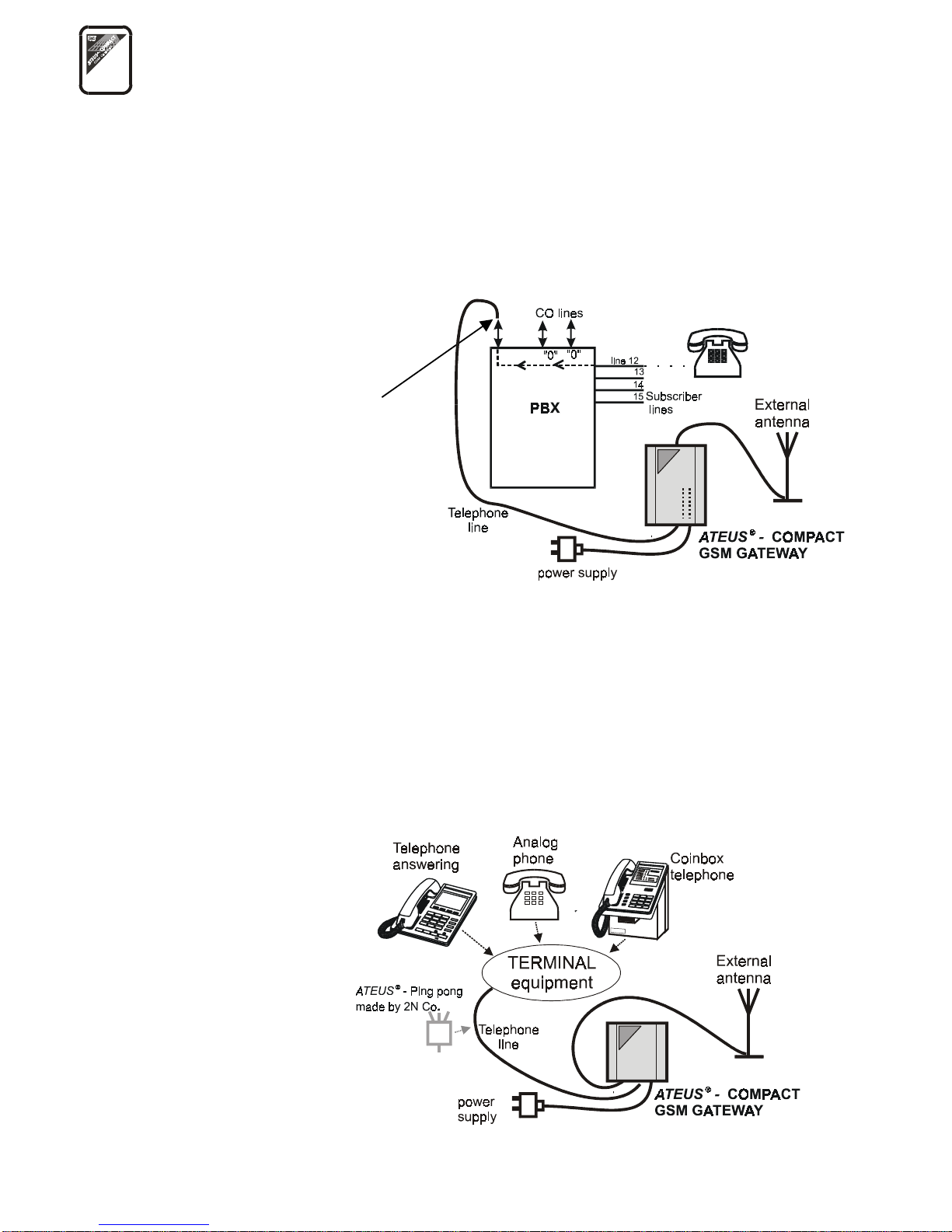

2.2.1. Connection to PBX
Connect the ATEUS® - GSM GATEWAY model 501101 to a free external (C.O.) line
of your PBX. With a CO line, define a different access number for this line than for the
remaining CO lines during the PBX programming. ATEUS® PBXs made by 2N
TELEKOMUNIKACE a.s. are equipped with the Least Cost Routing (LCR) software, which
allows you to use the same access number for all CO lines.
2.2.2. Connection to Telephone Set
(Answering Machine, Coin-Operated Automatic Machine)
You can connect any telephone set or some other terminal equipment to the GSM
gateway model 501101E; see Fig. 3. For convenience, you can add “ATEUS ® - Ping
pong ” (intelligent double or triple branch made by 2N TELEKOMUNIKACE a.s., order
Nos. 831127, 831128, 831137, 831138) to interconnect several devices, such as a coin-
operated automatic machine, another telephone set, and an answering machine.
Note: If you connect a coin-operated phone, be sure to program the transmission of tariff
pulses and pseudo tariff metering properly as well as to bar calls with unpredictable tariff
rates!
Access to GSM gateway,
connected this way (to external line
of PBX) must be provided by a
prefix, different to the prefix for C.O.
line access. Another solution is a
LCR (Least Cost Router) inside the
PBX - software that is able to
choose right direction for every call
automatically.
Fig. 2.: Connection to PBX
C.O. line including call-
making example
Fig. 3.: Optional
Connection of More
Terminal Equipment
