3M 3M-Matic 700rks Parts list manual

Instructions and Parts List
Serial No.
For reference, record machine serial number here.
Important
Safeguards
Spare Parts
700rks Type 29800
Adjustable
Case Sealer
with
Taping Heads
"3M-Matic" and "AccuGlide" are Trademarks
of 3M, St. Paul, MN 55144-1
Printed in U.S.A.
© 3M 2 44- 9-1927-2(A)
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000
Read "Important Safeguards",
pages 3-6 and also operating
"Warnings", page 18
BEFORE I STALLI G
OR OPERATI G THIS
EQUIPME T.
It is recommended you
immediately order the
spare parts listed on
page 39. These parts
are expected to wear
through normal use
and should be kept on
hand to minimize
production delays.
3
3M-Matic
KEEP THESE INSTRUCTIONS NEAR THIS
EQUIPMENT FOR FUTURE REFERENCE.
AccuGlide II



Replacement Parts and Service Information
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000
To Our Customers:
This is the 3M-Matic/AccuGlide/Scotch brand equipment you
ordered. It has been set up and tested in the factory ith "Scotch"
brand tapes. If technical assistance or replacement parts are needed,
call or Fax the appropriate number listed belo .
Included ith each machine is an Instructions and Parts List manual.
Replacement Parts and Additional Manuals
Order parts by part number, part description and quantity required. Also, when
ordering parts and/or additional manuals, include machine name, number and
type. A parts order form is provided at the back of this manual.
3M/Tape Dispenser Parts
241 Venture Drive 1-800/344 9883
Amery, WI 4001-132 FAX# [phone]
Technical Assistance:
3 - atic Helpline  1-800/328 1390. Please provide the customer support
coordinator with the machine number, machine type/model and serial number. If
you have a technical question that does not require an immediate response, you
may Fax it to 715/381 0248.
Minimum billing on parts orders will be $25.00. Replacement part prices available on request.
Note : Outside the U.S., contact the local 3M subsidiary for parts ordering information.
$10.00 restocking charge per invoice on returned parts.
"3M-Matic", "AccuGlide" and Scotch are trademarks of
3M, St. Paul, Minnesota 55144-1
Printed in U.S.A.
© 3M 1999 44- 9-1851-4(E79. )

Replacement Parts And Service Information
To Our Customers:
This is the 3M-Matic/AccuGlide/Scotch brand equipment you
ordered. It has been set up and tested in the factory ith "Scotch"
brand tapes. If any problems occur hen operating this equipment, and
you desire a service call, or phone consultation, call, rite or Fax the
appropriate number listed belo .
Included ith each machine is an Instructions and Parts List manual.
SERVICE, REPLACEMENT PARTS AND ADDITIONAL MANUALS
AVAILABLE DIRECT FROM:
Order parts by part number, part description and quantity required. Also, when
ordering parts and/or additional manuals, include machine name, number and type.
1-800/328 1390
"3M-Matic", "AccuGlide" and Scotch are trademarks of
3M, St. Paul, Minnesota 55144-1
Printed in U.S.A.
© 3M 1999 44- 9-1852-2(D79. )
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000

Instruction Manual
700rks djustable Case Sealer
Type 29800
Table of Content Page
Intended Use.................................................................................................................................... 1
quipment Warranty and Limited Remedy ....................................................................................... 2
Contents  700rks Random Case Sealer ......................................................................................... 2
Important Safeguards ....................................................................................................................... 3 - 6
Specifications .................................................................................................................................. 7 - 10
Installation and Set-Up ..................................................................................................................... 11 - 14
Receiving and Handling ....................................................................................... 11

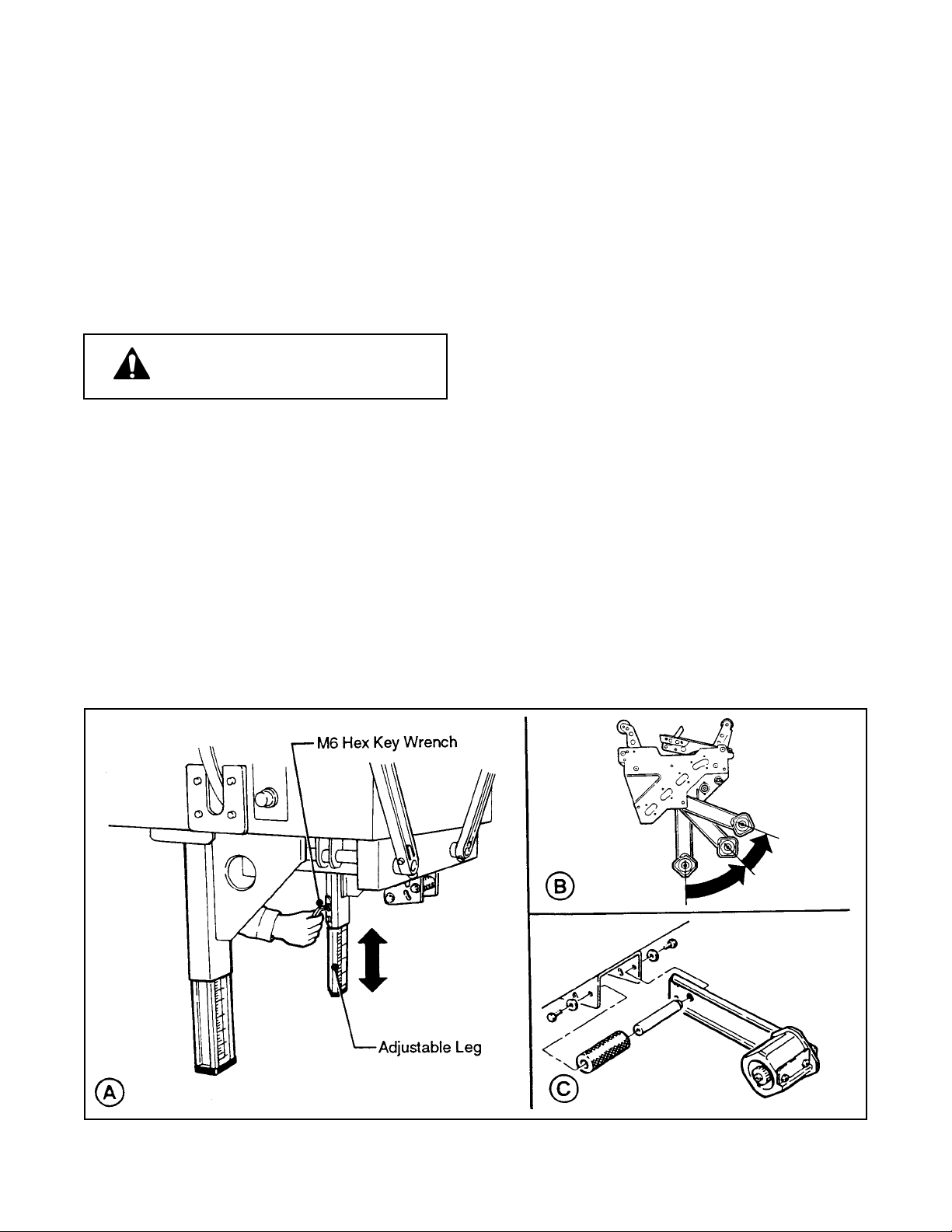

Machine Set-Up .................................................................................................. 11 - 14
Initial Start-Up of Case Sealer ............................................................................. 14
Operation ......................................................................................................................................... 15 - 21

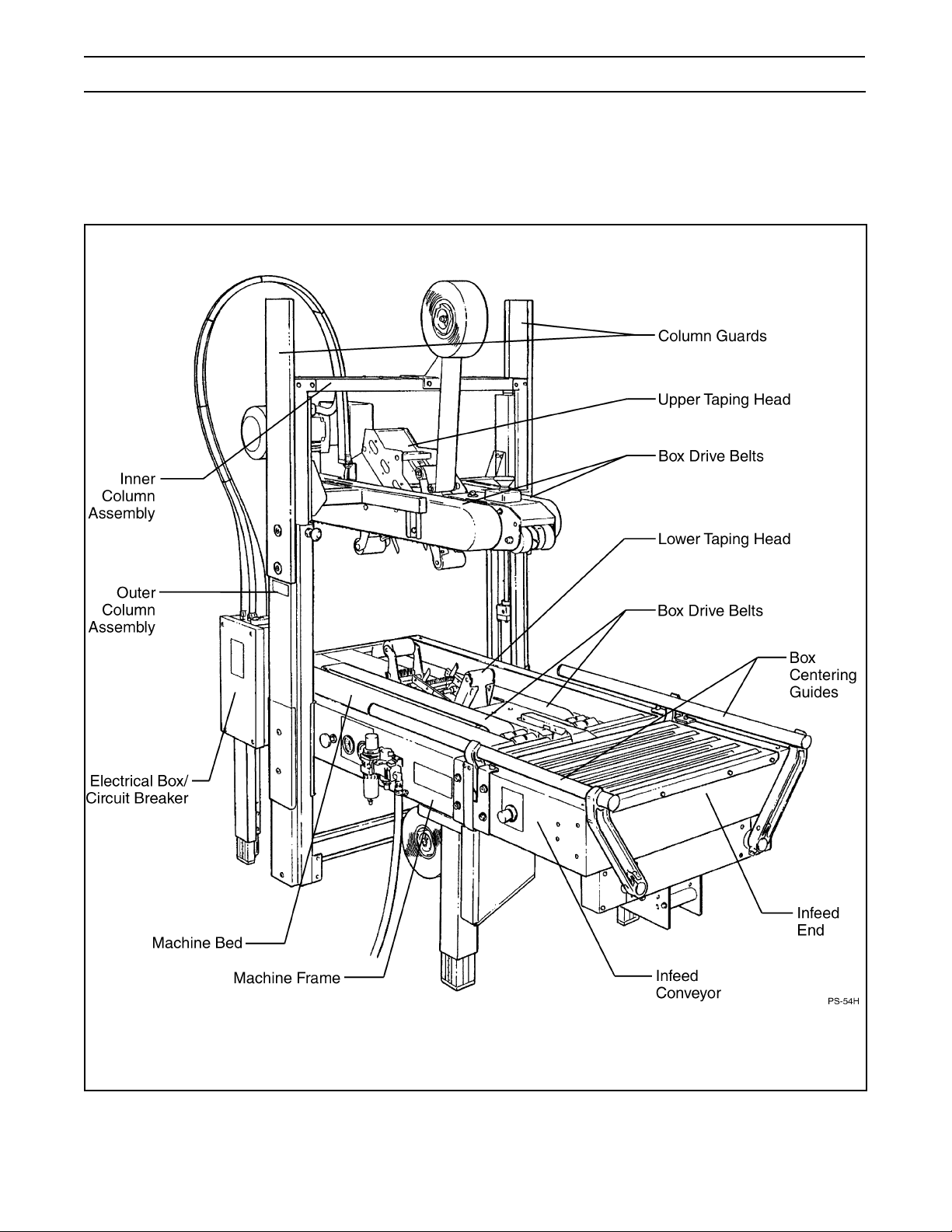

Case Sealer Components ................................................................................... 15 - 18
Operation "Warnings" ......................................................................................... 18
Tape Loading/Threading ...................................................................................... 19
Box Sealing ........................................................................................................ 20 - 21
Maintenance .................................................................................................................................... 23 - 26
Cleaning .............................................................................................................. 23
Air Line Filter ...................................................................................................... 23
Lubrication .......................................................................................................... 23
Drive Belt Replacement/Tension Adjustment ...................................................... 24 - 26
Upper Drive Belts ..................................................................................... 24
Lower Drive Belts ..................................................................................... 25 - 26
Circuit Breaker .................................................................................................... 26
Knife Replacement, Taping Head ........................................................................ 26
Adjustments .................................................................................................................................... 27
Drive Belt Tension ............................................................................................... 27
Taping Head Adjustments ................................................................................... 27
(Table of Content continued on next page)
i

Table of Content (Continued) Page
Special Set-Up Procedure................................................................................................................ 29 - 33

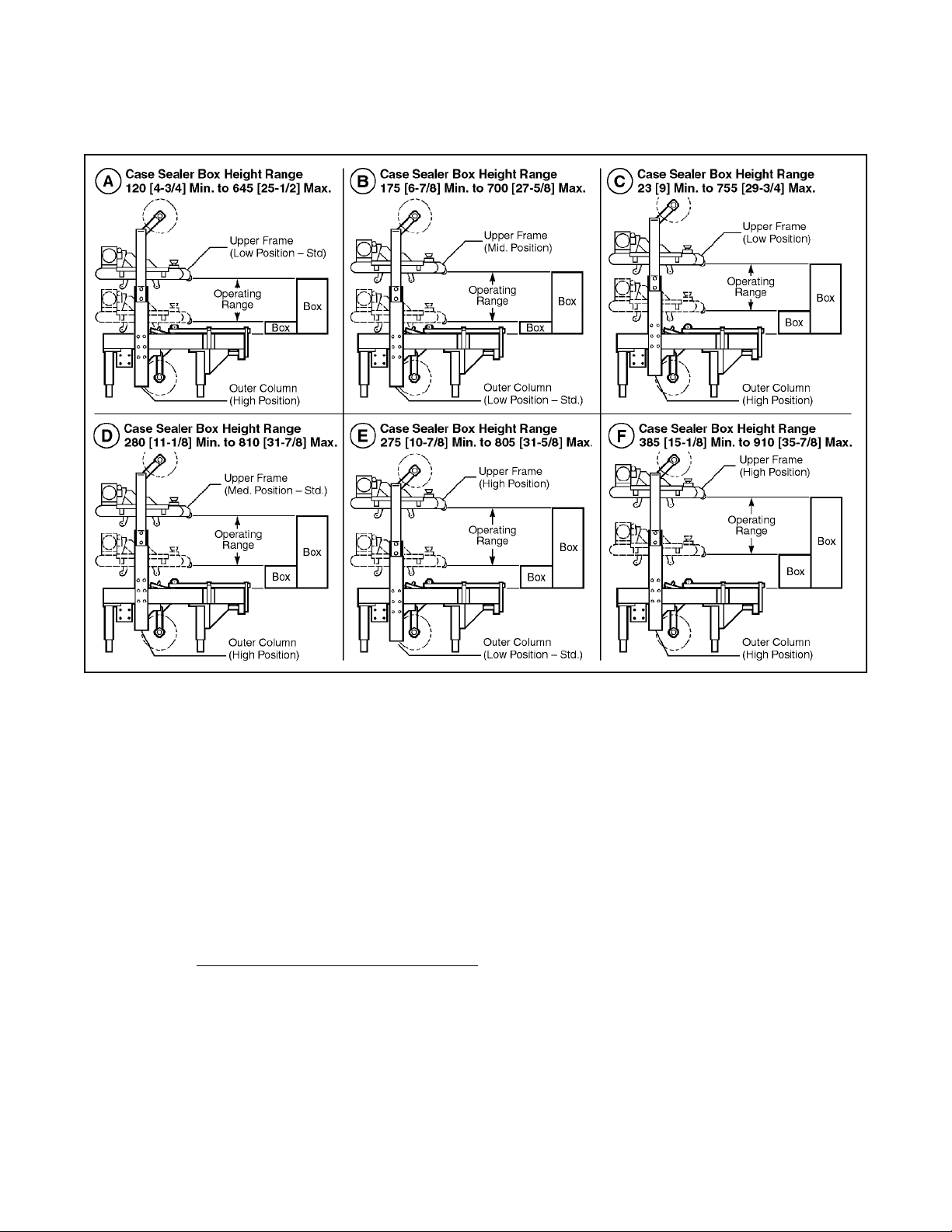

Upper Frame Assembly  Operating Range ........................................................ 29
Tape Leg Length ................................................................................................. 30
Upper Taping Head Frame, Re-Positioning ......................................................... 31
Outer Column, Re-Positioning ............................................................................. 32 - 33
Troubleshooting................................................................................................................................ 35 - 36
lectrical Diagram ........................................................................................................................... 37
Pneumatic Diagram ......................................................................................................................... 38
Spare Parts and Service Information ................................................................................................ 39
Suggested Spare Parts ....................................................................................... 39
Label Kit ............................................................................................................. 39
Tool Kit ............................................................................................................... 39
Replacement Parts Ordering Information and Service ......................................... 39
Options/Accessories ....................................................................................................................... 40
Replacement Parts Illustrations and Parts Lists ....................................................... (Yellow Section) 41 - 67
ii

1

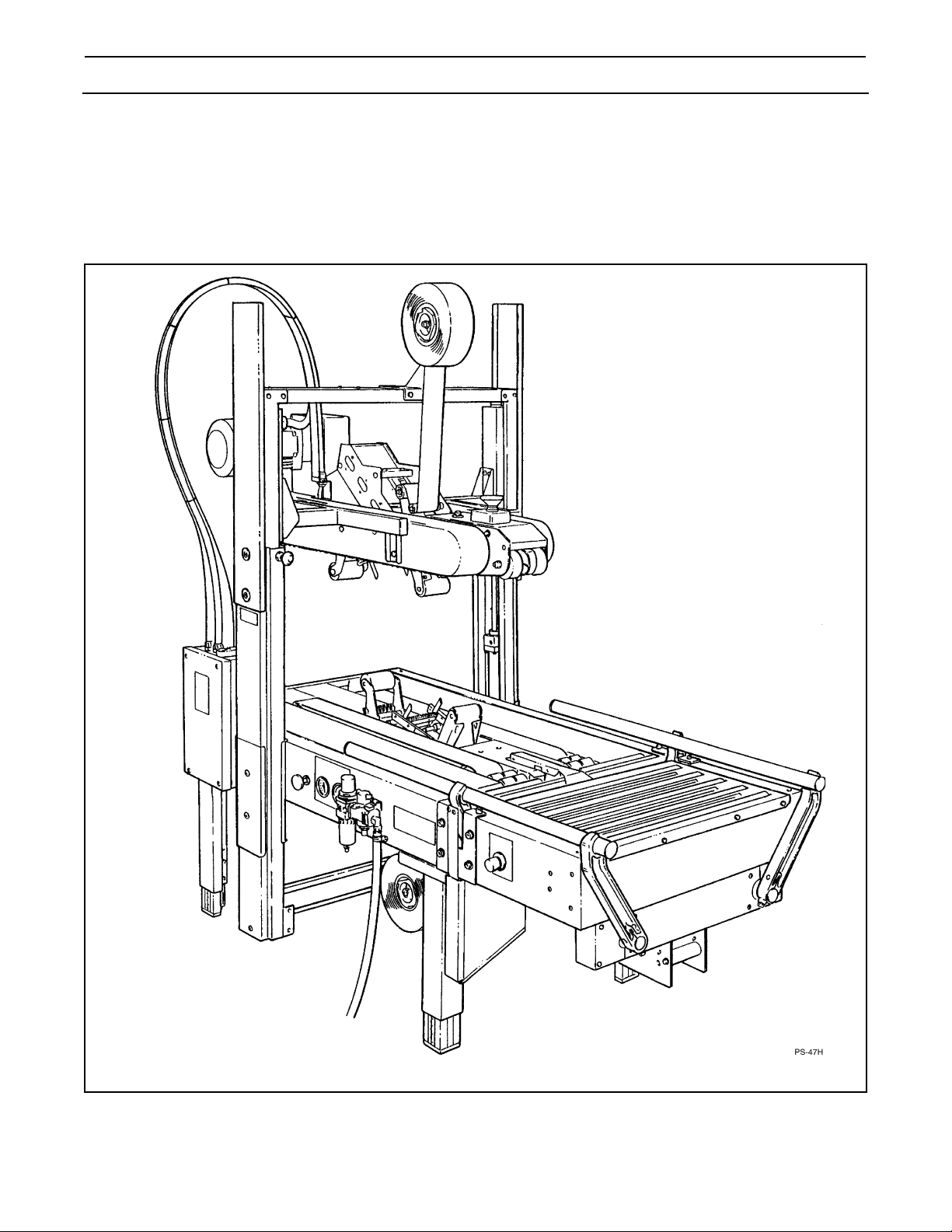

3M-MaticTM 700rks Random Case Sealer, Type 29800
The intended use of the 3M-MaticTM 700rks Random
Case Sealer with Accu lideTM II Taping Heads is to
apply a C clip of ScotchTM brand pressure-sensitive
film box sealing tape to the top and bottom center
seam of regular slotted containers. The case sealer
ad usts automatically to a wide range of box sizes as
Intended Use
listed in "Specifications  Box Weight and Size
Capacities", page 8. The machine has been
designed and tested for use with "Scotch" brand box
sealing tape and is not recommended for use with
other brands of tape.

2
Equipment Warranty and Limited Remedy: THE FOLLOWIN WARRANTIES ARE MADE IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDIN , BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE
AND ANY IMPLIED WARRANTY ARISIN OUT OF A COURSE OF DEALIN , A CUSTOM OR USA E OF
TRADE:
3M sells its 3M-MaticTM 700rks Random Case Sealer, Type 29800 with the following warranties:
1. The drive belts and the taping head knives, springs and rollers will be free from all defects for ninety (90)
days after delivery.
2. All other taping head parts will be free from all defects for three (3) years after delivery.
3. All other parts will be free from all defects for two (2) years after delivery.
If any part is proved to be defective within its warranty period, then the exclusive remedy and 3Ms and sellers sole
obligation shall be, at 3Ms option, to repair or replace the part, provided the defective part is returned immediately
to 3Ms factory or an authorized service station designated by 3M. A part will be presumed to have become
defective after its warranty period unless the part is received or 3M is notified of the problem no later than five (5)
calendar days after the warranty period. If 3M is unable to repair or replace the part within a reasonable time, then
3M, at its option, will replace the equipment or refund the purchase price. 3M shall have no obligation to provide or
pay for the labor required to install the repaired or replacement part. 3M shall have no obligation to repair or replace
(1) those parts failing due to operator misuse, carelessness, or due to any accidental cause other than equipment
failure, or (2) parts failing due to non-lubrication, inadequate cleaning, improper operating environment, improper
utilities or operator error.
Limitation of Liability: 3M and seller shall not be liable for direct, indirect, special, incidental or consequential
damages based upon breach of warranty, breach of contract, negligence, strict liability or any other legal theory.
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be changed only by a
written agreement signed by authorized officers of 3M and seller.
ScotchTM, AccuGlideTM, and 3M-MaticTM are Trademarks of 3M, St. Paul, Minnesota 55144-1000
Contents  700rks Random Case Sealer
(1) 700rks Random Case Sealer, Type 29800
(1) Tool/Parts Kit, P/N 78-8098-8868-4
(1) Instruction and Parts Manual

3
Important Safeguards

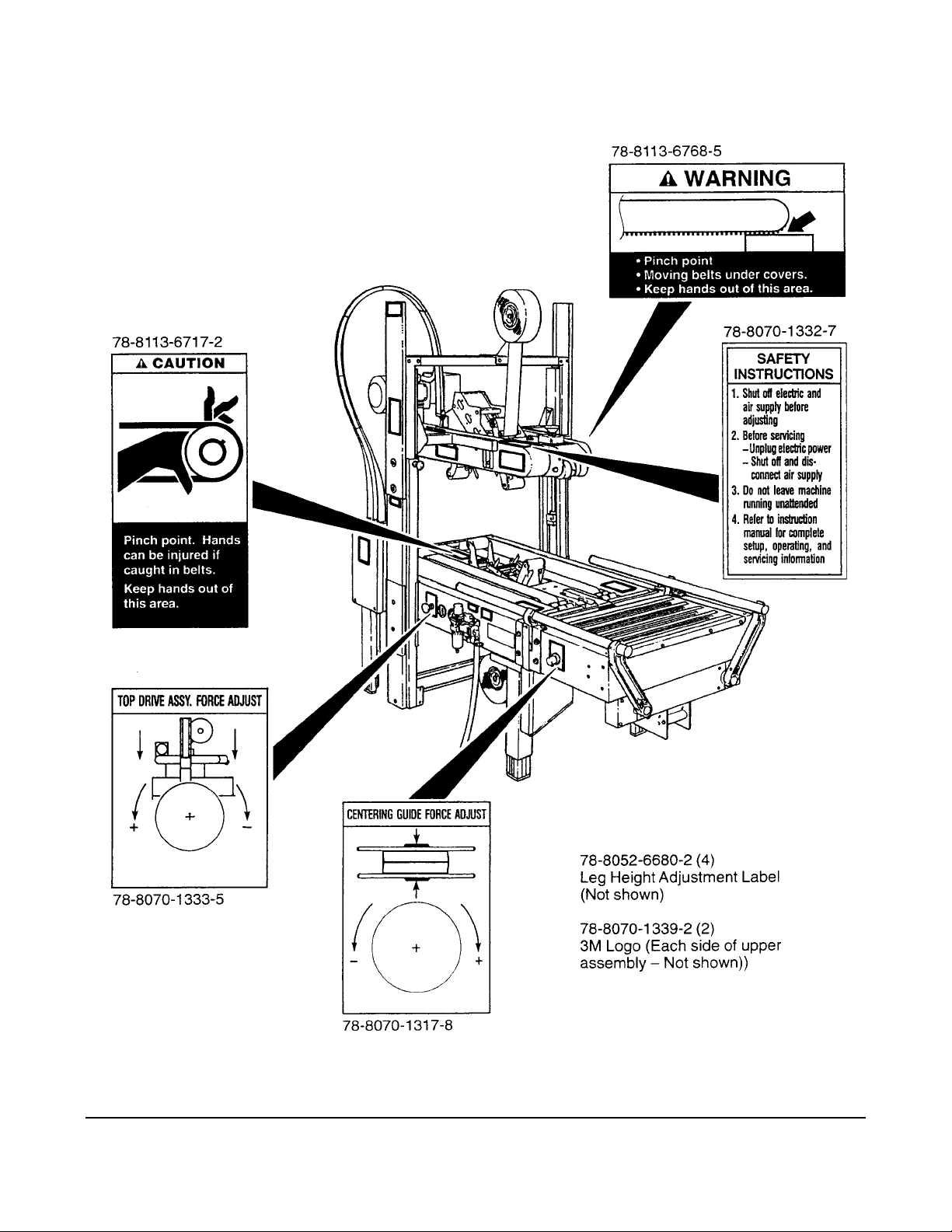

Figure 1-1  Replacement Labels/3M Part Numbers
Any safety or information labels that are scratched,
peeled off, painted over, or otherwise destroyed must
be replaced promptly to assure operator safety.
Replacement part numbers for individual labels are
shown in Figures 1-1, 1-2 and 1-3 or a label kit
(P/N 78-8111-1404-6) is available that includes all
labels used on the machine.

4
Figure 1-2  Replacement Labels/3M Part Numbers
Important Safeguards (Continued)

5
Important Safeguards (Continued)
Figure 1-3  Replacement Labels/3M Part Numbers

6
Important Safeguards (Continued)

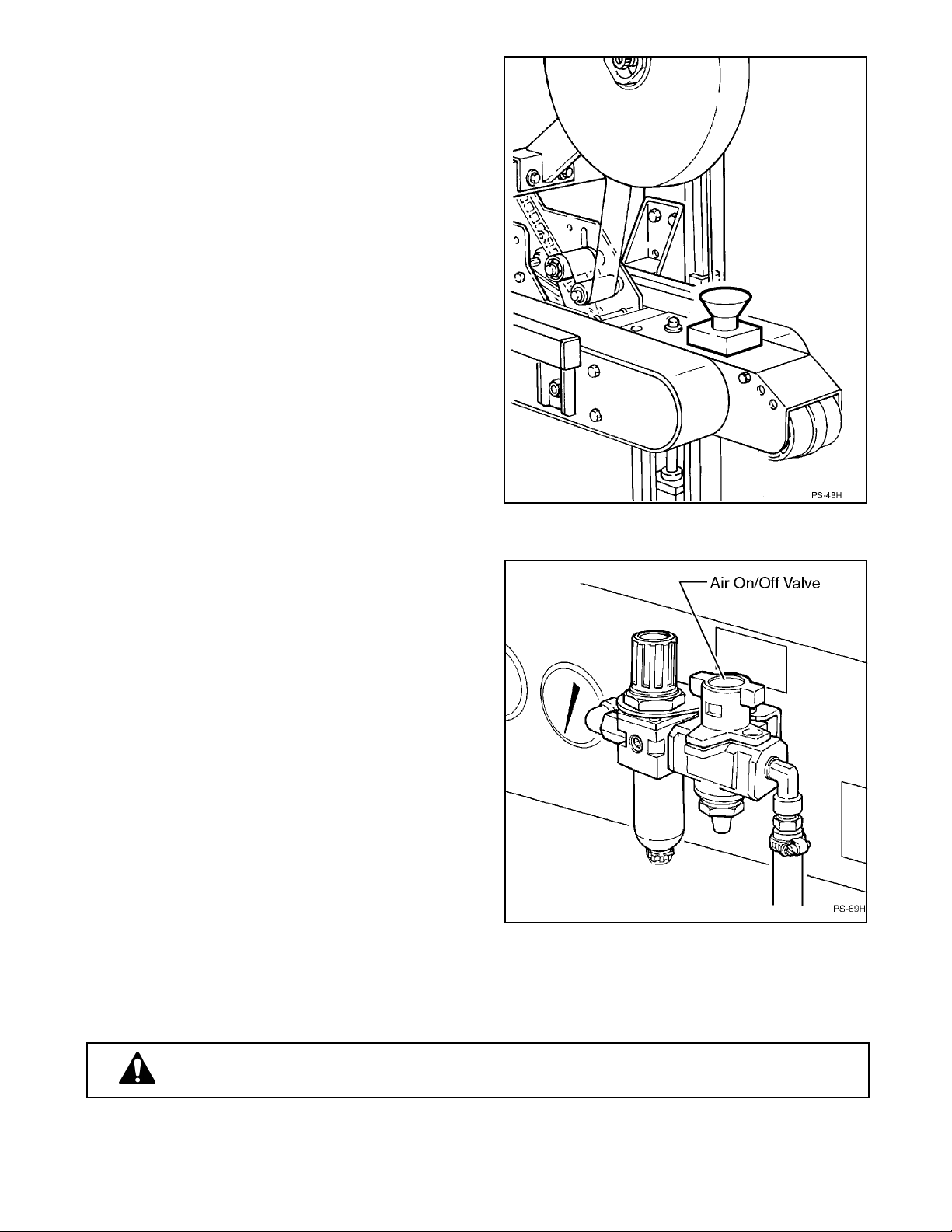

Figure 1-4  Emergency Stop Switch
The 700rks is equipped with a latching emergency
stop switch shown in Figure 1-4. Pressing this
switch stops the machine upper and lower box drive
belts. To unlatch the switch after it has been
pressed, turn the switch knob clockwise.
IMPORTANT  Read"Warnings" on page 18 before set-up, operation, maintenance or adjustments of
case sealer.
This safety alert symbol identifies important safety messages in this manual. Read and
understand them before installing or operating this equipment.
Figure 1-5  Air On/Off Valve
Pneumatic controls  the air on/off valve has
provisions for lock out/tag out according to plant
regulations. See Figure 1-5.

7
1. Power Requirements:
Electrical  115 VAC, 60 Hz, 6.4 A (675 watts)
Pneumatic  85 PSIG [6 bar pressure], 2.5 SCFM
[70 liter/minute @ 2PC, 1.01 bar] maximum at maximum random cycle rate.
A pressure regulator/filter is included.
The machine is equipped with two 1/4 HP gearmotors and comes with an 8 foot [2.4 m] standard neoprene
covered power cord and a grounded plug. Contact your 3M Representative for power requirements not listed
above.
2. Operating Rate:
Up to 15 boxes per minute. Actual production rate is dependent on box size, box size mix, and operator
dexterity.
Box drive belt speed is 78 FPM [24 mpm]
IMPORTANT SAFE UARD
IMPORTANT SAFE UARD
Specifications
3. Operating Conditions:
Use in dry, relatively clean environments at 5o to 40o C [40o to 105o F] with clean, dry boxes.
Note: Machine should not be washed down or subjected to conditions causing moisture condensation on
components.
4. Tape:
ScotchTM brand pressure-sensitive film box sealing tapes.
5. Tape Width:
50 mm [2 inches] minimum to 72 mm [3 inches] maximum
6. Tape Roll Diameter:
Up to 405 mm [16 inches] maximum on a 76.2 mm [3 inch] diameter core.
(Accommodates all system roll lengths of ScotchTM brand film tapes.)
7. Tape Leg Length  Standard:
70 mm ± 6 mm [2-3/4 inches ±1/4 inch]
Tape Leg Length  Optional:
50 mm ± 6 mm [2 inches ±1/4 inch] (See "Special Set-Up Procedure  Tape Leg Length", page 30.)
8. Box Board:
Style  regular slotted containers  RSC
125 to 275 P.S.I. bursting test, single wall or double wall B or C flute.

8
Specifications (Continued)
9. Box Weight and Size Capacities:
A. Box Weight, filled  2.3 kg [5 lbs.] minimum, 38.6 kg [85 lbs] maximum  contents must support flaps.
B. Box Size: Minimum Maximum
Length  150 mm [6 inches] Unlimited
* Width  175 mm [7 inches] 645 mm [25-1/2 inches]
** Height  120 mm [4-3/4 inches] 645 mm [25-1/2 inches]
* Boxes narrower than 200 mm [8 inches] may require more frequent belt replacement because of limited
contact area.
** Minimum/maximum box height dimensions are with machine at factory setting. To accommodate smaller
or larger boxes, machine upper taping head frame and/or outer column assemblies can be re-positioned as
described in "Special Set-Up Procedure", pages 29 - 33 of this manual. Refer to chart below for box height
range desired and then to illustration indicated for machine ad ustments necessary.
Minimum/Maximum Box Height Combinations
Minimum* Maximum Refer to Minimum Maximum Refer to
mm [Inches] mm [Inches] Illustration mm [Inches] mm [Inches] Illustration
120 [4-3/4] 645 [25-1/2] A 280 [11-1/8] 810 [31-7/8] D
175 [6-7/8] 700 [27-5/8] B 275 [10-7/8] 805 [31-5/8] E
230 [9] 755 [29-3/4] C 385 [15-1/8] 910 [35-7/8] F
Note: Shaded area on chart indicates machine setting as shipped from factory.

9
Specifications (Continued)
Minimum/Maximum Box Height Combinations
(To re-locate upper frame or outer columns, see "Special Set-Up Procedure".)
Special modifications may be available for carton sizes not listed on previous page.
Contact your 3M Representative for information.
Note: The case sealer can accommodate most boxes within the size range listed above. However, if
the box length (in direction of seal) to box height ratio is . or less, then several boxes should be
test run to assure proper machine performance.
DETERMINE THE BOX LIMITATIONS BY COMPLETIN THIS FORMULA:
BOX LEN TH IN DIRECTION OF SEAL SHOULD BE REATER THAN .5
BOX HEI HT
Any box ratio approaching this limitation should be test run to assure performance.
Note: Length of boxes in illustrations above are not to scale.

10
Note - Dimension "E" is with outer columns in standard (lower) position If columns are moved to upper
position, dimension "E" (min/max) increases by 108 mm [4-1/4 inches].
Weight - 225 kg [500 pounds] crated (approximate)
200 kg [430 pounds] uncrated (approximate)
11. Set-Up Recommendations:
 Machine must be level.
 Customer supplied infeed and exit conveyors (if used) should provide straight and level box entry and exit.
 Exit conveyors (powered or gravity) must convey sealed boxes away from machine.
Specifications (Continued)
10. Machine Dimensions:
AB C D E F
Minimum
mm 1530 1080 855 725 1595 520
[Inches] [60-1/4] [42-1/2] [33-3/4] [28-1/2] [62-3/4] [20-1/2]
Maximum
mm - - - - - - - - 2215 785
[Inches] [87-1/4] [31]

11
Installation and Set-Up
Receiving And Handling
After the machine has been uncrated, examine the
case sealer for damage that might have occurred
during transit. If damage is evident, file a
damage claim immediately with the transportation
company and also notify your 3M Representative.
Figure 2-1  700rks Frame Set-Up
Machine Set-Up
It is recommended that the case sealer be set-up and
operated with product before placing it in the
production line. This approach will allow your
thorough review and familiarization with the 700rks
before sub ecting it and operating personnel to a
production situation where time for set-up,
ad ustments, and operator training usually becomes
limited.
The following instructions are presented in the order
recommended for setting up and installing the case
sealer. Following them step by step will result in an
installation in your production line that best utilizes
the many features built into the case sealer. Refer to
Figure 3-1 and 3/2 to identify the various components
of the machine.
For future reference, record machine serial number on
front cover of this instruction manual in the space
provided.
IMPORTANT  Read "Warnings" on page 18
before attempting to set-up the case sealer for
operation.
1. Follow "Unpacking Instructions" label attached to
corrugated packing cover.
2. Remove the four angle brackets that secure the
machine legs to the shipping pallet.

12
Installation and Set-Up (Continued)
Figure 2-2  Machine Bed Height Adjustment and Lower Tape Drum Bracket Position
3. Use appropriate material handling
equipment to remove the machine from the
pallet and move it into position.
Whenever the machine is lifted with a fork
truck, insure that the forks span completely
across the machine frame and do not
contact any wiring or mechanism under the
machine frame. In some cases the lower
taping head may need to be removed to
avoid damage.
7. Remove the plastic ties that secure the lower
taping head in place.
8. Ad ust case sealer bed height. The case sealer
is equipped with four ad ustable legs that are
located at the corners of the machine frame. The
legs can be ad usted to obtain different machine
bed heights from 520 mm [20-1/2 inches]
minimum to 785 mm [31 inches] maximum.
Refer to Figure 2-2A and set the machine bed
height as follows:
a. Block up the machine frame to allow
adequate leg ad ustment.
b. Loosen, but do not remove, two socket head
screws in one leg (use M6 hex wrench).
Ad ust the leg length for the desired machine
bed height. Retighten the two screws to
secure the leg. Ad ust all four legs equally.
CAUTION  Machine weighs
approximately 200 kg [430 lbs]
uncrated.
4. Remove tie down straps on either side of the
upper taping head frame assembly.
5. Install upper tape drum bracket on the inner
column assembly crossbar as shown in
Figure 2-1.
6. The column guards have been shipped loose with
the machine. Install the guards on the outer
columns as shown in Figure 2-1 using screws,
washers and bumper stop plates that are shipped
installed on the outer columns.

13
Installation and Set-Up (Continued)
10. Tape width  the taping heads have been pre-set
to accommodate 48 mm [2 inch] wide tape rolls.
To apply 72 mm [3 inch] wide tape refer to
Section II, "Ad ustments  Tape Web Alignment",
page 11.
11. Tape leg length  taping heads are pre-set to
apply 70 mm [2-3/4 inch] long tape legs. To
change tape leg length to 48 mm [2 inch], see
"Special Set-Up Procedure  Tape Leg Length",
page 30.
12. Box size capacity (height)  at its factory setting,
the 700rks case sealer handles box sizes up to
650 mm [25-1/2 inches] maximum height. If
larger capacity is needed, the machine can be
ad usted to accommodate up to 915 mm
[36 inch] high boxes. Refer to chart, "Minimum/
Maximum Box Height Combinations Available",
page 8.
9. Lower tape drum bracket. The tape drum
bracket may be mounted in either of two
positions on the taping head or an alternate
outboard position. These positions allow
maximum tape roll capacity at a particular
machine bed height.
For machine bed heights 635 mm [25 inches]
and above, bracket should be straight down as
shown in Figure 2-2B.
For machine bed heights from 570 to 635 mm
[22-1/2 to 25 inches], loosen hex spacer, remove
screws (2) and pivot bracket forward as shown in
Figure 2-2B. Replace and tighten screws and
hex spacer.
For machine bed heights below 570 mm
[22-1/2 inches], remove hex spacer and screws
that secure the tape drum bracket to the taping
head. Install tape drum bracket on the infeed
end of the machine frame with the hex spacer
and screws as shown in Figure 2-2C.

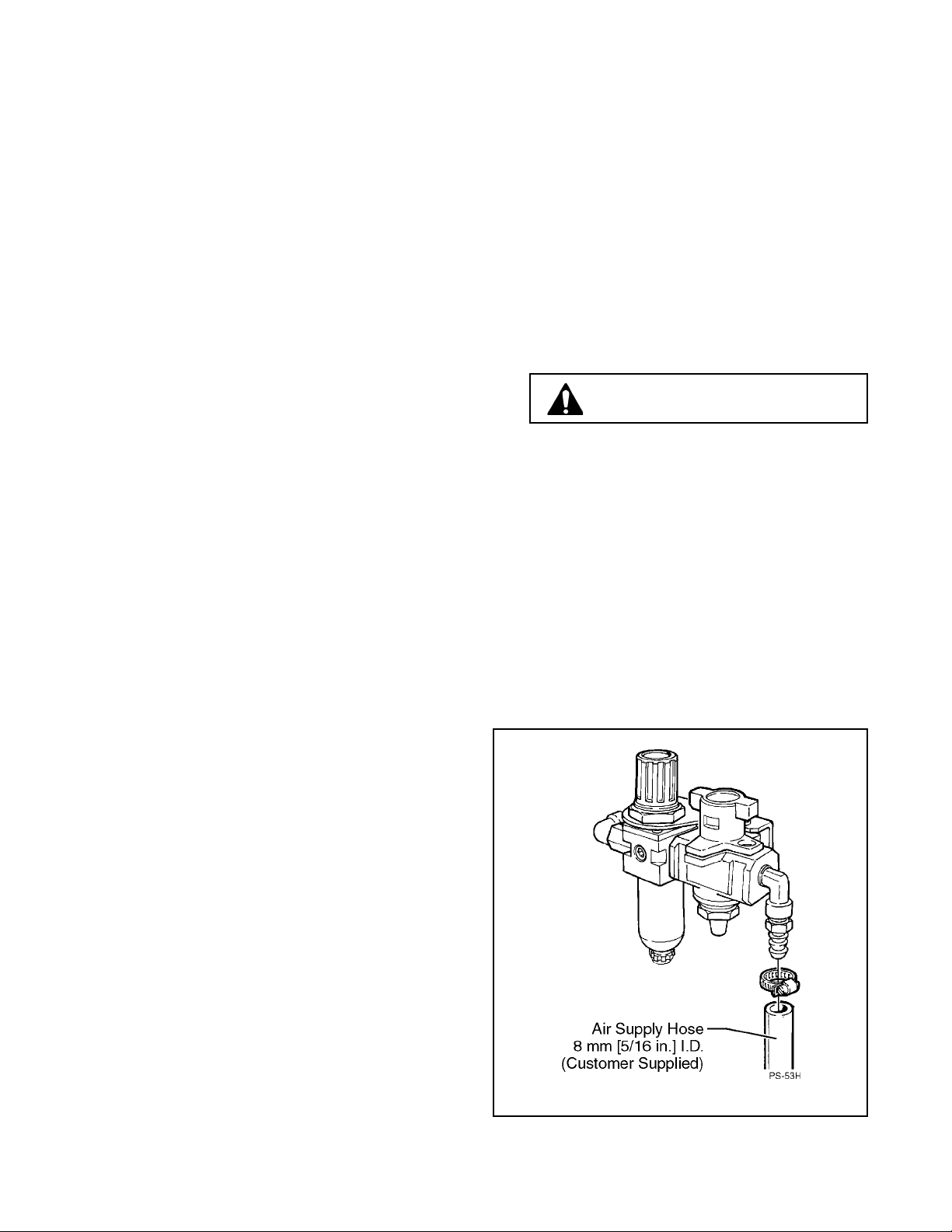

Figure 2-3  Pneumatic Connection
13. Upper frame assembly  operating range.
The operating speed of the 700rks case sealer
can be increased by re-positioning the upper
column stop bumpers within the range of boxes
being sealed. This re-positioning reduces the
downward movement of the upper frame thereby
increasing operating speed.
To ad ust the stop bumpers, see "Special Set-Up
Procedure  Upper Frame Assembly, Operating
Range", page 29.
14. Pneumatic Connection
WARNIN  Use care when working
with compressed air.
The case sealer requires an 85 PSIG [6.5 bar
gauge pressure] 2.5 SCFM [75 liter/min @21°C,
1.01 bar] compressed air supply.
Using customer supplied air hose (5/16 inch
[8 mm] I.D.) and clamp provided with machine,
connect plant air to barbed fitting on inlet side of
"On/Off valve. See Figure 2-3. Note: If another
type of connector is desired, the barbed fitting
can be replaced with the desired 1/4-18 NPT
connector.
Note  The air valve has provisions for lockout/
tagout according to plant regulations.

14
Installation and Set-Up (Continued)
Initial Start-Up of Case Sealer
After completing the "Installation and Set-Up"
procedure, continue through ""Operation" for tape
loading and start-up to be sure case sealer is
properly ad usted to seal boxes.
15. Electrical connection and controls  the
electrical control box (with circuit breaker) and
"On/Off" switch is located on the left side of the
machine frame. See Figure 3-1. A standard
three conductor power cord with plug is provided
at the back of the electrical control box for 115
Volt, 60 Hz, 6.4 Amp electrical service. Before
the power cord is plugged into 115 Volt, 60 Hz
outlet, make sure that all packaging materials
and tools are removed from the machine. Do not
plug electrical cord into outlet until ready to
run machine.
Use of an extension cord is not recommended.
However, if one is needed for temporary use, it
must have a wire size of 1.5 mm diameter
[AWG 16], have a maximum length of 30.5 m
[100 feet], and must be properly grounded.
Note - Machines outside the U.S. may be
equipped with 220/240 Volt, 0 Hz systems,
or other electrical requirements compatible
with local practice.
WARNIN  To prevent shock and fire
hazard: Position extension cord
where it will be out of the way of foot or
vehicle traffic. Extension cord is only for
temporary use  do not use for a
permanent installation.

15
Operation
IMPORTANT  Before operating the case sealer, read all the "Important Safeguards", pages 3-5 and
"Warnings" on page 18 as well as all of the "Operation" instructions.
Refer to Figure 3-1 to acquaint yourself with the various components and controls of the case sealer. Also see
Figures 3-1 and 3-2 in Section II for taping head components.
Figure 3-1  Case Sealer Components
