3M 6100 Instruction Manual

5015911 P1R
5925 P2R
5935 P3R
6057 ABE1
6059 ABEK1
6075 A1+Form
6051 A1
6055 A2
6054 K1
6096 A1HgP3R
Main Features
The 3M™ 6000 Series Reusable Half Masks are proven to be
simple to handle and comfortable to the wearer. The new
exhalation port provides increased durability, easy cleaning and
reduced breathing resistance which helps to increase your comfort.
Available in three sizes, all masks have the 3M bayonet connection
system allowing connection to a broad range of twin lightweight
filters to protect against gases, vapours and particulates depending
on your individual needs.
The main features include:
Reusable, low maintenance half mask.•
Soft, lightweight elastomeric respirator ensures comfort during•
long periods of work.
Flexible System (gas & vapour and / or particulate filters plus•
Supplied-Air option).
Twin filter design provides lower breathing resist ance, a more•
balanced fit, and improves field of vision.
Cost eective replacement filters.•
Safe, secure Bayonet filter attachment system.•
Easy and secure fitting.•
3 sizes (small - 6100, medium - 6200, large - 6300)•
Face piece weight: 82 grams.•
Applications
The 6000 Series Respirators can be used with a variety of
dierent filter options:
Gas and Vapour Filters only: The filters generally protect
against either single or multiple contaminant type(s).
The• 6000 Series filters fit directly onto the respirator except for
the 6098 and 6099.
Particulate filters only: These filters provide protection against
solid and non-volatile liquid particles.
The• 2000 Series particulate filters fit directly onto the
respirator.
The• 5000 Series particulate filters may be used on their own
with platform 603 and 501 retainers.
The 6035 & 6038 are encapsulated P3 R filters, which fit•
directly onto the respirator.
Combination of Gas & Vapour and Particulate filters:
The• 5000 Series particulate filters can be used with 6000
Series Gas and Vapour filters using 501 retainers excluding the
6035, 6038, 6096, 6098 and 6099.
The 6096 has a Particulate filter media integrated with the Gas•
and Vapour cartridge.
The 6038 is an encapsulated particulate filter with a layer of•
carbon for low capacity gas protection.
Supplied-Air mode: All filters can be used with S-200 Supplied
Air Regulator except for the P1 R (5911) and P2 R (5925, 2125
and 2128) filters, and 6098 and 6099.
3M™ 6000 Series Reusable Half Masks
6035 P3R
6038 P3R(HF)
2125 P2R
2128 P2R
2135 P3R
2138 P3R
c
l
i
c
k
!
Supplied-Air option
Technical
Datasheet
s
a
f
e
&
q
u
i
c
k

FILTER IMAGE STANDARD CLASS HAZARD INDUSTRY
6 0 51 (0 6 9 11)
605 5 (06915)
EN14 3 87: 20 0 4
+A1:2 0 08
A1
A2
Organic Vapours
(b.pt. > 65°C)
- Anywhere conventional paints are used
(non-isocyanates, subject to usage condi-
tions)
- Vehicle manufacture
- Aircraft manufacture and refurbishment
- Boat Building
- Ink and dye manufacture and use
- Adhesive manufacture and use
- Paint and varnish manufacture
- Resin manufacture and use
6054 EN14 3 87: 2 0 0 4
+A1:2 0 08 K1 Ammonia &
derivatives
- Manufacture and Maintenance of refrigera-
tion equipment
- Spraying and handling Agrochemicals
6057 E N14 3 87: 200 4
+A1:2 0 08 ABE1
Combination organic vapours
(b.pt. >65ºC),
inorganic & acid gases
As 6051, but including:
- Electrolytic processes
- Acid Cleaning
- Metal Pickling
- Metal Etching
6059 EN14387: 20 04
+A1:2 0 08 ABEK1
Combination organic vapours
(b.pt. >65ºC), inorganic & acid
gases & Ammonia
As 6057 & 6054
6075 E N14387: 2004
+A1:2 0 08
A1 +
Formaldehyde
Organic Vapours
(b.pt. >65ºC) &
Formaldehyde
As 6051 but also:
- Hospitals and Laboratories
6096 EN14 3 87: 20 0 4
+A1:2 0 08 A1HgP3 R
Organic vapours (b.pt.
>65ºC), Mercury vapour,
Chlorine & Particulates
- Use of Mercury & Chlorine
- Particulate applications
FILTER IMAGE STANDARD CLASS HAZARD INDUSTRY
5911
5925(06925)
5935
EN143:2000 +
A1:2 0 06
P1
P2
P3
Particulates (Fine
Dusts & Mists)
- Pharmaceutical / Powdered Chemicals
- Construction / Quarrying
- Ceramics / Refractory materials
- Foundries
- Agriculture
- Woodworking
- Food Industry
2125
2135
EN143:2000 +
A1:2 0 06
P2 R
P3 R
Particulates (Fine
Dusts & Mists)
- Pharmaceutical / Powdered Chemicals
- Construction / Quarrying
- Ceramics / Refractory materials
- Foundries
- Agriculture
- Woodworking
- Food Industry
2128
2138
EN143:2000 +
A1:2 0 06
P2 R
P3 R
Particulates, Ozone &
nuisance levels of Organic
Vapours & Acid Gases
- Welding
- Paper Industry
- Brewing
- Chemical Processing
- Typical Smog
- Inks and Dyes
6035 EN143:2000 +
A1:2 0 06 P3 R Particulates (Fine
Dusts & Mists)
- Pharmaceutical / Powdered Chemicals
- Construction / Quarrying
- Ceramics / Refractory materials
- Foundries
- Agriculture
- Woodworking
- Food Industry
6038 EN143:2000 +
A1:2 0 06 P3 R
Particulates, Hydrogen
Fluoride at 10 x TLV,
Nuisance levels of Organic
Vapours &
Acid Gases
As 6035 but also:
- Aluminium smelting
- Mining
Gas and Vapour Filters:
Particulate Filters:
Approvals
The 3M 6000 Series Respirators and 6000/5000/2000 Series
Filters have been shown to meet the Basic Safety Requirements
under Article 10 and 11 of the European Community Directive
89/686/EEC, and are thus CE-marked. These products were
examined at the design stage by: BSI Product Services, Kitemark
House, Maylands Avenue, Hemel Hempstead, Herts, HP2 4SQ,
England (Notified Body 0086).
Standards
These products have been tested to the relevant European Standards:
6000 Series Half Masks to EN140: 1998.•
6000 Series Gas and Vapour filters to EN14387:2004 +•
A1:2008
2000 and 5000 Series and 6035, 6038 Particulate filters to•
EN143: 2000 + A1:2006.
Correct Usage
When the 6000 Series Half Mask is fitted with
Gas & Vapour Filters:
6000 Series gas and vapour filters, it may be used in•
concentrations of gases or vapours (types specified by 3M) up
to 50 x the Threshold Limit Value (TLV) or 1000ppm (5000ppm
for 6055) whichever value is lower.
6075 oers protection against organic vapour (as above) and•
10ppm formaldehyde only.
6000 Series gas and vapour filters should not be used to•
protect the wearer against a gas or vapour that has poor
warning properties (smell or taste).
When the 6000 Series Half Mask is fitted with
Particulate Filters:
5911 filters may be used in concentrations of particulates up to•
4 x TLV.
5925, 2125 or 2128 filters may be used in concentrations of•
particulates up to 12 x TLV.
5935, 2135, 2138 or 6035, 6038 filters may be used in•
concentrations of particulates up to 50 x TLV.
2128 and 2138 filters may be used to protect against ozone•
up to 10 x TLV and oers relief from acid gases and organic
vapours at levels below the TLV.
6038 oers protection against 10 x TLV Hydrogen Fluoride•
and oers relief from acid gases and organic vapours at levels
below the TLV.
Cleaning and Storage
Cleaning is recommended after each use.
Disassemble by removing the filters, head straps and other1.
parts.
Clean and sanitize the mask (excluding filters) using 3M™2.
105 Face Seal Cleaner or immersing in warm cleaning
solution and scrubbing with a soft brush until clean. Parts
may also be cleaned in a domestic washer.
Disinfect respirator by soaking in a solution of quaternary3.
ammonium disinfectant or sodium hypochlorite (30 ML
household bleach in 7.5L of water) or other disinfectant.
Rinse in fresh, warm water and air-dry in noncontaminated4.
atmospheres.
Water temperature should not exceed 50°C.
Do not use cleaning agents that contain lanolin
or other oils.
Do not autoclave. .
Use Limitations
These respirators do not supply oxygen. Do not use in oxygen1.
deficient areas.*
Do not use for respiratory protection against atmospheric2.
contaminants, which have poor warning properties, are
unknown or immediately dangerous to life and health, or
against chemicals, which generate high heats of reaction
with chemical filters. (The 3M S-200 Supplied-Air Respirator
System can be used against contaminants with poor warning
properties, subject to other use limitations).
Do not modify or alter this device.3.
The assembled respirator may not provide a satisfactory face4.
seal with certain physical characteristics (such as beards or
large side burns) resulting in leakage between the respirator
and the face. The user assumes all risks of bodily injury,
which may possibly result.
Do not use with unknown concentrations of contaminants.5.
Do not use for escape purposes.6.
Leave the work area immediately and check the integrity of7.
the respirator and replace respirator and / or filters if:
Damage has occurred or is apparent.•
Breathing becomes dicult or increased breathing•
resistance occurs.
Dizziness or other distress occurs.•
You taste or smell the contaminant or an irritation occurs.•
Store this device in a sealed container away from8.
contaminated areas when not in use.
Use strictly in accordance with respirator and filter9. user
instruction leaflet.
* 3M definition minimum 19.5% by volume oxygen

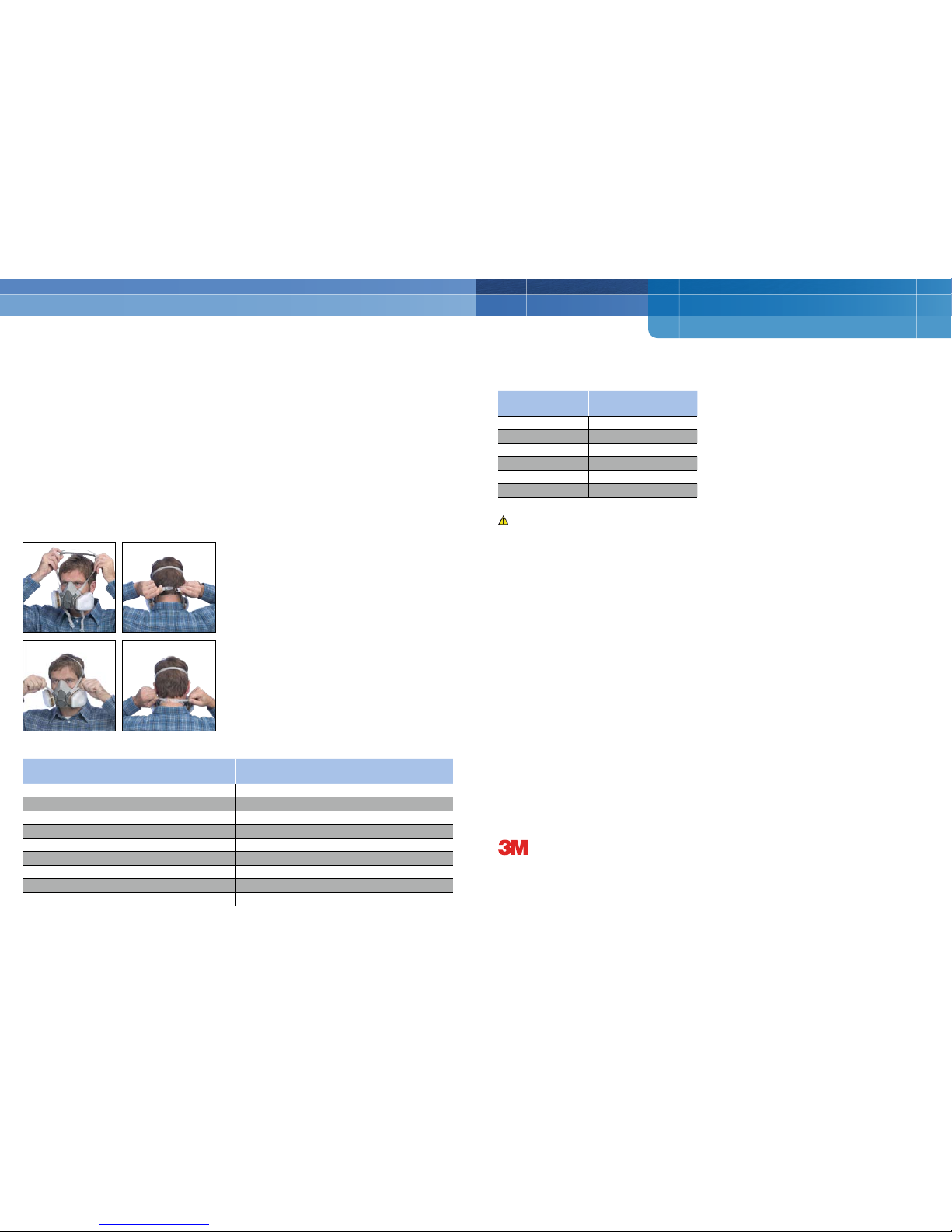

Fitting Instructions
Before assigning any respirator to be worn in a contaminated
area, we recommend that a qualitative or quantitative fit check
be performed before entering the workplace.
Fitting instructions must be followed each time the respirator is worn.
Place the respirator over the mouth and nose, then pull the1.
harness over the crown of the head.
Take the bottom straps in both hands, place them at the back2.
of the neck and hook them together.
Tighten the top straps first by pulling on ends to achieve a3.
comfortable and secure fit.
Tighten bottom straps using either front or rear adjustments.4.
(Strap tension may be decreased by pushing out on back side
of buckles).
Fit Check
Perform a positive and/or negative pressure fit check each time
the respirator is donned.
Positive pressure Face Fit check (all Filters except 3M™
6035, 6038 / 2000 Series Filters).
Place the palm of the hand over the exhalation valve cover1.
and exhale gently.
If the respirator bulges slightly and no air leakage between2.
the face and the respirator is detected, a proper fit has been
achieved.
If air leakage is detected, reposition the respirator on the3.
face and/or readjust the tension of the strap to eliminate the
leakage.
Repeat the above face fit check.4.
If you cannot achieve a proper fit, do not enter the5.
contaminated area. See your supervisor.
Negative pressure face fit check (3M™ 6035, 6038 / 2000
Series Filters)
Push the filter cover down (6035, 6038) or press your thumbs1.
into the central indentation of the filters (2000 series), inhale
gently and hold your breath for five or ten seconds.
If the respirator collapses slightly, a proper fit has been2.
achieved.
If air leakage is detected, reposition the respirator on the3.
face and/or readjust the tension of the straps to eliminate the
leakage.
Repeat the above face fit check.4.
If you cannot achieve a proper fit, do not enter the5.
contaminated area. See your supervisor.
Materials
PART MATERIAL
Face Mask Thermoplastic Elastomer
Head Harness Polyethylene
Head Strap Polyester / cotton / Polyisoprene
Inhalation Valve Polyisoprene
Exhalation Valve Silicone Rubber
Gasket Silicone Rubber
6000 Filter Body Polystryrene
6000 Filter Element Activated / Treated Carbon
5000 / 2000 Series Filter material Polypropylene
Please recycle.
© 3M 2010. All rights reserved.
3M a/s
Sikkerhedsprodukter
Fabriksparken 15
DK-2600 Glostrup
Telefon: [phone]
Fax: [phone]
E-mail: [e-mail]
www.3Msikkerhed.dk
Important Notice
3M does not accept liability of any kind, be it direct or consequential (including, but not limited to, loss of profits, business and/or goodwill)
arising from reliance upon any information herein provided by 3M. The user is responsible for determining the suitability of the products
for their intended use. Nothing in this statement will be deemed to exclude or restrict 3M’s liability for death or personal injury arising from
its negligence.
Spare parts
PART MATERIAL
6895 Inhalation Gasket
501 Retainer for 5000 Series Filters
603 Particulate Filter Platform
105 Face Seal Cleaner
S-200 Supplied Air Regulator
106 Half Mask Carry Case
Respiratory Protection is only eective if it is correctly
selected, fitted and worn throughout the time when the
wearer is exposed to respiratory contaminants.
3M oers advice on the selection of products, and training in the
correct fitting and usage.
For more information on 3M products and services please
call the 3M Health & Safety Helpline.
DS65/000125-1
